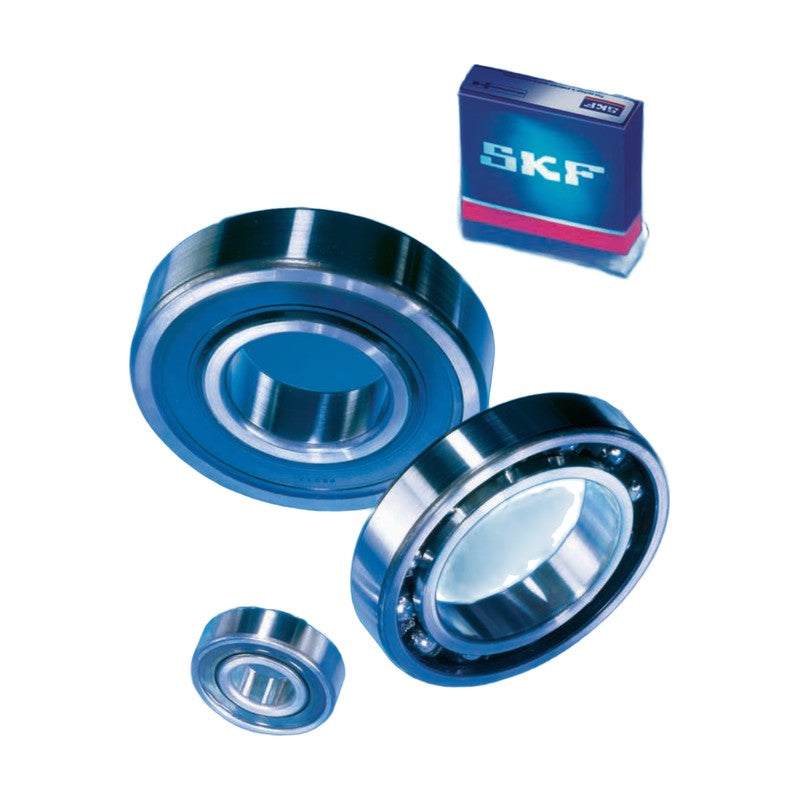

SKF 42 and 43 Series Double Row Deep Groove Ball Bearings

SKF 42 and 43 Series Double Row Deep Groove Ball Bearings

SKF double row deep groove ball bearings of the 42 and 43 series, corresponding in design to single row deep groove ball bearings but with higher radial load carrying capacity.

Key features

  • Two rows of balls for higher radial load capacity than single row bearings
  • Deep raceway grooves accommodate axial loads in both directions
  • Suitable where single row bearings have insufficient load carrying capacity
  • Glass fibre reinforced polyamide cage (TN9)
  • Non-separable design

Specifications

Bearing type Double row deep groove ball bearing
Series 42, 43
Cage Polyamide (TN9)
Design Non-separable
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 394-397
4200 ATN9 d: 10 mm | D: 30 mm | B: 14 mm | C: 9.23 kN | C0: 5.2 kN | Limiting speed: 22000 r/min
4201 ATN9 d: 12 mm | D: 32 mm | B: 14 mm | C: 10.6 kN | C0: 6.2 kN | Limiting speed: 20000 r/min
4301 ATN9 d: 12 mm | D: 37 mm | B: 17 mm | C: 13 kN | C0: 7.8 kN | Limiting speed: 18000 r/min
4202 ATN9 d: 15 mm | D: 35 mm | B: 14 mm | C: 11.9 kN | C0: 7.5 kN | Limiting speed: 17000 r/min
4302 ATN9 d: 15 mm | D: 42 mm | B: 17 mm | C: 14.8 kN | C0: 9.5 kN | Limiting speed: 15000 r/min
4203 ATN9 d: 17 mm | D: 40 mm | B: 16 mm | C: 14.8 kN | C0: 9.5 kN | Limiting speed: 15000 r/min
4303 ATN9 d: 17 mm | D: 47 mm | B: 19 mm | C: 19.5 kN | C0: 13.2 kN | Limiting speed: 13000 r/min
4204 ATN9 d: 20 mm | D: 47 mm | B: 18 mm | C: 17.8 kN | C0: 12.5 kN | Limiting speed: 13000 r/min
4304 ATN9 d: 20 mm | D: 52 mm | B: 21 mm | C: 23.4 kN | C0: 16 kN | Limiting speed: 12000 r/min
4205 ATN9 d: 25 mm | D: 52 mm | B: 18 mm | C: 19 kN | C0: 14.6 kN | Limiting speed: 11000 r/min
4305 ATN9 d: 25 mm | D: 62 mm | B: 24 mm | C: 31.9 kN | C0: 22.4 kN | Limiting speed: 10000 r/min
4206 ATN9 d: 30 mm | D: 62 mm | B: 20 mm | C: 26 kN | C0: 20.8 kN | Limiting speed: 9500 r/min
4306 ATN9 d: 30 mm | D: 72 mm | B: 27 mm | C: 41 kN | C0: 30 kN | Limiting speed: 8500 r/min
4207 ATN9 d: 35 mm | D: 72 mm | B: 23 mm | C: 35.1 kN | C0: 28.5 kN | Limiting speed: 8000 r/min
4307 ATN9 d: 35 mm | D: 80 mm | B: 31 mm | C: 50.7 kN | C0: 38 kN | Limiting speed: 7500 r/min
4208 ATN9 d: 40 mm | D: 80 mm | B: 23 mm | C: 37.1 kN | C0: 32.5 kN | Limiting speed: 7000 r/min
4308 ATN9 d: 40 mm | D: 90 mm | B: 33 mm | C: 55.9 kN | C0: 45 kN | Limiting speed: 6700 r/min
4209 ATN9 d: 45 mm | D: 85 mm | B: 23 mm | C: 39 kN | C0: 36 kN | Limiting speed: 6700 r/min
4309 ATN9 d: 45 mm | D: 100 mm | B: 36 mm | C: 68.9 kN | C0: 56 kN | Limiting speed: 6000 r/min
4210 ATN9 d: 50 mm | D: 90 mm | B: 23 mm | C: 41 kN | C0: 40 kN | Limiting speed: 6000 r/min
4310 ATN9 d: 50 mm | D: 110 mm | B: 40 mm | C: 81.9 kN | C0: 69.5 kN | Limiting speed: 5300 r/min
4211 ATN9 d: 55 mm | D: 100 mm | B: 25 mm | C: 44.9 kN | C0: 44 kN | Limiting speed: 5600 r/min
4311 ATN9 d: 55 mm | D: 120 mm | B: 43 mm | C: 97.5 kN | C0: 83 kN | Limiting speed: 5000 r/min
4212 ATN9 d: 60 mm | D: 110 mm | B: 28 mm | C: 57.2 kN | C0: 55 kN | Limiting speed: 5300 r/min
4312 ATN9 d: 60 mm | D: 130 mm | B: 46 mm | C: 112 kN | C0: 98 kN | Limiting speed: 4500 r/min
4213 ATN9 d: 65 mm | D: 120 mm | B: 31 mm | C: 67.6 kN | C0: 67 kN | Limiting speed: 4800 r/min
4313 ATN9 d: 65 mm | D: 140 mm | B: 48 mm | C: 121 kN | C0: 106 kN | Limiting speed: 4300 r/min
4214 ATN9 d: 70 mm | D: 125 mm | B: 31 mm | C: 70.2 kN | C0: 73.5 kN | Limiting speed: 4300 r/min
4314 ATN9 d: 70 mm | D: 150 mm | B: 51 mm | C: 138 kN | C0: 125 kN | Limiting speed: 3800 r/min
4215 ATN9 d: 75 mm | D: 130 mm | B: 31 mm | C: 72.8 kN | C0: 80 kN | Limiting speed: 4000 r/min
4315 ATN9 d: 75 mm | D: 160 mm | B: 55 mm | C: 156 kN | C0: 143 kN | Limiting speed: 3600 r/min
4216 ATN9 d: 80 mm | D: 140 mm | B: 33 mm | C: 80.6 kN | C0: 90 kN | Limiting speed: 3800 r/min
4217 ATN9 d: 85 mm | D: 150 mm | B: 36 mm | C: 93.6 kN | C0: 102 kN | Limiting speed: 3600 r/min
4218 ATN9 d: 90 mm | D: 160 mm | B: 40 mm | C: 112 kN | C0: 122 kN | Limiting speed: 3400 r/min
4220 ATN9 d: 100 mm | D: 180 mm | B: 46 mm | C: 140 kN | C0: 156 kN | Limiting speed: 3000 r/min
Deep Groove Ball BearingsSKF
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 42 and 43 Series Double Row Deep Groove Ball Bearings

Brand SKF·Deep Groove Ball Bearings

Available part numbers (35)

4200 ATN9, 4201 ATN9, 4301 ATN9, 4202 ATN9, 4302 ATN9, 4203 ATN9, 4303 ATN9, 4204 ATN9, 4304 ATN9, 4205 ATN9 + 25 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
4200 ATN9d: 10 mm | D: 30 mm | B: 14 mm | C: 9.23 kN | C0: 5.2 kN | Limiting speed: 22000 r/min
4201 ATN9d: 12 mm | D: 32 mm | B: 14 mm | C: 10.6 kN | C0: 6.2 kN | Limiting speed: 20000 r/min
4301 ATN9d: 12 mm | D: 37 mm | B: 17 mm | C: 13 kN | C0: 7.8 kN | Limiting speed: 18000 r/min
4202 ATN9d: 15 mm | D: 35 mm | B: 14 mm | C: 11.9 kN | C0: 7.5 kN | Limiting speed: 17000 r/min
4302 ATN9d: 15 mm | D: 42 mm | B: 17 mm | C: 14.8 kN | C0: 9.5 kN | Limiting speed: 15000 r/min
4203 ATN9d: 17 mm | D: 40 mm | B: 16 mm | C: 14.8 kN | C0: 9.5 kN | Limiting speed: 15000 r/min
4303 ATN9d: 17 mm | D: 47 mm | B: 19 mm | C: 19.5 kN | C0: 13.2 kN | Limiting speed: 13000 r/min
4204 ATN9d: 20 mm | D: 47 mm | B: 18 mm | C: 17.8 kN | C0: 12.5 kN | Limiting speed: 13000 r/min
4304 ATN9d: 20 mm | D: 52 mm | B: 21 mm | C: 23.4 kN | C0: 16 kN | Limiting speed: 12000 r/min
4205 ATN9d: 25 mm | D: 52 mm | B: 18 mm | C: 19 kN | C0: 14.6 kN | Limiting speed: 11000 r/min
4305 ATN9d: 25 mm | D: 62 mm | B: 24 mm | C: 31.9 kN | C0: 22.4 kN | Limiting speed: 10000 r/min
4206 ATN9d: 30 mm | D: 62 mm | B: 20 mm | C: 26 kN | C0: 20.8 kN | Limiting speed: 9500 r/min
4306 ATN9d: 30 mm | D: 72 mm | B: 27 mm | C: 41 kN | C0: 30 kN | Limiting speed: 8500 r/min
4207 ATN9d: 35 mm | D: 72 mm | B: 23 mm | C: 35.1 kN | C0: 28.5 kN | Limiting speed: 8000 r/min
4307 ATN9d: 35 mm | D: 80 mm | B: 31 mm | C: 50.7 kN | C0: 38 kN | Limiting speed: 7500 r/min
4208 ATN9d: 40 mm | D: 80 mm | B: 23 mm | C: 37.1 kN | C0: 32.5 kN | Limiting speed: 7000 r/min
4308 ATN9d: 40 mm | D: 90 mm | B: 33 mm | C: 55.9 kN | C0: 45 kN | Limiting speed: 6700 r/min
4209 ATN9d: 45 mm | D: 85 mm | B: 23 mm | C: 39 kN | C0: 36 kN | Limiting speed: 6700 r/min
4309 ATN9d: 45 mm | D: 100 mm | B: 36 mm | C: 68.9 kN | C0: 56 kN | Limiting speed: 6000 r/min
4210 ATN9d: 50 mm | D: 90 mm | B: 23 mm | C: 41 kN | C0: 40 kN | Limiting speed: 6000 r/min
4310 ATN9d: 50 mm | D: 110 mm | B: 40 mm | C: 81.9 kN | C0: 69.5 kN | Limiting speed: 5300 r/min
4211 ATN9d: 55 mm | D: 100 mm | B: 25 mm | C: 44.9 kN | C0: 44 kN | Limiting speed: 5600 r/min
4311 ATN9d: 55 mm | D: 120 mm | B: 43 mm | C: 97.5 kN | C0: 83 kN | Limiting speed: 5000 r/min
4212 ATN9d: 60 mm | D: 110 mm | B: 28 mm | C: 57.2 kN | C0: 55 kN | Limiting speed: 5300 r/min
4312 ATN9d: 60 mm | D: 130 mm | B: 46 mm | C: 112 kN | C0: 98 kN | Limiting speed: 4500 r/min
4213 ATN9d: 65 mm | D: 120 mm | B: 31 mm | C: 67.6 kN | C0: 67 kN | Limiting speed: 4800 r/min
4313 ATN9d: 65 mm | D: 140 mm | B: 48 mm | C: 121 kN | C0: 106 kN | Limiting speed: 4300 r/min
4214 ATN9d: 70 mm | D: 125 mm | B: 31 mm | C: 70.2 kN | C0: 73.5 kN | Limiting speed: 4300 r/min
4314 ATN9d: 70 mm | D: 150 mm | B: 51 mm | C: 138 kN | C0: 125 kN | Limiting speed: 3800 r/min
4215 ATN9d: 75 mm | D: 130 mm | B: 31 mm | C: 72.8 kN | C0: 80 kN | Limiting speed: 4000 r/min
4315 ATN9d: 75 mm | D: 160 mm | B: 55 mm | C: 156 kN | C0: 143 kN | Limiting speed: 3600 r/min
4216 ATN9d: 80 mm | D: 140 mm | B: 33 mm | C: 80.6 kN | C0: 90 kN | Limiting speed: 3800 r/min
4217 ATN9d: 85 mm | D: 150 mm | B: 36 mm | C: 93.6 kN | C0: 102 kN | Limiting speed: 3600 r/min
4218 ATN9d: 90 mm | D: 160 mm | B: 40 mm | C: 112 kN | C0: 122 kN | Limiting speed: 3400 r/min
4220 ATN9d: 100 mm | D: 180 mm | B: 46 mm | C: 140 kN | C0: 156 kN | Limiting speed: 3000 r/min
