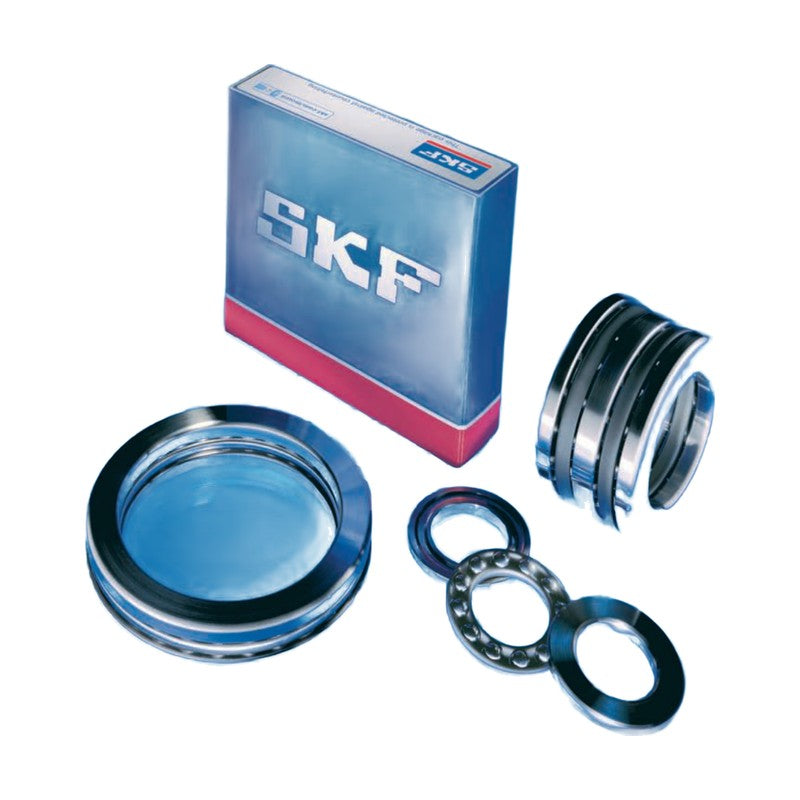

SKF 512 Series Single Direction Thrust Ball Bearings

SKF 512 Series Single Direction Thrust Ball Bearings

SKF single direction thrust ball bearings of the 512 series with flat seated housing washer.

Key features

  • Consists of shaft washer, housing washer and ball and cage assembly
  • Separable: components can be mounted individually
  • Accommodates axial loads in one direction only; no radial load
  • Locates the shaft axially in one direction
  • Pressed steel, brass (M) or fabricated (F) cages depending on size

Specifications

Bearing type Single direction thrust ball bearing
Series 512
Housing washer Flat seat
Load direction Axial, one direction
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 842-851
51200 d: 10 mm | D: 26 mm | H: 11 mm | C: 12.7 kN | C0: 18.6 kN | Limiting speed: 11000 r/min
51201 d: 12 mm | D: 28 mm | H: 11 mm | C: 13.3 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
51202 d: 15 mm | D: 32 mm | H: 12 mm | C: 16.5 kN | C0: 27 kN | Limiting speed: 10000 r/min
51203 d: 17 mm | D: 35 mm | H: 12 mm | C: 17.2 kN | C0: 30 kN | Limiting speed: 9500 r/min
51204 d: 20 mm | D: 40 mm | H: 14 mm | C: 22.5 kN | C0: 40.5 kN | Limiting speed: 8000 r/min
51205 d: 25 mm | D: 47 mm | H: 15 mm | C: 27.6 kN | C0: 55 kN | Limiting speed: 7500 r/min
51206 d: 30 mm | D: 52 mm | H: 16 mm | C: 25.5 kN | C0: 51 kN | Limiting speed: 6700 r/min
51207 d: 35 mm | D: 62 mm | H: 18 mm | C: 35.1 kN | C0: 73.5 kN | Limiting speed: 5600 r/min
51208 d: 40 mm | D: 68 mm | H: 19 mm | C: 46.8 kN | C0: 106 kN | Limiting speed: 5300 r/min
51209 d: 45 mm | D: 73 mm | H: 20 mm | C: 39 kN | C0: 86.5 kN | Limiting speed: 5000 r/min
51210 d: 50 mm | D: 78 mm | H: 22 mm | C: 49.4 kN | C0: 116 kN | Limiting speed: 4500 r/min
51211 d: 55 mm | D: 90 mm | H: 25 mm | C: 61.8 kN | C0: 146 kN | Limiting speed: 4000 r/min
51212 d: 60 mm | D: 95 mm | H: 26 mm | C: 62.4 kN | C0: 150 kN | Limiting speed: 3800 r/min
51213 d: 65 mm | D: 100 mm | H: 27 mm | C: 63.7 kN | C0: 163 kN | Limiting speed: 3600 r/min
51214 d: 70 mm | D: 105 mm | H: 27 mm | C: 65 kN | C0: 173 kN | Limiting speed: 3600 r/min
51215 d: 75 mm | D: 110 mm | H: 27 mm | C: 67.6 kN | C0: 183 kN | Limiting speed: 3400 r/min
51216 d: 80 mm | D: 115 mm | H: 28 mm | C: 76.1 kN | C0: 208 kN | Limiting speed: 3400 r/min
51217 d: 85 mm | D: 125 mm | H: 31 mm | C: 97.5 kN | C0: 275 kN | Limiting speed: 3000 r/min
51218 d: 90 mm | D: 135 mm | H: 35 mm | C: 119 kN | C0: 325 kN | Limiting speed: 2800 r/min
51220 d: 100 mm | D: 150 mm | H: 38 mm | C: 124 kN | C0: 345 kN | Limiting speed: 2400 r/min
51222 d: 110 mm | D: 160 mm | H: 38 mm | C: 130 kN | C0: 390 kN | Limiting speed: 2400 r/min
51224 d: 120 mm | D: 170 mm | H: 39 mm | C: 140 kN | C0: 440 kN | Limiting speed: 2200 r/min
51226 d: 130 mm | D: 190 mm | H: 45 mm | C: 186 kN | C0: 585 kN | Limiting speed: 2000 r/min
51228 d: 140 mm | D: 200 mm | H: 46 mm | C: 190 kN | C0: 620 kN | Limiting speed: 1900 r/min
51230 M d: 150 mm | D: 215 mm | H: 50 mm | C: 238 kN | C0: 800 kN | Limiting speed: 1800 r/min
51232 M d: 160 mm | D: 225 mm | H: 51 mm | C: 242 kN | C0: 850 kN | Limiting speed: 1700 r/min
51234 M d: 170 mm | D: 240 mm | H: 55 mm | C: 286 kN | C0: 1020 kN | Limiting speed: 1800 r/min
51236 M d: 180 mm | D: 250 mm | H: 56 mm | C: 296 kN | C0: 1080 kN | Limiting speed: 1500 r/min
51238 M d: 190 mm | D: 270 mm | H: 62 mm | C: 332 kN | C0: 1270 kN | Limiting speed: 1400 r/min
51240 M d: 200 mm | D: 280 mm | H: 62 mm | C: 338 kN | C0: 1320 kN | Limiting speed: 1400 r/min
51244 M d: 220 mm | D: 300 mm | H: 63 mm | C: 351 kN | C0: 1460 kN | Limiting speed: 1300 r/min
51248 M d: 240 mm | D: 340 mm | H: 78 mm | C: 462 kN | C0: 2000 kN | Limiting speed: 1100 r/min
51252 M d: 260 mm | D: 360 mm | H: 79 mm | C: 475 kN | C0: 2160 kN | Limiting speed: 1100 r/min
51256 M d: 280 mm | D: 380 mm | H: 80 mm | C: 494 kN | C0: 2320 kN | Limiting speed: 1000 r/min
51260 M d: 300 mm | D: 420 mm | H: 95 mm | C: 605 kN | C0: 3000 kN | Limiting speed: 850 r/min
51264 F d: 320 mm | D: 440 mm | H: 95 mm | C: 572 kN | C0: 3000 kN | Limiting speed: 850 r/min
51268 F d: 340 mm | D: 460 mm | H: 96 mm | C: 605 kN | C0: 3200 kN | Limiting speed: 800 r/min
51272 F d: 360 mm | D: 500 mm | H: 110 mm | C: 741 kN | C0: 4150 kN | Limiting speed: 750 r/min
51276 F d: 380 mm | D: 520 mm | H: 112 mm | C: 728 kN | C0: 4150 kN | Limiting speed: 700 r/min
