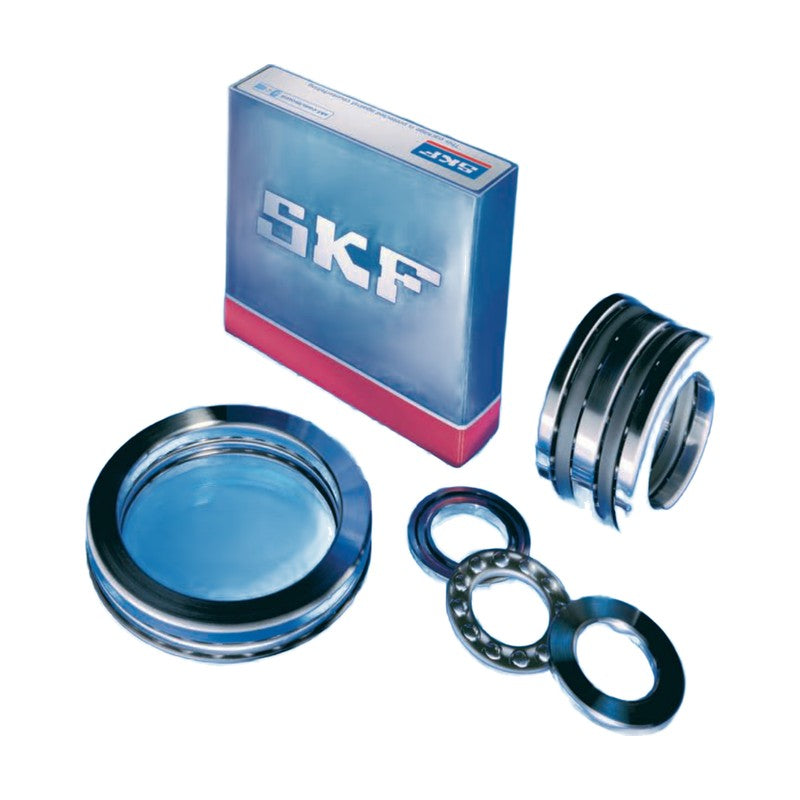

SKF 513 and 514 Series Single Direction Thrust Ball Bearings

SKF 513 and 514 Series Single Direction Thrust Ball Bearings

SKF single direction thrust ball bearings of the 513 and 514 series with flat seated housing washer.

Key features

  • Consists of shaft washer, housing washer and ball and cage assembly
  • Separable: components can be mounted individually
  • Accommodates axial loads in one direction only; no radial load
  • Locates the shaft axially in one direction
  • Pressed steel, brass (M) or fabricated (F) cages depending on size

Specifications

Bearing type Single direction thrust ball bearing
Series 513 and 514
Housing washer Flat seat
Load direction Axial, one direction
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 842-849
51305 d: 25 mm | D: 52 mm | H: 18 mm | C: 34.5 kN | C0: 60 kN | Limiting speed: 6300 r/min
51405 d: 25 mm | D: 60 mm | H: 24 mm | C: 55.3 kN | C0: 96.5 kN | Limiting speed: 5000 r/min
51306 d: 30 mm | D: 60 mm | H: 21 mm | C: 37.7 kN | C0: 71 kN | Limiting speed: 5300 r/min
51406 d: 30 mm | D: 70 mm | H: 28 mm | C: 72.8 kN | C0: 137 kN | Limiting speed: 4300 r/min
51307 d: 35 mm | D: 68 mm | H: 24 mm | C: 49.4 kN | C0: 96.5 kN | Limiting speed: 4500 r/min
51407 d: 35 mm | D: 80 mm | H: 32 mm | C: 87.1 kN | C0: 170 kN | Limiting speed: 3800 r/min
51308 d: 40 mm | D: 78 mm | H: 26 mm | C: 61.8 kN | C0: 122 kN | Limiting speed: 4300 r/min
51408 d: 40 mm | D: 90 mm | H: 36 mm | C: 112 kN | C0: 224 kN | Limiting speed: 3400 r/min
51309 d: 45 mm | D: 85 mm | H: 28 mm | C: 76.1 kN | C0: 153 kN | Limiting speed: 4000 r/min
51409 d: 45 mm | D: 100 mm | H: 39 mm | C: 130 kN | C0: 265 kN | Limiting speed: 3000 r/min
51310 d: 50 mm | D: 95 mm | H: 31 mm | C: 88.4 kN | C0: 190 kN | Limiting speed: 3600 r/min
51410 d: 50 mm | D: 110 mm | H: 43 mm | C: 159 kN | C0: 340 kN | Limiting speed: 2800 r/min
51311 d: 55 mm | D: 105 mm | H: 35 mm | C: 104 kN | C0: 224 kN | Limiting speed: 3200 r/min
51411 d: 55 mm | D: 120 mm | H: 48 mm | C: 178 kN | C0: 390 kN | Limiting speed: 2400 r/min
51312 d: 60 mm | D: 110 mm | H: 35 mm | C: 101 kN | C0: 224 kN | Limiting speed: 3000 r/min
51412 M d: 60 mm | D: 130 mm | H: 51 mm | C: 199 kN | C0: 430 kN | Limiting speed: 2200 r/min
51313 d: 65 mm | D: 115 mm | H: 36 mm | C: 106 kN | C0: 240 kN | Limiting speed: 3000 r/min
51413 M d: 65 mm | D: 140 mm | H: 56 mm | C: 216 kN | C0: 490 kN | Limiting speed: 2200 r/min
51314 d: 70 mm | D: 125 mm | H: 40 mm | C: 135 kN | C0: 320 kN | Limiting speed: 2600 r/min
51414 M d: 70 mm | D: 150 mm | H: 60 mm | C: 234 kN | C0: 550 kN | Limiting speed: 2000 r/min
51315 d: 75 mm | D: 135 mm | H: 44 mm | C: 163 kN | C0: 390 kN | Limiting speed: 2400 r/min
51415 M d: 75 mm | D: 160 mm | H: 65 mm | C: 251 kN | C0: 610 kN | Limiting speed: 1800 r/min
51316 d: 80 mm | D: 140 mm | H: 44 mm | C: 159 kN | C0: 390 kN | Limiting speed: 2400 r/min
51416 M d: 80 mm | D: 170 mm | H: 68 mm | C: 270 kN | C0: 670 kN | Limiting speed: 1700 r/min
51317 d: 85 mm | D: 150 mm | H: 49 mm | C: 190 kN | C0: 465 kN | Limiting speed: 2200 r/min
51417 M d: 85 mm | D: 180 mm | H: 72 mm | C: 286 kN | C0: 750 kN | Limiting speed: 1600 r/min
51318 d: 90 mm | D: 155 mm | H: 50 mm | C: 195 kN | C0: 500 kN | Limiting speed: 2200 r/min
51418 M d: 90 mm | D: 190 mm | H: 77 mm | C: 307 kN | C0: 815 kN | Limiting speed: 1500 r/min
51320 d: 100 mm | D: 170 mm | H: 55 mm | C: 229 kN | C0: 610 kN | Limiting speed: 1900 r/min
51420 M d: 100 mm | D: 210 mm | H: 85 mm | C: 371 kN | C0: 1060 kN | Limiting speed: 1400 r/min
51322 M d: 110 mm | D: 190 mm | H: 63 mm | C: 276 kN | C0: 780 kN | Limiting speed: 1700 r/min
51422 M d: 110 mm | D: 230 mm | H: 95 mm | C: 410 kN | C0: 1220 kN | Limiting speed: 1300 r/min
51324 M d: 120 mm | D: 210 mm | H: 70 mm | C: 325 kN | C0: 980 kN | Limiting speed: 1500 r/min
51424 M d: 120 mm | D: 250 mm | H: 102 mm | C: 520 kN | C0: 1730 kN | Limiting speed: 1100 r/min
51326 M d: 130 mm | D: 225 mm | H: 75 mm | C: 358 kN | C0: 1140 kN | Limiting speed: 2400 r/min
51426 M d: 130 mm | D: 270 mm | H: 110 mm | C: 520 kN | C0: 1730 kN | Limiting speed: 1000 r/min
51328 M d: 140 mm | D: 240 mm | H: 80 mm | C: 397 kN | C0: 1320 kN | Limiting speed: 1300 r/min
51428 M d: 140 mm | D: 280 mm | H: 112 mm | C: 520 kN | C0: 1730 kN | Limiting speed: 1000 r/min
51330 M d: 150 mm | D: 250 mm | H: 80 mm | C: 410 kN | C0: 1400 kN | Limiting speed: 1300 r/min
51430 M d: 150 mm | D: 300 mm | H: 120 mm | C: 559 kN | C0: 1960 kN | Limiting speed: 950 r/min
51332 M d: 160 mm | D: 270 mm | H: 87 mm | C: 449 kN | C0: 1660 kN | Limiting speed: 1200 r/min
51334 M d: 170 mm | D: 280 mm | H: 87 mm | C: 468 kN | C0: 1760 kN | Limiting speed: 1100 r/min
51336 M d: 180 mm | D: 300 mm | H: 95 mm | C: 520 kN | C0: 2000 kN | Limiting speed: 1100 r/min
51338 M d: 190 mm | D: 320 mm | H: 105 mm | C: 592 kN | C0: 2400 kN | Limiting speed: 950 r/min
51340 M d: 200 mm | D: 340 mm | H: 110 mm | C: 624 kN | C0: 2600 kN | Limiting speed: 900 r/min
