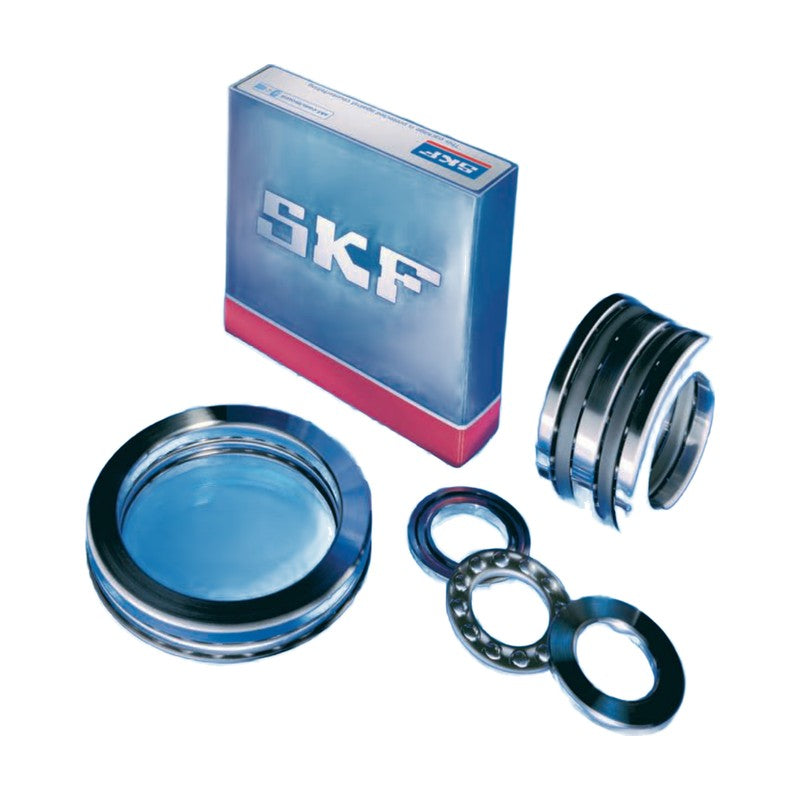

SKF 522, 523, 524 Series Double Direction Thrust Ball Bearings

SKF 522, 523, 524 Series Double Direction Thrust Ball Bearings

SKF double direction thrust ball bearings with one shaft washer, two housing washers and two ball and cage assemblies, locating a shaft axially in both directions.

Key features

  • One shaft washer, two housing washers, two ball and cage assemblies
  • Accommodates axial loads in both directions; no radial load
  • Separable for simple mounting
  • Flat seated housing washers

Specifications

Bearing type Double direction thrust ball bearing
Series 522, 523, 524
Housing washers Flat seat
Load direction Axial, both directions
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 856-859
52202 d: 10 mm | D: 32 mm | H: 22 mm | C: 16.5 kN | C0: 27 kN | Limiting speed: 10000 r/min
52204 d: 15 mm | D: 40 mm | H: 26 mm | C: 22.5 kN | C0: 40.5 kN | Limiting speed: 8000 r/min
52205 d: 20 mm | D: 47 mm | H: 28 mm | C: 27.6 kN | C0: 55 kN | Limiting speed: 7500 r/min
52305 d: 20 mm | D: 52 mm | H: 34 mm | C: 34.5 kN | C0: 60 kN | Limiting speed: 6300 r/min
52406 d: 20 mm | D: 70 mm | H: 52 mm | C: 72.8 kN | C0: 137 kN | Limiting speed: 5000 r/min
52206 d: 25 mm | D: 52 mm | H: 29 mm | C: 25.5 kN | C0: 51 kN | Limiting speed: 6700 r/min
52306 d: 25 mm | D: 60 mm | H: 38 mm | C: 37.7 kN | C0: 71 kN | Limiting speed: 5300 r/min
52407 d: 25 mm | D: 80 mm | H: 59 mm | C: 87.1 kN | C0: 170 kN | Limiting speed: 4300 r/min
52207 d: 30 mm | D: 62 mm | H: 34 mm | C: 35.1 kN | C0: 73.5 kN | Limiting speed: 5600 r/min
52208 d: 30 mm | D: 68 mm | H: 36 mm | C: 46.8 kN | C0: 106 kN | Limiting speed: 5300 r/min
52307 d: 30 mm | D: 68 mm | H: 44 mm | C: 49.4 kN | C0: 96.5 kN | Limiting speed: 4500 r/min
52308 d: 30 mm | D: 78 mm | H: 49 mm | C: 61.8 kN | C0: 122 kN | Limiting speed: 4300 r/min
52408 d: 30 mm | D: 90 mm | H: 65 mm | C: 112 kN | C0: 224 kN | Limiting speed: 3400 r/min
52209 d: 35 mm | D: 73 mm | H: 37 mm | C: 39 kN | C0: 86.5 kN | Limiting speed: 5000 r/min
52309 d: 35 mm | D: 85 mm | H: 52 mm | C: 76.1 kN | C0: 153 kN | Limiting speed: 4000 r/min
52409 d: 35 mm | D: 100 mm | H: 72 mm | C: 130 kN | C0: 265 kN | Limiting speed: 3000 r/min
52210 d: 40 mm | D: 78 mm | H: 39 mm | C: 49.4 kN | C0: 116 kN | Limiting speed: 4500 r/min
52310 d: 40 mm | D: 95 mm | H: 58 mm | C: 88.4 kN | C0: 190 kN | Limiting speed: 3600 r/min
52211 d: 45 mm | D: 90 mm | H: 45 mm | C: 61.8 kN | C0: 146 kN | Limiting speed: 4000 r/min
52311 d: 45 mm | D: 105 mm | H: 64 mm | C: 104 kN | C0: 224 kN | Limiting speed: 3200 r/min
52411 d: 45 mm | D: 120 mm | H: 87 mm | C: 178 kN | C0: 390 kN | Limiting speed: 2400 r/min
52212 d: 50 mm | D: 95 mm | H: 46 mm | C: 62.4 kN | C0: 150 kN | Limiting speed: 3000 r/min
52312 d: 50 mm | D: 110 mm | H: 64 mm | C: 101 kN | C0: 224 kN | Limiting speed: 2200 r/min
52412 M d: 50 mm | D: 130 mm | H: 93 mm | C: 199 kN | C0: 430 kN | Limiting speed: 2200 r/min
52213 d: 55 mm | D: 100 mm | H: 47 mm | C: 63.7 kN | C0: 163 kN | Limiting speed: 3600 r/min
52214 d: 55 mm | D: 105 mm | H: 47 mm | C: 65 kN | C0: 173 kN | Limiting speed: 3600 r/min
52313 d: 55 mm | D: 115 mm | H: 65 mm | C: 106 kN | C0: 240 kN | Limiting speed: 3000 r/min
52314 d: 55 mm | D: 125 mm | H: 72 mm | C: 135 kN | C0: 320 kN | Limiting speed: 2600 r/min
52414 M d: 55 mm | D: 150 mm | H: 107 mm | C: 234 kN | C0: 550 kN | Limiting speed: 2000 r/min
52215 d: 60 mm | D: 110 mm | H: 47 mm | C: 67.6 kN | C0: 183 kN | Limiting speed: 3400 r/min
52315 d: 60 mm | D: 135 mm | H: 79 mm | C: 163 kN | C0: 390 kN | Limiting speed: 2400 r/min
52216 d: 65 mm | D: 115 mm | H: 48 mm | C: 76.1 kN | C0: 208 kN | Limiting speed: 3400 r/min
52316 d: 65 mm | D: 140 mm | H: 79 mm | C: 159 kN | C0: 390 kN | Limiting speed: 2400 r/min
52217 d: 70 mm | D: 125 mm | H: 55 mm | C: 97.5 kN | C0: 275 kN | Limiting speed: 3000 r/min
52218 d: 75 mm | D: 135 mm | H: 62 mm | C: 119 kN | C0: 325 kN | Limiting speed: 2800 r/min
52220 d: 85 mm | D: 150 mm | H: 67 mm | C: 124 kN | C0: 345 kN | Limiting speed: 2400 r/min
52320 d: 85 mm | D: 170 mm | H: 97 mm | C: 229 kN | C0: 610 kN | Limiting speed: 1900 r/min
52222 d: 95 mm | D: 160 mm | H: 67 mm | C: 130 kN | C0: 390 kN | Limiting speed: 2400 r/min
52224 d: 100 mm | D: 170 mm | H: 68 mm | C: 140 kN | C0: 440 kN | Limiting speed: 2200 r/min
52226 d: 110 mm | D: 190 mm | H: 80 mm | C: 186 kN | C0: 585 kN | Limiting speed: 2000 r/min
52228 d: 120 mm | D: 200 mm | H: 81 mm | C: 190 kN | C0: 620 kN | Limiting speed: 1900 r/min
52230 M d: 130 mm | D: 215 mm | H: 89 mm | C: 238 kN | C0: 800 kN | Limiting speed: 1800 r/min
52232 M d: 140 mm | D: 225 mm | H: 90 mm | C: 242 kN | C0: 850 kN | Limiting speed: 1700 r/min
52234 M d: 150 mm | D: 240 mm | H: 97 mm | C: 286 kN | C0: 1020 kN | Limiting speed: 1600 r/min
52236 M d: 150 mm | D: 250 mm | H: 98 mm | C: 296 kN | C0: 1080 kN | Limiting speed: 1500 r/min
