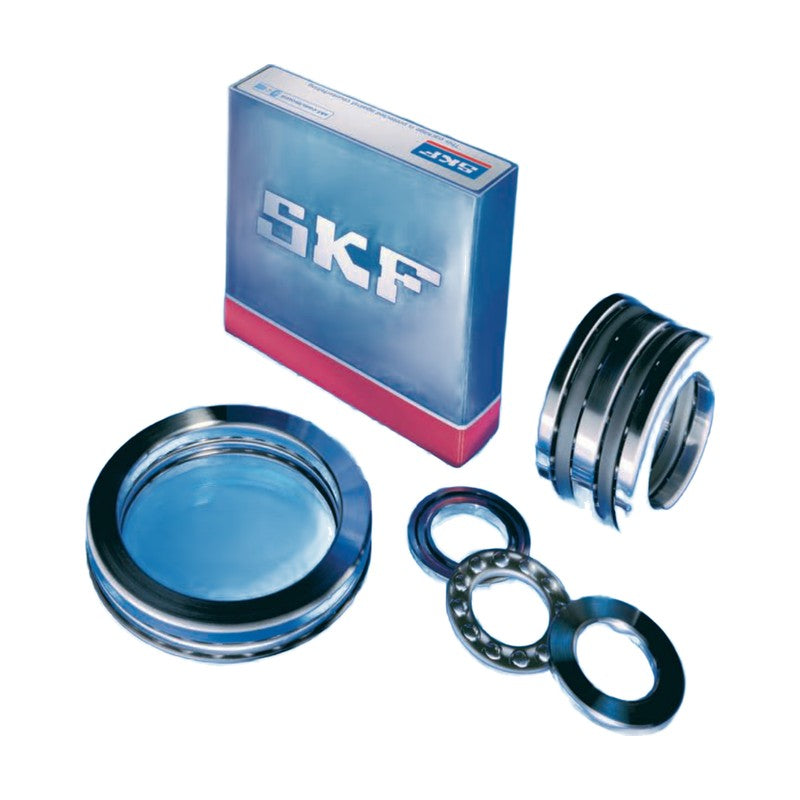

SKF 532, 533, 534 Series Thrust Ball Bearings, Sphered Washer

SKF 532, 533, 534 Series Thrust Ball Bearings, Sphered Washer

SKF single direction thrust ball bearings with a sphered housing washer (532, 533 and 534 series). Combined with a U seating washer they compensate misalignment between support surfaces.

Key features

  • Consists of shaft washer, housing washer and ball and cage assembly
  • Separable: components can be mounted individually
  • Accommodates axial loads in one direction only; no radial load
  • Sphered housing washer used with a U 2, U 3 or U 4 seating washer to compensate misalignment
  • Seating washers must be ordered separately

Specifications

Bearing type Single direction thrust ball bearing
Series 532, 533, 534
Housing washer Sphered
Load direction Axial, one direction
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 852-855
53201 d: 12 mm | D: 28 mm | H1: 13 mm | C: 13.3 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
53202 d: 15 mm | D: 32 mm | H1: 15 mm | C: 16.5 kN | C0: 27 kN | Limiting speed: 10000 r/min
53203 d: 17 mm | D: 35 mm | H1: 15 mm | C: 17.2 kN | C0: 30 kN | Limiting speed: 9500 r/min
53204 d: 20 mm | D: 40 mm | H1: 17 mm | C: 22.5 kN | C0: 40.5 kN | Limiting speed: 8000 r/min
53205 d: 25 mm | D: 47 mm | H1: 19 mm | C: 27.6 kN | C0: 55 kN | Limiting speed: 7500 r/min
53206 d: 30 mm | D: 52 mm | H1: 20 mm | C: 25.5 kN | C0: 51 kN | Limiting speed: 6700 r/min
53306 d: 30 mm | D: 60 mm | H1: 25 mm | C: 37.7 kN | C0: 71 kN | Limiting speed: 5300 r/min
53207 d: 35 mm | D: 62 mm | H1: 22 mm | C: 35.1 kN | C0: 73.5 kN | Limiting speed: 5600 r/min
53307 d: 35 mm | D: 68 mm | H1: 28 mm | C: 49.4 kN | C0: 96.5 kN | Limiting speed: 4500 r/min
53208 d: 40 mm | D: 68 mm | H1: 23 mm | C: 46.8 kN | C0: 106 kN | Limiting speed: 5300 r/min
53308 d: 40 mm | D: 78 mm | H1: 31 mm | C: 61.8 kN | C0: 122 kN | Limiting speed: 4300 r/min
53408 d: 40 mm | D: 90 mm | H1: 42 mm | C: 112 kN | C0: 224 kN | Limiting speed: 3400 r/min
53209 d: 45 mm | D: 73 mm | H1: 24 mm | C: 39 kN | C0: 86.5 kN | Limiting speed: 5000 r/min
53309 d: 45 mm | D: 85 mm | H1: 33 mm | C: 76.1 kN | C0: 153 kN | Limiting speed: 4000 r/min
53210 d: 50 mm | D: 78 mm | H1: 26 mm | C: 49.4 kN | C0: 116 kN | Limiting speed: 4500 r/min
53310 d: 50 mm | D: 95 mm | H1: 37 mm | C: 88.4 kN | C0: 190 kN | Limiting speed: 3600 r/min
53410 d: 50 mm | D: 110 mm | H1: 50 mm | C: 159 kN | C0: 340 kN | Limiting speed: 2800 r/min
53211 d: 55 mm | D: 90 mm | H1: 30 mm | C: 61.8 kN | C0: 146 kN | Limiting speed: 4000 r/min
53311 d: 55 mm | D: 105 mm | H1: 42 mm | C: 104 kN | C0: 224 kN | Limiting speed: 3200 r/min
53411 d: 55 mm | D: 120 mm | H1: 55 mm | C: 178 kN | C0: 390 kN | Limiting speed: 2400 r/min
53212 d: 60 mm | D: 95 mm | H1: 31 mm | C: 62.4 kN | C0: 150 kN | Limiting speed: 3800 r/min
53312 d: 60 mm | D: 110 mm | H1: 42 mm | C: 101 kN | C0: 224 kN | Limiting speed: 3000 r/min
53412 M d: 60 mm | D: 130 mm | H1: 58 mm | C: 199 kN | C0: 430 kN | Limiting speed: 2200 r/min
53213 d: 65 mm | D: 100 mm | H1: 32 mm | C: 63.7 kN | C0: 163 kN | Limiting speed: 3600 r/min
53313 d: 65 mm | D: 115 mm | H1: 43 mm | C: 106 kN | C0: 240 kN | Limiting speed: 3000 r/min
53214 d: 70 mm | D: 105 mm | H1: 32 mm | C: 65 kN | C0: 173 kN | Limiting speed: 3600 r/min
53314 d: 70 mm | D: 125 mm | H1: 48 mm | C: 135 kN | C0: 320 kN | Limiting speed: 2600 r/min
53414 M d: 70 mm | D: 150 mm | H1: 69 mm | C: 234 kN | C0: 550 kN | Limiting speed: 2000 r/min
53215 d: 75 mm | D: 110 mm | H1: 32 mm | C: 67.6 kN | C0: 183 kN | Limiting speed: 3400 r/min
53315 d: 75 mm | D: 135 mm | H1: 52 mm | C: 163 kN | C0: 390 kN | Limiting speed: 2400 r/min
53415 M d: 75 mm | D: 160 mm | H1: 75 mm | C: 251 kN | C0: 610 kN | Limiting speed: 1800 r/min
53216 d: 80 mm | D: 115 mm | H1: 33 mm | C: 76.1 kN | C0: 208 kN | Limiting speed: 3400 r/min
53316 d: 80 mm | D: 140 mm | H1: 52 mm | C: 159 kN | C0: 390 kN | Limiting speed: 2400 r/min
53217 d: 85 mm | D: 125 mm | H1: 37 mm | C: 97.5 kN | C0: 275 kN | Limiting speed: 3000 r/min
53317 d: 85 mm | D: 150 mm | H1: 58 mm | C: 190 kN | C0: 465 kN | Limiting speed: 2200 r/min
53218 d: 90 mm | D: 135 mm | H1: 42 mm | C: 119 kN | C0: 325 kN | Limiting speed: 2800 r/min
53318 d: 90 mm | D: 155 mm | H1: 59 mm | C: 195 kN | C0: 500 kN | Limiting speed: 2200 r/min
53418 M d: 90 mm | D: 190 mm | H1: 88 mm | C: 307 kN | C0: 815 kN | Limiting speed: 1500 r/min
53220 d: 100 mm | D: 150 mm | H1: 45 mm | C: 124 kN | C0: 345 kN | Limiting speed: 2400 r/min
53320 d: 100 mm | D: 170 mm | H1: 64 mm | C: 229 kN | C0: 610 kN | Limiting speed: 1900 r/min
53420 M d: 100 mm | D: 210 mm | H1: 98 mm | C: 371 kN | C0: 1060 kN | Limiting speed: 1400 r/min
53222 d: 110 mm | D: 160 mm | H1: 45 mm | C: 130 kN | C0: 390 kN | Limiting speed: 2400 r/min
53322 M d: 110 mm | D: 190 mm | H1: 72 mm | C: 276 kN | C0: 780 kN | Limiting speed: 1700 r/min
53224 d: 120 mm | D: 170 mm | H1: 46 mm | C: 140 kN | C0: 440 kN | Limiting speed: 2200 r/min
53324 M d: 120 mm | D: 210 mm | H1: 80 mm | C: 325 kN | C0: 980 kN | Limiting speed: 1500 r/min
53226 d: 130 mm | D: 190 mm | H1: 53 mm | C: 186 kN | C0: 585 kN | Limiting speed: 2000 r/min
53228 d: 140 mm | D: 200 mm | H1: 55 mm | C: 190 kN | C0: 620 kN | Limiting speed: 1900 r/min
