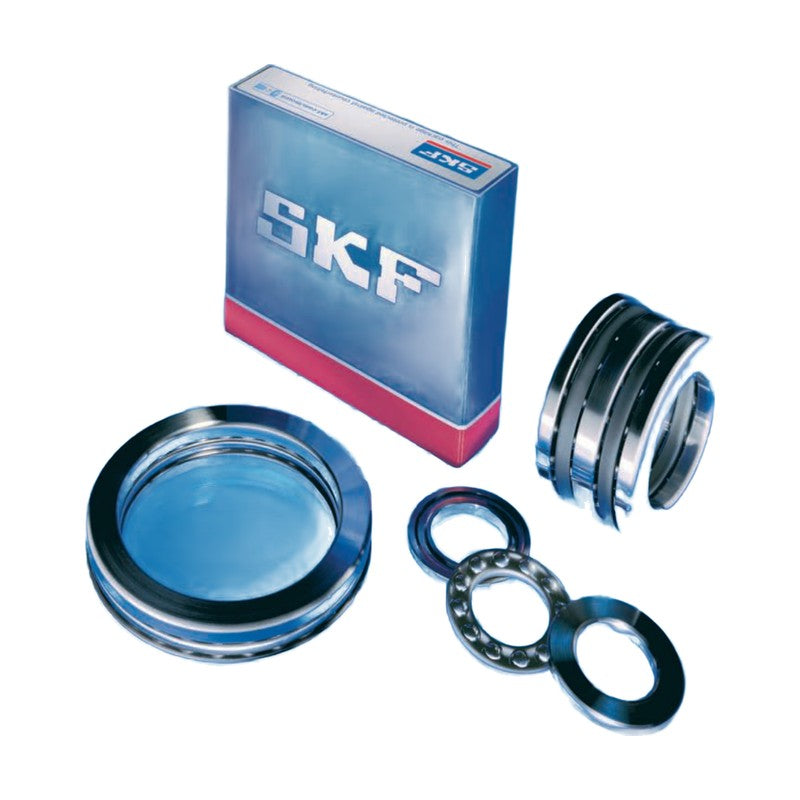

SKF 542, 543, 544 Series Double Direction Thrust Ball Bearings

SKF 542, 543, 544 Series Double Direction Thrust Ball Bearings

SKF double direction thrust ball bearings with sphered housing washers (542, 543 and 544 series), used with U seating washers to compensate misalignment.

Key features

  • Accommodates axial loads in both directions; no radial load
  • Sphered housing washers for use with U seating washers
  • Compensates misalignment between support surfaces
  • Separable for simple mounting
  • Seating washers must be ordered separately

Specifications

Bearing type Double direction thrust ball bearing
Series 542, 543, 544
Housing washers Sphered
Load direction Axial, both directions
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 860-861
54306 d: 25 mm | D: 60 mm | H1: 46 mm | C: 37.7 kN | C0: 71 kN | Limiting speed: 5300 r/min
54207 d: 30 mm | D: 62 mm | H1: 42 mm | C: 35.1 kN | C0: 73.5 kN | Limiting speed: 5600 r/min
54208 d: 30 mm | D: 68 mm | H1: 44 mm | C: 46.8 kN | C0: 106 kN | Limiting speed: 5300 r/min
54307 d: 30 mm | D: 68 mm | H1: 52 mm | C: 49.4 kN | C0: 96.5 kN | Limiting speed: 4500 r/min
54308 d: 30 mm | D: 78 mm | H1: 59 mm | C: 61.8 kN | C0: 122 kN | Limiting speed: 4300 r/min
54209 d: 35 mm | D: 73 mm | H1: 45 mm | C: 39 kN | C0: 86.5 kN | Limiting speed: 5000 r/min
54309 d: 35 mm | D: 85 mm | H1: 62 mm | C: 76.1 kN | C0: 153 kN | Limiting speed: 4000 r/min
54409 d: 35 mm | D: 100 mm | H1: 86 mm | C: 130 kN | C0: 265 kN | Limiting speed: 3000 r/min
54310 d: 40 mm | D: 95 mm | H1: 70 mm | C: 88.4 kN | C0: 190 kN | Limiting speed: 3600 r/min
54410 d: 40 mm | D: 110 mm | H1: 92 mm | C: 159 kN | C0: 340 kN | Limiting speed: 2800 r/min
54211 d: 45 mm | D: 90 mm | H1: 55 mm | C: 61.8 kN | C0: 146 kN | Limiting speed: 4000 r/min
54312 d: 50 mm | D: 110 mm | H1: 78 mm | C: 101 kN | C0: 224 kN | Limiting speed: 3000 r/min
54316 d: 65 mm | D: 140 mm | H1: 95 mm | C: 159 kN | C0: 390 kN | Limiting speed: 2400 r/min
54416 M d: 65 mm | D: 170 mm | H1: 140 mm | C: 270 kN | C0: 670 kN | Limiting speed: 1700 r/min
54317 d: 70 mm | D: 150 mm | H1: 105 mm | C: 190 kN | C0: 465 kN | Limiting speed: 2200 r/min
54420 M d: 80 mm | D: 210 mm | H1: 176 mm | C: 371 kN | C0: 1060 kN | Limiting speed: 1400 r/min
Thrust BearingsSKF
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 542, 543, 544 Series Double Direction Thrust Ball Bearings

Brand SKF·Thrust Bearings

Available part numbers (16)

54306, 54207, 54208, 54307, 54308, 54209, 54309, 54409, 54310, 54410 + 6 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
54306d: 25 mm | D: 60 mm | H1: 46 mm | C: 37.7 kN | C0: 71 kN | Limiting speed: 5300 r/min
54207d: 30 mm | D: 62 mm | H1: 42 mm | C: 35.1 kN | C0: 73.5 kN | Limiting speed: 5600 r/min
54208d: 30 mm | D: 68 mm | H1: 44 mm | C: 46.8 kN | C0: 106 kN | Limiting speed: 5300 r/min
54307d: 30 mm | D: 68 mm | H1: 52 mm | C: 49.4 kN | C0: 96.5 kN | Limiting speed: 4500 r/min
54308d: 30 mm | D: 78 mm | H1: 59 mm | C: 61.8 kN | C0: 122 kN | Limiting speed: 4300 r/min
54209d: 35 mm | D: 73 mm | H1: 45 mm | C: 39 kN | C0: 86.5 kN | Limiting speed: 5000 r/min
54309d: 35 mm | D: 85 mm | H1: 62 mm | C: 76.1 kN | C0: 153 kN | Limiting speed: 4000 r/min
54409d: 35 mm | D: 100 mm | H1: 86 mm | C: 130 kN | C0: 265 kN | Limiting speed: 3000 r/min
54310d: 40 mm | D: 95 mm | H1: 70 mm | C: 88.4 kN | C0: 190 kN | Limiting speed: 3600 r/min
54410d: 40 mm | D: 110 mm | H1: 92 mm | C: 159 kN | C0: 340 kN | Limiting speed: 2800 r/min
54211d: 45 mm | D: 90 mm | H1: 55 mm | C: 61.8 kN | C0: 146 kN | Limiting speed: 4000 r/min
54312d: 50 mm | D: 110 mm | H1: 78 mm | C: 101 kN | C0: 224 kN | Limiting speed: 3000 r/min
54316d: 65 mm | D: 140 mm | H1: 95 mm | C: 159 kN | C0: 390 kN | Limiting speed: 2400 r/min
54416 Md: 65 mm | D: 170 mm | H1: 140 mm | C: 270 kN | C0: 670 kN | Limiting speed: 1700 r/min
54317d: 70 mm | D: 150 mm | H1: 105 mm | C: 190 kN | C0: 465 kN | Limiting speed: 2200 r/min
54420 Md: 80 mm | D: 210 mm | H1: 176 mm | C: 371 kN | C0: 1060 kN | Limiting speed: 1400 r/min
