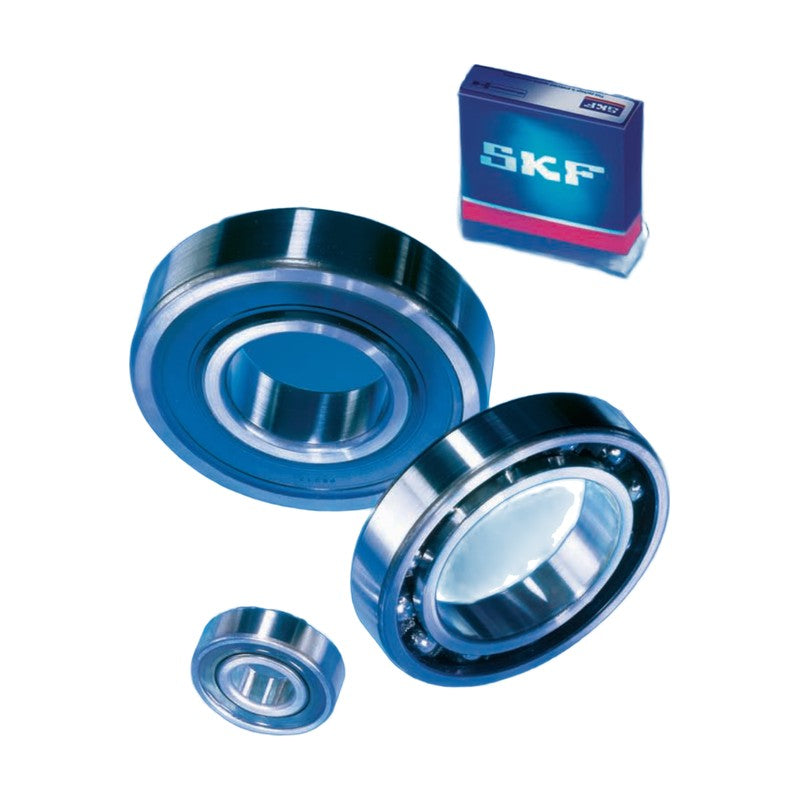

SKF 60 Series Deep Groove Ball Bearings

SKF 60 Series Deep Groove Ball Bearings

SKF single row deep groove ball bearings in the 60 series (open, shielded and sealed). Simple, robust, non-separable bearings for radial and axial loads at high speeds.

Key features

  • Single row, non-separable design with deep uninterrupted raceway grooves
  • Carries radial loads and axial loads in both directions, suitable for high speeds
  • Boundary dimensions to ISO 15:1998
  • Open bearings plus shielded (Z, 2Z, RZ, 2RZ) and sealed (RSL, RSH, RS1 and 2-side) variants where listed
  • Sealed and shielded bearings are greased for life; SKF Explorer sizes marked in the catalogue

Specifications

Bearing type Single row deep groove ball bearing
Design Non-separable
Dimension standard ISO 15:1998
Load direction Radial and axial (both directions)
Series 60
Seal / shield suffixes Z, 2Z, RZ, 2RZ, RSL, 2RSL, RSH, 2RSH, RS1, 2RS1
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 302-347
604 d: 4 mm | D: 12 mm | B: 4 mm | C: 0.806 kN | C0: 0.28 kN | Limiting speed: 75000 r/min
607 d: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 53000 r/min
608 d: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 48000 r/min
609 d: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 43000 r/min
6000 d: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 40000 r/min
6001 d: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 38000 r/min
6002 d: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 32000 r/min
6003 d: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 28000 r/min
6004 d: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 24000 r/min
6005 d: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 20000 r/min
6006 d: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 17000 r/min
6007 d: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 15000 r/min
6008 d: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 14000 r/min
6009 d: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Limiting speed: 12000 r/min
6010 d: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 11000 r/min
6011 d: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Limiting speed: 10000 r/min
6012 d: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 9500 r/min
6013 d: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Limiting speed: 9000 r/min
6014 d: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Limiting speed: 8000 r/min
6015 d: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 7500 r/min
6016 d: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Limiting speed: 7000 r/min
6017 d: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Limiting speed: 6700 r/min
6018 d: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Limiting speed: 6300 r/min
6019 d: 95 mm | D: 145 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 6000 r/min
6020 d: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 5600 r/min
6021 d: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Limiting speed: 5300 r/min
6022 d: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Limiting speed: 5000 r/min
6024 d: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 4800 r/min
6026 d: 130 mm | D: 200 mm | B: 33 mm | C: 112 kN | C0: 100 kN | Limiting speed: 4300 r/min
6028 d: 140 mm | D: 210 mm | B: 33 mm | C: 111 kN | C0: 108 kN | Limiting speed: 4000 r/min
6030 d: 150 mm | D: 225 mm | B: 35 mm | C: 125 kN | C0: 125 kN | Limiting speed: 3800 r/min
6032 d: 160 mm | D: 240 mm | B: 38 mm | C: 143 kN | C0: 143 kN | Limiting speed: 3600 r/min
6034 M d: 170 mm | D: 260 mm | B: 42 mm | C: 168 kN | C0: 173 kN | Limiting speed: 4300 r/min
6036 M d: 180 mm | D: 280 mm | B: 46 mm | C: 190 kN | C0: 200 kN | Limiting speed: 4000 r/min
6038 M d: 190 mm | D: 290 mm | B: 46 mm | C: 195 kN | C0: 216 kN | Limiting speed: 3800 r/min
6040 M d: 200 mm | D: 310 mm | B: 51 mm | C: 216 kN | C0: 245 kN | Limiting speed: 3600 r/min
6044 M d: 220 mm | D: 340 mm | B: 56 mm | C: 247 kN | C0: 290 kN | Limiting speed: 3200 r/min
6048 M d: 240 mm | D: 360 mm | B: 56 mm | C: 255 kN | C0: 315 kN | Limiting speed: 3000 r/min
6052 M d: 260 mm | D: 400 mm | B: 65 mm | C: 291 kN | C0: 375 kN | Limiting speed: 2800 r/min
6056 M d: 280 mm | D: 420 mm | B: 65 mm | C: 302 kN | C0: 405 kN | Limiting speed: 2600 r/min
6060 M d: 300 mm | D: 460 mm | B: 74 mm | C: 358 kN | C0: 500 kN | Limiting speed: 2400 r/min
6064 M d: 320 mm | D: 480 mm | B: 74 mm | C: 371 kN | C0: 540 kN | Limiting speed: 2200 r/min
6068 M d: 340 mm | D: 520 mm | B: 82 mm | C: 423 kN | C0: 640 kN | Limiting speed: 2000 r/min
6072 M d: 360 mm | D: 540 mm | B: 82 mm | C: 462 kN | C0: 735 kN | Limiting speed: 1900 r/min
6076 M d: 380 mm | D: 560 mm | B: 82 mm | C: 462 kN | C0: 750 kN | Limiting speed: 1800 r/min
6080 M d: 400 mm | D: 600 mm | B: 90 mm | C: 520 kN | C0: 865 kN | Limiting speed: 1700 r/min
6084 M d: 420 mm | D: 620 mm | B: 90 mm | C: 507 kN | C0: 880 kN | Limiting speed: 1600 r/min
6088 M d: 440 mm | D: 650 mm | B: 94 mm | C: 553 kN | C0: 965 kN | Limiting speed: 1500 r/min
6092 MB d: 460 mm | D: 680 mm | B: 100 mm | C: 582 kN | C0: 1060 kN | Limiting speed: 1500 r/min
6096 MB d: 480 mm | D: 700 mm | B: 100 mm | C: 618 kN | C0: 1140 kN | Limiting speed: 1400 r/min
60/500 N1MAS d: 500 mm | D: 720 mm | B: 100 mm | C: 605 kN | C0: 1140 kN | Limiting speed: 1300 r/min
60/530 N1MAS d: 530 mm | D: 780 mm | B: 112 mm | C: 650 kN | C0: 1270 kN | Limiting speed: 1200 r/min
60/560 N1MAS d: 560 mm | D: 820 mm | B: 115 mm | C: 663 kN | C0: 1470 kN | Limiting speed: 1200 r/min
60/630 N1MBS d: 630 mm | D: 920 mm | B: 128 mm | C: 819 kN | C0: 1760 kN | Limiting speed: 1000 r/min
60/670 N1MAS d: 670 mm | D: 980 mm | B: 136 mm | C: 904 kN | C0: 2040 kN | Limiting speed: 900 r/min
60/710 MA d: 710 mm | D: 1030 mm | B: 140 mm | C: 956 kN | C0: 2200 kN | Limiting speed: 850 r/min
60/800 N1MAS d: 800 mm | D: 1150 mm | B: 155 mm | C: 1010 kN | C0: 2550 kN | Limiting speed: 750 r/min
604-2Z d: 4 mm | D: 12 mm | B: 4 mm | C: 0.81 kN | C0: 0.28 kN | Limiting speed: 60000 r/min
604-Z d: 4 mm | D: 12 mm | B: 4 mm | C: 0.81 kN | C0: 0.28 kN | Limiting speed: 60000 r/min
607-2Z d: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 43000 r/min
607-Z d: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 43000 r/min
607-2RSL d: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 43000 r/min
607-RSL d: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 43000 r/min
607-2RSH d: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 24000 r/min
607-RSH d: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 24000 r/min
607/8-2Z d: 8 mm | D: 19 mm | B: 6 mm | C: 2.21 kN | C0: 0.95 kN | Limiting speed: 43000 r/min
607/8-Z d: 8 mm | D: 19 mm | B: 6 mm | C: 2.21 kN | C0: 0.95 kN | Limiting speed: 43000 r/min
608-2Z d: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 38000 r/min
608-Z d: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 38000 r/min
608-2RSL d: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 38000 r/min
608-RSL d: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 38000 r/min
608-2RSH d: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 22000 r/min
608-RSH d: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 22000 r/min
609-2Z d: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 34000 r/min
609-Z d: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 34000 r/min
609-2RSL d: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 34000 r/min
609-RSL d: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 34000 r/min
609-2RSH d: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 19000 r/min
609-RSH d: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 19000 r/min
6000-2Z d: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 34000 r/min
6000-Z d: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 34000 r/min
6000-2RSL d: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 34000 r/min
6000-RSL d: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 34000 r/min
6000-2RSH d: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 19000 r/min
6000-RSH d: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 19000 r/min
6001-2Z d: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 30000 r/min
6001-Z d: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 30000 r/min
6001-2RSL d: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 30000 r/min
6001-RSL d: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 30000 r/min
6001-2RSH d: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 17000 r/min
6001-RSH d: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 17000 r/min
6002-2Z d: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 26000 r/min
6002-Z d: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 26000 r/min
6002-2RSL d: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 26000 r/min
6002-RSL d: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 26000 r/min
6002-2RSH d: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 14000 r/min
6002-RSH d: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 14000 r/min
6003-2Z d: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 22000 r/min
6003-Z d: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 22000 r/min
6003-2RSL d: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 22000 r/min
6003-RSL d: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 22000 r/min
6003-2RSH d: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 13000 r/min
6003-RSH d: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 13000 r/min
6004-2Z d: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 19000 r/min
6004-Z d: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 19000 r/min
6004-2RSL d: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 19000 r/min
6004-RSL d: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 19000 r/min
6004-2RSH d: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 11000 r/min
6004-RSH d: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 11000 r/min
6005-2Z d: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 16000 r/min
6005-Z d: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 16000 r/min
6005-2RSL d: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 16000 r/min
6005-RSL d: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 16000 r/min
6005-2RSH d: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 9500 r/min
6005-RSH d: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 9500 r/min
6006-2Z d: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 14000 r/min
6006-Z d: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 14000 r/min
6006-2RZ d: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 14000 r/min
6006-RZ d: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 14000 r/min
6006-2RS1 d: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 8000 r/min
6006-RS1 d: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 8000 r/min
6007-2Z d: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 12000 r/min
6007-Z d: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 12000 r/min
6007-2RZ d: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 12000 r/min
6007-RZ d: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 12000 r/min
6007-2RS1 d: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 7000 r/min
6007-RS1 d: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 7000 r/min
6008-2Z d: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 11000 r/min
6008-Z d: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 11000 r/min
6008-2RZ d: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 11000 r/min
6008-RZ d: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 11000 r/min
6008-2RS1 d: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 6300 r/min
6008-RS1 d: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 6300 r/min
6009-2Z d: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Limiting speed: 10000 r/min
6009-Z d: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Limiting speed: 10000 r/min
6009-2RS1 d: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Limiting speed: 5600 r/min
6009-RS1 d: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Limiting speed: 5600 r/min
6010-2Z d: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 9000 r/min
6010-Z d: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 9000 r/min
6010-2RZ d: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 9000 r/min
6010-RZ d: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 9000 r/min
6010-2RS1 d: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 5000 r/min
6010-RS1 d: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 5000 r/min
6011-2Z d: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Limiting speed: 8000 r/min
6011-Z d: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Limiting speed: 8000 r/min
6011-2RS1 d: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Limiting speed: 4500 r/min
6011-RS1 d: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Limiting speed: 4500 r/min
6012-2Z d: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 7500 r/min
6012-Z d: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 7500 r/min
6012-2RZ d: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 7500 r/min
6012-RZ d: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 7500 r/min
6012-2RS1 d: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 4300 r/min
6012-RS1 d: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 4300 r/min
6013-2Z d: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Limiting speed: 7000 r/min
6013-Z d: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Limiting speed: 7000 r/min
6013-2RS1 d: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Limiting speed: 4000 r/min
6013-RS1 d: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Limiting speed: 4000 r/min
6014-2Z d: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Limiting speed: 6300 r/min
6014-Z d: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Limiting speed: 6300 r/min
6014-2RS1 d: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Limiting speed: 3600 r/min
6014-RS1 d: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Limiting speed: 3600 r/min
6015-2Z d: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 6000 r/min
6015-Z d: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 6000 r/min
6015-2RZ d: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 6000 r/min
6015-RZ d: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 6000 r/min
6015-2RS1 d: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 3400 r/min
6015-RS1 d: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 3400 r/min
6016-2Z d: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Limiting speed: 5600 r/min
6016-Z d: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Limiting speed: 5600 r/min
6016-2RS1 d: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Limiting speed: 3200 r/min
6016-RS1 d: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Limiting speed: 3200 r/min
6017-2Z d: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Limiting speed: 5300 r/min
6017-Z d: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Limiting speed: 5300 r/min
6017-2RS1 d: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Limiting speed: 3000 r/min
6017-RS1 d: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Limiting speed: 3000 r/min
6018-2Z d: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Limiting speed: 5000 r/min
6018-Z d: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Limiting speed: 5000 r/min
6018-2RS1 d: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Limiting speed: 2800 r/min
6018-RS1 d: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Limiting speed: 2800 r/min
6019-2Z d: 95 mm | D: 145 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 4800 r/min
6019-Z d: 95 mm | D: 145 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 4800 r/min
6019-2RS1 d: 95 mm | D: 145 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 2800 r/min
6019-RS1 d: 95 mm | D: 145 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 2800 r/min
6020-2Z d: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 4500 r/min
6020-Z d: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 4500 r/min
6020-2RS1 d: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 2600 r/min
6020-RS1 d: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 2600 r/min
6021-2Z d: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Limiting speed: 4300 r/min
6021-Z d: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Limiting speed: 4300 r/min
6021-2RS1 d: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Limiting speed: 2400 r/min
6021-RS1 d: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Limiting speed: 2400 r/min
6022-2Z d: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Limiting speed: 4000 r/min
6022-Z d: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Limiting speed: 4000 r/min
6022-2RS1 d: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Limiting speed: 2400 r/min
6022-RS1 d: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Limiting speed: 2400 r/min
6024-2Z d: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 3800 r/min
6024-Z d: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 3800 r/min
6024-2RS1 d: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 2200 r/min
6024-RS1 d: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 2200 r/min
6026-2Z d: 130 mm | D: 200 mm | B: 33 mm | C: 112 kN | C0: 100 kN | Limiting speed: 3400 r/min
6026-Z d: 130 mm | D: 200 mm | B: 33 mm | C: 112 kN | C0: 100 kN | Limiting speed: 3400 r/min
6026-2RS1 d: 130 mm | D: 200 mm | B: 33 mm | C: 112 kN | C0: 100 kN | Limiting speed: 2000 r/min
6026-RS1 d: 130 mm | D: 200 mm | B: 33 mm | C: 112 kN | C0: 100 kN | Limiting speed: 2000 r/min
6028-2Z d: 140 mm | D: 210 mm | B: 33 mm | C: 111 kN | C0: 108 kN | Limiting speed: 3200 r/min
6028-Z d: 140 mm | D: 210 mm | B: 33 mm | C: 111 kN | C0: 108 kN | Limiting speed: 3200 r/min
6028-2RS1 d: 140 mm | D: 210 mm | B: 33 mm | C: 111 kN | C0: 108 kN | Limiting speed: 1800 r/min
6028-RS1 d: 140 mm | D: 210 mm | B: 33 mm | C: 111 kN | C0: 108 kN | Limiting speed: 1800 r/min
6030-2Z d: 150 mm | D: 225 mm | B: 35 mm | C: 125 kN | C0: 125 kN | Limiting speed: 3000 r/min
6030-Z d: 150 mm | D: 225 mm | B: 35 mm | C: 125 kN | C0: 125 kN | Limiting speed: 3000 r/min
6030-2RS1 d: 150 mm | D: 225 mm | B: 35 mm | C: 125 kN | C0: 125 kN | Limiting speed: 1700 r/min
6030-RS1 d: 150 mm | D: 225 mm | B: 35 mm | C: 125 kN | C0: 125 kN | Limiting speed: 1700 r/min
6032-2Z d: 160 mm | D: 240 mm | B: 38 mm | C: 143 kN | C0: 143 kN | Limiting speed: 2800 r/min
6032-Z d: 160 mm | D: 240 mm | B: 38 mm | C: 143 kN | C0: 143 kN | Limiting speed: 2800 r/min
6032-2RS1 d: 160 mm | D: 240 mm | B: 38 mm | C: 143 kN | C0: 143 kN | Limiting speed: 1600 r/min
6032-RS1 d: 160 mm | D: 240 mm | B: 38 mm | C: 143 kN | C0: 143 kN | Limiting speed: 1600 r/min
Deep Groove Ball BearingsSKF
215 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 60 Series Deep Groove Ball Bearings

Brand SKF·Deep Groove Ball Bearings

Available part numbers (215)

604, 607, 608, 609, 6000, 6001, 6002, 6003, 6004, 6005 + 205 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
604d: 4 mm | D: 12 mm | B: 4 mm | C: 0.806 kN | C0: 0.28 kN | Limiting speed: 75000 r/min
607d: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 53000 r/min
608d: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 48000 r/min
609d: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 43000 r/min
6000d: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 40000 r/min
6001d: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 38000 r/min
6002d: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 32000 r/min
6003d: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 28000 r/min
6004d: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 24000 r/min
6005d: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 20000 r/min
6006d: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 17000 r/min
6007d: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 15000 r/min
6008d: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 14000 r/min
6009d: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Limiting speed: 12000 r/min
6010d: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 11000 r/min
6011d: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Limiting speed: 10000 r/min
6012d: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 9500 r/min
6013d: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Limiting speed: 9000 r/min
6014d: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Limiting speed: 8000 r/min
6015d: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 7500 r/min
6016d: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Limiting speed: 7000 r/min
6017d: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Limiting speed: 6700 r/min
6018d: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Limiting speed: 6300 r/min
6019d: 95 mm | D: 145 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 6000 r/min
6020d: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 5600 r/min
6021d: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Limiting speed: 5300 r/min
6022d: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Limiting speed: 5000 r/min
6024d: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 4800 r/min
6026d: 130 mm | D: 200 mm | B: 33 mm | C: 112 kN | C0: 100 kN | Limiting speed: 4300 r/min
6028d: 140 mm | D: 210 mm | B: 33 mm | C: 111 kN | C0: 108 kN | Limiting speed: 4000 r/min
6030d: 150 mm | D: 225 mm | B: 35 mm | C: 125 kN | C0: 125 kN | Limiting speed: 3800 r/min
6032d: 160 mm | D: 240 mm | B: 38 mm | C: 143 kN | C0: 143 kN | Limiting speed: 3600 r/min
6034 Md: 170 mm | D: 260 mm | B: 42 mm | C: 168 kN | C0: 173 kN | Limiting speed: 4300 r/min
6036 Md: 180 mm | D: 280 mm | B: 46 mm | C: 190 kN | C0: 200 kN | Limiting speed: 4000 r/min
6038 Md: 190 mm | D: 290 mm | B: 46 mm | C: 195 kN | C0: 216 kN | Limiting speed: 3800 r/min
6040 Md: 200 mm | D: 310 mm | B: 51 mm | C: 216 kN | C0: 245 kN | Limiting speed: 3600 r/min
6044 Md: 220 mm | D: 340 mm | B: 56 mm | C: 247 kN | C0: 290 kN | Limiting speed: 3200 r/min
6048 Md: 240 mm | D: 360 mm | B: 56 mm | C: 255 kN | C0: 315 kN | Limiting speed: 3000 r/min
6052 Md: 260 mm | D: 400 mm | B: 65 mm | C: 291 kN | C0: 375 kN | Limiting speed: 2800 r/min
6056 Md: 280 mm | D: 420 mm | B: 65 mm | C: 302 kN | C0: 405 kN | Limiting speed: 2600 r/min
6060 Md: 300 mm | D: 460 mm | B: 74 mm | C: 358 kN | C0: 500 kN | Limiting speed: 2400 r/min
6064 Md: 320 mm | D: 480 mm | B: 74 mm | C: 371 kN | C0: 540 kN | Limiting speed: 2200 r/min
6068 Md: 340 mm | D: 520 mm | B: 82 mm | C: 423 kN | C0: 640 kN | Limiting speed: 2000 r/min
6072 Md: 360 mm | D: 540 mm | B: 82 mm | C: 462 kN | C0: 735 kN | Limiting speed: 1900 r/min
6076 Md: 380 mm | D: 560 mm | B: 82 mm | C: 462 kN | C0: 750 kN | Limiting speed: 1800 r/min
6080 Md: 400 mm | D: 600 mm | B: 90 mm | C: 520 kN | C0: 865 kN | Limiting speed: 1700 r/min
6084 Md: 420 mm | D: 620 mm | B: 90 mm | C: 507 kN | C0: 880 kN | Limiting speed: 1600 r/min
6088 Md: 440 mm | D: 650 mm | B: 94 mm | C: 553 kN | C0: 965 kN | Limiting speed: 1500 r/min
6092 MBd: 460 mm | D: 680 mm | B: 100 mm | C: 582 kN | C0: 1060 kN | Limiting speed: 1500 r/min
6096 MBd: 480 mm | D: 700 mm | B: 100 mm | C: 618 kN | C0: 1140 kN | Limiting speed: 1400 r/min
60/500 N1MASd: 500 mm | D: 720 mm | B: 100 mm | C: 605 kN | C0: 1140 kN | Limiting speed: 1300 r/min
60/530 N1MASd: 530 mm | D: 780 mm | B: 112 mm | C: 650 kN | C0: 1270 kN | Limiting speed: 1200 r/min
60/560 N1MASd: 560 mm | D: 820 mm | B: 115 mm | C: 663 kN | C0: 1470 kN | Limiting speed: 1200 r/min
60/630 N1MBSd: 630 mm | D: 920 mm | B: 128 mm | C: 819 kN | C0: 1760 kN | Limiting speed: 1000 r/min
60/670 N1MASd: 670 mm | D: 980 mm | B: 136 mm | C: 904 kN | C0: 2040 kN | Limiting speed: 900 r/min
60/710 MAd: 710 mm | D: 1030 mm | B: 140 mm | C: 956 kN | C0: 2200 kN | Limiting speed: 850 r/min
60/800 N1MASd: 800 mm | D: 1150 mm | B: 155 mm | C: 1010 kN | C0: 2550 kN | Limiting speed: 750 r/min
604-2Zd: 4 mm | D: 12 mm | B: 4 mm | C: 0.81 kN | C0: 0.28 kN | Limiting speed: 60000 r/min
604-Zd: 4 mm | D: 12 mm | B: 4 mm | C: 0.81 kN | C0: 0.28 kN | Limiting speed: 60000 r/min
607-2Zd: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 43000 r/min
607-Zd: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 43000 r/min
607-2RSLd: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 43000 r/min
607-RSLd: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 43000 r/min
607-2RSHd: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 24000 r/min
607-RSHd: 7 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 24000 r/min
607/8-2Zd: 8 mm | D: 19 mm | B: 6 mm | C: 2.21 kN | C0: 0.95 kN | Limiting speed: 43000 r/min
607/8-Zd: 8 mm | D: 19 mm | B: 6 mm | C: 2.21 kN | C0: 0.95 kN | Limiting speed: 43000 r/min
608-2Zd: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 38000 r/min
608-Zd: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 38000 r/min
608-2RSLd: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 38000 r/min
608-RSLd: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 38000 r/min
608-2RSHd: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 22000 r/min
608-RSHd: 8 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 22000 r/min
609-2Zd: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 34000 r/min
609-Zd: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 34000 r/min
609-2RSLd: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 34000 r/min
609-RSLd: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 34000 r/min
609-2RSHd: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 19000 r/min
609-RSHd: 9 mm | D: 24 mm | B: 7 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 19000 r/min
6000-2Zd: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 34000 r/min
6000-Zd: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 34000 r/min
6000-2RSLd: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 34000 r/min
6000-RSLd: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 34000 r/min
6000-2RSHd: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 19000 r/min
6000-RSHd: 10 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 19000 r/min
6001-2Zd: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 30000 r/min
6001-Zd: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 30000 r/min
6001-2RSLd: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 30000 r/min
6001-RSLd: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 30000 r/min
6001-2RSHd: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 17000 r/min
6001-RSHd: 12 mm | D: 28 mm | B: 8 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 17000 r/min
6002-2Zd: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 26000 r/min
6002-Zd: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 26000 r/min
6002-2RSLd: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 26000 r/min
6002-RSLd: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 26000 r/min
6002-2RSHd: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 14000 r/min
6002-RSHd: 15 mm | D: 32 mm | B: 9 mm | C: 5.85 kN | C0: 2.85 kN | Limiting speed: 14000 r/min
6003-2Zd: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 22000 r/min
6003-Zd: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 22000 r/min
6003-2RSLd: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 22000 r/min
6003-RSLd: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 22000 r/min
6003-2RSHd: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 13000 r/min
6003-RSHd: 17 mm | D: 35 mm | B: 10 mm | C: 6.37 kN | C0: 3.25 kN | Limiting speed: 13000 r/min
6004-2Zd: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 19000 r/min
6004-Zd: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 19000 r/min
6004-2RSLd: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 19000 r/min
6004-RSLd: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 19000 r/min
6004-2RSHd: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 11000 r/min
6004-RSHd: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Limiting speed: 11000 r/min
6005-2Zd: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 16000 r/min
6005-Zd: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 16000 r/min
6005-2RSLd: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 16000 r/min
6005-RSLd: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 16000 r/min
6005-2RSHd: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 9500 r/min
6005-RSHd: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Limiting speed: 9500 r/min
6006-2Zd: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 14000 r/min
6006-Zd: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 14000 r/min
6006-2RZd: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 14000 r/min
6006-RZd: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 14000 r/min
6006-2RS1d: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 8000 r/min
6006-RS1d: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Limiting speed: 8000 r/min
6007-2Zd: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 12000 r/min
6007-Zd: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 12000 r/min
6007-2RZd: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 12000 r/min
6007-RZd: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 12000 r/min
6007-2RS1d: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 7000 r/min
6007-RS1d: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Limiting speed: 7000 r/min
6008-2Zd: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 11000 r/min
6008-Zd: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 11000 r/min
6008-2RZd: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 11000 r/min
6008-RZd: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 11000 r/min
6008-2RS1d: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 6300 r/min
6008-RS1d: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Limiting speed: 6300 r/min
6009-2Zd: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Limiting speed: 10000 r/min
6009-Zd: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Limiting speed: 10000 r/min
6009-2RS1d: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Limiting speed: 5600 r/min
6009-RS1d: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Limiting speed: 5600 r/min
6010-2Zd: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 9000 r/min
6010-Zd: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 9000 r/min
6010-2RZd: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 9000 r/min
6010-RZd: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 9000 r/min
6010-2RS1d: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 5000 r/min
6010-RS1d: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Limiting speed: 5000 r/min
6011-2Zd: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Limiting speed: 8000 r/min
6011-Zd: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Limiting speed: 8000 r/min
6011-2RS1d: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Limiting speed: 4500 r/min
6011-RS1d: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Limiting speed: 4500 r/min
6012-2Zd: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 7500 r/min
6012-Zd: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 7500 r/min
6012-2RZd: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 7500 r/min
6012-RZd: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 7500 r/min
6012-2RS1d: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 4300 r/min
6012-RS1d: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Limiting speed: 4300 r/min
6013-2Zd: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Limiting speed: 7000 r/min
6013-Zd: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Limiting speed: 7000 r/min
6013-2RS1d: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Limiting speed: 4000 r/min
6013-RS1d: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Limiting speed: 4000 r/min
6014-2Zd: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Limiting speed: 6300 r/min
6014-Zd: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Limiting speed: 6300 r/min
6014-2RS1d: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Limiting speed: 3600 r/min
6014-RS1d: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Limiting speed: 3600 r/min
6015-2Zd: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 6000 r/min
6015-Zd: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 6000 r/min
6015-2RZd: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 6000 r/min
6015-RZd: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 6000 r/min
6015-2RS1d: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 3400 r/min
6015-RS1d: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Limiting speed: 3400 r/min
6016-2Zd: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Limiting speed: 5600 r/min
6016-Zd: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Limiting speed: 5600 r/min
6016-2RS1d: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Limiting speed: 3200 r/min
6016-RS1d: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Limiting speed: 3200 r/min
6017-2Zd: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Limiting speed: 5300 r/min
6017-Zd: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Limiting speed: 5300 r/min
6017-2RS1d: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Limiting speed: 3000 r/min
6017-RS1d: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Limiting speed: 3000 r/min
6018-2Zd: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Limiting speed: 5000 r/min
6018-Zd: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Limiting speed: 5000 r/min
6018-2RS1d: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Limiting speed: 2800 r/min
6018-RS1d: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Limiting speed: 2800 r/min
6019-2Zd: 95 mm | D: 145 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 4800 r/min
6019-Zd: 95 mm | D: 145 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 4800 r/min
6019-2RS1d: 95 mm | D: 145 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 2800 r/min
6019-RS1d: 95 mm | D: 145 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 2800 r/min
6020-2Zd: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 4500 r/min
6020-Zd: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 4500 r/min
6020-2RS1d: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 2600 r/min
6020-RS1d: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Limiting speed: 2600 r/min
6021-2Zd: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Limiting speed: 4300 r/min
6021-Zd: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Limiting speed: 4300 r/min
6021-2RS1d: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Limiting speed: 2400 r/min
6021-RS1d: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Limiting speed: 2400 r/min
6022-2Zd: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Limiting speed: 4000 r/min
6022-Zd: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Limiting speed: 4000 r/min
6022-2RS1d: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Limiting speed: 2400 r/min
6022-RS1d: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Limiting speed: 2400 r/min
6024-2Zd: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 3800 r/min
6024-Zd: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 3800 r/min
6024-2RS1d: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 2200 r/min
6024-RS1d: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 2200 r/min
6026-2Zd: 130 mm | D: 200 mm | B: 33 mm | C: 112 kN | C0: 100 kN | Limiting speed: 3400 r/min
6026-Zd: 130 mm | D: 200 mm | B: 33 mm | C: 112 kN | C0: 100 kN | Limiting speed: 3400 r/min
6026-2RS1d: 130 mm | D: 200 mm | B: 33 mm | C: 112 kN | C0: 100 kN | Limiting speed: 2000 r/min
6026-RS1d: 130 mm | D: 200 mm | B: 33 mm | C: 112 kN | C0: 100 kN | Limiting speed: 2000 r/min
6028-2Zd: 140 mm | D: 210 mm | B: 33 mm | C: 111 kN | C0: 108 kN | Limiting speed: 3200 r/min
6028-Zd: 140 mm | D: 210 mm | B: 33 mm | C: 111 kN | C0: 108 kN | Limiting speed: 3200 r/min
6028-2RS1d: 140 mm | D: 210 mm | B: 33 mm | C: 111 kN | C0: 108 kN | Limiting speed: 1800 r/min
6028-RS1d: 140 mm | D: 210 mm | B: 33 mm | C: 111 kN | C0: 108 kN | Limiting speed: 1800 r/min
6030-2Zd: 150 mm | D: 225 mm | B: 35 mm | C: 125 kN | C0: 125 kN | Limiting speed: 3000 r/min
6030-Zd: 150 mm | D: 225 mm | B: 35 mm | C: 125 kN | C0: 125 kN | Limiting speed: 3000 r/min
6030-2RS1d: 150 mm | D: 225 mm | B: 35 mm | C: 125 kN | C0: 125 kN | Limiting speed: 1700 r/min
6030-RS1d: 150 mm | D: 225 mm | B: 35 mm | C: 125 kN | C0: 125 kN | Limiting speed: 1700 r/min
6032-2Zd: 160 mm | D: 240 mm | B: 38 mm | C: 143 kN | C0: 143 kN | Limiting speed: 2800 r/min
6032-Zd: 160 mm | D: 240 mm | B: 38 mm | C: 143 kN | C0: 143 kN | Limiting speed: 2800 r/min
6032-2RS1d: 160 mm | D: 240 mm | B: 38 mm | C: 143 kN | C0: 143 kN | Limiting speed: 1600 r/min
6032-RS1d: 160 mm | D: 240 mm | B: 38 mm | C: 143 kN | C0: 143 kN | Limiting speed: 1600 r/min

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
