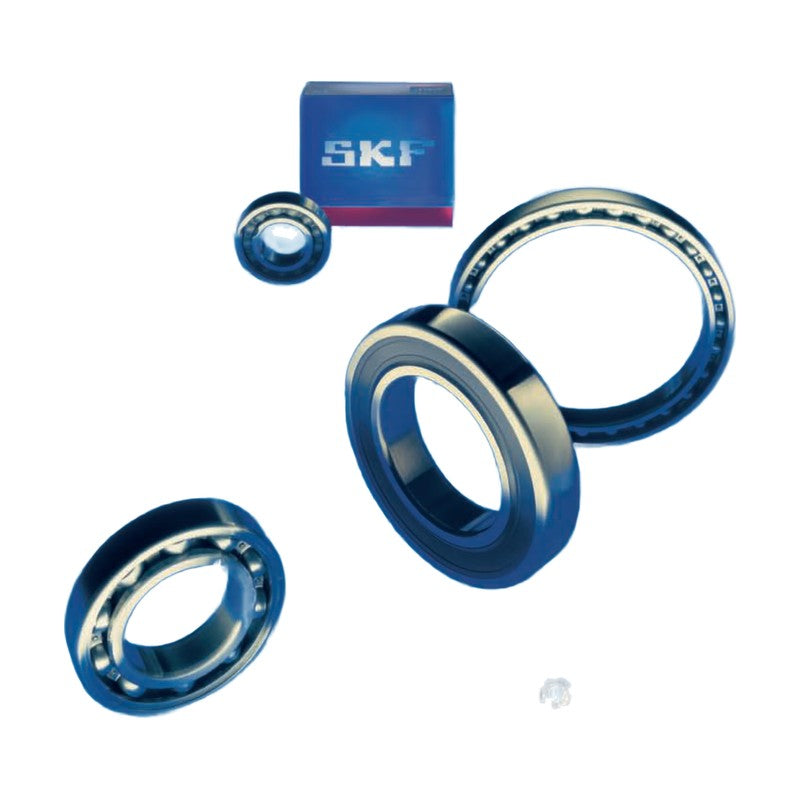

SKF 618 Series Deep Groove Ball Bearings

SKF 618 Series Deep Groove Ball Bearings

SKF single row deep groove ball bearings in the thin-section 618 series (open and sealed). Simple, robust, non-separable bearings for radial and axial loads at high speeds.

Key features

  • Single row, non-separable design with deep uninterrupted raceway grooves
  • Carries radial loads and axial loads in both directions, suitable for high speeds
  • Boundary dimensions to ISO 15:1998
  • Open bearings plus shielded (Z, 2Z, RZ, 2RZ) and sealed (RSL, RSH, RS1 and 2-side) variants where listed
  • Sealed and shielded bearings are greased for life; SKF Explorer sizes marked in the catalogue

Specifications

Bearing type Single row deep groove ball bearing
Design Non-separable
Dimension standard ISO 15:1998
Load direction Radial and axial (both directions)
Series 618
Seal / shield suffixes Z, 2Z, RZ, 2RZ, RSL, 2RSL, RSH, 2RSH, RS1, 2RS1
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 302-347
618/4 d: 4 mm | D: 9 mm | B: 2.5 mm | C: 0.54 kN | C0: 0.18 kN | Limiting speed: 85000 r/min
618/5 d: 5 mm | D: 11 mm | B: 3 mm | C: 0.637 kN | C0: 0.255 kN | Limiting speed: 75000 r/min
618/6 d: 6 mm | D: 13 mm | B: 3.5 mm | C: 0.884 kN | C0: 0.345 kN | Limiting speed: 67000 r/min
618/7 d: 7 mm | D: 14 mm | B: 3.5 mm | C: 0.956 kN | C0: 0.4 kN | Limiting speed: 63000 r/min
618/8 d: 8 mm | D: 16 mm | B: 4 mm | C: 1.33 kN | C0: 0.57 kN | Limiting speed: 56000 r/min
618/9 d: 9 mm | D: 17 mm | B: 4 mm | C: 1.43 kN | C0: 0.64 kN | Limiting speed: 53000 r/min
61800 d: 10 mm | D: 19 mm | B: 5 mm | C: 1.38 kN | C0: 0.585 kN | Limiting speed: 48000 r/min
61801 d: 12 mm | D: 21 mm | B: 5 mm | C: 1.43 kN | C0: 0.67 kN | Limiting speed: 43000 r/min
61802 d: 15 mm | D: 24 mm | B: 5 mm | C: 1.56 kN | C0: 0.8 kN | Limiting speed: 38000 r/min
61803 d: 17 mm | D: 26 mm | B: 5 mm | C: 1.68 kN | C0: 0.93 kN | Limiting speed: 34000 r/min
61804 d: 20 mm | D: 32 mm | B: 7 mm | C: 4.03 kN | C0: 2.32 kN | Limiting speed: 28000 r/min
61805 d: 25 mm | D: 37 mm | B: 7 mm | C: 4.36 kN | C0: 2.6 kN | Limiting speed: 24000 r/min
61806 d: 30 mm | D: 42 mm | B: 7 mm | C: 4.49 kN | C0: 2.9 kN | Limiting speed: 20000 r/min
61807 d: 35 mm | D: 47 mm | B: 7 mm | C: 4.75 kN | C0: 3.2 kN | Limiting speed: 18000 r/min
61808 d: 40 mm | D: 52 mm | B: 7 mm | C: 4.94 kN | C0: 3.45 kN | Limiting speed: 16000 r/min
61809 d: 45 mm | D: 58 mm | B: 7 mm | C: 6.63 kN | C0: 6.1 kN | Limiting speed: 14000 r/min
61810 d: 50 mm | D: 65 mm | B: 7 mm | C: 6.76 kN | C0: 6.8 kN | Limiting speed: 13000 r/min
61811 d: 55 mm | D: 72 mm | B: 9 mm | C: 9.04 kN | C0: 8.8 kN | Limiting speed: 12000 r/min
61812 d: 60 mm | D: 78 mm | B: 10 mm | C: 11.9 kN | C0: 11.4 kN | Limiting speed: 11000 r/min
61813 d: 65 mm | D: 85 mm | B: 10 mm | C: 12.4 kN | C0: 12.7 kN | Limiting speed: 10000 r/min
61814 d: 70 mm | D: 90 mm | B: 10 mm | C: 12.4 kN | C0: 13.2 kN | Limiting speed: 9000 r/min
61815 d: 75 mm | D: 95 mm | B: 10 mm | C: 12.7 kN | C0: 14.3 kN | Limiting speed: 8500 r/min
61816 d: 80 mm | D: 100 mm | B: 10 mm | C: 13 kN | C0: 15 kN | Limiting speed: 8000 r/min
61817 d: 85 mm | D: 110 mm | B: 13 mm | C: 19.5 kN | C0: 20.8 kN | Limiting speed: 7500 r/min
61818 d: 90 mm | D: 115 mm | B: 13 mm | C: 19.5 kN | C0: 22 kN | Limiting speed: 7000 r/min
61819 d: 95 mm | D: 120 mm | B: 13 mm | C: 19.9 kN | C0: 22.8 kN | Limiting speed: 6700 r/min
61820 d: 100 mm | D: 125 mm | B: 13 mm | C: 19.9 kN | C0: 24 kN | Limiting speed: 6300 r/min
61821 d: 105 mm | D: 130 mm | B: 13 mm | C: 20.8 kN | C0: 19.6 kN | Limiting speed: 6300 r/min
61822 d: 110 mm | D: 140 mm | B: 16 mm | C: 28.1 kN | C0: 26 kN | Limiting speed: 5600 r/min
61824 d: 120 mm | D: 150 mm | B: 16 mm | C: 29.1 kN | C0: 28 kN | Limiting speed: 5300 r/min
61826 d: 130 mm | D: 165 mm | B: 18 mm | C: 37.7 kN | C0: 43 kN | Limiting speed: 4800 r/min
61828 d: 140 mm | D: 175 mm | B: 18 mm | C: 39 kN | C0: 46.5 kN | Limiting speed: 4500 r/min
61830 d: 150 mm | D: 190 mm | B: 20 mm | C: 48.8 kN | C0: 61 kN | Limiting speed: 4300 r/min
61832 d: 160 mm | D: 200 mm | B: 20 mm | C: 49.4 kN | C0: 64 kN | Limiting speed: 4000 r/min
61834 d: 170 mm | D: 215 mm | B: 22 mm | C: 61.8 kN | C0: 78 kN | Limiting speed: 3600 r/min
61836 d: 180 mm | D: 225 mm | B: 22 mm | C: 62.4 kN | C0: 81.5 kN | Limiting speed: 3400 r/min
61838 d: 190 mm | D: 240 mm | B: 24 mm | C: 76.1 kN | C0: 98 kN | Limiting speed: 3200 r/min
61840 d: 200 mm | D: 250 mm | B: 24 mm | C: 76.1 kN | C0: 102 kN | Limiting speed: 3200 r/min
61844 d: 220 mm | D: 270 mm | B: 24 mm | C: 78 kN | C0: 110 kN | Limiting speed: 2800 r/min
61848 d: 240 mm | D: 300 mm | B: 28 mm | C: 108 kN | C0: 150 kN | Limiting speed: 2600 r/min
61852 d: 260 mm | D: 320 mm | B: 28 mm | C: 111 kN | C0: 163 kN | Limiting speed: 2400 r/min
61856 d: 280 mm | D: 350 mm | B: 33 mm | C: 138 kN | C0: 200 kN | Limiting speed: 2200 r/min
61860 MA d: 300 mm | D: 380 mm | B: 38 mm | C: 172 kN | C0: 245 kN | Limiting speed: 2600 r/min
61864 MA d: 320 mm | D: 400 mm | B: 38 mm | C: 172 kN | C0: 255 kN | Limiting speed: 2400 r/min
61868 MA d: 340 mm | D: 420 mm | B: 38 mm | C: 178 kN | C0: 275 kN | Limiting speed: 2400 r/min
61872 MA d: 360 mm | D: 440 mm | B: 38 mm | C: 182 kN | C0: 285 kN | Limiting speed: 2200 r/min
61876 MA d: 380 mm | D: 480 mm | B: 46 mm | C: 242 kN | C0: 390 kN | Limiting speed: 2000 r/min
61880 MA d: 400 mm | D: 500 mm | B: 46 mm | C: 247 kN | C0: 405 kN | Limiting speed: 1900 r/min
61884 MA d: 420 mm | D: 520 mm | B: 46 mm | C: 251 kN | C0: 425 kN | Limiting speed: 1800 r/min
61888 MA d: 440 mm | D: 540 mm | B: 46 mm | C: 255 kN | C0: 440 kN | Limiting speed: 1800 r/min
61892 MA d: 460 mm | D: 580 mm | B: 56 mm | C: 319 kN | C0: 570 kN | Limiting speed: 1600 r/min
61896 MA d: 480 mm | D: 600 mm | B: 56 mm | C: 325 kN | C0: 600 kN | Limiting speed: 1600 r/min
618/500 MA d: 500 mm | D: 620 mm | B: 56 mm | C: 332 kN | C0: 620 kN | Limiting speed: 1500 r/min
618/530 MA d: 530 mm | D: 650 mm | B: 56 mm | C: 332 kN | C0: 655 kN | Limiting speed: 1400 r/min
618/560 MA d: 560 mm | D: 680 mm | B: 56 mm | C: 345 kN | C0: 695 kN | Limiting speed: 1300 r/min
618/600 MA d: 600 mm | D: 730 mm | B: 60 mm | C: 364 kN | C0: 765 kN | Limiting speed: 1200 r/min
618/630 MA d: 630 mm | D: 780 mm | B: 69 mm | C: 442 kN | C0: 965 kN | Limiting speed: 1100 r/min
618/670 MA d: 670 mm | D: 820 mm | B: 69 mm | C: 442 kN | C0: 1000 kN | Limiting speed: 1100 r/min
618/710 MA d: 710 mm | D: 870 mm | B: 74 mm | C: 475 kN | C0: 1100 kN | Limiting speed: 1000 r/min
618/750 MA d: 750 mm | D: 920 mm | B: 78 mm | C: 527 kN | C0: 1250 kN | Limiting speed: 900 r/min
618/800 MA d: 800 mm | D: 980 mm | B: 82 mm | C: 559 kN | C0: 1370 kN | Limiting speed: 850 r/min
618/850 MA d: 850 mm | D: 1030 mm | B: 82 mm | C: 559 kN | C0: 1430 kN | Limiting speed: 750 r/min
618/900 MA d: 900 mm | D: 1090 mm | B: 85 mm | C: 618 kN | C0: 1600 kN | Limiting speed: 700 r/min
618/1000 MA d: 1000 mm | D: 1220 mm | B: 100 mm | C: 637 kN | C0: 1800 kN | Limiting speed: 600 r/min
618/1060 MA d: 1060 mm | D: 1280 mm | B: 100 mm | C: 728 kN | C0: 2120 kN | Limiting speed: 560 r/min
618/1120 MA d: 1120 mm | D: 1360 mm | B: 106 mm | C: 741 kN | C0: 2200 kN | Limiting speed: 530 r/min
618/1180 MB d: 1180 mm | D: 1420 mm | B: 106 mm | C: 761 kN | C0: 2360 kN | Limiting speed: 480 r/min
618/1500 TN d: 1500 mm | D: 1820 mm | B: 140 mm | C: 1210 kN | C0: 4400 kN | Limiting speed: 240 r/min
61800-2Z d: 10 mm | D: 19 mm | B: 5 mm | C: 1.38 kN | C0: 0.59 kN | Limiting speed: 38000 r/min
61800-2RS1 d: 10 mm | D: 19 mm | B: 5 mm | C: 1.38 kN | C0: 0.59 kN | Limiting speed: 22000 r/min
61801-2Z d: 12 mm | D: 21 mm | B: 5 mm | C: 1.43 kN | C0: 0.67 kN | Limiting speed: 36000 r/min
61801-2RS1 d: 12 mm | D: 21 mm | B: 5 mm | C: 1.43 kN | C0: 0.67 kN | Limiting speed: 20000 r/min
61802-2Z d: 15 mm | D: 24 mm | B: 5 mm | C: 1.56 kN | C0: 0.8 kN | Limiting speed: 30000 r/min
61802-2RS1 d: 15 mm | D: 24 mm | B: 5 mm | C: 1.56 kN | C0: 0.8 kN | Limiting speed: 17000 r/min
61803-2Z d: 17 mm | D: 26 mm | B: 5 mm | C: 1.68 kN | C0: 0.93 kN | Limiting speed: 28000 r/min
61803-2RZ d: 17 mm | D: 26 mm | B: 5 mm | C: 1.68 kN | C0: 0.93 kN | Limiting speed: 28000 r/min
61803-2RS1 d: 17 mm | D: 26 mm | B: 5 mm | C: 1.68 kN | C0: 0.93 kN | Limiting speed: 16000 r/min
61804-2RZ d: 20 mm | D: 32 mm | B: 7 mm | C: 4.03 kN | C0: 2.32 kN | Limiting speed: 22000 r/min
61804-2RS1 d: 20 mm | D: 32 mm | B: 7 mm | C: 4.03 kN | C0: 2.32 kN | Limiting speed: 13000 r/min
61805-2RZ d: 25 mm | D: 37 mm | B: 7 mm | C: 4.36 kN | C0: 2.6 kN | Limiting speed: 19000 r/min
61805-2RS1 d: 25 mm | D: 37 mm | B: 7 mm | C: 4.36 kN | C0: 2.6 kN | Limiting speed: 11000 r/min
61806-2RZ d: 30 mm | D: 42 mm | B: 7 mm | C: 4.49 kN | C0: 2.9 kN | Limiting speed: 16000 r/min
61806-2RS1 d: 30 mm | D: 42 mm | B: 7 mm | C: 4.49 kN | C0: 2.9 kN | Limiting speed: 9500 r/min
61807-2RZ d: 35 mm | D: 47 mm | B: 7 mm | C: 4.75 kN | C0: 3.2 kN | Limiting speed: 14000 r/min
61807-2RS1 d: 35 mm | D: 47 mm | B: 7 mm | C: 4.75 kN | C0: 3.2 kN | Limiting speed: 8000 r/min
61808-2RZ d: 40 mm | D: 52 mm | B: 7 mm | C: 4.94 kN | C0: 3.45 kN | Limiting speed: 13000 r/min
61808-2RS1 d: 40 mm | D: 52 mm | B: 7 mm | C: 4.94 kN | C0: 3.45 kN | Limiting speed: 7500 r/min
61809-2RZ d: 45 mm | D: 58 mm | B: 7 mm | C: 6.63 kN | C0: 6.1 kN | Limiting speed: 11000 r/min
61809-2RS1 d: 45 mm | D: 58 mm | B: 7 mm | C: 6.63 kN | C0: 6.1 kN | Limiting speed: 6700 r/min
61810-2RZ d: 50 mm | D: 65 mm | B: 7 mm | C: 6.76 kN | C0: 6.8 kN | Limiting speed: 10000 r/min
61810-2RS1 d: 50 mm | D: 65 mm | B: 7 mm | C: 6.76 kN | C0: 6.8 kN | Limiting speed: 6000 r/min
61811-2RZ d: 55 mm | D: 72 mm | B: 9 mm | C: 9.04 kN | C0: 8.8 kN | Limiting speed: 9500 r/min
61811-2RS1 d: 55 mm | D: 72 mm | B: 9 mm | C: 9.04 kN | C0: 8.8 kN | Limiting speed: 5300 r/min
61812-2RZ d: 60 mm | D: 78 mm | B: 10 mm | C: 11.9 kN | C0: 11.4 kN | Limiting speed: 8500 r/min
61812-2RS1 d: 60 mm | D: 78 mm | B: 10 mm | C: 11.9 kN | C0: 11.4 kN | Limiting speed: 4800 r/min
61813-2RZ d: 65 mm | D: 85 mm | B: 10 mm | C: 12.4 kN | C0: 12.7 kN | Limiting speed: 8000 r/min
61813-2RS1 d: 65 mm | D: 85 mm | B: 10 mm | C: 12.4 kN | C0: 12.7 kN | Limiting speed: 4500 r/min
61814-2RZ d: 70 mm | D: 90 mm | B: 10 mm | C: 12.4 kN | C0: 13.2 kN | Limiting speed: 7500 r/min
61814-2RS1 d: 70 mm | D: 90 mm | B: 10 mm | C: 12.4 kN | C0: 13.2 kN | Limiting speed: 4300 r/min
61815-2RZ d: 75 mm | D: 95 mm | B: 10 mm | C: 12.7 kN | C0: 14.3 kN | Limiting speed: 7000 r/min
61815-2RS1 d: 75 mm | D: 95 mm | B: 10 mm | C: 12.7 kN | C0: 14.3 kN | Limiting speed: 4000 r/min
61816-2RZ d: 80 mm | D: 100 mm | B: 10 mm | C: 13 kN | C0: 15 kN | Limiting speed: 6300 r/min
61816-2RS1 d: 80 mm | D: 100 mm | B: 10 mm | C: 13 kN | C0: 15 kN | Limiting speed: 3600 r/min
61817-2RZ d: 85 mm | D: 110 mm | B: 13 mm | C: 19.5 kN | C0: 20.8 kN | Limiting speed: 6000 r/min
61817-2RS1 d: 85 mm | D: 110 mm | B: 13 mm | C: 19.5 kN | C0: 20.8 kN | Limiting speed: 3400 r/min
61818-2RZ d: 90 mm | D: 115 mm | B: 13 mm | C: 19.5 kN | C0: 22 kN | Limiting speed: 5600 r/min
61818-2RS1 d: 90 mm | D: 115 mm | B: 13 mm | C: 19.5 kN | C0: 22 kN | Limiting speed: 3200 r/min
61819-2RZ d: 95 mm | D: 120 mm | B: 13 mm | C: 19.9 kN | C0: 22.8 kN | Limiting speed: 5300 r/min
61819-2RS1 d: 95 mm | D: 120 mm | B: 13 mm | C: 19.9 kN | C0: 22.8 kN | Limiting speed: 3000 r/min
61820-2RZ d: 100 mm | D: 125 mm | B: 13 mm | C: 19.9 kN | C0: 24 kN | Limiting speed: 5300 r/min
61820-2RS1 d: 100 mm | D: 125 mm | B: 13 mm | C: 19.9 kN | C0: 24 kN | Limiting speed: 3000 r/min
61821-2RZ d: 105 mm | D: 130 mm | B: 13 mm | C: 20.8 kN | C0: 19.6 kN | Limiting speed: 5000 r/min
61821-2RS1 d: 105 mm | D: 130 mm | B: 13 mm | C: 20.8 kN | C0: 19.6 kN | Limiting speed: 2800 r/min
61822-2RZ d: 110 mm | D: 140 mm | B: 16 mm | C: 28.1 kN | C0: 26 kN | Limiting speed: 4500 r/min
61822-2RS1 d: 110 mm | D: 140 mm | B: 16 mm | C: 28.1 kN | C0: 26 kN | Limiting speed: 2600 r/min
61824-2RZ d: 120 mm | D: 150 mm | B: 16 mm | C: 29.1 kN | C0: 28 kN | Limiting speed: 4300 r/min
61824-2RS1 d: 120 mm | D: 150 mm | B: 16 mm | C: 29.1 kN | C0: 28 kN | Limiting speed: 2400 r/min
61826-2RZ d: 130 mm | D: 165 mm | B: 18 mm | C: 37.7 kN | C0: 43 kN | Limiting speed: 3800 r/min
61826-2RS1 d: 130 mm | D: 165 mm | B: 18 mm | C: 37.7 kN | C0: 43 kN | Limiting speed: 2200 r/min
61828-2RZ d: 140 mm | D: 175 mm | B: 18 mm | C: 39 kN | C0: 46.5 kN | Limiting speed: 3600 r/min
61828-2RS1 d: 140 mm | D: 175 mm | B: 18 mm | C: 39 kN | C0: 46.5 kN | Limiting speed: 2000 r/min
