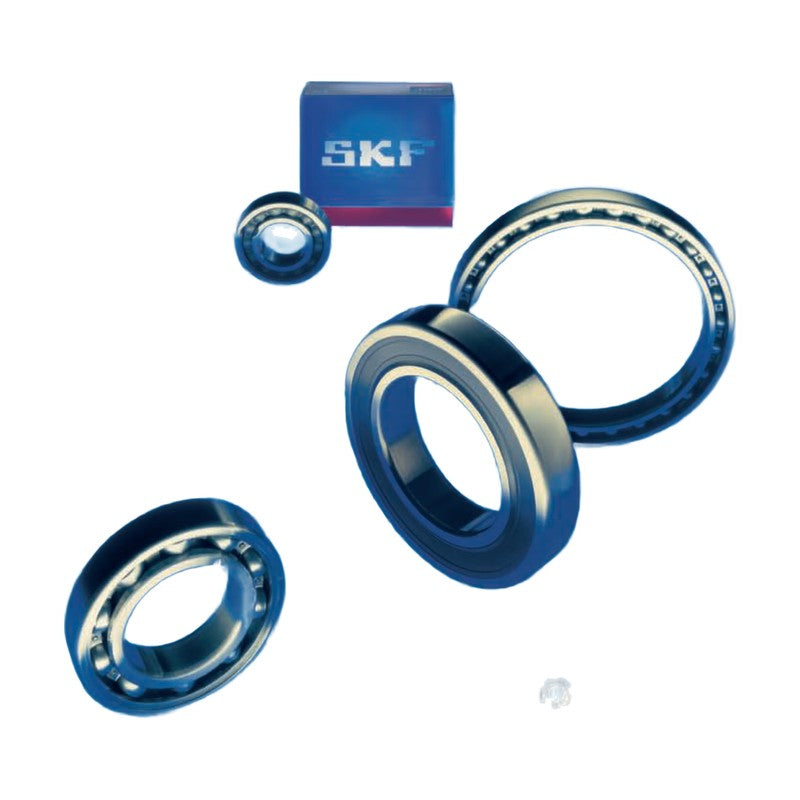

SKF 619 Series Deep Groove Ball Bearings

SKF 619 Series Deep Groove Ball Bearings

SKF single row deep groove ball bearings in the 619 series (open and sealed). Simple, robust, non-separable bearings for radial and axial loads at high speeds.

Key features

  • Single row, non-separable design with deep uninterrupted raceway grooves
  • Carries radial loads and axial loads in both directions, suitable for high speeds
  • Boundary dimensions to ISO 15:1998
  • Open bearings plus shielded (Z, 2Z, RZ, 2RZ) and sealed (RSL, RSH, RS1 and 2-side) variants where listed
  • Sealed and shielded bearings are greased for life; SKF Explorer sizes marked in the catalogue

Specifications

Bearing type Single row deep groove ball bearing
Design Non-separable
Dimension standard ISO 15:1998
Load direction Radial and axial (both directions)
Series 619
Seal / shield suffixes Z, 2Z, RZ, 2RZ, RSL, 2RSL, RSH, 2RSH, RS1, 2RS1
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 302-345
619/4 d: 4 mm | D: 11 mm | B: 4 mm | C: 0.715 kN | C0: 0.232 kN | Limiting speed: 80000 r/min
619/5 d: 5 mm | D: 13 mm | B: 4 mm | C: 0.884 kN | C0: 0.34 kN | Limiting speed: 67000 r/min
619/6 d: 6 mm | D: 15 mm | B: 5 mm | C: 1.24 kN | C0: 0.475 kN | Limiting speed: 63000 r/min
619/7 d: 7 mm | D: 17 mm | B: 5 mm | C: 1.48 kN | C0: 0.56 kN | Limiting speed: 56000 r/min
619/8 d: 8 mm | D: 19 mm | B: 6 mm | C: 1.9 kN | C0: 0.735 kN | Limiting speed: 50000 r/min
619/9 d: 9 mm | D: 20 mm | B: 6 mm | C: 2.08 kN | C0: 0.865 kN | Limiting speed: 48000 r/min
61900 d: 10 mm | D: 22 mm | B: 6 mm | C: 2.08 kN | C0: 0.85 kN | Limiting speed: 45000 r/min
61901 d: 12 mm | D: 24 mm | B: 6 mm | C: 2.25 kN | C0: 0.98 kN | Limiting speed: 40000 r/min
61902 d: 15 mm | D: 28 mm | B: 7 mm | C: 4.36 kN | C0: 2.24 kN | Limiting speed: 34000 r/min
61903 d: 17 mm | D: 30 mm | B: 7 mm | C: 4.62 kN | C0: 2.55 kN | Limiting speed: 32000 r/min
61904 d: 20 mm | D: 37 mm | B: 9 mm | C: 6.37 kN | C0: 3.65 kN | Limiting speed: 26000 r/min
61905 d: 25 mm | D: 42 mm | B: 9 mm | C: 7.02 kN | C0: 4.3 kN | Limiting speed: 22000 r/min
61906 d: 30 mm | D: 47 mm | B: 9 mm | C: 7.28 kN | C0: 4.55 kN | Limiting speed: 19000 r/min
61907 d: 35 mm | D: 55 mm | B: 10 mm | C: 9.56 kN | C0: 6.8 kN | Limiting speed: 16000 r/min
61908 d: 40 mm | D: 62 mm | B: 12 mm | C: 13.8 kN | C0: 10 kN | Limiting speed: 14000 r/min
61909 d: 45 mm | D: 68 mm | B: 12 mm | C: 14 kN | C0: 10.8 kN | Limiting speed: 13000 r/min
61910 d: 50 mm | D: 72 mm | B: 12 mm | C: 14.6 kN | C0: 11.8 kN | Limiting speed: 12000 r/min
61911 d: 55 mm | D: 80 mm | B: 13 mm | C: 16.5 kN | C0: 14 kN | Limiting speed: 11000 r/min
61912 d: 60 mm | D: 85 mm | B: 13 mm | C: 16.5 kN | C0: 14.3 kN | Limiting speed: 10000 r/min
61913 d: 65 mm | D: 90 mm | B: 13 mm | C: 17.4 kN | C0: 16 kN | Limiting speed: 9500 r/min
61914 d: 70 mm | D: 100 mm | B: 16 mm | C: 23.8 kN | C0: 21.2 kN | Limiting speed: 8500 r/min
61915 d: 75 mm | D: 105 mm | B: 16 mm | C: 24.2 kN | C0: 19.3 kN | Limiting speed: 8000 r/min
61916 d: 80 mm | D: 110 mm | B: 16 mm | C: 25.1 kN | C0: 20.4 kN | Limiting speed: 7500 r/min
61917 d: 85 mm | D: 120 mm | B: 18 mm | C: 31.9 kN | C0: 30 kN | Limiting speed: 7000 r/min
61918 d: 90 mm | D: 125 mm | B: 18 mm | C: 33.2 kN | C0: 31.5 kN | Limiting speed: 6700 r/min
61919 d: 95 mm | D: 130 mm | B: 18 mm | C: 33.8 kN | C0: 33.5 kN | Limiting speed: 6300 r/min
61920 d: 100 mm | D: 140 mm | B: 20 mm | C: 42.3 kN | C0: 41 kN | Limiting speed: 6000 r/min
61921 d: 105 mm | D: 145 mm | B: 20 mm | C: 44.2 kN | C0: 44 kN | Limiting speed: 5600 r/min
61922 d: 110 mm | D: 150 mm | B: 20 mm | C: 43.6 kN | C0: 45 kN | Limiting speed: 5600 r/min
61924 d: 120 mm | D: 165 mm | B: 22 mm | C: 55.3 kN | C0: 57 kN | Limiting speed: 5000 r/min
61926 d: 130 mm | D: 180 mm | B: 24 mm | C: 65 kN | C0: 67 kN | Limiting speed: 4500 r/min
61928 MA d: 140 mm | D: 190 mm | B: 24 mm | C: 66.3 kN | C0: 72 kN | Limiting speed: 5600 r/min
61930 MA d: 150 mm | D: 210 mm | B: 28 mm | C: 88.4 kN | C0: 93 kN | Limiting speed: 5300 r/min
61932 MA d: 160 mm | D: 220 mm | B: 28 mm | C: 92.3 kN | C0: 98 kN | Limiting speed: 5000 r/min
61934 MA d: 170 mm | D: 230 mm | B: 28 mm | C: 93.6 kN | C0: 106 kN | Limiting speed: 4800 r/min
61936 MA d: 180 mm | D: 250 mm | B: 33 mm | C: 119 kN | C0: 134 kN | Limiting speed: 4300 r/min
61938 MA d: 190 mm | D: 260 mm | B: 33 mm | C: 117 kN | C0: 134 kN | Limiting speed: 4300 r/min
61940 MA d: 200 mm | D: 280 mm | B: 38 mm | C: 148 kN | C0: 166 kN | Limiting speed: 3800 r/min
61944 MA d: 220 mm | D: 300 mm | B: 38 mm | C: 151 kN | C0: 180 kN | Limiting speed: 3600 r/min
61948 MA d: 240 mm | D: 320 mm | B: 38 mm | C: 159 kN | C0: 200 kN | Limiting speed: 3200 r/min
61952 MA d: 260 mm | D: 360 mm | B: 46 mm | C: 212 kN | C0: 270 kN | Limiting speed: 3000 r/min
61956 MA d: 280 mm | D: 380 mm | B: 46 mm | C: 216 kN | C0: 285 kN | Limiting speed: 2800 r/min
61960 MA d: 300 mm | D: 420 mm | B: 56 mm | C: 270 kN | C0: 375 kN | Limiting speed: 2400 r/min
61964 MA d: 320 mm | D: 440 mm | B: 56 mm | C: 276 kN | C0: 400 kN | Limiting speed: 2400 r/min
61968 MA d: 340 mm | D: 460 mm | B: 56 mm | C: 281 kN | C0: 425 kN | Limiting speed: 2200 r/min
61972 MA d: 360 mm | D: 480 mm | B: 56 mm | C: 291 kN | C0: 450 kN | Limiting speed: 2000 r/min
61976 MA d: 380 mm | D: 520 mm | B: 65 mm | C: 338 kN | C0: 540 kN | Limiting speed: 1900 r/min
61980 MA d: 400 mm | D: 540 mm | B: 65 mm | C: 345 kN | C0: 570 kN | Limiting speed: 1800 r/min
61984 MA d: 420 mm | D: 560 mm | B: 65 mm | C: 351 kN | C0: 600 kN | Limiting speed: 1800 r/min
61988 MA d: 440 mm | D: 600 mm | B: 74 mm | C: 410 kN | C0: 720 kN | Limiting speed: 1600 r/min
61992 MA d: 460 mm | D: 620 mm | B: 74 mm | C: 423 kN | C0: 750 kN | Limiting speed: 1600 r/min
61996 MA d: 480 mm | D: 650 mm | B: 78 mm | C: 449 kN | C0: 815 kN | Limiting speed: 1500 r/min
619/500 MA d: 500 mm | D: 670 mm | B: 78 mm | C: 462 kN | C0: 865 kN | Limiting speed: 1400 r/min
619/530 MA d: 530 mm | D: 710 mm | B: 82 mm | C: 488 kN | C0: 930 kN | Limiting speed: 1300 r/min
619/560 MA d: 560 mm | D: 750 mm | B: 85 mm | C: 494 kN | C0: 980 kN | Limiting speed: 1200 r/min
619/600 MA d: 600 mm | D: 800 mm | B: 90 mm | C: 585 kN | C0: 1220 kN | Limiting speed: 1100 r/min
619/630 N1MA d: 630 mm | D: 850 mm | B: 100 mm | C: 624 kN | C0: 1340 kN | Limiting speed: 1100 r/min
619/670 MA d: 670 mm | D: 900 mm | B: 103 mm | C: 676 kN | C0: 1500 kN | Limiting speed: 1000 r/min
619/710 MA d: 710 mm | D: 950 mm | B: 106 mm | C: 663 kN | C0: 1500 kN | Limiting speed: 900 r/min
619/750 MA d: 750 mm | D: 1000 mm | B: 112 mm | C: 761 kN | C0: 1800 kN | Limiting speed: 850 r/min
619/800 MA d: 800 mm | D: 1060 mm | B: 115 mm | C: 832 kN | C0: 2040 kN | Limiting speed: 800 r/min
619/4-2Z d: 4 mm | D: 11 mm | B: 4 mm | C: 0.72 kN | C0: 0.23 kN | Limiting speed: 63000 r/min
619/5-2Z d: 5 mm | D: 13 mm | B: 4 mm | C: 0.88 kN | C0: 0.34 kN | Limiting speed: 53000 r/min
619/6-2Z d: 6 mm | D: 15 mm | B: 5 mm | C: 1.24 kN | C0: 0.48 kN | Limiting speed: 50000 r/min
619/7-2Z d: 7 mm | D: 17 mm | B: 5 mm | C: 1.48 kN | C0: 0.56 kN | Limiting speed: 45000 r/min
619/8-2Z d: 8 mm | D: 19 mm | B: 6 mm | C: 1.9 kN | C0: 0.74 kN | Limiting speed: 40000 r/min
619/8-2RS1 d: 8 mm | D: 19 mm | B: 6 mm | C: 1.9 kN | C0: 0.74 kN | Limiting speed: 24000 r/min
619/9-2Z d: 9 mm | D: 20 mm | B: 6 mm | C: 2.08 kN | C0: 0.87 kN | Limiting speed: 38000 r/min
61900-2Z d: 10 mm | D: 22 mm | B: 6 mm | C: 2.08 kN | C0: 0.85 kN | Limiting speed: 36000 r/min
61900-2RS1 d: 10 mm | D: 22 mm | B: 6 mm | C: 2.08 kN | C0: 0.85 kN | Limiting speed: 20000 r/min
61901-2Z d: 12 mm | D: 24 mm | B: 6 mm | C: 2.25 kN | C0: 0.98 kN | Limiting speed: 32000 r/min
61901-2RS1 d: 12 mm | D: 24 mm | B: 6 mm | C: 2.25 kN | C0: 0.98 kN | Limiting speed: 19000 r/min
61902-2Z d: 15 mm | D: 28 mm | B: 7 mm | C: 4.36 kN | C0: 2.24 kN | Limiting speed: 28000 r/min
61902-2RZ d: 15 mm | D: 28 mm | B: 7 mm | C: 4.36 kN | C0: 2.24 kN | Limiting speed: 28000 r/min
61902-2RS1 d: 15 mm | D: 28 mm | B: 7 mm | C: 4.36 kN | C0: 2.24 kN | Limiting speed: 16000 r/min
61903-2Z d: 17 mm | D: 30 mm | B: 7 mm | C: 4.62 kN | C0: 2.55 kN | Limiting speed: 26000 r/min
61903-2RZ d: 17 mm | D: 30 mm | B: 7 mm | C: 4.62 kN | C0: 2.55 kN | Limiting speed: 26000 r/min
61903-2RS1 d: 17 mm | D: 30 mm | B: 7 mm | C: 4.62 kN | C0: 2.55 kN | Limiting speed: 14000 r/min
61904-2RZ d: 20 mm | D: 37 mm | B: 9 mm | C: 6.37 kN | C0: 3.65 kN | Limiting speed: 20000 r/min
61904-2RS1 d: 20 mm | D: 37 mm | B: 9 mm | C: 6.37 kN | C0: 3.65 kN | Limiting speed: 12000 r/min
61905-2RZ d: 25 mm | D: 42 mm | B: 9 mm | C: 7.02 kN | C0: 4.3 kN | Limiting speed: 18000 r/min
61905-2RS1 d: 25 mm | D: 42 mm | B: 9 mm | C: 7.02 kN | C0: 4.3 kN | Limiting speed: 10000 r/min
61906-2RZ d: 30 mm | D: 47 mm | B: 9 mm | C: 7.28 kN | C0: 4.55 kN | Limiting speed: 15000 r/min
61906-2RS1 d: 30 mm | D: 47 mm | B: 9 mm | C: 7.28 kN | C0: 4.55 kN | Limiting speed: 8500 r/min
61907-2RZ d: 35 mm | D: 55 mm | B: 10 mm | C: 9.56 kN | C0: 6.8 kN | Limiting speed: 13000 r/min
61907-2RS1 d: 35 mm | D: 55 mm | B: 10 mm | C: 9.56 kN | C0: 6.8 kN | Limiting speed: 7500 r/min
61908-2RZ d: 40 mm | D: 62 mm | B: 12 mm | C: 13.8 kN | C0: 10 kN | Limiting speed: 12000 r/min
61908-2RS1 d: 40 mm | D: 62 mm | B: 12 mm | C: 13.8 kN | C0: 10 kN | Limiting speed: 6700 r/min
61909-2RZ d: 45 mm | D: 68 mm | B: 12 mm | C: 14 kN | C0: 10.8 kN | Limiting speed: 10000 r/min
61909-2RS1 d: 45 mm | D: 68 mm | B: 12 mm | C: 14 kN | C0: 10.8 kN | Limiting speed: 6000 r/min
61910-2RZ d: 50 mm | D: 72 mm | B: 12 mm | C: 14.6 kN | C0: 11.8 kN | Limiting speed: 9500 r/min
61910-2RS1 d: 50 mm | D: 72 mm | B: 12 mm | C: 14.6 kN | C0: 11.8 kN | Limiting speed: 5600 r/min
61911-2RZ d: 55 mm | D: 80 mm | B: 13 mm | C: 16.5 kN | C0: 14 kN | Limiting speed: 8500 r/min
61911-2RS1 d: 55 mm | D: 80 mm | B: 13 mm | C: 16.5 kN | C0: 14 kN | Limiting speed: 5000 r/min
61912-2RZ d: 60 mm | D: 85 mm | B: 13 mm | C: 16.5 kN | C0: 14.3 kN | Limiting speed: 8000 r/min
61912-2RS1 d: 60 mm | D: 85 mm | B: 13 mm | C: 16.5 kN | C0: 14.3 kN | Limiting speed: 4500 r/min
61913-2RZ d: 65 mm | D: 90 mm | B: 13 mm | C: 17.4 kN | C0: 16 kN | Limiting speed: 7500 r/min
61913-2RS1 d: 65 mm | D: 90 mm | B: 13 mm | C: 17.4 kN | C0: 16 kN | Limiting speed: 4300 r/min
61914-2RZ d: 70 mm | D: 100 mm | B: 16 mm | C: 23.8 kN | C0: 21.2 kN | Limiting speed: 7000 r/min
61914-2RS1 d: 70 mm | D: 100 mm | B: 16 mm | C: 23.8 kN | C0: 21.2 kN | Limiting speed: 4000 r/min
61915-2RZ d: 75 mm | D: 105 mm | B: 16 mm | C: 24.2 kN | C0: 19.3 kN | Limiting speed: 6300 r/min
61915-2RS1 d: 75 mm | D: 105 mm | B: 16 mm | C: 24.2 kN | C0: 19.3 kN | Limiting speed: 3600 r/min
61916-2RZ d: 80 mm | D: 110 mm | B: 16 mm | C: 25.1 kN | C0: 20.4 kN | Limiting speed: 6000 r/min
61916-2RS1 d: 80 mm | D: 110 mm | B: 16 mm | C: 25.1 kN | C0: 20.4 kN | Limiting speed: 3400 r/min
61919-2RS1 d: 95 mm | D: 130 mm | B: 18 mm | C: 33.8 kN | C0: 33.5 kN | Limiting speed: 3000 r/min
