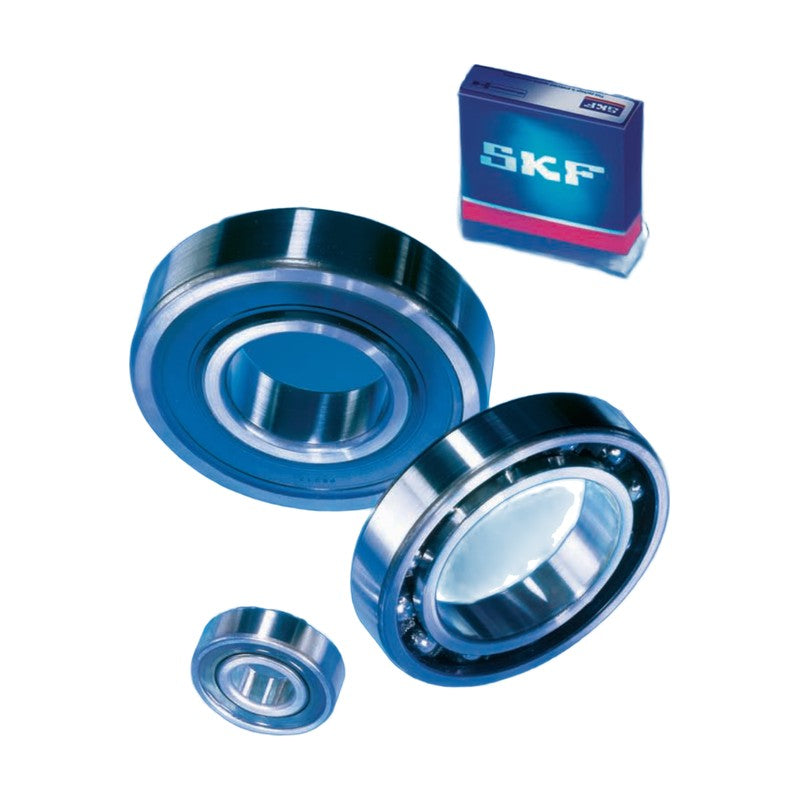

SKF 62 Series Deep Groove Ball Bearings

SKF 62 Series Deep Groove Ball Bearings

SKF single row deep groove ball bearings in the 62 series (open, shielded and sealed). Simple, robust, non-separable bearings for radial and axial loads at high speeds.

Key features

  • Single row, non-separable design with deep uninterrupted raceway grooves
  • Carries radial loads and axial loads in both directions, suitable for high speeds
  • Boundary dimensions to ISO 15:1998
  • Open bearings plus shielded (Z, 2Z, RZ, 2RZ) and sealed (RSL, RSH, RS1 and 2-side) variants where listed
  • Sealed and shielded bearings are greased for life; SKF Explorer sizes marked in the catalogue

Specifications

Bearing type Single row deep groove ball bearing
Design Non-separable
Dimension standard ISO 15:1998
Load direction Radial and axial (both directions)
Series 62
Seal / shield suffixes Z, 2Z, RZ, 2RZ, RSL, 2RSL, RSH, 2RSH, RS1, 2RS1
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 302-347
623 d: 3 mm | D: 10 mm | B: 4 mm | C: 0.54 kN | C0: 0.18 kN | Limiting speed: 80000 r/min
624 d: 4 mm | D: 13 mm | B: 5 mm | C: 0.936 kN | C0: 0.29 kN | Limiting speed: 67000 r/min
625 d: 5 mm | D: 16 mm | B: 5 mm | C: 1.14 kN | C0: 0.38 kN | Limiting speed: 60000 r/min
626 d: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 50000 r/min
627 d: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 45000 r/min
628 d: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 40000 r/min
629 d: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 38000 r/min
6200 d: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 34000 r/min
6201 d: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 32000 r/min
6202 d: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 28000 r/min
6203 d: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 24000 r/min
6203 ETN9 d: 17 mm | D: 40 mm | B: 12 mm | C: 11.4 kN | C0: 5.4 kN | Limiting speed: 24000 r/min
6204 d: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 20000 r/min
6204 ETN9 d: 20 mm | D: 47 mm | B: 14 mm | C: 15.6 kN | C0: 7.65 kN | Limiting speed: 20000 r/min
62/22 d: 22 mm | D: 50 mm | B: 14 mm | C: 14 kN | C0: 7.65 kN | Limiting speed: 19000 r/min
6205 d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 18000 r/min
6205 ETN9 d: 25 mm | D: 52 mm | B: 15 mm | C: 17.8 kN | C0: 9.8 kN | Limiting speed: 18000 r/min
62/28 d: 28 mm | D: 58 mm | B: 16 mm | C: 16.8 kN | C0: 9.5 kN | Limiting speed: 16000 r/min
6206 d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 15000 r/min
6206 ETN9 d: 30 mm | D: 62 mm | B: 16 mm | C: 23.4 kN | C0: 12.9 kN | Limiting speed: 15000 r/min
6207 d: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Limiting speed: 13000 r/min
6207 ETN9 d: 35 mm | D: 72 mm | B: 17 mm | C: 31.2 kN | C0: 17.6 kN | Limiting speed: 13000 r/min
6208 d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 11000 r/min
6208 ETN9 d: 40 mm | D: 80 mm | B: 18 mm | C: 35.8 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
6209 d: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Limiting speed: 11000 r/min
6210 d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 10000 r/min
6211 d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Limiting speed: 9000 r/min
6212 d: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Limiting speed: 8000 r/min
6213 d: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Limiting speed: 7500 r/min
6214 d: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Limiting speed: 7000 r/min
6215 d: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Limiting speed: 6700 r/min
6216 d: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Limiting speed: 6000 r/min
6217 d: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Limiting speed: 5600 r/min
6218 d: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Limiting speed: 5300 r/min
6219 d: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Limiting speed: 5000 r/min
6220 d: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Limiting speed: 4800 r/min
6221 d: 105 mm | D: 190 mm | B: 36 mm | C: 140 kN | C0: 104 kN | Limiting speed: 4500 r/min
6222 d: 110 mm | D: 200 mm | B: 38 mm | C: 151 kN | C0: 118 kN | Limiting speed: 4300 r/min
6224 d: 120 mm | D: 215 mm | B: 40 mm | C: 146 kN | C0: 118 kN | Limiting speed: 4000 r/min
6226 d: 130 mm | D: 230 mm | B: 40 mm | C: 156 kN | C0: 132 kN | Limiting speed: 3600 r/min
6228 d: 140 mm | D: 250 mm | B: 42 mm | C: 165 kN | C0: 150 kN | Limiting speed: 3400 r/min
6230 d: 150 mm | D: 270 mm | B: 45 mm | C: 174 kN | C0: 166 kN | Limiting speed: 3200 r/min
6232 d: 160 mm | D: 290 mm | B: 48 mm | C: 186 kN | C0: 186 kN | Limiting speed: 3000 r/min
6234 M d: 170 mm | D: 310 mm | B: 52 mm | C: 212 kN | C0: 224 kN | Limiting speed: 3800 r/min
6236 M d: 180 mm | D: 320 mm | B: 52 mm | C: 229 kN | C0: 240 kN | Limiting speed: 3600 r/min
6238 M d: 190 mm | D: 340 mm | B: 55 mm | C: 255 kN | C0: 280 kN | Limiting speed: 3400 r/min
6240 M d: 200 mm | D: 360 mm | B: 58 mm | C: 270 kN | C0: 310 kN | Limiting speed: 3200 r/min
6244 M d: 220 mm | D: 400 mm | B: 65 mm | C: 296 kN | C0: 365 kN | Limiting speed: 3000 r/min
6248 M d: 240 mm | D: 440 mm | B: 72 mm | C: 358 kN | C0: 465 kN | Limiting speed: 2600 r/min
6252 M d: 260 mm | D: 480 mm | B: 80 mm | C: 390 kN | C0: 530 kN | Limiting speed: 2400 r/min
6256 M d: 280 mm | D: 500 mm | B: 80 mm | C: 423 kN | C0: 600 kN | Limiting speed: 2200 r/min
6260 M d: 300 mm | D: 540 mm | B: 85 mm | C: 462 kN | C0: 670 kN | Limiting speed: 2000 r/min
623-2Z d: 3 mm | D: 10 mm | B: 4 mm | C: 0.54 kN | C0: 0.18 kN | Limiting speed: 60000 r/min
623-Z d: 3 mm | D: 10 mm | B: 4 mm | C: 0.54 kN | C0: 0.18 kN | Limiting speed: 60000 r/min
623-2RS1 d: 3 mm | D: 10 mm | B: 4 mm | C: 0.54 kN | C0: 0.18 kN | Limiting speed: 40000 r/min
623-RS1 d: 3 mm | D: 10 mm | B: 4 mm | C: 0.54 kN | C0: 0.18 kN | Limiting speed: 40000 r/min
624-2Z d: 4 mm | D: 13 mm | B: 5 mm | C: 0.94 kN | C0: 0.29 kN | Limiting speed: 53000 r/min
624-Z d: 4 mm | D: 13 mm | B: 5 mm | C: 0.94 kN | C0: 0.29 kN | Limiting speed: 53000 r/min
625-2Z d: 5 mm | D: 16 mm | B: 5 mm | C: 1.14 kN | C0: 0.38 kN | Limiting speed: 48000 r/min
625-Z d: 5 mm | D: 16 mm | B: 5 mm | C: 1.14 kN | C0: 0.38 kN | Limiting speed: 48000 r/min
626-2Z d: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
626-Z d: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
626-2RSL d: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
626-RSL d: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
626-2RSH d: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 24000 r/min
626-RSH d: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 24000 r/min
627-2Z d: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 36000 r/min
627-Z d: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 36000 r/min
627-2RSL d: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 36000 r/min
627-RSL d: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 36000 r/min
627-2RSH d: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 22000 r/min
627-RSH d: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 22000 r/min
628-2Z d: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 32000 r/min
628-Z d: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 32000 r/min
628-2RZ d: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 32000 r/min
628-RZ d: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 32000 r/min
628-2RS1 d: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 19000 r/min
628-RS1 d: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 19000 r/min
629-2Z d: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 30000 r/min
629-Z d: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 30000 r/min
629-2RSL d: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 30000 r/min
629-RSL d: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 30000 r/min
629-2RSH d: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 19000 r/min
629-RSH d: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 19000 r/min
6200-2Z d: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 28000 r/min
6200-Z d: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 28000 r/min
6200-2RSL d: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 28000 r/min
6200-RSL d: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 28000 r/min
6200-2RSH d: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 17000 r/min
6200-RSH d: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 17000 r/min
6201-2Z d: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 26000 r/min
6201-Z d: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 26000 r/min
6201-2RSL d: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 26000 r/min
6201-RSL d: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 26000 r/min
6201-2RSH d: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 15000 r/min
6201-RSH d: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 15000 r/min
6202-2Z d: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 22000 r/min
6202-Z d: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 22000 r/min
6202-2RSL d: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 22000 r/min
6202-RSL d: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 22000 r/min
6202-2RSH d: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 13000 r/min
6202-RSH d: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 13000 r/min
6203-2Z d: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 19000 r/min
6203-Z d: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 19000 r/min
6203-2RSL d: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 19000 r/min
6203-RSL d: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 19000 r/min
6203-2RSH d: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 12000 r/min
6203-RSH d: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 12000 r/min
6204-2Z d: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6204-Z d: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6204-2RSL d: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6204-RSL d: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6204-2RSH d: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 10000 r/min
6204-RSH d: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 10000 r/min
62/22-2RS1 d: 22 mm | D: 50 mm | B: 14 mm | C: 14 kN | C0: 7.65 kN | Limiting speed: 9000 r/min
6205-2Z d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 14000 r/min
6205-Z d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 14000 r/min
6205-2RSL d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 14000 r/min
6205-RSL d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 14000 r/min
6205-2RSH d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 8500 r/min
6205-RSH d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 8500 r/min
6206-2Z d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 12000 r/min
6206-Z d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 12000 r/min
6206-2RZ d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 12000 r/min
6206-RZ d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 12000 r/min
6206-2RS1 d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 7500 r/min
6206-RS1 d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 7500 r/min
6207-2Z d: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Limiting speed: 10000 r/min
6207-Z d: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Limiting speed: 10000 r/min
6207-2RS1 d: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Limiting speed: 6300 r/min
6207-RS1 d: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Limiting speed: 6300 r/min
6208-2Z d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 9000 r/min
6208-Z d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 9000 r/min
6208-2RZ d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 9000 r/min
6208-RZ d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 9000 r/min
6208-2RS1 d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 5600 r/min
6208-RS1 d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 5600 r/min
6209-2Z d: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Limiting speed: 8500 r/min
6209-Z d: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Limiting speed: 8500 r/min
6209-2RS1 d: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Limiting speed: 5000 r/min
6209-RS1 d: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Limiting speed: 5000 r/min
6210-2Z d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 8000 r/min
6210-Z d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 8000 r/min
6210-2RZ d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 8000 r/min
6210-RZ d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 8000 r/min
6210-2RS1 d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 4800 r/min
6210-RS1 d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 4800 r/min
6211-2Z d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Limiting speed: 7000 r/min
6211-Z d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Limiting speed: 7000 r/min
6211-2RS1 d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Limiting speed: 4300 r/min
6211-RS1 d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Limiting speed: 4300 r/min
6212-2Z d: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Limiting speed: 6300 r/min
6212-Z d: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Limiting speed: 6300 r/min
6212-2RS1 d: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Limiting speed: 4000 r/min
6212-RS1 d: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Limiting speed: 4000 r/min
6213-2Z d: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Limiting speed: 6000 r/min
6213-Z d: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Limiting speed: 6000 r/min
6213-2RS1 d: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Limiting speed: 3600 r/min
6213-RS1 d: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Limiting speed: 3600 r/min
6214-2Z d: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Limiting speed: 5600 r/min
6214-Z d: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Limiting speed: 5600 r/min
6214-2RS1 d: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Limiting speed: 3400 r/min
6214-RS1 d: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Limiting speed: 3400 r/min
6215-2Z d: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Limiting speed: 5300 r/min
6215-Z d: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Limiting speed: 5300 r/min
6215-2RS1 d: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Limiting speed: 3200 r/min
6215-RS1 d: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Limiting speed: 3200 r/min
6216-2Z d: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Limiting speed: 4800 r/min
6216-Z d: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Limiting speed: 4800 r/min
6216-2RS1 d: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Limiting speed: 3000 r/min
6216-RS1 d: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Limiting speed: 3000 r/min
6217-2Z d: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Limiting speed: 4500 r/min
6217-Z d: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Limiting speed: 4500 r/min
6217-2RS1 d: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Limiting speed: 2800 r/min
6217-RS1 d: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Limiting speed: 2800 r/min
6218-2Z d: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Limiting speed: 4300 r/min
6218-Z d: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Limiting speed: 4300 r/min
6218-2RS1 d: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Limiting speed: 2600 r/min
6218-RS1 d: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Limiting speed: 2600 r/min
6219-2Z d: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Limiting speed: 4000 r/min
6219-Z d: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Limiting speed: 4000 r/min
6219-2RS1 d: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Limiting speed: 2400 r/min
6219-RS1 d: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Limiting speed: 2400 r/min
6220-2Z d: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Limiting speed: 3800 r/min
6220-Z d: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Limiting speed: 3800 r/min
6220-2RS1 d: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Limiting speed: 2400 r/min
6220-RS1 d: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Limiting speed: 2400 r/min
6221-2Z d: 105 mm | D: 190 mm | B: 36 mm | C: 140 kN | C0: 104 kN | Limiting speed: 3600 r/min
6221-Z d: 105 mm | D: 190 mm | B: 36 mm | C: 140 kN | C0: 104 kN | Limiting speed: 3600 r/min
6221-2RS1 d: 105 mm | D: 190 mm | B: 36 mm | C: 140 kN | C0: 104 kN | Limiting speed: 2200 r/min
6221-RS1 d: 105 mm | D: 190 mm | B: 36 mm | C: 140 kN | C0: 104 kN | Limiting speed: 2200 r/min
6222-2Z d: 110 mm | D: 200 mm | B: 38 mm | C: 151 kN | C0: 118 kN | Limiting speed: 3400 r/min
6222-Z d: 110 mm | D: 200 mm | B: 38 mm | C: 151 kN | C0: 118 kN | Limiting speed: 3400 r/min
6224-2Z d: 120 mm | D: 215 mm | B: 40 mm | C: 146 kN | C0: 118 kN | Limiting speed: 3200 r/min
6224-Z d: 120 mm | D: 215 mm | B: 40 mm | C: 146 kN | C0: 118 kN | Limiting speed: 3200 r/min
6226-2Z d: 130 mm | D: 230 mm | B: 40 mm | C: 156 kN | C0: 132 kN | Limiting speed: 3000 r/min
6226-Z d: 130 mm | D: 230 mm | B: 40 mm | C: 156 kN | C0: 132 kN | Limiting speed: 3000 r/min
Deep Groove Ball BearingsSKF
197 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 62 Series Deep Groove Ball Bearings

Brand SKF·Deep Groove Ball Bearings

Available part numbers (197)

623, 624, 625, 626, 627, 628, 629, 6200, 6201, 6202 + 187 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
623d: 3 mm | D: 10 mm | B: 4 mm | C: 0.54 kN | C0: 0.18 kN | Limiting speed: 80000 r/min
624d: 4 mm | D: 13 mm | B: 5 mm | C: 0.936 kN | C0: 0.29 kN | Limiting speed: 67000 r/min
625d: 5 mm | D: 16 mm | B: 5 mm | C: 1.14 kN | C0: 0.38 kN | Limiting speed: 60000 r/min
626d: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 50000 r/min
627d: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 45000 r/min
628d: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 40000 r/min
629d: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 38000 r/min
6200d: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 34000 r/min
6201d: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 32000 r/min
6202d: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 28000 r/min
6203d: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 24000 r/min
6203 ETN9d: 17 mm | D: 40 mm | B: 12 mm | C: 11.4 kN | C0: 5.4 kN | Limiting speed: 24000 r/min
6204d: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 20000 r/min
6204 ETN9d: 20 mm | D: 47 mm | B: 14 mm | C: 15.6 kN | C0: 7.65 kN | Limiting speed: 20000 r/min
62/22d: 22 mm | D: 50 mm | B: 14 mm | C: 14 kN | C0: 7.65 kN | Limiting speed: 19000 r/min
6205d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 18000 r/min
6205 ETN9d: 25 mm | D: 52 mm | B: 15 mm | C: 17.8 kN | C0: 9.8 kN | Limiting speed: 18000 r/min
62/28d: 28 mm | D: 58 mm | B: 16 mm | C: 16.8 kN | C0: 9.5 kN | Limiting speed: 16000 r/min
6206d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 15000 r/min
6206 ETN9d: 30 mm | D: 62 mm | B: 16 mm | C: 23.4 kN | C0: 12.9 kN | Limiting speed: 15000 r/min
6207d: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Limiting speed: 13000 r/min
6207 ETN9d: 35 mm | D: 72 mm | B: 17 mm | C: 31.2 kN | C0: 17.6 kN | Limiting speed: 13000 r/min
6208d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 11000 r/min
6208 ETN9d: 40 mm | D: 80 mm | B: 18 mm | C: 35.8 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
6209d: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Limiting speed: 11000 r/min
6210d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 10000 r/min
6211d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Limiting speed: 9000 r/min
6212d: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Limiting speed: 8000 r/min
6213d: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Limiting speed: 7500 r/min
6214d: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Limiting speed: 7000 r/min
6215d: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Limiting speed: 6700 r/min
6216d: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Limiting speed: 6000 r/min
6217d: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Limiting speed: 5600 r/min
6218d: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Limiting speed: 5300 r/min
6219d: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Limiting speed: 5000 r/min
6220d: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Limiting speed: 4800 r/min
6221d: 105 mm | D: 190 mm | B: 36 mm | C: 140 kN | C0: 104 kN | Limiting speed: 4500 r/min
6222d: 110 mm | D: 200 mm | B: 38 mm | C: 151 kN | C0: 118 kN | Limiting speed: 4300 r/min
6224d: 120 mm | D: 215 mm | B: 40 mm | C: 146 kN | C0: 118 kN | Limiting speed: 4000 r/min
6226d: 130 mm | D: 230 mm | B: 40 mm | C: 156 kN | C0: 132 kN | Limiting speed: 3600 r/min
6228d: 140 mm | D: 250 mm | B: 42 mm | C: 165 kN | C0: 150 kN | Limiting speed: 3400 r/min
6230d: 150 mm | D: 270 mm | B: 45 mm | C: 174 kN | C0: 166 kN | Limiting speed: 3200 r/min
6232d: 160 mm | D: 290 mm | B: 48 mm | C: 186 kN | C0: 186 kN | Limiting speed: 3000 r/min
6234 Md: 170 mm | D: 310 mm | B: 52 mm | C: 212 kN | C0: 224 kN | Limiting speed: 3800 r/min
6236 Md: 180 mm | D: 320 mm | B: 52 mm | C: 229 kN | C0: 240 kN | Limiting speed: 3600 r/min
6238 Md: 190 mm | D: 340 mm | B: 55 mm | C: 255 kN | C0: 280 kN | Limiting speed: 3400 r/min
6240 Md: 200 mm | D: 360 mm | B: 58 mm | C: 270 kN | C0: 310 kN | Limiting speed: 3200 r/min
6244 Md: 220 mm | D: 400 mm | B: 65 mm | C: 296 kN | C0: 365 kN | Limiting speed: 3000 r/min
6248 Md: 240 mm | D: 440 mm | B: 72 mm | C: 358 kN | C0: 465 kN | Limiting speed: 2600 r/min
6252 Md: 260 mm | D: 480 mm | B: 80 mm | C: 390 kN | C0: 530 kN | Limiting speed: 2400 r/min
6256 Md: 280 mm | D: 500 mm | B: 80 mm | C: 423 kN | C0: 600 kN | Limiting speed: 2200 r/min
6260 Md: 300 mm | D: 540 mm | B: 85 mm | C: 462 kN | C0: 670 kN | Limiting speed: 2000 r/min
623-2Zd: 3 mm | D: 10 mm | B: 4 mm | C: 0.54 kN | C0: 0.18 kN | Limiting speed: 60000 r/min
623-Zd: 3 mm | D: 10 mm | B: 4 mm | C: 0.54 kN | C0: 0.18 kN | Limiting speed: 60000 r/min
623-2RS1d: 3 mm | D: 10 mm | B: 4 mm | C: 0.54 kN | C0: 0.18 kN | Limiting speed: 40000 r/min
623-RS1d: 3 mm | D: 10 mm | B: 4 mm | C: 0.54 kN | C0: 0.18 kN | Limiting speed: 40000 r/min
624-2Zd: 4 mm | D: 13 mm | B: 5 mm | C: 0.94 kN | C0: 0.29 kN | Limiting speed: 53000 r/min
624-Zd: 4 mm | D: 13 mm | B: 5 mm | C: 0.94 kN | C0: 0.29 kN | Limiting speed: 53000 r/min
625-2Zd: 5 mm | D: 16 mm | B: 5 mm | C: 1.14 kN | C0: 0.38 kN | Limiting speed: 48000 r/min
625-Zd: 5 mm | D: 16 mm | B: 5 mm | C: 1.14 kN | C0: 0.38 kN | Limiting speed: 48000 r/min
626-2Zd: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
626-Zd: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
626-2RSLd: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
626-RSLd: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
626-2RSHd: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 24000 r/min
626-RSHd: 6 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 24000 r/min
627-2Zd: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 36000 r/min
627-Zd: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 36000 r/min
627-2RSLd: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 36000 r/min
627-RSLd: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 36000 r/min
627-2RSHd: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 22000 r/min
627-RSHd: 7 mm | D: 22 mm | B: 7 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 22000 r/min
628-2Zd: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 32000 r/min
628-Zd: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 32000 r/min
628-2RZd: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 32000 r/min
628-RZd: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 32000 r/min
628-2RS1d: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 19000 r/min
628-RS1d: 8 mm | D: 24 mm | B: 8 mm | C: 3.9 kN | C0: 1.66 kN | Limiting speed: 19000 r/min
629-2Zd: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 30000 r/min
629-Zd: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 30000 r/min
629-2RSLd: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 30000 r/min
629-RSLd: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 30000 r/min
629-2RSHd: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 19000 r/min
629-RSHd: 9 mm | D: 26 mm | B: 8 mm | C: 4.75 kN | C0: 1.96 kN | Limiting speed: 19000 r/min
6200-2Zd: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 28000 r/min
6200-Zd: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 28000 r/min
6200-2RSLd: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 28000 r/min
6200-RSLd: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 28000 r/min
6200-2RSHd: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 17000 r/min
6200-RSHd: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Limiting speed: 17000 r/min
6201-2Zd: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 26000 r/min
6201-Zd: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 26000 r/min
6201-2RSLd: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 26000 r/min
6201-RSLd: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 26000 r/min
6201-2RSHd: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 15000 r/min
6201-RSHd: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Limiting speed: 15000 r/min
6202-2Zd: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 22000 r/min
6202-Zd: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 22000 r/min
6202-2RSLd: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 22000 r/min
6202-RSLd: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 22000 r/min
6202-2RSHd: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 13000 r/min
6202-RSHd: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Limiting speed: 13000 r/min
6203-2Zd: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 19000 r/min
6203-Zd: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 19000 r/min
6203-2RSLd: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 19000 r/min
6203-RSLd: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 19000 r/min
6203-2RSHd: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 12000 r/min
6203-RSHd: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Limiting speed: 12000 r/min
6204-2Zd: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6204-Zd: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6204-2RSLd: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6204-RSLd: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6204-2RSHd: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 10000 r/min
6204-RSHd: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 10000 r/min
62/22-2RS1d: 22 mm | D: 50 mm | B: 14 mm | C: 14 kN | C0: 7.65 kN | Limiting speed: 9000 r/min
6205-2Zd: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 14000 r/min
6205-Zd: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 14000 r/min
6205-2RSLd: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 14000 r/min
6205-RSLd: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 14000 r/min
6205-2RSHd: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 8500 r/min
6205-RSHd: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Limiting speed: 8500 r/min
6206-2Zd: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 12000 r/min
6206-Zd: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 12000 r/min
6206-2RZd: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 12000 r/min
6206-RZd: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 12000 r/min
6206-2RS1d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 7500 r/min
6206-RS1d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Limiting speed: 7500 r/min
6207-2Zd: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Limiting speed: 10000 r/min
6207-Zd: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Limiting speed: 10000 r/min
6207-2RS1d: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Limiting speed: 6300 r/min
6207-RS1d: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Limiting speed: 6300 r/min
6208-2Zd: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 9000 r/min
6208-Zd: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 9000 r/min
6208-2RZd: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 9000 r/min
6208-RZd: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 9000 r/min
6208-2RS1d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 5600 r/min
6208-RS1d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Limiting speed: 5600 r/min
6209-2Zd: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Limiting speed: 8500 r/min
6209-Zd: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Limiting speed: 8500 r/min
6209-2RS1d: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Limiting speed: 5000 r/min
6209-RS1d: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Limiting speed: 5000 r/min
6210-2Zd: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 8000 r/min
6210-Zd: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 8000 r/min
6210-2RZd: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 8000 r/min
6210-RZd: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 8000 r/min
6210-2RS1d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 4800 r/min
6210-RS1d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Limiting speed: 4800 r/min
6211-2Zd: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Limiting speed: 7000 r/min
6211-Zd: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Limiting speed: 7000 r/min
6211-2RS1d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Limiting speed: 4300 r/min
6211-RS1d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Limiting speed: 4300 r/min
6212-2Zd: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Limiting speed: 6300 r/min
6212-Zd: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Limiting speed: 6300 r/min
6212-2RS1d: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Limiting speed: 4000 r/min
6212-RS1d: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Limiting speed: 4000 r/min
6213-2Zd: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Limiting speed: 6000 r/min
6213-Zd: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Limiting speed: 6000 r/min
6213-2RS1d: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Limiting speed: 3600 r/min
6213-RS1d: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Limiting speed: 3600 r/min
6214-2Zd: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Limiting speed: 5600 r/min
6214-Zd: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Limiting speed: 5600 r/min
6214-2RS1d: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Limiting speed: 3400 r/min
6214-RS1d: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Limiting speed: 3400 r/min
6215-2Zd: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Limiting speed: 5300 r/min
6215-Zd: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Limiting speed: 5300 r/min
6215-2RS1d: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Limiting speed: 3200 r/min
6215-RS1d: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Limiting speed: 3200 r/min
6216-2Zd: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Limiting speed: 4800 r/min
6216-Zd: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Limiting speed: 4800 r/min
6216-2RS1d: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Limiting speed: 3000 r/min
6216-RS1d: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Limiting speed: 3000 r/min
6217-2Zd: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Limiting speed: 4500 r/min
6217-Zd: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Limiting speed: 4500 r/min
6217-2RS1d: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Limiting speed: 2800 r/min
6217-RS1d: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Limiting speed: 2800 r/min
6218-2Zd: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Limiting speed: 4300 r/min
6218-Zd: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Limiting speed: 4300 r/min
6218-2RS1d: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Limiting speed: 2600 r/min
6218-RS1d: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Limiting speed: 2600 r/min
6219-2Zd: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Limiting speed: 4000 r/min
6219-Zd: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Limiting speed: 4000 r/min
6219-2RS1d: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Limiting speed: 2400 r/min
6219-RS1d: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Limiting speed: 2400 r/min
6220-2Zd: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Limiting speed: 3800 r/min
6220-Zd: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Limiting speed: 3800 r/min
6220-2RS1d: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Limiting speed: 2400 r/min
6220-RS1d: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Limiting speed: 2400 r/min
6221-2Zd: 105 mm | D: 190 mm | B: 36 mm | C: 140 kN | C0: 104 kN | Limiting speed: 3600 r/min
6221-Zd: 105 mm | D: 190 mm | B: 36 mm | C: 140 kN | C0: 104 kN | Limiting speed: 3600 r/min
6221-2RS1d: 105 mm | D: 190 mm | B: 36 mm | C: 140 kN | C0: 104 kN | Limiting speed: 2200 r/min
6221-RS1d: 105 mm | D: 190 mm | B: 36 mm | C: 140 kN | C0: 104 kN | Limiting speed: 2200 r/min
6222-2Zd: 110 mm | D: 200 mm | B: 38 mm | C: 151 kN | C0: 118 kN | Limiting speed: 3400 r/min
6222-Zd: 110 mm | D: 200 mm | B: 38 mm | C: 151 kN | C0: 118 kN | Limiting speed: 3400 r/min
6224-2Zd: 120 mm | D: 215 mm | B: 40 mm | C: 146 kN | C0: 118 kN | Limiting speed: 3200 r/min
6224-Zd: 120 mm | D: 215 mm | B: 40 mm | C: 146 kN | C0: 118 kN | Limiting speed: 3200 r/min
6226-2Zd: 130 mm | D: 230 mm | B: 40 mm | C: 156 kN | C0: 132 kN | Limiting speed: 3000 r/min
6226-Zd: 130 mm | D: 230 mm | B: 40 mm | C: 156 kN | C0: 132 kN | Limiting speed: 3000 r/min

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
