• SKF 622, 623 & 630 Series Deep Groove Ball Bearings
1 1

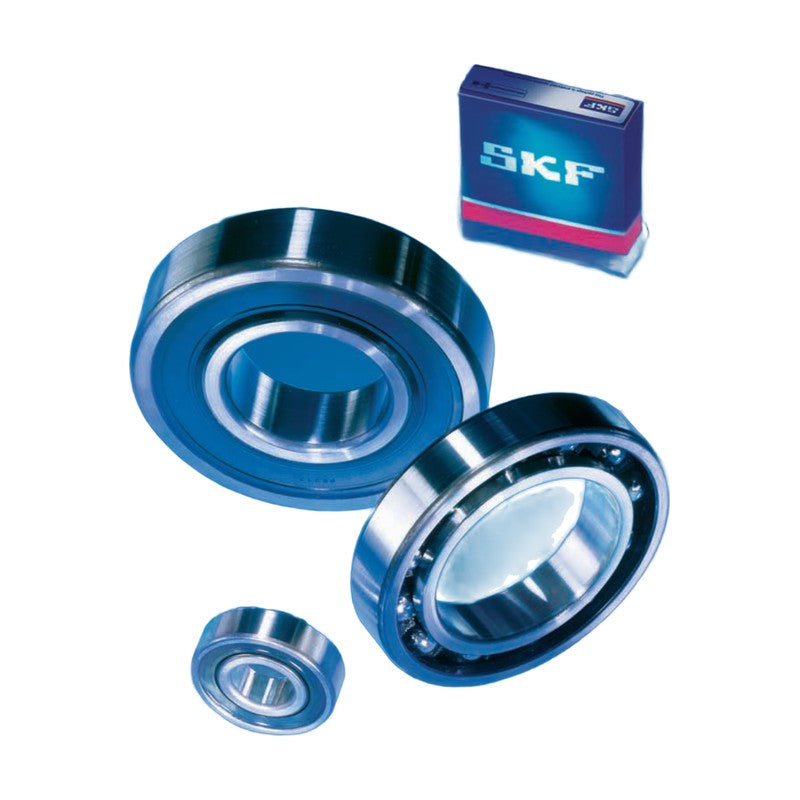

SKF 622, 623 & 630 Series Deep Groove Ball Bearings

SKF 622, 623 & 630 Series Deep Groove Ball Bearings

SKF single row deep groove ball bearings in the wide 622, 623 and 630 series with 2RS1 seals. Simple, robust, non-separable bearings for radial and axial loads at high speeds.

Key features

  • Single row, non-separable design with deep uninterrupted raceway grooves
  • Carries radial loads and axial loads in both directions, suitable for high speeds
  • Boundary dimensions to ISO 15:1998
  • Open bearings plus shielded (Z, 2Z, RZ, 2RZ) and sealed (RSL, RSH, RS1 and 2-side) variants where listed
  • Sealed and shielded bearings are greased for life; SKF Explorer sizes marked in the catalogue

Specifications

Bearing type Single row deep groove ball bearing
Design Non-separable
Dimension standard ISO 15:1998
Load direction Radial and axial (both directions)
Series 622, 623 & 630
Seal / shield suffixes Z, 2Z, RZ, 2RZ, RSL, 2RSL, RSH, 2RSH, RS1, 2RS1
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 326-343
630/8-2RS1 d: 8 mm | D: 22 mm | B: 11 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 22000 r/min
63000-2RS1 d: 10 mm | D: 26 mm | B: 12 mm | C: 4.62 kN | C0: 1.96 kN | Limiting speed: 19000 r/min
62200-2RS1 d: 10 mm | D: 30 mm | B: 14 mm | C: 5.07 kN | C0: 2.36 kN | Limiting speed: 17000 r/min
62300-2RS1 d: 10 mm | D: 35 mm | B: 17 mm | C: 8.06 kN | C0: 3.4 kN | Limiting speed: 15000 r/min
63001-2RS1 d: 12 mm | D: 28 mm | B: 12 mm | C: 5.07 kN | C0: 2.36 kN | Limiting speed: 17000 r/min
62201-2RS1 d: 12 mm | D: 32 mm | B: 14 mm | C: 6.89 kN | C0: 3.1 kN | Limiting speed: 15000 r/min
62301-2RS1 d: 12 mm | D: 37 mm | B: 17 mm | C: 9.75 kN | C0: 4.15 kN | Limiting speed: 14000 r/min
63002-2RS1 d: 15 mm | D: 32 mm | B: 13 mm | C: 5.59 kN | C0: 2.85 kN | Limiting speed: 14000 r/min
62202-2RS1 d: 15 mm | D: 35 mm | B: 14 mm | C: 7.8 kN | C0: 3.75 kN | Limiting speed: 13000 r/min
62302-2RS1 d: 15 mm | D: 42 mm | B: 17 mm | C: 11.4 kN | C0: 5.4 kN | Limiting speed: 12000 r/min
63003-2RS1 d: 17 mm | D: 35 mm | B: 14 mm | C: 6.05 kN | C0: 3.25 kN | Limiting speed: 13000 r/min
62203-2RS1 d: 17 mm | D: 40 mm | B: 16 mm | C: 9.56 kN | C0: 4.75 kN | Limiting speed: 12000 r/min
62303-2RS1 d: 17 mm | D: 47 mm | B: 19 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 11000 r/min
63004-2RS1 d: 20 mm | D: 42 mm | B: 16 mm | C: 9.36 kN | C0: 5 kN | Limiting speed: 11000 r/min
62204-2RS1 d: 20 mm | D: 47 mm | B: 18 mm | C: 12.7 kN | C0: 6.55 kN | Limiting speed: 10000 r/min
62304-2RS1 d: 20 mm | D: 52 mm | B: 21 mm | C: 15.9 kN | C0: 7.8 kN | Limiting speed: 9500 r/min
63005-2RS1 d: 25 mm | D: 47 mm | B: 16 mm | C: 11.2 kN | C0: 6.55 kN | Limiting speed: 9500 r/min
62205-2RS1 d: 25 mm | D: 52 mm | B: 18 mm | C: 14 kN | C0: 7.8 kN | Limiting speed: 8500 r/min
62305-2RS1 d: 25 mm | D: 62 mm | B: 24 mm | C: 22.5 kN | C0: 11.6 kN | Limiting speed: 7500 r/min
63006-2RS1 d: 30 mm | D: 55 mm | B: 19 mm | C: 13.3 kN | C0: 8.3 kN | Limiting speed: 8000 r/min
62206-2RS1 d: 30 mm | D: 62 mm | B: 20 mm | C: 19.5 kN | C0: 11.2 kN | Limiting speed: 7500 r/min
62306-2RS1 d: 30 mm | D: 72 mm | B: 27 mm | C: 28.1 kN | C0: 16 kN | Limiting speed: 6300 r/min
63007-2RS1 d: 35 mm | D: 62 mm | B: 20 mm | C: 15.9 kN | C0: 10.2 kN | Limiting speed: 7000 r/min
62207-2RS1 d: 35 mm | D: 72 mm | B: 23 mm | C: 25.5 kN | C0: 15.3 kN | Limiting speed: 6300 r/min
62307-2RS1 d: 35 mm | D: 80 mm | B: 31 mm | C: 33.2 kN | C0: 19 kN | Limiting speed: 6000 r/min
63008-2RS1 d: 40 mm | D: 68 mm | B: 21 mm | C: 16.8 kN | C0: 11.6 kN | Limiting speed: 6300 r/min
62208-2RS1 d: 40 mm | D: 80 mm | B: 23 mm | C: 30.7 kN | C0: 19 kN | Limiting speed: 5600 r/min
62308-2RS1 d: 40 mm | D: 90 mm | B: 33 mm | C: 41 kN | C0: 24 kN | Limiting speed: 5000 r/min
63009-2RS1 d: 45 mm | D: 75 mm | B: 23 mm | C: 20.8 kN | C0: 14.6 kN | Limiting speed: 5600 r/min
62209-2RS1 d: 45 mm | D: 85 mm | B: 23 mm | C: 33.2 kN | C0: 21.6 kN | Limiting speed: 5000 r/min
62309-2RS1 d: 45 mm | D: 100 mm | B: 36 mm | C: 52.7 kN | C0: 31.5 kN | Limiting speed: 4500 r/min
63010-2RS1 d: 50 mm | D: 80 mm | B: 23 mm | C: 21.6 kN | C0: 16 kN | Limiting speed: 5000 r/min
62210-2RS1 d: 50 mm | D: 90 mm | B: 23 mm | C: 35.1 kN | C0: 23.2 kN | Limiting speed: 4800 r/min
62310-2RS1 d: 50 mm | D: 110 mm | B: 40 mm | C: 61.8 kN | C0: 38 kN | Limiting speed: 4300 r/min
62211-2RS1 d: 55 mm | D: 100 mm | B: 25 mm | C: 43.6 kN | C0: 29 kN | Limiting speed: 4300 r/min
62311-2RS1 d: 55 mm | D: 120 mm | B: 43 mm | C: 71.5 kN | C0: 45 kN | Limiting speed: 3800 r/min
62212-2RS1 d: 60 mm | D: 110 mm | B: 28 mm | C: 52.7 kN | C0: 36 kN | Limiting speed: 4000 r/min
62312-2RS1 d: 60 mm | D: 130 mm | B: 46 mm | C: 81.9 kN | C0: 52 kN | Limiting speed: 3400 r/min
62213-2RS1 d: 65 mm | D: 120 mm | B: 31 mm | C: 55.9 kN | C0: 40.5 kN | Limiting speed: 3600 r/min
62313-2RS1 d: 65 mm | D: 140 mm | B: 48 mm | C: 92.3 kN | C0: 60 kN | Limiting speed: 3200 r/min
62214-2RS1 d: 70 mm | D: 125 mm | B: 31 mm | C: 60.5 kN | C0: 45 kN | Limiting speed: 3400 r/min
62314-2RS1 d: 70 mm | D: 150 mm | B: 51 mm | C: 104 kN | C0: 68 kN | Limiting speed: 3000 r/min
Deep Groove Ball BearingsSKF
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 622, 623 & 630 Series Deep Groove Ball Bearings

Brand SKF·Deep Groove Ball Bearings

Available part numbers (42)

630/8-2RS1, 63000-2RS1, 62200-2RS1, 62300-2RS1, 63001-2RS1, 62201-2RS1, 62301-2RS1, 63002-2RS1, 62202-2RS1, 62302-2RS1 + 32 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
630/8-2RS1d: 8 mm | D: 22 mm | B: 11 mm | C: 3.45 kN | C0: 1.37 kN | Limiting speed: 22000 r/min
63000-2RS1d: 10 mm | D: 26 mm | B: 12 mm | C: 4.62 kN | C0: 1.96 kN | Limiting speed: 19000 r/min
62200-2RS1d: 10 mm | D: 30 mm | B: 14 mm | C: 5.07 kN | C0: 2.36 kN | Limiting speed: 17000 r/min
62300-2RS1d: 10 mm | D: 35 mm | B: 17 mm | C: 8.06 kN | C0: 3.4 kN | Limiting speed: 15000 r/min
63001-2RS1d: 12 mm | D: 28 mm | B: 12 mm | C: 5.07 kN | C0: 2.36 kN | Limiting speed: 17000 r/min
62201-2RS1d: 12 mm | D: 32 mm | B: 14 mm | C: 6.89 kN | C0: 3.1 kN | Limiting speed: 15000 r/min
62301-2RS1d: 12 mm | D: 37 mm | B: 17 mm | C: 9.75 kN | C0: 4.15 kN | Limiting speed: 14000 r/min
63002-2RS1d: 15 mm | D: 32 mm | B: 13 mm | C: 5.59 kN | C0: 2.85 kN | Limiting speed: 14000 r/min
62202-2RS1d: 15 mm | D: 35 mm | B: 14 mm | C: 7.8 kN | C0: 3.75 kN | Limiting speed: 13000 r/min
62302-2RS1d: 15 mm | D: 42 mm | B: 17 mm | C: 11.4 kN | C0: 5.4 kN | Limiting speed: 12000 r/min
63003-2RS1d: 17 mm | D: 35 mm | B: 14 mm | C: 6.05 kN | C0: 3.25 kN | Limiting speed: 13000 r/min
62203-2RS1d: 17 mm | D: 40 mm | B: 16 mm | C: 9.56 kN | C0: 4.75 kN | Limiting speed: 12000 r/min
62303-2RS1d: 17 mm | D: 47 mm | B: 19 mm | C: 13.5 kN | C0: 6.55 kN | Limiting speed: 11000 r/min
63004-2RS1d: 20 mm | D: 42 mm | B: 16 mm | C: 9.36 kN | C0: 5 kN | Limiting speed: 11000 r/min
62204-2RS1d: 20 mm | D: 47 mm | B: 18 mm | C: 12.7 kN | C0: 6.55 kN | Limiting speed: 10000 r/min
62304-2RS1d: 20 mm | D: 52 mm | B: 21 mm | C: 15.9 kN | C0: 7.8 kN | Limiting speed: 9500 r/min
63005-2RS1d: 25 mm | D: 47 mm | B: 16 mm | C: 11.2 kN | C0: 6.55 kN | Limiting speed: 9500 r/min
62205-2RS1d: 25 mm | D: 52 mm | B: 18 mm | C: 14 kN | C0: 7.8 kN | Limiting speed: 8500 r/min
62305-2RS1d: 25 mm | D: 62 mm | B: 24 mm | C: 22.5 kN | C0: 11.6 kN | Limiting speed: 7500 r/min
63006-2RS1d: 30 mm | D: 55 mm | B: 19 mm | C: 13.3 kN | C0: 8.3 kN | Limiting speed: 8000 r/min
62206-2RS1d: 30 mm | D: 62 mm | B: 20 mm | C: 19.5 kN | C0: 11.2 kN | Limiting speed: 7500 r/min
62306-2RS1d: 30 mm | D: 72 mm | B: 27 mm | C: 28.1 kN | C0: 16 kN | Limiting speed: 6300 r/min
63007-2RS1d: 35 mm | D: 62 mm | B: 20 mm | C: 15.9 kN | C0: 10.2 kN | Limiting speed: 7000 r/min
62207-2RS1d: 35 mm | D: 72 mm | B: 23 mm | C: 25.5 kN | C0: 15.3 kN | Limiting speed: 6300 r/min
62307-2RS1d: 35 mm | D: 80 mm | B: 31 mm | C: 33.2 kN | C0: 19 kN | Limiting speed: 6000 r/min
63008-2RS1d: 40 mm | D: 68 mm | B: 21 mm | C: 16.8 kN | C0: 11.6 kN | Limiting speed: 6300 r/min
62208-2RS1d: 40 mm | D: 80 mm | B: 23 mm | C: 30.7 kN | C0: 19 kN | Limiting speed: 5600 r/min
62308-2RS1d: 40 mm | D: 90 mm | B: 33 mm | C: 41 kN | C0: 24 kN | Limiting speed: 5000 r/min
63009-2RS1d: 45 mm | D: 75 mm | B: 23 mm | C: 20.8 kN | C0: 14.6 kN | Limiting speed: 5600 r/min
62209-2RS1d: 45 mm | D: 85 mm | B: 23 mm | C: 33.2 kN | C0: 21.6 kN | Limiting speed: 5000 r/min
62309-2RS1d: 45 mm | D: 100 mm | B: 36 mm | C: 52.7 kN | C0: 31.5 kN | Limiting speed: 4500 r/min
63010-2RS1d: 50 mm | D: 80 mm | B: 23 mm | C: 21.6 kN | C0: 16 kN | Limiting speed: 5000 r/min
62210-2RS1d: 50 mm | D: 90 mm | B: 23 mm | C: 35.1 kN | C0: 23.2 kN | Limiting speed: 4800 r/min
62310-2RS1d: 50 mm | D: 110 mm | B: 40 mm | C: 61.8 kN | C0: 38 kN | Limiting speed: 4300 r/min
62211-2RS1d: 55 mm | D: 100 mm | B: 25 mm | C: 43.6 kN | C0: 29 kN | Limiting speed: 4300 r/min
62311-2RS1d: 55 mm | D: 120 mm | B: 43 mm | C: 71.5 kN | C0: 45 kN | Limiting speed: 3800 r/min
62212-2RS1d: 60 mm | D: 110 mm | B: 28 mm | C: 52.7 kN | C0: 36 kN | Limiting speed: 4000 r/min
62312-2RS1d: 60 mm | D: 130 mm | B: 46 mm | C: 81.9 kN | C0: 52 kN | Limiting speed: 3400 r/min
62213-2RS1d: 65 mm | D: 120 mm | B: 31 mm | C: 55.9 kN | C0: 40.5 kN | Limiting speed: 3600 r/min
62313-2RS1d: 65 mm | D: 140 mm | B: 48 mm | C: 92.3 kN | C0: 60 kN | Limiting speed: 3200 r/min
62214-2RS1d: 70 mm | D: 125 mm | B: 31 mm | C: 60.5 kN | C0: 45 kN | Limiting speed: 3400 r/min
62314-2RS1d: 70 mm | D: 150 mm | B: 51 mm | C: 104 kN | C0: 68 kN | Limiting speed: 3000 r/min
