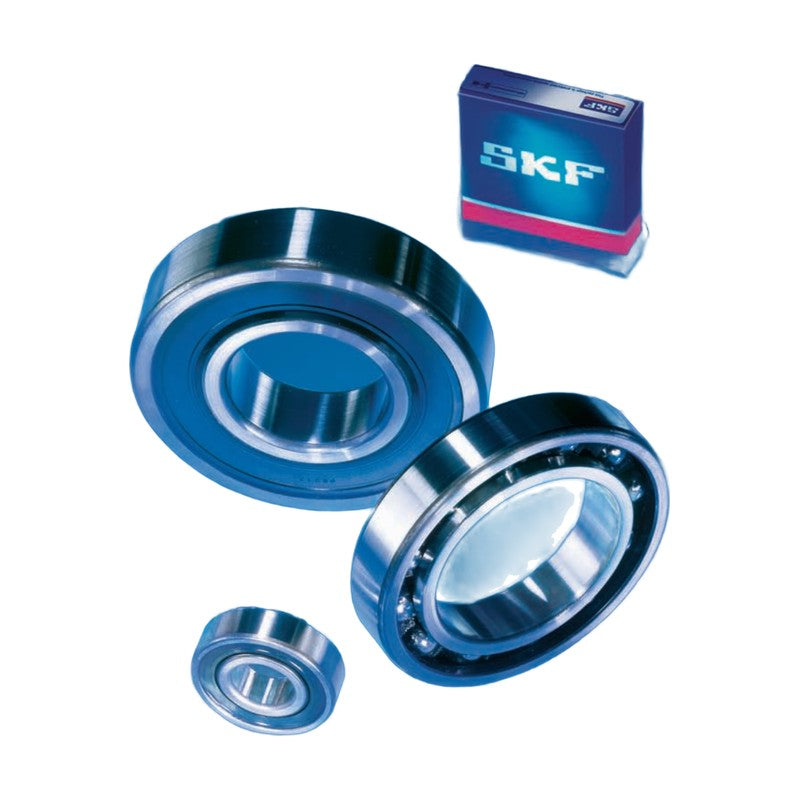

SKF 63 Series Deep Groove Ball Bearings

SKF 63 Series Deep Groove Ball Bearings

SKF single row deep groove ball bearings in the 63 series (open, shielded and sealed). Simple, robust, non-separable bearings for radial and axial loads at high speeds.

Key features

  • Single row, non-separable design with deep uninterrupted raceway grooves
  • Carries radial loads and axial loads in both directions, suitable for high speeds
  • Boundary dimensions to ISO 15:1998
  • Open bearings plus shielded (Z, 2Z, RZ, 2RZ) and sealed (RSL, RSH, RS1 and 2-side) variants where listed
  • Sealed and shielded bearings are greased for life; SKF Explorer sizes marked in the catalogue

Specifications

Bearing type Single row deep groove ball bearing
Design Non-separable
Dimension standard ISO 15:1998
Load direction Radial and axial (both directions)
Series 63
Seal / shield suffixes Z, 2Z, RZ, 2RZ, RSL, 2RSL, RSH, 2RSH, RS1, 2RS1
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 302-347
634 d: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 60000 r/min
635 d: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 50000 r/min
6300 d: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 32000 r/min
6301 d: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 28000 r/min
6302 d: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 24000 r/min
6303 d: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 22000 r/min
6304 d: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 19000 r/min
6304 ETN9 d: 20 mm | D: 52 mm | B: 15 mm | C: 18.2 kN | C0: 9 kN | Limiting speed: 19000 r/min
63/22 d: 22 mm | D: 56 mm | B: 16 mm | C: 18.6 kN | C0: 9.3 kN | Limiting speed: 18000 r/min
6305 d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 16000 r/min
6305 ETN9 d: 25 mm | D: 62 mm | B: 17 mm | C: 26 kN | C0: 13.4 kN | Limiting speed: 16000 r/min
63/28 d: 28 mm | D: 68 mm | B: 18 mm | C: 25.1 kN | C0: 13.7 kN | Limiting speed: 14000 r/min
6306 d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 13000 r/min
6306 ETN9 d: 30 mm | D: 72 mm | B: 19 mm | C: 32.5 kN | C0: 17.3 kN | Limiting speed: 14000 r/min
6307 d: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Limiting speed: 12000 r/min
6308 d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 11000 r/min
6309 d: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Limiting speed: 9500 r/min
6310 d: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Limiting speed: 8500 r/min
6311 d: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Limiting speed: 8000 r/min
6312 d: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Limiting speed: 7000 r/min
6313 d: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Limiting speed: 6700 r/min
6314 d: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Limiting speed: 6300 r/min
6315 d: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Limiting speed: 5600 r/min
6316 d: 80 mm | D: 170 mm | B: 39 mm | C: 130 kN | C0: 86.5 kN | Limiting speed: 5300 r/min
6317 d: 85 mm | D: 180 mm | B: 41 mm | C: 140 kN | C0: 96.5 kN | Limiting speed: 5000 r/min
6318 d: 90 mm | D: 190 mm | B: 43 mm | C: 151 kN | C0: 108 kN | Limiting speed: 4800 r/min
6319 d: 95 mm | D: 200 mm | B: 45 mm | C: 159 kN | C0: 118 kN | Limiting speed: 4500 r/min
6320 d: 100 mm | D: 215 mm | B: 47 mm | C: 174 kN | C0: 140 kN | Limiting speed: 4300 r/min
6321 d: 105 mm | D: 225 mm | B: 49 mm | C: 182 kN | C0: 153 kN | Limiting speed: 4000 r/min
6322 d: 110 mm | D: 240 mm | B: 50 mm | C: 203 kN | C0: 180 kN | Limiting speed: 3800 r/min
6324 d: 120 mm | D: 260 mm | B: 55 mm | C: 208 kN | C0: 186 kN | Limiting speed: 3400 r/min
6326 M d: 130 mm | D: 280 mm | B: 58 mm | C: 229 kN | C0: 216 kN | Limiting speed: 4500 r/min
6328 M d: 140 mm | D: 300 mm | B: 62 mm | C: 251 kN | C0: 245 kN | Limiting speed: 4300 r/min
6330 M d: 150 mm | D: 320 mm | B: 65 mm | C: 276 kN | C0: 285 kN | Limiting speed: 4000 r/min
6332 M d: 160 mm | D: 340 mm | B: 68 mm | C: 276 kN | C0: 285 kN | Limiting speed: 3800 r/min
6334 M d: 170 mm | D: 360 mm | B: 72 mm | C: 312 kN | C0: 340 kN | Limiting speed: 3400 r/min
6336 M d: 180 mm | D: 380 mm | B: 75 mm | C: 351 kN | C0: 405 kN | Limiting speed: 3200 r/min
6338 M d: 190 mm | D: 400 mm | B: 78 mm | C: 371 kN | C0: 430 kN | Limiting speed: 3000 r/min
6344 M d: 220 mm | D: 460 mm | B: 88 mm | C: 410 kN | C0: 520 kN | Limiting speed: 2600 r/min
6348 M d: 240 mm | D: 500 mm | B: 95 mm | C: 442 kN | C0: 585 kN | Limiting speed: 2400 r/min
634-2Z d: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 48000 r/min
634-Z d: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 48000 r/min
634-2RZ d: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 48000 r/min
634-RZ d: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 48000 r/min
634-2RS1 d: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 28000 r/min
634-RS1 d: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 28000 r/min
635-2Z d: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
635-Z d: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
635-2RZ d: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
635-RZ d: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
635-2RS1 d: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 24000 r/min
635-RS1 d: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 24000 r/min
638-2RZ d: 8 mm | D: 28 mm | B: 9 mm | C: 4.62 kN | C0: 1.96 kN | Limiting speed: 30000 r/min
638-RZ d: 8 mm | D: 28 mm | B: 9 mm | C: 4.62 kN | C0: 1.96 kN | Limiting speed: 30000 r/min
6300-2Z d: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 26000 r/min
6300-Z d: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 26000 r/min
6300-2RSL d: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 26000 r/min
6300-RSL d: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 26000 r/min
6300-2RSH d: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 15000 r/min
6300-RSH d: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 15000 r/min
6301-2Z d: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 22000 r/min
6301-Z d: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 22000 r/min
6301-2RSL d: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 22000 r/min
6301-RSL d: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 22000 r/min
6301-2RSH d: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 14000 r/min
6301-RSH d: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 14000 r/min
6302-2Z d: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 19000 r/min
6302-Z d: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 19000 r/min
6302-2RSL d: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 19000 r/min
6302-RSL d: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 19000 r/min
6302-2RSH d: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 12000 r/min
6302-RSH d: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 12000 r/min
6303-2Z d: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6303-Z d: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6303-2RSL d: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6303-RSL d: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6303-2RSH d: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 11000 r/min
6303-RSH d: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 11000 r/min
6304-2Z d: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 15000 r/min
6304-Z d: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 15000 r/min
6304-2RSL d: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 15000 r/min
6304-RSL d: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 15000 r/min
6304-2RSH d: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 9500 r/min
6304-RSH d: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 9500 r/min
6305-2Z d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 13000 r/min
6305-Z d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 13000 r/min
6305-2RZ d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 13000 r/min
6305-RZ d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 13000 r/min
6305-2RS1 d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 7500 r/min
6305-RS1 d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 7500 r/min
6306-2Z d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 11000 r/min
6306-Z d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 11000 r/min
6306-2RZ d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 11000 r/min
6306-RZ d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 11000 r/min
6306-2RS1 d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 6300 r/min
6306-RS1 d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 6300 r/min
6307-2Z d: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Limiting speed: 9500 r/min
6307-Z d: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Limiting speed: 9500 r/min
6307-2RS1 d: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Limiting speed: 6000 r/min
6307-RS1 d: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Limiting speed: 6000 r/min
6308-2Z d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 8500 r/min
6308-Z d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 8500 r/min
6308-2RZ d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 8500 r/min
6308-RZ d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 8500 r/min
6308-2RS1 d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 5000 r/min
6308-RS1 d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 5000 r/min
6309-2Z d: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Limiting speed: 7500 r/min
6309-Z d: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Limiting speed: 7500 r/min
6309-2RS1 d: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Limiting speed: 4500 r/min
6309-RS1 d: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Limiting speed: 4500 r/min
6310-2Z d: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Limiting speed: 6700 r/min
6310-Z d: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Limiting speed: 6700 r/min
6310-2RS1 d: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Limiting speed: 4300 r/min
6310-RS1 d: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Limiting speed: 4300 r/min
6311-2Z d: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Limiting speed: 6300 r/min
6311-Z d: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Limiting speed: 6300 r/min
6311-2RS1 d: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Limiting speed: 3800 r/min
6311-RS1 d: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Limiting speed: 3800 r/min
6312-2Z d: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Limiting speed: 5600 r/min
6312-Z d: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Limiting speed: 5600 r/min
6312-2RS1 d: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Limiting speed: 3400 r/min
6312-RS1 d: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Limiting speed: 3400 r/min
6313-2Z d: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Limiting speed: 5300 r/min
6313-Z d: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Limiting speed: 5300 r/min
6313-2RS1 d: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Limiting speed: 3200 r/min
6313-RS1 d: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Limiting speed: 3200 r/min
6314-2Z d: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Limiting speed: 5000 r/min
6314-Z d: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Limiting speed: 5000 r/min
6314-2RS1 d: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Limiting speed: 3000 r/min
6314-RS1 d: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Limiting speed: 3000 r/min
6315-2Z d: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Limiting speed: 4500 r/min
6315-Z d: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Limiting speed: 4500 r/min
6315-2RS1 d: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Limiting speed: 2800 r/min
6315-RS1 d: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Limiting speed: 2800 r/min
6316-2Z d: 80 mm | D: 170 mm | B: 39 mm | C: 130 kN | C0: 86.5 kN | Limiting speed: 4300 r/min
6316-Z d: 80 mm | D: 170 mm | B: 39 mm | C: 130 kN | C0: 86.5 kN | Limiting speed: 4300 r/min
6316-2RS1 d: 80 mm | D: 170 mm | B: 39 mm | C: 130 kN | C0: 86.5 kN | Limiting speed: 2600 r/min
6316-RS1 d: 80 mm | D: 170 mm | B: 39 mm | C: 130 kN | C0: 86.5 kN | Limiting speed: 2600 r/min
6317-2Z d: 85 mm | D: 180 mm | B: 41 mm | C: 140 kN | C0: 96.5 kN | Limiting speed: 4000 r/min
6317-Z d: 85 mm | D: 180 mm | B: 41 mm | C: 140 kN | C0: 96.5 kN | Limiting speed: 4000 r/min
6317-2RS1 d: 85 mm | D: 180 mm | B: 41 mm | C: 140 kN | C0: 96.5 kN | Limiting speed: 2400 r/min
6317-RS1 d: 85 mm | D: 180 mm | B: 41 mm | C: 140 kN | C0: 96.5 kN | Limiting speed: 2400 r/min
6318-2Z d: 90 mm | D: 190 mm | B: 43 mm | C: 151 kN | C0: 108 kN | Limiting speed: 3800 r/min
6318-Z d: 90 mm | D: 190 mm | B: 43 mm | C: 151 kN | C0: 108 kN | Limiting speed: 3800 r/min
6318-2RS1 d: 90 mm | D: 190 mm | B: 43 mm | C: 151 kN | C0: 108 kN | Limiting speed: 2400 r/min
6318-RS1 d: 90 mm | D: 190 mm | B: 43 mm | C: 151 kN | C0: 108 kN | Limiting speed: 2400 r/min
6319-2Z d: 95 mm | D: 200 mm | B: 45 mm | C: 159 kN | C0: 118 kN | Limiting speed: 3600 r/min
6319-Z d: 95 mm | D: 200 mm | B: 45 mm | C: 159 kN | C0: 118 kN | Limiting speed: 3600 r/min
6319-2RS1 d: 95 mm | D: 200 mm | B: 45 mm | C: 159 kN | C0: 118 kN | Limiting speed: 2200 r/min
6319-RS1 d: 95 mm | D: 200 mm | B: 45 mm | C: 159 kN | C0: 118 kN | Limiting speed: 2200 r/min
6320-2Z d: 100 mm | D: 215 mm | B: 47 mm | C: 174 kN | C0: 140 kN | Limiting speed: 3400 r/min
6320-Z d: 100 mm | D: 215 mm | B: 47 mm | C: 174 kN | C0: 140 kN | Limiting speed: 3400 r/min
6321-2Z d: 105 mm | D: 225 mm | B: 49 mm | C: 182 kN | C0: 153 kN | Limiting speed: 3200 r/min
6321-Z d: 105 mm | D: 225 mm | B: 49 mm | C: 182 kN | C0: 153 kN | Limiting speed: 3200 r/min
Deep Groove Ball BearingsSKF
154 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 63 Series Deep Groove Ball Bearings

Brand SKF·Deep Groove Ball Bearings

Available part numbers (154)

634, 635, 6300, 6301, 6302, 6303, 6304, 6304 ETN9, 63/22, 6305 + 144 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
634d: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 60000 r/min
635d: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 50000 r/min
6300d: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 32000 r/min
6301d: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 28000 r/min
6302d: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 24000 r/min
6303d: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 22000 r/min
6304d: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 19000 r/min
6304 ETN9d: 20 mm | D: 52 mm | B: 15 mm | C: 18.2 kN | C0: 9 kN | Limiting speed: 19000 r/min
63/22d: 22 mm | D: 56 mm | B: 16 mm | C: 18.6 kN | C0: 9.3 kN | Limiting speed: 18000 r/min
6305d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 16000 r/min
6305 ETN9d: 25 mm | D: 62 mm | B: 17 mm | C: 26 kN | C0: 13.4 kN | Limiting speed: 16000 r/min
63/28d: 28 mm | D: 68 mm | B: 18 mm | C: 25.1 kN | C0: 13.7 kN | Limiting speed: 14000 r/min
6306d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 13000 r/min
6306 ETN9d: 30 mm | D: 72 mm | B: 19 mm | C: 32.5 kN | C0: 17.3 kN | Limiting speed: 14000 r/min
6307d: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Limiting speed: 12000 r/min
6308d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 11000 r/min
6309d: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Limiting speed: 9500 r/min
6310d: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Limiting speed: 8500 r/min
6311d: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Limiting speed: 8000 r/min
6312d: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Limiting speed: 7000 r/min
6313d: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Limiting speed: 6700 r/min
6314d: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Limiting speed: 6300 r/min
6315d: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Limiting speed: 5600 r/min
6316d: 80 mm | D: 170 mm | B: 39 mm | C: 130 kN | C0: 86.5 kN | Limiting speed: 5300 r/min
6317d: 85 mm | D: 180 mm | B: 41 mm | C: 140 kN | C0: 96.5 kN | Limiting speed: 5000 r/min
6318d: 90 mm | D: 190 mm | B: 43 mm | C: 151 kN | C0: 108 kN | Limiting speed: 4800 r/min
6319d: 95 mm | D: 200 mm | B: 45 mm | C: 159 kN | C0: 118 kN | Limiting speed: 4500 r/min
6320d: 100 mm | D: 215 mm | B: 47 mm | C: 174 kN | C0: 140 kN | Limiting speed: 4300 r/min
6321d: 105 mm | D: 225 mm | B: 49 mm | C: 182 kN | C0: 153 kN | Limiting speed: 4000 r/min
6322d: 110 mm | D: 240 mm | B: 50 mm | C: 203 kN | C0: 180 kN | Limiting speed: 3800 r/min
6324d: 120 mm | D: 260 mm | B: 55 mm | C: 208 kN | C0: 186 kN | Limiting speed: 3400 r/min
6326 Md: 130 mm | D: 280 mm | B: 58 mm | C: 229 kN | C0: 216 kN | Limiting speed: 4500 r/min
6328 Md: 140 mm | D: 300 mm | B: 62 mm | C: 251 kN | C0: 245 kN | Limiting speed: 4300 r/min
6330 Md: 150 mm | D: 320 mm | B: 65 mm | C: 276 kN | C0: 285 kN | Limiting speed: 4000 r/min
6332 Md: 160 mm | D: 340 mm | B: 68 mm | C: 276 kN | C0: 285 kN | Limiting speed: 3800 r/min
6334 Md: 170 mm | D: 360 mm | B: 72 mm | C: 312 kN | C0: 340 kN | Limiting speed: 3400 r/min
6336 Md: 180 mm | D: 380 mm | B: 75 mm | C: 351 kN | C0: 405 kN | Limiting speed: 3200 r/min
6338 Md: 190 mm | D: 400 mm | B: 78 mm | C: 371 kN | C0: 430 kN | Limiting speed: 3000 r/min
6344 Md: 220 mm | D: 460 mm | B: 88 mm | C: 410 kN | C0: 520 kN | Limiting speed: 2600 r/min
6348 Md: 240 mm | D: 500 mm | B: 95 mm | C: 442 kN | C0: 585 kN | Limiting speed: 2400 r/min
634-2Zd: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 48000 r/min
634-Zd: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 48000 r/min
634-2RZd: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 48000 r/min
634-RZd: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 48000 r/min
634-2RS1d: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 28000 r/min
634-RS1d: 4 mm | D: 16 mm | B: 5 mm | C: 1.11 kN | C0: 0.38 kN | Limiting speed: 28000 r/min
635-2Zd: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
635-Zd: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
635-2RZd: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
635-RZd: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 40000 r/min
635-2RS1d: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 24000 r/min
635-RS1d: 5 mm | D: 19 mm | B: 6 mm | C: 2.34 kN | C0: 0.95 kN | Limiting speed: 24000 r/min
638-2RZd: 8 mm | D: 28 mm | B: 9 mm | C: 4.62 kN | C0: 1.96 kN | Limiting speed: 30000 r/min
638-RZd: 8 mm | D: 28 mm | B: 9 mm | C: 4.62 kN | C0: 1.96 kN | Limiting speed: 30000 r/min
6300-2Zd: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 26000 r/min
6300-Zd: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 26000 r/min
6300-2RSLd: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 26000 r/min
6300-RSLd: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 26000 r/min
6300-2RSHd: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 15000 r/min
6300-RSHd: 10 mm | D: 35 mm | B: 11 mm | C: 8.52 kN | C0: 3.4 kN | Limiting speed: 15000 r/min
6301-2Zd: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 22000 r/min
6301-Zd: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 22000 r/min
6301-2RSLd: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 22000 r/min
6301-RSLd: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 22000 r/min
6301-2RSHd: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 14000 r/min
6301-RSHd: 12 mm | D: 37 mm | B: 12 mm | C: 10.1 kN | C0: 4.15 kN | Limiting speed: 14000 r/min
6302-2Zd: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 19000 r/min
6302-Zd: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 19000 r/min
6302-2RSLd: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 19000 r/min
6302-RSLd: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 19000 r/min
6302-2RSHd: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 12000 r/min
6302-RSHd: 15 mm | D: 42 mm | B: 13 mm | C: 11.9 kN | C0: 5.4 kN | Limiting speed: 12000 r/min
6303-2Zd: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6303-Zd: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6303-2RSLd: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6303-RSLd: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 17000 r/min
6303-2RSHd: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 11000 r/min
6303-RSHd: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Limiting speed: 11000 r/min
6304-2Zd: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 15000 r/min
6304-Zd: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 15000 r/min
6304-2RSLd: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 15000 r/min
6304-RSLd: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 15000 r/min
6304-2RSHd: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 9500 r/min
6304-RSHd: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Limiting speed: 9500 r/min
6305-2Zd: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 13000 r/min
6305-Zd: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 13000 r/min
6305-2RZd: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 13000 r/min
6305-RZd: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 13000 r/min
6305-2RS1d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 7500 r/min
6305-RS1d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Limiting speed: 7500 r/min
6306-2Zd: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 11000 r/min
6306-Zd: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 11000 r/min
6306-2RZd: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 11000 r/min
6306-RZd: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 11000 r/min
6306-2RS1d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 6300 r/min
6306-RS1d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Limiting speed: 6300 r/min
6307-2Zd: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Limiting speed: 9500 r/min
6307-Zd: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Limiting speed: 9500 r/min
6307-2RS1d: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Limiting speed: 6000 r/min
6307-RS1d: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Limiting speed: 6000 r/min
6308-2Zd: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 8500 r/min
6308-Zd: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 8500 r/min
6308-2RZd: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 8500 r/min
6308-RZd: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 8500 r/min
6308-2RS1d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 5000 r/min
6308-RS1d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Limiting speed: 5000 r/min
6309-2Zd: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Limiting speed: 7500 r/min
6309-Zd: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Limiting speed: 7500 r/min
6309-2RS1d: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Limiting speed: 4500 r/min
6309-RS1d: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Limiting speed: 4500 r/min
6310-2Zd: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Limiting speed: 6700 r/min
6310-Zd: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Limiting speed: 6700 r/min
6310-2RS1d: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Limiting speed: 4300 r/min
6310-RS1d: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Limiting speed: 4300 r/min
6311-2Zd: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Limiting speed: 6300 r/min
6311-Zd: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Limiting speed: 6300 r/min
6311-2RS1d: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Limiting speed: 3800 r/min
6311-RS1d: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Limiting speed: 3800 r/min
6312-2Zd: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Limiting speed: 5600 r/min
6312-Zd: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Limiting speed: 5600 r/min
6312-2RS1d: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Limiting speed: 3400 r/min
6312-RS1d: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Limiting speed: 3400 r/min
6313-2Zd: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Limiting speed: 5300 r/min
6313-Zd: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Limiting speed: 5300 r/min
6313-2RS1d: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Limiting speed: 3200 r/min
6313-RS1d: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Limiting speed: 3200 r/min
6314-2Zd: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Limiting speed: 5000 r/min
6314-Zd: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Limiting speed: 5000 r/min
6314-2RS1d: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Limiting speed: 3000 r/min
6314-RS1d: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Limiting speed: 3000 r/min
6315-2Zd: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Limiting speed: 4500 r/min
6315-Zd: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Limiting speed: 4500 r/min
6315-2RS1d: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Limiting speed: 2800 r/min
6315-RS1d: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Limiting speed: 2800 r/min
6316-2Zd: 80 mm | D: 170 mm | B: 39 mm | C: 130 kN | C0: 86.5 kN | Limiting speed: 4300 r/min
6316-Zd: 80 mm | D: 170 mm | B: 39 mm | C: 130 kN | C0: 86.5 kN | Limiting speed: 4300 r/min
6316-2RS1d: 80 mm | D: 170 mm | B: 39 mm | C: 130 kN | C0: 86.5 kN | Limiting speed: 2600 r/min
6316-RS1d: 80 mm | D: 170 mm | B: 39 mm | C: 130 kN | C0: 86.5 kN | Limiting speed: 2600 r/min
6317-2Zd: 85 mm | D: 180 mm | B: 41 mm | C: 140 kN | C0: 96.5 kN | Limiting speed: 4000 r/min
6317-Zd: 85 mm | D: 180 mm | B: 41 mm | C: 140 kN | C0: 96.5 kN | Limiting speed: 4000 r/min
6317-2RS1d: 85 mm | D: 180 mm | B: 41 mm | C: 140 kN | C0: 96.5 kN | Limiting speed: 2400 r/min
6317-RS1d: 85 mm | D: 180 mm | B: 41 mm | C: 140 kN | C0: 96.5 kN | Limiting speed: 2400 r/min
6318-2Zd: 90 mm | D: 190 mm | B: 43 mm | C: 151 kN | C0: 108 kN | Limiting speed: 3800 r/min
6318-Zd: 90 mm | D: 190 mm | B: 43 mm | C: 151 kN | C0: 108 kN | Limiting speed: 3800 r/min
6318-2RS1d: 90 mm | D: 190 mm | B: 43 mm | C: 151 kN | C0: 108 kN | Limiting speed: 2400 r/min
6318-RS1d: 90 mm | D: 190 mm | B: 43 mm | C: 151 kN | C0: 108 kN | Limiting speed: 2400 r/min
6319-2Zd: 95 mm | D: 200 mm | B: 45 mm | C: 159 kN | C0: 118 kN | Limiting speed: 3600 r/min
6319-Zd: 95 mm | D: 200 mm | B: 45 mm | C: 159 kN | C0: 118 kN | Limiting speed: 3600 r/min
6319-2RS1d: 95 mm | D: 200 mm | B: 45 mm | C: 159 kN | C0: 118 kN | Limiting speed: 2200 r/min
6319-RS1d: 95 mm | D: 200 mm | B: 45 mm | C: 159 kN | C0: 118 kN | Limiting speed: 2200 r/min
6320-2Zd: 100 mm | D: 215 mm | B: 47 mm | C: 174 kN | C0: 140 kN | Limiting speed: 3400 r/min
6320-Zd: 100 mm | D: 215 mm | B: 47 mm | C: 174 kN | C0: 140 kN | Limiting speed: 3400 r/min
6321-2Zd: 105 mm | D: 225 mm | B: 49 mm | C: 182 kN | C0: 153 kN | Limiting speed: 3200 r/min
6321-Zd: 105 mm | D: 225 mm | B: 49 mm | C: 182 kN | C0: 153 kN | Limiting speed: 3200 r/min

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
