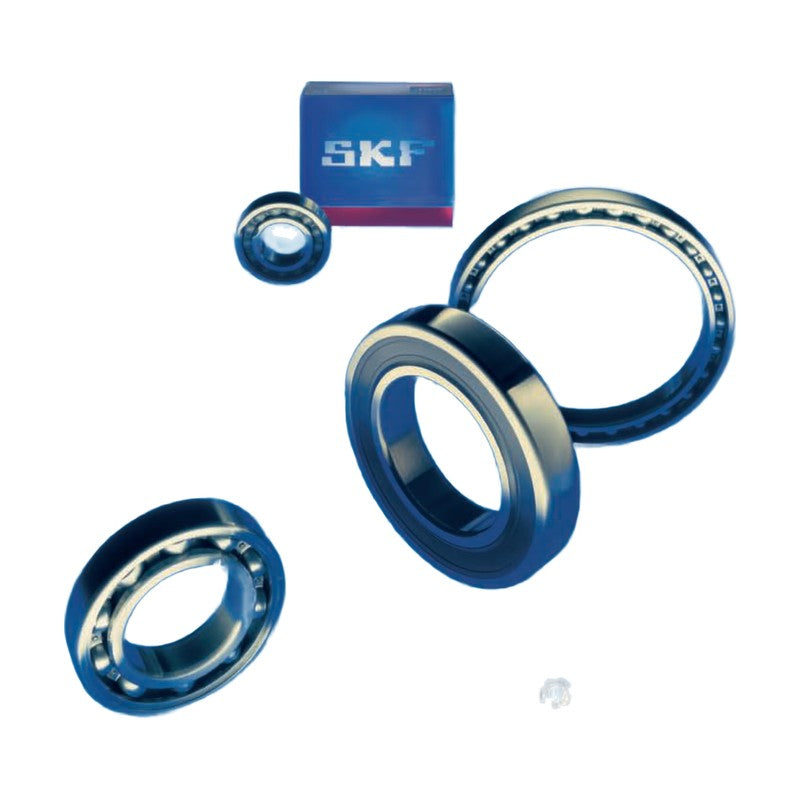

SKF 64 Series Deep Groove Ball Bearings

SKF 64 Series Deep Groove Ball Bearings

SKF single row deep groove ball bearings in the 64 series heavy (open). Simple, robust, non-separable bearings for radial and axial loads at high speeds.

Key features

  • Single row, non-separable design with deep uninterrupted raceway grooves
  • Carries radial loads and axial loads in both directions, suitable for high speeds
  • Boundary dimensions to ISO 15:1998
  • Open bearings plus shielded (Z, 2Z, RZ, 2RZ) and sealed (RSL, RSH, RS1 and 2-side) variants where listed
  • Sealed and shielded bearings are greased for life; SKF Explorer sizes marked in the catalogue

Specifications

Bearing type Single row deep groove ball bearing
Design Non-separable
Dimension standard ISO 15:1998
Load direction Radial and axial (both directions)
Series 64
Seal / shield suffixes Z, 2Z, RZ, 2RZ, RSL, 2RSL, RSH, 2RSH, RS1, 2RS1
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 304-313
6403 d: 17 mm | D: 62 mm | B: 17 mm | C: 22.9 kN | C0: 10.8 kN | Limiting speed: 18000 r/min
6404 d: 20 mm | D: 72 mm | B: 19 mm | C: 30.7 kN | C0: 15 kN | Limiting speed: 15000 r/min
6405 d: 25 mm | D: 80 mm | B: 21 mm | C: 35.8 kN | C0: 19.3 kN | Limiting speed: 13000 r/min
6406 d: 30 mm | D: 90 mm | B: 23 mm | C: 43.6 kN | C0: 23.6 kN | Limiting speed: 11000 r/min
6407 d: 35 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31 kN | Limiting speed: 10000 r/min
6408 d: 40 mm | D: 110 mm | B: 27 mm | C: 63.7 kN | C0: 36.5 kN | Limiting speed: 9000 r/min
6409 d: 45 mm | D: 120 mm | B: 29 mm | C: 76.1 kN | C0: 45 kN | Limiting speed: 8500 r/min
6410 d: 50 mm | D: 130 mm | B: 31 mm | C: 87.1 kN | C0: 52 kN | Limiting speed: 7500 r/min
6411 d: 55 mm | D: 140 mm | B: 33 mm | C: 99.5 kN | C0: 62 kN | Limiting speed: 7000 r/min
6412 d: 60 mm | D: 150 mm | B: 35 mm | C: 108 kN | C0: 69.5 kN | Limiting speed: 6300 r/min
6413 d: 65 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 78 kN | Limiting speed: 6000 r/min
6414 d: 70 mm | D: 180 mm | B: 42 mm | C: 143 kN | C0: 104 kN | Limiting speed: 5300 r/min
6415 d: 75 mm | D: 190 mm | B: 45 mm | C: 153 kN | C0: 114 kN | Limiting speed: 5000 r/min
6416 d: 80 mm | D: 200 mm | B: 48 mm | C: 163 kN | C0: 125 kN | Limiting speed: 4800 r/min
6417 d: 85 mm | D: 210 mm | B: 52 mm | C: 174 kN | C0: 137 kN | Limiting speed: 4500 r/min
6418 d: 90 mm | D: 225 mm | B: 54 mm | C: 186 kN | C0: 150 kN | Limiting speed: 4300 r/min
Deep Groove Ball BearingsSKF
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 64 Series Deep Groove Ball Bearings

Brand SKF·Deep Groove Ball Bearings

Available part numbers (16)

6403, 6404, 6405, 6406, 6407, 6408, 6409, 6410, 6411, 6412 + 6 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6403d: 17 mm | D: 62 mm | B: 17 mm | C: 22.9 kN | C0: 10.8 kN | Limiting speed: 18000 r/min
6404d: 20 mm | D: 72 mm | B: 19 mm | C: 30.7 kN | C0: 15 kN | Limiting speed: 15000 r/min
6405d: 25 mm | D: 80 mm | B: 21 mm | C: 35.8 kN | C0: 19.3 kN | Limiting speed: 13000 r/min
6406d: 30 mm | D: 90 mm | B: 23 mm | C: 43.6 kN | C0: 23.6 kN | Limiting speed: 11000 r/min
6407d: 35 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31 kN | Limiting speed: 10000 r/min
6408d: 40 mm | D: 110 mm | B: 27 mm | C: 63.7 kN | C0: 36.5 kN | Limiting speed: 9000 r/min
6409d: 45 mm | D: 120 mm | B: 29 mm | C: 76.1 kN | C0: 45 kN | Limiting speed: 8500 r/min
6410d: 50 mm | D: 130 mm | B: 31 mm | C: 87.1 kN | C0: 52 kN | Limiting speed: 7500 r/min
6411d: 55 mm | D: 140 mm | B: 33 mm | C: 99.5 kN | C0: 62 kN | Limiting speed: 7000 r/min
6412d: 60 mm | D: 150 mm | B: 35 mm | C: 108 kN | C0: 69.5 kN | Limiting speed: 6300 r/min
6413d: 65 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 78 kN | Limiting speed: 6000 r/min
6414d: 70 mm | D: 180 mm | B: 42 mm | C: 143 kN | C0: 104 kN | Limiting speed: 5300 r/min
6415d: 75 mm | D: 190 mm | B: 45 mm | C: 153 kN | C0: 114 kN | Limiting speed: 5000 r/min
6416d: 80 mm | D: 200 mm | B: 48 mm | C: 163 kN | C0: 125 kN | Limiting speed: 4800 r/min
6417d: 85 mm | D: 210 mm | B: 52 mm | C: 174 kN | C0: 137 kN | Limiting speed: 4500 r/min
6418d: 90 mm | D: 225 mm | B: 54 mm | C: 186 kN | C0: 150 kN | Limiting speed: 4300 r/min
