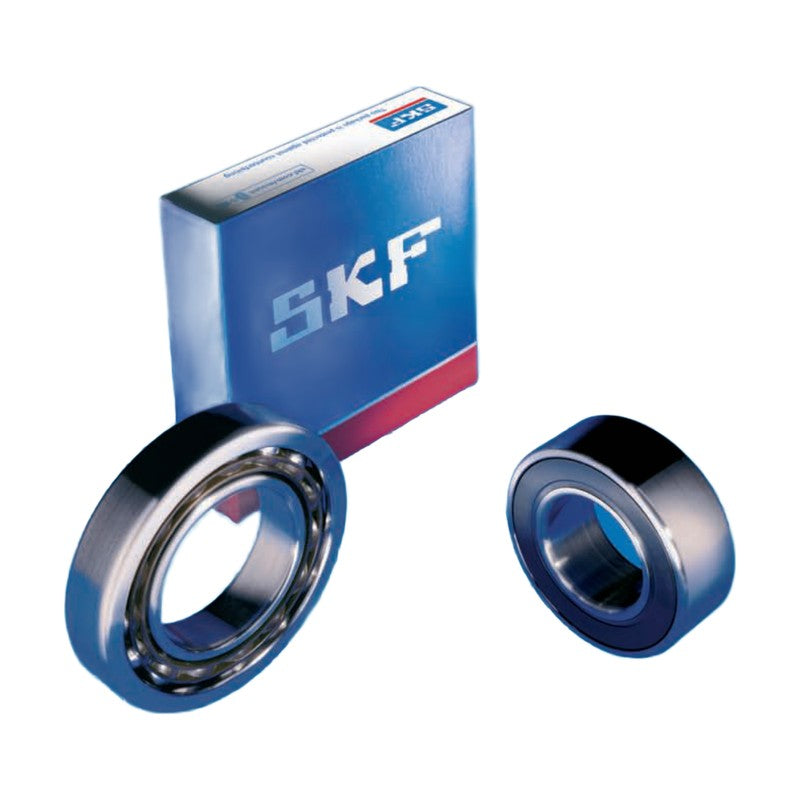

SKF 72 B Series Single Row Angular Contact Ball Bearings

SKF 72 B Series Single Row Angular Contact Ball Bearings

SKF single row angular contact ball bearings of the 72 B(E) series with a 40° contact angle, in universally matchable (CB) and basic design versions.

Key features

  • 40° contact angle for combined radial and one-direction axial loads
  • BE design with optimized internal geometry, many sizes SKF Explorer
  • Universally matchable (CB) bearings for back-to-back, face-to-face or tandem pairs
  • Cage options: polyamide (P), pressed brass (Y), machined brass (M)
  • Basic design bearings for single bearing arrangements

Specifications

Bearing type Single row angular contact ball bearing
Contact angle 40° (B design)
Series 72 B / 72 BE
Matching CB universally matchable or basic design
Cage suffixes P, Y, M
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 420-431
7200 BECBP d: 10 mm | D: 30 mm | B: 9 mm | C: 7.02 kN | C0: 3.35 kN | Limiting speed: 30000 r/min
7200 BEP d: 10 mm | D: 30 mm | B: 9 mm | C: 7.02 kN | C0: 3.35 kN | Limiting speed: 30000 r/min
7201 BECBP d: 12 mm | D: 32 mm | B: 10 mm | C: 7.61 kN | C0: 3.8 kN | Limiting speed: 26000 r/min
7201 BEP d: 12 mm | D: 32 mm | B: 10 mm | C: 7.61 kN | C0: 3.8 kN | Limiting speed: 26000 r/min
7202 BECBP d: 15 mm | D: 35 mm | B: 11 mm | C: 9.5 kN | C0: 5.1 kN | Limiting speed: 26000 r/min
7202 BEP d: 15 mm | D: 35 mm | B: 11 mm | C: 8.84 kN | C0: 4.8 kN | Limiting speed: 24000 r/min
7203 BECBP d: 17 mm | D: 40 mm | B: 12 mm | C: 11 kN | C0: 5.85 kN | Limiting speed: 22000 r/min
7203 BEP d: 17 mm | D: 40 mm | B: 12 mm | C: 10.4 kN | C0: 5.5 kN | Limiting speed: 20000 r/min
7203 BEY d: 17 mm | D: 40 mm | B: 12 mm | C: 11.1 kN | C0: 6.1 kN | Limiting speed: 20000 r/min
7203 BECBM d: 17 mm | D: 40 mm | B: 12 mm | C: 11 kN | C0: 5.85 kN | Limiting speed: 22000 r/min
7204 BECBP d: 20 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 8.15 kN | Limiting speed: 19000 r/min
7204 BEP d: 20 mm | D: 47 mm | B: 14 mm | C: 13.3 kN | C0: 7.65 kN | Limiting speed: 18000 r/min
7204 BECBY d: 20 mm | D: 47 mm | B: 14 mm | C: 14 kN | C0: 8.3 kN | Limiting speed: 18000 r/min
7204 BECBM d: 20 mm | D: 47 mm | B: 14 mm | C: 13.3 kN | C0: 7.65 kN | Limiting speed: 19000 r/min
7205 BECBP d: 25 mm | D: 52 mm | B: 15 mm | C: 15.6 kN | C0: 10 kN | Limiting speed: 17000 r/min
7205 BEP d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 9.3 kN | Limiting speed: 15000 r/min
7205 BECBY d: 25 mm | D: 52 mm | B: 15 mm | C: 15.6 kN | C0: 10.2 kN | Limiting speed: 15000 r/min
7205 BEY d: 25 mm | D: 52 mm | B: 15 mm | C: 15.6 kN | C0: 10.2 kN | Limiting speed: 15000 r/min
7205 BECBM d: 25 mm | D: 52 mm | B: 15 mm | C: 15.6 kN | C0: 10 kN | Limiting speed: 17000 r/min
7206 BECBP d: 30 mm | D: 62 mm | B: 16 mm | C: 24 kN | C0: 15.6 kN | Limiting speed: 14000 r/min
7206 BEP d: 30 mm | D: 62 mm | B: 16 mm | C: 22.5 kN | C0: 14.3 kN | Limiting speed: 13000 r/min
7206 BECBY d: 30 mm | D: 62 mm | B: 16 mm | C: 23.8 kN | C0: 15.6 kN | Limiting speed: 13000 r/min
7206 BEY d: 30 mm | D: 62 mm | B: 16 mm | C: 23.8 kN | C0: 15.6 kN | Limiting speed: 13000 r/min
7206 BECBM d: 30 mm | D: 62 mm | B: 16 mm | C: 24 kN | C0: 15.6 kN | Limiting speed: 14000 r/min
7207 BECBP d: 35 mm | D: 72 mm | B: 17 mm | C: 31 kN | C0: 20.8 kN | Limiting speed: 12000 r/min
7207 BEP d: 35 mm | D: 72 mm | B: 17 mm | C: 29.1 kN | C0: 19 kN | Limiting speed: 11000 r/min
7207 BECBY d: 35 mm | D: 72 mm | B: 17 mm | C: 30.7 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
7207 BEY d: 35 mm | D: 72 mm | B: 17 mm | C: 30.7 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
7207 BECBM d: 35 mm | D: 72 mm | B: 17 mm | C: 31 kN | C0: 20.8 kN | Limiting speed: 12000 r/min
7208 BECBP d: 40 mm | D: 80 mm | B: 18 mm | C: 36.5 kN | C0: 26 kN | Limiting speed: 11000 r/min
7208 BEP d: 40 mm | D: 80 mm | B: 18 mm | C: 34.5 kN | C0: 24 kN | Limiting speed: 10000 r/min
7208 BECBY d: 40 mm | D: 80 mm | B: 18 mm | C: 36.4 kN | C0: 26 kN | Limiting speed: 10000 r/min
7208 BEY d: 40 mm | D: 80 mm | B: 18 mm | C: 36.4 kN | C0: 26 kN | Limiting speed: 10000 r/min
7208 BECBM d: 40 mm | D: 80 mm | B: 18 mm | C: 36.5 kN | C0: 26 kN | Limiting speed: 11000 r/min
7208 BEM d: 40 mm | D: 80 mm | B: 18 mm | C: 34.5 kN | C0: 24 kN | Limiting speed: 10000 r/min
7209 BECBP d: 45 mm | D: 85 mm | B: 19 mm | C: 38 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
7209 BEP d: 45 mm | D: 85 mm | B: 19 mm | C: 35.8 kN | C0: 26 kN | Limiting speed: 9000 r/min
7209 BECBY d: 45 mm | D: 85 mm | B: 19 mm | C: 37.7 kN | C0: 28 kN | Limiting speed: 9000 r/min
7209 BEY d: 45 mm | D: 85 mm | B: 19 mm | C: 37.7 kN | C0: 28 kN | Limiting speed: 9000 r/min
7209 BECBM d: 45 mm | D: 85 mm | B: 19 mm | C: 38 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
7210 BECBP d: 50 mm | D: 90 mm | B: 20 mm | C: 40 kN | C0: 31 kN | Limiting speed: 9000 r/min
7210 BEP d: 50 mm | D: 90 mm | B: 20 mm | C: 37.7 kN | C0: 28.5 kN | Limiting speed: 8500 r/min
7210 BECBY d: 50 mm | D: 90 mm | B: 20 mm | C: 39 kN | C0: 30.5 kN | Limiting speed: 8500 r/min
7210 BEY d: 50 mm | D: 90 mm | B: 20 mm | C: 39 kN | C0: 30.5 kN | Limiting speed: 8500 r/min
7210 BECBM d: 50 mm | D: 90 mm | B: 20 mm | C: 40 kN | C0: 31 kN | Limiting speed: 9000 r/min
7211 BECBP d: 55 mm | D: 100 mm | B: 21 mm | C: 49 kN | C0: 40 kN | Limiting speed: 8000 r/min
7211 BEP d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 36 kN | Limiting speed: 7500 r/min
7211 BECBY d: 55 mm | D: 100 mm | B: 21 mm | C: 48.8 kN | C0: 38 kN | Limiting speed: 7500 r/min
7211 BEY d: 55 mm | D: 100 mm | B: 21 mm | C: 48.8 kN | C0: 38 kN | Limiting speed: 7500 r/min
7211 BECBM d: 55 mm | D: 100 mm | B: 21 mm | C: 49 kN | C0: 40 kN | Limiting speed: 8000 r/min
7212 BECBP d: 60 mm | D: 110 mm | B: 22 mm | C: 61 kN | C0: 50 kN | Limiting speed: 7500 r/min
7212 BEP d: 60 mm | D: 110 mm | B: 22 mm | C: 57.2 kN | C0: 45.5 kN | Limiting speed: 7000 r/min
7212 BECBY d: 60 mm | D: 110 mm | B: 22 mm | C: 57.2 kN | C0: 45.5 kN | Limiting speed: 7000 r/min
7212 BEY d: 60 mm | D: 110 mm | B: 22 mm | C: 57.2 kN | C0: 45.5 kN | Limiting speed: 7000 r/min
7212 BECBM d: 60 mm | D: 110 mm | B: 22 mm | C: 61 kN | C0: 50 kN | Limiting speed: 7500 r/min
7213 BECBP d: 65 mm | D: 120 mm | B: 23 mm | C: 66.3 kN | C0: 54 kN | Limiting speed: 6300 r/min
7213 BEP d: 65 mm | D: 120 mm | B: 23 mm | C: 66.3 kN | C0: 54 kN | Limiting speed: 6300 r/min
7213 BECBY d: 65 mm | D: 120 mm | B: 23 mm | C: 66.3 kN | C0: 54 kN | Limiting speed: 6300 r/min
7213 BEY d: 65 mm | D: 120 mm | B: 23 mm | C: 66.3 kN | C0: 54 kN | Limiting speed: 6300 r/min
7213 BECBM d: 65 mm | D: 120 mm | B: 23 mm | C: 66.3 kN | C0: 54 kN | Limiting speed: 6700 r/min
7214 BECBP d: 70 mm | D: 125 mm | B: 24 mm | C: 75 kN | C0: 64 kN | Limiting speed: 6300 r/min
7214 BECBY d: 70 mm | D: 125 mm | B: 24 mm | C: 71.5 kN | C0: 60 kN | Limiting speed: 6000 r/min
7214 BEP d: 70 mm | D: 125 mm | B: 24 mm | C: 71.5 kN | C0: 60 kN | Limiting speed: 6000 r/min
7214 BECBM d: 70 mm | D: 125 mm | B: 24 mm | C: 72 kN | C0: 60 kN | Limiting speed: 6300 r/min
7215 BECBP d: 75 mm | D: 130 mm | B: 25 mm | C: 72.8 kN | C0: 64 kN | Limiting speed: 5600 r/min
7215 BEP d: 75 mm | D: 130 mm | B: 25 mm | C: 72.8 kN | C0: 64 kN | Limiting speed: 5600 r/min
7215 BECBY d: 75 mm | D: 130 mm | B: 25 mm | C: 72.8 kN | C0: 64 kN | Limiting speed: 5600 r/min
7215 BECBM d: 75 mm | D: 130 mm | B: 25 mm | C: 70.2 kN | C0: 60 kN | Limiting speed: 6000 r/min
7216 BECBP d: 80 mm | D: 140 mm | B: 26 mm | C: 85 kN | C0: 75 kN | Limiting speed: 5600 r/min
7216 BECBY d: 80 mm | D: 140 mm | B: 26 mm | C: 83.2 kN | C0: 73.5 kN | Limiting speed: 5300 r/min
7216 BECBM d: 80 mm | D: 140 mm | B: 26 mm | C: 85 kN | C0: 75 kN | Limiting speed: 5600 r/min
7217 BECBP d: 85 mm | D: 150 mm | B: 28 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5300 r/min
7217 BECBY d: 85 mm | D: 150 mm | B: 28 mm | C: 95.6 kN | C0: 83 kN | Limiting speed: 5000 r/min
7217 BEP d: 85 mm | D: 150 mm | B: 28 mm | C: 95.6 kN | C0: 83 kN | Limiting speed: 5000 r/min
7217 BECBM d: 85 mm | D: 150 mm | B: 28 mm | C: 95.6 kN | C0: 83 kN | Limiting speed: 5300 r/min
7218 BECBP d: 90 mm | D: 160 mm | B: 30 mm | C: 116 kN | C0: 104 kN | Limiting speed: 4800 r/min
7218 BECBY d: 90 mm | D: 160 mm | B: 30 mm | C: 108 kN | C0: 96.5 kN | Limiting speed: 4500 r/min
7218 BEP d: 90 mm | D: 160 mm | B: 30 mm | C: 108 kN | C0: 96.5 kN | Limiting speed: 4500 r/min
7218 BECBM d: 90 mm | D: 160 mm | B: 30 mm | C: 108 kN | C0: 96.5 kN | Limiting speed: 4800 r/min
7219 BECBP d: 95 mm | D: 170 mm | B: 32 mm | C: 129 kN | C0: 118 kN | Limiting speed: 4800 r/min
7219 BEP d: 95 mm | D: 170 mm | B: 32 mm | C: 124 kN | C0: 108 kN | Limiting speed: 4300 r/min
7219 BECBY d: 95 mm | D: 170 mm | B: 32 mm | C: 124 kN | C0: 108 kN | Limiting speed: 4300 r/min
7219 BECBM d: 95 mm | D: 170 mm | B: 32 mm | C: 129 kN | C0: 118 kN | Limiting speed: 4800 r/min
7220 BECBP d: 100 mm | D: 180 mm | B: 34 mm | C: 143 kN | C0: 134 kN | Limiting speed: 4500 r/min
7220 BEP d: 100 mm | D: 180 mm | B: 34 mm | C: 135 kN | C0: 122 kN | Limiting speed: 4000 r/min
7220 BECBY d: 100 mm | D: 180 mm | B: 34 mm | C: 135 kN | C0: 122 kN | Limiting speed: 4000 r/min
7220 BEY d: 100 mm | D: 180 mm | B: 34 mm | C: 135 kN | C0: 122 kN | Limiting speed: 4000 r/min
7220 BECBM d: 100 mm | D: 180 mm | B: 34 mm | C: 135 kN | C0: 122 kN | Limiting speed: 4300 r/min
7221 BECBP d: 105 mm | D: 190 mm | B: 36 mm | C: 156 kN | C0: 150 kN | Limiting speed: 4300 r/min
7221 BECBM d: 105 mm | D: 190 mm | B: 36 mm | C: 148 kN | C0: 137 kN | Limiting speed: 4000 r/min
7222 BECBP d: 110 mm | D: 200 mm | B: 38 mm | C: 170 kN | C0: 166 kN | Limiting speed: 4000 r/min
7222 BECBY d: 110 mm | D: 200 mm | B: 38 mm | C: 163 kN | C0: 153 kN | Limiting speed: 3600 r/min
7222 BECBM d: 110 mm | D: 200 mm | B: 38 mm | C: 153 kN | C0: 143 kN | Limiting speed: 3800 r/min
7222 BEM d: 110 mm | D: 200 mm | B: 38 mm | C: 153 kN | C0: 143 kN | Limiting speed: 3800 r/min
7224 BCBM d: 120 mm | D: 215 mm | B: 40 mm | C: 165 kN | C0: 163 kN | Limiting speed: 3600 r/min
7224 BM d: 120 mm | D: 215 mm | B: 40 mm | C: 165 kN | C0: 163 kN | Limiting speed: 3600 r/min
7226 BCBM d: 130 mm | D: 230 mm | B: 40 mm | C: 186 kN | C0: 193 kN | Limiting speed: 3400 r/min
7226 BM d: 130 mm | D: 230 mm | B: 40 mm | C: 186 kN | C0: 193 kN | Limiting speed: 3400 r/min
7228 BCBM d: 140 mm | D: 250 mm | B: 42 mm | C: 199 kN | C0: 212 kN | Limiting speed: 3000 r/min
7228 BM d: 140 mm | D: 250 mm | B: 42 mm | C: 199 kN | C0: 212 kN | Limiting speed: 3000 r/min
7230 BCBM d: 150 mm | D: 270 mm | B: 45 mm | C: 216 kN | C0: 240 kN | Limiting speed: 2800 r/min
7232 BCBM d: 160 mm | D: 290 mm | B: 48 mm | C: 255 kN | C0: 300 kN | Limiting speed: 2600 r/min
7234 BCBM d: 170 mm | D: 310 mm | B: 52 mm | C: 281 kN | C0: 345 kN | Limiting speed: 2400 r/min
7236 BCBM d: 180 mm | D: 320 mm | B: 52 mm | C: 291 kN | C0: 375 kN | Limiting speed: 2400 r/min
7238 BCBM d: 190 mm | D: 340 mm | B: 55 mm | C: 307 kN | C0: 405 kN | Limiting speed: 2200 r/min
7240 BCBM d: 200 mm | D: 360 mm | B: 58 mm | C: 325 kN | C0: 430 kN | Limiting speed: 2000 r/min
7244 BCBM d: 220 mm | D: 400 mm | B: 65 mm | C: 390 kN | C0: 560 kN | Limiting speed: 1800 r/min
7248 BCBM d: 240 mm | D: 440 mm | B: 72 mm | C: 364 kN | C0: 540 kN | Limiting speed: 1700 r/min
