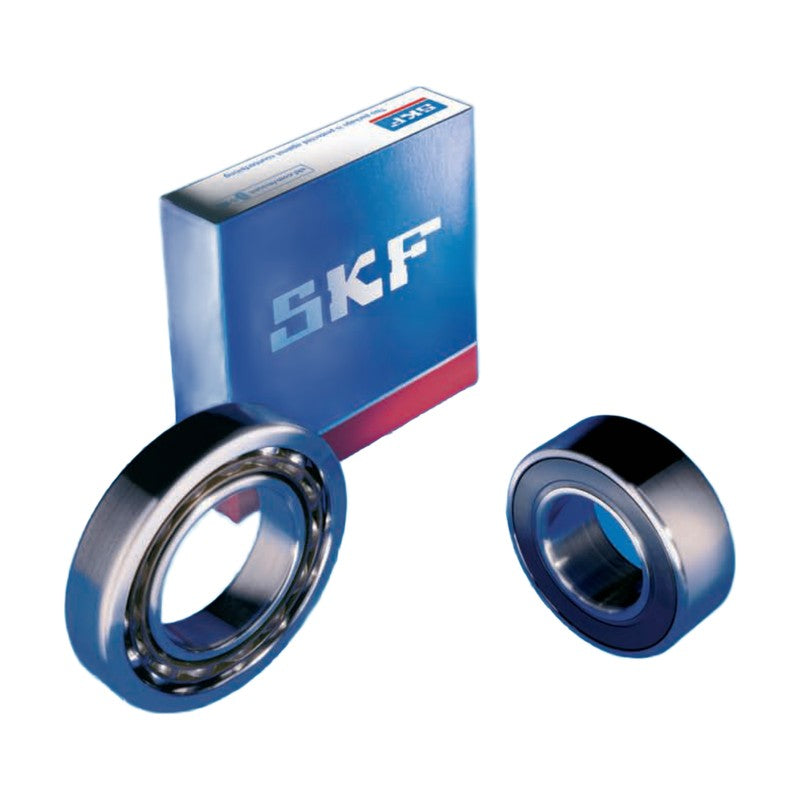

SKF 73 B Series Single Row Angular Contact Ball Bearings

SKF 73 B Series Single Row Angular Contact Ball Bearings

SKF single row angular contact ball bearings of the 73 B(E) series with a 40° contact angle, in universally matchable (CB) and basic design versions.

Key features

  • 40° contact angle for combined radial and one-direction axial loads
  • BE design with optimized internal geometry, many sizes SKF Explorer
  • Universally matchable (CB) bearings for back-to-back, face-to-face or tandem pairs
  • Cage options: polyamide (P), pressed brass (Y), machined brass (M)
  • Basic design bearings for single bearing arrangements

Specifications

Bearing type Single row angular contact ball bearing
Contact angle 40° (B design)
Series 73 B / 73 BE
Matching CB universally matchable or basic design
Cage suffixes P, Y, M
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 420-431
7301 BEP d: 12 mm | D: 37 mm | B: 12 mm | C: 10.6 kN | C0: 5 kN | Limiting speed: 24000 r/min
7302 BECBP d: 15 mm | D: 42 mm | B: 13 mm | C: 13 kN | C0: 6.7 kN | Limiting speed: 20000 r/min
7302 BEP d: 15 mm | D: 42 mm | B: 13 mm | C: 13 kN | C0: 6.7 kN | Limiting speed: 20000 r/min
7303 BECBP d: 17 mm | D: 47 mm | B: 14 mm | C: 15.9 kN | C0: 8.3 kN | Limiting speed: 19000 r/min
7303 BEP d: 17 mm | D: 47 mm | B: 14 mm | C: 15.9 kN | C0: 8.3 kN | Limiting speed: 19000 r/min
7304 BECBP d: 20 mm | D: 52 mm | B: 15 mm | C: 19 kN | C0: 10 kN | Limiting speed: 18000 r/min
7304 BEP d: 20 mm | D: 52 mm | B: 15 mm | C: 17.4 kN | C0: 9.5 kN | Limiting speed: 16000 r/min
7304 BECBY d: 20 mm | D: 52 mm | B: 15 mm | C: 19 kN | C0: 10.4 kN | Limiting speed: 16000 r/min
7304 BEY d: 20 mm | D: 52 mm | B: 15 mm | C: 19 kN | C0: 10.4 kN | Limiting speed: 16000 r/min
7304 BECBM d: 20 mm | D: 52 mm | B: 15 mm | C: 19 kN | C0: 10 kN | Limiting speed: 18000 r/min
7305 BECBP d: 25 mm | D: 62 mm | B: 17 mm | C: 26.5 kN | C0: 15.3 kN | Limiting speed: 15000 r/min
7305 BEP d: 25 mm | D: 62 mm | B: 17 mm | C: 24.2 kN | C0: 14 kN | Limiting speed: 14000 r/min
7305 BECBY d: 25 mm | D: 62 mm | B: 17 mm | C: 26 kN | C0: 15.6 kN | Limiting speed: 14000 r/min
7305 BEY d: 25 mm | D: 62 mm | B: 17 mm | C: 26 kN | C0: 15.6 kN | Limiting speed: 14000 r/min
7305 BECBM d: 25 mm | D: 62 mm | B: 17 mm | C: 26.5 kN | C0: 15.3 kN | Limiting speed: 15000 r/min
7306 BECBP d: 30 mm | D: 72 mm | B: 19 mm | C: 35.5 kN | C0: 21.2 kN | Limiting speed: 13000 r/min
7306 BEP d: 30 mm | D: 72 mm | B: 19 mm | C: 32.5 kN | C0: 19.3 kN | Limiting speed: 12000 r/min
7306 BECBY d: 30 mm | D: 72 mm | B: 19 mm | C: 34.5 kN | C0: 21.2 kN | Limiting speed: 12000 r/min
7306 BEY d: 30 mm | D: 72 mm | B: 19 mm | C: 34.5 kN | C0: 21.2 kN | Limiting speed: 12000 r/min
7306 BECBM d: 30 mm | D: 72 mm | B: 19 mm | C: 35.5 kN | C0: 21.2 kN | Limiting speed: 13000 r/min
7307 BECBP d: 35 mm | D: 80 mm | B: 21 mm | C: 41.5 kN | C0: 26.5 kN | Limiting speed: 11000 r/min
7307 BEP d: 35 mm | D: 80 mm | B: 21 mm | C: 39 kN | C0: 24.5 kN | Limiting speed: 10000 r/min
7307 BECBY d: 35 mm | D: 80 mm | B: 21 mm | C: 39 kN | C0: 24.5 kN | Limiting speed: 10000 r/min
7307 BEY d: 35 mm | D: 80 mm | B: 21 mm | C: 39 kN | C0: 24.5 kN | Limiting speed: 10000 r/min
7307 BECBM d: 35 mm | D: 80 mm | B: 21 mm | C: 41.5 kN | C0: 26.5 kN | Limiting speed: 11000 r/min
7308 BECBP d: 40 mm | D: 90 mm | B: 23 mm | C: 50 kN | C0: 32.5 kN | Limiting speed: 10000 r/min
7308 BEP d: 40 mm | D: 90 mm | B: 23 mm | C: 46.2 kN | C0: 30.5 kN | Limiting speed: 9000 r/min
7308 BECBY d: 40 mm | D: 90 mm | B: 23 mm | C: 49.4 kN | C0: 33.5 kN | Limiting speed: 9000 r/min
7308 BEY d: 40 mm | D: 90 mm | B: 23 mm | C: 49.4 kN | C0: 33.5 kN | Limiting speed: 9000 r/min
7308 BECBM d: 40 mm | D: 90 mm | B: 23 mm | C: 50 kN | C0: 32.5 kN | Limiting speed: 10000 r/min
7309 BECBP d: 45 mm | D: 100 mm | B: 25 mm | C: 61 kN | C0: 40.5 kN | Limiting speed: 9000 r/min
7309 BEP d: 45 mm | D: 100 mm | B: 25 mm | C: 55.9 kN | C0: 37.5 kN | Limiting speed: 8000 r/min
7309 BECBY d: 45 mm | D: 100 mm | B: 25 mm | C: 60.5 kN | C0: 41.5 kN | Limiting speed: 8000 r/min
7309 BEY d: 45 mm | D: 100 mm | B: 25 mm | C: 60.5 kN | C0: 41.5 kN | Limiting speed: 8000 r/min
7309 BECBM d: 45 mm | D: 100 mm | B: 25 mm | C: 61 kN | C0: 40.5 kN | Limiting speed: 9000 r/min
7310 BECBP d: 50 mm | D: 110 mm | B: 27 mm | C: 75 kN | C0: 51 kN | Limiting speed: 8000 r/min
7310 BEP d: 50 mm | D: 110 mm | B: 27 mm | C: 68.9 kN | C0: 47.5 kN | Limiting speed: 7500 r/min
7310 BECBY d: 50 mm | D: 110 mm | B: 27 mm | C: 74.1 kN | C0: 51 kN | Limiting speed: 7500 r/min
7310 BEY d: 50 mm | D: 110 mm | B: 27 mm | C: 74.1 kN | C0: 51 kN | Limiting speed: 7500 r/min
7310 BECBM d: 50 mm | D: 110 mm | B: 27 mm | C: 75 kN | C0: 51 kN | Limiting speed: 8000 r/min
7311 BECBP d: 55 mm | D: 120 mm | B: 29 mm | C: 85 kN | C0: 60 kN | Limiting speed: 7000 r/min
7311 BEP d: 55 mm | D: 120 mm | B: 29 mm | C: 79.3 kN | C0: 55 kN | Limiting speed: 6700 r/min
7311 BECBY d: 55 mm | D: 120 mm | B: 29 mm | C: 85.2 kN | C0: 60 kN | Limiting speed: 6700 r/min
7311 BEY d: 55 mm | D: 120 mm | B: 29 mm | C: 85.2 kN | C0: 60 kN | Limiting speed: 6700 r/min
7311 BECBM d: 55 mm | D: 120 mm | B: 29 mm | C: 85 kN | C0: 60 kN | Limiting speed: 7000 r/min
7312 BECBP d: 60 mm | D: 130 mm | B: 31 mm | C: 104 kN | C0: 76.5 kN | Limiting speed: 6700 r/min
7312 BEP d: 60 mm | D: 130 mm | B: 31 mm | C: 95.6 kN | C0: 69.5 kN | Limiting speed: 6000 r/min
7312 BECBY d: 60 mm | D: 130 mm | B: 31 mm | C: 95.6 kN | C0: 69.5 kN | Limiting speed: 6000 r/min
7312 BEY d: 60 mm | D: 130 mm | B: 31 mm | C: 95.6 kN | C0: 69.5 kN | Limiting speed: 6000 r/min
7312 BECBM d: 60 mm | D: 130 mm | B: 31 mm | C: 104 kN | C0: 76.5 kN | Limiting speed: 6700 r/min
7312 BEM d: 60 mm | D: 130 mm | B: 31 mm | C: 95.6 kN | C0: 69.5 kN | Limiting speed: 6300 r/min
7313 BECBP d: 65 mm | D: 140 mm | B: 33 mm | C: 116 kN | C0: 86.5 kN | Limiting speed: 6300 r/min
7313 BECBY d: 65 mm | D: 140 mm | B: 33 mm | C: 108 kN | C0: 80 kN | Limiting speed: 5600 r/min
7313 BEP d: 65 mm | D: 140 mm | B: 33 mm | C: 108 kN | C0: 80 kN | Limiting speed: 5600 r/min
7313 BECBM d: 65 mm | D: 140 mm | B: 33 mm | C: 116 kN | C0: 86.5 kN | Limiting speed: 6300 r/min
7314 BECBP d: 70 mm | D: 150 mm | B: 35 mm | C: 127 kN | C0: 98 kN | Limiting speed: 5600 r/min
7314 BECBY d: 70 mm | D: 150 mm | B: 35 mm | C: 119 kN | C0: 90 kN | Limiting speed: 5300 r/min
7314 BEP d: 70 mm | D: 150 mm | B: 35 mm | C: 119 kN | C0: 90 kN | Limiting speed: 5300 r/min
7314 BECBM d: 70 mm | D: 150 mm | B: 35 mm | C: 127 kN | C0: 98 kN | Limiting speed: 5600 r/min
7315 BECBP d: 75 mm | D: 160 mm | B: 37 mm | C: 132 kN | C0: 104 kN | Limiting speed: 5300 r/min
7315 BEP d: 75 mm | D: 160 mm | B: 37 mm | C: 125 kN | C0: 98 kN | Limiting speed: 5000 r/min
7315 BECBY d: 75 mm | D: 160 mm | B: 37 mm | C: 133 kN | C0: 106 kN | Limiting speed: 5000 r/min
7315 BECBM d: 75 mm | D: 160 mm | B: 37 mm | C: 132 kN | C0: 104 kN | Limiting speed: 5300 r/min
7316 BECBP d: 80 mm | D: 170 mm | B: 39 mm | C: 143 kN | C0: 118 kN | Limiting speed: 5000 r/min
7316 BEP d: 80 mm | D: 170 mm | B: 39 mm | C: 135 kN | C0: 110 kN | Limiting speed: 4500 r/min
7316 BECBY d: 80 mm | D: 170 mm | B: 39 mm | C: 143 kN | C0: 118 kN | Limiting speed: 4500 r/min
7316 BEY d: 80 mm | D: 170 mm | B: 39 mm | C: 143 kN | C0: 118 kN | Limiting speed: 4500 r/min
7316 BECBM d: 80 mm | D: 170 mm | B: 39 mm | C: 143 kN | C0: 118 kN | Limiting speed: 5000 r/min
7316 BEM d: 80 mm | D: 170 mm | B: 39 mm | C: 135 kN | C0: 110 kN | Limiting speed: 4800 r/min
7317 BECBP d: 85 mm | D: 180 mm | B: 41 mm | C: 156 kN | C0: 132 kN | Limiting speed: 4800 r/min
7317 BEP d: 85 mm | D: 180 mm | B: 41 mm | C: 146 kN | C0: 112 kN | Limiting speed: 4300 r/min
7317 BECBY d: 85 mm | D: 180 mm | B: 41 mm | C: 153 kN | C0: 132 kN | Limiting speed: 4300 r/min
7317 BECBM d: 85 mm | D: 180 mm | B: 41 mm | C: 156 kN | C0: 132 kN | Limiting speed: 4800 r/min
7317 BEM d: 85 mm | D: 180 mm | B: 41 mm | C: 146 kN | C0: 112 kN | Limiting speed: 4500 r/min
7318 BECBP d: 90 mm | D: 190 mm | B: 43 mm | C: 166 kN | C0: 146 kN | Limiting speed: 4500 r/min
7318 BEP d: 90 mm | D: 190 mm | B: 43 mm | C: 156 kN | C0: 134 kN | Limiting speed: 4000 r/min
7318 BECBY d: 90 mm | D: 190 mm | B: 43 mm | C: 165 kN | C0: 146 kN | Limiting speed: 4000 r/min
7318 BECBM d: 90 mm | D: 190 mm | B: 43 mm | C: 166 kN | C0: 146 kN | Limiting speed: 4500 r/min
7318 BEM d: 90 mm | D: 190 mm | B: 43 mm | C: 156 kN | C0: 134 kN | Limiting speed: 4300 r/min
7319 BECBP d: 95 mm | D: 200 mm | B: 45 mm | C: 180 kN | C0: 163 kN | Limiting speed: 4300 r/min
7319 BEP d: 95 mm | D: 200 mm | B: 45 mm | C: 168 kN | C0: 150 kN | Limiting speed: 3800 r/min
7319 BECBY d: 95 mm | D: 200 mm | B: 45 mm | C: 178 kN | C0: 163 kN | Limiting speed: 3800 r/min
7319 BECBM d: 95 mm | D: 200 mm | B: 45 mm | C: 180 kN | C0: 163 kN | Limiting speed: 4300 r/min
7319 BEM d: 95 mm | D: 200 mm | B: 45 mm | C: 168 kN | C0: 150 kN | Limiting speed: 4000 r/min
7320 BECBP d: 100 mm | D: 215 mm | B: 47 mm | C: 216 kN | C0: 208 kN | Limiting speed: 4000 r/min
7320 BEP d: 100 mm | D: 215 mm | B: 47 mm | C: 203 kN | C0: 190 kN | Limiting speed: 3600 r/min
7320 BECBY d: 100 mm | D: 215 mm | B: 47 mm | C: 203 kN | C0: 190 kN | Limiting speed: 3600 r/min
7320 BEY d: 100 mm | D: 215 mm | B: 47 mm | C: 203 kN | C0: 190 kN | Limiting speed: 3600 r/min
7320 BECBM d: 100 mm | D: 215 mm | B: 47 mm | C: 216 kN | C0: 208 kN | Limiting speed: 4000 r/min
7320 BEM d: 100 mm | D: 215 mm | B: 47 mm | C: 203 kN | C0: 190 kN | Limiting speed: 3800 r/min
7321 BECBP d: 105 mm | D: 225 mm | B: 49 mm | C: 228 kN | C0: 228 kN | Limiting speed: 3800 r/min
7321 BECBM d: 105 mm | D: 225 mm | B: 49 mm | C: 203 kN | C0: 193 kN | Limiting speed: 3600 r/min
7322 BECBP d: 110 mm | D: 240 mm | B: 50 mm | C: 240 kN | C0: 245 kN | Limiting speed: 3600 r/min
7322 BECBY d: 110 mm | D: 240 mm | B: 50 mm | C: 225 kN | C0: 224 kN | Limiting speed: 3200 r/min
7322 BEY d: 110 mm | D: 240 mm | B: 50 mm | C: 225 kN | C0: 224 kN | Limiting speed: 3200 r/min
7322 BECBM d: 110 mm | D: 240 mm | B: 50 mm | C: 225 kN | C0: 224 kN | Limiting speed: 3400 r/min
7322 BEM d: 110 mm | D: 240 mm | B: 50 mm | C: 225 kN | C0: 224 kN | Limiting speed: 3400 r/min
7324 BCBM d: 120 mm | D: 260 mm | B: 55 mm | C: 238 kN | C0: 250 kN | Limiting speed: 3200 r/min
7326 BCBM d: 130 mm | D: 280 mm | B: 58 mm | C: 276 kN | C0: 305 kN | Limiting speed: 2800 r/min
7326 BM d: 130 mm | D: 280 mm | B: 58 mm | C: 276 kN | C0: 305 kN | Limiting speed: 2800 r/min
7328 BCBM d: 140 mm | D: 300 mm | B: 62 mm | C: 302 kN | C0: 345 kN | Limiting speed: 2600 r/min
7330 BCBM d: 150 mm | D: 320 mm | B: 65 mm | C: 332 kN | C0: 390 kN | Limiting speed: 2400 r/min
7334 BCBM d: 170 mm | D: 360 mm | B: 72 mm | C: 390 kN | C0: 490 kN | Limiting speed: 2200 r/min
7336 BCBM d: 180 mm | D: 380 mm | B: 75 mm | C: 410 kN | C0: 540 kN | Limiting speed: 2000 r/min
7338 BCBM d: 190 mm | D: 400 mm | B: 78 mm | C: 442 kN | C0: 600 kN | Limiting speed: 1900 r/min
7340 BCBM d: 200 mm | D: 420 mm | B: 80 mm | C: 462 kN | C0: 655 kN | Limiting speed: 1800 r/min
