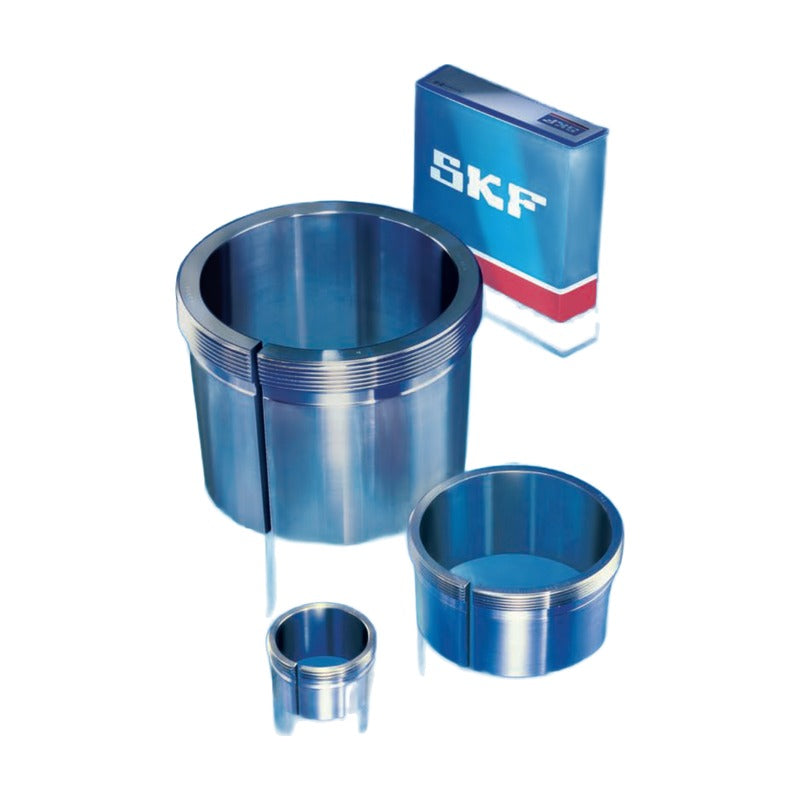

SKF AH, AHX, AOH, AOHX Withdrawal Sleeves (d1 35-1000 mm)

SKF AH, AHX, AOH, AOHX Withdrawal Sleeves (d1 35-1000 mm)

SKF withdrawal sleeves for mounting tapered-bore bearings on cylindrical shaft seats against a shaft shoulder and for easy dismounting with a nut.

Key features

  • Mounts tapered-bore bearings on cylindrical shafts against an abutment
  • Bearing dismounted by tightening a nut against the sleeve
  • AOH / AOHX designs with oil supply ducts for the oil injection method
  • Catalogue lists matching KM / HM nuts and HMV hydraulic nuts

Specifications

Product Withdrawal sleeve
d1 Shaft diameter
d Bearing bore diameter
Thread Sleeve thread G
Source SKF General Catalogue 6000, p. 998-1005
AH 308 d1: 35 mm | d: 40 mm | B1: 29 mm | Thread: M 45x1.5 | Mass: 0.09 kg
AH 2308 d1: 35 mm | d: 40 mm | B1: 40 mm | Thread: M 45x1.5 | Mass: 0.13 kg
AH 309 d1: 40 mm | d: 45 mm | B1: 31 mm | Thread: M 50x1.5 | Mass: 0.12 kg
AH 2309 d1: 40 mm | d: 45 mm | B1: 44 mm | Thread: M 50x1.5 | Mass: 0.16 kg
AHX 310 d1: 45 mm | d: 50 mm | B1: 35 mm | Thread: M 55x2 | Mass: 0.13 kg
AHX 2310 d1: 45 mm | d: 50 mm | B1: 50 mm | Thread: M 55x2 | Mass: 0.19 kg
AHX 311 d1: 50 mm | d: 55 mm | B1: 37 mm | Thread: M 60x2 | Mass: 0.16 kg
AHX 2311 d1: 50 mm | d: 55 mm | B1: 54 mm | Thread: M 60x2 | Mass: 0.26 kg
AHX 312 d1: 55 mm | d: 60 mm | B1: 40 mm | Thread: M 65x2 | Mass: 0.19 kg
AHX 2312 d1: 55 mm | d: 60 mm | B1: 58 mm | Thread: M 65x2 | Mass: 0.30 kg
AH 313 G d1: 60 mm | d: 65 mm | B1: 42 mm | Thread: M 70x2 | Mass: 0.22 kg
AH 2313 G d1: 60 mm | d: 65 mm | B1: 61 mm | Thread: M 70x2 | Mass: 0.36 kg
AH 314 G d1: 65 mm | d: 70 mm | B1: 43 mm | Thread: M 75x2 | Mass: 0.24 kg
AHX 2314 G d1: 65 mm | d: 70 mm | B1: 64 mm | Thread: M 75x2 | Mass: 0.42 kg
AH 315 G d1: 70 mm | d: 75 mm | B1: 45 mm | Thread: M 80x2 | Mass: 0.29 kg
AHX 2315 G d1: 70 mm | d: 75 mm | B1: 68 mm | Thread: M 80x2 | Mass: 0.48 kg
AH 316 d1: 75 mm | d: 80 mm | B1: 48 mm | Thread: M 90x2 | Mass: 0.37 kg
AHX 2316 d1: 75 mm | d: 80 mm | B1: 71 mm | Thread: M 90x2 | Mass: 0.57 kg
AHX 317 d1: 80 mm | d: 85 mm | B1: 52 mm | Thread: M 95x2 | Mass: 0.43 kg
AHX 2317 d1: 80 mm | d: 85 mm | B1: 74 mm | Thread: M 95x2 | Mass: 0.65 kg
AHX 318 d1: 85 mm | d: 90 mm | B1: 53 mm | Thread: M 100x2 | Mass: 0.46 kg
AHX 3218 d1: 85 mm | d: 90 mm | B1: 63 mm | Thread: M 100x2 | Mass: 0.57 kg
AHX 2318 d1: 85 mm | d: 90 mm | B1: 79 mm | Thread: M 100x2 | Mass: 0.76 kg
AHX 319 d1: 90 mm | d: 95 mm | B1: 57 mm | Thread: M 105x2 | Mass: 0.54 kg
AHX 2319 d1: 90 mm | d: 95 mm | B1: 85 mm | Thread: M 105x2 | Mass: 0.90 kg
AHX 320 d1: 95 mm | d: 100 mm | B1: 59 mm | Thread: M 110x2 | Mass: 0.58 kg
AHX 3120 d1: 95 mm | d: 100 mm | B1: 64 mm | Thread: M 110x2 | Mass: 0.66 kg
AHX 3220 d1: 95 mm | d: 100 mm | B1: 73 mm | Thread: M 110x2 | Mass: 0.76 kg
AHX 2320 d1: 95 mm | d: 100 mm | B1: 90 mm | Thread: M 110x2 | Mass: 1.00 kg
AHX 322 d1: 105 mm | d: 110 mm | B1: 63 mm | Thread: M 120x2 | Mass: 0.77 kg
AHX 3122 d1: 105 mm | d: 110 mm | B1: 68 mm | Thread: M 120x2 | Mass: 0.76 kg
AHX 3222 G d1: 105 mm | d: 110 mm | B1: 82 mm | Thread: M 120x2 | Mass: 1.00 kg
AHX 2322 G d1: 105 mm | d: 110 mm | B1: 98 mm | Thread: M 120x2 | Mass: 1.30 kg
AH 24122 d1: 105 mm | d: 110 mm | B1: 82 mm | Thread: M 115x2 | Mass: 0.71 kg
AHX 3024 d1: 115 mm | d: 120 mm | B1: 60 mm | Thread: M 130x2 | Mass: 0.73 kg
AHX 3124 d1: 115 mm | d: 120 mm | B1: 75 mm | Thread: M 130x2 | Mass: 0.94 kg
AHX 3224 G d1: 115 mm | d: 120 mm | B1: 90 mm | Thread: M 130x2 | Mass: 1.30 kg
AHX 2324 G d1: 115 mm | d: 120 mm | B1: 105 mm | Thread: M 130x2 | Mass: 1.55 kg
AH 24024 d1: 115 mm | d: 120 mm | B1: 73 mm | Thread: M 125x2 | Mass: 0.70 kg
AH 24124 d1: 115 mm | d: 120 mm | B1: 93 mm | Thread: M 130x2 | Mass: 1.00 kg
AHX 3026 d1: 125 mm | d: 130 mm | B1: 67 mm | Thread: M 140x2 | Mass: 0.91 kg
AHX 3126 d1: 125 mm | d: 130 mm | B1: 78 mm | Thread: M 140x2 | Mass: 1.10 kg
AHX 3226 G d1: 125 mm | d: 130 mm | B1: 98 mm | Thread: M 140x2 | Mass: 1.50 kg
AHX 2326 G d1: 125 mm | d: 130 mm | B1: 115 mm | Thread: M 140x2 | Mass: 1.85 kg
AH 24026 d1: 125 mm | d: 130 mm | B1: 83 mm | Thread: M 135x2 | Mass: 0.90 kg
AH 24126 d1: 125 mm | d: 130 mm | B1: 94 mm | Thread: M 140x2 | Mass: 1.15 kg
AHX 3028 d1: 135 mm | d: 140 mm | B1: 68 mm | Thread: M 150x2 | Mass: 1.00 kg
AHX 3128 d1: 135 mm | d: 140 mm | B1: 83 mm | Thread: M 150x2 | Mass: 1.30 kg
AHX 3228 G d1: 135 mm | d: 140 mm | B1: 104 mm | Thread: M 150x2 | Mass: 1.75 kg
AHX 2328 G d1: 135 mm | d: 140 mm | B1: 125 mm | Thread: M 150x2 | Mass: 2.25 kg
AH 24028 d1: 135 mm | d: 140 mm | B1: 83 mm | Thread: M 145x2 | Mass: 0.95 kg
AH 24128 d1: 135 mm | d: 140 mm | B1: 99 mm | Thread: M 150x2 | Mass: 1.30 kg
AHX 3030 d1: 145 mm | d: 150 mm | B1: 72 mm | Thread: M 160x3 | Mass: 1.15 kg
AHX 3130 G d1: 145 mm | d: 150 mm | B1: 96 mm | Thread: M 160x3 | Mass: 1.70 kg
AHX 3230 G d1: 145 mm | d: 150 mm | B1: 114 mm | Thread: M 160x3 | Mass: 2.10 kg
AHX 2330 G d1: 145 mm | d: 150 mm | B1: 135 mm | Thread: M 160x3 | Mass: 2.75 kg
AH 24030 d1: 145 mm | d: 150 mm | B1: 90 mm | Thread: M 155x3 | Mass: 1.05 kg
AH 24130 d1: 145 mm | d: 150 mm | B1: 115 mm | Thread: M 160x3 | Mass: 1.55 kg
AH 3032 d1: 150 mm | d: 160 mm | B1: 77 mm | Thread: M 170x3 | Mass: 2.00 kg
AH 3132 G d1: 150 mm | d: 160 mm | B1: 103 mm | Thread: M 170x3 | Mass: 3.00 kg
AH 3232 G d1: 150 mm | d: 160 mm | B1: 124 mm | Thread: M 170x3 | Mass: 3.70 kg
AH 2332 G d1: 150 mm | d: 160 mm | B1: 140 mm | Thread: M 170x3 | Mass: 4.35 kg
AH 24032 d1: 150 mm | d: 160 mm | B1: 95 mm | Thread: M 170x3 | Mass: 2.30 kg
AH 24132 d1: 150 mm | d: 160 mm | B1: 124 mm | Thread: M 170x3 | Mass: 3.00 kg
AH 3034 d1: 160 mm | d: 170 mm | B1: 85 mm | Thread: M 180x3 | Mass: 2.45 kg
AH 3134 G d1: 160 mm | d: 170 mm | B1: 104 mm | Thread: M 180x3 | Mass: 3.20 kg
AH 3234 G d1: 160 mm | d: 170 mm | B1: 134 mm | Thread: M 180x3 | Mass: 4.35 kg
AH 2334 G d1: 160 mm | d: 170 mm | B1: 146 mm | Thread: M 180x3 | Mass: 4.85 kg
AH 24034 d1: 160 mm | d: 170 mm | B1: 106 mm | Thread: M 180x3 | Mass: 2.70 kg
AH 24134 d1: 160 mm | d: 170 mm | B1: 125 mm | Thread: M 180x3 | Mass: 3.25 kg
AH 3036 d1: 170 mm | d: 180 mm | B1: 92 mm | Thread: M 190x3 | Mass: 2.80 kg
AH 2236 G d1: 170 mm | d: 180 mm | B1: 105 mm | Thread: M 190x3 | Mass: 3.40 kg
AH 3136 G d1: 170 mm | d: 180 mm | B1: 116 mm | Thread: M 190x3 | Mass: 3.90 kg
AH 3236 G d1: 170 mm | d: 180 mm | B1: 140 mm | Thread: M 190x3 | Mass: 4.85 kg
AH 2336 G d1: 170 mm | d: 180 mm | B1: 154 mm | Thread: M 190x3 | Mass: 5.50 kg
AH 24036 d1: 170 mm | d: 180 mm | B1: 116 mm | Thread: M 190x3 | Mass: 3.20 kg
AH 24136 d1: 170 mm | d: 180 mm | B1: 134 mm | Thread: M 190x3 | Mass: 3.75 kg
AH 3038 G d1: 180 mm | d: 190 mm | B1: 96 mm | Thread: M 200x3 | Mass: 3.30 kg
AH 2238 G d1: 180 mm | d: 190 mm | B1: 112 mm | Thread: M 200x3 | Mass: 3.90 kg
AH 3138 G d1: 180 mm | d: 190 mm | B1: 125 mm | Thread: M 200x3 | Mass: 4.50 kg
AH 3238 G d1: 180 mm | d: 190 mm | B1: 145 mm | Thread: M 200x3 | Mass: 5.40 kg
AH 2338 G d1: 180 mm | d: 190 mm | B1: 160 mm | Thread: M 200x3 | Mass: 6.10 kg
AH 24038 d1: 180 mm | d: 190 mm | B1: 118 mm | Thread: M 200x3 | Mass: 3.55 kg
AH 24138 d1: 180 mm | d: 190 mm | B1: 146 mm | Thread: M 200x3 | Mass: 4.45 kg
AH 3040 G d1: 190 mm | d: 200 mm | B1: 102 mm | Thread: Tr 210x4 | Mass: 3.70 kg
AH 3140 d1: 190 mm | d: 200 mm | B1: 134 mm | Thread: Tr 220x4 | Mass: 5.65 kg
AH 3240 d1: 190 mm | d: 200 mm | B1: 153 mm | Thread: Tr 220x4 | Mass: 6.60 kg
AH 2340 d1: 190 mm | d: 200 mm | B1: 170 mm | Thread: Tr 220x4 | Mass: 7.60 kg
AH 24040 d1: 190 mm | d: 200 mm | B1: 127 mm | Thread: Tr 210x4 | Mass: 4.00 kg
AH 24140 d1: 190 mm | d: 200 mm | B1: 158 mm | Thread: Tr 210x4 | Mass: 5.05 kg
AOH 3044 G d1: 200 mm | d: 220 mm | B1: 111 mm | Thread: Tr 230x4 | Mass: 7.30 kg
AOH 3144 d1: 200 mm | d: 220 mm | B1: 145 mm | Thread: Tr 240x4 | Mass: 9.30 kg
AOH 2344 d1: 200 mm | d: 220 mm | B1: 181 mm | Thread: Tr 240x4 | Mass: 13.5 kg
AOH 24044 d1: 200 mm | d: 220 mm | B1: 138 mm | Thread: Tr 230x4 | Mass: 7.45 kg
AOH 24144 d1: 200 mm | d: 220 mm | B1: 170 mm | Thread: Tr 230x4 | Mass: 10.0 kg
AOH 3048 d1: 220 mm | d: 240 mm | B1: 116 mm | Thread: Tr 260x4 | Mass: 7.95 kg
AOH 3148 d1: 220 mm | d: 240 mm | B1: 154 mm | Thread: Tr 260x4 | Mass: 12.0 kg
AOH 2348 d1: 220 mm | d: 240 mm | B1: 189 mm | Thread: Tr 260x4 | Mass: 14.0 kg
AOH 24048 d1: 220 mm | d: 240 mm | B1: 138 mm | Thread: Tr 250x4 | Mass: 8.05 kg
AOH 24148 d1: 220 mm | d: 240 mm | B1: 180 mm | Thread: Tr 260x4 | Mass: 11.5 kg
AOH 3052 d1: 240 mm | d: 260 mm | B1: 128 mm | Thread: Tr 280x4 | Mass: 9.60 kg
AOH 2252 G d1: 240 mm | d: 260 mm | B1: 155 mm | Thread: Tr 280x4 | Mass: 13.5 kg
AOH 3152 G d1: 240 mm | d: 260 mm | B1: 172 mm | Thread: Tr 280x4 | Mass: 15.5 kg
AOH 2352 G d1: 240 mm | d: 260 mm | B1: 205 mm | Thread: Tr 280x4 | Mass: 19.0 kg
AOH 24052 G d1: 240 mm | d: 260 mm | B1: 162 mm | Thread: Tr 280x4 | Mass: 12.5 kg
AOH 24152 d1: 240 mm | d: 260 mm | B1: 202 mm | Thread: Tr 280x4 | Mass: 14.0 kg
AOH 3056 d1: 260 mm | d: 280 mm | B1: 131 mm | Thread: Tr 300x4 | Mass: 11.0 kg
AOH 2256 G d1: 260 mm | d: 280 mm | B1: 155 mm | Thread: Tr 300x4 | Mass: 15.0 kg
AOH 3156 G d1: 260 mm | d: 280 mm | B1: 175 mm | Thread: Tr 300x4 | Mass: 17.0 kg
AOH 2356 G d1: 260 mm | d: 280 mm | B1: 212 mm | Thread: Tr 300x4 | Mass: 21.5 kg
AOH 24056 G d1: 260 mm | d: 280 mm | B1: 162 mm | Thread: Tr 300x4 | Mass: 13.5 kg
AOH 24156 d1: 260 mm | d: 280 mm | B1: 202 mm | Thread: Tr 300x4 | Mass: 15.0 kg
AOH 3060 d1: 280 mm | d: 300 mm | B1: 145 mm | Thread: Tr 320x5 | Mass: 13.0 kg
AOH 2260 G d1: 280 mm | d: 300 mm | B1: 170 mm | Thread: Tr 320x5 | Mass: 18.0 kg
AOH 3160 G d1: 280 mm | d: 300 mm | B1: 192 mm | Thread: Tr 320x5 | Mass: 20.5 kg
AOH 3260 G d1: 280 mm | d: 300 mm | B1: 228 mm | Thread: Tr 320x5 | Mass: 23.5 kg
AOH 24060 G d1: 280 mm | d: 300 mm | B1: 184 mm | Thread: Tr 320x5 | Mass: 17.0 kg
AOH 24160 d1: 280 mm | d: 300 mm | B1: 224 mm | Thread: Tr 320x5 | Mass: 18.5 kg
AOH 3064 G d1: 300 mm | d: 320 mm | B1: 149 mm | Thread: Tr 340x5 | Mass: 16.5 kg
AOH 2264 G d1: 300 mm | d: 320 mm | B1: 180 mm | Thread: Tr 340x5 | Mass: 20.0 kg
AOH 3164 G d1: 300 mm | d: 320 mm | B1: 209 mm | Thread: Tr 340x5 | Mass: 24.5 kg
AOH 3264 G d1: 300 mm | d: 320 mm | B1: 246 mm | Thread: Tr 340x5 | Mass: 27.5 kg
AOH 24064 G d1: 300 mm | d: 320 mm | B1: 184 mm | Thread: Tr 340x5 | Mass: 18.0 kg
AOH 24164 d1: 300 mm | d: 320 mm | B1: 242 mm | Thread: Tr 340x5 | Mass: 20.5 kg
AOH 3068 G d1: 320 mm | d: 340 mm | B1: 162 mm | Thread: Tr 360x5 | Mass: 19.0 kg
AOH 3168 G d1: 320 mm | d: 340 mm | B1: 225 mm | Thread: Tr 360x5 | Mass: 28.5 kg
AOH 3268 G d1: 320 mm | d: 340 mm | B1: 264 mm | Thread: Tr 360x5 | Mass: 32.0 kg
AOH 24068 d1: 320 mm | d: 340 mm | B1: 206 mm | Thread: Tr 360x5 | Mass: 18.0 kg
AOH 24168 d1: 320 mm | d: 340 mm | B1: 269 mm | Thread: Tr 360x5 | Mass: 25.5 kg
AOH 3072 G d1: 340 mm | d: 360 mm | B1: 167 mm | Thread: Tr 380x5 | Mass: 21.0 kg
AOH 3172 G d1: 340 mm | d: 360 mm | B1: 229 mm | Thread: Tr 380x5 | Mass: 30.5 kg
AOH 3272 G d1: 340 mm | d: 360 mm | B1: 274 mm | Thread: Tr 380x5 | Mass: 35.5 kg
AOH 24072 d1: 340 mm | d: 360 mm | B1: 206 mm | Thread: Tr 380x5 | Mass: 20.0 kg
AOH 24172 d1: 340 mm | d: 360 mm | B1: 269 mm | Thread: Tr 380x5 | Mass: 26.0 kg
AOH 3076 G d1: 360 mm | d: 380 mm | B1: 170 mm | Thread: Tr 400x5 | Mass: 22.5 kg
AOH 3176 G d1: 360 mm | d: 380 mm | B1: 232 mm | Thread: Tr 400x5 | Mass: 33.0 kg
AOH 3276 G d1: 360 mm | d: 380 mm | B1: 284 mm | Thread: Tr 400x5 | Mass: 42.0 kg
AOH 24076 d1: 360 mm | d: 380 mm | B1: 208 mm | Thread: Tr 400x5 | Mass: 23.5 kg
AOH 24176 d1: 360 mm | d: 380 mm | B1: 271 mm | Thread: Tr 400x5 | Mass: 31.0 kg
AOH 3080 G d1: 380 mm | d: 400 mm | B1: 183 mm | Thread: Tr 420x5 | Mass: 26.0 kg
AOH 3180 G d1: 380 mm | d: 400 mm | B1: 240 mm | Thread: Tr 420x5 | Mass: 36.0 kg
AOH 3280 G d1: 380 mm | d: 400 mm | B1: 302 mm | Thread: Tr 420x5 | Mass: 48.0 kg
AOH 24080 d1: 380 mm | d: 400 mm | B1: 228 mm | Thread: Tr 420x5 | Mass: 27.0 kg
AOH 24180 d1: 380 mm | d: 400 mm | B1: 278 mm | Thread: Tr 420x5 | Mass: 35.0 kg
AOH 3084 G d1: 400 mm | d: 420 mm | B1: 186 mm | Thread: Tr 440x5 | Mass: 28.0 kg
AOH 3184 G d1: 400 mm | d: 420 mm | B1: 266 mm | Thread: Tr 440x5 | Mass: 43.0 kg
AOH 3284 G d1: 400 mm | d: 420 mm | B1: 321 mm | Thread: Tr 440x5 | Mass: 54.5 kg
AOH 24084 d1: 400 mm | d: 420 mm | B1: 230 mm | Thread: Tr 440x5 | Mass: 29.0 kg
AOH 24184 d1: 400 mm | d: 420 mm | B1: 310 mm | Thread: Tr 440x5 | Mass: 39.0 kg
AOHX 3088 G d1: 420 mm | d: 440 mm | B1: 194 mm | Thread: Tr 460x5 | Mass: 31.0 kg
AOHX 3188 G d1: 420 mm | d: 440 mm | B1: 270 mm | Thread: Tr 460x5 | Mass: 46.0 kg
AOHX 3288 G d1: 420 mm | d: 440 mm | B1: 330 mm | Thread: Tr 460x5 | Mass: 64.5 kg
AOH 24088 d1: 420 mm | d: 440 mm | B1: 242 mm | Thread: Tr 460x5 | Mass: 32.0 kg
AOH 24188 d1: 420 mm | d: 440 mm | B1: 310 mm | Thread: Tr 460x5 | Mass: 45.5 kg
AOHX 3092 G d1: 440 mm | d: 460 mm | B1: 202 mm | Thread: Tr 480x5 | Mass: 34.0 kg
AOHX 3192 G d1: 440 mm | d: 460 mm | B1: 285 mm | Thread: Tr 480x5 | Mass: 51.5 kg
AOHX 3292 G d1: 440 mm | d: 460 mm | B1: 349 mm | Thread: Tr 480x5 | Mass: 80.0 kg
AOH 24092 d1: 440 mm | d: 460 mm | B1: 250 mm | Thread: Tr 480x5 | Mass: 34.5 kg
AOH 24192 d1: 440 mm | d: 460 mm | B1: 332 mm | Thread: Tr 480x5 | Mass: 50.0 kg
AOHX 3096 G d1: 460 mm | d: 480 mm | B1: 205 mm | Thread: Tr 500x5 | Mass: 34.0 kg
AOHX 3196 G d1: 460 mm | d: 480 mm | B1: 295 mm | Thread: Tr 500x5 | Mass: 63.0 kg
AOHX 3296 G d1: 460 mm | d: 480 mm | B1: 364 mm | Thread: Tr 500x5 | Mass: 81.0 kg
AOH 24096 d1: 460 mm | d: 480 mm | B1: 250 mm | Thread: Tr 500x5 | Mass: 36.5 kg
AOH 24196 d1: 460 mm | d: 480 mm | B1: 340 mm | Thread: Tr 500x5 | Mass: 51.5 kg
AOHX 30/500 G d1: 480 mm | d: 500 mm | B1: 209 mm | Thread: Tr 530x6 | Mass: 41.0 kg
AOHX 31/500 G d1: 480 mm | d: 500 mm | B1: 313 mm | Thread: Tr 530x6 | Mass: 66.5 kg
AOHX 32/500 G d1: 480 mm | d: 500 mm | B1: 393 mm | Thread: Tr 530x6 | Mass: 89.5 kg
AOH 240/500 d1: 480 mm | d: 500 mm | B1: 253 mm | Thread: Tr 530x6 | Mass: 43.0 kg
AOH 241/500 d1: 480 mm | d: 500 mm | B1: 360 mm | Thread: Tr 530x6 | Mass: 63.0 kg
AOH 30/530 d1: 500 mm | d: 530 mm | B1: 230 mm | Thread: Tr 560x6 | Mass: 63.5 kg
AOH 31/530 d1: 500 mm | d: 530 mm | B1: 325 mm | Thread: Tr 560x6 | Mass: 93.5 kg
AOH 32/530 G d1: 500 mm | d: 530 mm | B1: 412 mm | Thread: Tr 560x6 | Mass: 142 kg
AOH 240/530 G d1: 500 mm | d: 530 mm | B1: 285 mm | Thread: Tr 560x6 | Mass: 64.5 kg
AOH 241/530 G d1: 500 mm | d: 530 mm | B1: 370 mm | Thread: Tr 560x6 | Mass: 92.0 kg
AOHX 30/560 d1: 530 mm | d: 560 mm | B1: 240 mm | Thread: Tr 600x6 | Mass: 73.5 kg
AOH 31/560 d1: 530 mm | d: 560 mm | B1: 335 mm | Thread: Tr 600x6 | Mass: 107 kg
AOHX 32/560 d1: 530 mm | d: 560 mm | B1: 422 mm | Thread: Tr 600x6 | Mass: 143 kg
AOH 240/560 G d1: 530 mm | d: 560 mm | B1: 296 mm | Thread: Tr 600x6 | Mass: 71.0 kg
AOH 241/560 G d1: 530 mm | d: 560 mm | B1: 393 mm | Thread: Tr 600x6 | Mass: 107 kg
AOHX 30/600 d1: 570 mm | d: 600 mm | B1: 245 mm | Thread: Tr 630x6 | Mass: 77.0 kg
AOHX 31/600 d1: 570 mm | d: 600 mm | B1: 355 mm | Thread: Tr 630x6 | Mass: 120 kg
AOHX 32/600 G d1: 570 mm | d: 600 mm | B1: 445 mm | Thread: Tr 630x6 | Mass: 159 kg
AOHX 240/600 d1: 570 mm | d: 600 mm | B1: 310 mm | Thread: Tr 630x6 | Mass: 108 kg
AOHX 241/600 d1: 570 mm | d: 600 mm | B1: 413 mm | Thread: Tr 630x6 | Mass: 120 kg
AOH 30/630 d1: 600 mm | d: 630 mm | B1: 258 mm | Thread: Tr 670x6 | Mass: 88.5 kg
AOH 31/630 d1: 600 mm | d: 630 mm | B1: 375 mm | Thread: Tr 670x6 | Mass: 139 kg
AOH 32/630 G d1: 600 mm | d: 630 mm | B1: 475 mm | Thread: Tr 670x6 | Mass: 188 kg
AOH 240/630 G d1: 600 mm | d: 630 mm | B1: 330 mm | Thread: Tr 670x6 | Mass: 101 kg
AOH 241/630 G d1: 600 mm | d: 630 mm | B1: 440 mm | Thread: Tr 670x6 | Mass: 139 kg
AOH 30/670 d1: 630 mm | d: 670 mm | B1: 280 mm | Thread: Tr 710x7 | Mass: 125 kg
AOHX 31/670 d1: 630 mm | d: 670 mm | B1: 395 mm | Thread: Tr 710x7 | Mass: 189 kg
AOH 32/670 G d1: 630 mm | d: 670 mm | B1: 500 mm | Thread: Tr 710x7 | Mass: 252 kg
AOH 240/670 G d1: 630 mm | d: 670 mm | B1: 348 mm | Thread: Tr 710x7 | Mass: 140 kg
AOH 241/670 d1: 630 mm | d: 670 mm | B1: 452 mm | Thread: Tr 710x7 | Mass: 180 kg
AOHX 30/710 d1: 670 mm | d: 710 mm | B1: 286 mm | Thread: Tr 750x7 | Mass: 138 kg
AOHX 31/710 d1: 670 mm | d: 710 mm | B1: 405 mm | Thread: Tr 750x7 | Mass: 207 kg
AOH 32/710 G d1: 670 mm | d: 710 mm | B1: 515 mm | Thread: Tr 750x7 | Mass: 278 kg
AOH 240/710 G d1: 670 mm | d: 710 mm | B1: 360 mm | Thread: Tr 750x7 | Mass: 155 kg
AOH 241/710 d1: 670 mm | d: 710 mm | B1: 483 mm | Thread: Tr 750x7 | Mass: 205 kg
AOH 30/750 d1: 710 mm | d: 750 mm | B1: 300 mm | Thread: Tr 800x7 | Mass: 145 kg
AOH 31/750 d1: 710 mm | d: 750 mm | B1: 425 mm | Thread: Tr 800x7 | Mass: 238 kg
AOH 32/750 d1: 710 mm | d: 750 mm | B1: 540 mm | Thread: Tr 800x7 | Mass: 320 kg
AOH 240/750 G d1: 710 mm | d: 750 mm | B1: 380 mm | Thread: Tr 800x7 | Mass: 178 kg
AOH 241/750 G d1: 710 mm | d: 750 mm | B1: 520 mm | Thread: Tr 800x7 | Mass: 240 kg
AOH 30/800 d1: 750 mm | d: 800 mm | B1: 308 mm | Thread: Tr 850x7 | Mass: 204 kg
AOH 31/800 d1: 750 mm | d: 800 mm | B1: 438 mm | Thread: Tr 850x7 | Mass: 305 kg
AOH 32/800 d1: 750 mm | d: 800 mm | B1: 550 mm | Thread: Tr 850x7 | Mass: 401 kg
AOH 240/800 G d1: 750 mm | d: 800 mm | B1: 395 mm | Thread: Tr 850x7 | Mass: 237 kg
AOH 241/800 G d1: 750 mm | d: 800 mm | B1: 525 mm | Thread: Tr 850x7 | Mass: 318 kg
AOH 30/850 d1: 800 mm | d: 850 mm | B1: 325 mm | Thread: Tr 900x7 | Mass: 230 kg
AOH 31/850 d1: 800 mm | d: 850 mm | B1: 462 mm | Thread: Tr 900x7 | Mass: 345 kg
AOH 32/850 d1: 800 mm | d: 850 mm | B1: 585 mm | Thread: Tr 900x7 | Mass: 461 kg
AOH 240/850 G d1: 800 mm | d: 850 mm | B1: 415 mm | Thread: Tr 900x7 | Mass: 265 kg
AOH 241/850 d1: 800 mm | d: 850 mm | B1: 560 mm | Thread: Tr 900x7 | Mass: 368 kg
AOH 30/900 d1: 850 mm | d: 900 mm | B1: 335 mm | Thread: Tr 950x8 | Mass: 250 kg
AOH 31/900 d1: 850 mm | d: 900 mm | B1: 475 mm | Thread: Tr 950x8 | Mass: 379 kg
AOH 32/900 d1: 850 mm | d: 900 mm | B1: 585 mm | Thread: Tr 950x8 | Mass: 489 kg
AOH 240/900 d1: 850 mm | d: 900 mm | B1: 430 mm | Thread: Tr 950x8 | Mass: 296 kg
AOH 241/900 d1: 850 mm | d: 900 mm | B1: 575 mm | Thread: Tr 950x8 | Mass: 402 kg
AOH 30/950 d1: 900 mm | d: 950 mm | B1: 355 mm | Thread: Tr 1000x8 | Mass: 285 kg
AOH 31/950 d1: 900 mm | d: 950 mm | B1: 500 mm | Thread: Tr 1000x8 | Mass: 426 kg
AOH 32/950 d1: 900 mm | d: 950 mm | B1: 600 mm | Thread: Tr 1000x8 | Mass: 533 kg
AOH 240/950 d1: 900 mm | d: 950 mm | B1: 467 mm | Thread: Tr 1000x8 | Mass: 340 kg
AOH 241/950 d1: 900 mm | d: 950 mm | B1: 605 mm | Thread: Tr 1000x8 | Mass: 449 kg
AOH 30/1000 d1: 950 mm | d: 1000 mm | B1: 365 mm | Thread: Tr 1060x8 | Mass: 318 kg
AOH 31/1000 d1: 950 mm | d: 1000 mm | B1: 525 mm | Thread: Tr 1060x8 | Mass: 485 kg
AOH 32/1000 d1: 950 mm | d: 1000 mm | B1: 630 mm | Thread: Tr 1060x8 | Mass: 608 kg
AOH 240/1000 d1: 950 mm | d: 1000 mm | B1: 469 mm | Thread: Tr 1060x8 | Mass: 369 kg
AOH 241/1000 d1: 950 mm | d: 1000 mm | B1: 645 mm | Thread: Tr 1060x8 | Mass: 519 kg
AOH 30/1060 d1: 1000 mm | d: 1060 mm | B1: 385 mm | Thread: Tr 1120x8 | Mass: 406 kg
AOH 31/1060 d1: 1000 mm | d: 1060 mm | B1: 540 mm | Thread: Tr 1120x8 | Mass: 599 kg
AOH 240/1060 d1: 1000 mm | d: 1060 mm | B1: 498 mm | Thread: Tr 1120x8 | Mass: 479 kg
AOH 241/1060 d1: 1000 mm | d: 1060 mm | B1: 665 mm | Thread: Tr 1120x8 | Mass: 652 kg
Bearing AccessoriesSKF
233 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF AH, AHX, AOH, AOHX Withdrawal Sleeves (d1 35-1000 mm)

Brand SKF·Bearing Accessories

Available part numbers (233)

AH 308, AH 2308, AH 309, AH 2309, AHX 310, AHX 2310, AHX 311, AHX 2311, AHX 312, AHX 2312 + 223 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AH 308d1: 35 mm | d: 40 mm | B1: 29 mm | Thread: M 45x1.5 | Mass: 0.09 kg
AH 2308d1: 35 mm | d: 40 mm | B1: 40 mm | Thread: M 45x1.5 | Mass: 0.13 kg
AH 309d1: 40 mm | d: 45 mm | B1: 31 mm | Thread: M 50x1.5 | Mass: 0.12 kg
AH 2309d1: 40 mm | d: 45 mm | B1: 44 mm | Thread: M 50x1.5 | Mass: 0.16 kg
AHX 310d1: 45 mm | d: 50 mm | B1: 35 mm | Thread: M 55x2 | Mass: 0.13 kg
AHX 2310d1: 45 mm | d: 50 mm | B1: 50 mm | Thread: M 55x2 | Mass: 0.19 kg
AHX 311d1: 50 mm | d: 55 mm | B1: 37 mm | Thread: M 60x2 | Mass: 0.16 kg
AHX 2311d1: 50 mm | d: 55 mm | B1: 54 mm | Thread: M 60x2 | Mass: 0.26 kg
AHX 312d1: 55 mm | d: 60 mm | B1: 40 mm | Thread: M 65x2 | Mass: 0.19 kg
AHX 2312d1: 55 mm | d: 60 mm | B1: 58 mm | Thread: M 65x2 | Mass: 0.30 kg
AH 313 Gd1: 60 mm | d: 65 mm | B1: 42 mm | Thread: M 70x2 | Mass: 0.22 kg
AH 2313 Gd1: 60 mm | d: 65 mm | B1: 61 mm | Thread: M 70x2 | Mass: 0.36 kg
AH 314 Gd1: 65 mm | d: 70 mm | B1: 43 mm | Thread: M 75x2 | Mass: 0.24 kg
AHX 2314 Gd1: 65 mm | d: 70 mm | B1: 64 mm | Thread: M 75x2 | Mass: 0.42 kg
AH 315 Gd1: 70 mm | d: 75 mm | B1: 45 mm | Thread: M 80x2 | Mass: 0.29 kg
AHX 2315 Gd1: 70 mm | d: 75 mm | B1: 68 mm | Thread: M 80x2 | Mass: 0.48 kg
AH 316d1: 75 mm | d: 80 mm | B1: 48 mm | Thread: M 90x2 | Mass: 0.37 kg
AHX 2316d1: 75 mm | d: 80 mm | B1: 71 mm | Thread: M 90x2 | Mass: 0.57 kg
AHX 317d1: 80 mm | d: 85 mm | B1: 52 mm | Thread: M 95x2 | Mass: 0.43 kg
AHX 2317d1: 80 mm | d: 85 mm | B1: 74 mm | Thread: M 95x2 | Mass: 0.65 kg
AHX 318d1: 85 mm | d: 90 mm | B1: 53 mm | Thread: M 100x2 | Mass: 0.46 kg
AHX 3218d1: 85 mm | d: 90 mm | B1: 63 mm | Thread: M 100x2 | Mass: 0.57 kg
AHX 2318d1: 85 mm | d: 90 mm | B1: 79 mm | Thread: M 100x2 | Mass: 0.76 kg
AHX 319d1: 90 mm | d: 95 mm | B1: 57 mm | Thread: M 105x2 | Mass: 0.54 kg
AHX 2319d1: 90 mm | d: 95 mm | B1: 85 mm | Thread: M 105x2 | Mass: 0.90 kg
AHX 320d1: 95 mm | d: 100 mm | B1: 59 mm | Thread: M 110x2 | Mass: 0.58 kg
AHX 3120d1: 95 mm | d: 100 mm | B1: 64 mm | Thread: M 110x2 | Mass: 0.66 kg
AHX 3220d1: 95 mm | d: 100 mm | B1: 73 mm | Thread: M 110x2 | Mass: 0.76 kg
AHX 2320d1: 95 mm | d: 100 mm | B1: 90 mm | Thread: M 110x2 | Mass: 1.00 kg
AHX 322d1: 105 mm | d: 110 mm | B1: 63 mm | Thread: M 120x2 | Mass: 0.77 kg
AHX 3122d1: 105 mm | d: 110 mm | B1: 68 mm | Thread: M 120x2 | Mass: 0.76 kg
AHX 3222 Gd1: 105 mm | d: 110 mm | B1: 82 mm | Thread: M 120x2 | Mass: 1.00 kg
AHX 2322 Gd1: 105 mm | d: 110 mm | B1: 98 mm | Thread: M 120x2 | Mass: 1.30 kg
AH 24122d1: 105 mm | d: 110 mm | B1: 82 mm | Thread: M 115x2 | Mass: 0.71 kg
AHX 3024d1: 115 mm | d: 120 mm | B1: 60 mm | Thread: M 130x2 | Mass: 0.73 kg
AHX 3124d1: 115 mm | d: 120 mm | B1: 75 mm | Thread: M 130x2 | Mass: 0.94 kg
AHX 3224 Gd1: 115 mm | d: 120 mm | B1: 90 mm | Thread: M 130x2 | Mass: 1.30 kg
AHX 2324 Gd1: 115 mm | d: 120 mm | B1: 105 mm | Thread: M 130x2 | Mass: 1.55 kg
AH 24024d1: 115 mm | d: 120 mm | B1: 73 mm | Thread: M 125x2 | Mass: 0.70 kg
AH 24124d1: 115 mm | d: 120 mm | B1: 93 mm | Thread: M 130x2 | Mass: 1.00 kg
AHX 3026d1: 125 mm | d: 130 mm | B1: 67 mm | Thread: M 140x2 | Mass: 0.91 kg
AHX 3126d1: 125 mm | d: 130 mm | B1: 78 mm | Thread: M 140x2 | Mass: 1.10 kg
AHX 3226 Gd1: 125 mm | d: 130 mm | B1: 98 mm | Thread: M 140x2 | Mass: 1.50 kg
AHX 2326 Gd1: 125 mm | d: 130 mm | B1: 115 mm | Thread: M 140x2 | Mass: 1.85 kg
AH 24026d1: 125 mm | d: 130 mm | B1: 83 mm | Thread: M 135x2 | Mass: 0.90 kg
AH 24126d1: 125 mm | d: 130 mm | B1: 94 mm | Thread: M 140x2 | Mass: 1.15 kg
AHX 3028d1: 135 mm | d: 140 mm | B1: 68 mm | Thread: M 150x2 | Mass: 1.00 kg
AHX 3128d1: 135 mm | d: 140 mm | B1: 83 mm | Thread: M 150x2 | Mass: 1.30 kg
AHX 3228 Gd1: 135 mm | d: 140 mm | B1: 104 mm | Thread: M 150x2 | Mass: 1.75 kg
AHX 2328 Gd1: 135 mm | d: 140 mm | B1: 125 mm | Thread: M 150x2 | Mass: 2.25 kg
AH 24028d1: 135 mm | d: 140 mm | B1: 83 mm | Thread: M 145x2 | Mass: 0.95 kg
AH 24128d1: 135 mm | d: 140 mm | B1: 99 mm | Thread: M 150x2 | Mass: 1.30 kg
AHX 3030d1: 145 mm | d: 150 mm | B1: 72 mm | Thread: M 160x3 | Mass: 1.15 kg
AHX 3130 Gd1: 145 mm | d: 150 mm | B1: 96 mm | Thread: M 160x3 | Mass: 1.70 kg
AHX 3230 Gd1: 145 mm | d: 150 mm | B1: 114 mm | Thread: M 160x3 | Mass: 2.10 kg
AHX 2330 Gd1: 145 mm | d: 150 mm | B1: 135 mm | Thread: M 160x3 | Mass: 2.75 kg
AH 24030d1: 145 mm | d: 150 mm | B1: 90 mm | Thread: M 155x3 | Mass: 1.05 kg
AH 24130d1: 145 mm | d: 150 mm | B1: 115 mm | Thread: M 160x3 | Mass: 1.55 kg
AH 3032d1: 150 mm | d: 160 mm | B1: 77 mm | Thread: M 170x3 | Mass: 2.00 kg
AH 3132 Gd1: 150 mm | d: 160 mm | B1: 103 mm | Thread: M 170x3 | Mass: 3.00 kg
AH 3232 Gd1: 150 mm | d: 160 mm | B1: 124 mm | Thread: M 170x3 | Mass: 3.70 kg
AH 2332 Gd1: 150 mm | d: 160 mm | B1: 140 mm | Thread: M 170x3 | Mass: 4.35 kg
AH 24032d1: 150 mm | d: 160 mm | B1: 95 mm | Thread: M 170x3 | Mass: 2.30 kg
AH 24132d1: 150 mm | d: 160 mm | B1: 124 mm | Thread: M 170x3 | Mass: 3.00 kg
AH 3034d1: 160 mm | d: 170 mm | B1: 85 mm | Thread: M 180x3 | Mass: 2.45 kg
AH 3134 Gd1: 160 mm | d: 170 mm | B1: 104 mm | Thread: M 180x3 | Mass: 3.20 kg
AH 3234 Gd1: 160 mm | d: 170 mm | B1: 134 mm | Thread: M 180x3 | Mass: 4.35 kg
AH 2334 Gd1: 160 mm | d: 170 mm | B1: 146 mm | Thread: M 180x3 | Mass: 4.85 kg
AH 24034d1: 160 mm | d: 170 mm | B1: 106 mm | Thread: M 180x3 | Mass: 2.70 kg
AH 24134d1: 160 mm | d: 170 mm | B1: 125 mm | Thread: M 180x3 | Mass: 3.25 kg
AH 3036d1: 170 mm | d: 180 mm | B1: 92 mm | Thread: M 190x3 | Mass: 2.80 kg
AH 2236 Gd1: 170 mm | d: 180 mm | B1: 105 mm | Thread: M 190x3 | Mass: 3.40 kg
AH 3136 Gd1: 170 mm | d: 180 mm | B1: 116 mm | Thread: M 190x3 | Mass: 3.90 kg
AH 3236 Gd1: 170 mm | d: 180 mm | B1: 140 mm | Thread: M 190x3 | Mass: 4.85 kg
AH 2336 Gd1: 170 mm | d: 180 mm | B1: 154 mm | Thread: M 190x3 | Mass: 5.50 kg
AH 24036d1: 170 mm | d: 180 mm | B1: 116 mm | Thread: M 190x3 | Mass: 3.20 kg
AH 24136d1: 170 mm | d: 180 mm | B1: 134 mm | Thread: M 190x3 | Mass: 3.75 kg
AH 3038 Gd1: 180 mm | d: 190 mm | B1: 96 mm | Thread: M 200x3 | Mass: 3.30 kg
AH 2238 Gd1: 180 mm | d: 190 mm | B1: 112 mm | Thread: M 200x3 | Mass: 3.90 kg
AH 3138 Gd1: 180 mm | d: 190 mm | B1: 125 mm | Thread: M 200x3 | Mass: 4.50 kg
AH 3238 Gd1: 180 mm | d: 190 mm | B1: 145 mm | Thread: M 200x3 | Mass: 5.40 kg
AH 2338 Gd1: 180 mm | d: 190 mm | B1: 160 mm | Thread: M 200x3 | Mass: 6.10 kg
AH 24038d1: 180 mm | d: 190 mm | B1: 118 mm | Thread: M 200x3 | Mass: 3.55 kg
AH 24138d1: 180 mm | d: 190 mm | B1: 146 mm | Thread: M 200x3 | Mass: 4.45 kg
AH 3040 Gd1: 190 mm | d: 200 mm | B1: 102 mm | Thread: Tr 210x4 | Mass: 3.70 kg
AH 3140d1: 190 mm | d: 200 mm | B1: 134 mm | Thread: Tr 220x4 | Mass: 5.65 kg
AH 3240d1: 190 mm | d: 200 mm | B1: 153 mm | Thread: Tr 220x4 | Mass: 6.60 kg
AH 2340d1: 190 mm | d: 200 mm | B1: 170 mm | Thread: Tr 220x4 | Mass: 7.60 kg
AH 24040d1: 190 mm | d: 200 mm | B1: 127 mm | Thread: Tr 210x4 | Mass: 4.00 kg
AH 24140d1: 190 mm | d: 200 mm | B1: 158 mm | Thread: Tr 210x4 | Mass: 5.05 kg
AOH 3044 Gd1: 200 mm | d: 220 mm | B1: 111 mm | Thread: Tr 230x4 | Mass: 7.30 kg
AOH 3144d1: 200 mm | d: 220 mm | B1: 145 mm | Thread: Tr 240x4 | Mass: 9.30 kg
AOH 2344d1: 200 mm | d: 220 mm | B1: 181 mm | Thread: Tr 240x4 | Mass: 13.5 kg
AOH 24044d1: 200 mm | d: 220 mm | B1: 138 mm | Thread: Tr 230x4 | Mass: 7.45 kg
AOH 24144d1: 200 mm | d: 220 mm | B1: 170 mm | Thread: Tr 230x4 | Mass: 10.0 kg
AOH 3048d1: 220 mm | d: 240 mm | B1: 116 mm | Thread: Tr 260x4 | Mass: 7.95 kg
AOH 3148d1: 220 mm | d: 240 mm | B1: 154 mm | Thread: Tr 260x4 | Mass: 12.0 kg
AOH 2348d1: 220 mm | d: 240 mm | B1: 189 mm | Thread: Tr 260x4 | Mass: 14.0 kg
AOH 24048d1: 220 mm | d: 240 mm | B1: 138 mm | Thread: Tr 250x4 | Mass: 8.05 kg
AOH 24148d1: 220 mm | d: 240 mm | B1: 180 mm | Thread: Tr 260x4 | Mass: 11.5 kg
AOH 3052d1: 240 mm | d: 260 mm | B1: 128 mm | Thread: Tr 280x4 | Mass: 9.60 kg
AOH 2252 Gd1: 240 mm | d: 260 mm | B1: 155 mm | Thread: Tr 280x4 | Mass: 13.5 kg
AOH 3152 Gd1: 240 mm | d: 260 mm | B1: 172 mm | Thread: Tr 280x4 | Mass: 15.5 kg
AOH 2352 Gd1: 240 mm | d: 260 mm | B1: 205 mm | Thread: Tr 280x4 | Mass: 19.0 kg
AOH 24052 Gd1: 240 mm | d: 260 mm | B1: 162 mm | Thread: Tr 280x4 | Mass: 12.5 kg
AOH 24152d1: 240 mm | d: 260 mm | B1: 202 mm | Thread: Tr 280x4 | Mass: 14.0 kg
AOH 3056d1: 260 mm | d: 280 mm | B1: 131 mm | Thread: Tr 300x4 | Mass: 11.0 kg
AOH 2256 Gd1: 260 mm | d: 280 mm | B1: 155 mm | Thread: Tr 300x4 | Mass: 15.0 kg
AOH 3156 Gd1: 260 mm | d: 280 mm | B1: 175 mm | Thread: Tr 300x4 | Mass: 17.0 kg
AOH 2356 Gd1: 260 mm | d: 280 mm | B1: 212 mm | Thread: Tr 300x4 | Mass: 21.5 kg
AOH 24056 Gd1: 260 mm | d: 280 mm | B1: 162 mm | Thread: Tr 300x4 | Mass: 13.5 kg
AOH 24156d1: 260 mm | d: 280 mm | B1: 202 mm | Thread: Tr 300x4 | Mass: 15.0 kg
AOH 3060d1: 280 mm | d: 300 mm | B1: 145 mm | Thread: Tr 320x5 | Mass: 13.0 kg
AOH 2260 Gd1: 280 mm | d: 300 mm | B1: 170 mm | Thread: Tr 320x5 | Mass: 18.0 kg
AOH 3160 Gd1: 280 mm | d: 300 mm | B1: 192 mm | Thread: Tr 320x5 | Mass: 20.5 kg
AOH 3260 Gd1: 280 mm | d: 300 mm | B1: 228 mm | Thread: Tr 320x5 | Mass: 23.5 kg
AOH 24060 Gd1: 280 mm | d: 300 mm | B1: 184 mm | Thread: Tr 320x5 | Mass: 17.0 kg
AOH 24160d1: 280 mm | d: 300 mm | B1: 224 mm | Thread: Tr 320x5 | Mass: 18.5 kg
AOH 3064 Gd1: 300 mm | d: 320 mm | B1: 149 mm | Thread: Tr 340x5 | Mass: 16.5 kg
AOH 2264 Gd1: 300 mm | d: 320 mm | B1: 180 mm | Thread: Tr 340x5 | Mass: 20.0 kg
AOH 3164 Gd1: 300 mm | d: 320 mm | B1: 209 mm | Thread: Tr 340x5 | Mass: 24.5 kg
AOH 3264 Gd1: 300 mm | d: 320 mm | B1: 246 mm | Thread: Tr 340x5 | Mass: 27.5 kg
AOH 24064 Gd1: 300 mm | d: 320 mm | B1: 184 mm | Thread: Tr 340x5 | Mass: 18.0 kg
AOH 24164d1: 300 mm | d: 320 mm | B1: 242 mm | Thread: Tr 340x5 | Mass: 20.5 kg
AOH 3068 Gd1: 320 mm | d: 340 mm | B1: 162 mm | Thread: Tr 360x5 | Mass: 19.0 kg
AOH 3168 Gd1: 320 mm | d: 340 mm | B1: 225 mm | Thread: Tr 360x5 | Mass: 28.5 kg
AOH 3268 Gd1: 320 mm | d: 340 mm | B1: 264 mm | Thread: Tr 360x5 | Mass: 32.0 kg
AOH 24068d1: 320 mm | d: 340 mm | B1: 206 mm | Thread: Tr 360x5 | Mass: 18.0 kg
AOH 24168d1: 320 mm | d: 340 mm | B1: 269 mm | Thread: Tr 360x5 | Mass: 25.5 kg
AOH 3072 Gd1: 340 mm | d: 360 mm | B1: 167 mm | Thread: Tr 380x5 | Mass: 21.0 kg
AOH 3172 Gd1: 340 mm | d: 360 mm | B1: 229 mm | Thread: Tr 380x5 | Mass: 30.5 kg
AOH 3272 Gd1: 340 mm | d: 360 mm | B1: 274 mm | Thread: Tr 380x5 | Mass: 35.5 kg
AOH 24072d1: 340 mm | d: 360 mm | B1: 206 mm | Thread: Tr 380x5 | Mass: 20.0 kg
AOH 24172d1: 340 mm | d: 360 mm | B1: 269 mm | Thread: Tr 380x5 | Mass: 26.0 kg
AOH 3076 Gd1: 360 mm | d: 380 mm | B1: 170 mm | Thread: Tr 400x5 | Mass: 22.5 kg
AOH 3176 Gd1: 360 mm | d: 380 mm | B1: 232 mm | Thread: Tr 400x5 | Mass: 33.0 kg
AOH 3276 Gd1: 360 mm | d: 380 mm | B1: 284 mm | Thread: Tr 400x5 | Mass: 42.0 kg
AOH 24076d1: 360 mm | d: 380 mm | B1: 208 mm | Thread: Tr 400x5 | Mass: 23.5 kg
AOH 24176d1: 360 mm | d: 380 mm | B1: 271 mm | Thread: Tr 400x5 | Mass: 31.0 kg
AOH 3080 Gd1: 380 mm | d: 400 mm | B1: 183 mm | Thread: Tr 420x5 | Mass: 26.0 kg
AOH 3180 Gd1: 380 mm | d: 400 mm | B1: 240 mm | Thread: Tr 420x5 | Mass: 36.0 kg
AOH 3280 Gd1: 380 mm | d: 400 mm | B1: 302 mm | Thread: Tr 420x5 | Mass: 48.0 kg
AOH 24080d1: 380 mm | d: 400 mm | B1: 228 mm | Thread: Tr 420x5 | Mass: 27.0 kg
AOH 24180d1: 380 mm | d: 400 mm | B1: 278 mm | Thread: Tr 420x5 | Mass: 35.0 kg
AOH 3084 Gd1: 400 mm | d: 420 mm | B1: 186 mm | Thread: Tr 440x5 | Mass: 28.0 kg
AOH 3184 Gd1: 400 mm | d: 420 mm | B1: 266 mm | Thread: Tr 440x5 | Mass: 43.0 kg
AOH 3284 Gd1: 400 mm | d: 420 mm | B1: 321 mm | Thread: Tr 440x5 | Mass: 54.5 kg
AOH 24084d1: 400 mm | d: 420 mm | B1: 230 mm | Thread: Tr 440x5 | Mass: 29.0 kg
AOH 24184d1: 400 mm | d: 420 mm | B1: 310 mm | Thread: Tr 440x5 | Mass: 39.0 kg
AOHX 3088 Gd1: 420 mm | d: 440 mm | B1: 194 mm | Thread: Tr 460x5 | Mass: 31.0 kg
AOHX 3188 Gd1: 420 mm | d: 440 mm | B1: 270 mm | Thread: Tr 460x5 | Mass: 46.0 kg
AOHX 3288 Gd1: 420 mm | d: 440 mm | B1: 330 mm | Thread: Tr 460x5 | Mass: 64.5 kg
AOH 24088d1: 420 mm | d: 440 mm | B1: 242 mm | Thread: Tr 460x5 | Mass: 32.0 kg
AOH 24188d1: 420 mm | d: 440 mm | B1: 310 mm | Thread: Tr 460x5 | Mass: 45.5 kg
AOHX 3092 Gd1: 440 mm | d: 460 mm | B1: 202 mm | Thread: Tr 480x5 | Mass: 34.0 kg
AOHX 3192 Gd1: 440 mm | d: 460 mm | B1: 285 mm | Thread: Tr 480x5 | Mass: 51.5 kg
AOHX 3292 Gd1: 440 mm | d: 460 mm | B1: 349 mm | Thread: Tr 480x5 | Mass: 80.0 kg
AOH 24092d1: 440 mm | d: 460 mm | B1: 250 mm | Thread: Tr 480x5 | Mass: 34.5 kg
AOH 24192d1: 440 mm | d: 460 mm | B1: 332 mm | Thread: Tr 480x5 | Mass: 50.0 kg
AOHX 3096 Gd1: 460 mm | d: 480 mm | B1: 205 mm | Thread: Tr 500x5 | Mass: 34.0 kg
AOHX 3196 Gd1: 460 mm | d: 480 mm | B1: 295 mm | Thread: Tr 500x5 | Mass: 63.0 kg
AOHX 3296 Gd1: 460 mm | d: 480 mm | B1: 364 mm | Thread: Tr 500x5 | Mass: 81.0 kg
AOH 24096d1: 460 mm | d: 480 mm | B1: 250 mm | Thread: Tr 500x5 | Mass: 36.5 kg
AOH 24196d1: 460 mm | d: 480 mm | B1: 340 mm | Thread: Tr 500x5 | Mass: 51.5 kg
AOHX 30/500 Gd1: 480 mm | d: 500 mm | B1: 209 mm | Thread: Tr 530x6 | Mass: 41.0 kg
AOHX 31/500 Gd1: 480 mm | d: 500 mm | B1: 313 mm | Thread: Tr 530x6 | Mass: 66.5 kg
AOHX 32/500 Gd1: 480 mm | d: 500 mm | B1: 393 mm | Thread: Tr 530x6 | Mass: 89.5 kg
AOH 240/500d1: 480 mm | d: 500 mm | B1: 253 mm | Thread: Tr 530x6 | Mass: 43.0 kg
AOH 241/500d1: 480 mm | d: 500 mm | B1: 360 mm | Thread: Tr 530x6 | Mass: 63.0 kg
AOH 30/530d1: 500 mm | d: 530 mm | B1: 230 mm | Thread: Tr 560x6 | Mass: 63.5 kg
AOH 31/530d1: 500 mm | d: 530 mm | B1: 325 mm | Thread: Tr 560x6 | Mass: 93.5 kg
AOH 32/530 Gd1: 500 mm | d: 530 mm | B1: 412 mm | Thread: Tr 560x6 | Mass: 142 kg
AOH 240/530 Gd1: 500 mm | d: 530 mm | B1: 285 mm | Thread: Tr 560x6 | Mass: 64.5 kg
AOH 241/530 Gd1: 500 mm | d: 530 mm | B1: 370 mm | Thread: Tr 560x6 | Mass: 92.0 kg
AOHX 30/560d1: 530 mm | d: 560 mm | B1: 240 mm | Thread: Tr 600x6 | Mass: 73.5 kg
AOH 31/560d1: 530 mm | d: 560 mm | B1: 335 mm | Thread: Tr 600x6 | Mass: 107 kg
AOHX 32/560d1: 530 mm | d: 560 mm | B1: 422 mm | Thread: Tr 600x6 | Mass: 143 kg
AOH 240/560 Gd1: 530 mm | d: 560 mm | B1: 296 mm | Thread: Tr 600x6 | Mass: 71.0 kg
AOH 241/560 Gd1: 530 mm | d: 560 mm | B1: 393 mm | Thread: Tr 600x6 | Mass: 107 kg
AOHX 30/600d1: 570 mm | d: 600 mm | B1: 245 mm | Thread: Tr 630x6 | Mass: 77.0 kg
AOHX 31/600d1: 570 mm | d: 600 mm | B1: 355 mm | Thread: Tr 630x6 | Mass: 120 kg
AOHX 32/600 Gd1: 570 mm | d: 600 mm | B1: 445 mm | Thread: Tr 630x6 | Mass: 159 kg
AOHX 240/600d1: 570 mm | d: 600 mm | B1: 310 mm | Thread: Tr 630x6 | Mass: 108 kg
AOHX 241/600d1: 570 mm | d: 600 mm | B1: 413 mm | Thread: Tr 630x6 | Mass: 120 kg
AOH 30/630d1: 600 mm | d: 630 mm | B1: 258 mm | Thread: Tr 670x6 | Mass: 88.5 kg
AOH 31/630d1: 600 mm | d: 630 mm | B1: 375 mm | Thread: Tr 670x6 | Mass: 139 kg
AOH 32/630 Gd1: 600 mm | d: 630 mm | B1: 475 mm | Thread: Tr 670x6 | Mass: 188 kg
AOH 240/630 Gd1: 600 mm | d: 630 mm | B1: 330 mm | Thread: Tr 670x6 | Mass: 101 kg
AOH 241/630 Gd1: 600 mm | d: 630 mm | B1: 440 mm | Thread: Tr 670x6 | Mass: 139 kg
AOH 30/670d1: 630 mm | d: 670 mm | B1: 280 mm | Thread: Tr 710x7 | Mass: 125 kg
AOHX 31/670d1: 630 mm | d: 670 mm | B1: 395 mm | Thread: Tr 710x7 | Mass: 189 kg
AOH 32/670 Gd1: 630 mm | d: 670 mm | B1: 500 mm | Thread: Tr 710x7 | Mass: 252 kg
AOH 240/670 Gd1: 630 mm | d: 670 mm | B1: 348 mm | Thread: Tr 710x7 | Mass: 140 kg
AOH 241/670d1: 630 mm | d: 670 mm | B1: 452 mm | Thread: Tr 710x7 | Mass: 180 kg
AOHX 30/710d1: 670 mm | d: 710 mm | B1: 286 mm | Thread: Tr 750x7 | Mass: 138 kg
AOHX 31/710d1: 670 mm | d: 710 mm | B1: 405 mm | Thread: Tr 750x7 | Mass: 207 kg
AOH 32/710 Gd1: 670 mm | d: 710 mm | B1: 515 mm | Thread: Tr 750x7 | Mass: 278 kg
AOH 240/710 Gd1: 670 mm | d: 710 mm | B1: 360 mm | Thread: Tr 750x7 | Mass: 155 kg
AOH 241/710d1: 670 mm | d: 710 mm | B1: 483 mm | Thread: Tr 750x7 | Mass: 205 kg
AOH 30/750d1: 710 mm | d: 750 mm | B1: 300 mm | Thread: Tr 800x7 | Mass: 145 kg
AOH 31/750d1: 710 mm | d: 750 mm | B1: 425 mm | Thread: Tr 800x7 | Mass: 238 kg
AOH 32/750d1: 710 mm | d: 750 mm | B1: 540 mm | Thread: Tr 800x7 | Mass: 320 kg
AOH 240/750 Gd1: 710 mm | d: 750 mm | B1: 380 mm | Thread: Tr 800x7 | Mass: 178 kg
AOH 241/750 Gd1: 710 mm | d: 750 mm | B1: 520 mm | Thread: Tr 800x7 | Mass: 240 kg
AOH 30/800d1: 750 mm | d: 800 mm | B1: 308 mm | Thread: Tr 850x7 | Mass: 204 kg
AOH 31/800d1: 750 mm | d: 800 mm | B1: 438 mm | Thread: Tr 850x7 | Mass: 305 kg
AOH 32/800d1: 750 mm | d: 800 mm | B1: 550 mm | Thread: Tr 850x7 | Mass: 401 kg
AOH 240/800 Gd1: 750 mm | d: 800 mm | B1: 395 mm | Thread: Tr 850x7 | Mass: 237 kg
AOH 241/800 Gd1: 750 mm | d: 800 mm | B1: 525 mm | Thread: Tr 850x7 | Mass: 318 kg
AOH 30/850d1: 800 mm | d: 850 mm | B1: 325 mm | Thread: Tr 900x7 | Mass: 230 kg
AOH 31/850d1: 800 mm | d: 850 mm | B1: 462 mm | Thread: Tr 900x7 | Mass: 345 kg
AOH 32/850d1: 800 mm | d: 850 mm | B1: 585 mm | Thread: Tr 900x7 | Mass: 461 kg
AOH 240/850 Gd1: 800 mm | d: 850 mm | B1: 415 mm | Thread: Tr 900x7 | Mass: 265 kg
AOH 241/850d1: 800 mm | d: 850 mm | B1: 560 mm | Thread: Tr 900x7 | Mass: 368 kg
AOH 30/900d1: 850 mm | d: 900 mm | B1: 335 mm | Thread: Tr 950x8 | Mass: 250 kg
AOH 31/900d1: 850 mm | d: 900 mm | B1: 475 mm | Thread: Tr 950x8 | Mass: 379 kg
AOH 32/900d1: 850 mm | d: 900 mm | B1: 585 mm | Thread: Tr 950x8 | Mass: 489 kg
AOH 240/900d1: 850 mm | d: 900 mm | B1: 430 mm | Thread: Tr 950x8 | Mass: 296 kg
AOH 241/900d1: 850 mm | d: 900 mm | B1: 575 mm | Thread: Tr 950x8 | Mass: 402 kg
AOH 30/950d1: 900 mm | d: 950 mm | B1: 355 mm | Thread: Tr 1000x8 | Mass: 285 kg
AOH 31/950d1: 900 mm | d: 950 mm | B1: 500 mm | Thread: Tr 1000x8 | Mass: 426 kg
AOH 32/950d1: 900 mm | d: 950 mm | B1: 600 mm | Thread: Tr 1000x8 | Mass: 533 kg
AOH 240/950d1: 900 mm | d: 950 mm | B1: 467 mm | Thread: Tr 1000x8 | Mass: 340 kg
AOH 241/950d1: 900 mm | d: 950 mm | B1: 605 mm | Thread: Tr 1000x8 | Mass: 449 kg
AOH 30/1000d1: 950 mm | d: 1000 mm | B1: 365 mm | Thread: Tr 1060x8 | Mass: 318 kg
AOH 31/1000d1: 950 mm | d: 1000 mm | B1: 525 mm | Thread: Tr 1060x8 | Mass: 485 kg
AOH 32/1000d1: 950 mm | d: 1000 mm | B1: 630 mm | Thread: Tr 1060x8 | Mass: 608 kg
AOH 240/1000d1: 950 mm | d: 1000 mm | B1: 469 mm | Thread: Tr 1060x8 | Mass: 369 kg
AOH 241/1000d1: 950 mm | d: 1000 mm | B1: 645 mm | Thread: Tr 1060x8 | Mass: 519 kg
AOH 30/1060d1: 1000 mm | d: 1060 mm | B1: 385 mm | Thread: Tr 1120x8 | Mass: 406 kg
AOH 31/1060d1: 1000 mm | d: 1060 mm | B1: 540 mm | Thread: Tr 1120x8 | Mass: 599 kg
AOH 240/1060d1: 1000 mm | d: 1060 mm | B1: 498 mm | Thread: Tr 1120x8 | Mass: 479 kg
AOH 241/1060d1: 1000 mm | d: 1060 mm | B1: 665 mm | Thread: Tr 1120x8 | Mass: 652 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
