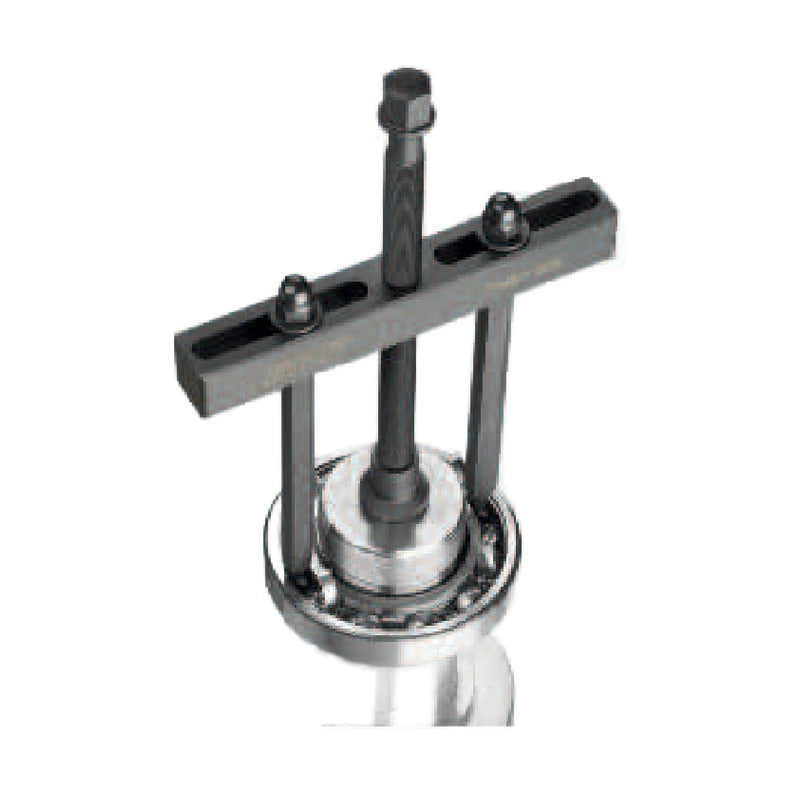

SKF Blind Housing Puller Kits TMBP 20E and TMMD 100

SKF Blind Housing Puller Kits TMBP 20E and TMMD 100

SKF blind housing puller kits dismount SKF deep groove ball bearings from blind housings and shafts without dismantling the machinery.

Key features

  • TMBP 20E: adapter type puller with ball adapters and extension rods
  • TMMD 100: claws precisely fit the bearing raceway without removing the cage
  • Self-locking nose piece / hexagon spindle head for safe handling
  • Suitable for SKF deep groove ball bearings only
  • Supplied in a sturdy carrying case

Specifications

Case 530 x 85 x 180 mm
Source SKF Maintenance and Lubrication Products, p. 32-33
TMBP 20E Shaft dia.: 30-160 mm | Arm length: 147-547 mm | Max. force: 55 kN | Weight: 6.5 kg
TMMD 100 Shaft dia.: 10-100 mm | Arm length: 135-170 mm | Bearings: 71 SKF DGBB sizes | Weight: 3.6 kg
Mounting & Dismounting ToolsSKF
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF Blind Housing Puller Kits TMBP 20E and TMMD 100

Brand SKF·Mounting & Dismounting Tools

Available part numbers (2)

TMBP 20E, TMMD 100

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMBP 20EShaft dia.: 30-160 mm | Arm length: 147-547 mm | Max. force: 55 kN | Weight: 6.5 kg
TMMD 100Shaft dia.: 10-100 mm | Arm length: 135-170 mm | Bearings: 71 SKF DGBB sizes | Weight: 3.6 kg
