SKF TMMP Standard Jaw Pullers (TMMP 2x65 to TMMP 3x300)

SKF TMMP Standard Jaw Pullers (TMMP 2x65 to TMMP 3x300)

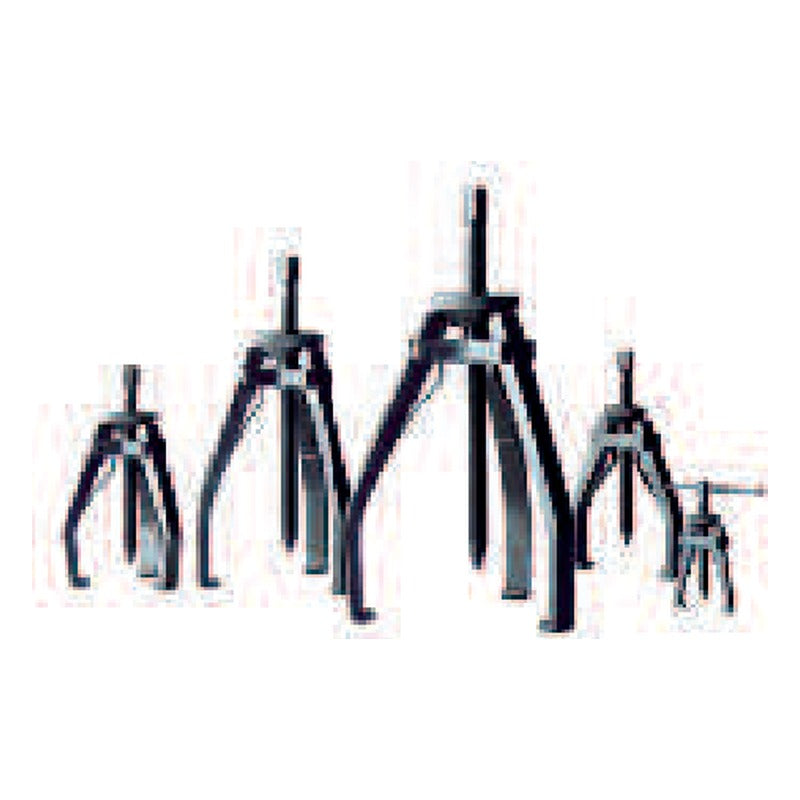

SKF TMMP standard jaw pullers are two- and three-arm mechanical pullers for dismounting small and medium size bearings and other components.

Key features

  • Range of five jaw pullers with two or three arms
  • Maximum nominal span from 65 to 300 mm
  • Cone system for automatic centring and secure arm positioning
  • Strong springs keep the arms apart for easy operation
  • Hardened, high quality carbon steel

Specifications

Type Mechanical jaw puller
Source SKF Maintenance and Lubrication Products, p. 26
TMMP 2x65 Arms: 2 | Grip width: 15-65 mm | Arm length: 60 mm | Max. force: 6.0 kN | Weight: 0.5 kg
TMMP 2x170 Arms: 2 | Grip width: 25-170 mm | Arm length: 135 mm | Max. force: 18.0 kN | Weight: 2.1 kg
TMMP 3x185 Arms: 3 | Grip width: 40-185 mm | Arm length: 135 mm | Max. force: 24.0 kN | Weight: 2.9 kg
TMMP 3x230 Arms: 3 | Grip width: 40-230 mm | Arm length: 210 mm | Max. force: 34.0 kN | Weight: 5.8 kg
TMMP 3x300 Arms: 3 | Grip width: 45-300 mm | Arm length: 240 mm | Max. force: 50.0 kN | Weight: 8.6 kg
Mounting & Dismounting ToolsSKF
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TMMP Standard Jaw Pullers (TMMP 2x65 to TMMP 3x300)

Brand SKF·Mounting & Dismounting Tools

Available part numbers (5)

TMMP 2x65, TMMP 2x170, TMMP 3x185, TMMP 3x230, TMMP 3x300

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMMP 2x65Arms: 2 | Grip width: 15-65 mm | Arm length: 60 mm | Max. force: 6.0 kN | Weight: 0.5 kg
TMMP 2x170Arms: 2 | Grip width: 25-170 mm | Arm length: 135 mm | Max. force: 18.0 kN | Weight: 2.1 kg
TMMP 3x185Arms: 3 | Grip width: 40-185 mm | Arm length: 135 mm | Max. force: 24.0 kN | Weight: 2.9 kg
TMMP 3x230Arms: 3 | Grip width: 40-230 mm | Arm length: 210 mm | Max. force: 34.0 kN | Weight: 5.8 kg
TMMP 3x300Arms: 3 | Grip width: 45-300 mm | Arm length: 240 mm | Max. force: 50.0 kN | Weight: 8.6 kg
