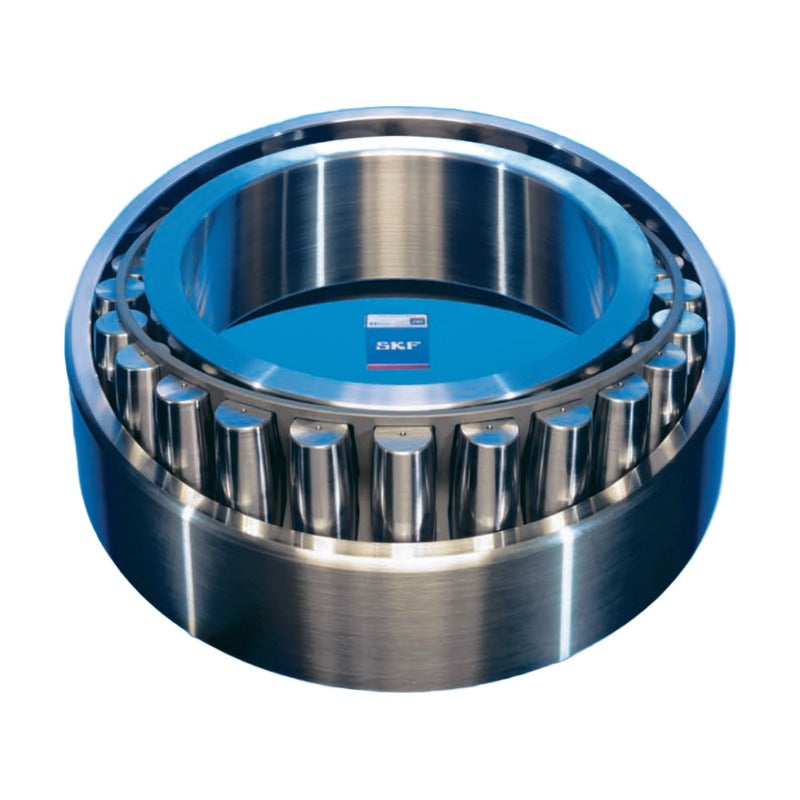

SKF CARB Toroidal Roller Bearings C 22, C 23, C 30, C 31, C 32 Series

SKF CARB Toroidal Roller Bearings C 22, C 23, C 30, C 31, C 32 Series

SKF CARB toroidal roller bearings, series C 22, C 23, C 30, C 31, C 32, with cylindrical or tapered bore, caged (TN9, M, MB) or full complement (V). Bore diameters 25-1250 mm.

Key features

  • Accommodates axial displacement within the bearing like a cylindrical roller bearing
  • Self-aligning like a spherical roller bearing
  • Ideal non-locating bearing in combination with a spherical roller bearing
  • Cylindrical and tapered (K = 1:12, K30 = 1:30) bore versions
  • Full complement (V) designs for very high load capacity at low speeds

Specifications

Bearing type CARB toroidal roller bearing
Series C 22, C 23, C 30, C 31, C 32
Bore range d 25-1250 mm
Outside dia. range D 52-1750 mm
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 798-819
C 2205 TN9 d: 25 mm | D: 52 mm | B: 18 mm | C: 44 kN | C0: 40 kN | Limiting speed: 18000 r/min
C 2205 KTN9 d: 25 mm | D: 52 mm | B: 18 mm | C: 44 kN | C0: 40 kN | Limiting speed: 18000 r/min
C 2205 V d: 25 mm | D: 52 mm | B: 18 mm | C: 50 kN | C0: 48 kN | Limiting speed: 7000 r/min
C 2205 KV d: 25 mm | D: 52 mm | B: 18 mm | C: 50 kN | C0: 48 kN | Limiting speed: 7000 r/min
C 2206 TN9 d: 30 mm | D: 62 mm | B: 20 mm | C: 69.5 kN | C0: 62 kN | Limiting speed: 15000 r/min
C 2206 KTN9 d: 30 mm | D: 62 mm | B: 20 mm | C: 69.5 kN | C0: 62 kN | Limiting speed: 15000 r/min
C 2206 V d: 30 mm | D: 62 mm | B: 20 mm | C: 76.5 kN | C0: 71 kN | Limiting speed: 6000 r/min
C 2206 KV d: 30 mm | D: 62 mm | B: 20 mm | C: 76.5 kN | C0: 71 kN | Limiting speed: 6000 r/min
C 2207 TN9 d: 35 mm | D: 72 mm | B: 23 mm | C: 83 kN | C0: 80 kN | Limiting speed: 13000 r/min
C 2207 KTN9 d: 35 mm | D: 72 mm | B: 23 mm | C: 83 kN | C0: 80 kN | Limiting speed: 13000 r/min
C 2207 V d: 35 mm | D: 72 mm | B: 23 mm | C: 95 kN | C0: 96.5 kN | Limiting speed: 5000 r/min
C 2207 KV d: 35 mm | D: 72 mm | B: 23 mm | C: 95 kN | C0: 96.5 kN | Limiting speed: 5000 r/min
C 2208 TN9 d: 40 mm | D: 80 mm | B: 23 mm | C: 90 kN | C0: 86.5 kN | Limiting speed: 11000 r/min
C 2208 KTN9 d: 40 mm | D: 80 mm | B: 23 mm | C: 90 kN | C0: 86.5 kN | Limiting speed: 11000 r/min
C 2208 V d: 40 mm | D: 80 mm | B: 23 mm | C: 102 kN | C0: 104 kN | Limiting speed: 4500 r/min
C 2208 KV d: 40 mm | D: 80 mm | B: 23 mm | C: 102 kN | C0: 104 kN | Limiting speed: 4500 r/min
C 2209 TN9 d: 45 mm | D: 85 mm | B: 23 mm | C: 93 kN | C0: 93 kN | Limiting speed: 11000 r/min
C 2209 KTN9 d: 45 mm | D: 85 mm | B: 23 mm | C: 93 kN | C0: 93 kN | Limiting speed: 11000 r/min
C 2209 V d: 45 mm | D: 85 mm | B: 23 mm | C: 106 kN | C0: 110 kN | Limiting speed: 4300 r/min
C 2209 KV d: 45 mm | D: 85 mm | B: 23 mm | C: 106 kN | C0: 110 kN | Limiting speed: 4300 r/min
C 2210 TN9 d: 50 mm | D: 90 mm | B: 23 mm | C: 98 kN | C0: 100 kN | Limiting speed: 9500 r/min
C 2210 KTN9 d: 50 mm | D: 90 mm | B: 23 mm | C: 98 kN | C0: 100 kN | Limiting speed: 9500 r/min
C 2210 V d: 50 mm | D: 90 mm | B: 23 mm | C: 114 kN | C0: 122 kN | Limiting speed: 3800 r/min
C 2210 KV d: 50 mm | D: 90 mm | B: 23 mm | C: 114 kN | C0: 122 kN | Limiting speed: 3800 r/min
C 2211 TN9 d: 55 mm | D: 100 mm | B: 25 mm | C: 116 kN | C0: 114 kN | Limiting speed: 9000 r/min
C 2211 KTN9 d: 55 mm | D: 100 mm | B: 25 mm | C: 116 kN | C0: 114 kN | Limiting speed: 9000 r/min
C 2211 V d: 55 mm | D: 100 mm | B: 25 mm | C: 132 kN | C0: 134 kN | Limiting speed: 3400 r/min
C 2211 KV d: 55 mm | D: 100 mm | B: 25 mm | C: 132 kN | C0: 134 kN | Limiting speed: 3400 r/min
C 2212 TN9 d: 60 mm | D: 110 mm | B: 28 mm | C: 143 kN | C0: 156 kN | Limiting speed: 7500 r/min
C 2212 KTN9 d: 60 mm | D: 110 mm | B: 28 mm | C: 143 kN | C0: 156 kN | Limiting speed: 7500 r/min
C 2212 V d: 60 mm | D: 110 mm | B: 28 mm | C: 166 kN | C0: 190 kN | Limiting speed: 2800 r/min
C 2212 KV d: 60 mm | D: 110 mm | B: 28 mm | C: 166 kN | C0: 190 kN | Limiting speed: 2800 r/min
C 2213 TN9 d: 65 mm | D: 120 mm | B: 31 mm | C: 180 kN | C0: 180 kN | Limiting speed: 7500 r/min
C 2213 KTN9 d: 65 mm | D: 120 mm | B: 31 mm | C: 180 kN | C0: 180 kN | Limiting speed: 7500 r/min
C 2213 V d: 65 mm | D: 120 mm | B: 31 mm | C: 204 kN | C0: 216 kN | Limiting speed: 2400 r/min
C 2213 KV d: 65 mm | D: 120 mm | B: 31 mm | C: 204 kN | C0: 216 kN | Limiting speed: 2400 r/min
C 2214 TN9 d: 70 mm | D: 125 mm | B: 31 mm | C: 186 kN | C0: 196 kN | Limiting speed: 7000 r/min
C 2214 KTN9 d: 70 mm | D: 125 mm | B: 31 mm | C: 186 kN | C0: 196 kN | Limiting speed: 7000 r/min
C 2214 V d: 70 mm | D: 125 mm | B: 31 mm | C: 212 kN | C0: 228 kN | Limiting speed: 2400 r/min
C 2214 KV d: 70 mm | D: 125 mm | B: 31 mm | C: 212 kN | C0: 228 kN | Limiting speed: 2400 r/min
C 2314 d: 70 mm | D: 150 mm | B: 51 mm | C: 405 kN | C0: 430 kN | Limiting speed: 5000 r/min
C 2314 K d: 70 mm | D: 150 mm | B: 51 mm | C: 405 kN | C0: 430 kN | Limiting speed: 5000 r/min
C 2215 d: 75 mm | D: 130 mm | B: 31 mm | C: 196 kN | C0: 208 kN | Limiting speed: 6700 r/min
C 2215 K d: 75 mm | D: 130 mm | B: 31 mm | C: 196 kN | C0: 208 kN | Limiting speed: 6700 r/min
C 2215 V d: 75 mm | D: 130 mm | B: 31 mm | C: 220 kN | C0: 240 kN | Limiting speed: 2200 r/min
C 2215 KV d: 75 mm | D: 130 mm | B: 31 mm | C: 220 kN | C0: 240 kN | Limiting speed: 2200 r/min
C 2315 d: 75 mm | D: 160 mm | B: 55 mm | C: 425 kN | C0: 465 kN | Limiting speed: 4800 r/min
C 2315 K d: 75 mm | D: 160 mm | B: 55 mm | C: 425 kN | C0: 465 kN | Limiting speed: 4800 r/min
C 2216 d: 80 mm | D: 140 mm | B: 33 mm | C: 220 kN | C0: 250 kN | Limiting speed: 6000 r/min
C 2216 K d: 80 mm | D: 140 mm | B: 33 mm | C: 220 kN | C0: 250 kN | Limiting speed: 6000 r/min
C 2216 V d: 80 mm | D: 140 mm | B: 33 mm | C: 255 kN | C0: 305 kN | Limiting speed: 2000 r/min
C 2216 KV d: 80 mm | D: 140 mm | B: 33 mm | C: 255 kN | C0: 305 kN | Limiting speed: 2000 r/min
C 2316 d: 80 mm | D: 170 mm | B: 58 mm | C: 510 kN | C0: 550 kN | Limiting speed: 4500 r/min
C 2316 K d: 80 mm | D: 170 mm | B: 58 mm | C: 510 kN | C0: 550 kN | Limiting speed: 4500 r/min
C 2217 d: 85 mm | D: 150 mm | B: 36 mm | C: 275 kN | C0: 320 kN | Limiting speed: 5600 r/min
C 2217 K d: 85 mm | D: 150 mm | B: 36 mm | C: 275 kN | C0: 320 kN | Limiting speed: 5600 r/min
C 2217 V d: 85 mm | D: 150 mm | B: 36 mm | C: 315 kN | C0: 390 kN | Limiting speed: 1800 r/min
C 2217 KV d: 85 mm | D: 150 mm | B: 36 mm | C: 315 kN | C0: 390 kN | Limiting speed: 1800 r/min
C 2317 d: 85 mm | D: 180 mm | B: 60 mm | C: 540 kN | C0: 600 kN | Limiting speed: 4300 r/min
C 2317 K d: 85 mm | D: 180 mm | B: 60 mm | C: 540 kN | C0: 600 kN | Limiting speed: 4300 r/min
C 2218 d: 90 mm | D: 160 mm | B: 40 mm | C: 325 kN | C0: 380 kN | Limiting speed: 5300 r/min
C 2218 K d: 90 mm | D: 160 mm | B: 40 mm | C: 325 kN | C0: 380 kN | Limiting speed: 5300 r/min
C 2218 V d: 90 mm | D: 160 mm | B: 40 mm | C: 365 kN | C0: 440 kN | Limiting speed: 1500 r/min
C 2218 KV d: 90 mm | D: 160 mm | B: 40 mm | C: 365 kN | C0: 440 kN | Limiting speed: 1500 r/min
C 2318 d: 90 mm | D: 190 mm | B: 64 mm | C: 610 kN | C0: 695 kN | Limiting speed: 4000 r/min
C 2318 K d: 90 mm | D: 190 mm | B: 64 mm | C: 610 kN | C0: 695 kN | Limiting speed: 4000 r/min
C 2219 d: 95 mm | D: 170 mm | B: 43 mm | C: 360 kN | C0: 400 kN | Limiting speed: 5000 r/min
C 2219 K d: 95 mm | D: 170 mm | B: 43 mm | C: 360 kN | C0: 400 kN | Limiting speed: 5000 r/min
C 2319 d: 95 mm | D: 200 mm | B: 67 mm | C: 610 kN | C0: 695 kN | Limiting speed: 4000 r/min
C 2319 K d: 95 mm | D: 200 mm | B: 67 mm | C: 610 kN | C0: 695 kN | Limiting speed: 4000 r/min
C 3120 V d: 100 mm | D: 165 mm | B: 52 mm | C: 475 kN | C0: 655 kN | Limiting speed: 1300 r/min
C 2220 d: 100 mm | D: 180 mm | B: 46 mm | C: 415 kN | C0: 465 kN | Limiting speed: 4800 r/min
C 2220 K d: 100 mm | D: 180 mm | B: 46 mm | C: 415 kN | C0: 465 kN | Limiting speed: 4800 r/min
C 2320 d: 100 mm | D: 215 mm | B: 73 mm | C: 800 kN | C0: 880 kN | Limiting speed: 3600 r/min
C 2320 K d: 100 mm | D: 215 mm | B: 73 mm | C: 800 kN | C0: 880 kN | Limiting speed: 3600 r/min
C 3022 d: 110 mm | D: 170 mm | B: 45 mm | C: 355 kN | C0: 480 kN | Limiting speed: 4500 r/min
C 3022 K d: 110 mm | D: 170 mm | B: 45 mm | C: 355 kN | C0: 480 kN | Limiting speed: 4500 r/min
C 2222 d: 110 mm | D: 200 mm | B: 53 mm | C: 530 kN | C0: 620 kN | Limiting speed: 4300 r/min
C 2222 K d: 110 mm | D: 200 mm | B: 53 mm | C: 530 kN | C0: 620 kN | Limiting speed: 4300 r/min
C 3024 d: 120 mm | D: 180 mm | B: 46 mm | C: 375 kN | C0: 530 kN | Limiting speed: 4000 r/min
C 3024 K d: 120 mm | D: 180 mm | B: 46 mm | C: 375 kN | C0: 530 kN | Limiting speed: 4000 r/min
C 3024 V d: 120 mm | D: 180 mm | B: 46 mm | C: 430 kN | C0: 640 kN | Limiting speed: 1400 r/min
C 3024 KV d: 120 mm | D: 180 mm | B: 46 mm | C: 430 kN | C0: 640 kN | Limiting speed: 1400 r/min
C 2224 d: 120 mm | D: 215 mm | B: 58 mm | C: 610 kN | C0: 710 kN | Limiting speed: 4000 r/min
C 2224 K d: 120 mm | D: 215 mm | B: 58 mm | C: 610 kN | C0: 710 kN | Limiting speed: 4000 r/min
C 3224 d: 120 mm | D: 215 mm | B: 76 mm | C: 750 kN | C0: 980 kN | Limiting speed: 3200 r/min
C 3224 K d: 120 mm | D: 215 mm | B: 76 mm | C: 750 kN | C0: 980 kN | Limiting speed: 3200 r/min
C 3026 d: 130 mm | D: 200 mm | B: 52 mm | C: 390 kN | C0: 585 kN | Limiting speed: 3800 r/min
C 3026 K d: 130 mm | D: 200 mm | B: 52 mm | C: 390 kN | C0: 585 kN | Limiting speed: 3800 r/min
C 2226 d: 130 mm | D: 230 mm | B: 64 mm | C: 735 kN | C0: 930 kN | Limiting speed: 3800 r/min
C 2226 K d: 130 mm | D: 230 mm | B: 64 mm | C: 735 kN | C0: 930 kN | Limiting speed: 3800 r/min
C 3028 d: 140 mm | D: 210 mm | B: 53 mm | C: 490 kN | C0: 735 kN | Limiting speed: 3400 r/min
C 3028 K d: 140 mm | D: 210 mm | B: 53 mm | C: 490 kN | C0: 735 kN | Limiting speed: 3400 r/min
C 2228 d: 140 mm | D: 250 mm | B: 68 mm | C: 830 kN | C0: 1060 kN | Limiting speed: 3400 r/min
C 2228 K d: 140 mm | D: 250 mm | B: 68 mm | C: 830 kN | C0: 1060 kN | Limiting speed: 3400 r/min
C 3030 MB d: 150 mm | D: 225 mm | B: 56 mm | C: 540 kN | C0: 850 kN | Limiting speed: 3200 r/min
C 3030 KMB d: 150 mm | D: 225 mm | B: 56 mm | C: 540 kN | C0: 850 kN | Limiting speed: 3200 r/min
C 3130 d: 150 mm | D: 250 mm | B: 80 mm | C: 880 kN | C0: 1290 kN | Limiting speed: 2800 r/min
C 3130 K d: 150 mm | D: 250 mm | B: 80 mm | C: 880 kN | C0: 1290 kN | Limiting speed: 2800 r/min
C 2230 d: 150 mm | D: 270 mm | B: 73 mm | C: 980 kN | C0: 1220 kN | Limiting speed: 3200 r/min
C 2230 K d: 150 mm | D: 270 mm | B: 73 mm | C: 980 kN | C0: 1220 kN | Limiting speed: 3200 r/min
C 3032 d: 160 mm | D: 240 mm | B: 60 mm | C: 600 kN | C0: 980 kN | Limiting speed: 3000 r/min
C 3032 K d: 160 mm | D: 240 mm | B: 60 mm | C: 600 kN | C0: 980 kN | Limiting speed: 3000 r/min
C 3132 d: 160 mm | D: 270 mm | B: 86 mm | C: 1000 kN | C0: 1400 kN | Limiting speed: 2600 r/min
C 3132 K d: 160 mm | D: 270 mm | B: 86 mm | C: 1000 kN | C0: 1400 kN | Limiting speed: 2600 r/min
C 3232 d: 160 mm | D: 290 mm | B: 104 mm | C: 1370 kN | C0: 1830 kN | Limiting speed: 2400 r/min
C 3232 K d: 160 mm | D: 290 mm | B: 104 mm | C: 1370 kN | C0: 1830 kN | Limiting speed: 2400 r/min
C 3034 d: 170 mm | D: 260 mm | B: 67 mm | C: 750 kN | C0: 1160 kN | Limiting speed: 2800 r/min
C 3034 K d: 170 mm | D: 260 mm | B: 67 mm | C: 750 kN | C0: 1160 kN | Limiting speed: 2800 r/min
C 3134 d: 170 mm | D: 280 mm | B: 88 mm | C: 1040 kN | C0: 1460 kN | Limiting speed: 2600 r/min
C 3134 K d: 170 mm | D: 280 mm | B: 88 mm | C: 1040 kN | C0: 1460 kN | Limiting speed: 2600 r/min
C 2234 d: 170 mm | D: 310 mm | B: 86 mm | C: 1270 kN | C0: 1630 kN | Limiting speed: 2600 r/min
C 2234 K d: 170 mm | D: 310 mm | B: 86 mm | C: 1270 kN | C0: 1630 kN | Limiting speed: 2600 r/min
C 3036 d: 180 mm | D: 280 mm | B: 74 mm | C: 880 kN | C0: 1340 kN | Limiting speed: 2600 r/min
C 3036 K d: 180 mm | D: 280 mm | B: 74 mm | C: 880 kN | C0: 1340 kN | Limiting speed: 2600 r/min
C 3136 d: 180 mm | D: 300 mm | B: 96 mm | C: 1250 kN | C0: 1730 kN | Limiting speed: 2400 r/min
C 3136 K d: 180 mm | D: 300 mm | B: 96 mm | C: 1250 kN | C0: 1730 kN | Limiting speed: 2400 r/min
C 3236 d: 180 mm | D: 320 mm | B: 112 mm | C: 1530 kN | C0: 2200 kN | Limiting speed: 2000 r/min
C 3236 K d: 180 mm | D: 320 mm | B: 112 mm | C: 1530 kN | C0: 2200 kN | Limiting speed: 2000 r/min
C 3038 d: 190 mm | D: 290 mm | B: 75 mm | C: 930 kN | C0: 1460 kN | Limiting speed: 2400 r/min
C 3038 K d: 190 mm | D: 290 mm | B: 75 mm | C: 930 kN | C0: 1460 kN | Limiting speed: 2400 r/min
C 3138 d: 190 mm | D: 320 mm | B: 104 mm | C: 1530 kN | C0: 2200 kN | Limiting speed: 2200 r/min
C 3138 K d: 190 mm | D: 320 mm | B: 104 mm | C: 1530 kN | C0: 2200 kN | Limiting speed: 2200 r/min
C 2238 d: 190 mm | D: 340 mm | B: 92 mm | C: 1370 kN | C0: 1730 kN | Limiting speed: 2400 r/min
C 2238 K d: 190 mm | D: 340 mm | B: 92 mm | C: 1370 kN | C0: 1730 kN | Limiting speed: 2400 r/min
C 3040 d: 200 mm | D: 310 mm | B: 82 mm | C: 1120 kN | C0: 1730 kN | Limiting speed: 2400 r/min
C 3040 K d: 200 mm | D: 310 mm | B: 82 mm | C: 1120 kN | C0: 1730 kN | Limiting speed: 2400 r/min
C 3140 d: 200 mm | D: 340 mm | B: 112 mm | C: 1600 kN | C0: 2320 kN | Limiting speed: 2000 r/min
C 3140 K d: 200 mm | D: 340 mm | B: 112 mm | C: 1600 kN | C0: 2320 kN | Limiting speed: 2000 r/min
C 3044 d: 220 mm | D: 340 mm | B: 90 mm | C: 1320 kN | C0: 2040 kN | Limiting speed: 2200 r/min
C 3044 K d: 220 mm | D: 340 mm | B: 90 mm | C: 1320 kN | C0: 2040 kN | Limiting speed: 2200 r/min
C 3144 d: 220 mm | D: 370 mm | B: 120 mm | C: 1900 kN | C0: 2900 kN | Limiting speed: 1900 r/min
C 3144 K d: 220 mm | D: 370 mm | B: 120 mm | C: 1900 kN | C0: 2900 kN | Limiting speed: 1900 r/min
C 2244 d: 220 mm | D: 400 mm | B: 108 mm | C: 2000 kN | C0: 2500 kN | Limiting speed: 2000 r/min
C 2244 K d: 220 mm | D: 400 mm | B: 108 mm | C: 2000 kN | C0: 2500 kN | Limiting speed: 2000 r/min
C 3048 d: 240 mm | D: 360 mm | B: 92 mm | C: 1340 kN | C0: 2160 kN | Limiting speed: 2000 r/min
C 3048 K d: 240 mm | D: 360 mm | B: 92 mm | C: 1340 kN | C0: 2160 kN | Limiting speed: 2000 r/min
C 3148 d: 240 mm | D: 400 mm | B: 128 mm | C: 2320 kN | C0: 3450 kN | Limiting speed: 1700 r/min
C 3148 K d: 240 mm | D: 400 mm | B: 128 mm | C: 2320 kN | C0: 3450 kN | Limiting speed: 1700 r/min
C 3052 d: 260 mm | D: 400 mm | B: 104 mm | C: 1760 kN | C0: 2850 kN | Limiting speed: 1800 r/min
C 3052 K d: 260 mm | D: 400 mm | B: 104 mm | C: 1760 kN | C0: 2850 kN | Limiting speed: 1800 r/min
C 3152 d: 260 mm | D: 440 mm | B: 144 mm | C: 2650 kN | C0: 4050 kN | Limiting speed: 1500 r/min
C 3152 K d: 260 mm | D: 440 mm | B: 144 mm | C: 2650 kN | C0: 4050 kN | Limiting speed: 1500 r/min
C 3056 d: 280 mm | D: 420 mm | B: 106 mm | C: 1860 kN | C0: 3100 kN | Limiting speed: 1600 r/min
C 3056 K d: 280 mm | D: 420 mm | B: 106 mm | C: 1860 kN | C0: 3100 kN | Limiting speed: 1600 r/min
C 3156 d: 280 mm | D: 460 mm | B: 146 mm | C: 2850 kN | C0: 4500 kN | Limiting speed: 1400 r/min
C 3156 K d: 280 mm | D: 460 mm | B: 146 mm | C: 2850 kN | C0: 4500 kN | Limiting speed: 1400 r/min
C 3060 M d: 300 mm | D: 460 mm | B: 118 mm | C: 2160 kN | C0: 3750 kN | Limiting speed: 1500 r/min
C 3060 KM d: 300 mm | D: 460 mm | B: 118 mm | C: 2160 kN | C0: 3750 kN | Limiting speed: 1500 r/min
C 3160 d: 300 mm | D: 500 mm | B: 160 mm | C: 3250 kN | C0: 5200 kN | Limiting speed: 1300 r/min
C 3160 K d: 300 mm | D: 500 mm | B: 160 mm | C: 3250 kN | C0: 5200 kN | Limiting speed: 1300 r/min
C 3064 M d: 320 mm | D: 480 mm | B: 121 mm | C: 2280 kN | C0: 4000 kN | Limiting speed: 1400 r/min
C 3064 KM d: 320 mm | D: 480 mm | B: 121 mm | C: 2280 kN | C0: 4000 kN | Limiting speed: 1400 r/min
C 3164 M d: 320 mm | D: 540 mm | B: 176 mm | C: 4150 kN | C0: 6300 kN | Limiting speed: 1300 r/min
C 3164 KM d: 320 mm | D: 540 mm | B: 176 mm | C: 4150 kN | C0: 6300 kN | Limiting speed: 1300 r/min
C 3068 M d: 340 mm | D: 520 mm | B: 133 mm | C: 2900 kN | C0: 5000 kN | Limiting speed: 1300 r/min
C 3068 KM d: 340 mm | D: 520 mm | B: 133 mm | C: 2900 kN | C0: 5000 kN | Limiting speed: 1300 r/min
C 3168 M d: 340 mm | D: 580 mm | B: 190 mm | C: 4900 kN | C0: 7500 kN | Limiting speed: 1200 r/min
C 3168 KM d: 340 mm | D: 580 mm | B: 190 mm | C: 4900 kN | C0: 7500 kN | Limiting speed: 1200 r/min
C 3072 M d: 360 mm | D: 540 mm | B: 134 mm | C: 2900 kN | C0: 5000 kN | Limiting speed: 1200 r/min
C 3072 KM d: 360 mm | D: 540 mm | B: 134 mm | C: 2900 kN | C0: 5000 kN | Limiting speed: 1200 r/min
C 3172 M d: 360 mm | D: 600 mm | B: 192 mm | C: 5000 kN | C0: 8000 kN | Limiting speed: 1100 r/min
C 3172 KM d: 360 mm | D: 600 mm | B: 192 mm | C: 5000 kN | C0: 8000 kN | Limiting speed: 1100 r/min
C 3076 M d: 380 mm | D: 560 mm | B: 135 mm | C: 3000 kN | C0: 5200 kN | Limiting speed: 1200 r/min
C 3076 KM d: 380 mm | D: 560 mm | B: 135 mm | C: 3000 kN | C0: 5200 kN | Limiting speed: 1200 r/min
C 3176 MB d: 380 mm | D: 620 mm | B: 194 mm | C: 4550 kN | C0: 7500 kN | Limiting speed: 1000 r/min
C 3176 KMB d: 380 mm | D: 620 mm | B: 194 mm | C: 4550 kN | C0: 7500 kN | Limiting speed: 1000 r/min
C 3080 M d: 400 mm | D: 600 mm | B: 148 mm | C: 3650 kN | C0: 6200 kN | Limiting speed: 1100 r/min
C 3080 KM d: 400 mm | D: 600 mm | B: 148 mm | C: 3650 kN | C0: 6200 kN | Limiting speed: 1100 r/min
C 3180 MB d: 400 mm | D: 650 mm | B: 200 mm | C: 5000 kN | C0: 8650 kN | Limiting speed: 950 r/min
C 3180 KMB d: 400 mm | D: 650 mm | B: 200 mm | C: 5000 kN | C0: 8650 kN | Limiting speed: 950 r/min
C 3084 M d: 420 mm | D: 620 mm | B: 150 mm | C: 3800 kN | C0: 6400 kN | Limiting speed: 1100 r/min
C 3084 KM d: 420 mm | D: 620 mm | B: 150 mm | C: 3800 kN | C0: 6400 kN | Limiting speed: 1100 r/min
C 3184 M d: 420 mm | D: 700 mm | B: 224 mm | C: 6000 kN | C0: 10400 kN | Limiting speed: 900 r/min
C 3184 KM d: 420 mm | D: 700 mm | B: 224 mm | C: 6000 kN | C0: 10400 kN | Limiting speed: 900 r/min
C 3088 MB d: 440 mm | D: 650 mm | B: 157 mm | C: 3750 kN | C0: 6400 kN | Limiting speed: 1000 r/min
C 3088 KMB d: 440 mm | D: 650 mm | B: 157 mm | C: 3750 kN | C0: 6400 kN | Limiting speed: 1000 r/min
C 3188 MB d: 440 mm | D: 720 mm | B: 226 mm | C: 5700 kN | C0: 9300 kN | Limiting speed: 900 r/min
C 3188 KMB d: 440 mm | D: 720 mm | B: 226 mm | C: 5700 kN | C0: 9300 kN | Limiting speed: 900 r/min
C 3092 M d: 460 mm | D: 680 mm | B: 163 mm | C: 4000 kN | C0: 7500 kN | Limiting speed: 950 r/min
C 3092 KM d: 460 mm | D: 680 mm | B: 163 mm | C: 4000 kN | C0: 7500 kN | Limiting speed: 950 r/min
C 3192 M d: 460 mm | D: 760 mm | B: 240 mm | C: 6800 kN | C0: 12000 kN | Limiting speed: 800 r/min
C 3192 KM d: 460 mm | D: 760 mm | B: 240 mm | C: 6800 kN | C0: 12000 kN | Limiting speed: 800 r/min
C 3096 M d: 480 mm | D: 700 mm | B: 165 mm | C: 4050 kN | C0: 7800 kN | Limiting speed: 900 r/min
C 3096 KM d: 480 mm | D: 700 mm | B: 165 mm | C: 4050 kN | C0: 7800 kN | Limiting speed: 900 r/min
C 3196 MB d: 480 mm | D: 790 mm | B: 248 mm | C: 6950 kN | C0: 12500 kN | Limiting speed: 750 r/min
C 3196 KMB d: 480 mm | D: 790 mm | B: 248 mm | C: 6950 kN | C0: 12500 kN | Limiting speed: 750 r/min
C 30/500 M d: 500 mm | D: 720 mm | B: 167 mm | C: 4250 kN | C0: 8300 kN | Limiting speed: 900 r/min
C 30/500 KM d: 500 mm | D: 720 mm | B: 167 mm | C: 4250 kN | C0: 8300 kN | Limiting speed: 900 r/min
C 31/500 M d: 500 mm | D: 830 mm | B: 264 mm | C: 7500 kN | C0: 12700 kN | Limiting speed: 750 r/min
C 31/500 KM d: 500 mm | D: 830 mm | B: 264 mm | C: 7500 kN | C0: 12700 kN | Limiting speed: 750 r/min
C 30/530 M d: 530 mm | D: 780 mm | B: 185 mm | C: 5100 kN | C0: 9500 kN | Limiting speed: 800 r/min
C 30/530 KM d: 530 mm | D: 780 mm | B: 185 mm | C: 5100 kN | C0: 9500 kN | Limiting speed: 800 r/min
C 31/530 M d: 530 mm | D: 870 mm | B: 272 mm | C: 8800 kN | C0: 15600 kN | Limiting speed: 670 r/min
C 31/530 KM d: 530 mm | D: 870 mm | B: 272 mm | C: 8800 kN | C0: 15600 kN | Limiting speed: 670 r/min
C 30/560 M d: 560 mm | D: 820 mm | B: 195 mm | C: 5600 kN | C0: 11000 kN | Limiting speed: 750 r/min
C 30/560 KM d: 560 mm | D: 820 mm | B: 195 mm | C: 5600 kN | C0: 11000 kN | Limiting speed: 750 r/min
C 31/560 MB d: 560 mm | D: 920 mm | B: 280 mm | C: 9500 kN | C0: 17000 kN | Limiting speed: 670 r/min
C 31/560 KMB d: 560 mm | D: 920 mm | B: 280 mm | C: 9500 kN | C0: 17000 kN | Limiting speed: 670 r/min
C 30/600 M d: 600 mm | D: 870 mm | B: 200 mm | C: 6300 kN | C0: 12200 kN | Limiting speed: 700 r/min
C 30/600 KM d: 600 mm | D: 870 mm | B: 200 mm | C: 6300 kN | C0: 12200 kN | Limiting speed: 700 r/min
C 31/600 MB d: 600 mm | D: 980 mm | B: 300 mm | C: 10200 kN | C0: 18000 kN | Limiting speed: 600 r/min
C 31/600 KMB d: 600 mm | D: 980 mm | B: 300 mm | C: 10200 kN | C0: 18000 kN | Limiting speed: 600 r/min
C 30/630 M d: 630 mm | D: 920 mm | B: 212 mm | C: 6800 kN | C0: 12900 kN | Limiting speed: 670 r/min
C 30/630 KM d: 630 mm | D: 920 mm | B: 212 mm | C: 6800 kN | C0: 12900 kN | Limiting speed: 670 r/min
C 31/630 MB d: 630 mm | D: 1030 mm | B: 315 mm | C: 12200 kN | C0: 22000 kN | Limiting speed: 560 r/min
C 31/630 KMB d: 630 mm | D: 1030 mm | B: 315 mm | C: 12200 kN | C0: 22000 kN | Limiting speed: 560 r/min
C 30/670 M d: 670 mm | D: 980 mm | B: 230 mm | C: 8150 kN | C0: 16300 kN | Limiting speed: 600 r/min
C 30/670 KM d: 670 mm | D: 980 mm | B: 230 mm | C: 8150 kN | C0: 16300 kN | Limiting speed: 600 r/min
C 31/670 MB d: 670 mm | D: 1090 mm | B: 336 mm | C: 12000 kN | C0: 22000 kN | Limiting speed: 530 r/min
C 31/670 KMB d: 670 mm | D: 1090 mm | B: 336 mm | C: 12000 kN | C0: 22000 kN | Limiting speed: 530 r/min
C 30/710 M d: 710 mm | D: 1030 mm | B: 236 mm | C: 8800 kN | C0: 17300 kN | Limiting speed: 560 r/min
C 30/710 KM d: 710 mm | D: 1030 mm | B: 236 mm | C: 8800 kN | C0: 17300 kN | Limiting speed: 560 r/min
C 31/710 MB d: 710 mm | D: 1150 mm | B: 345 mm | C: 12700 kN | C0: 24000 kN | Limiting speed: 480 r/min
C 31/710 KMB d: 710 mm | D: 1150 mm | B: 345 mm | C: 12700 kN | C0: 24000 kN | Limiting speed: 480 r/min
C 30/750 MB d: 750 mm | D: 1090 mm | B: 250 mm | C: 9000 kN | C0: 18000 kN | Limiting speed: 530 r/min
C 30/750 KMB d: 750 mm | D: 1090 mm | B: 250 mm | C: 9000 kN | C0: 18000 kN | Limiting speed: 530 r/min
C 31/750 MB d: 750 mm | D: 1220 mm | B: 365 mm | C: 16000 kN | C0: 30500 kN | Limiting speed: 450 r/min
C 31/750 KMB d: 750 mm | D: 1220 mm | B: 365 mm | C: 16000 kN | C0: 30500 kN | Limiting speed: 450 r/min
C 30/800 MB d: 800 mm | D: 1150 mm | B: 258 mm | C: 9150 kN | C0: 18600 kN | Limiting speed: 480 r/min
C 30/800 KMB d: 800 mm | D: 1150 mm | B: 258 mm | C: 9150 kN | C0: 18600 kN | Limiting speed: 480 r/min
C 31/800 MB d: 800 mm | D: 1280 mm | B: 375 mm | C: 15600 kN | C0: 30500 kN | Limiting speed: 400 r/min
C 31/800 KMB d: 800 mm | D: 1280 mm | B: 375 mm | C: 15600 kN | C0: 30500 kN | Limiting speed: 400 r/min
C 30/850 MB d: 850 mm | D: 1220 mm | B: 272 mm | C: 11200 kN | C0: 24000 kN | Limiting speed: 430 r/min
C 30/850 KMB d: 850 mm | D: 1220 mm | B: 272 mm | C: 11200 kN | C0: 24000 kN | Limiting speed: 430 r/min
C 31/850 MB d: 850 mm | D: 1360 mm | B: 400 mm | C: 16000 kN | C0: 32000 kN | Limiting speed: 380 r/min
C 31/850 KMB d: 850 mm | D: 1360 mm | B: 400 mm | C: 16000 kN | C0: 32000 kN | Limiting speed: 380 r/min
C 30/900 M d: 900 mm | D: 1280 mm | B: 280 mm | C: 12700 kN | C0: 26500 kN | Limiting speed: 400 r/min
C 30/900 KM d: 900 mm | D: 1280 mm | B: 280 mm | C: 12700 kN | C0: 26500 kN | Limiting speed: 400 r/min
C 30/950 MB d: 950 mm | D: 1360 mm | B: 300 mm | C: 12900 kN | C0: 27500 kN | Limiting speed: 380 r/min
C 30/950 KMB d: 950 mm | D: 1360 mm | B: 300 mm | C: 12900 kN | C0: 27500 kN | Limiting speed: 380 r/min
C 30/1000 MB d: 1000 mm | D: 1420 mm | B: 308 mm | C: 13400 kN | C0: 29000 kN | Limiting speed: 340 r/min
C 30/1000 KMB d: 1000 mm | D: 1420 mm | B: 308 mm | C: 13400 kN | C0: 29000 kN | Limiting speed: 340 r/min
C 31/1000 MB d: 1000 mm | D: 1580 mm | B: 462 mm | C: 22800 kN | C0: 45500 kN | Limiting speed: 300 r/min
C 31/1000 KMB d: 1000 mm | D: 1580 mm | B: 462 mm | C: 22800 kN | C0: 45500 kN | Limiting speed: 300 r/min
C 30/1250 MB d: 1250 mm | D: 1750 mm | B: 375 mm | C: 20400 kN | C0: 45000 kN | Limiting speed: 240 r/min
C 30/1250 KMB d: 1250 mm | D: 1750 mm | B: 375 mm | C: 20400 kN | C0: 45000 kN | Limiting speed: 240 r/min
C 3120 KV d: 90 mm | D: 165 mm | B: 52 mm | C: 475 kN | C0: 655 kN | Limiting speed: 1300 r/min
Spherical Roller BearingsSKF
238 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF CARB Toroidal Roller Bearings C 22, C 23, C 30, C 31, C 32 Series

Brand SKF·Spherical Roller Bearings

Available part numbers (238)

C 2205 TN9, C 2205 KTN9, C 2205 V, C 2205 KV, C 2206 TN9, C 2206 KTN9, C 2206 V, C 2206 KV, C 2207 TN9, C 2207 KTN9 + 228 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
C 2205 TN9d: 25 mm | D: 52 mm | B: 18 mm | C: 44 kN | C0: 40 kN | Limiting speed: 18000 r/min
C 2205 KTN9d: 25 mm | D: 52 mm | B: 18 mm | C: 44 kN | C0: 40 kN | Limiting speed: 18000 r/min
C 2205 Vd: 25 mm | D: 52 mm | B: 18 mm | C: 50 kN | C0: 48 kN | Limiting speed: 7000 r/min
C 2205 KVd: 25 mm | D: 52 mm | B: 18 mm | C: 50 kN | C0: 48 kN | Limiting speed: 7000 r/min
C 2206 TN9d: 30 mm | D: 62 mm | B: 20 mm | C: 69.5 kN | C0: 62 kN | Limiting speed: 15000 r/min
C 2206 KTN9d: 30 mm | D: 62 mm | B: 20 mm | C: 69.5 kN | C0: 62 kN | Limiting speed: 15000 r/min
C 2206 Vd: 30 mm | D: 62 mm | B: 20 mm | C: 76.5 kN | C0: 71 kN | Limiting speed: 6000 r/min
C 2206 KVd: 30 mm | D: 62 mm | B: 20 mm | C: 76.5 kN | C0: 71 kN | Limiting speed: 6000 r/min
C 2207 TN9d: 35 mm | D: 72 mm | B: 23 mm | C: 83 kN | C0: 80 kN | Limiting speed: 13000 r/min
C 2207 KTN9d: 35 mm | D: 72 mm | B: 23 mm | C: 83 kN | C0: 80 kN | Limiting speed: 13000 r/min
C 2207 Vd: 35 mm | D: 72 mm | B: 23 mm | C: 95 kN | C0: 96.5 kN | Limiting speed: 5000 r/min
C 2207 KVd: 35 mm | D: 72 mm | B: 23 mm | C: 95 kN | C0: 96.5 kN | Limiting speed: 5000 r/min
C 2208 TN9d: 40 mm | D: 80 mm | B: 23 mm | C: 90 kN | C0: 86.5 kN | Limiting speed: 11000 r/min
C 2208 KTN9d: 40 mm | D: 80 mm | B: 23 mm | C: 90 kN | C0: 86.5 kN | Limiting speed: 11000 r/min
C 2208 Vd: 40 mm | D: 80 mm | B: 23 mm | C: 102 kN | C0: 104 kN | Limiting speed: 4500 r/min
C 2208 KVd: 40 mm | D: 80 mm | B: 23 mm | C: 102 kN | C0: 104 kN | Limiting speed: 4500 r/min
C 2209 TN9d: 45 mm | D: 85 mm | B: 23 mm | C: 93 kN | C0: 93 kN | Limiting speed: 11000 r/min
C 2209 KTN9d: 45 mm | D: 85 mm | B: 23 mm | C: 93 kN | C0: 93 kN | Limiting speed: 11000 r/min
C 2209 Vd: 45 mm | D: 85 mm | B: 23 mm | C: 106 kN | C0: 110 kN | Limiting speed: 4300 r/min
C 2209 KVd: 45 mm | D: 85 mm | B: 23 mm | C: 106 kN | C0: 110 kN | Limiting speed: 4300 r/min
C 2210 TN9d: 50 mm | D: 90 mm | B: 23 mm | C: 98 kN | C0: 100 kN | Limiting speed: 9500 r/min
C 2210 KTN9d: 50 mm | D: 90 mm | B: 23 mm | C: 98 kN | C0: 100 kN | Limiting speed: 9500 r/min
C 2210 Vd: 50 mm | D: 90 mm | B: 23 mm | C: 114 kN | C0: 122 kN | Limiting speed: 3800 r/min
C 2210 KVd: 50 mm | D: 90 mm | B: 23 mm | C: 114 kN | C0: 122 kN | Limiting speed: 3800 r/min
C 2211 TN9d: 55 mm | D: 100 mm | B: 25 mm | C: 116 kN | C0: 114 kN | Limiting speed: 9000 r/min
C 2211 KTN9d: 55 mm | D: 100 mm | B: 25 mm | C: 116 kN | C0: 114 kN | Limiting speed: 9000 r/min
C 2211 Vd: 55 mm | D: 100 mm | B: 25 mm | C: 132 kN | C0: 134 kN | Limiting speed: 3400 r/min
C 2211 KVd: 55 mm | D: 100 mm | B: 25 mm | C: 132 kN | C0: 134 kN | Limiting speed: 3400 r/min
C 2212 TN9d: 60 mm | D: 110 mm | B: 28 mm | C: 143 kN | C0: 156 kN | Limiting speed: 7500 r/min
C 2212 KTN9d: 60 mm | D: 110 mm | B: 28 mm | C: 143 kN | C0: 156 kN | Limiting speed: 7500 r/min
C 2212 Vd: 60 mm | D: 110 mm | B: 28 mm | C: 166 kN | C0: 190 kN | Limiting speed: 2800 r/min
C 2212 KVd: 60 mm | D: 110 mm | B: 28 mm | C: 166 kN | C0: 190 kN | Limiting speed: 2800 r/min
C 2213 TN9d: 65 mm | D: 120 mm | B: 31 mm | C: 180 kN | C0: 180 kN | Limiting speed: 7500 r/min
C 2213 KTN9d: 65 mm | D: 120 mm | B: 31 mm | C: 180 kN | C0: 180 kN | Limiting speed: 7500 r/min
C 2213 Vd: 65 mm | D: 120 mm | B: 31 mm | C: 204 kN | C0: 216 kN | Limiting speed: 2400 r/min
C 2213 KVd: 65 mm | D: 120 mm | B: 31 mm | C: 204 kN | C0: 216 kN | Limiting speed: 2400 r/min
C 2214 TN9d: 70 mm | D: 125 mm | B: 31 mm | C: 186 kN | C0: 196 kN | Limiting speed: 7000 r/min
C 2214 KTN9d: 70 mm | D: 125 mm | B: 31 mm | C: 186 kN | C0: 196 kN | Limiting speed: 7000 r/min
C 2214 Vd: 70 mm | D: 125 mm | B: 31 mm | C: 212 kN | C0: 228 kN | Limiting speed: 2400 r/min
C 2214 KVd: 70 mm | D: 125 mm | B: 31 mm | C: 212 kN | C0: 228 kN | Limiting speed: 2400 r/min
C 2314d: 70 mm | D: 150 mm | B: 51 mm | C: 405 kN | C0: 430 kN | Limiting speed: 5000 r/min
C 2314 Kd: 70 mm | D: 150 mm | B: 51 mm | C: 405 kN | C0: 430 kN | Limiting speed: 5000 r/min
C 2215d: 75 mm | D: 130 mm | B: 31 mm | C: 196 kN | C0: 208 kN | Limiting speed: 6700 r/min
C 2215 Kd: 75 mm | D: 130 mm | B: 31 mm | C: 196 kN | C0: 208 kN | Limiting speed: 6700 r/min
C 2215 Vd: 75 mm | D: 130 mm | B: 31 mm | C: 220 kN | C0: 240 kN | Limiting speed: 2200 r/min
C 2215 KVd: 75 mm | D: 130 mm | B: 31 mm | C: 220 kN | C0: 240 kN | Limiting speed: 2200 r/min
C 2315d: 75 mm | D: 160 mm | B: 55 mm | C: 425 kN | C0: 465 kN | Limiting speed: 4800 r/min
C 2315 Kd: 75 mm | D: 160 mm | B: 55 mm | C: 425 kN | C0: 465 kN | Limiting speed: 4800 r/min
C 2216d: 80 mm | D: 140 mm | B: 33 mm | C: 220 kN | C0: 250 kN | Limiting speed: 6000 r/min
C 2216 Kd: 80 mm | D: 140 mm | B: 33 mm | C: 220 kN | C0: 250 kN | Limiting speed: 6000 r/min
C 2216 Vd: 80 mm | D: 140 mm | B: 33 mm | C: 255 kN | C0: 305 kN | Limiting speed: 2000 r/min
C 2216 KVd: 80 mm | D: 140 mm | B: 33 mm | C: 255 kN | C0: 305 kN | Limiting speed: 2000 r/min
C 2316d: 80 mm | D: 170 mm | B: 58 mm | C: 510 kN | C0: 550 kN | Limiting speed: 4500 r/min
C 2316 Kd: 80 mm | D: 170 mm | B: 58 mm | C: 510 kN | C0: 550 kN | Limiting speed: 4500 r/min
C 2217d: 85 mm | D: 150 mm | B: 36 mm | C: 275 kN | C0: 320 kN | Limiting speed: 5600 r/min
C 2217 Kd: 85 mm | D: 150 mm | B: 36 mm | C: 275 kN | C0: 320 kN | Limiting speed: 5600 r/min
C 2217 Vd: 85 mm | D: 150 mm | B: 36 mm | C: 315 kN | C0: 390 kN | Limiting speed: 1800 r/min
C 2217 KVd: 85 mm | D: 150 mm | B: 36 mm | C: 315 kN | C0: 390 kN | Limiting speed: 1800 r/min
C 2317d: 85 mm | D: 180 mm | B: 60 mm | C: 540 kN | C0: 600 kN | Limiting speed: 4300 r/min
C 2317 Kd: 85 mm | D: 180 mm | B: 60 mm | C: 540 kN | C0: 600 kN | Limiting speed: 4300 r/min
C 2218d: 90 mm | D: 160 mm | B: 40 mm | C: 325 kN | C0: 380 kN | Limiting speed: 5300 r/min
C 2218 Kd: 90 mm | D: 160 mm | B: 40 mm | C: 325 kN | C0: 380 kN | Limiting speed: 5300 r/min
C 2218 Vd: 90 mm | D: 160 mm | B: 40 mm | C: 365 kN | C0: 440 kN | Limiting speed: 1500 r/min
C 2218 KVd: 90 mm | D: 160 mm | B: 40 mm | C: 365 kN | C0: 440 kN | Limiting speed: 1500 r/min
C 2318d: 90 mm | D: 190 mm | B: 64 mm | C: 610 kN | C0: 695 kN | Limiting speed: 4000 r/min
C 2318 Kd: 90 mm | D: 190 mm | B: 64 mm | C: 610 kN | C0: 695 kN | Limiting speed: 4000 r/min
C 2219d: 95 mm | D: 170 mm | B: 43 mm | C: 360 kN | C0: 400 kN | Limiting speed: 5000 r/min
C 2219 Kd: 95 mm | D: 170 mm | B: 43 mm | C: 360 kN | C0: 400 kN | Limiting speed: 5000 r/min
C 2319d: 95 mm | D: 200 mm | B: 67 mm | C: 610 kN | C0: 695 kN | Limiting speed: 4000 r/min
C 2319 Kd: 95 mm | D: 200 mm | B: 67 mm | C: 610 kN | C0: 695 kN | Limiting speed: 4000 r/min
C 3120 Vd: 100 mm | D: 165 mm | B: 52 mm | C: 475 kN | C0: 655 kN | Limiting speed: 1300 r/min
C 2220d: 100 mm | D: 180 mm | B: 46 mm | C: 415 kN | C0: 465 kN | Limiting speed: 4800 r/min
C 2220 Kd: 100 mm | D: 180 mm | B: 46 mm | C: 415 kN | C0: 465 kN | Limiting speed: 4800 r/min
C 2320d: 100 mm | D: 215 mm | B: 73 mm | C: 800 kN | C0: 880 kN | Limiting speed: 3600 r/min
C 2320 Kd: 100 mm | D: 215 mm | B: 73 mm | C: 800 kN | C0: 880 kN | Limiting speed: 3600 r/min
C 3022d: 110 mm | D: 170 mm | B: 45 mm | C: 355 kN | C0: 480 kN | Limiting speed: 4500 r/min
C 3022 Kd: 110 mm | D: 170 mm | B: 45 mm | C: 355 kN | C0: 480 kN | Limiting speed: 4500 r/min
C 2222d: 110 mm | D: 200 mm | B: 53 mm | C: 530 kN | C0: 620 kN | Limiting speed: 4300 r/min
C 2222 Kd: 110 mm | D: 200 mm | B: 53 mm | C: 530 kN | C0: 620 kN | Limiting speed: 4300 r/min
C 3024d: 120 mm | D: 180 mm | B: 46 mm | C: 375 kN | C0: 530 kN | Limiting speed: 4000 r/min
C 3024 Kd: 120 mm | D: 180 mm | B: 46 mm | C: 375 kN | C0: 530 kN | Limiting speed: 4000 r/min
C 3024 Vd: 120 mm | D: 180 mm | B: 46 mm | C: 430 kN | C0: 640 kN | Limiting speed: 1400 r/min
C 3024 KVd: 120 mm | D: 180 mm | B: 46 mm | C: 430 kN | C0: 640 kN | Limiting speed: 1400 r/min
C 2224d: 120 mm | D: 215 mm | B: 58 mm | C: 610 kN | C0: 710 kN | Limiting speed: 4000 r/min
C 2224 Kd: 120 mm | D: 215 mm | B: 58 mm | C: 610 kN | C0: 710 kN | Limiting speed: 4000 r/min
C 3224d: 120 mm | D: 215 mm | B: 76 mm | C: 750 kN | C0: 980 kN | Limiting speed: 3200 r/min
C 3224 Kd: 120 mm | D: 215 mm | B: 76 mm | C: 750 kN | C0: 980 kN | Limiting speed: 3200 r/min
C 3026d: 130 mm | D: 200 mm | B: 52 mm | C: 390 kN | C0: 585 kN | Limiting speed: 3800 r/min
C 3026 Kd: 130 mm | D: 200 mm | B: 52 mm | C: 390 kN | C0: 585 kN | Limiting speed: 3800 r/min
C 2226d: 130 mm | D: 230 mm | B: 64 mm | C: 735 kN | C0: 930 kN | Limiting speed: 3800 r/min
C 2226 Kd: 130 mm | D: 230 mm | B: 64 mm | C: 735 kN | C0: 930 kN | Limiting speed: 3800 r/min
C 3028d: 140 mm | D: 210 mm | B: 53 mm | C: 490 kN | C0: 735 kN | Limiting speed: 3400 r/min
C 3028 Kd: 140 mm | D: 210 mm | B: 53 mm | C: 490 kN | C0: 735 kN | Limiting speed: 3400 r/min
C 2228d: 140 mm | D: 250 mm | B: 68 mm | C: 830 kN | C0: 1060 kN | Limiting speed: 3400 r/min
C 2228 Kd: 140 mm | D: 250 mm | B: 68 mm | C: 830 kN | C0: 1060 kN | Limiting speed: 3400 r/min
C 3030 MBd: 150 mm | D: 225 mm | B: 56 mm | C: 540 kN | C0: 850 kN | Limiting speed: 3200 r/min
C 3030 KMBd: 150 mm | D: 225 mm | B: 56 mm | C: 540 kN | C0: 850 kN | Limiting speed: 3200 r/min
C 3130d: 150 mm | D: 250 mm | B: 80 mm | C: 880 kN | C0: 1290 kN | Limiting speed: 2800 r/min
C 3130 Kd: 150 mm | D: 250 mm | B: 80 mm | C: 880 kN | C0: 1290 kN | Limiting speed: 2800 r/min
C 2230d: 150 mm | D: 270 mm | B: 73 mm | C: 980 kN | C0: 1220 kN | Limiting speed: 3200 r/min
C 2230 Kd: 150 mm | D: 270 mm | B: 73 mm | C: 980 kN | C0: 1220 kN | Limiting speed: 3200 r/min
C 3032d: 160 mm | D: 240 mm | B: 60 mm | C: 600 kN | C0: 980 kN | Limiting speed: 3000 r/min
C 3032 Kd: 160 mm | D: 240 mm | B: 60 mm | C: 600 kN | C0: 980 kN | Limiting speed: 3000 r/min
C 3132d: 160 mm | D: 270 mm | B: 86 mm | C: 1000 kN | C0: 1400 kN | Limiting speed: 2600 r/min
C 3132 Kd: 160 mm | D: 270 mm | B: 86 mm | C: 1000 kN | C0: 1400 kN | Limiting speed: 2600 r/min
C 3232d: 160 mm | D: 290 mm | B: 104 mm | C: 1370 kN | C0: 1830 kN | Limiting speed: 2400 r/min
C 3232 Kd: 160 mm | D: 290 mm | B: 104 mm | C: 1370 kN | C0: 1830 kN | Limiting speed: 2400 r/min
C 3034d: 170 mm | D: 260 mm | B: 67 mm | C: 750 kN | C0: 1160 kN | Limiting speed: 2800 r/min
C 3034 Kd: 170 mm | D: 260 mm | B: 67 mm | C: 750 kN | C0: 1160 kN | Limiting speed: 2800 r/min
C 3134d: 170 mm | D: 280 mm | B: 88 mm | C: 1040 kN | C0: 1460 kN | Limiting speed: 2600 r/min
C 3134 Kd: 170 mm | D: 280 mm | B: 88 mm | C: 1040 kN | C0: 1460 kN | Limiting speed: 2600 r/min
C 2234d: 170 mm | D: 310 mm | B: 86 mm | C: 1270 kN | C0: 1630 kN | Limiting speed: 2600 r/min
C 2234 Kd: 170 mm | D: 310 mm | B: 86 mm | C: 1270 kN | C0: 1630 kN | Limiting speed: 2600 r/min
C 3036d: 180 mm | D: 280 mm | B: 74 mm | C: 880 kN | C0: 1340 kN | Limiting speed: 2600 r/min
C 3036 Kd: 180 mm | D: 280 mm | B: 74 mm | C: 880 kN | C0: 1340 kN | Limiting speed: 2600 r/min
C 3136d: 180 mm | D: 300 mm | B: 96 mm | C: 1250 kN | C0: 1730 kN | Limiting speed: 2400 r/min
C 3136 Kd: 180 mm | D: 300 mm | B: 96 mm | C: 1250 kN | C0: 1730 kN | Limiting speed: 2400 r/min
C 3236d: 180 mm | D: 320 mm | B: 112 mm | C: 1530 kN | C0: 2200 kN | Limiting speed: 2000 r/min
C 3236 Kd: 180 mm | D: 320 mm | B: 112 mm | C: 1530 kN | C0: 2200 kN | Limiting speed: 2000 r/min
C 3038d: 190 mm | D: 290 mm | B: 75 mm | C: 930 kN | C0: 1460 kN | Limiting speed: 2400 r/min
C 3038 Kd: 190 mm | D: 290 mm | B: 75 mm | C: 930 kN | C0: 1460 kN | Limiting speed: 2400 r/min
C 3138d: 190 mm | D: 320 mm | B: 104 mm | C: 1530 kN | C0: 2200 kN | Limiting speed: 2200 r/min
C 3138 Kd: 190 mm | D: 320 mm | B: 104 mm | C: 1530 kN | C0: 2200 kN | Limiting speed: 2200 r/min
C 2238d: 190 mm | D: 340 mm | B: 92 mm | C: 1370 kN | C0: 1730 kN | Limiting speed: 2400 r/min
C 2238 Kd: 190 mm | D: 340 mm | B: 92 mm | C: 1370 kN | C0: 1730 kN | Limiting speed: 2400 r/min
C 3040d: 200 mm | D: 310 mm | B: 82 mm | C: 1120 kN | C0: 1730 kN | Limiting speed: 2400 r/min
C 3040 Kd: 200 mm | D: 310 mm | B: 82 mm | C: 1120 kN | C0: 1730 kN | Limiting speed: 2400 r/min
C 3140d: 200 mm | D: 340 mm | B: 112 mm | C: 1600 kN | C0: 2320 kN | Limiting speed: 2000 r/min
C 3140 Kd: 200 mm | D: 340 mm | B: 112 mm | C: 1600 kN | C0: 2320 kN | Limiting speed: 2000 r/min
C 3044d: 220 mm | D: 340 mm | B: 90 mm | C: 1320 kN | C0: 2040 kN | Limiting speed: 2200 r/min
C 3044 Kd: 220 mm | D: 340 mm | B: 90 mm | C: 1320 kN | C0: 2040 kN | Limiting speed: 2200 r/min
C 3144d: 220 mm | D: 370 mm | B: 120 mm | C: 1900 kN | C0: 2900 kN | Limiting speed: 1900 r/min
C 3144 Kd: 220 mm | D: 370 mm | B: 120 mm | C: 1900 kN | C0: 2900 kN | Limiting speed: 1900 r/min
C 2244d: 220 mm | D: 400 mm | B: 108 mm | C: 2000 kN | C0: 2500 kN | Limiting speed: 2000 r/min
C 2244 Kd: 220 mm | D: 400 mm | B: 108 mm | C: 2000 kN | C0: 2500 kN | Limiting speed: 2000 r/min
C 3048d: 240 mm | D: 360 mm | B: 92 mm | C: 1340 kN | C0: 2160 kN | Limiting speed: 2000 r/min
C 3048 Kd: 240 mm | D: 360 mm | B: 92 mm | C: 1340 kN | C0: 2160 kN | Limiting speed: 2000 r/min
C 3148d: 240 mm | D: 400 mm | B: 128 mm | C: 2320 kN | C0: 3450 kN | Limiting speed: 1700 r/min
C 3148 Kd: 240 mm | D: 400 mm | B: 128 mm | C: 2320 kN | C0: 3450 kN | Limiting speed: 1700 r/min
C 3052d: 260 mm | D: 400 mm | B: 104 mm | C: 1760 kN | C0: 2850 kN | Limiting speed: 1800 r/min
C 3052 Kd: 260 mm | D: 400 mm | B: 104 mm | C: 1760 kN | C0: 2850 kN | Limiting speed: 1800 r/min
C 3152d: 260 mm | D: 440 mm | B: 144 mm | C: 2650 kN | C0: 4050 kN | Limiting speed: 1500 r/min
C 3152 Kd: 260 mm | D: 440 mm | B: 144 mm | C: 2650 kN | C0: 4050 kN | Limiting speed: 1500 r/min
C 3056d: 280 mm | D: 420 mm | B: 106 mm | C: 1860 kN | C0: 3100 kN | Limiting speed: 1600 r/min
C 3056 Kd: 280 mm | D: 420 mm | B: 106 mm | C: 1860 kN | C0: 3100 kN | Limiting speed: 1600 r/min
C 3156d: 280 mm | D: 460 mm | B: 146 mm | C: 2850 kN | C0: 4500 kN | Limiting speed: 1400 r/min
C 3156 Kd: 280 mm | D: 460 mm | B: 146 mm | C: 2850 kN | C0: 4500 kN | Limiting speed: 1400 r/min
C 3060 Md: 300 mm | D: 460 mm | B: 118 mm | C: 2160 kN | C0: 3750 kN | Limiting speed: 1500 r/min
C 3060 KMd: 300 mm | D: 460 mm | B: 118 mm | C: 2160 kN | C0: 3750 kN | Limiting speed: 1500 r/min
C 3160d: 300 mm | D: 500 mm | B: 160 mm | C: 3250 kN | C0: 5200 kN | Limiting speed: 1300 r/min
C 3160 Kd: 300 mm | D: 500 mm | B: 160 mm | C: 3250 kN | C0: 5200 kN | Limiting speed: 1300 r/min
C 3064 Md: 320 mm | D: 480 mm | B: 121 mm | C: 2280 kN | C0: 4000 kN | Limiting speed: 1400 r/min
C 3064 KMd: 320 mm | D: 480 mm | B: 121 mm | C: 2280 kN | C0: 4000 kN | Limiting speed: 1400 r/min
C 3164 Md: 320 mm | D: 540 mm | B: 176 mm | C: 4150 kN | C0: 6300 kN | Limiting speed: 1300 r/min
C 3164 KMd: 320 mm | D: 540 mm | B: 176 mm | C: 4150 kN | C0: 6300 kN | Limiting speed: 1300 r/min
C 3068 Md: 340 mm | D: 520 mm | B: 133 mm | C: 2900 kN | C0: 5000 kN | Limiting speed: 1300 r/min
C 3068 KMd: 340 mm | D: 520 mm | B: 133 mm | C: 2900 kN | C0: 5000 kN | Limiting speed: 1300 r/min
C 3168 Md: 340 mm | D: 580 mm | B: 190 mm | C: 4900 kN | C0: 7500 kN | Limiting speed: 1200 r/min
C 3168 KMd: 340 mm | D: 580 mm | B: 190 mm | C: 4900 kN | C0: 7500 kN | Limiting speed: 1200 r/min
C 3072 Md: 360 mm | D: 540 mm | B: 134 mm | C: 2900 kN | C0: 5000 kN | Limiting speed: 1200 r/min
C 3072 KMd: 360 mm | D: 540 mm | B: 134 mm | C: 2900 kN | C0: 5000 kN | Limiting speed: 1200 r/min
C 3172 Md: 360 mm | D: 600 mm | B: 192 mm | C: 5000 kN | C0: 8000 kN | Limiting speed: 1100 r/min
C 3172 KMd: 360 mm | D: 600 mm | B: 192 mm | C: 5000 kN | C0: 8000 kN | Limiting speed: 1100 r/min
C 3076 Md: 380 mm | D: 560 mm | B: 135 mm | C: 3000 kN | C0: 5200 kN | Limiting speed: 1200 r/min
C 3076 KMd: 380 mm | D: 560 mm | B: 135 mm | C: 3000 kN | C0: 5200 kN | Limiting speed: 1200 r/min
C 3176 MBd: 380 mm | D: 620 mm | B: 194 mm | C: 4550 kN | C0: 7500 kN | Limiting speed: 1000 r/min
C 3176 KMBd: 380 mm | D: 620 mm | B: 194 mm | C: 4550 kN | C0: 7500 kN | Limiting speed: 1000 r/min
C 3080 Md: 400 mm | D: 600 mm | B: 148 mm | C: 3650 kN | C0: 6200 kN | Limiting speed: 1100 r/min
C 3080 KMd: 400 mm | D: 600 mm | B: 148 mm | C: 3650 kN | C0: 6200 kN | Limiting speed: 1100 r/min
C 3180 MBd: 400 mm | D: 650 mm | B: 200 mm | C: 5000 kN | C0: 8650 kN | Limiting speed: 950 r/min
C 3180 KMBd: 400 mm | D: 650 mm | B: 200 mm | C: 5000 kN | C0: 8650 kN | Limiting speed: 950 r/min
C 3084 Md: 420 mm | D: 620 mm | B: 150 mm | C: 3800 kN | C0: 6400 kN | Limiting speed: 1100 r/min
C 3084 KMd: 420 mm | D: 620 mm | B: 150 mm | C: 3800 kN | C0: 6400 kN | Limiting speed: 1100 r/min
C 3184 Md: 420 mm | D: 700 mm | B: 224 mm | C: 6000 kN | C0: 10400 kN | Limiting speed: 900 r/min
C 3184 KMd: 420 mm | D: 700 mm | B: 224 mm | C: 6000 kN | C0: 10400 kN | Limiting speed: 900 r/min
C 3088 MBd: 440 mm | D: 650 mm | B: 157 mm | C: 3750 kN | C0: 6400 kN | Limiting speed: 1000 r/min
C 3088 KMBd: 440 mm | D: 650 mm | B: 157 mm | C: 3750 kN | C0: 6400 kN | Limiting speed: 1000 r/min
C 3188 MBd: 440 mm | D: 720 mm | B: 226 mm | C: 5700 kN | C0: 9300 kN | Limiting speed: 900 r/min
C 3188 KMBd: 440 mm | D: 720 mm | B: 226 mm | C: 5700 kN | C0: 9300 kN | Limiting speed: 900 r/min
C 3092 Md: 460 mm | D: 680 mm | B: 163 mm | C: 4000 kN | C0: 7500 kN | Limiting speed: 950 r/min
C 3092 KMd: 460 mm | D: 680 mm | B: 163 mm | C: 4000 kN | C0: 7500 kN | Limiting speed: 950 r/min
C 3192 Md: 460 mm | D: 760 mm | B: 240 mm | C: 6800 kN | C0: 12000 kN | Limiting speed: 800 r/min
C 3192 KMd: 460 mm | D: 760 mm | B: 240 mm | C: 6800 kN | C0: 12000 kN | Limiting speed: 800 r/min
C 3096 Md: 480 mm | D: 700 mm | B: 165 mm | C: 4050 kN | C0: 7800 kN | Limiting speed: 900 r/min
C 3096 KMd: 480 mm | D: 700 mm | B: 165 mm | C: 4050 kN | C0: 7800 kN | Limiting speed: 900 r/min
C 3196 MBd: 480 mm | D: 790 mm | B: 248 mm | C: 6950 kN | C0: 12500 kN | Limiting speed: 750 r/min
C 3196 KMBd: 480 mm | D: 790 mm | B: 248 mm | C: 6950 kN | C0: 12500 kN | Limiting speed: 750 r/min
C 30/500 Md: 500 mm | D: 720 mm | B: 167 mm | C: 4250 kN | C0: 8300 kN | Limiting speed: 900 r/min
C 30/500 KMd: 500 mm | D: 720 mm | B: 167 mm | C: 4250 kN | C0: 8300 kN | Limiting speed: 900 r/min
C 31/500 Md: 500 mm | D: 830 mm | B: 264 mm | C: 7500 kN | C0: 12700 kN | Limiting speed: 750 r/min
C 31/500 KMd: 500 mm | D: 830 mm | B: 264 mm | C: 7500 kN | C0: 12700 kN | Limiting speed: 750 r/min
C 30/530 Md: 530 mm | D: 780 mm | B: 185 mm | C: 5100 kN | C0: 9500 kN | Limiting speed: 800 r/min
C 30/530 KMd: 530 mm | D: 780 mm | B: 185 mm | C: 5100 kN | C0: 9500 kN | Limiting speed: 800 r/min
C 31/530 Md: 530 mm | D: 870 mm | B: 272 mm | C: 8800 kN | C0: 15600 kN | Limiting speed: 670 r/min
C 31/530 KMd: 530 mm | D: 870 mm | B: 272 mm | C: 8800 kN | C0: 15600 kN | Limiting speed: 670 r/min
C 30/560 Md: 560 mm | D: 820 mm | B: 195 mm | C: 5600 kN | C0: 11000 kN | Limiting speed: 750 r/min
C 30/560 KMd: 560 mm | D: 820 mm | B: 195 mm | C: 5600 kN | C0: 11000 kN | Limiting speed: 750 r/min
C 31/560 MBd: 560 mm | D: 920 mm | B: 280 mm | C: 9500 kN | C0: 17000 kN | Limiting speed: 670 r/min
C 31/560 KMBd: 560 mm | D: 920 mm | B: 280 mm | C: 9500 kN | C0: 17000 kN | Limiting speed: 670 r/min
C 30/600 Md: 600 mm | D: 870 mm | B: 200 mm | C: 6300 kN | C0: 12200 kN | Limiting speed: 700 r/min
C 30/600 KMd: 600 mm | D: 870 mm | B: 200 mm | C: 6300 kN | C0: 12200 kN | Limiting speed: 700 r/min
C 31/600 MBd: 600 mm | D: 980 mm | B: 300 mm | C: 10200 kN | C0: 18000 kN | Limiting speed: 600 r/min
C 31/600 KMBd: 600 mm | D: 980 mm | B: 300 mm | C: 10200 kN | C0: 18000 kN | Limiting speed: 600 r/min
C 30/630 Md: 630 mm | D: 920 mm | B: 212 mm | C: 6800 kN | C0: 12900 kN | Limiting speed: 670 r/min
C 30/630 KMd: 630 mm | D: 920 mm | B: 212 mm | C: 6800 kN | C0: 12900 kN | Limiting speed: 670 r/min
C 31/630 MBd: 630 mm | D: 1030 mm | B: 315 mm | C: 12200 kN | C0: 22000 kN | Limiting speed: 560 r/min
C 31/630 KMBd: 630 mm | D: 1030 mm | B: 315 mm | C: 12200 kN | C0: 22000 kN | Limiting speed: 560 r/min
C 30/670 Md: 670 mm | D: 980 mm | B: 230 mm | C: 8150 kN | C0: 16300 kN | Limiting speed: 600 r/min
C 30/670 KMd: 670 mm | D: 980 mm | B: 230 mm | C: 8150 kN | C0: 16300 kN | Limiting speed: 600 r/min
C 31/670 MBd: 670 mm | D: 1090 mm | B: 336 mm | C: 12000 kN | C0: 22000 kN | Limiting speed: 530 r/min
C 31/670 KMBd: 670 mm | D: 1090 mm | B: 336 mm | C: 12000 kN | C0: 22000 kN | Limiting speed: 530 r/min
C 30/710 Md: 710 mm | D: 1030 mm | B: 236 mm | C: 8800 kN | C0: 17300 kN | Limiting speed: 560 r/min
C 30/710 KMd: 710 mm | D: 1030 mm | B: 236 mm | C: 8800 kN | C0: 17300 kN | Limiting speed: 560 r/min
C 31/710 MBd: 710 mm | D: 1150 mm | B: 345 mm | C: 12700 kN | C0: 24000 kN | Limiting speed: 480 r/min
C 31/710 KMBd: 710 mm | D: 1150 mm | B: 345 mm | C: 12700 kN | C0: 24000 kN | Limiting speed: 480 r/min
C 30/750 MBd: 750 mm | D: 1090 mm | B: 250 mm | C: 9000 kN | C0: 18000 kN | Limiting speed: 530 r/min
C 30/750 KMBd: 750 mm | D: 1090 mm | B: 250 mm | C: 9000 kN | C0: 18000 kN | Limiting speed: 530 r/min
C 31/750 MBd: 750 mm | D: 1220 mm | B: 365 mm | C: 16000 kN | C0: 30500 kN | Limiting speed: 450 r/min
C 31/750 KMBd: 750 mm | D: 1220 mm | B: 365 mm | C: 16000 kN | C0: 30500 kN | Limiting speed: 450 r/min
C 30/800 MBd: 800 mm | D: 1150 mm | B: 258 mm | C: 9150 kN | C0: 18600 kN | Limiting speed: 480 r/min
C 30/800 KMBd: 800 mm | D: 1150 mm | B: 258 mm | C: 9150 kN | C0: 18600 kN | Limiting speed: 480 r/min
C 31/800 MBd: 800 mm | D: 1280 mm | B: 375 mm | C: 15600 kN | C0: 30500 kN | Limiting speed: 400 r/min
C 31/800 KMBd: 800 mm | D: 1280 mm | B: 375 mm | C: 15600 kN | C0: 30500 kN | Limiting speed: 400 r/min
C 30/850 MBd: 850 mm | D: 1220 mm | B: 272 mm | C: 11200 kN | C0: 24000 kN | Limiting speed: 430 r/min
C 30/850 KMBd: 850 mm | D: 1220 mm | B: 272 mm | C: 11200 kN | C0: 24000 kN | Limiting speed: 430 r/min
C 31/850 MBd: 850 mm | D: 1360 mm | B: 400 mm | C: 16000 kN | C0: 32000 kN | Limiting speed: 380 r/min
C 31/850 KMBd: 850 mm | D: 1360 mm | B: 400 mm | C: 16000 kN | C0: 32000 kN | Limiting speed: 380 r/min
C 30/900 Md: 900 mm | D: 1280 mm | B: 280 mm | C: 12700 kN | C0: 26500 kN | Limiting speed: 400 r/min
C 30/900 KMd: 900 mm | D: 1280 mm | B: 280 mm | C: 12700 kN | C0: 26500 kN | Limiting speed: 400 r/min
C 30/950 MBd: 950 mm | D: 1360 mm | B: 300 mm | C: 12900 kN | C0: 27500 kN | Limiting speed: 380 r/min
C 30/950 KMBd: 950 mm | D: 1360 mm | B: 300 mm | C: 12900 kN | C0: 27500 kN | Limiting speed: 380 r/min
C 30/1000 MBd: 1000 mm | D: 1420 mm | B: 308 mm | C: 13400 kN | C0: 29000 kN | Limiting speed: 340 r/min
C 30/1000 KMBd: 1000 mm | D: 1420 mm | B: 308 mm | C: 13400 kN | C0: 29000 kN | Limiting speed: 340 r/min
C 31/1000 MBd: 1000 mm | D: 1580 mm | B: 462 mm | C: 22800 kN | C0: 45500 kN | Limiting speed: 300 r/min
C 31/1000 KMBd: 1000 mm | D: 1580 mm | B: 462 mm | C: 22800 kN | C0: 45500 kN | Limiting speed: 300 r/min
C 30/1250 MBd: 1250 mm | D: 1750 mm | B: 375 mm | C: 20400 kN | C0: 45000 kN | Limiting speed: 240 r/min
C 30/1250 KMBd: 1250 mm | D: 1750 mm | B: 375 mm | C: 20400 kN | C0: 45000 kN | Limiting speed: 240 r/min
C 3120 KVd: 90 mm | D: 165 mm | B: 52 mm | C: 475 kN | C0: 655 kN | Limiting speed: 1300 r/min

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
