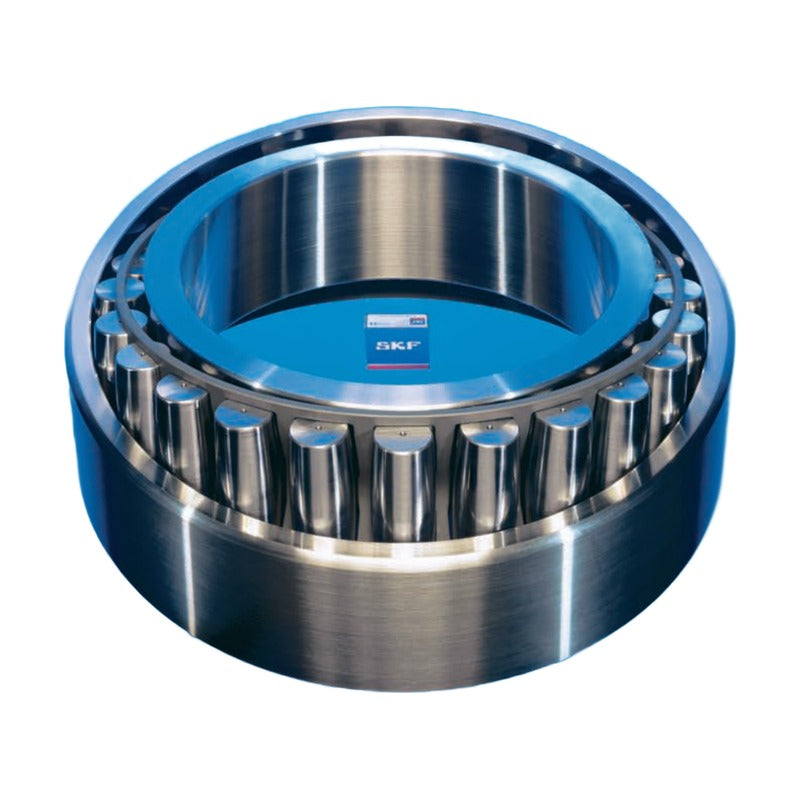

SKF CARB toroidal roller bearings, series C 39, 40, 41, 49, 59, 60, 69, with cylindrical or tapered bore, caged (TN9, M, MB) or full complement (V). Bore diameters 30-1180 mm.

Key features

  • Accommodates axial displacement within the bearing like a cylindrical roller bearing
  • Self-aligning like a spherical roller bearing
  • Ideal non-locating bearing in combination with a spherical roller bearing
  • Cylindrical and tapered (K = 1:12, K30 = 1:30) bore versions
  • Full complement (V) designs for very high load capacity at low speeds

Specifications

Bearing type CARB toroidal roller bearing
Series C 39, 40, 41, 49, 59, 60, 69
Bore range d 30-1180 mm
Outside dia. range D 55-1540 mm
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 798-811
C 6006 V d: 30 mm | D: 55 mm | B: 45 mm | C: 134 kN | C0: 180 kN | Limiting speed: 3000 r/min
C 4908 V d: 40 mm | D: 62 mm | B: 22 mm | C: 76.5 kN | C0: 100 kN | Limiting speed: 4300 r/min
C 4908 K30V d: 40 mm | D: 62 mm | B: 22 mm | C: 76.5 kN | C0: 100 kN | Limiting speed: 4300 r/min
C 5908 V d: 40 mm | D: 62 mm | B: 30 mm | C: 104 kN | C0: 143 kN | Limiting speed: 3400 r/min
C 6908 V d: 40 mm | D: 62 mm | B: 40 mm | C: 122 kN | C0: 180 kN | Limiting speed: 2800 r/min
C 4909 V d: 45 mm | D: 68 mm | B: 22 mm | C: 81.5 kN | C0: 112 kN | Limiting speed: 3800 r/min
C 4909 K30V d: 45 mm | D: 68 mm | B: 22 mm | C: 81.5 kN | C0: 112 kN | Limiting speed: 3800 r/min
C 5909 V d: 45 mm | D: 68 mm | B: 30 mm | C: 110 kN | C0: 163 kN | Limiting speed: 3200 r/min
C 6909 V d: 45 mm | D: 68 mm | B: 40 mm | C: 132 kN | C0: 200 kN | Limiting speed: 2600 r/min
C 4910 V d: 50 mm | D: 72 mm | B: 22 mm | C: 86.5 kN | C0: 125 kN | Limiting speed: 3600 r/min
C 4910 K30V d: 50 mm | D: 72 mm | B: 22 mm | C: 86.5 kN | C0: 125 kN | Limiting speed: 3600 r/min
C 5910 V d: 50 mm | D: 72 mm | B: 30 mm | C: 118 kN | C0: 180 kN | Limiting speed: 2800 r/min
C 6910 V d: 50 mm | D: 72 mm | B: 40 mm | C: 140 kN | C0: 224 kN | Limiting speed: 2200 r/min
C 4010 TN9 d: 50 mm | D: 80 mm | B: 30 mm | C: 116 kN | C0: 140 kN | Limiting speed: 7500 r/min
C 4010 K30TN9 d: 50 mm | D: 80 mm | B: 30 mm | C: 116 kN | C0: 140 kN | Limiting speed: 7500 r/min
C 4010 V d: 50 mm | D: 80 mm | B: 30 mm | C: 137 kN | C0: 176 kN | Limiting speed: 3000 r/min
C 4010 K30V d: 50 mm | D: 80 mm | B: 30 mm | C: 137 kN | C0: 176 kN | Limiting speed: 3000 r/min
C 4911 V d: 55 mm | D: 80 mm | B: 25 mm | C: 106 kN | C0: 153 kN | Limiting speed: 3200 r/min
C 4911 K30V d: 55 mm | D: 80 mm | B: 25 mm | C: 106 kN | C0: 153 kN | Limiting speed: 3200 r/min
C 5911 V d: 55 mm | D: 80 mm | B: 34 mm | C: 143 kN | C0: 224 kN | Limiting speed: 2600 r/min
C 6911 V d: 55 mm | D: 80 mm | B: 45 mm | C: 180 kN | C0: 300 kN | Limiting speed: 2000 r/min
C 4912 V d: 60 mm | D: 85 mm | B: 25 mm | C: 112 kN | C0: 170 kN | Limiting speed: 3000 r/min
C 4912 K30V d: 60 mm | D: 85 mm | B: 25 mm | C: 112 kN | C0: 170 kN | Limiting speed: 3000 r/min
C 5912 V d: 60 mm | D: 85 mm | B: 34 mm | C: 150 kN | C0: 240 kN | Limiting speed: 2400 r/min
C 6912 V d: 60 mm | D: 85 mm | B: 45 mm | C: 190 kN | C0: 335 kN | Limiting speed: 1900 r/min
C 4913 V d: 65 mm | D: 90 mm | B: 25 mm | C: 116 kN | C0: 180 kN | Limiting speed: 2800 r/min
C 4913 K30V d: 65 mm | D: 90 mm | B: 25 mm | C: 116 kN | C0: 180 kN | Limiting speed: 2800 r/min
C 5913 V d: 65 mm | D: 90 mm | B: 34 mm | C: 156 kN | C0: 260 kN | Limiting speed: 2200 r/min
C 6913 V d: 65 mm | D: 90 mm | B: 45 mm | C: 196 kN | C0: 355 kN | Limiting speed: 1800 r/min
C 4013 V d: 65 mm | D: 100 mm | B: 35 mm | C: 196 kN | C0: 275 kN | Limiting speed: 2400 r/min
C 4013 K30V d: 65 mm | D: 100 mm | B: 35 mm | C: 196 kN | C0: 275 kN | Limiting speed: 2400 r/min
C 4914 V d: 70 mm | D: 100 mm | B: 30 mm | C: 163 kN | C0: 240 kN | Limiting speed: 2600 r/min
C 4914 K30V d: 70 mm | D: 100 mm | B: 30 mm | C: 163 kN | C0: 240 kN | Limiting speed: 2600 r/min
C 5914 V d: 70 mm | D: 100 mm | B: 40 mm | C: 196 kN | C0: 310 kN | Limiting speed: 2000 r/min
C 6914 V d: 70 mm | D: 100 mm | B: 54 mm | C: 265 kN | C0: 455 kN | Limiting speed: 1700 r/min
C 4915 V d: 75 mm | D: 105 mm | B: 30 mm | C: 166 kN | C0: 255 kN | Limiting speed: 2400 r/min
C 4915 K30V d: 75 mm | D: 105 mm | B: 30 mm | C: 166 kN | C0: 255 kN | Limiting speed: 2400 r/min
C 5915 V d: 75 mm | D: 105 mm | B: 40 mm | C: 204 kN | C0: 325 kN | Limiting speed: 1900 r/min
C 6915 V/VE240 d: 75 mm | D: 105 mm | B: 54 mm | C: 204 kN | C0: 325 kN | Limiting speed: 1600 r/min
C 4015 V d: 75 mm | D: 115 mm | B: 40 mm | C: 236 kN | C0: 345 kN | Limiting speed: 2000 r/min
C 4015 K30V d: 75 mm | D: 115 mm | B: 40 mm | C: 236 kN | C0: 345 kN | Limiting speed: 2000 r/min
C 4916 V d: 80 mm | D: 110 mm | B: 30 mm | C: 173 kN | C0: 275 kN | Limiting speed: 2200 r/min
C 4916 K30V d: 80 mm | D: 110 mm | B: 30 mm | C: 173 kN | C0: 275 kN | Limiting speed: 2200 r/min
C 5916 V d: 80 mm | D: 110 mm | B: 40 mm | C: 208 kN | C0: 345 kN | Limiting speed: 1800 r/min
C 4917 V d: 85 mm | D: 120 mm | B: 35 mm | C: 224 kN | C0: 355 kN | Limiting speed: 2000 r/min
C 4917 K30V d: 85 mm | D: 120 mm | B: 35 mm | C: 224 kN | C0: 355 kN | Limiting speed: 2000 r/min
C 5917 V d: 85 mm | D: 120 mm | B: 46 mm | C: 275 kN | C0: 465 kN | Limiting speed: 1700 r/min
C 4918 V d: 90 mm | D: 125 mm | B: 35 mm | C: 186 kN | C0: 315 kN | Limiting speed: 2000 r/min
C 4918 K30V d: 90 mm | D: 125 mm | B: 35 mm | C: 186 kN | C0: 315 kN | Limiting speed: 2000 r/min
C 5918 V d: 90 mm | D: 125 mm | B: 46 mm | C: 224 kN | C0: 400 kN | Limiting speed: 1600 r/min
BSC-2039 V d: 90 mm | D: 150 mm | B: 72 mm | C: 455 kN | C0: 670 kN | Limiting speed: 1500 r/min
C 4920 V d: 100 mm | D: 140 mm | B: 40 mm | C: 275 kN | C0: 450 kN | Limiting speed: 1700 r/min
C 4920 K30V d: 100 mm | D: 140 mm | B: 40 mm | C: 275 kN | C0: 450 kN | Limiting speed: 1700 r/min
C 5920 V d: 100 mm | D: 140 mm | B: 54 mm | C: 375 kN | C0: 640 kN | Limiting speed: 1400 r/min
C 4020 V d: 100 mm | D: 150 mm | B: 50 mm | C: 355 kN | C0: 530 kN | Limiting speed: 1400 r/min
C 4020 K30V d: 100 mm | D: 150 mm | B: 50 mm | C: 355 kN | C0: 530 kN | Limiting speed: 1400 r/min
C 5020 V d: 100 mm | D: 150 mm | B: 67 mm | C: 510 kN | C0: 865 kN | Limiting speed: 1100 r/min
C 4120 V/VE240 d: 100 mm | D: 165 mm | B: 65 mm | C: 475 kN | C0: 655 kN | Limiting speed: 1300 r/min
C 4120 K30V/VE240 d: 100 mm | D: 165 mm | B: 65 mm | C: 475 kN | C0: 655 kN | Limiting speed: 1300 r/min
BSC-2034 V d: 100 mm | D: 170 mm | B: 65 mm | C: 475 kN | C0: 655 kN | Limiting speed: 1400 r/min
C 4022 V d: 110 mm | D: 170 mm | B: 60 mm | C: 500 kN | C0: 800 kN | Limiting speed: 1200 r/min
C 4022 K30V d: 110 mm | D: 170 mm | B: 60 mm | C: 500 kN | C0: 800 kN | Limiting speed: 1200 r/min
C 4122 V d: 110 mm | D: 180 mm | B: 69 mm | C: 670 kN | C0: 1000 kN | Limiting speed: 900 r/min
C 4122 K30V d: 110 mm | D: 180 mm | B: 69 mm | C: 670 kN | C0: 1000 kN | Limiting speed: 900 r/min
C 4024 V d: 120 mm | D: 180 mm | B: 60 mm | C: 530 kN | C0: 880 kN | Limiting speed: 1100 r/min
C 4024 K30V d: 120 mm | D: 180 mm | B: 60 mm | C: 530 kN | C0: 880 kN | Limiting speed: 1100 r/min
C 4124 V d: 120 mm | D: 200 mm | B: 80 mm | C: 780 kN | C0: 1120 kN | Limiting speed: 750 r/min
C 4124 K30V d: 120 mm | D: 200 mm | B: 80 mm | C: 780 kN | C0: 1120 kN | Limiting speed: 750 r/min
C 4026 d: 130 mm | D: 200 mm | B: 69 mm | C: 620 kN | C0: 930 kN | Limiting speed: 2800 r/min
C 4026 K30 d: 130 mm | D: 200 mm | B: 69 mm | C: 620 kN | C0: 930 kN | Limiting speed: 2800 r/min
C 4026 V d: 130 mm | D: 200 mm | B: 69 mm | C: 720 kN | C0: 1120 kN | Limiting speed: 850 r/min
C 4026 K30V d: 130 mm | D: 200 mm | B: 69 mm | C: 720 kN | C0: 1120 kN | Limiting speed: 850 r/min
C 4126 V/VE240 d: 130 mm | D: 210 mm | B: 80 mm | C: 750 kN | C0: 1100 kN | Limiting speed: 670 r/min
C 4126 K30V/VE240 d: 130 mm | D: 210 mm | B: 80 mm | C: 750 kN | C0: 1100 kN | Limiting speed: 670 r/min
C 4028 V d: 140 mm | D: 210 mm | B: 69 mm | C: 750 kN | C0: 1220 kN | Limiting speed: 800 r/min
C 4028 K30V d: 140 mm | D: 210 mm | B: 69 mm | C: 750 kN | C0: 1220 kN | Limiting speed: 800 r/min
C 4128 V d: 140 mm | D: 225 mm | B: 85 mm | C: 1000 kN | C0: 1600 kN | Limiting speed: 630 r/min
C 4128 K30V d: 140 mm | D: 225 mm | B: 85 mm | C: 1000 kN | C0: 1600 kN | Limiting speed: 630 r/min
C 4030 V d: 150 mm | D: 225 mm | B: 75 mm | C: 780 kN | C0: 1320 kN | Limiting speed: 750 r/min
C 4030 K30V d: 150 mm | D: 225 mm | B: 75 mm | C: 780 kN | C0: 1320 kN | Limiting speed: 750 r/min
C 4130 V d: 150 mm | D: 250 mm | B: 100 mm | C: 1220 kN | C0: 1860 kN | Limiting speed: 450 r/min
C 4130 K30V d: 150 mm | D: 250 mm | B: 100 mm | C: 1220 kN | C0: 1860 kN | Limiting speed: 450 r/min
C 4032 d: 160 mm | D: 240 mm | B: 80 mm | C: 795 kN | C0: 1160 kN | Limiting speed: 2400 r/min
C 4032 K30 d: 160 mm | D: 240 mm | B: 80 mm | C: 795 kN | C0: 1160 kN | Limiting speed: 2400 r/min
C 4032 V d: 160 mm | D: 240 mm | B: 80 mm | C: 915 kN | C0: 1460 kN | Limiting speed: 600 r/min
C 4032 K30V d: 160 mm | D: 240 mm | B: 80 mm | C: 915 kN | C0: 1460 kN | Limiting speed: 600 r/min
C 4132 V d: 160 mm | D: 270 mm | B: 109 mm | C: 1460 kN | C0: 2160 kN | Limiting speed: 300 r/min
C 4132 K30V d: 160 mm | D: 270 mm | B: 109 mm | C: 1460 kN | C0: 2160 kN | Limiting speed: 300 r/min
C 4034 V d: 170 mm | D: 260 mm | B: 90 mm | C: 1140 kN | C0: 1860 kN | Limiting speed: 500 r/min
C 4034 K30V d: 170 mm | D: 260 mm | B: 90 mm | C: 1140 kN | C0: 1860 kN | Limiting speed: 500 r/min
C 4134 V d: 170 mm | D: 280 mm | B: 109 mm | C: 1530 kN | C0: 2280 kN | Limiting speed: 280 r/min
C 4134 K30V d: 170 mm | D: 280 mm | B: 109 mm | C: 1530 kN | C0: 2280 kN | Limiting speed: 280 r/min
C 4036 V d: 180 mm | D: 280 mm | B: 100 mm | C: 1320 kN | C0: 2120 kN | Limiting speed: 430 r/min
C 4036 K30V d: 180 mm | D: 280 mm | B: 100 mm | C: 1320 kN | C0: 2120 kN | Limiting speed: 430 r/min
C 4136 V d: 180 mm | D: 300 mm | B: 118 mm | C: 1760 kN | C0: 2700 kN | Limiting speed: 220 r/min
C 4136 K30V d: 180 mm | D: 300 mm | B: 118 mm | C: 1760 kN | C0: 2700 kN | Limiting speed: 220 r/min
C 4038 V d: 190 mm | D: 290 mm | B: 100 mm | C: 1370 kN | C0: 2320 kN | Limiting speed: 380 r/min
C 4038 K30V d: 190 mm | D: 290 mm | B: 100 mm | C: 1370 kN | C0: 2320 kN | Limiting speed: 380 r/min
C 4138 V d: 190 mm | D: 320 mm | B: 128 mm | C: 2040 kN | C0: 3150 kN | Limiting speed: 130 r/min
C 4138 K30V d: 190 mm | D: 320 mm | B: 128 mm | C: 2040 kN | C0: 3150 kN | Limiting speed: 130 r/min
C 4040 V d: 200 mm | D: 310 mm | B: 109 mm | C: 1630 kN | C0: 2650 kN | Limiting speed: 260 r/min
C 4040 K30V d: 200 mm | D: 310 mm | B: 109 mm | C: 1630 kN | C0: 2650 kN | Limiting speed: 260 r/min
C 4140 V d: 200 mm | D: 340 mm | B: 140 mm | C: 2360 kN | C0: 3650 kN | Limiting speed: 80 r/min
C 4140 K30V d: 200 mm | D: 340 mm | B: 140 mm | C: 2360 kN | C0: 3650 kN | Limiting speed: 80 r/min
C 4044 V d: 220 mm | D: 340 mm | B: 118 mm | C: 1930 kN | C0: 3250 kN | Limiting speed: 200 r/min
C 4044 K30V d: 220 mm | D: 340 mm | B: 118 mm | C: 1930 kN | C0: 3250 kN | Limiting speed: 200 r/min
C 4060 M d: 300 mm | D: 460 mm | B: 160 mm | C: 2900 kN | C0: 4900 kN | Limiting speed: 1200 r/min
C 4060 K30M d: 300 mm | D: 460 mm | B: 160 mm | C: 2900 kN | C0: 4900 kN | Limiting speed: 1200 r/min
C 3972 M d: 360 mm | D: 480 mm | B: 90 mm | C: 1760 kN | C0: 3250 kN | Limiting speed: 1400 r/min
C 3972 KM d: 360 mm | D: 480 mm | B: 90 mm | C: 1760 kN | C0: 3250 kN | Limiting speed: 1400 r/min
C 3976 MB d: 380 mm | D: 520 mm | B: 106 mm | C: 2120 kN | C0: 4000 kN | Limiting speed: 1300 r/min
C 3976 KMB d: 380 mm | D: 520 mm | B: 106 mm | C: 2120 kN | C0: 4000 kN | Limiting speed: 1300 r/min
C 3980 MB d: 400 mm | D: 540 mm | B: 106 mm | C: 2160 kN | C0: 4150 kN | Limiting speed: 1300 r/min
C 3980 KMB d: 400 mm | D: 540 mm | B: 106 mm | C: 2160 kN | C0: 4150 kN | Limiting speed: 1300 r/min
C 3984 M d: 420 mm | D: 560 mm | B: 106 mm | C: 2160 kN | C0: 4250 kN | Limiting speed: 1200 r/min
C 3984 KM d: 420 mm | D: 560 mm | B: 106 mm | C: 2160 kN | C0: 4250 kN | Limiting speed: 1200 r/min
C 3988 MB d: 440 mm | D: 600 mm | B: 118 mm | C: 2750 kN | C0: 5300 kN | Limiting speed: 1100 r/min
C 3988 KMB d: 440 mm | D: 600 mm | B: 118 mm | C: 2750 kN | C0: 5300 kN | Limiting speed: 1100 r/min
C 3992 MB d: 460 mm | D: 620 mm | B: 118 mm | C: 2700 kN | C0: 5300 kN | Limiting speed: 1100 r/min
C 3992 KMB d: 460 mm | D: 620 mm | B: 118 mm | C: 2700 kN | C0: 5300 kN | Limiting speed: 1100 r/min
C 4192 M d: 460 mm | D: 760 mm | B: 300 mm | C: 8300 kN | C0: 14300 kN | Limiting speed: 630 r/min
C 4192 K30M d: 460 mm | D: 760 mm | B: 300 mm | C: 8300 kN | C0: 14300 kN | Limiting speed: 630 r/min
C 3996 M d: 480 mm | D: 650 mm | B: 128 mm | C: 3100 kN | C0: 6100 kN | Limiting speed: 1000 r/min
C 3996 KM d: 480 mm | D: 650 mm | B: 128 mm | C: 3100 kN | C0: 6100 kN | Limiting speed: 1000 r/min
C 39/500 M d: 500 mm | D: 670 mm | B: 128 mm | C: 3150 kN | C0: 6300 kN | Limiting speed: 950 r/min
C 39/500 KM d: 500 mm | D: 670 mm | B: 128 mm | C: 3150 kN | C0: 6300 kN | Limiting speed: 950 r/min
C 41/500 MB d: 500 mm | D: 830 mm | B: 325 mm | C: 9800 kN | C0: 17600 kN | Limiting speed: 560 r/min
C 41/500 K30MB d: 500 mm | D: 830 mm | B: 325 mm | C: 9800 kN | C0: 17600 kN | Limiting speed: 560 r/min
C 39/530 M d: 530 mm | D: 710 mm | B: 136 mm | C: 3550 kN | C0: 7100 kN | Limiting speed: 900 r/min
C 39/530 KM d: 530 mm | D: 710 mm | B: 136 mm | C: 3550 kN | C0: 7100 kN | Limiting speed: 900 r/min
C 39/560 M d: 560 mm | D: 750 mm | B: 140 mm | C: 3600 kN | C0: 7350 kN | Limiting speed: 850 r/min
C 39/560 KM d: 560 mm | D: 750 mm | B: 140 mm | C: 3600 kN | C0: 7350 kN | Limiting speed: 850 r/min
C 39/600 M d: 600 mm | D: 800 mm | B: 150 mm | C: 4000 kN | C0: 8800 kN | Limiting speed: 750 r/min
C 39/600 KM d: 600 mm | D: 800 mm | B: 150 mm | C: 4000 kN | C0: 8800 kN | Limiting speed: 750 r/min
C 39/630 M d: 630 mm | D: 850 mm | B: 165 mm | C: 4650 kN | C0: 10000 kN | Limiting speed: 700 r/min
C 39/630 KM d: 630 mm | D: 850 mm | B: 165 mm | C: 4650 kN | C0: 10000 kN | Limiting speed: 700 r/min
C 39/670 M d: 670 mm | D: 900 mm | B: 170 mm | C: 4900 kN | C0: 11200 kN | Limiting speed: 630 r/min
C 39/670 KM d: 670 mm | D: 900 mm | B: 170 mm | C: 4900 kN | C0: 11200 kN | Limiting speed: 630 r/min
C 39/710 M d: 710 mm | D: 950 mm | B: 180 mm | C: 6000 kN | C0: 12500 kN | Limiting speed: 630 r/min
C 39/710 KM d: 710 mm | D: 950 mm | B: 180 mm | C: 6000 kN | C0: 12500 kN | Limiting speed: 630 r/min
C 40/710 M d: 710 mm | D: 1030 mm | B: 315 mm | C: 10600 kN | C0: 21600 kN | Limiting speed: 430 r/min
C 40/710 K30M d: 710 mm | D: 1030 mm | B: 315 mm | C: 10600 kN | C0: 21600 kN | Limiting speed: 430 r/min
C 39/750 M d: 750 mm | D: 1000 mm | B: 185 mm | C: 6100 kN | C0: 13400 kN | Limiting speed: 560 r/min
C 39/750 KM d: 750 mm | D: 1000 mm | B: 185 mm | C: 6100 kN | C0: 13400 kN | Limiting speed: 560 r/min
C 39/800 M d: 800 mm | D: 1060 mm | B: 195 mm | C: 6400 kN | C0: 14600 kN | Limiting speed: 530 r/min
C 39/800 KM d: 800 mm | D: 1060 mm | B: 195 mm | C: 6400 kN | C0: 14600 kN | Limiting speed: 530 r/min
C 39/850 M d: 850 mm | D: 1120 mm | B: 200 mm | C: 7350 kN | C0: 16300 kN | Limiting speed: 480 r/min
C 39/850 KM d: 850 mm | D: 1120 mm | B: 200 mm | C: 7350 kN | C0: 16300 kN | Limiting speed: 480 r/min
C 39/900 MB d: 900 mm | D: 1180 mm | B: 206 mm | C: 8150 kN | C0: 18000 kN | Limiting speed: 450 r/min
C 39/900 KMB d: 900 mm | D: 1180 mm | B: 206 mm | C: 8150 kN | C0: 18000 kN | Limiting speed: 450 r/min
C 39/950 M d: 950 mm | D: 1250 mm | B: 224 mm | C: 9300 kN | C0: 22000 kN | Limiting speed: 430 r/min
C 39/950 KM d: 950 mm | D: 1250 mm | B: 224 mm | C: 9300 kN | C0: 22000 kN | Limiting speed: 430 r/min
C 39/1060 MB d: 1060 mm | D: 1400 mm | B: 250 mm | C: 12500 kN | C0: 29000 kN | Limiting speed: 340 r/min
C 39/1060 KMB d: 1060 mm | D: 1400 mm | B: 250 mm | C: 12500 kN | C0: 29000 kN | Limiting speed: 340 r/min
C 39/1180 M d: 1180 mm | D: 1540 mm | B: 272 mm | C: 12900 kN | C0: 31500 kN | Limiting speed: 300 r/min
C 39/1180 KM d: 1180 mm | D: 1540 mm | B: 272 mm | C: 12900 kN | C0: 31500 kN | Limiting speed: 300 r/min
Spherical Roller BearingsSKF
156 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF CARB Toroidal Roller Bearings C 39, 40, 41, 49, 59, 60, 69 Series

Brand SKF·Spherical Roller Bearings

Available part numbers (156)

C 6006 V, C 4908 V, C 4908 K30V, C 5908 V, C 6908 V, C 4909 V, C 4909 K30V, C 5909 V, C 6909 V, C 4910 V + 146 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
C 6006 Vd: 30 mm | D: 55 mm | B: 45 mm | C: 134 kN | C0: 180 kN | Limiting speed: 3000 r/min
C 4908 Vd: 40 mm | D: 62 mm | B: 22 mm | C: 76.5 kN | C0: 100 kN | Limiting speed: 4300 r/min
C 4908 K30Vd: 40 mm | D: 62 mm | B: 22 mm | C: 76.5 kN | C0: 100 kN | Limiting speed: 4300 r/min
C 5908 Vd: 40 mm | D: 62 mm | B: 30 mm | C: 104 kN | C0: 143 kN | Limiting speed: 3400 r/min
C 6908 Vd: 40 mm | D: 62 mm | B: 40 mm | C: 122 kN | C0: 180 kN | Limiting speed: 2800 r/min
C 4909 Vd: 45 mm | D: 68 mm | B: 22 mm | C: 81.5 kN | C0: 112 kN | Limiting speed: 3800 r/min
C 4909 K30Vd: 45 mm | D: 68 mm | B: 22 mm | C: 81.5 kN | C0: 112 kN | Limiting speed: 3800 r/min
C 5909 Vd: 45 mm | D: 68 mm | B: 30 mm | C: 110 kN | C0: 163 kN | Limiting speed: 3200 r/min
C 6909 Vd: 45 mm | D: 68 mm | B: 40 mm | C: 132 kN | C0: 200 kN | Limiting speed: 2600 r/min
C 4910 Vd: 50 mm | D: 72 mm | B: 22 mm | C: 86.5 kN | C0: 125 kN | Limiting speed: 3600 r/min
C 4910 K30Vd: 50 mm | D: 72 mm | B: 22 mm | C: 86.5 kN | C0: 125 kN | Limiting speed: 3600 r/min
C 5910 Vd: 50 mm | D: 72 mm | B: 30 mm | C: 118 kN | C0: 180 kN | Limiting speed: 2800 r/min
C 6910 Vd: 50 mm | D: 72 mm | B: 40 mm | C: 140 kN | C0: 224 kN | Limiting speed: 2200 r/min
C 4010 TN9d: 50 mm | D: 80 mm | B: 30 mm | C: 116 kN | C0: 140 kN | Limiting speed: 7500 r/min
C 4010 K30TN9d: 50 mm | D: 80 mm | B: 30 mm | C: 116 kN | C0: 140 kN | Limiting speed: 7500 r/min
C 4010 Vd: 50 mm | D: 80 mm | B: 30 mm | C: 137 kN | C0: 176 kN | Limiting speed: 3000 r/min
C 4010 K30Vd: 50 mm | D: 80 mm | B: 30 mm | C: 137 kN | C0: 176 kN | Limiting speed: 3000 r/min
C 4911 Vd: 55 mm | D: 80 mm | B: 25 mm | C: 106 kN | C0: 153 kN | Limiting speed: 3200 r/min
C 4911 K30Vd: 55 mm | D: 80 mm | B: 25 mm | C: 106 kN | C0: 153 kN | Limiting speed: 3200 r/min
C 5911 Vd: 55 mm | D: 80 mm | B: 34 mm | C: 143 kN | C0: 224 kN | Limiting speed: 2600 r/min
C 6911 Vd: 55 mm | D: 80 mm | B: 45 mm | C: 180 kN | C0: 300 kN | Limiting speed: 2000 r/min
C 4912 Vd: 60 mm | D: 85 mm | B: 25 mm | C: 112 kN | C0: 170 kN | Limiting speed: 3000 r/min
C 4912 K30Vd: 60 mm | D: 85 mm | B: 25 mm | C: 112 kN | C0: 170 kN | Limiting speed: 3000 r/min
C 5912 Vd: 60 mm | D: 85 mm | B: 34 mm | C: 150 kN | C0: 240 kN | Limiting speed: 2400 r/min
C 6912 Vd: 60 mm | D: 85 mm | B: 45 mm | C: 190 kN | C0: 335 kN | Limiting speed: 1900 r/min
C 4913 Vd: 65 mm | D: 90 mm | B: 25 mm | C: 116 kN | C0: 180 kN | Limiting speed: 2800 r/min
C 4913 K30Vd: 65 mm | D: 90 mm | B: 25 mm | C: 116 kN | C0: 180 kN | Limiting speed: 2800 r/min
C 5913 Vd: 65 mm | D: 90 mm | B: 34 mm | C: 156 kN | C0: 260 kN | Limiting speed: 2200 r/min
C 6913 Vd: 65 mm | D: 90 mm | B: 45 mm | C: 196 kN | C0: 355 kN | Limiting speed: 1800 r/min
C 4013 Vd: 65 mm | D: 100 mm | B: 35 mm | C: 196 kN | C0: 275 kN | Limiting speed: 2400 r/min
C 4013 K30Vd: 65 mm | D: 100 mm | B: 35 mm | C: 196 kN | C0: 275 kN | Limiting speed: 2400 r/min
C 4914 Vd: 70 mm | D: 100 mm | B: 30 mm | C: 163 kN | C0: 240 kN | Limiting speed: 2600 r/min
C 4914 K30Vd: 70 mm | D: 100 mm | B: 30 mm | C: 163 kN | C0: 240 kN | Limiting speed: 2600 r/min
C 5914 Vd: 70 mm | D: 100 mm | B: 40 mm | C: 196 kN | C0: 310 kN | Limiting speed: 2000 r/min
C 6914 Vd: 70 mm | D: 100 mm | B: 54 mm | C: 265 kN | C0: 455 kN | Limiting speed: 1700 r/min
C 4915 Vd: 75 mm | D: 105 mm | B: 30 mm | C: 166 kN | C0: 255 kN | Limiting speed: 2400 r/min
C 4915 K30Vd: 75 mm | D: 105 mm | B: 30 mm | C: 166 kN | C0: 255 kN | Limiting speed: 2400 r/min
C 5915 Vd: 75 mm | D: 105 mm | B: 40 mm | C: 204 kN | C0: 325 kN | Limiting speed: 1900 r/min
C 6915 V/VE240d: 75 mm | D: 105 mm | B: 54 mm | C: 204 kN | C0: 325 kN | Limiting speed: 1600 r/min
C 4015 Vd: 75 mm | D: 115 mm | B: 40 mm | C: 236 kN | C0: 345 kN | Limiting speed: 2000 r/min
C 4015 K30Vd: 75 mm | D: 115 mm | B: 40 mm | C: 236 kN | C0: 345 kN | Limiting speed: 2000 r/min
C 4916 Vd: 80 mm | D: 110 mm | B: 30 mm | C: 173 kN | C0: 275 kN | Limiting speed: 2200 r/min
C 4916 K30Vd: 80 mm | D: 110 mm | B: 30 mm | C: 173 kN | C0: 275 kN | Limiting speed: 2200 r/min
C 5916 Vd: 80 mm | D: 110 mm | B: 40 mm | C: 208 kN | C0: 345 kN | Limiting speed: 1800 r/min
C 4917 Vd: 85 mm | D: 120 mm | B: 35 mm | C: 224 kN | C0: 355 kN | Limiting speed: 2000 r/min
C 4917 K30Vd: 85 mm | D: 120 mm | B: 35 mm | C: 224 kN | C0: 355 kN | Limiting speed: 2000 r/min
C 5917 Vd: 85 mm | D: 120 mm | B: 46 mm | C: 275 kN | C0: 465 kN | Limiting speed: 1700 r/min
C 4918 Vd: 90 mm | D: 125 mm | B: 35 mm | C: 186 kN | C0: 315 kN | Limiting speed: 2000 r/min
C 4918 K30Vd: 90 mm | D: 125 mm | B: 35 mm | C: 186 kN | C0: 315 kN | Limiting speed: 2000 r/min
C 5918 Vd: 90 mm | D: 125 mm | B: 46 mm | C: 224 kN | C0: 400 kN | Limiting speed: 1600 r/min
BSC-2039 Vd: 90 mm | D: 150 mm | B: 72 mm | C: 455 kN | C0: 670 kN | Limiting speed: 1500 r/min
C 4920 Vd: 100 mm | D: 140 mm | B: 40 mm | C: 275 kN | C0: 450 kN | Limiting speed: 1700 r/min
C 4920 K30Vd: 100 mm | D: 140 mm | B: 40 mm | C: 275 kN | C0: 450 kN | Limiting speed: 1700 r/min
C 5920 Vd: 100 mm | D: 140 mm | B: 54 mm | C: 375 kN | C0: 640 kN | Limiting speed: 1400 r/min
C 4020 Vd: 100 mm | D: 150 mm | B: 50 mm | C: 355 kN | C0: 530 kN | Limiting speed: 1400 r/min
C 4020 K30Vd: 100 mm | D: 150 mm | B: 50 mm | C: 355 kN | C0: 530 kN | Limiting speed: 1400 r/min
C 5020 Vd: 100 mm | D: 150 mm | B: 67 mm | C: 510 kN | C0: 865 kN | Limiting speed: 1100 r/min
C 4120 V/VE240d: 100 mm | D: 165 mm | B: 65 mm | C: 475 kN | C0: 655 kN | Limiting speed: 1300 r/min
C 4120 K30V/VE240d: 100 mm | D: 165 mm | B: 65 mm | C: 475 kN | C0: 655 kN | Limiting speed: 1300 r/min
BSC-2034 Vd: 100 mm | D: 170 mm | B: 65 mm | C: 475 kN | C0: 655 kN | Limiting speed: 1400 r/min
C 4022 Vd: 110 mm | D: 170 mm | B: 60 mm | C: 500 kN | C0: 800 kN | Limiting speed: 1200 r/min
C 4022 K30Vd: 110 mm | D: 170 mm | B: 60 mm | C: 500 kN | C0: 800 kN | Limiting speed: 1200 r/min
C 4122 Vd: 110 mm | D: 180 mm | B: 69 mm | C: 670 kN | C0: 1000 kN | Limiting speed: 900 r/min
C 4122 K30Vd: 110 mm | D: 180 mm | B: 69 mm | C: 670 kN | C0: 1000 kN | Limiting speed: 900 r/min
C 4024 Vd: 120 mm | D: 180 mm | B: 60 mm | C: 530 kN | C0: 880 kN | Limiting speed: 1100 r/min
C 4024 K30Vd: 120 mm | D: 180 mm | B: 60 mm | C: 530 kN | C0: 880 kN | Limiting speed: 1100 r/min
C 4124 Vd: 120 mm | D: 200 mm | B: 80 mm | C: 780 kN | C0: 1120 kN | Limiting speed: 750 r/min
C 4124 K30Vd: 120 mm | D: 200 mm | B: 80 mm | C: 780 kN | C0: 1120 kN | Limiting speed: 750 r/min
C 4026d: 130 mm | D: 200 mm | B: 69 mm | C: 620 kN | C0: 930 kN | Limiting speed: 2800 r/min
C 4026 K30d: 130 mm | D: 200 mm | B: 69 mm | C: 620 kN | C0: 930 kN | Limiting speed: 2800 r/min
C 4026 Vd: 130 mm | D: 200 mm | B: 69 mm | C: 720 kN | C0: 1120 kN | Limiting speed: 850 r/min
C 4026 K30Vd: 130 mm | D: 200 mm | B: 69 mm | C: 720 kN | C0: 1120 kN | Limiting speed: 850 r/min
C 4126 V/VE240d: 130 mm | D: 210 mm | B: 80 mm | C: 750 kN | C0: 1100 kN | Limiting speed: 670 r/min
C 4126 K30V/VE240d: 130 mm | D: 210 mm | B: 80 mm | C: 750 kN | C0: 1100 kN | Limiting speed: 670 r/min
C 4028 Vd: 140 mm | D: 210 mm | B: 69 mm | C: 750 kN | C0: 1220 kN | Limiting speed: 800 r/min
C 4028 K30Vd: 140 mm | D: 210 mm | B: 69 mm | C: 750 kN | C0: 1220 kN | Limiting speed: 800 r/min
C 4128 Vd: 140 mm | D: 225 mm | B: 85 mm | C: 1000 kN | C0: 1600 kN | Limiting speed: 630 r/min
C 4128 K30Vd: 140 mm | D: 225 mm | B: 85 mm | C: 1000 kN | C0: 1600 kN | Limiting speed: 630 r/min
C 4030 Vd: 150 mm | D: 225 mm | B: 75 mm | C: 780 kN | C0: 1320 kN | Limiting speed: 750 r/min
C 4030 K30Vd: 150 mm | D: 225 mm | B: 75 mm | C: 780 kN | C0: 1320 kN | Limiting speed: 750 r/min
C 4130 Vd: 150 mm | D: 250 mm | B: 100 mm | C: 1220 kN | C0: 1860 kN | Limiting speed: 450 r/min
C 4130 K30Vd: 150 mm | D: 250 mm | B: 100 mm | C: 1220 kN | C0: 1860 kN | Limiting speed: 450 r/min
C 4032d: 160 mm | D: 240 mm | B: 80 mm | C: 795 kN | C0: 1160 kN | Limiting speed: 2400 r/min
C 4032 K30d: 160 mm | D: 240 mm | B: 80 mm | C: 795 kN | C0: 1160 kN | Limiting speed: 2400 r/min
C 4032 Vd: 160 mm | D: 240 mm | B: 80 mm | C: 915 kN | C0: 1460 kN | Limiting speed: 600 r/min
C 4032 K30Vd: 160 mm | D: 240 mm | B: 80 mm | C: 915 kN | C0: 1460 kN | Limiting speed: 600 r/min
C 4132 Vd: 160 mm | D: 270 mm | B: 109 mm | C: 1460 kN | C0: 2160 kN | Limiting speed: 300 r/min
C 4132 K30Vd: 160 mm | D: 270 mm | B: 109 mm | C: 1460 kN | C0: 2160 kN | Limiting speed: 300 r/min
C 4034 Vd: 170 mm | D: 260 mm | B: 90 mm | C: 1140 kN | C0: 1860 kN | Limiting speed: 500 r/min
C 4034 K30Vd: 170 mm | D: 260 mm | B: 90 mm | C: 1140 kN | C0: 1860 kN | Limiting speed: 500 r/min
C 4134 Vd: 170 mm | D: 280 mm | B: 109 mm | C: 1530 kN | C0: 2280 kN | Limiting speed: 280 r/min
C 4134 K30Vd: 170 mm | D: 280 mm | B: 109 mm | C: 1530 kN | C0: 2280 kN | Limiting speed: 280 r/min
C 4036 Vd: 180 mm | D: 280 mm | B: 100 mm | C: 1320 kN | C0: 2120 kN | Limiting speed: 430 r/min
C 4036 K30Vd: 180 mm | D: 280 mm | B: 100 mm | C: 1320 kN | C0: 2120 kN | Limiting speed: 430 r/min
C 4136 Vd: 180 mm | D: 300 mm | B: 118 mm | C: 1760 kN | C0: 2700 kN | Limiting speed: 220 r/min
C 4136 K30Vd: 180 mm | D: 300 mm | B: 118 mm | C: 1760 kN | C0: 2700 kN | Limiting speed: 220 r/min
C 4038 Vd: 190 mm | D: 290 mm | B: 100 mm | C: 1370 kN | C0: 2320 kN | Limiting speed: 380 r/min
C 4038 K30Vd: 190 mm | D: 290 mm | B: 100 mm | C: 1370 kN | C0: 2320 kN | Limiting speed: 380 r/min
C 4138 Vd: 190 mm | D: 320 mm | B: 128 mm | C: 2040 kN | C0: 3150 kN | Limiting speed: 130 r/min
C 4138 K30Vd: 190 mm | D: 320 mm | B: 128 mm | C: 2040 kN | C0: 3150 kN | Limiting speed: 130 r/min
C 4040 Vd: 200 mm | D: 310 mm | B: 109 mm | C: 1630 kN | C0: 2650 kN | Limiting speed: 260 r/min
C 4040 K30Vd: 200 mm | D: 310 mm | B: 109 mm | C: 1630 kN | C0: 2650 kN | Limiting speed: 260 r/min
C 4140 Vd: 200 mm | D: 340 mm | B: 140 mm | C: 2360 kN | C0: 3650 kN | Limiting speed: 80 r/min
C 4140 K30Vd: 200 mm | D: 340 mm | B: 140 mm | C: 2360 kN | C0: 3650 kN | Limiting speed: 80 r/min
C 4044 Vd: 220 mm | D: 340 mm | B: 118 mm | C: 1930 kN | C0: 3250 kN | Limiting speed: 200 r/min
C 4044 K30Vd: 220 mm | D: 340 mm | B: 118 mm | C: 1930 kN | C0: 3250 kN | Limiting speed: 200 r/min
C 4060 Md: 300 mm | D: 460 mm | B: 160 mm | C: 2900 kN | C0: 4900 kN | Limiting speed: 1200 r/min
C 4060 K30Md: 300 mm | D: 460 mm | B: 160 mm | C: 2900 kN | C0: 4900 kN | Limiting speed: 1200 r/min
C 3972 Md: 360 mm | D: 480 mm | B: 90 mm | C: 1760 kN | C0: 3250 kN | Limiting speed: 1400 r/min
C 3972 KMd: 360 mm | D: 480 mm | B: 90 mm | C: 1760 kN | C0: 3250 kN | Limiting speed: 1400 r/min
C 3976 MBd: 380 mm | D: 520 mm | B: 106 mm | C: 2120 kN | C0: 4000 kN | Limiting speed: 1300 r/min
C 3976 KMBd: 380 mm | D: 520 mm | B: 106 mm | C: 2120 kN | C0: 4000 kN | Limiting speed: 1300 r/min
C 3980 MBd: 400 mm | D: 540 mm | B: 106 mm | C: 2160 kN | C0: 4150 kN | Limiting speed: 1300 r/min
C 3980 KMBd: 400 mm | D: 540 mm | B: 106 mm | C: 2160 kN | C0: 4150 kN | Limiting speed: 1300 r/min
C 3984 Md: 420 mm | D: 560 mm | B: 106 mm | C: 2160 kN | C0: 4250 kN | Limiting speed: 1200 r/min
C 3984 KMd: 420 mm | D: 560 mm | B: 106 mm | C: 2160 kN | C0: 4250 kN | Limiting speed: 1200 r/min
C 3988 MBd: 440 mm | D: 600 mm | B: 118 mm | C: 2750 kN | C0: 5300 kN | Limiting speed: 1100 r/min
C 3988 KMBd: 440 mm | D: 600 mm | B: 118 mm | C: 2750 kN | C0: 5300 kN | Limiting speed: 1100 r/min
C 3992 MBd: 460 mm | D: 620 mm | B: 118 mm | C: 2700 kN | C0: 5300 kN | Limiting speed: 1100 r/min
C 3992 KMBd: 460 mm | D: 620 mm | B: 118 mm | C: 2700 kN | C0: 5300 kN | Limiting speed: 1100 r/min
C 4192 Md: 460 mm | D: 760 mm | B: 300 mm | C: 8300 kN | C0: 14300 kN | Limiting speed: 630 r/min
C 4192 K30Md: 460 mm | D: 760 mm | B: 300 mm | C: 8300 kN | C0: 14300 kN | Limiting speed: 630 r/min
C 3996 Md: 480 mm | D: 650 mm | B: 128 mm | C: 3100 kN | C0: 6100 kN | Limiting speed: 1000 r/min
C 3996 KMd: 480 mm | D: 650 mm | B: 128 mm | C: 3100 kN | C0: 6100 kN | Limiting speed: 1000 r/min
C 39/500 Md: 500 mm | D: 670 mm | B: 128 mm | C: 3150 kN | C0: 6300 kN | Limiting speed: 950 r/min
C 39/500 KMd: 500 mm | D: 670 mm | B: 128 mm | C: 3150 kN | C0: 6300 kN | Limiting speed: 950 r/min
C 41/500 MBd: 500 mm | D: 830 mm | B: 325 mm | C: 9800 kN | C0: 17600 kN | Limiting speed: 560 r/min
C 41/500 K30MBd: 500 mm | D: 830 mm | B: 325 mm | C: 9800 kN | C0: 17600 kN | Limiting speed: 560 r/min
C 39/530 Md: 530 mm | D: 710 mm | B: 136 mm | C: 3550 kN | C0: 7100 kN | Limiting speed: 900 r/min
C 39/530 KMd: 530 mm | D: 710 mm | B: 136 mm | C: 3550 kN | C0: 7100 kN | Limiting speed: 900 r/min
C 39/560 Md: 560 mm | D: 750 mm | B: 140 mm | C: 3600 kN | C0: 7350 kN | Limiting speed: 850 r/min
C 39/560 KMd: 560 mm | D: 750 mm | B: 140 mm | C: 3600 kN | C0: 7350 kN | Limiting speed: 850 r/min
C 39/600 Md: 600 mm | D: 800 mm | B: 150 mm | C: 4000 kN | C0: 8800 kN | Limiting speed: 750 r/min
C 39/600 KMd: 600 mm | D: 800 mm | B: 150 mm | C: 4000 kN | C0: 8800 kN | Limiting speed: 750 r/min
C 39/630 Md: 630 mm | D: 850 mm | B: 165 mm | C: 4650 kN | C0: 10000 kN | Limiting speed: 700 r/min
C 39/630 KMd: 630 mm | D: 850 mm | B: 165 mm | C: 4650 kN | C0: 10000 kN | Limiting speed: 700 r/min
C 39/670 Md: 670 mm | D: 900 mm | B: 170 mm | C: 4900 kN | C0: 11200 kN | Limiting speed: 630 r/min
C 39/670 KMd: 670 mm | D: 900 mm | B: 170 mm | C: 4900 kN | C0: 11200 kN | Limiting speed: 630 r/min
C 39/710 Md: 710 mm | D: 950 mm | B: 180 mm | C: 6000 kN | C0: 12500 kN | Limiting speed: 630 r/min
C 39/710 KMd: 710 mm | D: 950 mm | B: 180 mm | C: 6000 kN | C0: 12500 kN | Limiting speed: 630 r/min
C 40/710 Md: 710 mm | D: 1030 mm | B: 315 mm | C: 10600 kN | C0: 21600 kN | Limiting speed: 430 r/min
C 40/710 K30Md: 710 mm | D: 1030 mm | B: 315 mm | C: 10600 kN | C0: 21600 kN | Limiting speed: 430 r/min
C 39/750 Md: 750 mm | D: 1000 mm | B: 185 mm | C: 6100 kN | C0: 13400 kN | Limiting speed: 560 r/min
C 39/750 KMd: 750 mm | D: 1000 mm | B: 185 mm | C: 6100 kN | C0: 13400 kN | Limiting speed: 560 r/min
C 39/800 Md: 800 mm | D: 1060 mm | B: 195 mm | C: 6400 kN | C0: 14600 kN | Limiting speed: 530 r/min
C 39/800 KMd: 800 mm | D: 1060 mm | B: 195 mm | C: 6400 kN | C0: 14600 kN | Limiting speed: 530 r/min
C 39/850 Md: 850 mm | D: 1120 mm | B: 200 mm | C: 7350 kN | C0: 16300 kN | Limiting speed: 480 r/min
C 39/850 KMd: 850 mm | D: 1120 mm | B: 200 mm | C: 7350 kN | C0: 16300 kN | Limiting speed: 480 r/min
C 39/900 MBd: 900 mm | D: 1180 mm | B: 206 mm | C: 8150 kN | C0: 18000 kN | Limiting speed: 450 r/min
C 39/900 KMBd: 900 mm | D: 1180 mm | B: 206 mm | C: 8150 kN | C0: 18000 kN | Limiting speed: 450 r/min
C 39/950 Md: 950 mm | D: 1250 mm | B: 224 mm | C: 9300 kN | C0: 22000 kN | Limiting speed: 430 r/min
C 39/950 KMd: 950 mm | D: 1250 mm | B: 224 mm | C: 9300 kN | C0: 22000 kN | Limiting speed: 430 r/min
C 39/1060 MBd: 1060 mm | D: 1400 mm | B: 250 mm | C: 12500 kN | C0: 29000 kN | Limiting speed: 340 r/min
C 39/1060 KMBd: 1060 mm | D: 1400 mm | B: 250 mm | C: 12500 kN | C0: 29000 kN | Limiting speed: 340 r/min
C 39/1180 Md: 1180 mm | D: 1540 mm | B: 272 mm | C: 12900 kN | C0: 31500 kN | Limiting speed: 300 r/min
C 39/1180 KMd: 1180 mm | D: 1540 mm | B: 272 mm | C: 12900 kN | C0: 31500 kN | Limiting speed: 300 r/min

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
