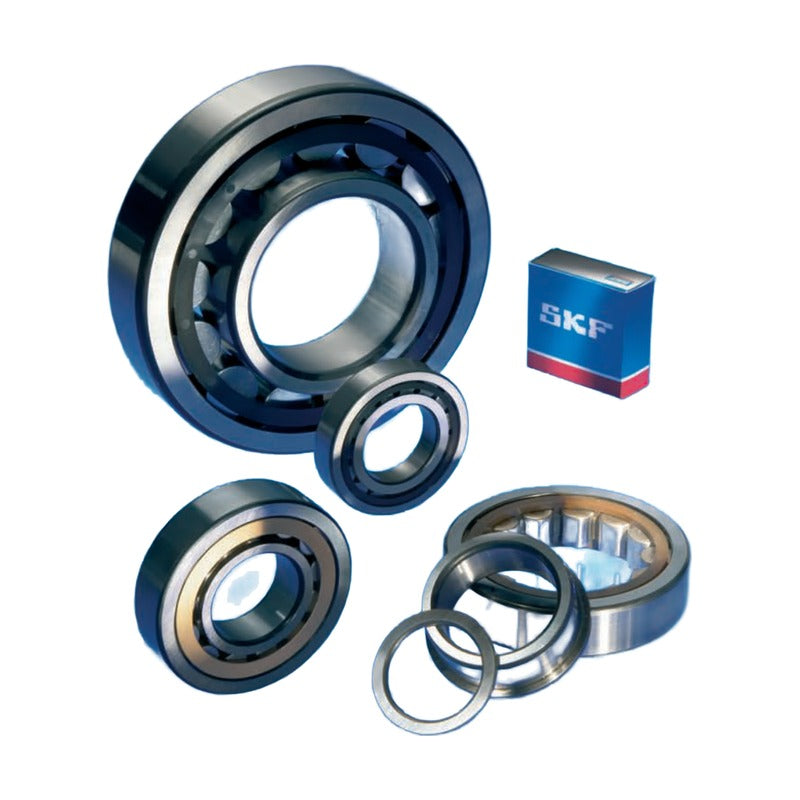

SKF NU/NJ 10, 12 and 20 Series Cylindrical Roller Bearings

SKF NU/NJ 10, 12 and 20 Series Cylindrical Roller Bearings

SKF single row cylindrical roller bearings of the 10, 12 and 20 dimension series in NU, NJ, NUP and N designs, as listed in the SKF General Catalogue. Bore diameters 25-800 mm.

Key features

  • Separable design: inner ring and outer ring with roller and cage assembly can be mounted separately
  • NU and N designs accommodate axial shaft displacement; NJ locates in one direction, NUP in both
  • High radial load carrying capacity with line contact rollers
  • Smaller sizes as SKF Explorer bearings (EC design) with polyamide (P), steel (J) or brass (M, MA, ML) cages
  • Catalogue table also lists reference speed and limiting speed for each size

Specifications

Bearing type Single row cylindrical roller bearing
Dimension series 10, 12 and 20
Designs NU, NJ
Bore range d 25-800 mm
Outside dia. range D 47-1150 mm
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 522-557
NU 1005 d: 25 mm | D: 47 mm | B: 12 mm | C: 14.2 kN | C0: 13.2 kN | Limiting speed: 18000 r/min
NU 1006 d: 30 mm | D: 55 mm | B: 13 mm | C: 17.9 kN | C0: 17.3 kN | Limiting speed: 15000 r/min
NU 1007 ECP d: 35 mm | D: 62 mm | B: 14 mm | C: 35.8 kN | C0: 38 kN | Limiting speed: 13000 r/min
NU 1008 ML d: 40 mm | D: 68 mm | B: 15 mm | C: 25.1 kN | C0: 26 kN | Limiting speed: 18000 r/min
NU 1009 ECP d: 45 mm | D: 75 mm | B: 16 mm | C: 44.6 kN | C0: 52 kN | Limiting speed: 11000 r/min
NU 1010 ECP d: 50 mm | D: 80 mm | B: 16 mm | C: 46.8 kN | C0: 56 kN | Limiting speed: 9500 r/min
NU 1011 ECP d: 55 mm | D: 90 mm | B: 18 mm | C: 57.2 kN | C0: 69.5 kN | Limiting speed: 8500 r/min
NU 1012 ML d: 60 mm | D: 95 mm | B: 18 mm | C: 37.4 kN | C0: 44 kN | Limiting speed: 11000 r/min
NU 1013 ECP d: 65 mm | D: 100 mm | B: 18 mm | C: 62.7 kN | C0: 81.5 kN | Limiting speed: 7500 r/min
NU 1014 ECP d: 70 mm | D: 110 mm | B: 20 mm | C: 76.5 kN | C0: 93 kN | Limiting speed: 7000 r/min
NU 1015 ML d: 75 mm | D: 115 mm | B: 20 mm | C: 58.3 kN | C0: 71 kN | Limiting speed: 10000 r/min
NU 1016 d: 80 mm | D: 125 mm | B: 22 mm | C: 66 kN | C0: 81.5 kN | Limiting speed: 6300 r/min
NJ 1016 ECML d: 80 mm | D: 125 mm | B: 22 mm | C: 99 kN | C0: 127 kN | Limiting speed: 9500 r/min
NU 1017 ML d: 85 mm | D: 130 mm | B: 22 mm | C: 68.2 kN | C0: 86.5 kN | Limiting speed: 9000 r/min
NU 1018 ML d: 90 mm | D: 140 mm | B: 24 mm | C: 80.9 kN | C0: 104 kN | Limiting speed: 8500 r/min
NU 1019 ML d: 95 mm | D: 145 mm | B: 24 mm | C: 84.2 kN | C0: 110 kN | Limiting speed: 8000 r/min
NU 1020 ML d: 100 mm | D: 150 mm | B: 24 mm | C: 85.8 kN | C0: 114 kN | Limiting speed: 7500 r/min
NU 1021 ML d: 105 mm | D: 160 mm | B: 26 mm | C: 101 kN | C0: 137 kN | Limiting speed: 7500 r/min
NU 1022 ML d: 110 mm | D: 170 mm | B: 28 mm | C: 128 kN | C0: 166 kN | Limiting speed: 7000 r/min
NU 1024 ML d: 120 mm | D: 180 mm | B: 28 mm | C: 134 kN | C0: 183 kN | Limiting speed: 6300 r/min
NU 1026 ML d: 130 mm | D: 200 mm | B: 33 mm | C: 165 kN | C0: 224 kN | Limiting speed: 5600 r/min
NU 1028 ML d: 140 mm | D: 210 mm | B: 33 mm | C: 172 kN | C0: 245 kN | Limiting speed: 5300 r/min
NU 1030 ML d: 150 mm | D: 225 mm | B: 35 mm | C: 194 kN | C0: 275 kN | Limiting speed: 5000 r/min
NU 1032 ML d: 160 mm | D: 240 mm | B: 38 mm | C: 229 kN | C0: 325 kN | Limiting speed: 4800 r/min
NU 1034 ML d: 170 mm | D: 260 mm | B: 42 mm | C: 275 kN | C0: 400 kN | Limiting speed: 4300 r/min
NU 1036 ML d: 180 mm | D: 280 mm | B: 46 mm | C: 336 kN | C0: 475 kN | Limiting speed: 4000 r/min
NU 1038 ML d: 190 mm | D: 290 mm | B: 46 mm | C: 347 kN | C0: 500 kN | Limiting speed: 3800 r/min
NU 1040 MA d: 200 mm | D: 310 mm | B: 51 mm | C: 380 kN | C0: 570 kN | Limiting speed: 3000 r/min
NU 1044 MA d: 220 mm | D: 340 mm | B: 56 mm | C: 495 kN | C0: 735 kN | Limiting speed: 2800 r/min
NU 1048 MA d: 240 mm | D: 360 mm | B: 56 mm | C: 523 kN | C0: 800 kN | Limiting speed: 2600 r/min
NU 1052 MA d: 260 mm | D: 400 mm | B: 65 mm | C: 627 kN | C0: 965 kN | Limiting speed: 2400 r/min
NU 1056 MA d: 280 mm | D: 420 mm | B: 65 mm | C: 660 kN | C0: 1060 kN | Limiting speed: 2200 r/min
NU 1060 MA d: 300 mm | D: 460 mm | B: 74 mm | C: 858 kN | C0: 1370 kN | Limiting speed: 2000 r/min
NJ 1060 MA d: 300 mm | D: 460 mm | B: 74 mm | C: 858 kN | C0: 1370 kN | Limiting speed: 2000 r/min
NU 1064 MA d: 320 mm | D: 480 mm | B: 74 mm | C: 880 kN | C0: 1430 kN | Limiting speed: 1900 r/min
NJ 1064 MA d: 320 mm | D: 480 mm | B: 74 mm | C: 880 kN | C0: 1430 kN | Limiting speed: 1900 r/min
NU 1068 MA d: 340 mm | D: 520 mm | B: 82 mm | C: 1080 kN | C0: 1760 kN | Limiting speed: 1700 r/min
NJ 1068 MA d: 340 mm | D: 520 mm | B: 82 mm | C: 1080 kN | C0: 1760 kN | Limiting speed: 1700 r/min
NU 1072 MA d: 360 mm | D: 540 mm | B: 82 mm | C: 1100 kN | C0: 1830 kN | Limiting speed: 1600 r/min
NU 1076 MA d: 380 mm | D: 560 mm | B: 82 mm | C: 1140 kN | C0: 1930 kN | Limiting speed: 1600 r/min
NJ 1076 MA d: 380 mm | D: 560 mm | B: 82 mm | C: 1140 kN | C0: 1930 kN | Limiting speed: 1600 r/min
NU 1080 MA d: 400 mm | D: 600 mm | B: 90 mm | C: 1380 kN | C0: 2320 kN | Limiting speed: 1500 r/min
NU 1084 MA d: 420 mm | D: 620 mm | B: 90 mm | C: 1420 kN | C0: 2450 kN | Limiting speed: 1400 r/min
NU 1088 MA d: 440 mm | D: 650 mm | B: 94 mm | C: 1510 kN | C0: 2650 kN | Limiting speed: 1300 r/min
NU 1092 MA d: 460 mm | D: 680 mm | B: 100 mm | C: 1650 kN | C0: 2850 kN | Limiting speed: 1200 r/min
NU 1292 MA d: 460 mm | D: 830 mm | B: 165 mm | C: 4180 kN | C0: 6800 kN | Limiting speed: 1100 r/min
NU 1096 MA d: 480 mm | D: 700 mm | B: 100 mm | C: 1680 kN | C0: 3000 kN | Limiting speed: 1200 r/min
NU 10/500 MA d: 500 mm | D: 720 mm | B: 100 mm | C: 1720 kN | C0: 3100 kN | Limiting speed: 1100 r/min
NU 12/500 MA d: 500 mm | D: 920 mm | B: 185 mm | C: 5280 kN | C0: 8500 kN | Limiting speed: 950 r/min
NU 10/530 MA d: 530 mm | D: 780 mm | B: 112 mm | C: 2290 kN | C0: 4050 kN | Limiting speed: 1000 r/min
NU 20/530 ECMA d: 530 mm | D: 780 mm | B: 145 mm | C: 3740 kN | C0: 7350 kN | Limiting speed: 1000 r/min
NU 10/560 MA d: 560 mm | D: 820 mm | B: 115 mm | C: 2330 kN | C0: 4250 kN | Limiting speed: 1000 r/min
NU 20/560 ECMA d: 560 mm | D: 820 mm | B: 150 mm | C: 3800 kN | C0: 7650 kN | Limiting speed: 1000 r/min
NU 12/560 MA d: 560 mm | D: 1030 mm | B: 206 mm | C: 7210 kN | C0: 11200 kN | Limiting speed: 800 r/min
NU 10/600 N2MA d: 600 mm | D: 870 mm | B: 118 mm | C: 2750 kN | C0: 5100 kN | Limiting speed: 900 r/min
NU 20/600 ECMA d: 600 mm | D: 870 mm | B: 155 mm | C: 4180 kN | C0: 8000 kN | Limiting speed: 900 r/min
NU 10/630 ECN2MA d: 630 mm | D: 920 mm | B: 128 mm | C: 3410 kN | C0: 6200 kN | Limiting speed: 1000 r/min
NU 20/630 ECMA d: 630 mm | D: 920 mm | B: 170 mm | C: 4730 kN | C0: 9500 kN | Limiting speed: 850 r/min
NU 12/630 ECMA d: 630 mm | D: 1150 mm | B: 230 mm | C: 8580 kN | C0: 13700 kN | Limiting speed: 700 r/min
NU 10/670 ECMA d: 670 mm | D: 980 mm | B: 136 mm | C: 3740 kN | C0: 6800 kN | Limiting speed: 800 r/min
NU 20/670 ECMA d: 670 mm | D: 980 mm | B: 180 mm | C: 5390 kN | C0: 11000 kN | Limiting speed: 800 r/min
NU 10/710 ECN2MA d: 710 mm | D: 1030 mm | B: 140 mm | C: 4680 kN | C0: 8500 kN | Limiting speed: 750 r/min
NU 20/710 ECMA d: 710 mm | D: 1030 mm | B: 185 mm | C: 5940 kN | C0: 12000 kN | Limiting speed: 700 r/min
NU 10/750 ECN2MA d: 750 mm | D: 1090 mm | B: 150 mm | C: 4730 kN | C0: 8800 kN | Limiting speed: 670 r/min
NU 20/750 ECM d: 750 mm | D: 1090 mm | B: 195 mm | C: 7040 kN | C0: 14600 kN | Limiting speed: 670 r/min
NU 20/800 ECMA d: 800 mm | D: 1150 mm | B: 200 mm | C: 7040 kN | C0: 14600 kN | Limiting speed: 630 r/min
Cylindrical Roller BearingsSKF
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF NU/NJ 10, 12 and 20 Series Cylindrical Roller Bearings

Brand SKF·Cylindrical Roller Bearings

Available part numbers (66)

NU 1005, NU 1006, NU 1007 ECP, NU 1008 ML, NU 1009 ECP, NU 1010 ECP, NU 1011 ECP, NU 1012 ML, NU 1013 ECP, NU 1014 ECP + 56 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
