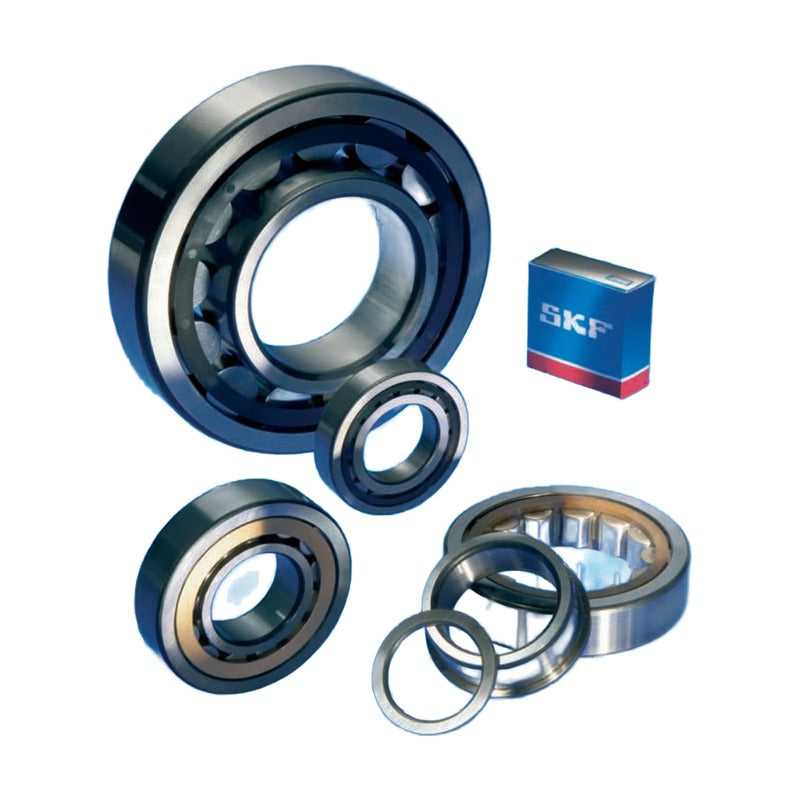

SKF NU/NJ/NUP 22 Series Cylindrical Roller Bearings

SKF NU/NJ/NUP 22 Series Cylindrical Roller Bearings

SKF single row cylindrical roller bearings of the 22 dimension series in NU, NJ, NUP and N designs, as listed in the SKF General Catalogue. Bore diameters 17-460 mm.

Key features

  • Separable design: inner ring and outer ring with roller and cage assembly can be mounted separately
  • NU and N designs accommodate axial shaft displacement; NJ locates in one direction, NUP in both
  • High radial load carrying capacity with line contact rollers
  • Smaller sizes as SKF Explorer bearings (EC design) with polyamide (P), steel (J) or brass (M, MA, ML) cages
  • Catalogue table also lists reference speed and limiting speed for each size

Specifications

Bearing type Single row cylindrical roller bearing
Dimension series 22
Designs NU, NJ, NUP
Bore range d 17-460 mm
Outside dia. range D 40-830 mm
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 522-557
NU 2203 ECP d: 17 mm | D: 40 mm | B: 16 mm | C: 23.8 kN | C0: 21.6 kN | Limiting speed: 22000 r/min
NJ 2203 ECP d: 17 mm | D: 40 mm | B: 16 mm | C: 23.8 kN | C0: 21.6 kN | Limiting speed: 22000 r/min
NUP 2203 ECP d: 17 mm | D: 40 mm | B: 16 mm | C: 23.8 kN | C0: 21.6 kN | Limiting speed: 22000 r/min
NU 2204 ECP d: 20 mm | D: 47 mm | B: 18 mm | C: 29.7 kN | C0: 27.5 kN | Limiting speed: 19000 r/min
NJ 2204 ECP d: 20 mm | D: 47 mm | B: 18 mm | C: 29.7 kN | C0: 27.5 kN | Limiting speed: 19000 r/min
NU 2205 ECP d: 25 mm | D: 52 mm | B: 18 mm | C: 34.1 kN | C0: 34 kN | Limiting speed: 16000 r/min
NUP 2205 ECP d: 25 mm | D: 52 mm | B: 18 mm | C: 34.1 kN | C0: 34 kN | Limiting speed: 16000 r/min
NU 2206 ECP d: 30 mm | D: 62 mm | B: 20 mm | C: 55 kN | C0: 49 kN | Limiting speed: 14000 r/min
NJ 2206 ECP d: 30 mm | D: 62 mm | B: 20 mm | C: 55 kN | C0: 49 kN | Limiting speed: 14000 r/min
NUP 2206 ECP d: 30 mm | D: 62 mm | B: 20 mm | C: 55 kN | C0: 49 kN | Limiting speed: 14000 r/min
NU 2207 ECP d: 35 mm | D: 72 mm | B: 23 mm | C: 69.5 kN | C0: 63 kN | Limiting speed: 12000 r/min
NJ 2207 ECP d: 35 mm | D: 72 mm | B: 23 mm | C: 69.5 kN | C0: 63 kN | Limiting speed: 12000 r/min
NUP 2207 ECP d: 35 mm | D: 72 mm | B: 23 mm | C: 69.5 kN | C0: 63 kN | Limiting speed: 12000 r/min
NU 2208 ECP d: 40 mm | D: 80 mm | B: 23 mm | C: 81.5 kN | C0: 75 kN | Limiting speed: 11000 r/min
NJ 2208 ECP d: 40 mm | D: 80 mm | B: 23 mm | C: 81.5 kN | C0: 75 kN | Limiting speed: 11000 r/min
NUP 2208 ECP d: 40 mm | D: 80 mm | B: 23 mm | C: 81.5 kN | C0: 75 kN | Limiting speed: 11000 r/min
NU 2209 ECP d: 45 mm | D: 85 mm | B: 23 mm | C: 85 kN | C0: 81.5 kN | Limiting speed: 9500 r/min
NJ 2209 ECP d: 45 mm | D: 85 mm | B: 23 mm | C: 85 kN | C0: 81.5 kN | Limiting speed: 9500 r/min
NUP 2209 ECP d: 45 mm | D: 85 mm | B: 23 mm | C: 85 kN | C0: 81.5 kN | Limiting speed: 9500 r/min
NU 2210 ECP d: 50 mm | D: 90 mm | B: 23 mm | C: 90 kN | C0: 88 kN | Limiting speed: 9000 r/min
NUP 2210 ECP d: 50 mm | D: 90 mm | B: 23 mm | C: 90 kN | C0: 88 kN | Limiting speed: 9000 r/min
NU 2211 ECP d: 55 mm | D: 100 mm | B: 25 mm | C: 114 kN | C0: 118 kN | Limiting speed: 8000 r/min
NJ 2211 ECP d: 55 mm | D: 100 mm | B: 25 mm | C: 114 kN | C0: 118 kN | Limiting speed: 8000 r/min
NUP 2211 ECP d: 55 mm | D: 100 mm | B: 25 mm | C: 114 kN | C0: 118 kN | Limiting speed: 8000 r/min
NU 2212 ECP d: 60 mm | D: 110 mm | B: 28 mm | C: 146 kN | C0: 153 kN | Limiting speed: 7500 r/min
NJ 2212 ECP d: 60 mm | D: 110 mm | B: 28 mm | C: 146 kN | C0: 153 kN | Limiting speed: 7500 r/min
NUP 2212 ECP d: 60 mm | D: 110 mm | B: 28 mm | C: 146 kN | C0: 153 kN | Limiting speed: 7500 r/min
NU 2213 ECP d: 65 mm | D: 120 mm | B: 31 mm | C: 170 kN | C0: 180 kN | Limiting speed: 6700 r/min
NJ 2213 ECP d: 65 mm | D: 120 mm | B: 31 mm | C: 170 kN | C0: 180 kN | Limiting speed: 6700 r/min
NUP 2213 ECP d: 65 mm | D: 120 mm | B: 31 mm | C: 170 kN | C0: 180 kN | Limiting speed: 6700 r/min
NU 2214 ECP d: 70 mm | D: 125 mm | B: 31 mm | C: 180 kN | C0: 193 kN | Limiting speed: 6300 r/min
NJ 2214 ECP d: 70 mm | D: 125 mm | B: 31 mm | C: 180 kN | C0: 193 kN | Limiting speed: 6300 r/min
NUP 2214 ECP d: 70 mm | D: 125 mm | B: 31 mm | C: 180 kN | C0: 193 kN | Limiting speed: 6300 r/min
NU 2215 ECP d: 75 mm | D: 130 mm | B: 31 mm | C: 186 kN | C0: 208 kN | Limiting speed: 6000 r/min
NUP 2215 ECP d: 75 mm | D: 130 mm | B: 31 mm | C: 186 kN | C0: 208 kN | Limiting speed: 6000 r/min
NU 2216 ECP d: 80 mm | D: 140 mm | B: 33 mm | C: 212 kN | C0: 245 kN | Limiting speed: 5600 r/min
NJ 2216 ECP d: 80 mm | D: 140 mm | B: 33 mm | C: 212 kN | C0: 245 kN | Limiting speed: 5600 r/min
NUP 2216 ECP d: 80 mm | D: 140 mm | B: 33 mm | C: 212 kN | C0: 245 kN | Limiting speed: 5600 r/min
NU 2217 ECP d: 85 mm | D: 150 mm | B: 36 mm | C: 250 kN | C0: 280 kN | Limiting speed: 5300 r/min
NJ 2217 ECP d: 85 mm | D: 150 mm | B: 36 mm | C: 250 kN | C0: 280 kN | Limiting speed: 5300 r/min
NUP 2217 ECP d: 85 mm | D: 150 mm | B: 36 mm | C: 250 kN | C0: 280 kN | Limiting speed: 5300 r/min
NU 2218 ECP d: 90 mm | D: 160 mm | B: 40 mm | C: 280 kN | C0: 315 kN | Limiting speed: 5000 r/min
NJ 2218 ECP d: 90 mm | D: 160 mm | B: 40 mm | C: 280 kN | C0: 315 kN | Limiting speed: 5000 r/min
NUP 2218 ECP d: 90 mm | D: 160 mm | B: 40 mm | C: 280 kN | C0: 315 kN | Limiting speed: 5000 r/min
NU 2219 ECP d: 95 mm | D: 170 mm | B: 43 mm | C: 325 kN | C0: 375 kN | Limiting speed: 4800 r/min
NJ 2219 ECP d: 95 mm | D: 170 mm | B: 43 mm | C: 325 kN | C0: 375 kN | Limiting speed: 4800 r/min
NUP 2219 ECP d: 95 mm | D: 170 mm | B: 43 mm | C: 325 kN | C0: 375 kN | Limiting speed: 4800 r/min
NU 2220 ECP d: 100 mm | D: 180 mm | B: 46 mm | C: 380 kN | C0: 450 kN | Limiting speed: 4500 r/min
NJ 2220 ECP d: 100 mm | D: 180 mm | B: 46 mm | C: 380 kN | C0: 450 kN | Limiting speed: 4500 r/min
NUP 2220 ECP d: 100 mm | D: 180 mm | B: 46 mm | C: 380 kN | C0: 450 kN | Limiting speed: 4500 r/min
NU 2222 ECP d: 110 mm | D: 200 mm | B: 53 mm | C: 440 kN | C0: 520 kN | Limiting speed: 4000 r/min
NJ 2222 ECP d: 110 mm | D: 200 mm | B: 53 mm | C: 440 kN | C0: 520 kN | Limiting speed: 4000 r/min
NUP 2222 ECP d: 110 mm | D: 200 mm | B: 53 mm | C: 440 kN | C0: 520 kN | Limiting speed: 4000 r/min
NU 2224 ECP d: 120 mm | D: 215 mm | B: 58 mm | C: 520 kN | C0: 630 kN | Limiting speed: 3600 r/min
NJ 2224 ECP d: 120 mm | D: 215 mm | B: 58 mm | C: 520 kN | C0: 630 kN | Limiting speed: 3600 r/min
NUP 2224 ECP d: 120 mm | D: 215 mm | B: 58 mm | C: 520 kN | C0: 630 kN | Limiting speed: 3600 r/min
NU 2226 ECP d: 130 mm | D: 230 mm | B: 64 mm | C: 610 kN | C0: 735 kN | Limiting speed: 3400 r/min
NJ 2226 ECP d: 130 mm | D: 230 mm | B: 64 mm | C: 610 kN | C0: 735 kN | Limiting speed: 3400 r/min
NUP 2226 ECP d: 130 mm | D: 230 mm | B: 64 mm | C: 610 kN | C0: 735 kN | Limiting speed: 3400 r/min
NU 2228 ECML d: 140 mm | D: 250 mm | B: 68 mm | C: 655 kN | C0: 830 kN | Limiting speed: 4800 r/min
NJ 2228 ECML d: 140 mm | D: 250 mm | B: 68 mm | C: 655 kN | C0: 830 kN | Limiting speed: 4800 r/min
NUP 2228 ECML d: 140 mm | D: 250 mm | B: 68 mm | C: 655 kN | C0: 830 kN | Limiting speed: 4800 r/min
NU 2230 ECM d: 150 mm | D: 270 mm | B: 73 mm | C: 735 kN | C0: 930 kN | Limiting speed: 2800 r/min
NJ 2230 ECM d: 150 mm | D: 270 mm | B: 73 mm | C: 735 kN | C0: 930 kN | Limiting speed: 2800 r/min
NU 2232 ECMA d: 160 mm | D: 290 mm | B: 80 mm | C: 930 kN | C0: 1200 kN | Limiting speed: 3600 r/min
NJ 2232 ECMA d: 160 mm | D: 290 mm | B: 80 mm | C: 930 kN | C0: 1200 kN | Limiting speed: 3600 r/min
NU 2234 ECMA d: 170 mm | D: 310 mm | B: 86 mm | C: 1060 kN | C0: 1340 kN | Limiting speed: 3200 r/min
NU 2236 ECMA d: 180 mm | D: 320 mm | B: 86 mm | C: 1100 kN | C0: 1430 kN | Limiting speed: 3200 r/min
NJ 2236 ECMA d: 180 mm | D: 320 mm | B: 86 mm | C: 1100 kN | C0: 1430 kN | Limiting speed: 3200 r/min
NU 2238 ECMA d: 190 mm | D: 340 mm | B: 92 mm | C: 1220 kN | C0: 1600 kN | Limiting speed: 3000 r/min
NU 2240 ECMA d: 200 mm | D: 360 mm | B: 98 mm | C: 1370 kN | C0: 1800 kN | Limiting speed: 2800 r/min
NU 2244 ECMA d: 220 mm | D: 400 mm | B: 108 mm | C: 1570 kN | C0: 2280 kN | Limiting speed: 2400 r/min
NU 2248 MA d: 240 mm | D: 440 mm | B: 120 mm | C: 1450 kN | C0: 2360 kN | Limiting speed: 2200 r/min
NJ 2248 MA d: 240 mm | D: 440 mm | B: 120 mm | C: 1450 kN | C0: 2360 kN | Limiting speed: 2200 r/min
NU 2252 MA d: 260 mm | D: 480 mm | B: 130 mm | C: 1790 kN | C0: 3000 kN | Limiting speed: 2000 r/min
NJ 2252 MA d: 260 mm | D: 480 mm | B: 130 mm | C: 1790 kN | C0: 3000 kN | Limiting speed: 2000 r/min
NU 2256 ECMA d: 280 mm | D: 500 mm | B: 130 mm | C: 2200 kN | C0: 3250 kN | Limiting speed: 1900 r/min
NU 2260 MA d: 300 mm | D: 540 mm | B: 140 mm | C: 2090 kN | C0: 3450 kN | Limiting speed: 1800 r/min
NU 2264 ECMA d: 320 mm | D: 580 mm | B: 150 mm | C: 3190 kN | C0: 5000 kN | Limiting speed: 1600 r/min
NU 2268 MA d: 340 mm | D: 620 mm | B: 165 mm | C: 2640 kN | C0: 4500 kN | Limiting speed: 1500 r/min
NU 2272 MA d: 360 mm | D: 650 mm | B: 170 mm | C: 2920 kN | C0: 4900 kN | Limiting speed: 1400 r/min
NU 2276 ECMA d: 380 mm | D: 680 mm | B: 175 mm | C: 3140 kN | C0: 5500 kN | Limiting speed: 1600 r/min
NU 2292 MA d: 460 mm | D: 830 mm | B: 212 mm | C: 5120 kN | C0: 8650 kN | Limiting speed: 1100 r/min
