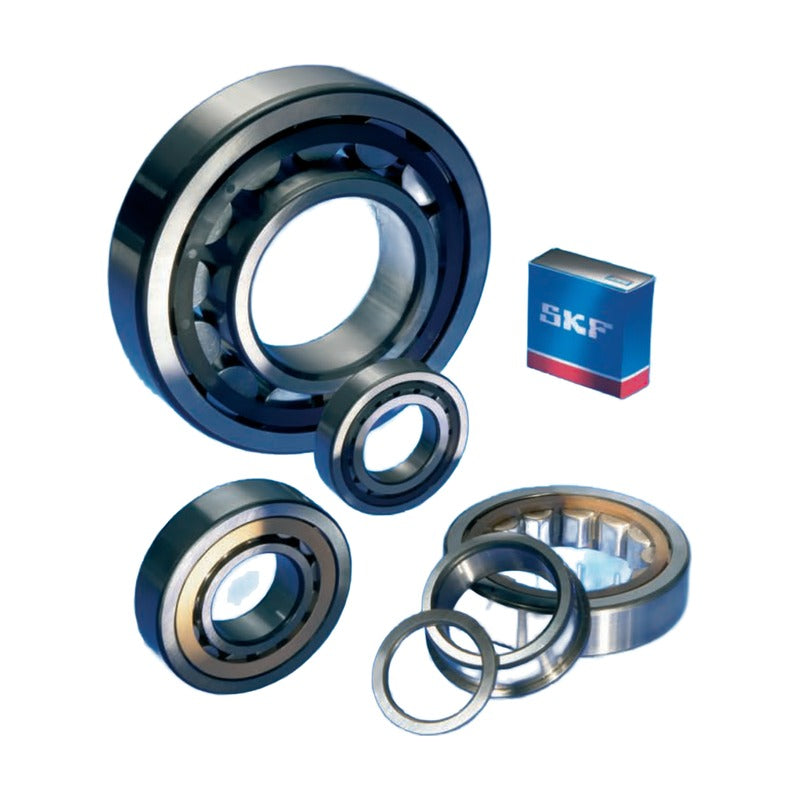

SKF NU/NJ/NUP 23 Series Cylindrical Roller Bearings

SKF NU/NJ/NUP 23 Series Cylindrical Roller Bearings

SKF single row cylindrical roller bearings of the 23 dimension series in NU, NJ, NUP and N designs, as listed in the SKF General Catalogue. Bore diameters 20-280 mm.

Key features

  • Separable design: inner ring and outer ring with roller and cage assembly can be mounted separately
  • NU and N designs accommodate axial shaft displacement; NJ locates in one direction, NUP in both
  • High radial load carrying capacity with line contact rollers
  • Smaller sizes as SKF Explorer bearings (EC design) with polyamide (P), steel (J) or brass (M, MA, ML) cages
  • Catalogue table also lists reference speed and limiting speed for each size

Specifications

Bearing type Single row cylindrical roller bearing
Dimension series 23
Designs NU, NJ, NUP
Bore range d 20-280 mm
Outside dia. range D 52-580 mm
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 522-555
NU 2304 ECP d: 20 mm | D: 52 mm | B: 21 mm | C: 47.5 kN | C0: 38 kN | Limiting speed: 18000 r/min
NJ 2304 ECP d: 20 mm | D: 52 mm | B: 21 mm | C: 47.5 kN | C0: 38 kN | Limiting speed: 18000 r/min
NUP 2304 ECP d: 20 mm | D: 52 mm | B: 21 mm | C: 47.5 kN | C0: 38 kN | Limiting speed: 18000 r/min
NU 2305 ECP d: 25 mm | D: 62 mm | B: 24 mm | C: 64 kN | C0: 55 kN | Limiting speed: 15000 r/min
NJ 2305 ECP d: 25 mm | D: 62 mm | B: 24 mm | C: 64 kN | C0: 55 kN | Limiting speed: 15000 r/min
NUP 2305 ECP d: 25 mm | D: 62 mm | B: 24 mm | C: 64 kN | C0: 55 kN | Limiting speed: 15000 r/min
NU 2306 ECP d: 30 mm | D: 72 mm | B: 27 mm | C: 83 kN | C0: 75 kN | Limiting speed: 12000 r/min
NJ 2306 ECP d: 30 mm | D: 72 mm | B: 27 mm | C: 83 kN | C0: 75 kN | Limiting speed: 12000 r/min
NUP 2306 ECP d: 30 mm | D: 72 mm | B: 27 mm | C: 83 kN | C0: 75 kN | Limiting speed: 12000 r/min
NU 2307 ECP d: 35 mm | D: 80 mm | B: 31 mm | C: 106 kN | C0: 98 kN | Limiting speed: 11000 r/min
NJ 2307 ECP d: 35 mm | D: 80 mm | B: 31 mm | C: 106 kN | C0: 98 kN | Limiting speed: 11000 r/min
NUP 2307 ECP d: 35 mm | D: 80 mm | B: 31 mm | C: 106 kN | C0: 98 kN | Limiting speed: 11000 r/min
NU 2308 ECP d: 40 mm | D: 90 mm | B: 33 mm | C: 129 kN | C0: 120 kN | Limiting speed: 9500 r/min
NUP 2308 ECP d: 40 mm | D: 90 mm | B: 33 mm | C: 129 kN | C0: 120 kN | Limiting speed: 9500 r/min
NU 2309 ECP d: 45 mm | D: 100 mm | B: 36 mm | C: 160 kN | C0: 153 kN | Limiting speed: 8500 r/min
NJ 2309 ECP d: 45 mm | D: 100 mm | B: 36 mm | C: 160 kN | C0: 153 kN | Limiting speed: 8500 r/min
NUP 2309 ECP d: 45 mm | D: 100 mm | B: 36 mm | C: 160 kN | C0: 153 kN | Limiting speed: 8500 r/min
NU 2310 ECP d: 50 mm | D: 110 mm | B: 40 mm | C: 186 kN | C0: 186 kN | Limiting speed: 8000 r/min
NJ 2310 ECP d: 50 mm | D: 110 mm | B: 40 mm | C: 186 kN | C0: 186 kN | Limiting speed: 8000 r/min
NUP 2310 ECP d: 50 mm | D: 110 mm | B: 40 mm | C: 186 kN | C0: 186 kN | Limiting speed: 8000 r/min
NU 2311 ECP d: 55 mm | D: 120 mm | B: 43 mm | C: 232 kN | C0: 232 kN | Limiting speed: 7000 r/min
NJ 2311 ECP d: 55 mm | D: 120 mm | B: 43 mm | C: 232 kN | C0: 232 kN | Limiting speed: 7000 r/min
NUP 2311 ECP d: 55 mm | D: 120 mm | B: 43 mm | C: 232 kN | C0: 232 kN | Limiting speed: 7000 r/min
NU 2312 ECP d: 60 mm | D: 130 mm | B: 46 mm | C: 260 kN | C0: 265 kN | Limiting speed: 6700 r/min
NJ 2312 ECP d: 60 mm | D: 130 mm | B: 46 mm | C: 260 kN | C0: 265 kN | Limiting speed: 6700 r/min
NUP 2312 ECP d: 60 mm | D: 130 mm | B: 46 mm | C: 260 kN | C0: 265 kN | Limiting speed: 6700 r/min
NU 2313 ECP d: 65 mm | D: 140 mm | B: 48 mm | C: 285 kN | C0: 290 kN | Limiting speed: 6000 r/min
NUP 2313 ECP d: 65 mm | D: 140 mm | B: 48 mm | C: 285 kN | C0: 290 kN | Limiting speed: 6000 r/min
NU 2314 ECP d: 70 mm | D: 150 mm | B: 51 mm | C: 315 kN | C0: 325 kN | Limiting speed: 5600 r/min
NJ 2314 ECP d: 70 mm | D: 150 mm | B: 51 mm | C: 315 kN | C0: 325 kN | Limiting speed: 5600 r/min
NUP 2314 ECP d: 70 mm | D: 150 mm | B: 51 mm | C: 315 kN | C0: 325 kN | Limiting speed: 5600 r/min
NU 2315 ECP d: 75 mm | D: 160 mm | B: 55 mm | C: 380 kN | C0: 400 kN | Limiting speed: 5300 r/min
NJ 2315 ECP d: 75 mm | D: 160 mm | B: 55 mm | C: 380 kN | C0: 400 kN | Limiting speed: 5300 r/min
NUP 2315 ECP d: 75 mm | D: 160 mm | B: 55 mm | C: 380 kN | C0: 400 kN | Limiting speed: 5300 r/min
NU 2316 ECP d: 80 mm | D: 170 mm | B: 58 mm | C: 415 kN | C0: 440 kN | Limiting speed: 5000 r/min
NJ 2316 ECP d: 80 mm | D: 170 mm | B: 58 mm | C: 415 kN | C0: 440 kN | Limiting speed: 5000 r/min
NUP 2316 ECP d: 80 mm | D: 170 mm | B: 58 mm | C: 415 kN | C0: 440 kN | Limiting speed: 5000 r/min
NU 2317 ECP d: 85 mm | D: 180 mm | B: 60 mm | C: 455 kN | C0: 490 kN | Limiting speed: 4800 r/min
NJ 2317 ECP d: 85 mm | D: 180 mm | B: 60 mm | C: 455 kN | C0: 490 kN | Limiting speed: 4800 r/min
NUP 2317 ECP d: 85 mm | D: 180 mm | B: 60 mm | C: 455 kN | C0: 490 kN | Limiting speed: 4800 r/min
NU 2318 ECP d: 90 mm | D: 190 mm | B: 64 mm | C: 500 kN | C0: 540 kN | Limiting speed: 4500 r/min
NJ 2318 ECP d: 90 mm | D: 190 mm | B: 64 mm | C: 500 kN | C0: 540 kN | Limiting speed: 4500 r/min
NUP 2318 ECP d: 90 mm | D: 190 mm | B: 64 mm | C: 500 kN | C0: 540 kN | Limiting speed: 4500 r/min
NU 2319 ECP d: 95 mm | D: 200 mm | B: 67 mm | C: 530 kN | C0: 585 kN | Limiting speed: 4300 r/min
NJ 2319 ECP d: 95 mm | D: 200 mm | B: 67 mm | C: 530 kN | C0: 585 kN | Limiting speed: 4300 r/min
NUP 2319 ECP d: 95 mm | D: 200 mm | B: 67 mm | C: 530 kN | C0: 585 kN | Limiting speed: 4300 r/min
NU 2320 ECP d: 100 mm | D: 215 mm | B: 73 mm | C: 670 kN | C0: 735 kN | Limiting speed: 3800 r/min
NJ 2320 ECP d: 100 mm | D: 215 mm | B: 73 mm | C: 670 kN | C0: 735 kN | Limiting speed: 3800 r/min
NUP 2320 ECP d: 100 mm | D: 215 mm | B: 73 mm | C: 670 kN | C0: 735 kN | Limiting speed: 3800 r/min
NU 2322 ECP d: 110 mm | D: 240 mm | B: 80 mm | C: 780 kN | C0: 900 kN | Limiting speed: 3400 r/min
NJ 2322 ECP d: 110 mm | D: 240 mm | B: 80 mm | C: 780 kN | C0: 900 kN | Limiting speed: 3400 r/min
NUP 2322 ECP d: 110 mm | D: 240 mm | B: 80 mm | C: 780 kN | C0: 900 kN | Limiting speed: 3400 r/min
NU 2324 ECMA d: 120 mm | D: 260 mm | B: 86 mm | C: 915 kN | C0: 1040 kN | Limiting speed: 4300 r/min
NUP 2324 ECMA d: 120 mm | D: 260 mm | B: 86 mm | C: 915 kN | C0: 1040 kN | Limiting speed: 4300 r/min
NU 2326 ECMA d: 130 mm | D: 280 mm | B: 93 mm | C: 1060 kN | C0: 1250 kN | Limiting speed: 3800 r/min
NJ 2326 ECMA d: 130 mm | D: 280 mm | B: 93 mm | C: 1060 kN | C0: 1250 kN | Limiting speed: 3800 r/min
NUP 2326 ECMA d: 130 mm | D: 280 mm | B: 93 mm | C: 1060 kN | C0: 1250 kN | Limiting speed: 3800 r/min
NU 2328 ECMA d: 140 mm | D: 300 mm | B: 102 mm | C: 1200 kN | C0: 1430 kN | Limiting speed: 3600 r/min
NUP 2328 ECMA d: 140 mm | D: 300 mm | B: 102 mm | C: 1200 kN | C0: 1430 kN | Limiting speed: 3600 r/min
NU 2330 ECMA d: 150 mm | D: 320 mm | B: 108 mm | C: 1370 kN | C0: 1630 kN | Limiting speed: 3400 r/min
NJ 2330 ECMA d: 150 mm | D: 320 mm | B: 108 mm | C: 1370 kN | C0: 1630 kN | Limiting speed: 3400 r/min
NUP 2330 ECMA d: 150 mm | D: 320 mm | B: 108 mm | C: 1370 kN | C0: 1630 kN | Limiting speed: 3400 r/min
NU 2332 ECMA d: 160 mm | D: 340 mm | B: 114 mm | C: 1250 kN | C0: 1730 kN | Limiting speed: 2800 r/min
NJ 2332 ECMA d: 160 mm | D: 340 mm | B: 114 mm | C: 1250 kN | C0: 1730 kN | Limiting speed: 2800 r/min
NU 2334 ECMA d: 170 mm | D: 360 mm | B: 120 mm | C: 1450 kN | C0: 2040 kN | Limiting speed: 3000 r/min
NJ 2334 ECMA d: 170 mm | D: 360 mm | B: 120 mm | C: 1450 kN | C0: 2040 kN | Limiting speed: 3000 r/min
NU 2336 ECMA d: 180 mm | D: 380 mm | B: 126 mm | C: 1610 kN | C0: 2240 kN | Limiting speed: 2800 r/min
NU 2338 ECMA d: 190 mm | D: 400 mm | B: 132 mm | C: 1830 kN | C0: 2550 kN | Limiting speed: 2600 r/min
NU 2340 ECMA d: 200 mm | D: 420 mm | B: 138 mm | C: 1980 kN | C0: 2800 kN | Limiting speed: 2400 r/min
NJ 2340 ECMA d: 200 mm | D: 420 mm | B: 138 mm | C: 1980 kN | C0: 2800 kN | Limiting speed: 2400 r/min
NU 2344 ECMA d: 220 mm | D: 460 mm | B: 145 mm | C: 2380 kN | C0: 3450 kN | Limiting speed: 2200 r/min
NU 2348 ECMA d: 240 mm | D: 500 mm | B: 155 mm | C: 2600 kN | C0: 3650 kN | Limiting speed: 2000 r/min
NU 2356 MA d: 280 mm | D: 580 mm | B: 175 mm | C: 2700 kN | C0: 4300 kN | Limiting speed: 1700 r/min
