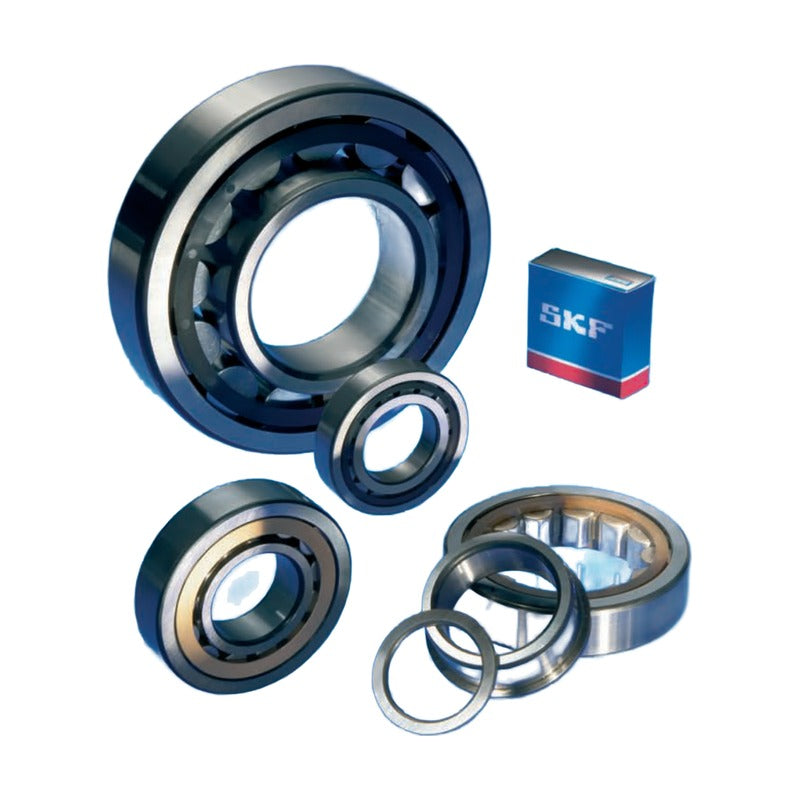

SKF NU/NJ/NUP/N 3 Series Cylindrical Roller Bearings

SKF NU/NJ/NUP/N 3 Series Cylindrical Roller Bearings

SKF single row cylindrical roller bearings of the 3 dimension series in NU, NJ, NUP and N designs, as listed in the SKF General Catalogue. Bore diameters 17-260 mm.

Key features

  • Separable design: inner ring and outer ring with roller and cage assembly can be mounted separately
  • NU and N designs accommodate axial shaft displacement; NJ locates in one direction, NUP in both
  • High radial load carrying capacity with line contact rollers
  • Smaller sizes as SKF Explorer bearings (EC design) with polyamide (P), steel (J) or brass (M, MA, ML) cages
  • Catalogue table also lists reference speed and limiting speed for each size

Specifications

Bearing type Single row cylindrical roller bearing
Dimension series 3
Designs NU, NJ, NUP, N
Bore range d 17-260 mm
Outside dia. range D 47-540 mm
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 522-555
NU 303 ECP d: 17 mm | D: 47 mm | B: 14 mm | C: 24.6 kN | C0: 20.4 kN | Limiting speed: 20000 r/min
NJ 303 ECP d: 17 mm | D: 47 mm | B: 14 mm | C: 24.6 kN | C0: 20.4 kN | Limiting speed: 20000 r/min
N 303 ECP d: 17 mm | D: 47 mm | B: 14 mm | C: 24.6 kN | C0: 20.4 kN | Limiting speed: 20000 r/min
NU 304 ECP d: 20 mm | D: 52 mm | B: 15 mm | C: 35.5 kN | C0: 26 kN | Limiting speed: 18000 r/min
NJ 304 ECP d: 20 mm | D: 52 mm | B: 15 mm | C: 35.5 kN | C0: 26 kN | Limiting speed: 18000 r/min
NUP 304 ECP d: 20 mm | D: 52 mm | B: 15 mm | C: 35.5 kN | C0: 26 kN | Limiting speed: 18000 r/min
N 304 ECP d: 20 mm | D: 52 mm | B: 15 mm | C: 35.5 kN | C0: 26 kN | Limiting speed: 18000 r/min
NU 305 ECP d: 25 mm | D: 62 mm | B: 17 mm | C: 46.5 kN | C0: 36.5 kN | Limiting speed: 15000 r/min
NJ 305 ECP d: 25 mm | D: 62 mm | B: 17 mm | C: 46.5 kN | C0: 36.5 kN | Limiting speed: 15000 r/min
NUP 305 ECP d: 25 mm | D: 62 mm | B: 17 mm | C: 46.5 kN | C0: 36.5 kN | Limiting speed: 15000 r/min
N 305 ECP d: 25 mm | D: 62 mm | B: 17 mm | C: 46.5 kN | C0: 36.5 kN | Limiting speed: 15000 r/min
NU 306 ECP d: 30 mm | D: 72 mm | B: 19 mm | C: 58.5 kN | C0: 48 kN | Limiting speed: 12000 r/min
NJ 306 ECP d: 30 mm | D: 72 mm | B: 19 mm | C: 58.5 kN | C0: 48 kN | Limiting speed: 12000 r/min
NUP 306 ECP d: 30 mm | D: 72 mm | B: 19 mm | C: 58.5 kN | C0: 48 kN | Limiting speed: 12000 r/min
N 306 ECP d: 30 mm | D: 72 mm | B: 19 mm | C: 58.5 kN | C0: 48 kN | Limiting speed: 12000 r/min
NU 307 ECP d: 35 mm | D: 80 mm | B: 21 mm | C: 75 kN | C0: 63 kN | Limiting speed: 11000 r/min
NJ 307 ECP d: 35 mm | D: 80 mm | B: 21 mm | C: 75 kN | C0: 63 kN | Limiting speed: 11000 r/min
NUP 307 ECP d: 35 mm | D: 80 mm | B: 21 mm | C: 75 kN | C0: 63 kN | Limiting speed: 11000 r/min
N 307 ECP d: 35 mm | D: 80 mm | B: 21 mm | C: 75 kN | C0: 63 kN | Limiting speed: 11000 r/min
NU 308 ECP d: 40 mm | D: 90 mm | B: 23 mm | C: 93 kN | C0: 78 kN | Limiting speed: 9500 r/min
NJ 308 ECP d: 40 mm | D: 90 mm | B: 23 mm | C: 93 kN | C0: 78 kN | Limiting speed: 9500 r/min
NUP 308 ECP d: 40 mm | D: 90 mm | B: 23 mm | C: 93 kN | C0: 78 kN | Limiting speed: 9500 r/min
N 308 ECP d: 40 mm | D: 90 mm | B: 23 mm | C: 93 kN | C0: 78 kN | Limiting speed: 9500 r/min
NU 309 ECP d: 45 mm | D: 100 mm | B: 25 mm | C: 112 kN | C0: 100 kN | Limiting speed: 8500 r/min
NJ 309 ECP d: 45 mm | D: 100 mm | B: 25 mm | C: 112 kN | C0: 100 kN | Limiting speed: 8500 r/min
NUP 309 ECP d: 45 mm | D: 100 mm | B: 25 mm | C: 112 kN | C0: 100 kN | Limiting speed: 8500 r/min
N 309 ECP d: 45 mm | D: 100 mm | B: 25 mm | C: 112 kN | C0: 100 kN | Limiting speed: 8500 r/min
NU 310 ECP d: 50 mm | D: 110 mm | B: 27 mm | C: 127 kN | C0: 112 kN | Limiting speed: 8000 r/min
NJ 310 ECP d: 50 mm | D: 110 mm | B: 27 mm | C: 127 kN | C0: 112 kN | Limiting speed: 8000 r/min
NUP 310 ECP d: 50 mm | D: 110 mm | B: 27 mm | C: 127 kN | C0: 112 kN | Limiting speed: 8000 r/min
N 310 ECP d: 50 mm | D: 110 mm | B: 27 mm | C: 127 kN | C0: 112 kN | Limiting speed: 8000 r/min
NU 311 ECP d: 55 mm | D: 120 mm | B: 29 mm | C: 156 kN | C0: 143 kN | Limiting speed: 7000 r/min
NJ 311 ECP d: 55 mm | D: 120 mm | B: 29 mm | C: 156 kN | C0: 143 kN | Limiting speed: 7000 r/min
NUP 311 ECP d: 55 mm | D: 120 mm | B: 29 mm | C: 156 kN | C0: 143 kN | Limiting speed: 7000 r/min
N 311 ECP d: 55 mm | D: 120 mm | B: 29 mm | C: 156 kN | C0: 143 kN | Limiting speed: 7000 r/min
NU 312 ECP d: 60 mm | D: 130 mm | B: 31 mm | C: 173 kN | C0: 160 kN | Limiting speed: 6700 r/min
NJ 312 ECP d: 60 mm | D: 130 mm | B: 31 mm | C: 173 kN | C0: 160 kN | Limiting speed: 6700 r/min
NUP 312 ECP d: 60 mm | D: 130 mm | B: 31 mm | C: 173 kN | C0: 160 kN | Limiting speed: 6700 r/min
N 312 ECP d: 60 mm | D: 130 mm | B: 31 mm | C: 173 kN | C0: 160 kN | Limiting speed: 6700 r/min
NU 313 ECP d: 65 mm | D: 140 mm | B: 33 mm | C: 212 kN | C0: 196 kN | Limiting speed: 6000 r/min
NJ 313 ECP d: 65 mm | D: 140 mm | B: 33 mm | C: 212 kN | C0: 196 kN | Limiting speed: 6000 r/min
NUP 313 ECP d: 65 mm | D: 140 mm | B: 33 mm | C: 212 kN | C0: 196 kN | Limiting speed: 6000 r/min
N 313 ECP d: 65 mm | D: 140 mm | B: 33 mm | C: 212 kN | C0: 196 kN | Limiting speed: 6000 r/min
NU 314 ECP d: 70 mm | D: 150 mm | B: 35 mm | C: 236 kN | C0: 228 kN | Limiting speed: 5600 r/min
NJ 314 ECP d: 70 mm | D: 150 mm | B: 35 mm | C: 236 kN | C0: 228 kN | Limiting speed: 5600 r/min
NUP 314 ECP d: 70 mm | D: 150 mm | B: 35 mm | C: 236 kN | C0: 228 kN | Limiting speed: 5600 r/min
N 314 ECP d: 70 mm | D: 150 mm | B: 35 mm | C: 236 kN | C0: 228 kN | Limiting speed: 5600 r/min
NU 315 ECP d: 75 mm | D: 160 mm | B: 37 mm | C: 280 kN | C0: 265 kN | Limiting speed: 5300 r/min
NJ 315 ECP d: 75 mm | D: 160 mm | B: 37 mm | C: 280 kN | C0: 265 kN | Limiting speed: 5300 r/min
NUP 315 ECP d: 75 mm | D: 160 mm | B: 37 mm | C: 280 kN | C0: 265 kN | Limiting speed: 5300 r/min
N 315 ECP d: 75 mm | D: 160 mm | B: 37 mm | C: 280 kN | C0: 265 kN | Limiting speed: 5300 r/min
NU 316 ECP d: 80 mm | D: 170 mm | B: 39 mm | C: 300 kN | C0: 290 kN | Limiting speed: 5000 r/min
NJ 316 ECP d: 80 mm | D: 170 mm | B: 39 mm | C: 300 kN | C0: 290 kN | Limiting speed: 5000 r/min
NUP 316 ECP d: 80 mm | D: 170 mm | B: 39 mm | C: 300 kN | C0: 290 kN | Limiting speed: 5000 r/min
N 316 ECP d: 80 mm | D: 170 mm | B: 39 mm | C: 300 kN | C0: 290 kN | Limiting speed: 5000 r/min
NU 317 ECP d: 85 mm | D: 180 mm | B: 41 mm | C: 340 kN | C0: 335 kN | Limiting speed: 4800 r/min
NJ 317 ECP d: 85 mm | D: 180 mm | B: 41 mm | C: 340 kN | C0: 335 kN | Limiting speed: 4800 r/min
NUP 317 ECP d: 85 mm | D: 180 mm | B: 41 mm | C: 340 kN | C0: 335 kN | Limiting speed: 4800 r/min
N 317 ECP d: 85 mm | D: 180 mm | B: 41 mm | C: 340 kN | C0: 335 kN | Limiting speed: 4800 r/min
NU 318 ECP d: 90 mm | D: 190 mm | B: 43 mm | C: 365 kN | C0: 360 kN | Limiting speed: 4500 r/min
NUP 318 ECJ d: 90 mm | D: 190 mm | B: 43 mm | C: 365 kN | C0: 360 kN | Limiting speed: 4500 r/min
N 318 ECP d: 90 mm | D: 190 mm | B: 43 mm | C: 365 kN | C0: 360 kN | Limiting speed: 4500 r/min
NU 319 ECP d: 95 mm | D: 200 mm | B: 45 mm | C: 390 kN | C0: 390 kN | Limiting speed: 4300 r/min
NJ 319 ECP d: 95 mm | D: 200 mm | B: 45 mm | C: 390 kN | C0: 390 kN | Limiting speed: 4300 r/min
NUP 319 ECP d: 95 mm | D: 200 mm | B: 45 mm | C: 390 kN | C0: 390 kN | Limiting speed: 4300 r/min
N 319 ECP d: 95 mm | D: 200 mm | B: 45 mm | C: 390 kN | C0: 390 kN | Limiting speed: 4300 r/min
NU 320 ECP d: 100 mm | D: 215 mm | B: 47 mm | C: 450 kN | C0: 440 kN | Limiting speed: 3800 r/min
NJ 320 ECP d: 100 mm | D: 215 mm | B: 47 mm | C: 450 kN | C0: 440 kN | Limiting speed: 3800 r/min
NUP 320 ECJ d: 100 mm | D: 215 mm | B: 47 mm | C: 450 kN | C0: 440 kN | Limiting speed: 3800 r/min
N 320 ECP d: 100 mm | D: 215 mm | B: 47 mm | C: 450 kN | C0: 440 kN | Limiting speed: 3800 r/min
NU 321 ECP d: 105 mm | D: 225 mm | B: 49 mm | C: 500 kN | C0: 500 kN | Limiting speed: 3800 r/min
NJ 321 ECJ d: 105 mm | D: 225 mm | B: 49 mm | C: 500 kN | C0: 500 kN | Limiting speed: 3800 r/min
N 321 ECP d: 105 mm | D: 225 mm | B: 49 mm | C: 500 kN | C0: 500 kN | Limiting speed: 3800 r/min
NU 322 ECP d: 110 mm | D: 240 mm | B: 50 mm | C: 530 kN | C0: 540 kN | Limiting speed: 3400 r/min
NJ 322 ECP d: 110 mm | D: 240 mm | B: 50 mm | C: 530 kN | C0: 540 kN | Limiting speed: 3400 r/min
NUP 322 ECP d: 110 mm | D: 240 mm | B: 50 mm | C: 530 kN | C0: 540 kN | Limiting speed: 3400 r/min
N 322 ECP d: 110 mm | D: 240 mm | B: 50 mm | C: 530 kN | C0: 540 kN | Limiting speed: 3400 r/min
NU 324 ECP d: 120 mm | D: 260 mm | B: 55 mm | C: 610 kN | C0: 620 kN | Limiting speed: 3200 r/min
NJ 324 ECP d: 120 mm | D: 260 mm | B: 55 mm | C: 610 kN | C0: 620 kN | Limiting speed: 3200 r/min
NUP 324 ECP d: 120 mm | D: 260 mm | B: 55 mm | C: 610 kN | C0: 620 kN | Limiting speed: 3200 r/min
N 324 ECP d: 120 mm | D: 260 mm | B: 55 mm | C: 610 kN | C0: 620 kN | Limiting speed: 3200 r/min
NU 326 ECP d: 130 mm | D: 280 mm | B: 58 mm | C: 720 kN | C0: 750 kN | Limiting speed: 3000 r/min
NJ 326 ECP d: 130 mm | D: 280 mm | B: 58 mm | C: 720 kN | C0: 750 kN | Limiting speed: 3000 r/min
NUP 326 ECP d: 130 mm | D: 280 mm | B: 58 mm | C: 720 kN | C0: 750 kN | Limiting speed: 3000 r/min
N 326 ECP d: 130 mm | D: 280 mm | B: 58 mm | C: 720 kN | C0: 750 kN | Limiting speed: 3000 r/min
NU 328 ECM d: 140 mm | D: 300 mm | B: 62 mm | C: 780 kN | C0: 830 kN | Limiting speed: 2800 r/min
NJ 328 ECM d: 140 mm | D: 300 mm | B: 62 mm | C: 780 kN | C0: 830 kN | Limiting speed: 2800 r/min
NUP 328 ECM d: 140 mm | D: 300 mm | B: 62 mm | C: 780 kN | C0: 830 kN | Limiting speed: 2800 r/min
NU 330 ECM d: 150 mm | D: 320 mm | B: 65 mm | C: 900 kN | C0: 965 kN | Limiting speed: 2600 r/min
NJ 330 ECM d: 150 mm | D: 320 mm | B: 65 mm | C: 900 kN | C0: 965 kN | Limiting speed: 2600 r/min
NU 332 ECM d: 160 mm | D: 340 mm | B: 68 mm | C: 1000 kN | C0: 1080 kN | Limiting speed: 2400 r/min
NJ 332 ECM d: 160 mm | D: 340 mm | B: 68 mm | C: 1000 kN | C0: 1080 kN | Limiting speed: 2400 r/min
NU 334 ECM d: 170 mm | D: 360 mm | B: 72 mm | C: 952 kN | C0: 1180 kN | Limiting speed: 2200 r/min
N 334 ECM d: 170 mm | D: 360 mm | B: 72 mm | C: 952 kN | C0: 1180 kN | Limiting speed: 2200 r/min
NU 336 ECM d: 180 mm | D: 380 mm | B: 75 mm | C: 1020 kN | C0: 1290 kN | Limiting speed: 2200 r/min
NU 338 ECM d: 190 mm | D: 400 mm | B: 78 mm | C: 1140 kN | C0: 1500 kN | Limiting speed: 2000 r/min
NU 340 ECMA d: 200 mm | D: 420 mm | B: 80 mm | C: 1230 kN | C0: 1630 kN | Limiting speed: 2400 r/min
NU 344 M d: 220 mm | D: 460 mm | B: 88 mm | C: 1210 kN | C0: 1630 kN | Limiting speed: 1700 r/min
NJ 344 M d: 220 mm | D: 460 mm | B: 88 mm | C: 1210 kN | C0: 1630 kN | Limiting speed: 1700 r/min
NU 348 M d: 240 mm | D: 500 mm | B: 95 mm | C: 1450 kN | C0: 2000 kN | Limiting speed: 1600 r/min
NJ 348 MA d: 240 mm | D: 500 mm | B: 95 mm | C: 1450 kN | C0: 2000 kN | Limiting speed: 2000 r/min
NU 352 ECMA d: 260 mm | D: 540 mm | B: 102 mm | C: 1940 kN | C0: 2700 kN | Limiting speed: 1800 r/min
