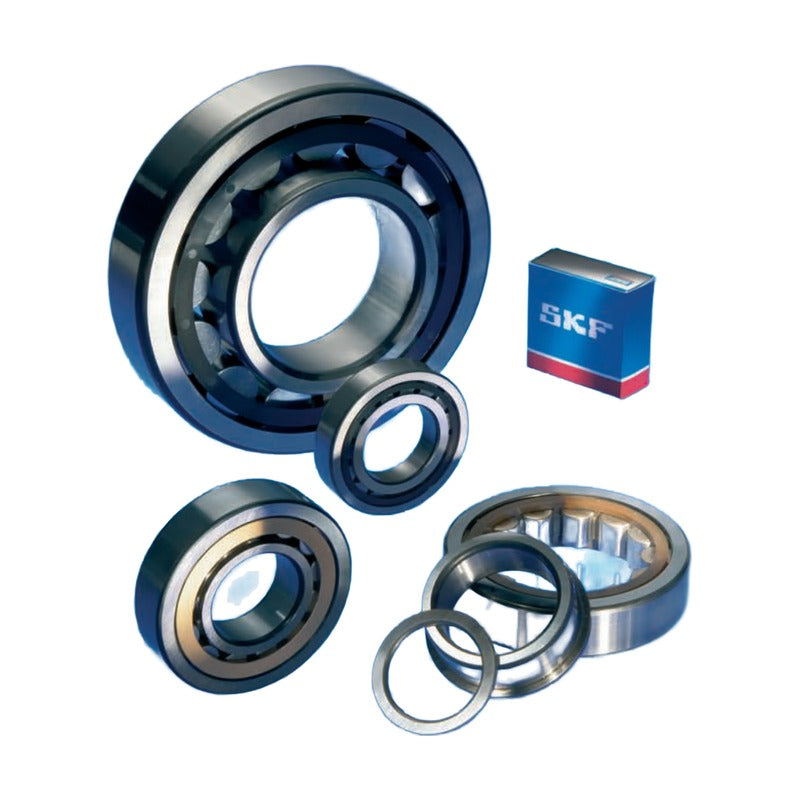

SKF NU/NJ 4 Series Cylindrical Roller Bearings

SKF NU/NJ 4 Series Cylindrical Roller Bearings

SKF single row cylindrical roller bearings of the 4 dimension series in NU, NJ, NUP and N designs, as listed in the SKF General Catalogue. Bore diameters 30-120 mm.

Key features

  • Separable design: inner ring and outer ring with roller and cage assembly can be mounted separately
  • NU and N designs accommodate axial shaft displacement; NJ locates in one direction, NUP in both
  • High radial load carrying capacity with line contact rollers
  • Smaller sizes as SKF Explorer bearings (EC design) with polyamide (P), steel (J) or brass (M, MA, ML) cages
  • Catalogue table also lists reference speed and limiting speed for each size

Specifications

Bearing type Single row cylindrical roller bearing
Dimension series 4
Designs NU, NJ
Bore range d 30-120 mm
Outside dia. range D 90-310 mm
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 524-547
NU 406 d: 30 mm | D: 90 mm | B: 23 mm | C: 60.5 kN | C0: 53 kN | Limiting speed: 11000 r/min
NJ 406 d: 30 mm | D: 90 mm | B: 23 mm | C: 60.5 kN | C0: 53 kN | Limiting speed: 11000 r/min
NU 407 d: 35 mm | D: 100 mm | B: 25 mm | C: 76.5 kN | C0: 69.5 kN | Limiting speed: 9500 r/min
NJ 407 d: 35 mm | D: 100 mm | B: 25 mm | C: 76.5 kN | C0: 69.5 kN | Limiting speed: 9500 r/min
NU 408 d: 40 mm | D: 110 mm | B: 27 mm | C: 96.8 kN | C0: 90 kN | Limiting speed: 8500 r/min
NJ 408 d: 40 mm | D: 110 mm | B: 27 mm | C: 96.8 kN | C0: 90 kN | Limiting speed: 8500 r/min
NU 409 d: 45 mm | D: 120 mm | B: 29 mm | C: 106 kN | C0: 102 kN | Limiting speed: 7500 r/min
NJ 409 d: 45 mm | D: 120 mm | B: 29 mm | C: 106 kN | C0: 102 kN | Limiting speed: 7500 r/min
NU 410 d: 50 mm | D: 130 mm | B: 31 mm | C: 130 kN | C0: 127 kN | Limiting speed: 7000 r/min
NJ 410 d: 50 mm | D: 130 mm | B: 31 mm | C: 130 kN | C0: 127 kN | Limiting speed: 7000 r/min
NU 411 d: 55 mm | D: 140 mm | B: 33 mm | C: 142 kN | C0: 140 kN | Limiting speed: 6300 r/min
NJ 411 d: 55 mm | D: 140 mm | B: 33 mm | C: 142 kN | C0: 140 kN | Limiting speed: 6300 r/min
NU 412 d: 60 mm | D: 150 mm | B: 35 mm | C: 168 kN | C0: 173 kN | Limiting speed: 6000 r/min
NJ 412 d: 60 mm | D: 150 mm | B: 35 mm | C: 168 kN | C0: 173 kN | Limiting speed: 6000 r/min
NU 413 d: 65 mm | D: 160 mm | B: 37 mm | C: 183 kN | C0: 190 kN | Limiting speed: 5600 r/min
NJ 413 d: 65 mm | D: 160 mm | B: 37 mm | C: 183 kN | C0: 190 kN | Limiting speed: 5600 r/min
NU 414 d: 70 mm | D: 180 mm | B: 42 mm | C: 229 kN | C0: 240 kN | Limiting speed: 5000 r/min
NJ 414 d: 70 mm | D: 180 mm | B: 42 mm | C: 229 kN | C0: 240 kN | Limiting speed: 5000 r/min
NU 415 d: 75 mm | D: 190 mm | B: 45 mm | C: 264 kN | C0: 280 kN | Limiting speed: 4800 r/min
NJ 415 d: 75 mm | D: 190 mm | B: 45 mm | C: 264 kN | C0: 280 kN | Limiting speed: 4800 r/min
NU 416 d: 80 mm | D: 200 mm | B: 48 mm | C: 303 kN | C0: 320 kN | Limiting speed: 4500 r/min
NJ 416 d: 80 mm | D: 200 mm | B: 48 mm | C: 303 kN | C0: 320 kN | Limiting speed: 4500 r/min
NU 417 d: 85 mm | D: 210 mm | B: 52 mm | C: 319 kN | C0: 335 kN | Limiting speed: 4300 r/min
NJ 417 d: 85 mm | D: 210 mm | B: 52 mm | C: 319 kN | C0: 335 kN | Limiting speed: 4300 r/min
NU 418 d: 90 mm | D: 225 mm | B: 54 mm | C: 380 kN | C0: 415 kN | Limiting speed: 4000 r/min
NU 419 M d: 95 mm | D: 240 mm | B: 55 mm | C: 413 kN | C0: 455 kN | Limiting speed: 3600 r/min
NU 420 M d: 100 mm | D: 250 mm | B: 58 mm | C: 429 kN | C0: 475 kN | Limiting speed: 3600 r/min
NU 421 M d: 105 mm | D: 260 mm | B: 60 mm | C: 501 kN | C0: 570 kN | Limiting speed: 3400 r/min
NU 422 d: 110 mm | D: 280 mm | B: 65 mm | C: 532 kN | C0: 585 kN | Limiting speed: 3200 r/min
NJ 422 d: 110 mm | D: 280 mm | B: 65 mm | C: 532 kN | C0: 585 kN | Limiting speed: 3200 r/min
NU 424 d: 120 mm | D: 310 mm | B: 72 mm | C: 644 kN | C0: 735 kN | Limiting speed: 2800 r/min
