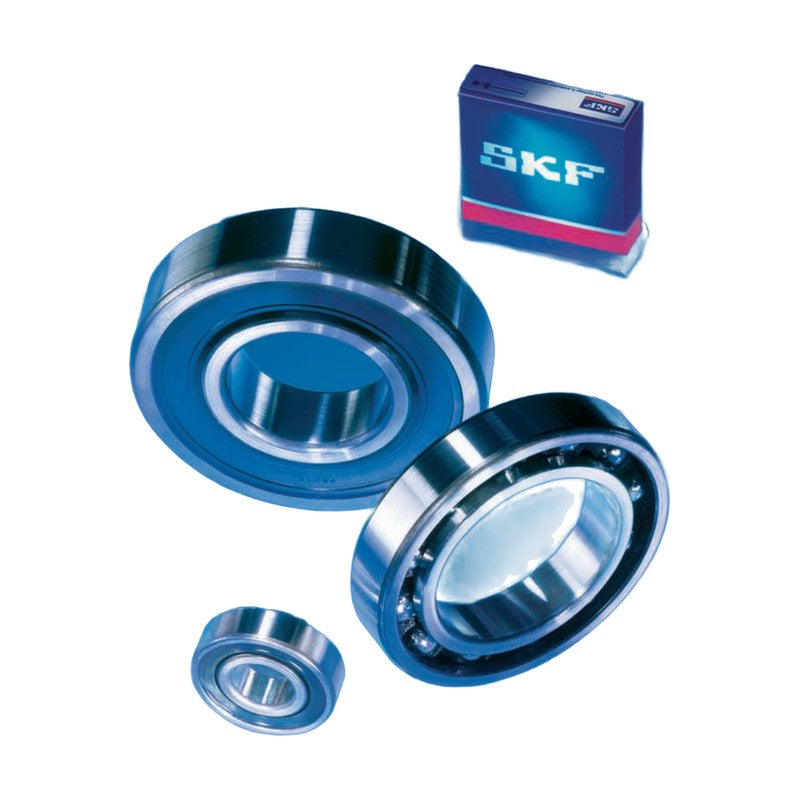

SKF Deep Groove Ball Bearings with Snap Ring Groove (N, NR, ZNR)

SKF Deep Groove Ball Bearings with Snap Ring Groove (N, NR, ZNR)

SKF single row deep groove ball bearings of the 60, 62, 63 and 64 series with a snap ring groove in the outer ring (N), supplied with snap ring (NR) or additionally shielded (ZNR, 2ZNR).

Key features

  • Snap ring groove in outer ring (suffix N) for simple axial location in the housing
  • NR: supplied with the matching SP snap ring fitted
  • ZNR / 2ZNR: one or two shields plus snap ring
  • Simplifies housing design and reduces axial space
  • Boundary dimensions to ISO 15:1998

Specifications

Bearing type Single row deep groove ball bearing
Design Non-separable
Dimension standard ISO 15:1998
Load direction Radial and axial (both directions)
Series 60, 62, 63, 64
Variants N, NR, ZNR, 2ZNR
Snap rings SP series
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 350-359
6200 N d: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Snap ring: SP 30
6200 NR d: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Snap ring: SP 30
6201 N d: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Snap ring: SP 32
6201 NR d: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Snap ring: SP 32
6202 N d: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Snap ring: SP 35
6202 NR d: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Snap ring: SP 35
6203 N d: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Snap ring: SP 40
6203 NR d: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Snap ring: SP 40
6303 N d: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Snap ring: SP 47
6303 NR d: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Snap ring: SP 47
6004 N d: 20 mm | D: 42 mm | B: 12 mm | C: 9.5 kN | C0: 5 kN | Snap ring: SP 42
6004 NR d: 20 mm | D: 42 mm | B: 12 mm | C: 9.5 kN | C0: 5 kN | Snap ring: SP 42
6204 N d: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Snap ring: SP 47
6204 NR d: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Snap ring: SP 47
6304 N d: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Snap ring: SP 52
6304 NR d: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Snap ring: SP 52
6005 N d: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Snap ring: SP 47
6005 NR d: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Snap ring: SP 47
6205 N d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Snap ring: SP 52
6205 NR d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Snap ring: SP 52
6305 N d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Snap ring: SP 62
6305 NR d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Snap ring: SP 62
6006 N d: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Snap ring: SP 55
6006 NR d: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Snap ring: SP 55
6206 N d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Snap ring: SP 62
6206 NR d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Snap ring: SP 62
6306 N d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Snap ring: SP 72
6306 NR d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Snap ring: SP 72
6007 N d: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Snap ring: SP 62
6007 NR d: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Snap ring: SP 62
6207 N d: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Snap ring: SP 72
6207 NR d: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Snap ring: SP 72
6307 N d: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Snap ring: SP 80
6307 NR d: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Snap ring: SP 80
6407 N d: 35 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31 kN | Snap ring: SP 100
6407 NR d: 35 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31 kN | Snap ring: SP 100
6008 N d: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Snap ring: SP 68
6008 NR d: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Snap ring: SP 68
6208 N d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Snap ring: SP 80
6208 NR d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Snap ring: SP 80
6308 N d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Snap ring: SP 90
6308 NR d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Snap ring: SP 90
6408 N d: 40 mm | D: 110 mm | B: 27 mm | C: 63.7 kN | C0: 36.5 kN | Snap ring: SP 110
6408 NR d: 40 mm | D: 110 mm | B: 27 mm | C: 63.7 kN | C0: 36.5 kN | Snap ring: SP 110
6009 N d: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Snap ring: SP 75
6009 NR d: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Snap ring: SP 75
6209 N d: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Snap ring: SP 85
6209 NR d: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Snap ring: SP 85
6309 N d: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Snap ring: SP 100
6309 NR d: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Snap ring: SP 100
6409 N d: 45 mm | D: 120 mm | B: 29 mm | C: 76.1 kN | C0: 45 kN | Snap ring: SP 120
6409 NR d: 45 mm | D: 120 mm | B: 29 mm | C: 76.1 kN | C0: 45 kN | Snap ring: SP 120
6010 N d: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Snap ring: SP 80
6010 NR d: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Snap ring: SP 80
6210 N d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Snap ring: SP 90
6210 NR d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Snap ring: SP 90
6310 N d: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Snap ring: SP 110
6310 NR d: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Snap ring: SP 110
6410 N d: 50 mm | D: 130 mm | B: 31 mm | C: 87.1 kN | C0: 52 kN | Snap ring: SP 130
6410 NR d: 50 mm | D: 130 mm | B: 31 mm | C: 87.1 kN | C0: 52 kN | Snap ring: SP 130
6011 N d: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Snap ring: SP 90
6011 NR d: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Snap ring: SP 90
6211 N d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Snap ring: SP 100
6211 NR d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Snap ring: SP 100
6311 N d: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Snap ring: SP 120
6311 NR d: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Snap ring: SP 120
6411 N d: 55 mm | D: 140 mm | B: 33 mm | C: 99.5 kN | C0: 62 kN | Snap ring: SP 140
6411 NR d: 55 mm | D: 140 mm | B: 33 mm | C: 99.5 kN | C0: 62 kN | Snap ring: SP 140
6012 N d: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Snap ring: SP 95
6012 NR d: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Snap ring: SP 95
6212 N d: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Snap ring: SP 110
6212 NR d: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Snap ring: SP 110
6312 N d: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Snap ring: SP 130
6312 NR d: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Snap ring: SP 130
6412 N d: 60 mm | D: 150 mm | B: 35 mm | C: 108 kN | C0: 69.5 kN | Snap ring: SP 150
6412 NR d: 60 mm | D: 150 mm | B: 35 mm | C: 108 kN | C0: 69.5 kN | Snap ring: SP 150
6013 N d: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Snap ring: SP 100
6013 NR d: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Snap ring: SP 100
6213 N d: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Snap ring: SP 120
6213 NR d: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Snap ring: SP 120
6313 N d: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Snap ring: SP 140
6313 NR d: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Snap ring: SP 140
6413 N d: 65 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 78 kN | Snap ring: SP 160
6413 NR d: 65 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 78 kN | Snap ring: SP 160
6014 N d: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Snap ring: SP 110
6014 NR d: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Snap ring: SP 110
6214 N d: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Snap ring: SP 125
6214 NR d: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Snap ring: SP 125
6314 N d: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Snap ring: SP 150
6314 NR d: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Snap ring: SP 150
6015 N d: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Snap ring: SP 115
6015 NR d: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Snap ring: SP 115
6215 N d: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Snap ring: SP 130
6215 NR d: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Snap ring: SP 130
6315 N d: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Snap ring: SP 160
6315 NR d: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Snap ring: SP 160
6016 N d: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Snap ring: SP 125
6016 NR d: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Snap ring: SP 125
6216 N d: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Snap ring: SP 140
6216 NR d: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Snap ring: SP 140
6017 N d: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Snap ring: SP 130
6017 NR d: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Snap ring: SP 130
6217 N d: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Snap ring: SP 150
6217 NR d: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Snap ring: SP 150
6018 N d: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Snap ring: SP 140
6018 NR d: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Snap ring: SP 140
6218 N d: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Snap ring: SP 160
6218 NR d: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Snap ring: SP 160
6219 N d: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Snap ring: SP 170
6219 NR d: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Snap ring: SP 170
6020 N d: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Snap ring: SP 150
6020 NR d: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Snap ring: SP 150
6220 N d: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Snap ring: SP 180
6220 NR d: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Snap ring: SP 180
6021 N d: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Snap ring: SP 160
6021 NR d: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Snap ring: SP 160
6022 N d: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Snap ring: SP 170
6022 NR d: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Snap ring: SP 170
6024 N d: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Snap ring: SP 180
6024 NR d: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Snap ring: SP 180
6200-ZNR d: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Snap ring: SP 30
6200-2ZNR d: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Snap ring: SP 30
6201-ZNR d: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Snap ring: SP 32
6201-2ZNR d: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Snap ring: SP 32
6202-ZNR d: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Snap ring: SP 35
6202-2ZNR d: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Snap ring: SP 35
6203-ZNR d: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Snap ring: SP 40
6203-2ZNR d: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Snap ring: SP 40
6303-ZNR d: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Snap ring: SP 47
6303-2ZNR d: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Snap ring: SP 47
6004-ZNR d: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Snap ring: SP 42
6004-2ZNR d: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Snap ring: SP 42
6204-ZNR d: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Snap ring: SP 47
6204-2ZNR d: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Snap ring: SP 47
6304-ZNR d: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Snap ring: SP 52
6304-2ZNR d: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Snap ring: SP 52
6005-ZNR d: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Snap ring: SP 47
6005-2ZNR d: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Snap ring: SP 47
6205-ZNR d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Snap ring: SP 52
6205-2ZNR d: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Snap ring: SP 52
6305-ZNR d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Snap ring: SP 62
6305-2ZNR d: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Snap ring: SP 62
6206-ZNR d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Snap ring: SP 62
6206-2ZNR d: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Snap ring: SP 62
6306-ZNR d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Snap ring: SP 72
6306-2ZNR d: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Snap ring: SP 72
6207-ZNR d: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Snap ring: SP 72
6207-2ZNR d: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Snap ring: SP 72
6307-ZNR d: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Snap ring: SP 80
6307-2ZNR d: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Snap ring: SP 80
6208-ZNR d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Snap ring: SP 80
6208-2ZNR d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Snap ring: SP 80
6308-ZNR d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Snap ring: SP 90
6308-2ZNR d: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Snap ring: SP 90
6209-ZNR d: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Snap ring: SP 85
6209-2ZNR d: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Snap ring: SP 85
6309-ZNR d: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Snap ring: SP 100
6309-2ZNR d: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Snap ring: SP 100
6210-ZNR d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Snap ring: SP 90
6210-2ZNR d: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Snap ring: SP 90
6310-ZNR d: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Snap ring: SP 110
6310-2ZNR d: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Snap ring: SP 110
6211-ZNR d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Snap ring: SP 100
6211-2ZNR d: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Snap ring: SP 100
6311-ZNR d: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Snap ring: SP 120
6311-2ZNR d: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Snap ring: SP 120
6212-ZNR d: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Snap ring: SP 110
6212-2ZNR d: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Snap ring: SP 110
6312-ZNR d: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Snap ring: SP 130
6312-2ZNR d: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Snap ring: SP 130
6213-ZNR d: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Snap ring: SP 120
6213-2ZNR d: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Snap ring: SP 120
6313-ZNR d: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Snap ring: SP 140
6313-2ZNR d: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Snap ring: SP 140
6214-ZNR d: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Snap ring: SP 125
6214-2ZNR d: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Snap ring: SP 125
6314-ZNR d: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Snap ring: SP 150
6314-2ZNR d: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Snap ring: SP 150
Deep Groove Ball BearingsSKF
178 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF Deep Groove Ball Bearings with Snap Ring Groove (N, NR, ZNR)

Brand SKF·Deep Groove Ball Bearings

Available part numbers (178)

6200 N, 6200 NR, 6201 N, 6201 NR, 6202 N, 6202 NR, 6203 N, 6203 NR, 6303 N, 6303 NR + 168 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6200 Nd: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Snap ring: SP 30
6200 NRd: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Snap ring: SP 30
6201 Nd: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Snap ring: SP 32
6201 NRd: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Snap ring: SP 32
6202 Nd: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Snap ring: SP 35
6202 NRd: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Snap ring: SP 35
6203 Nd: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Snap ring: SP 40
6203 NRd: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Snap ring: SP 40
6303 Nd: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Snap ring: SP 47
6303 NRd: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Snap ring: SP 47
6004 Nd: 20 mm | D: 42 mm | B: 12 mm | C: 9.5 kN | C0: 5 kN | Snap ring: SP 42
6004 NRd: 20 mm | D: 42 mm | B: 12 mm | C: 9.5 kN | C0: 5 kN | Snap ring: SP 42
6204 Nd: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Snap ring: SP 47
6204 NRd: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Snap ring: SP 47
6304 Nd: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Snap ring: SP 52
6304 NRd: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Snap ring: SP 52
6005 Nd: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Snap ring: SP 47
6005 NRd: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Snap ring: SP 47
6205 Nd: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Snap ring: SP 52
6205 NRd: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Snap ring: SP 52
6305 Nd: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Snap ring: SP 62
6305 NRd: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Snap ring: SP 62
6006 Nd: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Snap ring: SP 55
6006 NRd: 30 mm | D: 55 mm | B: 13 mm | C: 13.8 kN | C0: 8.3 kN | Snap ring: SP 55
6206 Nd: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Snap ring: SP 62
6206 NRd: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Snap ring: SP 62
6306 Nd: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Snap ring: SP 72
6306 NRd: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Snap ring: SP 72
6007 Nd: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Snap ring: SP 62
6007 NRd: 35 mm | D: 62 mm | B: 14 mm | C: 16.8 kN | C0: 10.2 kN | Snap ring: SP 62
6207 Nd: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Snap ring: SP 72
6207 NRd: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Snap ring: SP 72
6307 Nd: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Snap ring: SP 80
6307 NRd: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Snap ring: SP 80
6407 Nd: 35 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31 kN | Snap ring: SP 100
6407 NRd: 35 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31 kN | Snap ring: SP 100
6008 Nd: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Snap ring: SP 68
6008 NRd: 40 mm | D: 68 mm | B: 15 mm | C: 17.8 kN | C0: 11.6 kN | Snap ring: SP 68
6208 Nd: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Snap ring: SP 80
6208 NRd: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Snap ring: SP 80
6308 Nd: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Snap ring: SP 90
6308 NRd: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Snap ring: SP 90
6408 Nd: 40 mm | D: 110 mm | B: 27 mm | C: 63.7 kN | C0: 36.5 kN | Snap ring: SP 110
6408 NRd: 40 mm | D: 110 mm | B: 27 mm | C: 63.7 kN | C0: 36.5 kN | Snap ring: SP 110
6009 Nd: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Snap ring: SP 75
6009 NRd: 45 mm | D: 75 mm | B: 16 mm | C: 22.1 kN | C0: 14.6 kN | Snap ring: SP 75
6209 Nd: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Snap ring: SP 85
6209 NRd: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Snap ring: SP 85
6309 Nd: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Snap ring: SP 100
6309 NRd: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Snap ring: SP 100
6409 Nd: 45 mm | D: 120 mm | B: 29 mm | C: 76.1 kN | C0: 45 kN | Snap ring: SP 120
6409 NRd: 45 mm | D: 120 mm | B: 29 mm | C: 76.1 kN | C0: 45 kN | Snap ring: SP 120
6010 Nd: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Snap ring: SP 80
6010 NRd: 50 mm | D: 80 mm | B: 16 mm | C: 22.9 kN | C0: 16 kN | Snap ring: SP 80
6210 Nd: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Snap ring: SP 90
6210 NRd: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Snap ring: SP 90
6310 Nd: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Snap ring: SP 110
6310 NRd: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Snap ring: SP 110
6410 Nd: 50 mm | D: 130 mm | B: 31 mm | C: 87.1 kN | C0: 52 kN | Snap ring: SP 130
6410 NRd: 50 mm | D: 130 mm | B: 31 mm | C: 87.1 kN | C0: 52 kN | Snap ring: SP 130
6011 Nd: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Snap ring: SP 90
6011 NRd: 55 mm | D: 90 mm | B: 18 mm | C: 29.6 kN | C0: 21.2 kN | Snap ring: SP 90
6211 Nd: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Snap ring: SP 100
6211 NRd: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Snap ring: SP 100
6311 Nd: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Snap ring: SP 120
6311 NRd: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Snap ring: SP 120
6411 Nd: 55 mm | D: 140 mm | B: 33 mm | C: 99.5 kN | C0: 62 kN | Snap ring: SP 140
6411 NRd: 55 mm | D: 140 mm | B: 33 mm | C: 99.5 kN | C0: 62 kN | Snap ring: SP 140
6012 Nd: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Snap ring: SP 95
6012 NRd: 60 mm | D: 95 mm | B: 18 mm | C: 30.7 kN | C0: 23.2 kN | Snap ring: SP 95
6212 Nd: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Snap ring: SP 110
6212 NRd: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Snap ring: SP 110
6312 Nd: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Snap ring: SP 130
6312 NRd: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Snap ring: SP 130
6412 Nd: 60 mm | D: 150 mm | B: 35 mm | C: 108 kN | C0: 69.5 kN | Snap ring: SP 150
6412 NRd: 60 mm | D: 150 mm | B: 35 mm | C: 108 kN | C0: 69.5 kN | Snap ring: SP 150
6013 Nd: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Snap ring: SP 100
6013 NRd: 65 mm | D: 100 mm | B: 18 mm | C: 31.9 kN | C0: 25 kN | Snap ring: SP 100
6213 Nd: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Snap ring: SP 120
6213 NRd: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Snap ring: SP 120
6313 Nd: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Snap ring: SP 140
6313 NRd: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Snap ring: SP 140
6413 Nd: 65 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 78 kN | Snap ring: SP 160
6413 NRd: 65 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 78 kN | Snap ring: SP 160
6014 Nd: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Snap ring: SP 110
6014 NRd: 70 mm | D: 110 mm | B: 20 mm | C: 39.7 kN | C0: 31 kN | Snap ring: SP 110
6214 Nd: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Snap ring: SP 125
6214 NRd: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Snap ring: SP 125
6314 Nd: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Snap ring: SP 150
6314 NRd: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Snap ring: SP 150
6015 Nd: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Snap ring: SP 115
6015 NRd: 75 mm | D: 115 mm | B: 20 mm | C: 41.6 kN | C0: 33.5 kN | Snap ring: SP 115
6215 Nd: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Snap ring: SP 130
6215 NRd: 75 mm | D: 130 mm | B: 25 mm | C: 68.9 kN | C0: 49 kN | Snap ring: SP 130
6315 Nd: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Snap ring: SP 160
6315 NRd: 75 mm | D: 160 mm | B: 37 mm | C: 119 kN | C0: 76.5 kN | Snap ring: SP 160
6016 Nd: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Snap ring: SP 125
6016 NRd: 80 mm | D: 125 mm | B: 22 mm | C: 49.4 kN | C0: 40 kN | Snap ring: SP 125
6216 Nd: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Snap ring: SP 140
6216 NRd: 80 mm | D: 140 mm | B: 26 mm | C: 72.8 kN | C0: 55 kN | Snap ring: SP 140
6017 Nd: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Snap ring: SP 130
6017 NRd: 85 mm | D: 130 mm | B: 22 mm | C: 52 kN | C0: 43 kN | Snap ring: SP 130
6217 Nd: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Snap ring: SP 150
6217 NRd: 85 mm | D: 150 mm | B: 28 mm | C: 87.1 kN | C0: 64 kN | Snap ring: SP 150
6018 Nd: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Snap ring: SP 140
6018 NRd: 90 mm | D: 140 mm | B: 24 mm | C: 60.5 kN | C0: 50 kN | Snap ring: SP 140
6218 Nd: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Snap ring: SP 160
6218 NRd: 90 mm | D: 160 mm | B: 30 mm | C: 101 kN | C0: 73.5 kN | Snap ring: SP 160
6219 Nd: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Snap ring: SP 170
6219 NRd: 95 mm | D: 170 mm | B: 32 mm | C: 114 kN | C0: 81.5 kN | Snap ring: SP 170
6020 Nd: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Snap ring: SP 150
6020 NRd: 100 mm | D: 150 mm | B: 24 mm | C: 63.7 kN | C0: 54 kN | Snap ring: SP 150
6220 Nd: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Snap ring: SP 180
6220 NRd: 100 mm | D: 180 mm | B: 34 mm | C: 127 kN | C0: 93 kN | Snap ring: SP 180
6021 Nd: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Snap ring: SP 160
6021 NRd: 105 mm | D: 160 mm | B: 26 mm | C: 76.1 kN | C0: 65.5 kN | Snap ring: SP 160
6022 Nd: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Snap ring: SP 170
6022 NRd: 110 mm | D: 170 mm | B: 28 mm | C: 85.2 kN | C0: 73.5 kN | Snap ring: SP 170
6024 Nd: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Snap ring: SP 180
6024 NRd: 120 mm | D: 180 mm | B: 28 mm | C: 88.4 kN | C0: 80 kN | Snap ring: SP 180
6200-ZNRd: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Snap ring: SP 30
6200-2ZNRd: 10 mm | D: 30 mm | B: 9 mm | C: 5.4 kN | C0: 2.36 kN | Snap ring: SP 30
6201-ZNRd: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Snap ring: SP 32
6201-2ZNRd: 12 mm | D: 32 mm | B: 10 mm | C: 7.28 kN | C0: 3.1 kN | Snap ring: SP 32
6202-ZNRd: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Snap ring: SP 35
6202-2ZNRd: 15 mm | D: 35 mm | B: 11 mm | C: 8.06 kN | C0: 3.75 kN | Snap ring: SP 35
6203-ZNRd: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Snap ring: SP 40
6203-2ZNRd: 17 mm | D: 40 mm | B: 12 mm | C: 9.95 kN | C0: 4.75 kN | Snap ring: SP 40
6303-ZNRd: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Snap ring: SP 47
6303-2ZNRd: 17 mm | D: 47 mm | B: 14 mm | C: 14.3 kN | C0: 6.55 kN | Snap ring: SP 47
6004-ZNRd: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Snap ring: SP 42
6004-2ZNRd: 20 mm | D: 42 mm | B: 12 mm | C: 9.95 kN | C0: 5 kN | Snap ring: SP 42
6204-ZNRd: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Snap ring: SP 47
6204-2ZNRd: 20 mm | D: 47 mm | B: 14 mm | C: 13.5 kN | C0: 6.55 kN | Snap ring: SP 47
6304-ZNRd: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Snap ring: SP 52
6304-2ZNRd: 20 mm | D: 52 mm | B: 15 mm | C: 16.8 kN | C0: 7.8 kN | Snap ring: SP 52
6005-ZNRd: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Snap ring: SP 47
6005-2ZNRd: 25 mm | D: 47 mm | B: 12 mm | C: 11.9 kN | C0: 6.55 kN | Snap ring: SP 47
6205-ZNRd: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Snap ring: SP 52
6205-2ZNRd: 25 mm | D: 52 mm | B: 15 mm | C: 14.8 kN | C0: 7.8 kN | Snap ring: SP 52
6305-ZNRd: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Snap ring: SP 62
6305-2ZNRd: 25 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 11.6 kN | Snap ring: SP 62
6206-ZNRd: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Snap ring: SP 62
6206-2ZNRd: 30 mm | D: 62 mm | B: 16 mm | C: 20.3 kN | C0: 11.2 kN | Snap ring: SP 62
6306-ZNRd: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Snap ring: SP 72
6306-2ZNRd: 30 mm | D: 72 mm | B: 19 mm | C: 29.6 kN | C0: 16 kN | Snap ring: SP 72
6207-ZNRd: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Snap ring: SP 72
6207-2ZNRd: 35 mm | D: 72 mm | B: 17 mm | C: 27 kN | C0: 15.3 kN | Snap ring: SP 72
6307-ZNRd: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Snap ring: SP 80
6307-2ZNRd: 35 mm | D: 80 mm | B: 21 mm | C: 35.1 kN | C0: 19 kN | Snap ring: SP 80
6208-ZNRd: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Snap ring: SP 80
6208-2ZNRd: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 19 kN | Snap ring: SP 80
6308-ZNRd: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Snap ring: SP 90
6308-2ZNRd: 40 mm | D: 90 mm | B: 23 mm | C: 42.3 kN | C0: 24 kN | Snap ring: SP 90
6209-ZNRd: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Snap ring: SP 85
6209-2ZNRd: 45 mm | D: 85 mm | B: 19 mm | C: 35.1 kN | C0: 21.6 kN | Snap ring: SP 85
6309-ZNRd: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Snap ring: SP 100
6309-2ZNRd: 45 mm | D: 100 mm | B: 25 mm | C: 55.3 kN | C0: 31.5 kN | Snap ring: SP 100
6210-ZNRd: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Snap ring: SP 90
6210-2ZNRd: 50 mm | D: 90 mm | B: 20 mm | C: 37.1 kN | C0: 23.2 kN | Snap ring: SP 90
6310-ZNRd: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Snap ring: SP 110
6310-2ZNRd: 50 mm | D: 110 mm | B: 27 mm | C: 65 kN | C0: 38 kN | Snap ring: SP 110
6211-ZNRd: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Snap ring: SP 100
6211-2ZNRd: 55 mm | D: 100 mm | B: 21 mm | C: 46.2 kN | C0: 29 kN | Snap ring: SP 100
6311-ZNRd: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Snap ring: SP 120
6311-2ZNRd: 55 mm | D: 120 mm | B: 29 mm | C: 74.1 kN | C0: 45 kN | Snap ring: SP 120
6212-ZNRd: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Snap ring: SP 110
6212-2ZNRd: 60 mm | D: 110 mm | B: 22 mm | C: 55.3 kN | C0: 36 kN | Snap ring: SP 110
6312-ZNRd: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Snap ring: SP 130
6312-2ZNRd: 60 mm | D: 130 mm | B: 31 mm | C: 85.2 kN | C0: 52 kN | Snap ring: SP 130
6213-ZNRd: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Snap ring: SP 120
6213-2ZNRd: 65 mm | D: 120 mm | B: 23 mm | C: 58.5 kN | C0: 40.5 kN | Snap ring: SP 120
6313-ZNRd: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Snap ring: SP 140
6313-2ZNRd: 65 mm | D: 140 mm | B: 33 mm | C: 97.5 kN | C0: 60 kN | Snap ring: SP 140
6214-ZNRd: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Snap ring: SP 125
6214-2ZNRd: 70 mm | D: 125 mm | B: 24 mm | C: 63.7 kN | C0: 45 kN | Snap ring: SP 125
6314-ZNRd: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Snap ring: SP 150
6314-2ZNRd: 70 mm | D: 150 mm | B: 35 mm | C: 111 kN | C0: 68 kN | Snap ring: SP 150

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
