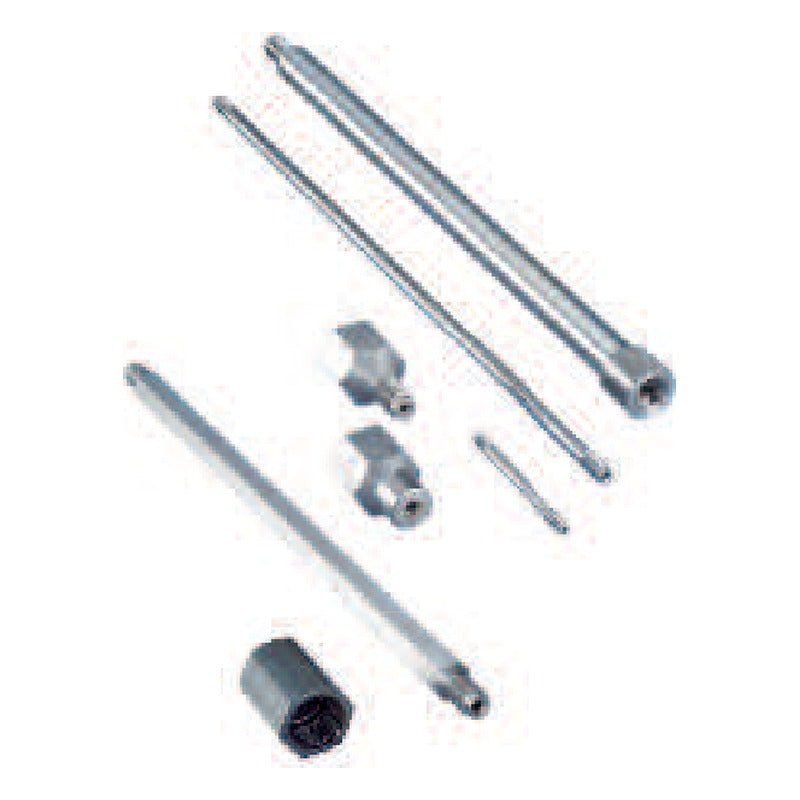

SKF Extension Pipes and Nipples for Adapter/Withdrawal Sleeves

SKF Extension Pipes and Nipples for Adapter/Withdrawal Sleeves

SKF extension pipes connect an SKF hydraulic pump to the oil connection hole of adapter and withdrawal sleeves with M4, M6, G 1/8 or G 1/4 threads.

Key features

  • M4 and M6 extension pipes are ordered together with a separate connection nipple
  • G 1/4 and G 1/8 extension pipes for sleeves where a quick connector cannot be used directly
  • Rated 50 or 100 MPa

Specifications

Use Adapter and withdrawal sleeves
Source SKF Maintenance and Lubrication Products, p. 75
234064/50MPA Type: M4 extension pipe | Max. pressure: 50 MPa | Connection: M4
234063/50MPA Type: M4 connection nipple | Max. pressure: 50 MPa | Connection: M4
1077453/100MPA Type: M6 extension pipe | Max. pressure: 100 MPa | Connection: M6
1077454/100MPA Type: M6 connection nipple | Max. pressure: 100 MPa | Connection: M6
227966/100MPA Type: Extension pipe | Max. pressure: 100 MPa | Connection: G 1/4
227965/100MPA Type: Extension pipe | Max. pressure: 100 MPa | Connection: G 1/8
Bearing AccessoriesSKF
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF Extension Pipes and Nipples for Adapter/Withdrawal Sleeves

Brand SKF·Bearing Accessories

Available part numbers (6)

234064/50MPA, 234063/50MPA, 1077453/100MPA, 1077454/100MPA, 227966/100MPA, 227965/100MPA

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
234064/50MPAType: M4 extension pipe | Max. pressure: 50 MPa | Connection: M4
234063/50MPAType: M4 connection nipple | Max. pressure: 50 MPa | Connection: M4
1077453/100MPAType: M6 extension pipe | Max. pressure: 100 MPa | Connection: M6
1077454/100MPAType: M6 connection nipple | Max. pressure: 100 MPa | Connection: M6
227966/100MPAType: Extension pipe | Max. pressure: 100 MPa | Connection: G 1/4
227965/100MPAType: Extension pipe | Max. pressure: 100 MPa | Connection: G 1/8
