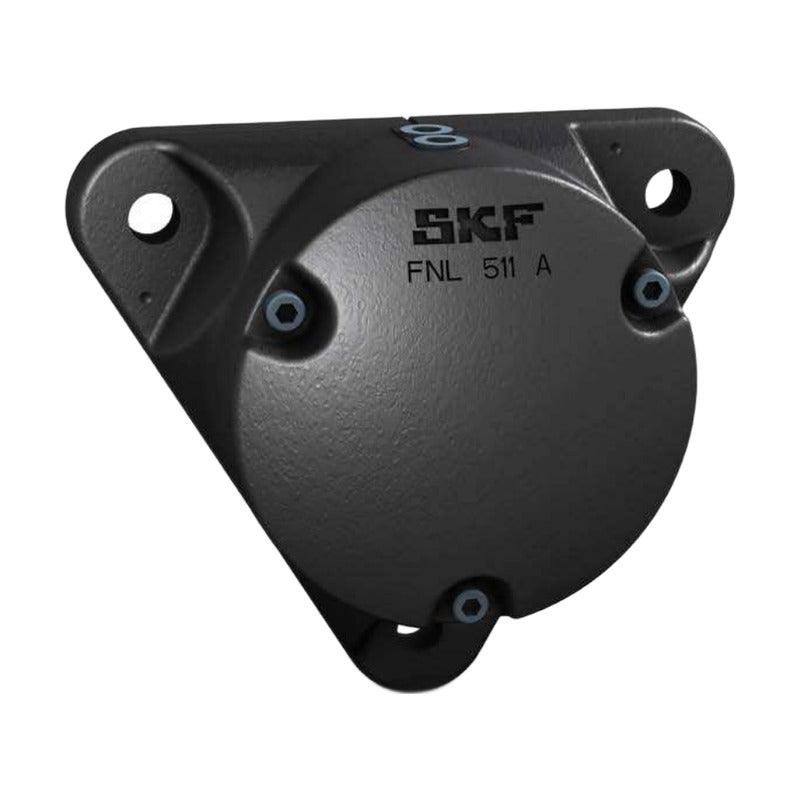

SKF FNL Series Flanged Housings

SKF FNL Series Flanged Housings

SKF FNL flanged housings for self-aligning ball and spherical roller bearings on an adapter sleeve; suffix A for a shaft end, B for a through shaft.

Key features

  • Flanged housing for mounting to a vertical support surface
  • Version A for shaft ends, version B for through shafts
  • For bearings in the 12, 13, 22, 23 and 222 series on adapter sleeves
  • Contact seal (TFL) or locating ring arrangement
  • Grey cast iron with relubrication facility

Specifications

Series FNL 5
Housing type Flanged housing
Material Grey cast iron
Suffix A / B Shaft end / through shaft
Mounting Adapter sleeve
Source SKF Bearing housings and roller bearing units, p. 546-551
FNL 505 A Shaft: 20 mm | Flange D1: 74 mm | Length L: 110 mm | Bolt spacing J: 96 mm | Mass: 1.10 kg
FNL 505 B Shaft: 20 mm | Flange D1: 74 mm | Length L: 110 mm | Bolt spacing J: 96 mm | Mass: 1.10 kg
FNL 506 A Shaft: 25 mm | Flange D1: 86 mm | Length L: 130 mm | Bolt spacing J: 116 mm | Mass: 1.60 kg
FNL 506 B Shaft: 25 mm | Flange D1: 86 mm | Length L: 130 mm | Bolt spacing J: 116 mm | Mass: 1.60 kg
FNL 507 A Shaft: 30 mm | Flange D1: 95 mm | Length L: 145 mm | Bolt spacing J: 130 mm | Mass: 2.00 kg
FNL 507 B Shaft: 30 mm | Flange D1: 95 mm | Length L: 145 mm | Bolt spacing J: 130 mm | Mass: 2.00 kg
FNL 508 A Shaft: 35 mm | Flange D1: 105 mm | Length L: 160 mm | Bolt spacing J: 140 mm | Mass: 2.40 kg
FNL 508 B Shaft: 35 mm | Flange D1: 105 mm | Length L: 160 mm | Bolt spacing J: 140 mm | Mass: 2.40 kg
FNL 509 A Shaft: 40 mm | Flange D1: 113 mm | Length L: 179 mm | Bolt spacing J: 160 mm | Mass: 3.20 kg
FNL 509 B Shaft: 40 mm | Flange D1: 113 mm | Length L: 179 mm | Bolt spacing J: 160 mm | Mass: 3.20 kg
FNL 510 A Shaft: 45 mm | Flange D1: 118 mm | Length L: 179 mm | Bolt spacing J: 160 mm | Mass: 3.50 kg
FNL 510 B Shaft: 45 mm | Flange D1: 118 mm | Length L: 179 mm | Bolt spacing J: 160 mm | Mass: 3.50 kg
FNL 511 A Shaft: 50 mm | Flange D1: 127 mm | Length L: 192 mm | Bolt spacing J: 170 mm | Mass: 4.30 kg
FNL 511 B Shaft: 50 mm | Flange D1: 127 mm | Length L: 192 mm | Bolt spacing J: 170 mm | Mass: 4.30 kg
FNL 512 A Shaft: 55 mm | Flange D1: 142 mm | Length L: 210 mm | Bolt spacing J: 180 mm | Mass: 5.20 kg
FNL 512 B Shaft: 55 mm | Flange D1: 142 mm | Length L: 210 mm | Bolt spacing J: 180 mm | Mass: 5.20 kg
FNL 513 A Shaft: 60 mm | Flange D1: 152 mm | Length L: 225 mm | Bolt spacing J: 190 mm | Mass: 6.30 kg
FNL 513 B Shaft: 60 mm | Flange D1: 152 mm | Length L: 225 mm | Bolt spacing J: 190 mm | Mass: 6.30 kg
FNL 515 A Shaft: 65 mm | Flange D1: 168 mm | Length L: 190 mm | Bolt spacing J: 152 mm | Mass: 10.0 kg
FNL 515 B Shaft: 65 mm | Flange D1: 168 mm | Length L: 190 mm | Bolt spacing J: 152 mm | Mass: 10.0 kg
FNL 516 A Shaft: 70 mm | Flange D1: 175 mm | Length L: 196 mm | Bolt spacing J: 152 mm | Mass: 10.5 kg
FNL 516 B Shaft: 70 mm | Flange D1: 175 mm | Length L: 196 mm | Bolt spacing J: 152 mm | Mass: 10.5 kg
FNL 517 A Shaft: 75 mm | Flange D1: 188 mm | Length L: 210 mm | Bolt spacing J: 170 mm | Mass: 12.5 kg
FNL 517 B Shaft: 75 mm | Flange D1: 188 mm | Length L: 210 mm | Bolt spacing J: 170 mm | Mass: 12.5 kg
FNL 518 A Shaft: 80 mm | Flange D1: 196 mm | Length L: 210 mm | Bolt spacing J: 170 mm | Mass: 12.0 kg
FNL 518 B Shaft: 80 mm | Flange D1: 196 mm | Length L: 210 mm | Bolt spacing J: 170 mm | Mass: 12.0 kg
FNL 520 A Shaft: 90 mm | Flange D1: 224 mm | Length L: 250 mm | Bolt spacing J: 198 mm | Mass: 19.0 kg
FNL 520 B Shaft: 90 mm | Flange D1: 224 mm | Length L: 250 mm | Bolt spacing J: 198 mm | Mass: 19.0 kg
FNL 522 A Shaft: 100 mm | Flange D1: 244 mm | Length L: 270 mm | Bolt spacing J: 219 mm | Mass: 23.5 kg
FNL 522 B Shaft: 100 mm | Flange D1: 244 mm | Length L: 270 mm | Bolt spacing J: 219 mm | Mass: 23.5 kg
Bearing HousingsSKF
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF FNL Series Flanged Housings

Brand SKF·Bearing Housings

Available part numbers (30)

FNL 505 A, FNL 505 B, FNL 506 A, FNL 506 B, FNL 507 A, FNL 507 B, FNL 508 A, FNL 508 B, FNL 509 A, FNL 509 B + 20 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FNL 505 AShaft: 20 mm | Flange D1: 74 mm | Length L: 110 mm | Bolt spacing J: 96 mm | Mass: 1.10 kg
FNL 505 BShaft: 20 mm | Flange D1: 74 mm | Length L: 110 mm | Bolt spacing J: 96 mm | Mass: 1.10 kg
FNL 506 AShaft: 25 mm | Flange D1: 86 mm | Length L: 130 mm | Bolt spacing J: 116 mm | Mass: 1.60 kg
FNL 506 BShaft: 25 mm | Flange D1: 86 mm | Length L: 130 mm | Bolt spacing J: 116 mm | Mass: 1.60 kg
FNL 507 AShaft: 30 mm | Flange D1: 95 mm | Length L: 145 mm | Bolt spacing J: 130 mm | Mass: 2.00 kg
FNL 507 BShaft: 30 mm | Flange D1: 95 mm | Length L: 145 mm | Bolt spacing J: 130 mm | Mass: 2.00 kg
FNL 508 AShaft: 35 mm | Flange D1: 105 mm | Length L: 160 mm | Bolt spacing J: 140 mm | Mass: 2.40 kg
FNL 508 BShaft: 35 mm | Flange D1: 105 mm | Length L: 160 mm | Bolt spacing J: 140 mm | Mass: 2.40 kg
FNL 509 AShaft: 40 mm | Flange D1: 113 mm | Length L: 179 mm | Bolt spacing J: 160 mm | Mass: 3.20 kg
FNL 509 BShaft: 40 mm | Flange D1: 113 mm | Length L: 179 mm | Bolt spacing J: 160 mm | Mass: 3.20 kg
FNL 510 AShaft: 45 mm | Flange D1: 118 mm | Length L: 179 mm | Bolt spacing J: 160 mm | Mass: 3.50 kg
FNL 510 BShaft: 45 mm | Flange D1: 118 mm | Length L: 179 mm | Bolt spacing J: 160 mm | Mass: 3.50 kg
FNL 511 AShaft: 50 mm | Flange D1: 127 mm | Length L: 192 mm | Bolt spacing J: 170 mm | Mass: 4.30 kg
FNL 511 BShaft: 50 mm | Flange D1: 127 mm | Length L: 192 mm | Bolt spacing J: 170 mm | Mass: 4.30 kg
FNL 512 AShaft: 55 mm | Flange D1: 142 mm | Length L: 210 mm | Bolt spacing J: 180 mm | Mass: 5.20 kg
FNL 512 BShaft: 55 mm | Flange D1: 142 mm | Length L: 210 mm | Bolt spacing J: 180 mm | Mass: 5.20 kg
FNL 513 AShaft: 60 mm | Flange D1: 152 mm | Length L: 225 mm | Bolt spacing J: 190 mm | Mass: 6.30 kg
FNL 513 BShaft: 60 mm | Flange D1: 152 mm | Length L: 225 mm | Bolt spacing J: 190 mm | Mass: 6.30 kg
FNL 515 AShaft: 65 mm | Flange D1: 168 mm | Length L: 190 mm | Bolt spacing J: 152 mm | Mass: 10.0 kg
FNL 515 BShaft: 65 mm | Flange D1: 168 mm | Length L: 190 mm | Bolt spacing J: 152 mm | Mass: 10.0 kg
FNL 516 AShaft: 70 mm | Flange D1: 175 mm | Length L: 196 mm | Bolt spacing J: 152 mm | Mass: 10.5 kg
FNL 516 BShaft: 70 mm | Flange D1: 175 mm | Length L: 196 mm | Bolt spacing J: 152 mm | Mass: 10.5 kg
FNL 517 AShaft: 75 mm | Flange D1: 188 mm | Length L: 210 mm | Bolt spacing J: 170 mm | Mass: 12.5 kg
FNL 517 BShaft: 75 mm | Flange D1: 188 mm | Length L: 210 mm | Bolt spacing J: 170 mm | Mass: 12.5 kg
FNL 518 AShaft: 80 mm | Flange D1: 196 mm | Length L: 210 mm | Bolt spacing J: 170 mm | Mass: 12.0 kg
FNL 518 BShaft: 80 mm | Flange D1: 196 mm | Length L: 210 mm | Bolt spacing J: 170 mm | Mass: 12.0 kg
FNL 520 AShaft: 90 mm | Flange D1: 224 mm | Length L: 250 mm | Bolt spacing J: 198 mm | Mass: 19.0 kg
FNL 520 BShaft: 90 mm | Flange D1: 224 mm | Length L: 250 mm | Bolt spacing J: 198 mm | Mass: 19.0 kg
FNL 522 AShaft: 100 mm | Flange D1: 244 mm | Length L: 270 mm | Bolt spacing J: 219 mm | Mass: 23.5 kg
FNL 522 BShaft: 100 mm | Flange D1: 244 mm | Length L: 270 mm | Bolt spacing J: 219 mm | Mass: 23.5 kg
