• SKF FYC Round Flanged Units with Grub Screws
1 1

SKF FYC Round Flanged Units with Grub Screws

SKF FYC Round Flanged Units with Grub Screws

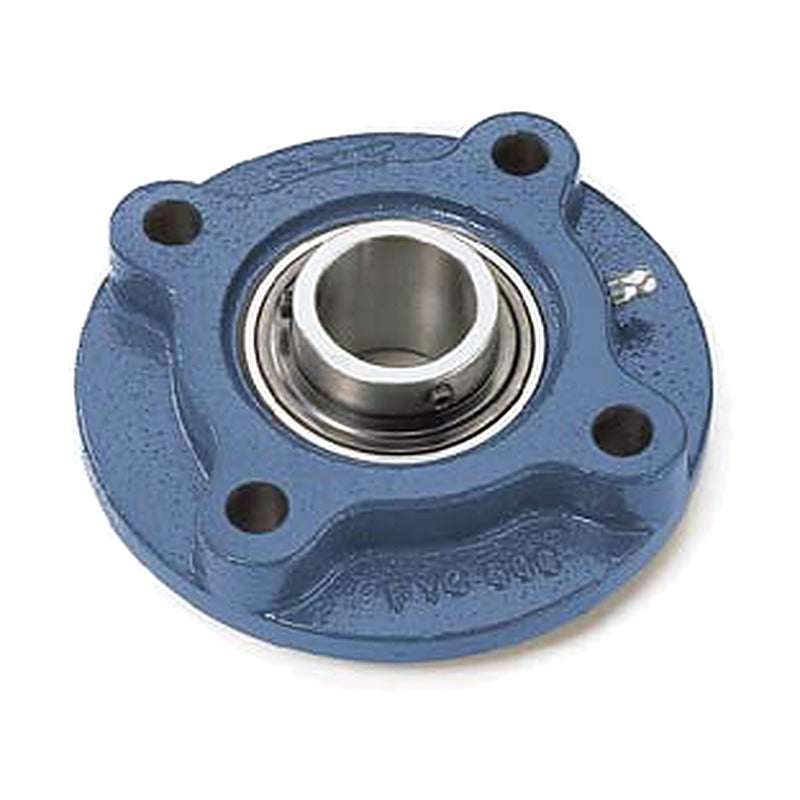

SKF FYC Round Flanged Units with Grub Screws: ready-to-mount Y-bearing units with a cast iron round-flanged housing; grub screw locking, for metric and/or inch shafts as listed.

Key features

  • Complete unit: housing plus sealed, greased Y-bearing
  • Self-aligning fit of the sphered bearing in the housing
  • Unit, housing and bearing designations listed for ordering
  • Relubrication or end cover options where listed
  • Metric and inch shaft sizes as listed in the catalogue

Specifications

Product Y-bearing unit
Housing cast iron round-flanged housing
Brand SKF
Category Mounted Bearing Units
Example designation FYC 20 TF
Source SKF Y-bearings and Y-bearing units, p. 218-219
FYC 20 TF Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 78 mm
FYC 25 TF Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 90 mm
FYC 30 TF Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 100 mm
FYC 35 TF Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 110 mm
FYC 40 TF Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 120 mm
FYC 45 TF Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 132 mm
FYC 50 TF Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 138 mm
FYC 55 TF Shaft: 55 mm | C: 43.6 kN | C0: 29 kN | Bolt spacing J: 150 mm
FYC 60 TF Shaft: 60 mm | C: 52.7 kN | C0: 36 kN | Bolt spacing J: 160 mm
FYC 65 TF Shaft: 65 mm | C: 55.9 kN | C0: 40 kN | Bolt spacing J: 170 mm
Mounted Bearing UnitsSKF
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF FYC Round Flanged Units with Grub Screws

Brand SKF·Mounted Bearing Units

Available part numbers (10)

FYC 20 TF, FYC 25 TF, FYC 30 TF, FYC 35 TF, FYC 40 TF, FYC 45 TF, FYC 50 TF, FYC 55 TF, FYC 60 TF, FYC 65 TF

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FYC 20 TFShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 78 mm
FYC 25 TFShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 90 mm
FYC 30 TFShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 100 mm
FYC 35 TFShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 110 mm
FYC 40 TFShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 120 mm
FYC 45 TFShaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 132 mm
FYC 50 TFShaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 138 mm
FYC 55 TFShaft: 55 mm | C: 43.6 kN | C0: 29 kN | Bolt spacing J: 150 mm
FYC 60 TFShaft: 60 mm | C: 52.7 kN | C0: 36 kN | Bolt spacing J: 160 mm
FYC 65 TFShaft: 65 mm | C: 55.9 kN | C0: 40 kN | Bolt spacing J: 170 mm

Need a different model, or a part not listed here? Send us your parts list →
