SKF FYJ Square Flanged Units with Adapter Sleeve (KF)

SKF FYJ Square Flanged Units with Adapter Sleeve (KF)

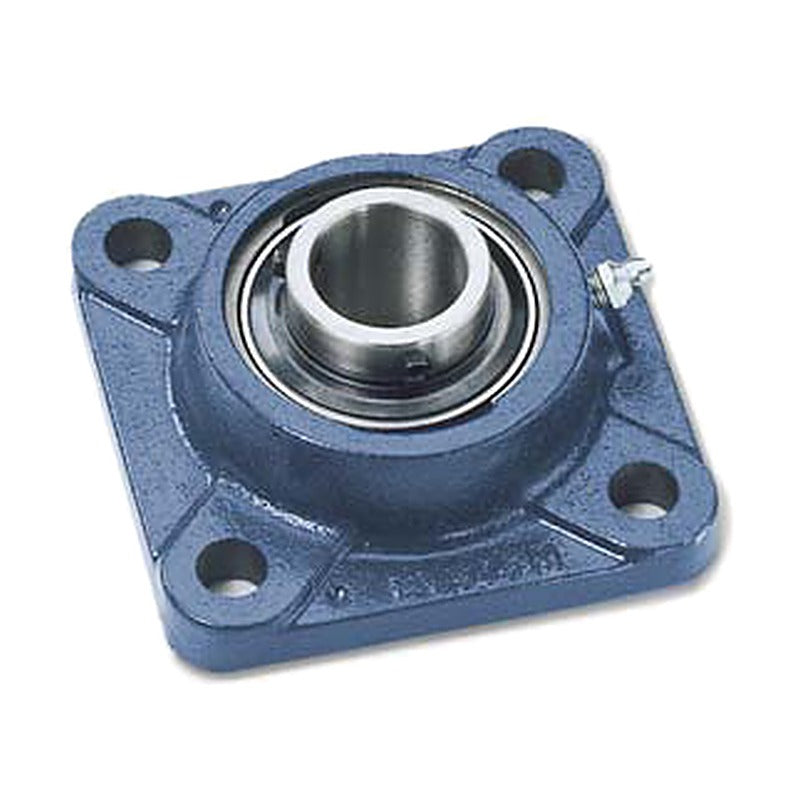

SKF FYJ Square Flanged Units with Adapter Sleeve (KF): ready-to-mount Y-bearing units with a cast iron square-flanged housing; adapter sleeve mounting, for metric and/or inch shafts as listed.

Key features

  • Complete unit: housing plus sealed, greased Y-bearing
  • Self-aligning fit of the sphered bearing in the housing
  • Unit, housing and bearing designations listed for ordering
  • Relubrication or end cover options where listed
  • Metric and inch shaft sizes as listed in the catalogue

Specifications

Product Y-bearing unit
Housing cast iron square-flanged housing
Brand SKF
Category Mounted Bearing Units
Example designation FYJ 25 KF
Source SKF Y-bearings and Y-bearing units, p. 194-199
FYJ 25 KF Shaft: 20 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 70 mm
FYJ 30 KF Shaft: 25 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 83 mm
FYJ 35 KF Shaft: 30 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 92 mm
FYJ 40 KF Shaft: 35 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 102 mm
FYJ 45 KF Shaft: 40 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 105 mm
FYJ 50 KF Shaft: 45 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 111 mm
FYJ 55 KF Shaft: 50 mm | C: 43.6 kN | C0: 29 kN | Bolt spacing J: 130 mm
FYJ 60 KF Shaft: 55 mm | C: 52.7 kN | C0: 36 kN | Bolt spacing J: 143 mm
FYJ 65 KF Shaft: 60 mm | C: 57.2 kN | C0: 40 kN | Bolt spacing J: 149 mm
Mounted Bearing UnitsSKF
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF FYJ Square Flanged Units with Adapter Sleeve (KF)

Brand SKF·Mounted Bearing Units

Available part numbers (9)

FYJ 25 KF, FYJ 30 KF, FYJ 35 KF, FYJ 40 KF, FYJ 45 KF, FYJ 50 KF, FYJ 55 KF, FYJ 60 KF, FYJ 65 KF

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FYJ 25 KFShaft: 20 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 70 mm
FYJ 30 KFShaft: 25 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 83 mm
FYJ 35 KFShaft: 30 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 92 mm
FYJ 40 KFShaft: 35 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 102 mm
FYJ 45 KFShaft: 40 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 105 mm
FYJ 50 KFShaft: 45 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 111 mm
FYJ 55 KFShaft: 50 mm | C: 43.6 kN | C0: 29 kN | Bolt spacing J: 130 mm
FYJ 60 KFShaft: 55 mm | C: 52.7 kN | C0: 36 kN | Bolt spacing J: 143 mm
FYJ 65 KFShaft: 60 mm | C: 57.2 kN | C0: 40 kN | Bolt spacing J: 149 mm
