SKF ConCentra FYNT Roller Bearing Units (Flanged)

SKF ConCentra FYNT Roller Bearing Units (Flanged)

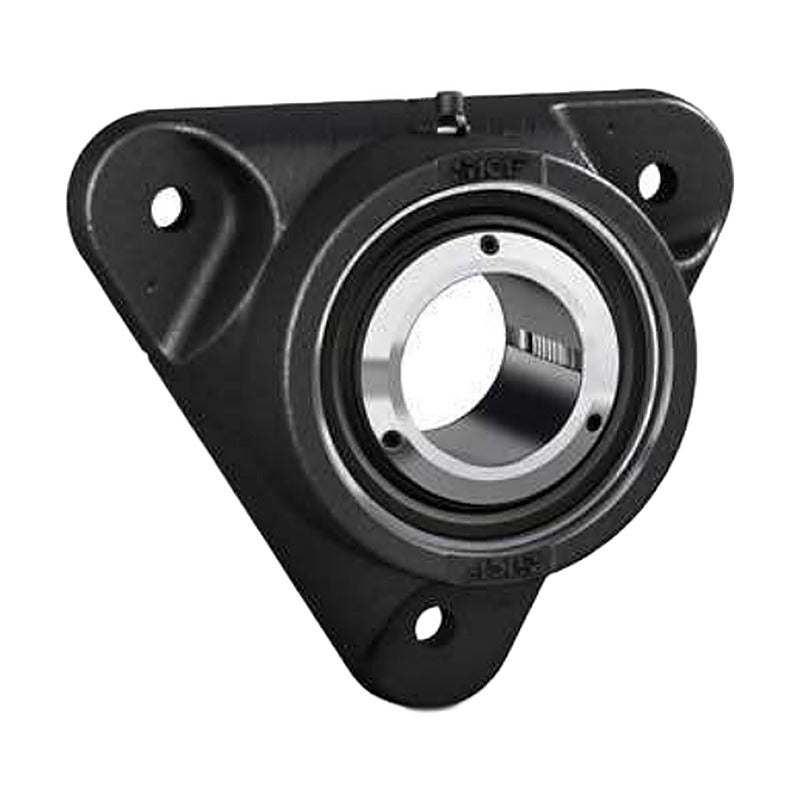

SKF ConCentra FYNT roller bearing units with a flanged housing: ready-to-mount units with a spherical roller bearing and ConCentra sleeve mounting for metric shafts.

Key features

  • Ready-to-mount, pre-lubricated and sealed units
  • ConCentra mounting technology for a true concentric fit on the shaft
  • Locating (F) and non-locating (L) variants
  • Grey cast iron housing for metric shafts 35-100 mm
  • End covers (ECY) available for shaft ends

Specifications

Series FYNT
Bearing type Spherical roller (ConCentra)
Suffix F / L Locating / non-locating
Shaft range 35-100 mm
Brand SKF
Source SKF Bearing housings and roller bearing units, p. 688-689
FYNT 35 F Shaft: 35 mm | Variant: Locating | C: 86.5 kN | C0: 85 kN | Bolt spacing J: 140 mm
FYNT 35 L Shaft: 35 mm | Variant: Non-locating | C: 86.5 kN | C0: 85 kN | Bolt spacing J: 140 mm
FYNT 40 F Shaft: 40 mm | Variant: Locating | C: 96.5 kN | C0: 90 kN | Bolt spacing J: 160 mm
FYNT 40 L Shaft: 40 mm | Variant: Non-locating | C: 96.5 kN | C0: 90 kN | Bolt spacing J: 160 mm
FYNT 45 F Shaft: 45 mm | Variant: Locating | C: 102 kN | C0: 98 kN | Bolt spacing J: 160 mm
FYNT 45 L Shaft: 45 mm | Variant: Non-locating | C: 102 kN | C0: 98 kN | Bolt spacing J: 160 mm
FYNT 50 F Shaft: 50 mm | Variant: Locating | C: 104 kN | C0: 108 kN | Bolt spacing J: 170 mm
FYNT 50 L Shaft: 50 mm | Variant: Non-locating | C: 104 kN | C0: 108 kN | Bolt spacing J: 170 mm
FYNT 55 F Shaft: 55 mm | Variant: Locating | C: 125 kN | C0: 137 kN | Bolt spacing J: 180 mm
FYNT 55 L Shaft: 55 mm | Variant: Non-locating | C: 125 kN | C0: 137 kN | Bolt spacing J: 180 mm
FYNT 60 F Shaft: 60 mm | Variant: Locating | C: 156 kN | C0: 166 kN | Bolt spacing J: 190 mm
FYNT 60 L Shaft: 60 mm | Variant: Non-locating | C: 156 kN | C0: 166 kN | Bolt spacing J: 190 mm
FYNT 65 F Shaft: 65 mm | Variant: Locating | C: 193 kN | C0: 216 kN | Bolt spacing J: 152 mm
FYNT 65 L Shaft: 65 mm | Variant: Non-locating | C: 193 kN | C0: 216 kN | Bolt spacing J: 152 mm
FYNT 70 F Shaft: 70 mm | Variant: Locating | C: 208 kN | C0: 228 kN | Bolt spacing J: 152 mm
FYNT 70 L Shaft: 70 mm | Variant: Non-locating | C: 208 kN | C0: 228 kN | Bolt spacing J: 152 mm
FYNT 75 F Shaft: 75 mm | Variant: Locating | C: 212 kN | C0: 240 kN | Bolt spacing J: 170 mm
FYNT 75 L Shaft: 75 mm | Variant: Non-locating | C: 212 kN | C0: 240 kN | Bolt spacing J: 170 mm
FYNT 80 F Shaft: 80 mm | Variant: Locating | C: 236 kN | C0: 270 kN | Bolt spacing J: 170 mm
FYNT 80 L Shaft: 80 mm | Variant: Non-locating | C: 236 kN | C0: 270 kN | Bolt spacing J: 170 mm
FYNT 90 F Shaft: 90 mm | Variant: Locating | C: 325 kN | C0: 375 kN | Bolt spacing J: 198 mm
FYNT 90 L Shaft: 90 mm | Variant: Non-locating | C: 325 kN | C0: 375 kN | Bolt spacing J: 198 mm
FYNT 100 F Shaft: 100 mm | Variant: Locating | C: 425 kN | C0: 490 kN | Bolt spacing J: 219 mm
FYNT 100 L Shaft: 100 mm | Variant: Non-locating | C: 425 kN | C0: 490 kN | Bolt spacing J: 219 mm
Mounted Bearing UnitsSKF
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF ConCentra FYNT Roller Bearing Units (Flanged)

Brand SKF·Mounted Bearing Units

Available part numbers (24)

FYNT 35 F, FYNT 35 L, FYNT 40 F, FYNT 40 L, FYNT 45 F, FYNT 45 L, FYNT 50 F, FYNT 50 L, FYNT 55 F, FYNT 55 L + 14 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FYNT 35 FShaft: 35 mm | Variant: Locating | C: 86.5 kN | C0: 85 kN | Bolt spacing J: 140 mm
FYNT 35 LShaft: 35 mm | Variant: Non-locating | C: 86.5 kN | C0: 85 kN | Bolt spacing J: 140 mm
FYNT 40 FShaft: 40 mm | Variant: Locating | C: 96.5 kN | C0: 90 kN | Bolt spacing J: 160 mm
FYNT 40 LShaft: 40 mm | Variant: Non-locating | C: 96.5 kN | C0: 90 kN | Bolt spacing J: 160 mm
FYNT 45 FShaft: 45 mm | Variant: Locating | C: 102 kN | C0: 98 kN | Bolt spacing J: 160 mm
FYNT 45 LShaft: 45 mm | Variant: Non-locating | C: 102 kN | C0: 98 kN | Bolt spacing J: 160 mm
FYNT 50 FShaft: 50 mm | Variant: Locating | C: 104 kN | C0: 108 kN | Bolt spacing J: 170 mm
FYNT 50 LShaft: 50 mm | Variant: Non-locating | C: 104 kN | C0: 108 kN | Bolt spacing J: 170 mm
FYNT 55 FShaft: 55 mm | Variant: Locating | C: 125 kN | C0: 137 kN | Bolt spacing J: 180 mm
FYNT 55 LShaft: 55 mm | Variant: Non-locating | C: 125 kN | C0: 137 kN | Bolt spacing J: 180 mm
FYNT 60 FShaft: 60 mm | Variant: Locating | C: 156 kN | C0: 166 kN | Bolt spacing J: 190 mm
FYNT 60 LShaft: 60 mm | Variant: Non-locating | C: 156 kN | C0: 166 kN | Bolt spacing J: 190 mm
FYNT 65 FShaft: 65 mm | Variant: Locating | C: 193 kN | C0: 216 kN | Bolt spacing J: 152 mm
FYNT 65 LShaft: 65 mm | Variant: Non-locating | C: 193 kN | C0: 216 kN | Bolt spacing J: 152 mm
FYNT 70 FShaft: 70 mm | Variant: Locating | C: 208 kN | C0: 228 kN | Bolt spacing J: 152 mm
FYNT 70 LShaft: 70 mm | Variant: Non-locating | C: 208 kN | C0: 228 kN | Bolt spacing J: 152 mm
FYNT 75 FShaft: 75 mm | Variant: Locating | C: 212 kN | C0: 240 kN | Bolt spacing J: 170 mm
FYNT 75 LShaft: 75 mm | Variant: Non-locating | C: 212 kN | C0: 240 kN | Bolt spacing J: 170 mm
FYNT 80 FShaft: 80 mm | Variant: Locating | C: 236 kN | C0: 270 kN | Bolt spacing J: 170 mm
FYNT 80 LShaft: 80 mm | Variant: Non-locating | C: 236 kN | C0: 270 kN | Bolt spacing J: 170 mm
FYNT 90 FShaft: 90 mm | Variant: Locating | C: 325 kN | C0: 375 kN | Bolt spacing J: 198 mm
FYNT 90 LShaft: 90 mm | Variant: Non-locating | C: 325 kN | C0: 375 kN | Bolt spacing J: 198 mm
FYNT 100 FShaft: 100 mm | Variant: Locating | C: 425 kN | C0: 490 kN | Bolt spacing J: 219 mm
FYNT 100 LShaft: 100 mm | Variant: Non-locating | C: 425 kN | C0: 490 kN | Bolt spacing J: 219 mm
