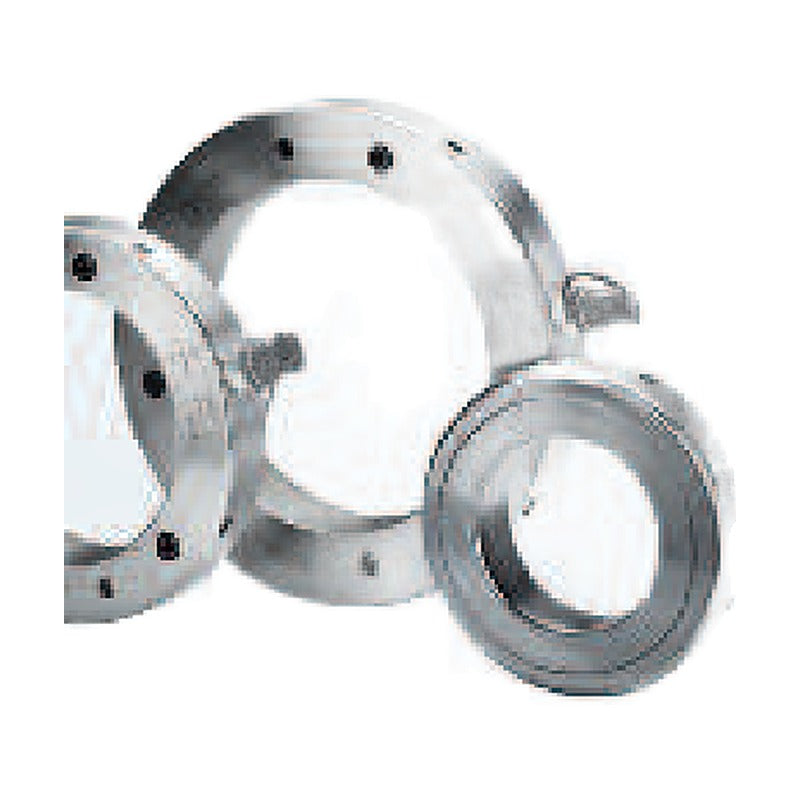

SKF HMVC ..E Hydraulic Nuts, Inch Thread (HMVC 10E - HMVC 190E)

SKF HMVC ..E Hydraulic Nuts, Inch Thread (HMVC 10E - HMVC 190E)

SKF HMVC ..E hydraulic nuts are the inch-thread version of the HMV ..E series for mounting bearings on tapered seatings and freeing sleeves.

Key features

  • Full range of inch threads from 1.967 to 37.410 in.
  • American National Form Class 3 (to HMVC 64E) and ACME Class 3G threads
  • Quick connection coupling on face or side of the nut
  • Spare piston seals and maintenance kit supplied
  • Prepared for dial indicators for the SKF Drive-up Method

Specifications

Mounting fluid LHMF 300
Quick connection nipple 729832 A (included)
Source SKF Maintenance and Lubrication Products, p. 65-66
HMVC 10E Thread: 1.967 in., 18 TPI | d1: 2.0 in. | d3: 4.5 in. | B: 1.5 in. | Piston area: 4.5 in2 | Weight: 6.0 lb
HMVC 11E Thread: 2.157 in., 18 TPI | d1: 2.2 in. | d3: 4.7 in. | B: 1.5 in. | Piston area: 4.9 in2 | Weight: 6.1 lb
HMVC 12E Thread: 2.360 in., 18 TPI | d1: 2.4 in. | d3: 4.9 in. | B: 1.5 in. | Piston area: 5.1 in2 | Weight: 6.2 lb
HMVC 13E Thread: 2.548 in., 18 TPI | d1: 2.6 in. | d3: 5.1 in. | B: 1.5 in. | Piston area: 5.6 in2 | Weight: 6.6 lb
HMVC 14E Thread: 2.751 in., 18 TPI | d1: 2.8 in. | d3: 5.3 in. | B: 1.5 in. | Piston area: 5.9 in2 | Weight: 7.1 lb
HMVC 15E Thread: 2.933 in., 12 TPI | d1: 3.0 in. | d3: 5.5 in. | B: 1.5 in. | Piston area: 6.2 in2 | Weight: 7.5 lb
HMVC 16E Thread: 3.137 in., 12 TPI | d1: 3.2 in. | d3: 5.7 in. | B: 1.5 in. | Piston area: 6.5 in2 | Weight: 8.2 lb
HMVC 17E Thread: 3.340 in., 12 TPI | d1: 3.4 in. | d3: 5.9 in. | B: 1.5 in. | Piston area: 6.8 in2 | Weight: 8.3 lb
HMVC 18E Thread: 3.527 in., 12 TPI | d1: 3.6 in. | d3: 6.1 in. | B: 1.5 in. | Piston area: 7.3 in2 | Weight: 8.8 lb
HMVC 19E Thread: 3.730 in., 12 TPI | d1: 3.8 in. | d3: 6.4 in. | B: 1.5 in. | Piston area: 7.6 in2 | Weight: 9.5 lb
HMVC 20E Thread: 3.918 in., 12 TPI | d1: 4.0 in. | d3: 6.5 in. | B: 1.5 in. | Piston area: 7.9 in2 | Weight: 9.7 lb
HMVC 21E Thread: 4.122 in., 12 TPI | d1: 4.2 in. | d3: 6.8 in. | B: 1.5 in. | Piston area: 8.2 in2 | Weight: 10.3 lb
HMVC 22E Thread: 4.325 in., 12 TPI | d1: 4.4 in. | d3: 7.0 in. | B: 1.5 in. | Piston area: 8.7 in2 | Weight: 10.9 lb
HMVC 24E Thread: 4.716 in., 12 TPI | d1: 4.7 in. | d3: 7.4 in. | B: 1.5 in. | Piston area: 9.3 in2 | Weight: 11.6 lb
HMVC 26E Thread: 5.106 in., 12 TPI | d1: 5.1 in. | d3: 7.8 in. | B: 1.5 in. | Piston area: 9.9 in2 | Weight: 12.5 lb
HMVC 28E Thread: 5.497 in., 12 TPI | d1: 5.5 in. | d3: 8.2 in. | B: 1.5 in. | Piston area: 10.5 in2 | Weight: 13.2 lb
HMVC 30E Thread: 5.888 in., 12 TPI | d1: 5.9 in. | d3: 8.7 in. | B: 1.5 in. | Piston area: 11.6 in2 | Weight: 14.6 lb
HMVC 32E Thread: 6.284 in., 8 TPI | d1: 6.3 in. | d3: 9.1 in. | B: 1.6 in. | Piston area: 13.3 in2 | Weight: 16.8 lb
HMVC 34E Thread: 6.659 in., 8 TPI | d1: 6.7 in. | d3: 9.6 in. | B: 1.6 in. | Piston area: 14.6 in2 | Weight: 18.5 lb
HMVC 36E Thread: 7.066 in., 8 TPI | d1: 7.1 in. | d3: 10.1 in. | B: 1.6 in. | Piston area: 16.0 in2 | Weight: 20.2 lb
HMVC 38E Thread: 7.472 in., 8 TPI | d1: 7.5 in. | d3: 10.6 in. | B: 1.7 in. | Piston area: 17.8 in2 | Weight: 23.1 lb
HMVC 40E Thread: 7.847 in., 8 TPI | d1: 7.9 in. | d3: 11.1 in. | B: 1.7 in. | Piston area: 19.4 in2 | Weight: 25.4 lb
HMVC 44E Thread: 8.628 in., 8 TPI | d1: 8.7 in. | d3: 12.0 in. | B: 1.7 in. | Piston area: 22.3 in2 | Weight: 29.8 lb
HMVC 46E Thread: 9.125 in., 8 TPI | d1: 9.1 in. | d3: 12.5 in. | B: 1.8 in. | Piston area: 24.0 in2 | Weight: 31.9 lb
HMVC 48E Thread: 9.442 in., 6 TPI | d1: 9.5 in. | d3: 13.0 in. | B: 1.8 in. | Piston area: 25.6 in2 | Weight: 35.3 lb
HMVC 52E Thread: 10.192 in., 6 TPI | d1: 10.3 in. | d3: 14.0 in. | B: 1.9 in. | Piston area: 29.1 in2 | Weight: 41.9 lb
HMVC 54E Thread: 10.604 in., 6 TPI | d1: 10.7 in. | d3: 14.5 in. | B: 1.9 in. | Piston area: 30.7 in2 | Weight: 45.2 lb
HMVC 56E Thread: 11.004 in., 6 TPI | d1: 11.1 in. | d3: 15.0 in. | B: 1.9 in. | Piston area: 32.7 in2 | Weight: 48.5 lb
HMVC 60E Thread: 11.785 in., 6 TPI | d1: 11.9 in. | d3: 15.9 in. | B: 2.0 in. | Piston area: 36.6 in2 | Weight: 56.2 lb
HMVC 64E Thread: 12.562 in., 6 TPI | d1: 12.7 in. | d3: 16.9 in. | B: 2.1 in. | Piston area: 40.8 in2 | Weight: 65.0 lb
HMVC 68E Thread: 13.339 in., 5 TPI | d1: 13.5 in. | d3: 17.7 in. | B: 2.1 in. | Piston area: 44.0 in2 | Weight: 69.4 lb
HMVC 72E Thread: 14.170 in., 5 TPI | d1: 14.3 in. | d3: 18.6 in. | B: 2.2 in. | Piston area: 48.5 in2 | Weight: 78.3 lb
HMVC 76E Thread: 14.957 in., 5 TPI | d1: 15.0 in. | d3: 19.6 in. | B: 2.3 in. | Piston area: 51.9 in2 | Weight: 89.3 lb
HMVC 80E Thread: 15.745 in., 5 TPI | d1: 15.8 in. | d3: 20.6 in. | B: 2.4 in. | Piston area: 56.9 in2 | Weight: 100 lb
HMVC 84E Thread: 16.532 in., 5 TPI | d1: 16.6 in. | d3: 21.5 in. | B: 2.4 in. | Piston area: 62.0 in2 | Weight: 110 lb
HMVC 88E Thread: 17.319 in., 5 TPI | d1: 17.4 in. | d3: 22.3 in. | B: 2.4 in. | Piston area: 65.9 in2 | Weight: 119 lb
HMVC 92E Thread: 18.107 in., 5 TPI | d1: 18.2 in. | d3: 23.3 in. | B: 2.5 in. | Piston area: 69.9 in2 | Weight: 132 lb
HMVC 96E Thread: 18.894 in., 5 TPI | d1: 19.0 in. | d3: 24.1 in. | B: 2.6 in. | Piston area: 75.3 in2 | Weight: 139 lb
HMVC 100E Thread: 19.682 in., 5 TPI | d1: 19.8 in. | d3: 25.0 in. | B: 2.6 in. | Piston area: 79.8 in2 | Weight: 154 lb
HMVC 106E Thread: 20.867 in., 4 TPI | d1: 20.9 in. | d3: 26.4 in. | B: 2.7 in. | Piston area: 87.1 in2 | Weight: 174 lb
HMVC 112E Thread: 22.048 in., 4 TPI | d1: 22.1 in. | d3: 27.7 in. | B: 2.8 in. | Piston area: 94.9 in2 | Weight: 194 lb
HMVC 120E Thread: 23.623 in., 4 TPI | d1: 23.7 in. | d3: 29.4 in. | B: 2.9 in. | Piston area: 104.3 in2 | Weight: 220 lb
HMVC 126E Thread: 24.804 in., 4 TPI | d1: 24.9 in. | d3: 30.8 in. | B: 2.9 in. | Piston area: 113.0 in2 | Weight: 243 lb
HMVC 134E Thread: 26.379 in., 4 TPI | d1: 26.5 in. | d3: 32.5 in. | B: 3.0 in. | Piston area: 123.2 in2 | Weight: 265 lb
HMVC 142E Thread: 27.961 in., 3 TPI | d1: 28.0 in. | d3: 34.3 in. | B: 3.1 in. | Piston area: 135.9 in2 | Weight: 298 lb
HMVC 150E Thread: 29.536 in., 3 TPI | d1: 29.6 in. | d3: 35.9 in. | B: 3.1 in. | Piston area: 147.6 in2 | Weight: 322 lb
HMVC 160E Thread: 31.504 in., 3 TPI | d1: 31.6 in. | d3: 38.0 in. | B: 3.1 in. | Piston area: 161.0 in2 | Weight: 355 lb
HMVC 170E Thread: 33.473 in., 3 TPI | d1: 33.5 in. | d3: 40.2 in. | B: 3.3 in. | Piston area: 177.6 in2 | Weight: 399 lb
HMVC 180E Thread: 35.441 in., 3 TPI | d1: 35.5 in. | d3: 42.3 in. | B: 3.4 in. | Piston area: 192.4 in2 | Weight: 452 lb
HMVC 190E Thread: 37.410 in., 3 TPI | d1: 37.5 in. | d3: 44.3 in. | B: 3.4 in. | Piston area: 210.3 in2 | Weight: 481 lb
Lock Nuts & WashersSKF
50 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF HMVC ..E Hydraulic Nuts, Inch Thread (HMVC 10E - HMVC 190E)

Brand SKF·Lock Nuts & Washers

Available part numbers (50)

HMVC 10E, HMVC 11E, HMVC 12E, HMVC 13E, HMVC 14E, HMVC 15E, HMVC 16E, HMVC 17E, HMVC 18E, HMVC 19E + 40 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HMVC 10EThread: 1.967 in., 18 TPI | d1: 2.0 in. | d3: 4.5 in. | B: 1.5 in. | Piston area: 4.5 in2 | Weight: 6.0 lb
HMVC 11EThread: 2.157 in., 18 TPI | d1: 2.2 in. | d3: 4.7 in. | B: 1.5 in. | Piston area: 4.9 in2 | Weight: 6.1 lb
HMVC 12EThread: 2.360 in., 18 TPI | d1: 2.4 in. | d3: 4.9 in. | B: 1.5 in. | Piston area: 5.1 in2 | Weight: 6.2 lb
HMVC 13EThread: 2.548 in., 18 TPI | d1: 2.6 in. | d3: 5.1 in. | B: 1.5 in. | Piston area: 5.6 in2 | Weight: 6.6 lb
HMVC 14EThread: 2.751 in., 18 TPI | d1: 2.8 in. | d3: 5.3 in. | B: 1.5 in. | Piston area: 5.9 in2 | Weight: 7.1 lb
HMVC 15EThread: 2.933 in., 12 TPI | d1: 3.0 in. | d3: 5.5 in. | B: 1.5 in. | Piston area: 6.2 in2 | Weight: 7.5 lb
HMVC 16EThread: 3.137 in., 12 TPI | d1: 3.2 in. | d3: 5.7 in. | B: 1.5 in. | Piston area: 6.5 in2 | Weight: 8.2 lb
HMVC 17EThread: 3.340 in., 12 TPI | d1: 3.4 in. | d3: 5.9 in. | B: 1.5 in. | Piston area: 6.8 in2 | Weight: 8.3 lb
HMVC 18EThread: 3.527 in., 12 TPI | d1: 3.6 in. | d3: 6.1 in. | B: 1.5 in. | Piston area: 7.3 in2 | Weight: 8.8 lb
HMVC 19EThread: 3.730 in., 12 TPI | d1: 3.8 in. | d3: 6.4 in. | B: 1.5 in. | Piston area: 7.6 in2 | Weight: 9.5 lb
HMVC 20EThread: 3.918 in., 12 TPI | d1: 4.0 in. | d3: 6.5 in. | B: 1.5 in. | Piston area: 7.9 in2 | Weight: 9.7 lb
HMVC 21EThread: 4.122 in., 12 TPI | d1: 4.2 in. | d3: 6.8 in. | B: 1.5 in. | Piston area: 8.2 in2 | Weight: 10.3 lb
HMVC 22EThread: 4.325 in., 12 TPI | d1: 4.4 in. | d3: 7.0 in. | B: 1.5 in. | Piston area: 8.7 in2 | Weight: 10.9 lb
HMVC 24EThread: 4.716 in., 12 TPI | d1: 4.7 in. | d3: 7.4 in. | B: 1.5 in. | Piston area: 9.3 in2 | Weight: 11.6 lb
HMVC 26EThread: 5.106 in., 12 TPI | d1: 5.1 in. | d3: 7.8 in. | B: 1.5 in. | Piston area: 9.9 in2 | Weight: 12.5 lb
HMVC 28EThread: 5.497 in., 12 TPI | d1: 5.5 in. | d3: 8.2 in. | B: 1.5 in. | Piston area: 10.5 in2 | Weight: 13.2 lb
HMVC 30EThread: 5.888 in., 12 TPI | d1: 5.9 in. | d3: 8.7 in. | B: 1.5 in. | Piston area: 11.6 in2 | Weight: 14.6 lb
HMVC 32EThread: 6.284 in., 8 TPI | d1: 6.3 in. | d3: 9.1 in. | B: 1.6 in. | Piston area: 13.3 in2 | Weight: 16.8 lb
HMVC 34EThread: 6.659 in., 8 TPI | d1: 6.7 in. | d3: 9.6 in. | B: 1.6 in. | Piston area: 14.6 in2 | Weight: 18.5 lb
HMVC 36EThread: 7.066 in., 8 TPI | d1: 7.1 in. | d3: 10.1 in. | B: 1.6 in. | Piston area: 16.0 in2 | Weight: 20.2 lb
HMVC 38EThread: 7.472 in., 8 TPI | d1: 7.5 in. | d3: 10.6 in. | B: 1.7 in. | Piston area: 17.8 in2 | Weight: 23.1 lb
HMVC 40EThread: 7.847 in., 8 TPI | d1: 7.9 in. | d3: 11.1 in. | B: 1.7 in. | Piston area: 19.4 in2 | Weight: 25.4 lb
HMVC 44EThread: 8.628 in., 8 TPI | d1: 8.7 in. | d3: 12.0 in. | B: 1.7 in. | Piston area: 22.3 in2 | Weight: 29.8 lb
HMVC 46EThread: 9.125 in., 8 TPI | d1: 9.1 in. | d3: 12.5 in. | B: 1.8 in. | Piston area: 24.0 in2 | Weight: 31.9 lb
HMVC 48EThread: 9.442 in., 6 TPI | d1: 9.5 in. | d3: 13.0 in. | B: 1.8 in. | Piston area: 25.6 in2 | Weight: 35.3 lb
HMVC 52EThread: 10.192 in., 6 TPI | d1: 10.3 in. | d3: 14.0 in. | B: 1.9 in. | Piston area: 29.1 in2 | Weight: 41.9 lb
HMVC 54EThread: 10.604 in., 6 TPI | d1: 10.7 in. | d3: 14.5 in. | B: 1.9 in. | Piston area: 30.7 in2 | Weight: 45.2 lb
HMVC 56EThread: 11.004 in., 6 TPI | d1: 11.1 in. | d3: 15.0 in. | B: 1.9 in. | Piston area: 32.7 in2 | Weight: 48.5 lb
HMVC 60EThread: 11.785 in., 6 TPI | d1: 11.9 in. | d3: 15.9 in. | B: 2.0 in. | Piston area: 36.6 in2 | Weight: 56.2 lb
HMVC 64EThread: 12.562 in., 6 TPI | d1: 12.7 in. | d3: 16.9 in. | B: 2.1 in. | Piston area: 40.8 in2 | Weight: 65.0 lb
HMVC 68EThread: 13.339 in., 5 TPI | d1: 13.5 in. | d3: 17.7 in. | B: 2.1 in. | Piston area: 44.0 in2 | Weight: 69.4 lb
HMVC 72EThread: 14.170 in., 5 TPI | d1: 14.3 in. | d3: 18.6 in. | B: 2.2 in. | Piston area: 48.5 in2 | Weight: 78.3 lb
HMVC 76EThread: 14.957 in., 5 TPI | d1: 15.0 in. | d3: 19.6 in. | B: 2.3 in. | Piston area: 51.9 in2 | Weight: 89.3 lb
HMVC 80EThread: 15.745 in., 5 TPI | d1: 15.8 in. | d3: 20.6 in. | B: 2.4 in. | Piston area: 56.9 in2 | Weight: 100 lb
HMVC 84EThread: 16.532 in., 5 TPI | d1: 16.6 in. | d3: 21.5 in. | B: 2.4 in. | Piston area: 62.0 in2 | Weight: 110 lb
HMVC 88EThread: 17.319 in., 5 TPI | d1: 17.4 in. | d3: 22.3 in. | B: 2.4 in. | Piston area: 65.9 in2 | Weight: 119 lb
HMVC 92EThread: 18.107 in., 5 TPI | d1: 18.2 in. | d3: 23.3 in. | B: 2.5 in. | Piston area: 69.9 in2 | Weight: 132 lb
HMVC 96EThread: 18.894 in., 5 TPI | d1: 19.0 in. | d3: 24.1 in. | B: 2.6 in. | Piston area: 75.3 in2 | Weight: 139 lb
HMVC 100EThread: 19.682 in., 5 TPI | d1: 19.8 in. | d3: 25.0 in. | B: 2.6 in. | Piston area: 79.8 in2 | Weight: 154 lb
HMVC 106EThread: 20.867 in., 4 TPI | d1: 20.9 in. | d3: 26.4 in. | B: 2.7 in. | Piston area: 87.1 in2 | Weight: 174 lb
HMVC 112EThread: 22.048 in., 4 TPI | d1: 22.1 in. | d3: 27.7 in. | B: 2.8 in. | Piston area: 94.9 in2 | Weight: 194 lb
HMVC 120EThread: 23.623 in., 4 TPI | d1: 23.7 in. | d3: 29.4 in. | B: 2.9 in. | Piston area: 104.3 in2 | Weight: 220 lb
HMVC 126EThread: 24.804 in., 4 TPI | d1: 24.9 in. | d3: 30.8 in. | B: 2.9 in. | Piston area: 113.0 in2 | Weight: 243 lb
HMVC 134EThread: 26.379 in., 4 TPI | d1: 26.5 in. | d3: 32.5 in. | B: 3.0 in. | Piston area: 123.2 in2 | Weight: 265 lb
HMVC 142EThread: 27.961 in., 3 TPI | d1: 28.0 in. | d3: 34.3 in. | B: 3.1 in. | Piston area: 135.9 in2 | Weight: 298 lb
HMVC 150EThread: 29.536 in., 3 TPI | d1: 29.6 in. | d3: 35.9 in. | B: 3.1 in. | Piston area: 147.6 in2 | Weight: 322 lb
HMVC 160EThread: 31.504 in., 3 TPI | d1: 31.6 in. | d3: 38.0 in. | B: 3.1 in. | Piston area: 161.0 in2 | Weight: 355 lb
HMVC 170EThread: 33.473 in., 3 TPI | d1: 33.5 in. | d3: 40.2 in. | B: 3.3 in. | Piston area: 177.6 in2 | Weight: 399 lb
HMVC 180EThread: 35.441 in., 3 TPI | d1: 35.5 in. | d3: 42.3 in. | B: 3.4 in. | Piston area: 192.4 in2 | Weight: 452 lb
HMVC 190EThread: 37.410 in., 3 TPI | d1: 37.5 in. | d3: 44.3 in. | B: 3.4 in. | Piston area: 210.3 in2 | Weight: 481 lb
