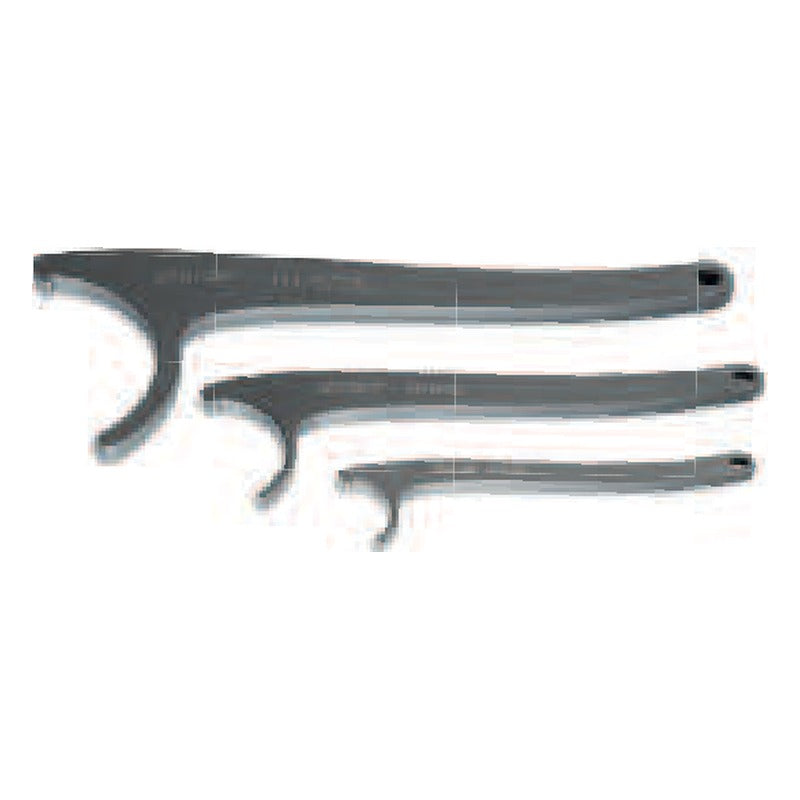

SKF HN ../SNL Hook Spanners for SNL Housings (HN 5/SNL-HN 32/SNL)

SKF HN ../SNL Hook Spanners for SNL Housings (HN 5/SNL-HN 32/SNL)

SKF HN ../SNL hook spanners are designed to tighten and loosen lock nuts inside SKF SNL, FSNL, SNH and SE plummer block housings.

Key features

  • Unique design for use inside SNL, FSNL, SNH and SE bearing housings
  • Suitable for a wide selection of lock nut series
  • Large contact area around the nut for excellent grip and force transmission
  • Exact fit reduces the risk of shaft, nut and housing damage

Specifications

Suitable housings SKF SNL / FSNL / SNH / SE
Source SKF Maintenance and Lubrication Products, p. 16
HN 5/SNL Lock nut OD: 38 mm | SNL housing: 505, 506-605 | KM nut size: 5
HN 6/SNL Lock nut OD: 45 mm | SNL housing: 506-605, 507-606 | KM nut size: 6
HN 7/SNL Lock nut OD: 52 mm | SNL housing: 507-606, 508-607 | KM nut size: 7
HN 8/SNL Lock nut OD: 58 mm | SNL housing: 508-607, 510-608 | KM nut size: 8
HN 9/SNL Lock nut OD: 65 mm | SNL housing: 509, 511-609 | KM nut size: 9
HN 10/SNL Lock nut OD: 70 mm | SNL housing: 510-608, 512-610 | KM nut size: 10
HN 11/SNL Lock nut OD: 75 mm | SNL housing: 511-609, 513-611 | KM nut size: 11
HN 12/SNL Lock nut OD: 80 mm | SNL housing: 512-610, 515-612 | KM nut size: 12
HN 13/SNL Lock nut OD: 85 mm | SNL housing: 513-611, 516-613 | KM nut size: 13
HN 15/SNL Lock nut OD: 98 mm | SNL housing: 515-612, 518-615 | KM nut size: 15
HN 16/SNL Lock nut OD: 105 mm | SNL housing: 516-613, 519-616 | KM nut size: 16
HN 17/SNL Lock nut OD: 110 mm | SNL housing: 517, 520-617 | KM nut size: 17
HN 18/SNL Lock nut OD: 120 mm | SNL housing: 518-615 | KM nut size: 18
HN 19/SNL Lock nut OD: 125 mm | SNL housing: 519-616, 522-619 | KM nut size: 19
HN 20/SNL Lock nut OD: 130 mm | SNL housing: 520-617, 524-620 | KM nut size: 20
HN 22/SNL Lock nut OD: 145 mm | SNL housing: 522-619 | KM nut size: 22
HN 24/SNL Lock nut OD: 155 mm | SNL housing: 524-620 | KM nut size: 24
HN 26/SNL Lock nut OD: 165 mm | SNL housing: 526 | KM nut size: 26
HN 28/SNL Lock nut OD: 180 mm | SNL housing: 528 | KM nut size: 28
HN 30/SNL Lock nut OD: 195 mm | SNL housing: 530 | KM nut size: 30
HN 32/SNL Lock nut OD: 210 mm | SNL housing: 532 | KM nut size: 32
Mounting & Dismounting ToolsSKF
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF HN ../SNL Hook Spanners for SNL Housings (HN 5/SNL-HN 32/SNL)

Brand SKF·Mounting & Dismounting Tools

Available part numbers (21)

HN 5/SNL, HN 6/SNL, HN 7/SNL, HN 8/SNL, HN 9/SNL, HN 10/SNL, HN 11/SNL, HN 12/SNL, HN 13/SNL, HN 15/SNL + 11 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HN 5/SNLLock nut OD: 38 mm | SNL housing: 505, 506-605 | KM nut size: 5
HN 6/SNLLock nut OD: 45 mm | SNL housing: 506-605, 507-606 | KM nut size: 6
HN 7/SNLLock nut OD: 52 mm | SNL housing: 507-606, 508-607 | KM nut size: 7
HN 8/SNLLock nut OD: 58 mm | SNL housing: 508-607, 510-608 | KM nut size: 8
HN 9/SNLLock nut OD: 65 mm | SNL housing: 509, 511-609 | KM nut size: 9
HN 10/SNLLock nut OD: 70 mm | SNL housing: 510-608, 512-610 | KM nut size: 10
HN 11/SNLLock nut OD: 75 mm | SNL housing: 511-609, 513-611 | KM nut size: 11
HN 12/SNLLock nut OD: 80 mm | SNL housing: 512-610, 515-612 | KM nut size: 12
HN 13/SNLLock nut OD: 85 mm | SNL housing: 513-611, 516-613 | KM nut size: 13
HN 15/SNLLock nut OD: 98 mm | SNL housing: 515-612, 518-615 | KM nut size: 15
HN 16/SNLLock nut OD: 105 mm | SNL housing: 516-613, 519-616 | KM nut size: 16
HN 17/SNLLock nut OD: 110 mm | SNL housing: 517, 520-617 | KM nut size: 17
HN 18/SNLLock nut OD: 120 mm | SNL housing: 518-615 | KM nut size: 18
HN 19/SNLLock nut OD: 125 mm | SNL housing: 519-616, 522-619 | KM nut size: 19
HN 20/SNLLock nut OD: 130 mm | SNL housing: 520-617, 524-620 | KM nut size: 20
HN 22/SNLLock nut OD: 145 mm | SNL housing: 522-619 | KM nut size: 22
HN 24/SNLLock nut OD: 155 mm | SNL housing: 524-620 | KM nut size: 24
HN 26/SNLLock nut OD: 165 mm | SNL housing: 526 | KM nut size: 26
HN 28/SNLLock nut OD: 180 mm | SNL housing: 528 | KM nut size: 28
HN 30/SNLLock nut OD: 195 mm | SNL housing: 530 | KM nut size: 30
HN 32/SNLLock nut OD: 210 mm | SNL housing: 532 | KM nut size: 32
