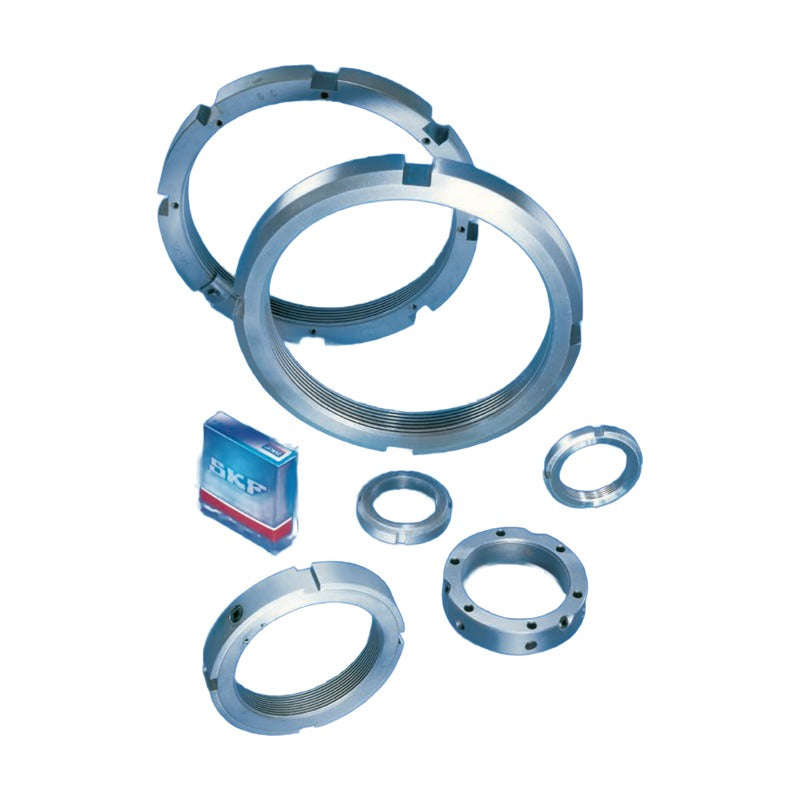

SKF KM, KML Lock Nuts (M 10x0.75 - M 200x3)

SKF KM, KML Lock Nuts (M 10x0.75 - M 200x3)

SKF KM and KML lock nuts with metric fine thread, locked with an MB / MBL lock washer, for locating bearings on shafts and adapter sleeves.

Key features

  • Slotted nut locked with a tab washer engaging a keyway or sleeve slot
  • KML: low-section series for use with MBL washers
  • Metric fine thread M 10x0.75 to M 200x3
  • Catalogue lists the matching MB washer and HN spanner

Specifications

Product Lock nut with lock washer
Locking MB / MBL lock washer
Thread Metric fine thread
Ca Axial static load carrying capacity
Source SKF General Catalogue 6000, p. 1012-1013
KM 0 Thread: M 10x0.75 | Outside dia.: 18 mm | Width: 4 mm | Axial load Ca: 9.8 kN | Mass: 0.004 kg
KM 1 Thread: M 12x1 | Outside dia.: 22 mm | Width: 4 mm | Axial load Ca: 11.8 kN | Mass: 0.006 kg
KM 2 Thread: M 15x1 | Outside dia.: 25 mm | Width: 5 mm | Axial load Ca: 14.6 kN | Mass: 0.009 kg
KM 3 Thread: M 17x1 | Outside dia.: 28 mm | Width: 5 mm | Axial load Ca: 19.6 kN | Mass: 0.012 kg
KM 4 Thread: M 20x1 | Outside dia.: 32 mm | Width: 6 mm | Axial load Ca: 24 kN | Mass: 0.025 kg
KM 5 Thread: M 25x1.5 | Outside dia.: 38 mm | Width: 7 mm | Axial load Ca: 31.5 kN | Mass: 0.028 kg
KM 6 Thread: M 30x1.5 | Outside dia.: 45 mm | Width: 7 mm | Axial load Ca: 36.5 kN | Mass: 0.039 kg
KM 7 Thread: M 35x1.5 | Outside dia.: 52 mm | Width: 8 mm | Axial load Ca: 50 kN | Mass: 0.059 kg
KM 8 Thread: M 40x1.5 | Outside dia.: 58 mm | Width: 9 mm | Axial load Ca: 62 kN | Mass: 0.078 kg
KM 9 Thread: M 45x1.5 | Outside dia.: 65 mm | Width: 10 mm | Axial load Ca: 78 kN | Mass: 0.11 kg
KM 10 Thread: M 50x1.5 | Outside dia.: 70 mm | Width: 11 mm | Axial load Ca: 91.5 kN | Mass: 0.14 kg
KM 11 Thread: M 55x2 | Outside dia.: 75 mm | Width: 11 mm | Axial load Ca: 91.5 kN | Mass: 0.15 kg
KM 12 Thread: M 60x2 | Outside dia.: 80 mm | Width: 11 mm | Axial load Ca: 95 kN | Mass: 0.16 kg
KM 13 Thread: M 65x2 | Outside dia.: 85 mm | Width: 12 mm | Axial load Ca: 108 kN | Mass: 0.19 kg
KM 14 Thread: M 70x2 | Outside dia.: 92 mm | Width: 12 mm | Axial load Ca: 118 kN | Mass: 0.23 kg
KM 15 Thread: M 75x2 | Outside dia.: 98 mm | Width: 13 mm | Axial load Ca: 134 kN | Mass: 0.27 kg
KM 16 Thread: M 80x2 | Outside dia.: 105 mm | Width: 15 mm | Axial load Ca: 173 kN | Mass: 0.36 kg
KM 17 Thread: M 85x2 | Outside dia.: 110 mm | Width: 16 mm | Axial load Ca: 190 kN | Mass: 0.41 kg
KM 18 Thread: M 90x2 | Outside dia.: 120 mm | Width: 16 mm | Axial load Ca: 216 kN | Mass: 0.51 kg
KM 19 Thread: M 95x2 | Outside dia.: 125 mm | Width: 17 mm | Axial load Ca: 236 kN | Mass: 0.55 kg
KM 20 Thread: M 100x2 | Outside dia.: 130 mm | Width: 18 mm | Axial load Ca: 255 kN | Mass: 0.64 kg
KM 21 Thread: M 105x2 | Outside dia.: 140 mm | Width: 18 mm | Axial load Ca: 290 kN | Mass: 0.79 kg
KM 22 Thread: M 110x2 | Outside dia.: 145 mm | Width: 19 mm | Axial load Ca: 310 kN | Mass: 0.87 kg
KM 23 Thread: M 115x2 | Outside dia.: 150 mm | Width: 19 mm | Axial load Ca: 315 kN | Mass: 0.91 kg
KML 24 Thread: M 120x2 | Outside dia.: 145 mm | Width: 20 mm | Axial load Ca: 265 kN | Mass: 0.69 kg
KM 24 Thread: M 120x2 | Outside dia.: 155 mm | Width: 20 mm | Axial load Ca: 340 kN | Mass: 0.97 kg
KM 25 Thread: M 125x2 | Outside dia.: 160 mm | Width: 21 mm | Axial load Ca: 360 kN | Mass: 1.09 kg
KML 26 Thread: M 130x2 | Outside dia.: 155 mm | Width: 21 mm | Axial load Ca: 285 kN | Mass: 0.80 kg
KM 26 Thread: M 130x2 | Outside dia.: 165 mm | Width: 21 mm | Axial load Ca: 365 kN | Mass: 1.09 kg
KM 27 Thread: M 135x2 | Outside dia.: 175 mm | Width: 22 mm | Axial load Ca: 430 kN | Mass: 1.39 kg
KML 28 Thread: M 140x2 | Outside dia.: 165 mm | Width: 22 mm | Axial load Ca: 305 kN | Mass: 0.92 kg
KM 28 Thread: M 140x2 | Outside dia.: 180 mm | Width: 22 mm | Axial load Ca: 430 kN | Mass: 1.40 kg
KM 29 Thread: M 145x2 | Outside dia.: 190 mm | Width: 24 mm | Axial load Ca: 520 kN | Mass: 1.80 kg
KML 30 Thread: M 150x2 | Outside dia.: 180 mm | Width: 24 mm | Axial load Ca: 390 kN | Mass: 1.25 kg
KM 30 Thread: M 150x2 | Outside dia.: 195 mm | Width: 24 mm | Axial load Ca: 530 kN | Mass: 1.88 kg
KM 31 Thread: M 155x3 | Outside dia.: 200 mm | Width: 25 mm | Axial load Ca: 540 kN | Mass: 2.09 kg
KML 32 Thread: M 160x3 | Outside dia.: 190 mm | Width: 25 mm | Axial load Ca: 405 kN | Mass: 1.39 kg
KM 32 Thread: M 160x3 | Outside dia.: 210 mm | Width: 25 mm | Axial load Ca: 585 kN | Mass: 2.29 kg
KM 33 Thread: M 165x3 | Outside dia.: 210 mm | Width: 26 mm | Axial load Ca: 570 kN | Mass: 2.31 kg
KML 34 Thread: M 170x3 | Outside dia.: 200 mm | Width: 26 mm | Axial load Ca: 430 kN | Mass: 1.56 kg
KM 34 Thread: M 170x3 | Outside dia.: 220 mm | Width: 26 mm | Axial load Ca: 620 kN | Mass: 2.34 kg
KML 36 Thread: M 180x3 | Outside dia.: 210 mm | Width: 27 mm | Axial load Ca: 450 kN | Mass: 1.78 kg
KM 36 Thread: M 180x3 | Outside dia.: 230 mm | Width: 27 mm | Axial load Ca: 670 kN | Mass: 2.78 kg
KML 38 Thread: M 190x3 | Outside dia.: 220 mm | Width: 28 mm | Axial load Ca: 475 kN | Mass: 1.84 kg
KM 38 Thread: M 190x3 | Outside dia.: 240 mm | Width: 28 mm | Axial load Ca: 695 kN | Mass: 3.05 kg
KML 40 Thread: M 200x3 | Outside dia.: 240 mm | Width: 29 mm | Axial load Ca: 625 kN | Mass: 2.61 kg
KM 40 Thread: M 200x3 | Outside dia.: 250 mm | Width: 29 mm | Axial load Ca: 735 kN | Mass: 3.37 kg
