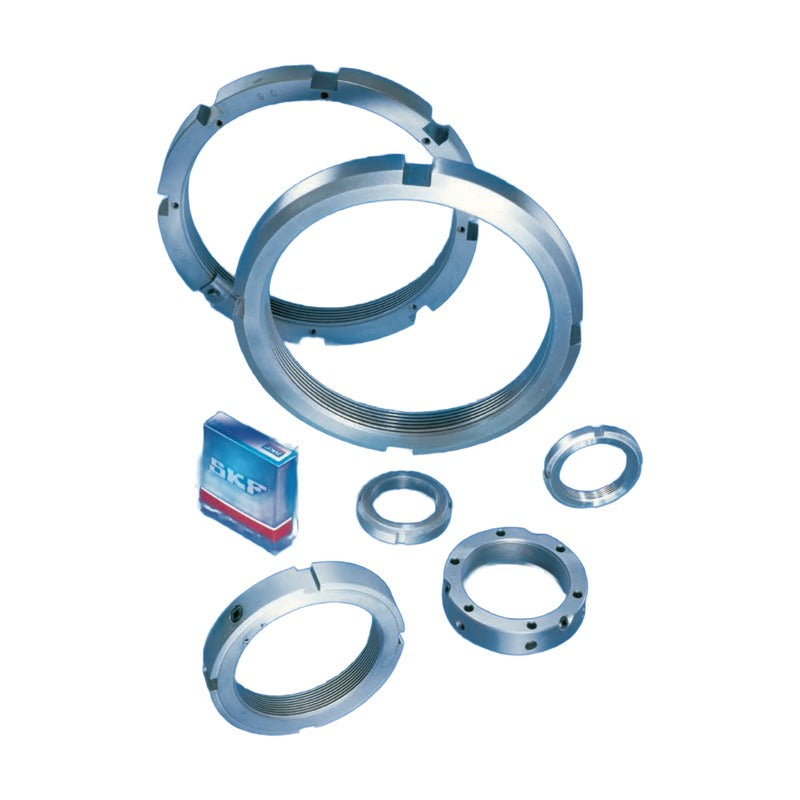

SKF KMK Lock Nuts with Integral Locking Device

SKF KMK Lock Nuts with Integral Locking Device

SKF KMK lock nuts with an integral locking device, locked by tightening a screw, so no keyway is required.

Key features

  • Integral locking: no keyway or lock washer needed
  • Locked by tightening a socket set screw
  • Metric fine thread M 10x0.75 to M 100x2
  • Catalogue lists loosening torque, screw size and tightening torque

Specifications

Product Lock nut with integral locking device
Thread Metric fine thread
Ca Axial static load carrying capacity
Source SKF General Catalogue 6000, p. 1021
KMK 0 Thread: M 10x0.75 | Outside dia.: 20 mm | Width: 9 mm | Axial load Ca: 9.8 kN | Mass: 0.016 kg
KMK 1 Thread: M 12x1 | Outside dia.: 22 mm | Width: 9 mm | Axial load Ca: 11.8 kN | Mass: 0.018 kg
KMK 2 Thread: M 15x1 | Outside dia.: 25 mm | Width: 9 mm | Axial load Ca: 14.6 kN | Mass: 0.021 kg
KMK 3 Thread: M 17x1 | Outside dia.: 28 mm | Width: 9 mm | Axial load Ca: 19.6 kN | Mass: 0.027 kg
KMK 4 Thread: M 20x1 | Outside dia.: 32 mm | Width: 9 mm | Axial load Ca: 24 kN | Mass: 0.030 kg
KMK 5 Thread: M 25x1.5 | Outside dia.: 38 mm | Width: 9 mm | Axial load Ca: 31.5 kN | Mass: 0.030 kg
KMK 6 Thread: M 30x1.5 | Outside dia.: 45 mm | Width: 9 mm | Axial load Ca: 36.5 kN | Mass: 0.060 kg
KMK 7 Thread: M 35x1.5 | Outside dia.: 52 mm | Width: 9 mm | Axial load Ca: 50 kN | Mass: 0.070 kg
KMK 8 Thread: M 40x1.5 | Outside dia.: 58 mm | Width: 11 mm | Axial load Ca: 62 kN | Mass: 0.11 kg
KMK 9 Thread: M 45x1.5 | Outside dia.: 65 mm | Width: 11 mm | Axial load Ca: 78 kN | Mass: 0.14 kg
KMK 10 Thread: M 50x1.5 | Outside dia.: 70 mm | Width: 13 mm | Axial load Ca: 91.5 kN | Mass: 0.18 kg
KMK 11 Thread: M 55x2 | Outside dia.: 75 mm | Width: 13 mm | Axial load Ca: 91.5 kN | Mass: 0.19 kg
KMK 12 Thread: M 60x2 | Outside dia.: 80 mm | Width: 13 mm | Axial load Ca: 95 kN | Mass: 0.20 kg
KMK 13 Thread: M 65x2 | Outside dia.: 85 mm | Width: 14 mm | Axial load Ca: 108 kN | Mass: 0.24 kg
KMK 14 Thread: M 70x2 | Outside dia.: 92 mm | Width: 14 mm | Axial load Ca: 118 kN | Mass: 0.28 kg
KMK 15 Thread: M 75x2 | Outside dia.: 98 mm | Width: 14 mm | Axial load Ca: 134 kN | Mass: 0.33 kg
KMK 16 Thread: M 80x2 | Outside dia.: 105 mm | Width: 18 mm | Axial load Ca: 173 kN | Mass: 0.45 kg
KMK 17 Thread: M 85x2 | Outside dia.: 110 mm | Width: 18 mm | Axial load Ca: 190 kN | Mass: 0.52 kg
KMK 18 Thread: M 90x2 | Outside dia.: 120 mm | Width: 18 mm | Axial load Ca: 216 kN | Mass: 0.65 kg
KMK 19 Thread: M 95x2 | Outside dia.: 125 mm | Width: 20 mm | Axial load Ca: 236 kN | Mass: 0.76 kg
KMK 20 Thread: M 100x2 | Outside dia.: 130 mm | Width: 20 mm | Axial load Ca: 255 kN | Mass: 0.80 kg
Lock Nuts & WashersSKF
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF KMK Lock Nuts with Integral Locking Device

Brand SKF·Lock Nuts & Washers

Available part numbers (21)

KMK 0, KMK 1, KMK 2, KMK 3, KMK 4, KMK 5, KMK 6, KMK 7, KMK 8, KMK 9 + 11 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KMK 0Thread: M 10x0.75 | Outside dia.: 20 mm | Width: 9 mm | Axial load Ca: 9.8 kN | Mass: 0.016 kg
KMK 1Thread: M 12x1 | Outside dia.: 22 mm | Width: 9 mm | Axial load Ca: 11.8 kN | Mass: 0.018 kg
KMK 2Thread: M 15x1 | Outside dia.: 25 mm | Width: 9 mm | Axial load Ca: 14.6 kN | Mass: 0.021 kg
KMK 3Thread: M 17x1 | Outside dia.: 28 mm | Width: 9 mm | Axial load Ca: 19.6 kN | Mass: 0.027 kg
KMK 4Thread: M 20x1 | Outside dia.: 32 mm | Width: 9 mm | Axial load Ca: 24 kN | Mass: 0.030 kg
KMK 5Thread: M 25x1.5 | Outside dia.: 38 mm | Width: 9 mm | Axial load Ca: 31.5 kN | Mass: 0.030 kg
KMK 6Thread: M 30x1.5 | Outside dia.: 45 mm | Width: 9 mm | Axial load Ca: 36.5 kN | Mass: 0.060 kg
KMK 7Thread: M 35x1.5 | Outside dia.: 52 mm | Width: 9 mm | Axial load Ca: 50 kN | Mass: 0.070 kg
KMK 8Thread: M 40x1.5 | Outside dia.: 58 mm | Width: 11 mm | Axial load Ca: 62 kN | Mass: 0.11 kg
KMK 9Thread: M 45x1.5 | Outside dia.: 65 mm | Width: 11 mm | Axial load Ca: 78 kN | Mass: 0.14 kg
KMK 10Thread: M 50x1.5 | Outside dia.: 70 mm | Width: 13 mm | Axial load Ca: 91.5 kN | Mass: 0.18 kg
KMK 11Thread: M 55x2 | Outside dia.: 75 mm | Width: 13 mm | Axial load Ca: 91.5 kN | Mass: 0.19 kg
KMK 12Thread: M 60x2 | Outside dia.: 80 mm | Width: 13 mm | Axial load Ca: 95 kN | Mass: 0.20 kg
KMK 13Thread: M 65x2 | Outside dia.: 85 mm | Width: 14 mm | Axial load Ca: 108 kN | Mass: 0.24 kg
KMK 14Thread: M 70x2 | Outside dia.: 92 mm | Width: 14 mm | Axial load Ca: 118 kN | Mass: 0.28 kg
KMK 15Thread: M 75x2 | Outside dia.: 98 mm | Width: 14 mm | Axial load Ca: 134 kN | Mass: 0.33 kg
KMK 16Thread: M 80x2 | Outside dia.: 105 mm | Width: 18 mm | Axial load Ca: 173 kN | Mass: 0.45 kg
KMK 17Thread: M 85x2 | Outside dia.: 110 mm | Width: 18 mm | Axial load Ca: 190 kN | Mass: 0.52 kg
KMK 18Thread: M 90x2 | Outside dia.: 120 mm | Width: 18 mm | Axial load Ca: 216 kN | Mass: 0.65 kg
KMK 19Thread: M 95x2 | Outside dia.: 125 mm | Width: 20 mm | Axial load Ca: 236 kN | Mass: 0.76 kg
KMK 20Thread: M 100x2 | Outside dia.: 130 mm | Width: 20 mm | Axial load Ca: 255 kN | Mass: 0.80 kg
