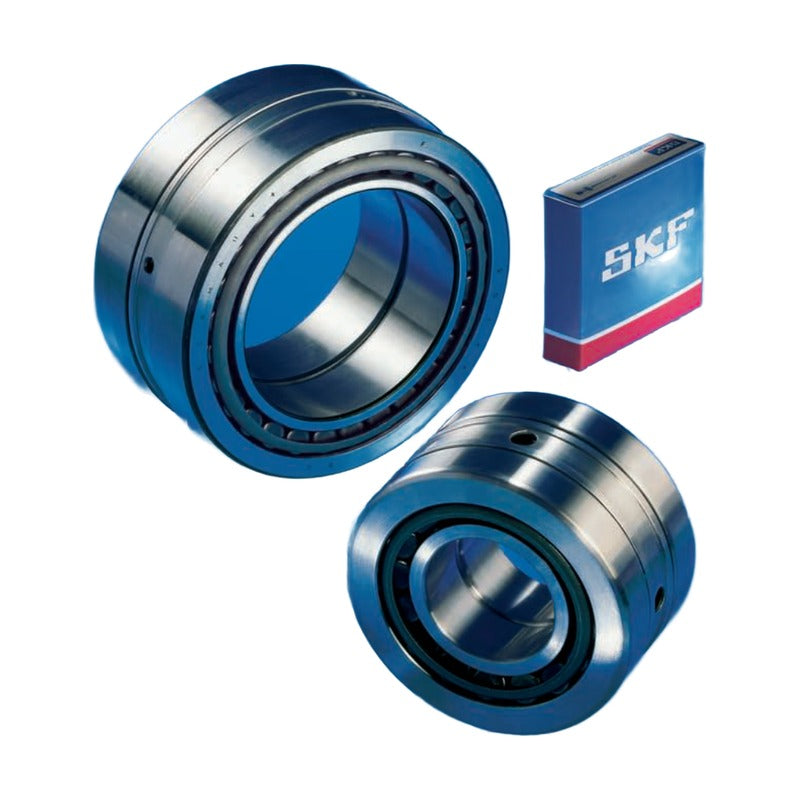

SKF Matched Tapered Roller Bearing Pairs (DF, DB, DT)

SKF Matched Tapered Roller Bearing Pairs (DF, DB, DT)

SKF paired single row tapered roller bearing sets supplied matched in face-to-face (DF), back-to-back (DB) or tandem (DT) arrangement. Bore diameters 25-320 mm.

Key features

  • Pre-matched pairs with intermediate rings where required, ready to mount
  • Face-to-face (DF) and back-to-back (DB) sets take axial loads in both directions
  • Tandem (DT) sets share heavy axial load in one direction
  • Axial internal clearance or preload set at the factory (C.. suffix)
  • Load ratings given for the bearing pair

Specifications

Bearing type Paired single row tapered roller bearings
Arrangements DF, DB, DT
Bore range d 25-320 mm
Width key T = total width of pair
Load ratings C dynamic / C0 static, kN (pair)
Source SKF General Catalogue 6000, p. 680-693
31305 J2/QDF d: 25 mm | D: 62 mm | T: 36.5 mm | C: 64.4 kN | C0: 80 kN | Limiting speed: 11000 r/min
31306 J2/QDF d: 30 mm | D: 72 mm | T: 41.5 mm | C: 80.9 kN | C0: 100 kN | Limiting speed: 9500 r/min
31307 J2/QDF d: 35 mm | D: 80 mm | T: 45.5 mm | C: 105 kN | C0: 134 kN | Limiting speed: 8500 r/min
31308 J2/QCL7CDF d: 40 mm | D: 90 mm | T: 50.5 mm | C: 146 kN | C0: 163 kN | Limiting speed: 7500 r/min
31309 J2/QCL7CDF d: 45 mm | D: 100 mm | T: 54.5 mm | C: 180 kN | C0: 204 kN | Limiting speed: 6700 r/min
30210 J2/QDF d: 50 mm | D: 90 mm | T: 43.5 mm | C: 130 kN | C0: 183 kN | Limiting speed: 7500 r/min
31310 J2/QCL7CDF d: 50 mm | D: 110 mm | T: 58.5 mm | C: 208 kN | C0: 240 kN | Limiting speed: 6000 r/min
33011/QDF03C170 d: 55 mm | D: 90 mm | T: 54 mm | C: 180 kN | C0: 270 kN | Limiting speed: 7000 r/min
31311 J2/QDF d: 55 mm | D: 120 mm | T: 63 mm | C: 209 kN | C0: 275 kN | Limiting speed: 5600 r/min
32012 X/QCL7CDFC250 d: 60 mm | D: 95 mm | T: 46 mm | C: 163 kN | C0: 245 kN | Limiting speed: 6700 r/min
32212 J2/QDFC290 d: 60 mm | D: 110 mm | T: 59.5 mm | C: 216 kN | C0: 320 kN | Limiting speed: 6000 r/min
31312 J2/QDF d: 60 mm | D: 130 mm | T: 67 mm | C: 246 kN | C0: 335 kN | Limiting speed: 5300 r/min
30213 J2/QDF d: 65 mm | D: 120 mm | T: 49.5 mm | C: 228 kN | C0: 270 kN | Limiting speed: 5600 r/min
31313 J2/QCL7CDF d: 65 mm | D: 140 mm | T: 72 mm | C: 281 kN | C0: 380 kN | Limiting speed: 4800 r/min
32014 X/QDF d: 70 mm | D: 110 mm | T: 50 mm | C: 172 kN | C0: 305 kN | Limiting speed: 5600 r/min
33014/DF d: 70 mm | D: 110 mm | T: 62 mm | C: 220 kN | C0: 400 kN | Limiting speed: 5600 r/min
31314 J2/QCL7CDF d: 70 mm | D: 150 mm | T: 76 mm | C: 319 kN | C0: 440 kN | Limiting speed: 4500 r/min
33015/QDF d: 75 mm | D: 115 mm | T: 62 mm | C: 233 kN | C0: 455 kN | Limiting speed: 5300 r/min
33115/QDFC150 d: 75 mm | D: 125 mm | T: 74 mm | C: 303 kN | C0: 530 kN | Limiting speed: 5000 r/min
30215 J2/QDF d: 75 mm | D: 130 mm | T: 54.5 mm | C: 238 kN | C0: 355 kN | Limiting speed: 5000 r/min
32215 J2/QDF d: 75 mm | D: 130 mm | T: 66.5 mm | C: 275 kN | C0: 425 kN | Limiting speed: 5000 r/min
31315 J2/QCL7CDF d: 75 mm | D: 160 mm | T: 80 mm | C: 358 kN | C0: 490 kN | Limiting speed: 4300 r/min
32016 X/QDFC165 d: 80 mm | D: 125 mm | T: 58 mm | C: 233 kN | C0: 430 kN | Limiting speed: 5000 r/min
32216 J2/QDF d: 80 mm | D: 140 mm | T: 70.5 mm | C: 319 kN | C0: 490 kN | Limiting speed: 4500 r/min
31316 J1/QCL7CDF d: 80 mm | D: 170 mm | T: 85 mm | C: 380 kN | C0: 530 kN | Limiting speed: 4000 r/min
32017 X/QDF d: 85 mm | D: 130 mm | T: 58 mm | C: 238 kN | C0: 450 kN | Limiting speed: 4800 r/min
33017/QDFC240 d: 85 mm | D: 130 mm | T: 72 mm | C: 308 kN | C0: 620 kN | Limiting speed: 4800 r/min
30217 J2/QDF d: 85 mm | D: 150 mm | T: 61 mm | C: 303 kN | C0: 440 kN | Limiting speed: 4300 r/min
32217 J2/QDF d: 85 mm | D: 150 mm | T: 77 mm | C: 369 kN | C0: 570 kN | Limiting speed: 4300 r/min
33217/QDF d: 85 mm | D: 150 mm | T: 98 mm | C: 495 kN | C0: 850 kN | Limiting speed: 4300 r/min
31317 J2/DF d: 85 mm | D: 180 mm | T: 89 mm | C: 413 kN | C0: 570 kN | Limiting speed: 3800 r/min
32018 X/QDF d: 90 mm | D: 140 mm | T: 64 mm | C: 292 kN | C0: 540 kN | Limiting speed: 4300 r/min
33018/QDFC150 d: 90 mm | D: 140 mm | T: 78 mm | C: 369 kN | C0: 710 kN | Limiting speed: 4500 r/min
30218 J2/DF d: 90 mm | D: 160 mm | T: 65 mm | C: 336 kN | C0: 490 kN | Limiting speed: 4000 r/min
32218 J2/QDF d: 90 mm | D: 160 mm | T: 85 mm | C: 429 kN | C0: 680 kN | Limiting speed: 4000 r/min
31318 J2/DF d: 90 mm | D: 190 mm | T: 93 mm | C: 457 kN | C0: 630 kN | Limiting speed: 3400 r/min
33019/QDF d: 95 mm | D: 145 mm | T: 78 mm | C: 380 kN | C0: 735 kN | Limiting speed: 4300 r/min
32219 J2/DF d: 95 mm | D: 170 mm | T: 91 mm | C: 484 kN | C0: 780 kN | Limiting speed: 3800 r/min
31319 J2/DF d: 95 mm | D: 200 mm | T: 99 mm | C: 501 kN | C0: 710 kN | Limiting speed: 3400 r/min
32020 X/QDF d: 100 mm | D: 150 mm | T: 64 mm | C: 292 kN | C0: 560 kN | Limiting speed: 4000 r/min
30220 J2/DF d: 100 mm | D: 180 mm | T: 74 mm | C: 418 kN | C0: 640 kN | Limiting speed: 3600 r/min
32220 J2/DF d: 100 mm | D: 180 mm | T: 98 mm | C: 539 kN | C0: 880 kN | Limiting speed: 3600 r/min
30320 J2/DFC400 d: 100 mm | D: 215 mm | T: 103 mm | C: 693 kN | C0: 980 kN | Limiting speed: 3200 r/min
31320 XJ2/DF d: 100 mm | D: 215 mm | T: 113 mm | C: 644 kN | C0: 930 kN | Limiting speed: 3000 r/min
32021 X/QDF d: 105 mm | D: 160 mm | T: 70 mm | C: 347 kN | C0: 670 kN | Limiting speed: 3800 r/min
32022 X/QDF d: 110 mm | D: 170 mm | T: 76 mm | C: 402 kN | C0: 780 kN | Limiting speed: 3600 r/min
33122/DF d: 110 mm | D: 180 mm | T: 112 mm | C: 627 kN | C0: 1250 kN | Limiting speed: 3400 r/min
30222 J2/DF d: 110 mm | D: 200 mm | T: 82 mm | C: 523 kN | C0: 800 kN | Limiting speed: 3200 r/min
32222 J2/DF d: 110 mm | D: 200 mm | T: 112 mm | C: 682 kN | C0: 1140 kN | Limiting speed: 3200 r/min
31322 XJ2/DF d: 110 mm | D: 240 mm | T: 126 mm | C: 781 kN | C0: 1160 kN | Limiting speed: 2800 r/min
32024 X/DF d: 120 mm | D: 180 mm | T: 76 mm | C: 418 kN | C0: 830 kN | Limiting speed: 3400 r/min
33024/DFC250 d: 120 mm | D: 180 mm | T: 96 mm | C: 495 kN | C0: 1080 kN | Limiting speed: 3400 r/min
30224 J2/DF d: 120 mm | D: 215 mm | T: 87 mm | C: 583 kN | C0: 915 kN | Limiting speed: 3000 r/min
32224 J2/DF d: 120 mm | D: 215 mm | T: 123 mm | C: 792 kN | C0: 1400 kN | Limiting speed: 3000 r/min
30324 J2/DFC600 d: 120 mm | D: 260 mm | T: 119 mm | C: 968 kN | C0: 1400 kN | Limiting speed: 2600 r/min
31324 XJ2/DF d: 120 mm | D: 260 mm | T: 136 mm | C: 935 kN | C0: 1400 kN | Limiting speed: 2400 r/min
32926/DF d: 130 mm | D: 180 mm | T: 64 mm | C: 341 kN | C0: 735 kN | Limiting speed: 3600 r/min
32026 X/DF d: 130 mm | D: 200 mm | T: 90 mm | C: 539 kN | C0: 1080 kN | Limiting speed: 3000 r/min
30226 J2/DF d: 130 mm | D: 230 mm | T: 87.5 mm | C: 627 kN | C0: 980 kN | Limiting speed: 2800 r/min
32226 J2/DF d: 130 mm | D: 230 mm | T: 135.5 mm | C: 952 kN | C0: 1660 kN | Limiting speed: 2800 r/min
31326 XJ2/DF d: 130 mm | D: 280 mm | T: 144 mm | C: 1050 kN | C0: 1560 kN | Limiting speed: 2400 r/min
32028 X/DF d: 140 mm | D: 210 mm | T: 90 mm | C: 561 kN | C0: 1160 kN | Limiting speed: 2800 r/min
30228 J2/DFC100 d: 140 mm | D: 250 mm | T: 91.5 mm | C: 721 kN | C0: 1140 kN | Limiting speed: 2600 r/min
32228 J2/DF d: 140 mm | D: 250 mm | T: 143.5 mm | C: 1100 kN | C0: 2000 kN | Limiting speed: 2600 r/min
31328 XJ2/DF d: 140 mm | D: 300 mm | T: 154 mm | C: 1190 kN | C0: 1800 kN | Limiting speed: 2200 r/min
32030 X/DF d: 150 mm | D: 225 mm | T: 96 mm | C: 644 kN | C0: 1320 kN | Limiting speed: 2600 r/min
30230/DFC350 d: 150 mm | D: 270 mm | T: 98 mm | C: 737 kN | C0: 1120 kN | Limiting speed: 2400 r/min
32230 J2/DF d: 150 mm | D: 270 mm | T: 154 mm | C: 1250 kN | C0: 2280 kN | Limiting speed: 2400 r/min
31330 XJ2/DF d: 150 mm | D: 320 mm | T: 164 mm | C: 1340 kN | C0: 2040 kN | Limiting speed: 2000 r/min
32032 X/DF d: 160 mm | D: 240 mm | T: 102 mm | C: 737 kN | C0: 1560 kN | Limiting speed: 2400 r/min
30232 J2/DF d: 160 mm | D: 290 mm | T: 104 mm | C: 913 kN | C0: 1460 kN | Limiting speed: 2200 r/min
32232 J2/DF d: 160 mm | D: 290 mm | T: 168 mm | C: 1510 kN | C0: 2800 kN | Limiting speed: 2200 r/min
32934/DFC225 d: 170 mm | D: 230 mm | T: 76 mm | C: 484 kN | C0: 1160 kN | Limiting speed: 2800 r/min
32034 X/DF d: 170 mm | D: 260 mm | T: 114 mm | C: 880 kN | C0: 1830 kN | Limiting speed: 2200 r/min
32234 J2/DF d: 170 mm | D: 310 mm | T: 182 mm | C: 1720 kN | C0: 3250 kN | Limiting speed: 2000 r/min
32936/DF d: 180 mm | D: 250 mm | T: 90 mm | C: 605 kN | C0: 1460 kN | Limiting speed: 2600 r/min
32036 X/DF d: 180 mm | D: 280 mm | T: 128 mm | C: 1100 kN | C0: 2320 kN | Limiting speed: 2000 r/min
30236 J2/DFC300 d: 180 mm | D: 320 mm | T: 114 mm | C: 1010 kN | C0: 1630 kN | Limiting speed: 2000 r/min
32236 J2/DF d: 180 mm | D: 320 mm | T: 182 mm | C: 1720 kN | C0: 3250 kN | Limiting speed: 1900 r/min
32938/DF d: 190 mm | D: 260 mm | T: 90 mm | C: 616 kN | C0: 1530 kN | Limiting speed: 2400 r/min
32038 X/DF d: 190 mm | D: 290 mm | T: 128 mm | C: 1120 kN | C0: 2400 kN | Limiting speed: 2000 r/min
30238 J2/DFC700 d: 190 mm | D: 340 mm | T: 120 mm | C: 1230 kN | C0: 2000 kN | Limiting speed: 1800 r/min
32040 X/DF d: 200 mm | D: 310 mm | T: 140 mm | C: 1280 kN | C0: 2750 kN | Limiting speed: 1900 r/min
30240 J2/DFC570 d: 200 mm | D: 360 mm | T: 128 mm | C: 1340 kN | C0: 2240 kN | Limiting speed: 1700 r/min
32240 J2/DF d: 200 mm | D: 360 mm | T: 208 mm | C: 2090 kN | C0: 4000 kN | Limiting speed: 1700 r/min
32944/DFC300 d: 220 mm | D: 300 mm | T: 102 mm | C: 842 kN | C0: 2000 kN | Limiting speed: 2000 r/min
32044 X/DF d: 220 mm | D: 340 mm | T: 152 mm | C: 1540 kN | C0: 3350 kN | Limiting speed: 1700 r/min
32048 X/DF d: 240 mm | D: 360 mm | T: 152 mm | C: 1570 kN | C0: 3550 kN | Limiting speed: 1600 r/min
32052 X/DF d: 260 mm | D: 400 mm | T: 174 mm | C: 1980 kN | C0: 4400 kN | Limiting speed: 1400 r/min
32056 X/DF d: 280 mm | D: 420 mm | T: 174 mm | C: 2050 kN | C0: 4750 kN | Limiting speed: 1300 r/min
32960/DF d: 300 mm | D: 420 mm | T: 152 mm | C: 1790 kN | C0: 4500 kN | Limiting speed: 1400 r/min
32064 X/DF d: 320 mm | D: 480 mm | T: 200 mm | C: 2640 kN | C0: 6200 kN | Limiting speed: 1100 r/min
30308T72 J2/QDBC220 d: 40 mm | D: 90 mm | T: 72 mm | C: 147 kN | C0: 190 kN | Limiting speed: 8000 r/min
30215T70 J2/DBC270 d: 75 mm | D: 130 mm | T: 70 mm | C: 238 kN | C0: 355 kN | Limiting speed: 5000 r/min
32215T80 J2/QDB d: 75 mm | D: 130 mm | T: 80 mm | C: 275 kN | C0: 425 kN | Limiting speed: 5000 r/min
32216T78 J2/QDBC110 d: 80 mm | D: 140 mm | T: 78 mm | C: 319 kN | C0: 490 kN | Limiting speed: 4500 r/min
32017T66 X/QDB/C280 d: 85 mm | D: 130 mm | T: 66 mm | C: 238 kN | C0: 450 kN | Limiting speed: 4800 r/min
33017T70/QDB d: 85 mm | D: 130 mm | T: 70 mm | C: 308 kN | C0: 620 kN | Limiting speed: 4800 r/min
30217T71 J2/QDB d: 85 mm | D: 150 mm | T: 71 mm | C: 303 kN | C0: 440 kN | Limiting speed: 4300 r/min
31318T103 J2/DB31 d: 90 mm | D: 190 mm | T: 103 mm | C: 457 kN | C0: 630 kN | Limiting speed: 3400 r/min
32220T108 J2/DB d: 100 mm | D: 180 mm | T: 108 mm | C: 539 kN | C0: 880 kN | Limiting speed: 3600 r/min
32220T140 J2/DB11 d: 100 mm | D: 180 mm | T: 140 mm | C: 539 kN | C0: 880 kN | Limiting speed: 3600 r/min
32022T84 X/QDBC200 d: 110 mm | D: 170 mm | T: 84 mm | C: 402 kN | C0: 780 kN | Limiting speed: 3600 r/min
32024T84 X/QDBC200 d: 120 mm | D: 180 mm | T: 84 mm | C: 418 kN | C0: 830 kN | Limiting speed: 3400 r/min
32224T146 J2/DB31C210 d: 120 mm | D: 215 mm | T: 146 mm | C: 792 kN | C0: 1400 kN | Limiting speed: 3000 r/min
31324T146 XJ2/DB d: 120 mm | D: 260 mm | T: 146 mm | C: 935 kN | C0: 1400 kN | Limiting speed: 2400 r/min
30226T97.5 J2/DB d: 130 mm | D: 230 mm | T: 97.5 mm | C: 627 kN | C0: 980 kN | Limiting speed: 2800 r/min
30326T142 J2/DB11C150 d: 130 mm | D: 280 mm | T: 142 mm | C: 1080 kN | C0: 1600 kN | Limiting speed: 2400 r/min
32028T130 X/QDB d: 140 mm | D: 210 mm | T: 130 mm | C: 561 kN | C0: 1160 kN | Limiting speed: 2800 r/min
30228T106 J2/DB d: 140 mm | D: 250 mm | T: 106 mm | C: 721 kN | C0: 1140 kN | Limiting speed: 2600 r/min
32228T158 J2/DB d: 140 mm | D: 250 mm | T: 158 mm | C: 1100 kN | C0: 2000 kN | Limiting speed: 2600 r/min
32230T168 J2/DB d: 150 mm | D: 270 mm | T: 168 mm | C: 1250 kN | C0: 2280 kN | Limiting speed: 2400 r/min
32230T248 J2/DB31 d: 150 mm | D: 270 mm | T: 248 mm | C: 1250 kN | C0: 2280 kN | Limiting speed: 2400 r/min
31330T179 XJ2/DB d: 150 mm | D: 320 mm | T: 179 mm | C: 1340 kN | C0: 2040 kN | Limiting speed: 2000 r/min
32232T179 J2/DB32C230 d: 160 mm | D: 290 mm | T: 179 mm | C: 1510 kN | C0: 2800 kN | Limiting speed: 2200 r/min
32034T162 X/DB31 d: 170 mm | D: 260 mm | T: 162 mm | C: 880 kN | C0: 1830 kN | Limiting speed: 2200 r/min
32936T135/DBC260 d: 180 mm | D: 250 mm | T: 135 mm | C: 605 kN | C0: 1460 kN | Limiting speed: 2600 r/min
32036T150 X/DB d: 180 mm | D: 280 mm | T: 150 mm | C: 1100 kN | C0: 2320 kN | Limiting speed: 2200 r/min
32036T150 XDB11C150 d: 180 mm | D: 280 mm | T: 150 mm | C: 1100 kN | C0: 2320 kN | Limiting speed: 2200 r/min
32236T196 J2/DB32 d: 180 mm | D: 320 mm | T: 196 mm | C: 1720 kN | C0: 3250 kN | Limiting speed: 1900 r/min
32938T102/DB31 d: 190 mm | D: 260 mm | T: 102 mm | C: 616 kN | C0: 1530 kN | Limiting speed: 2400 r/min
32938T122/DBCG d: 190 mm | D: 260 mm | T: 122 mm | C: 616 kN | C0: 1530 kN | Limiting speed: 2400 r/min
32038T146 X/DB42C220 d: 190 mm | D: 290 mm | T: 146 mm | C: 1120 kN | C0: 2400 kN | Limiting speed: 2000 r/min
32038T146 X/DBC220 d: 190 mm | D: 290 mm | T: 146 mm | C: 1120 kN | C0: 2400 kN | Limiting speed: 2000 r/min
32038T183 X/DB31C330 d: 190 mm | D: 290 mm | T: 183 mm | C: 1120 kN | C0: 2400 kN | Limiting speed: 2000 r/min
32040T154.5 X/DB11C170 d: 200 mm | D: 310 mm | T: 154.5 mm | C: 1280 kN | C0: 2750 kN | Limiting speed: 1900 r/min
32044T165 X/DB11C170 d: 220 mm | D: 340 mm | T: 165 mm | C: 1540 kN | C0: 3550 kN | Limiting speed: 1700 r/min
32044T165 X/DB42C220 d: 220 mm | D: 340 mm | T: 165 mm | C: 1540 kN | C0: 3550 kN | Limiting speed: 1700 r/min
32044T165 X/DBC340 d: 220 mm | D: 340 mm | T: 165 mm | C: 1540 kN | C0: 3550 kN | Limiting speed: 1700 r/min
32044T168 X/DB d: 220 mm | D: 340 mm | T: 168 mm | C: 1540 kN | C0: 3550 kN | Limiting speed: 1700 r/min
32048T172 X/DB d: 240 mm | D: 360 mm | T: 172 mm | C: 1570 kN | C0: 3550 kN | Limiting speed: 1600 r/min
32248T284 J3/DB d: 240 mm | D: 440 mm | T: 284 mm | C: 3300 kN | C0: 6550 kN | Limiting speed: 1400 r/min
32052T189 X/DBC280 d: 260 mm | D: 400 mm | T: 189 mm | C: 1980 kN | C0: 4400 kN | Limiting speed: 1400 r/min
32052T194 X/DB d: 260 mm | D: 400 mm | T: 194 mm | C: 1980 kN | C0: 4400 kN | Limiting speed: 1400 r/min
T7FC 055T73/QCL7CDTC10 d: 55 mm | D: 115 mm | T: 73 mm | C: 216 kN | C0: 325 kN | Limiting speed: 5600 r/min
T7FC 060T80/QCL7CDTC10 d: 60 mm | D: 125 mm | T: 80 mm | C: 264 kN | C0: 405 kN | Limiting speed: 5300 r/min
T7FC 070T83/QCL7CDTC10 d: 70 mm | D: 140 mm | T: 83 mm | C: 303 kN | C0: 480 kN | Limiting speed: 4500 r/min
T7FC 080T98/QCL7CDTC20 d: 80 mm | D: 160 mm | T: 98 mm | C: 391 kN | C0: 630 kN | Limiting speed: 4000 r/min
Tapered Roller BearingsSKF
138 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF Matched Tapered Roller Bearing Pairs (DF, DB, DT)

Brand SKF·Tapered Roller Bearings

Available part numbers (138)

31305 J2/QDF, 31306 J2/QDF, 31307 J2/QDF, 31308 J2/QCL7CDF, 31309 J2/QCL7CDF, 30210 J2/QDF, 31310 J2/QCL7CDF, 33011/QDF03C170, 31311 J2/QDF, 32012 X/QCL7CDFC250 + 128 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
31305 J2/QDFd: 25 mm | D: 62 mm | T: 36.5 mm | C: 64.4 kN | C0: 80 kN | Limiting speed: 11000 r/min
31306 J2/QDFd: 30 mm | D: 72 mm | T: 41.5 mm | C: 80.9 kN | C0: 100 kN | Limiting speed: 9500 r/min
31307 J2/QDFd: 35 mm | D: 80 mm | T: 45.5 mm | C: 105 kN | C0: 134 kN | Limiting speed: 8500 r/min
31308 J2/QCL7CDFd: 40 mm | D: 90 mm | T: 50.5 mm | C: 146 kN | C0: 163 kN | Limiting speed: 7500 r/min
31309 J2/QCL7CDFd: 45 mm | D: 100 mm | T: 54.5 mm | C: 180 kN | C0: 204 kN | Limiting speed: 6700 r/min
30210 J2/QDFd: 50 mm | D: 90 mm | T: 43.5 mm | C: 130 kN | C0: 183 kN | Limiting speed: 7500 r/min
31310 J2/QCL7CDFd: 50 mm | D: 110 mm | T: 58.5 mm | C: 208 kN | C0: 240 kN | Limiting speed: 6000 r/min
33011/QDF03C170d: 55 mm | D: 90 mm | T: 54 mm | C: 180 kN | C0: 270 kN | Limiting speed: 7000 r/min
31311 J2/QDFd: 55 mm | D: 120 mm | T: 63 mm | C: 209 kN | C0: 275 kN | Limiting speed: 5600 r/min
32012 X/QCL7CDFC250d: 60 mm | D: 95 mm | T: 46 mm | C: 163 kN | C0: 245 kN | Limiting speed: 6700 r/min
32212 J2/QDFC290d: 60 mm | D: 110 mm | T: 59.5 mm | C: 216 kN | C0: 320 kN | Limiting speed: 6000 r/min
31312 J2/QDFd: 60 mm | D: 130 mm | T: 67 mm | C: 246 kN | C0: 335 kN | Limiting speed: 5300 r/min
30213 J2/QDFd: 65 mm | D: 120 mm | T: 49.5 mm | C: 228 kN | C0: 270 kN | Limiting speed: 5600 r/min
31313 J2/QCL7CDFd: 65 mm | D: 140 mm | T: 72 mm | C: 281 kN | C0: 380 kN | Limiting speed: 4800 r/min
32014 X/QDFd: 70 mm | D: 110 mm | T: 50 mm | C: 172 kN | C0: 305 kN | Limiting speed: 5600 r/min
33014/DFd: 70 mm | D: 110 mm | T: 62 mm | C: 220 kN | C0: 400 kN | Limiting speed: 5600 r/min
31314 J2/QCL7CDFd: 70 mm | D: 150 mm | T: 76 mm | C: 319 kN | C0: 440 kN | Limiting speed: 4500 r/min
33015/QDFd: 75 mm | D: 115 mm | T: 62 mm | C: 233 kN | C0: 455 kN | Limiting speed: 5300 r/min
33115/QDFC150d: 75 mm | D: 125 mm | T: 74 mm | C: 303 kN | C0: 530 kN | Limiting speed: 5000 r/min
30215 J2/QDFd: 75 mm | D: 130 mm | T: 54.5 mm | C: 238 kN | C0: 355 kN | Limiting speed: 5000 r/min
32215 J2/QDFd: 75 mm | D: 130 mm | T: 66.5 mm | C: 275 kN | C0: 425 kN | Limiting speed: 5000 r/min
31315 J2/QCL7CDFd: 75 mm | D: 160 mm | T: 80 mm | C: 358 kN | C0: 490 kN | Limiting speed: 4300 r/min
32016 X/QDFC165d: 80 mm | D: 125 mm | T: 58 mm | C: 233 kN | C0: 430 kN | Limiting speed: 5000 r/min
32216 J2/QDFd: 80 mm | D: 140 mm | T: 70.5 mm | C: 319 kN | C0: 490 kN | Limiting speed: 4500 r/min
31316 J1/QCL7CDFd: 80 mm | D: 170 mm | T: 85 mm | C: 380 kN | C0: 530 kN | Limiting speed: 4000 r/min
32017 X/QDFd: 85 mm | D: 130 mm | T: 58 mm | C: 238 kN | C0: 450 kN | Limiting speed: 4800 r/min
33017/QDFC240d: 85 mm | D: 130 mm | T: 72 mm | C: 308 kN | C0: 620 kN | Limiting speed: 4800 r/min
30217 J2/QDFd: 85 mm | D: 150 mm | T: 61 mm | C: 303 kN | C0: 440 kN | Limiting speed: 4300 r/min
32217 J2/QDFd: 85 mm | D: 150 mm | T: 77 mm | C: 369 kN | C0: 570 kN | Limiting speed: 4300 r/min
33217/QDFd: 85 mm | D: 150 mm | T: 98 mm | C: 495 kN | C0: 850 kN | Limiting speed: 4300 r/min
31317 J2/DFd: 85 mm | D: 180 mm | T: 89 mm | C: 413 kN | C0: 570 kN | Limiting speed: 3800 r/min
32018 X/QDFd: 90 mm | D: 140 mm | T: 64 mm | C: 292 kN | C0: 540 kN | Limiting speed: 4300 r/min
33018/QDFC150d: 90 mm | D: 140 mm | T: 78 mm | C: 369 kN | C0: 710 kN | Limiting speed: 4500 r/min
30218 J2/DFd: 90 mm | D: 160 mm | T: 65 mm | C: 336 kN | C0: 490 kN | Limiting speed: 4000 r/min
32218 J2/QDFd: 90 mm | D: 160 mm | T: 85 mm | C: 429 kN | C0: 680 kN | Limiting speed: 4000 r/min
31318 J2/DFd: 90 mm | D: 190 mm | T: 93 mm | C: 457 kN | C0: 630 kN | Limiting speed: 3400 r/min
33019/QDFd: 95 mm | D: 145 mm | T: 78 mm | C: 380 kN | C0: 735 kN | Limiting speed: 4300 r/min
32219 J2/DFd: 95 mm | D: 170 mm | T: 91 mm | C: 484 kN | C0: 780 kN | Limiting speed: 3800 r/min
31319 J2/DFd: 95 mm | D: 200 mm | T: 99 mm | C: 501 kN | C0: 710 kN | Limiting speed: 3400 r/min
32020 X/QDFd: 100 mm | D: 150 mm | T: 64 mm | C: 292 kN | C0: 560 kN | Limiting speed: 4000 r/min
30220 J2/DFd: 100 mm | D: 180 mm | T: 74 mm | C: 418 kN | C0: 640 kN | Limiting speed: 3600 r/min
32220 J2/DFd: 100 mm | D: 180 mm | T: 98 mm | C: 539 kN | C0: 880 kN | Limiting speed: 3600 r/min
30320 J2/DFC400d: 100 mm | D: 215 mm | T: 103 mm | C: 693 kN | C0: 980 kN | Limiting speed: 3200 r/min
31320 XJ2/DFd: 100 mm | D: 215 mm | T: 113 mm | C: 644 kN | C0: 930 kN | Limiting speed: 3000 r/min
32021 X/QDFd: 105 mm | D: 160 mm | T: 70 mm | C: 347 kN | C0: 670 kN | Limiting speed: 3800 r/min
32022 X/QDFd: 110 mm | D: 170 mm | T: 76 mm | C: 402 kN | C0: 780 kN | Limiting speed: 3600 r/min
33122/DFd: 110 mm | D: 180 mm | T: 112 mm | C: 627 kN | C0: 1250 kN | Limiting speed: 3400 r/min
30222 J2/DFd: 110 mm | D: 200 mm | T: 82 mm | C: 523 kN | C0: 800 kN | Limiting speed: 3200 r/min
32222 J2/DFd: 110 mm | D: 200 mm | T: 112 mm | C: 682 kN | C0: 1140 kN | Limiting speed: 3200 r/min
31322 XJ2/DFd: 110 mm | D: 240 mm | T: 126 mm | C: 781 kN | C0: 1160 kN | Limiting speed: 2800 r/min
32024 X/DFd: 120 mm | D: 180 mm | T: 76 mm | C: 418 kN | C0: 830 kN | Limiting speed: 3400 r/min
33024/DFC250d: 120 mm | D: 180 mm | T: 96 mm | C: 495 kN | C0: 1080 kN | Limiting speed: 3400 r/min
30224 J2/DFd: 120 mm | D: 215 mm | T: 87 mm | C: 583 kN | C0: 915 kN | Limiting speed: 3000 r/min
32224 J2/DFd: 120 mm | D: 215 mm | T: 123 mm | C: 792 kN | C0: 1400 kN | Limiting speed: 3000 r/min
30324 J2/DFC600d: 120 mm | D: 260 mm | T: 119 mm | C: 968 kN | C0: 1400 kN | Limiting speed: 2600 r/min
31324 XJ2/DFd: 120 mm | D: 260 mm | T: 136 mm | C: 935 kN | C0: 1400 kN | Limiting speed: 2400 r/min
32926/DFd: 130 mm | D: 180 mm | T: 64 mm | C: 341 kN | C0: 735 kN | Limiting speed: 3600 r/min
32026 X/DFd: 130 mm | D: 200 mm | T: 90 mm | C: 539 kN | C0: 1080 kN | Limiting speed: 3000 r/min
30226 J2/DFd: 130 mm | D: 230 mm | T: 87.5 mm | C: 627 kN | C0: 980 kN | Limiting speed: 2800 r/min
32226 J2/DFd: 130 mm | D: 230 mm | T: 135.5 mm | C: 952 kN | C0: 1660 kN | Limiting speed: 2800 r/min
31326 XJ2/DFd: 130 mm | D: 280 mm | T: 144 mm | C: 1050 kN | C0: 1560 kN | Limiting speed: 2400 r/min
32028 X/DFd: 140 mm | D: 210 mm | T: 90 mm | C: 561 kN | C0: 1160 kN | Limiting speed: 2800 r/min
30228 J2/DFC100d: 140 mm | D: 250 mm | T: 91.5 mm | C: 721 kN | C0: 1140 kN | Limiting speed: 2600 r/min
32228 J2/DFd: 140 mm | D: 250 mm | T: 143.5 mm | C: 1100 kN | C0: 2000 kN | Limiting speed: 2600 r/min
31328 XJ2/DFd: 140 mm | D: 300 mm | T: 154 mm | C: 1190 kN | C0: 1800 kN | Limiting speed: 2200 r/min
32030 X/DFd: 150 mm | D: 225 mm | T: 96 mm | C: 644 kN | C0: 1320 kN | Limiting speed: 2600 r/min
30230/DFC350d: 150 mm | D: 270 mm | T: 98 mm | C: 737 kN | C0: 1120 kN | Limiting speed: 2400 r/min
32230 J2/DFd: 150 mm | D: 270 mm | T: 154 mm | C: 1250 kN | C0: 2280 kN | Limiting speed: 2400 r/min
31330 XJ2/DFd: 150 mm | D: 320 mm | T: 164 mm | C: 1340 kN | C0: 2040 kN | Limiting speed: 2000 r/min
32032 X/DFd: 160 mm | D: 240 mm | T: 102 mm | C: 737 kN | C0: 1560 kN | Limiting speed: 2400 r/min
30232 J2/DFd: 160 mm | D: 290 mm | T: 104 mm | C: 913 kN | C0: 1460 kN | Limiting speed: 2200 r/min
32232 J2/DFd: 160 mm | D: 290 mm | T: 168 mm | C: 1510 kN | C0: 2800 kN | Limiting speed: 2200 r/min
32934/DFC225d: 170 mm | D: 230 mm | T: 76 mm | C: 484 kN | C0: 1160 kN | Limiting speed: 2800 r/min
32034 X/DFd: 170 mm | D: 260 mm | T: 114 mm | C: 880 kN | C0: 1830 kN | Limiting speed: 2200 r/min
32234 J2/DFd: 170 mm | D: 310 mm | T: 182 mm | C: 1720 kN | C0: 3250 kN | Limiting speed: 2000 r/min
32936/DFd: 180 mm | D: 250 mm | T: 90 mm | C: 605 kN | C0: 1460 kN | Limiting speed: 2600 r/min
32036 X/DFd: 180 mm | D: 280 mm | T: 128 mm | C: 1100 kN | C0: 2320 kN | Limiting speed: 2000 r/min
30236 J2/DFC300d: 180 mm | D: 320 mm | T: 114 mm | C: 1010 kN | C0: 1630 kN | Limiting speed: 2000 r/min
32236 J2/DFd: 180 mm | D: 320 mm | T: 182 mm | C: 1720 kN | C0: 3250 kN | Limiting speed: 1900 r/min
32938/DFd: 190 mm | D: 260 mm | T: 90 mm | C: 616 kN | C0: 1530 kN | Limiting speed: 2400 r/min
32038 X/DFd: 190 mm | D: 290 mm | T: 128 mm | C: 1120 kN | C0: 2400 kN | Limiting speed: 2000 r/min
30238 J2/DFC700d: 190 mm | D: 340 mm | T: 120 mm | C: 1230 kN | C0: 2000 kN | Limiting speed: 1800 r/min
32040 X/DFd: 200 mm | D: 310 mm | T: 140 mm | C: 1280 kN | C0: 2750 kN | Limiting speed: 1900 r/min
30240 J2/DFC570d: 200 mm | D: 360 mm | T: 128 mm | C: 1340 kN | C0: 2240 kN | Limiting speed: 1700 r/min
32240 J2/DFd: 200 mm | D: 360 mm | T: 208 mm | C: 2090 kN | C0: 4000 kN | Limiting speed: 1700 r/min
32944/DFC300d: 220 mm | D: 300 mm | T: 102 mm | C: 842 kN | C0: 2000 kN | Limiting speed: 2000 r/min
32044 X/DFd: 220 mm | D: 340 mm | T: 152 mm | C: 1540 kN | C0: 3350 kN | Limiting speed: 1700 r/min
32048 X/DFd: 240 mm | D: 360 mm | T: 152 mm | C: 1570 kN | C0: 3550 kN | Limiting speed: 1600 r/min
32052 X/DFd: 260 mm | D: 400 mm | T: 174 mm | C: 1980 kN | C0: 4400 kN | Limiting speed: 1400 r/min
32056 X/DFd: 280 mm | D: 420 mm | T: 174 mm | C: 2050 kN | C0: 4750 kN | Limiting speed: 1300 r/min
32960/DFd: 300 mm | D: 420 mm | T: 152 mm | C: 1790 kN | C0: 4500 kN | Limiting speed: 1400 r/min
32064 X/DFd: 320 mm | D: 480 mm | T: 200 mm | C: 2640 kN | C0: 6200 kN | Limiting speed: 1100 r/min
30308T72 J2/QDBC220d: 40 mm | D: 90 mm | T: 72 mm | C: 147 kN | C0: 190 kN | Limiting speed: 8000 r/min
30215T70 J2/DBC270d: 75 mm | D: 130 mm | T: 70 mm | C: 238 kN | C0: 355 kN | Limiting speed: 5000 r/min
32215T80 J2/QDBd: 75 mm | D: 130 mm | T: 80 mm | C: 275 kN | C0: 425 kN | Limiting speed: 5000 r/min
32216T78 J2/QDBC110d: 80 mm | D: 140 mm | T: 78 mm | C: 319 kN | C0: 490 kN | Limiting speed: 4500 r/min
32017T66 X/QDB/C280d: 85 mm | D: 130 mm | T: 66 mm | C: 238 kN | C0: 450 kN | Limiting speed: 4800 r/min
33017T70/QDBd: 85 mm | D: 130 mm | T: 70 mm | C: 308 kN | C0: 620 kN | Limiting speed: 4800 r/min
30217T71 J2/QDBd: 85 mm | D: 150 mm | T: 71 mm | C: 303 kN | C0: 440 kN | Limiting speed: 4300 r/min
31318T103 J2/DB31d: 90 mm | D: 190 mm | T: 103 mm | C: 457 kN | C0: 630 kN | Limiting speed: 3400 r/min
32220T108 J2/DBd: 100 mm | D: 180 mm | T: 108 mm | C: 539 kN | C0: 880 kN | Limiting speed: 3600 r/min
32220T140 J2/DB11d: 100 mm | D: 180 mm | T: 140 mm | C: 539 kN | C0: 880 kN | Limiting speed: 3600 r/min
32022T84 X/QDBC200d: 110 mm | D: 170 mm | T: 84 mm | C: 402 kN | C0: 780 kN | Limiting speed: 3600 r/min
32024T84 X/QDBC200d: 120 mm | D: 180 mm | T: 84 mm | C: 418 kN | C0: 830 kN | Limiting speed: 3400 r/min
32224T146 J2/DB31C210d: 120 mm | D: 215 mm | T: 146 mm | C: 792 kN | C0: 1400 kN | Limiting speed: 3000 r/min
31324T146 XJ2/DBd: 120 mm | D: 260 mm | T: 146 mm | C: 935 kN | C0: 1400 kN | Limiting speed: 2400 r/min
30226T97.5 J2/DBd: 130 mm | D: 230 mm | T: 97.5 mm | C: 627 kN | C0: 980 kN | Limiting speed: 2800 r/min
30326T142 J2/DB11C150d: 130 mm | D: 280 mm | T: 142 mm | C: 1080 kN | C0: 1600 kN | Limiting speed: 2400 r/min
32028T130 X/QDBd: 140 mm | D: 210 mm | T: 130 mm | C: 561 kN | C0: 1160 kN | Limiting speed: 2800 r/min
30228T106 J2/DBd: 140 mm | D: 250 mm | T: 106 mm | C: 721 kN | C0: 1140 kN | Limiting speed: 2600 r/min
32228T158 J2/DBd: 140 mm | D: 250 mm | T: 158 mm | C: 1100 kN | C0: 2000 kN | Limiting speed: 2600 r/min
32230T168 J2/DBd: 150 mm | D: 270 mm | T: 168 mm | C: 1250 kN | C0: 2280 kN | Limiting speed: 2400 r/min
32230T248 J2/DB31d: 150 mm | D: 270 mm | T: 248 mm | C: 1250 kN | C0: 2280 kN | Limiting speed: 2400 r/min
31330T179 XJ2/DBd: 150 mm | D: 320 mm | T: 179 mm | C: 1340 kN | C0: 2040 kN | Limiting speed: 2000 r/min
32232T179 J2/DB32C230d: 160 mm | D: 290 mm | T: 179 mm | C: 1510 kN | C0: 2800 kN | Limiting speed: 2200 r/min
32034T162 X/DB31d: 170 mm | D: 260 mm | T: 162 mm | C: 880 kN | C0: 1830 kN | Limiting speed: 2200 r/min
32936T135/DBC260d: 180 mm | D: 250 mm | T: 135 mm | C: 605 kN | C0: 1460 kN | Limiting speed: 2600 r/min
32036T150 X/DBd: 180 mm | D: 280 mm | T: 150 mm | C: 1100 kN | C0: 2320 kN | Limiting speed: 2200 r/min
32036T150 XDB11C150d: 180 mm | D: 280 mm | T: 150 mm | C: 1100 kN | C0: 2320 kN | Limiting speed: 2200 r/min
32236T196 J2/DB32d: 180 mm | D: 320 mm | T: 196 mm | C: 1720 kN | C0: 3250 kN | Limiting speed: 1900 r/min
32938T102/DB31d: 190 mm | D: 260 mm | T: 102 mm | C: 616 kN | C0: 1530 kN | Limiting speed: 2400 r/min
32938T122/DBCGd: 190 mm | D: 260 mm | T: 122 mm | C: 616 kN | C0: 1530 kN | Limiting speed: 2400 r/min
32038T146 X/DB42C220d: 190 mm | D: 290 mm | T: 146 mm | C: 1120 kN | C0: 2400 kN | Limiting speed: 2000 r/min
32038T146 X/DBC220d: 190 mm | D: 290 mm | T: 146 mm | C: 1120 kN | C0: 2400 kN | Limiting speed: 2000 r/min
32038T183 X/DB31C330d: 190 mm | D: 290 mm | T: 183 mm | C: 1120 kN | C0: 2400 kN | Limiting speed: 2000 r/min
32040T154.5 X/DB11C170d: 200 mm | D: 310 mm | T: 154.5 mm | C: 1280 kN | C0: 2750 kN | Limiting speed: 1900 r/min
32044T165 X/DB11C170d: 220 mm | D: 340 mm | T: 165 mm | C: 1540 kN | C0: 3550 kN | Limiting speed: 1700 r/min
32044T165 X/DB42C220d: 220 mm | D: 340 mm | T: 165 mm | C: 1540 kN | C0: 3550 kN | Limiting speed: 1700 r/min
32044T165 X/DBC340d: 220 mm | D: 340 mm | T: 165 mm | C: 1540 kN | C0: 3550 kN | Limiting speed: 1700 r/min
32044T168 X/DBd: 220 mm | D: 340 mm | T: 168 mm | C: 1540 kN | C0: 3550 kN | Limiting speed: 1700 r/min
32048T172 X/DBd: 240 mm | D: 360 mm | T: 172 mm | C: 1570 kN | C0: 3550 kN | Limiting speed: 1600 r/min
32248T284 J3/DBd: 240 mm | D: 440 mm | T: 284 mm | C: 3300 kN | C0: 6550 kN | Limiting speed: 1400 r/min
32052T189 X/DBC280d: 260 mm | D: 400 mm | T: 189 mm | C: 1980 kN | C0: 4400 kN | Limiting speed: 1400 r/min
32052T194 X/DBd: 260 mm | D: 400 mm | T: 194 mm | C: 1980 kN | C0: 4400 kN | Limiting speed: 1400 r/min
T7FC 055T73/QCL7CDTC10d: 55 mm | D: 115 mm | T: 73 mm | C: 216 kN | C0: 325 kN | Limiting speed: 5600 r/min
T7FC 060T80/QCL7CDTC10d: 60 mm | D: 125 mm | T: 80 mm | C: 264 kN | C0: 405 kN | Limiting speed: 5300 r/min
T7FC 070T83/QCL7CDTC10d: 70 mm | D: 140 mm | T: 83 mm | C: 303 kN | C0: 480 kN | Limiting speed: 4500 r/min
T7FC 080T98/QCL7CDTC20d: 80 mm | D: 160 mm | T: 98 mm | C: 391 kN | C0: 630 kN | Limiting speed: 4000 r/min

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
