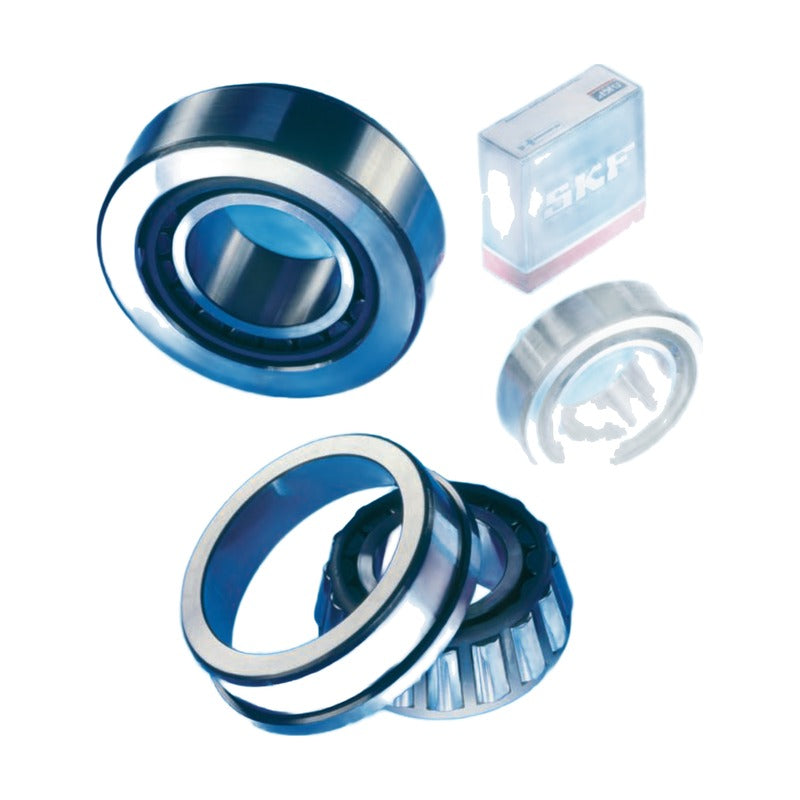

SKF Metric Single Row Tapered Roller Bearings (d 15-360 mm)

SKF Metric Single Row Tapered Roller Bearings (d 15-360 mm)

SKF metric single row tapered roller bearings in series 302, 303, 313, 320, 322, 323, 329, 330, 331, 332 and 33 plus ISO 355 (T..) and J-prefixed metric designs. Bore diameters 15-360 mm.

Key features

  • Separable: cone (inner ring with rollers and cage) and cup (outer ring) mounted separately
  • Combined radial and axial loads in one direction
  • Many sizes in SKF Explorer performance class
  • ISO 355 dimension series code listed for each bearing in the catalogue
  • Adjusted against a second bearing for the required clearance or preload

Specifications

Bearing type Single row tapered roller bearing, metric
Bore range d 15-360 mm
Outside dia. range D 40-540 mm
Width key T = total bearing width
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 618-639
30302 J2 d: 15 mm | D: 42 mm | T: 14.25 mm | C: 22.4 kN | C0: 20 kN | Limiting speed: 18000 r/min
30203 J2 d: 17 mm | D: 40 mm | T: 13.25 mm | C: 19 kN | C0: 18.6 kN | Limiting speed: 18000 r/min
30303 J2 d: 17 mm | D: 47 mm | T: 15.25 mm | C: 28.1 kN | C0: 25 kN | Limiting speed: 16000 r/min
32303 J2/Q d: 17 mm | D: 47 mm | T: 20.25 mm | C: 34.7 kN | C0: 33.5 kN | Limiting speed: 16000 r/min
32004 X/Q d: 20 mm | D: 42 mm | T: 15 mm | C: 24.2 kN | C0: 27 kN | Limiting speed: 16000 r/min
30204 J2/Q d: 20 mm | D: 47 mm | T: 15.25 mm | C: 27.5 kN | C0: 28 kN | Limiting speed: 15000 r/min
30304 J2/Q d: 20 mm | D: 52 mm | T: 16.25 mm | C: 34.1 kN | C0: 32.5 kN | Limiting speed: 14000 r/min
32304 J2/Q d: 20 mm | D: 52 mm | T: 22.25 mm | C: 44 kN | C0: 45.5 kN | Limiting speed: 14000 r/min
320/22 X d: 22 mm | D: 44 mm | T: 15 mm | C: 25.1 kN | C0: 29 kN | Limiting speed: 15000 r/min
32005 X/Q d: 25 mm | D: 47 mm | T: 15 mm | C: 27 kN | C0: 32.5 kN | Limiting speed: 14000 r/min
30205 J2/Q d: 25 mm | D: 52 mm | T: 16.25 mm | C: 30.8 kN | C0: 33.5 kN | Limiting speed: 13000 r/min
32205 BJ2/Q d: 25 mm | D: 52 mm | T: 19.25 mm | C: 35.8 kN | C0: 44 kN | Limiting speed: 13000 r/min
33205/Q d: 25 mm | D: 52 mm | T: 22 mm | C: 54 kN | C0: 56 kN | Limiting speed: 13000 r/min
30305 J2 d: 25 mm | D: 62 mm | T: 18.25 mm | C: 44.6 kN | C0: 43 kN | Limiting speed: 12000 r/min
31305 J2 d: 25 mm | D: 62 mm | T: 18.25 mm | C: 38 kN | C0: 40 kN | Limiting speed: 11000 r/min
32305 J2 d: 25 mm | D: 62 mm | T: 25.25 mm | C: 60.5 kN | C0: 63 kN | Limiting speed: 12000 r/min
320/28 X/Q d: 28 mm | D: 52 mm | T: 16 mm | C: 36.5 kN | C0: 38 kN | Limiting speed: 13000 r/min
302/28 J2 d: 28 mm | D: 58 mm | T: 17.25 mm | C: 38 kN | C0: 41.5 kN | Limiting speed: 12000 r/min
322/28 BJ2/Q d: 28 mm | D: 58 mm | T: 20.25 mm | C: 41.8 kN | C0: 50 kN | Limiting speed: 12000 r/min
32006 X/Q d: 30 mm | D: 55 mm | T: 17 mm | C: 35.8 kN | C0: 44 kN | Limiting speed: 12000 r/min
30206 J2/Q d: 30 mm | D: 62 mm | T: 17.25 mm | C: 40.2 kN | C0: 44 kN | Limiting speed: 11000 r/min
32206 J2/Q d: 30 mm | D: 62 mm | T: 21.25 mm | C: 50.1 kN | C0: 57 kN | Limiting speed: 11000 r/min
32206 BJ2/QCL7CVA606 d: 30 mm | D: 62 mm | T: 21.25 mm | C: 49.5 kN | C0: 58.5 kN | Limiting speed: 11000 r/min
33206/Q d: 30 mm | D: 62 mm | T: 25 mm | C: 64.4 kN | C0: 76.5 kN | Limiting speed: 11000 r/min
30306 J2/Q d: 30 mm | D: 72 mm | T: 20.75 mm | C: 56.1 kN | C0: 56 kN | Limiting speed: 10000 r/min
31306 J2/Q d: 30 mm | D: 72 mm | T: 20.75 mm | C: 47.3 kN | C0: 50 kN | Limiting speed: 9500 r/min
32306 J2/Q d: 30 mm | D: 72 mm | T: 28.75 mm | C: 76.5 kN | C0: 85 kN | Limiting speed: 10000 r/min
JL 26749 F/710 d: 32 mm | D: 53 mm | T: 14.5 mm | C: 27 kN | C0: 35.5 kN | Limiting speed: 12000 r/min
320/32 X/Q d: 32 mm | D: 58 mm | T: 17 mm | C: 36.9 kN | C0: 46.5 kN | Limiting speed: 11000 r/min
32007 X/Q d: 35 mm | D: 62 mm | T: 18 mm | C: 49 kN | C0: 54 kN | Limiting speed: 11000 r/min
32007 J2/Q d: 35 mm | D: 62 mm | T: 18 mm | C: 42.9 kN | C0: 49 kN | Limiting speed: 11000 r/min
30207 J2/Q d: 35 mm | D: 72 mm | T: 18.25 mm | C: 51.2 kN | C0: 56 kN | Limiting speed: 9500 r/min
32207 J2/Q d: 35 mm | D: 72 mm | T: 24.25 mm | C: 66 kN | C0: 78 kN | Limiting speed: 9500 r/min
33207/Q d: 35 mm | D: 72 mm | T: 28 mm | C: 84.2 kN | C0: 106 kN | Limiting speed: 9500 r/min
30307 J2/Q d: 35 mm | D: 80 mm | T: 22.75 mm | C: 72.1 kN | C0: 73.5 kN | Limiting speed: 9000 r/min
31307 J2/Q d: 35 mm | D: 80 mm | T: 22.75 mm | C: 61.6 kN | C0: 67 kN | Limiting speed: 8500 r/min
32307 J2/Q d: 35 mm | D: 80 mm | T: 32.75 mm | C: 95.2 kN | C0: 106 kN | Limiting speed: 9000 r/min
32307 BJ2/Q d: 35 mm | D: 80 mm | T: 32.75 mm | C: 93.5 kN | C0: 114 kN | Limiting speed: 8500 r/min
32307/37 BJ2/Q d: 37 mm | D: 80 mm | T: 32.75 mm | C: 93.5 kN | C0: 114 kN | Limiting speed: 8500 r/min
JL 69349 A/310/Q d: 38 mm | D: 63 mm | T: 17 mm | C: 36.9 kN | C0: 52 kN | Limiting speed: 11000 r/min
JL 69349 X/310/Q d: 38 mm | D: 63 mm | T: 17 mm | C: 36.9 kN | C0: 52 kN | Limiting speed: 11000 r/min
JL 69349/310/Q d: 38 mm | D: 63 mm | T: 17 mm | C: 36.9 kN | C0: 52 kN | Limiting speed: 11000 r/min
JL 69345 F/310/Q d: 38 mm | D: 63 mm | T: 17 mm | C: 36.9 kN | C0: 52 kN | Limiting speed: 11000 r/min
32008/38 X/Q d: 38 mm | D: 68 mm | T: 19 mm | C: 52.8 kN | C0: 71 kN | Limiting speed: 9500 r/min
32008 X/Q d: 40 mm | D: 68 mm | T: 19 mm | C: 52.8 kN | C0: 71 kN | Limiting speed: 9500 r/min
32008 XTN9/Q d: 40 mm | D: 68 mm | T: 19 mm | C: 52.8 kN | C0: 71 kN | Limiting speed: 9500 r/min
33108/Q d: 40 mm | D: 75 mm | T: 26 mm | C: 79.2 kN | C0: 104 kN | Limiting speed: 9000 r/min
30208 J2/Q d: 40 mm | D: 80 mm | T: 19.75 mm | C: 61.6 kN | C0: 68 kN | Limiting speed: 8500 r/min
32208 J2/Q d: 40 mm | D: 80 mm | T: 24.75 mm | C: 74.8 kN | C0: 86.5 kN | Limiting speed: 8500 r/min
33208/QCL7C d: 40 mm | D: 80 mm | T: 32 mm | C: 105 kN | C0: 132 kN | Limiting speed: 8500 r/min
T2EE 040/QVB134 d: 40 mm | D: 85 mm | T: 33 mm | C: 121 kN | C0: 150 kN | Limiting speed: 9000 r/min
30308 J2/Q d: 40 mm | D: 90 mm | T: 25.25 mm | C: 85.8 kN | C0: 95 kN | Limiting speed: 8000 r/min
31308 J2/QCL7C d: 40 mm | D: 90 mm | T: 25.25 mm | C: 85 kN | C0: 81.5 kN | Limiting speed: 7500 r/min
32308 J2/Q d: 40 mm | D: 90 mm | T: 35.25 mm | C: 117 kN | C0: 140 kN | Limiting speed: 8000 r/min
32009 X/Q d: 45 mm | D: 75 mm | T: 20 mm | C: 58.3 kN | C0: 80 kN | Limiting speed: 8500 r/min
33109/Q d: 45 mm | D: 80 mm | T: 26 mm | C: 96.5 kN | C0: 114 kN | Limiting speed: 8000 r/min
358 X/354 X/Q d: 45 mm | D: 85 mm | T: 20.638 mm | C: 70.4 kN | C0: 81.5 kN | Limiting speed: 8500 r/min
30209 J2/Q d: 45 mm | D: 85 mm | T: 20.75 mm | C: 66 kN | C0: 76.5 kN | Limiting speed: 8000 r/min
32209 J2/Q d: 45 mm | D: 85 mm | T: 24.75 mm | C: 91.5 kN | C0: 98 kN | Limiting speed: 8000 r/min
33209/Q d: 45 mm | D: 85 mm | T: 32 mm | C: 108 kN | C0: 143 kN | Limiting speed: 7500 r/min
32210/45 BJ2/QVB022 d: 45 mm | D: 90 mm | T: 24.75 mm | C: 82.5 kN | C0: 104 kN | Limiting speed: 8000 r/min
T7FC 045/HN3QCL7C d: 45 mm | D: 95 mm | T: 29 mm | C: 89.7 kN | C0: 112 kN | Limiting speed: 7000 r/min
T2ED 045 d: 45 mm | D: 95 mm | T: 36 mm | C: 147 kN | C0: 186 kN | Limiting speed: 8000 r/min
30309 J2/Q d: 45 mm | D: 100 mm | T: 27.25 mm | C: 108 kN | C0: 120 kN | Limiting speed: 7000 r/min
31309 J2/QCL7C d: 45 mm | D: 100 mm | T: 27.25 mm | C: 106 kN | C0: 102 kN | Limiting speed: 6700 r/min
32309 J2/Q d: 45 mm | D: 100 mm | T: 38.25 mm | C: 140 kN | C0: 170 kN | Limiting speed: 7000 r/min
32309 BJ2/QCL7C d: 45 mm | D: 100 mm | T: 38.25 mm | C: 134 kN | C0: 176 kN | Limiting speed: 6700 r/min
LM 503349/310/QCL7C d: 46 mm | D: 75 mm | T: 18 mm | C: 50.1 kN | C0: 71 kN | Limiting speed: 9500 r/min
32010 X/Q d: 50 mm | D: 80 mm | T: 20 mm | C: 60.5 kN | C0: 88 kN | Limiting speed: 8000 r/min
32010 X/QCL7CVB026 d: 50 mm | D: 80 mm | T: 20 mm | C: 60.5 kN | C0: 88 kN | Limiting speed: 8000 r/min
33010/Q d: 50 mm | D: 80 mm | T: 24 mm | C: 69.3 kN | C0: 102 kN | Limiting speed: 8000 r/min
JLM 104948 AA/910 AA/Q d: 50 mm | D: 82 mm | T: 21.5 mm | C: 72.1 kN | C0: 100 kN | Limiting speed: 8500 r/min
33110/Q d: 50 mm | D: 85 mm | T: 26 mm | C: 85.8 kN | C0: 122 kN | Limiting speed: 7500 r/min
30210 J2/Q d: 50 mm | D: 90 mm | T: 21.75 mm | C: 76.5 kN | C0: 91.5 kN | Limiting speed: 7500 r/min
32210 J2/Q d: 50 mm | D: 90 mm | T: 24.75 mm | C: 82.5 kN | C0: 100 kN | Limiting speed: 7500 r/min
JM 205149/110/Q d: 50 mm | D: 90 mm | T: 28 mm | C: 106 kN | C0: 140 kN | Limiting speed: 8000 r/min
JM 205149/110 A/Q d: 50 mm | D: 90 mm | T: 28 mm | C: 106 kN | C0: 140 kN | Limiting speed: 8000 r/min
33210/Q d: 50 mm | D: 90 mm | T: 32 mm | C: 114 kN | C0: 160 kN | Limiting speed: 7000 r/min
T2ED 050/Q d: 50 mm | D: 100 mm | T: 36 mm | C: 154 kN | C0: 200 kN | Limiting speed: 7500 r/min
T7FC 050/QCL7C d: 50 mm | D: 105 mm | T: 32 mm | C: 108 kN | C0: 137 kN | Limiting speed: 6300 r/min
30310 J2/Q d: 50 mm | D: 110 mm | T: 29.25 mm | C: 143 kN | C0: 140 kN | Limiting speed: 6300 r/min
31310 J2/QCL7C d: 50 mm | D: 110 mm | T: 29.25 mm | C: 122 kN | C0: 120 kN | Limiting speed: 6000 r/min
32310 J2/Q d: 50 mm | D: 110 mm | T: 42.25 mm | C: 172 kN | C0: 212 kN | Limiting speed: 6300 r/min
32310 TN9 d: 50 mm | D: 110 mm | T: 42.25 mm | C: 172 kN | C0: 212 kN | Limiting speed: 6300 r/min
32310 BJ2/QCL7C d: 50 mm | D: 110 mm | T: 42.25 mm | C: 183 kN | C0: 216 kN | Limiting speed: 6000 r/min
32011 X/Q d: 55 mm | D: 90 mm | T: 23 mm | C: 80.9 kN | C0: 116 kN | Limiting speed: 7000 r/min
33011/Q d: 55 mm | D: 90 mm | T: 27 mm | C: 104 kN | C0: 137 kN | Limiting speed: 7000 r/min
33111/Q d: 55 mm | D: 95 mm | T: 30 mm | C: 110 kN | C0: 156 kN | Limiting speed: 6700 r/min
30211 J2/Q d: 55 mm | D: 100 mm | T: 22.75 mm | C: 104 kN | C0: 106 kN | Limiting speed: 6700 r/min
32211 J2/Q d: 55 mm | D: 100 mm | T: 26.75 mm | C: 106 kN | C0: 129 kN | Limiting speed: 6700 r/min
33211/Q d: 55 mm | D: 100 mm | T: 35 mm | C: 138 kN | C0: 190 kN | Limiting speed: 6300 r/min
T2ED 055/QCLN d: 55 mm | D: 110 mm | T: 39 mm | C: 179 kN | C0: 232 kN | Limiting speed: 6700 r/min
T7FC 055/QCL7C d: 55 mm | D: 115 mm | T: 34 mm | C: 125 kN | C0: 163 kN | Limiting speed: 5600 r/min
30311 J2/Q d: 55 mm | D: 120 mm | T: 31.5 mm | C: 166 kN | C0: 163 kN | Limiting speed: 5600 r/min
31311 J2/QCL7C d: 55 mm | D: 120 mm | T: 31.5 mm | C: 121 kN | C0: 137 kN | Limiting speed: 5600 r/min
32311 J2 d: 55 mm | D: 120 mm | T: 45.5 mm | C: 198 kN | C0: 250 kN | Limiting speed: 5600 r/min
32311 BJ2/QCL7C d: 55 mm | D: 120 mm | T: 45.5 mm | C: 216 kN | C0: 260 kN | Limiting speed: 5600 r/min
32012 X/QCL7C d: 60 mm | D: 95 mm | T: 23 mm | C: 95 kN | C0: 122 kN | Limiting speed: 6700 r/min
JLM 508748/710/Q d: 60 mm | D: 95 mm | T: 24 mm | C: 84.2 kN | C0: 132 kN | Limiting speed: 7000 r/min
33012/Q d: 60 mm | D: 95 mm | T: 27 mm | C: 106 kN | C0: 143 kN | Limiting speed: 6700 r/min
33112/Q d: 60 mm | D: 100 mm | T: 30 mm | C: 117 kN | C0: 170 kN | Limiting speed: 6300 r/min
30212 J2/Q d: 60 mm | D: 110 mm | T: 23.75 mm | C: 112 kN | C0: 114 kN | Limiting speed: 6000 r/min
32212 J2/Q d: 60 mm | D: 110 mm | T: 29.75 mm | C: 125 kN | C0: 160 kN | Limiting speed: 6000 r/min
33212/Q d: 60 mm | D: 110 mm | T: 38 mm | C: 168 kN | C0: 236 kN | Limiting speed: 6000 r/min
T2EE 060/Q d: 60 mm | D: 115 mm | T: 40 mm | C: 194 kN | C0: 260 kN | Limiting speed: 6300 r/min
T7FC 060/QCL7C d: 60 mm | D: 125 mm | T: 37 mm | C: 154 kN | C0: 204 kN | Limiting speed: 5300 r/min
30312 J2/Q d: 60 mm | D: 130 mm | T: 33.5 mm | C: 168 kN | C0: 196 kN | Limiting speed: 5300 r/min
31312 J2/QCL7C d: 60 mm | D: 130 mm | T: 33.5 mm | C: 145 kN | C0: 166 kN | Limiting speed: 5300 r/min
32312 J2/Q d: 60 mm | D: 130 mm | T: 48.5 mm | C: 229 kN | C0: 290 kN | Limiting speed: 5300 r/min
32312 BJ2/QCL7C d: 60 mm | D: 130 mm | T: 48.5 mm | C: 220 kN | C0: 305 kN | Limiting speed: 5000 r/min
32013 X/Q d: 65 mm | D: 100 mm | T: 23 mm | C: 96.5 kN | C0: 127 kN | Limiting speed: 6000 r/min
33013/Q d: 65 mm | D: 100 mm | T: 27 mm | C: 110 kN | C0: 153 kN | Limiting speed: 6300 r/min
JM 511946/910/Q d: 65 mm | D: 110 mm | T: 28 mm | C: 123 kN | C0: 183 kN | Limiting speed: 6300 r/min
T2DD 065/Q d: 65 mm | D: 110 mm | T: 31 mm | C: 138 kN | C0: 193 kN | Limiting speed: 6300 r/min
33113/Q d: 65 mm | D: 110 mm | T: 34 mm | C: 142 kN | C0: 208 kN | Limiting speed: 5600 r/min
30213 J2/Q d: 65 mm | D: 120 mm | T: 24.75 mm | C: 132 kN | C0: 134 kN | Limiting speed: 5600 r/min
32213 J2/Q d: 65 mm | D: 120 mm | T: 32.75 mm | C: 151 kN | C0: 193 kN | Limiting speed: 5600 r/min
33213/Q d: 65 mm | D: 120 mm | T: 41 mm | C: 194 kN | C0: 270 kN | Limiting speed: 5300 r/min
33213 TN9/Q d: 65 mm | D: 120 mm | T: 41 mm | C: 194 kN | C0: 270 kN | Limiting speed: 5300 r/min
T7FC 065/QCL7C d: 65 mm | D: 130 mm | T: 37 mm | C: 157 kN | C0: 216 kN | Limiting speed: 5000 r/min
30313 J2/Q d: 65 mm | D: 140 mm | T: 36 mm | C: 194 kN | C0: 228 kN | Limiting speed: 4800 r/min
31313 J2/QCL7C d: 65 mm | D: 140 mm | T: 36 mm | C: 165 kN | C0: 193 kN | Limiting speed: 4800 r/min
32313 J2/Q d: 65 mm | D: 140 mm | T: 51 mm | C: 264 kN | C0: 335 kN | Limiting speed: 4800 r/min
32313 BJ2/QU4CL7CVQ267 d: 65 mm | D: 140 mm | T: 51 mm | C: 246 kN | C0: 345 kN | Limiting speed: 4800 r/min
32014 X/Q d: 70 mm | D: 110 mm | T: 25 mm | C: 101 kN | C0: 153 kN | Limiting speed: 5600 r/min
33014 d: 70 mm | D: 110 mm | T: 31 mm | C: 130 kN | C0: 196 kN | Limiting speed: 5600 r/min
33114/Q d: 70 mm | D: 120 mm | T: 37 mm | C: 172 kN | C0: 250 kN | Limiting speed: 5300 r/min
30214 J2/Q d: 70 mm | D: 125 mm | T: 26.25 mm | C: 125 kN | C0: 156 kN | Limiting speed: 5300 r/min
32214 J2/Q d: 70 mm | D: 125 mm | T: 33.25 mm | C: 157 kN | C0: 208 kN | Limiting speed: 5300 r/min
33214/Q d: 70 mm | D: 125 mm | T: 41 mm | C: 201 kN | C0: 285 kN | Limiting speed: 5000 r/min
T2ED 070/QCLNVB061 d: 70 mm | D: 130 mm | T: 43 mm | C: 233 kN | C0: 325 kN | Limiting speed: 5600 r/min
T7FC 070/QCL7C d: 70 mm | D: 140 mm | T: 39 mm | C: 176 kN | C0: 240 kN | Limiting speed: 4500 r/min
30314 J2/Q d: 70 mm | D: 150 mm | T: 38 mm | C: 220 kN | C0: 260 kN | Limiting speed: 4500 r/min
31314 J2/QCL7C d: 70 mm | D: 150 mm | T: 38 mm | C: 187 kN | C0: 220 kN | Limiting speed: 4500 r/min
32314 J2/Q d: 70 mm | D: 150 mm | T: 54 mm | C: 297 kN | C0: 380 kN | Limiting speed: 4500 r/min
32314 BJ2/QCL7C d: 70 mm | D: 150 mm | T: 54 mm | C: 281 kN | C0: 400 kN | Limiting speed: 4300 r/min
32915 TN9/QVG900 d: 75 mm | D: 105 mm | T: 20 mm | C: 70.4 kN | C0: 116 kN | Limiting speed: 6300 r/min
32015 X/Q d: 75 mm | D: 115 mm | T: 25 mm | C: 106 kN | C0: 163 kN | Limiting speed: 5300 r/min
33015/Q d: 75 mm | D: 115 mm | T: 31 mm | C: 134 kN | C0: 228 kN | Limiting speed: 5300 r/min
JM 714249/210/Q d: 75 mm | D: 120 mm | T: 31 mm | C: 138 kN | C0: 216 kN | Limiting speed: 5600 r/min
33115/Q d: 75 mm | D: 125 mm | T: 37 mm | C: 176 kN | C0: 265 kN | Limiting speed: 5000 r/min
30215 J2/Q d: 75 mm | D: 130 mm | T: 27.25 mm | C: 140 kN | C0: 176 kN | Limiting speed: 5000 r/min
32215 J2/Q d: 75 mm | D: 130 mm | T: 33.25 mm | C: 161 kN | C0: 212 kN | Limiting speed: 5000 r/min
33215/Q d: 75 mm | D: 130 mm | T: 41 mm | C: 209 kN | C0: 300 kN | Limiting speed: 4800 r/min
T3FE 075/QVB481 d: 75 mm | D: 145 mm | T: 52 mm | C: 297 kN | C0: 450 kN | Limiting speed: 4800 r/min
T7FC 075/QCL7C d: 75 mm | D: 150 mm | T: 42 mm | C: 201 kN | C0: 280 kN | Limiting speed: 4300 r/min
30315 J2/Q d: 75 mm | D: 160 mm | T: 40 mm | C: 246 kN | C0: 290 kN | Limiting speed: 4300 r/min
31315 J2/QCL7C d: 75 mm | D: 160 mm | T: 40 mm | C: 209 kN | C0: 245 kN | Limiting speed: 4300 r/min
32315 J2 d: 75 mm | D: 160 mm | T: 58 mm | C: 336 kN | C0: 440 kN | Limiting speed: 4300 r/min
32315 BJ2/QCL7C d: 75 mm | D: 160 mm | T: 58 mm | C: 336 kN | C0: 475 kN | Limiting speed: 4000 r/min
32016 X/Q d: 80 mm | D: 125 mm | T: 29 mm | C: 138 kN | C0: 216 kN | Limiting speed: 5000 r/min
33016/Q d: 80 mm | D: 125 mm | T: 36 mm | C: 168 kN | C0: 285 kN | Limiting speed: 5000 r/min
JM 515649/610/Q d: 80 mm | D: 130 mm | T: 35 mm | C: 176 kN | C0: 275 kN | Limiting speed: 5300 r/min
33116/Q d: 80 mm | D: 130 mm | T: 37 mm | C: 179 kN | C0: 280 kN | Limiting speed: 4800 r/min
33116 TN9/Q d: 80 mm | D: 130 mm | T: 37 mm | C: 179 kN | C0: 280 kN | Limiting speed: 4800 r/min
30216 J2/Q d: 80 mm | D: 140 mm | T: 28.25 mm | C: 151 kN | C0: 183 kN | Limiting speed: 4800 r/min
32216 J2/Q d: 80 mm | D: 140 mm | T: 35.25 mm | C: 187 kN | C0: 245 kN | Limiting speed: 4500 r/min
33216/Q d: 80 mm | D: 140 mm | T: 46 mm | C: 251 kN | C0: 375 kN | Limiting speed: 4500 r/min
T7FC 080/QCL7C d: 80 mm | D: 160 mm | T: 45 mm | C: 229 kN | C0: 315 kN | Limiting speed: 4000 r/min
30316 J2 d: 80 mm | D: 170 mm | T: 42.5 mm | C: 270 kN | C0: 320 kN | Limiting speed: 4300 r/min
31316 J1/QCL7C d: 80 mm | D: 170 mm | T: 42.5 mm | C: 224 kN | C0: 265 kN | Limiting speed: 4000 r/min
32316 J2 d: 80 mm | D: 170 mm | T: 61.5 mm | C: 380 kN | C0: 500 kN | Limiting speed: 4300 r/min
32017 X/Q d: 85 mm | D: 130 mm | T: 29 mm | C: 140 kN | C0: 224 kN | Limiting speed: 4800 r/min
33017/Q d: 85 mm | D: 130 mm | T: 36 mm | C: 183 kN | C0: 310 kN | Limiting speed: 4800 r/min
33117/Q d: 85 mm | D: 140 mm | T: 41 mm | C: 220 kN | C0: 340 kN | Limiting speed: 4500 r/min
30217 J2/Q d: 85 mm | D: 150 mm | T: 30.5 mm | C: 176 kN | C0: 220 kN | Limiting speed: 4300 r/min
32217 J2/Q d: 85 mm | D: 150 mm | T: 38.5 mm | C: 212 kN | C0: 285 kN | Limiting speed: 4300 r/min
33217/Q d: 85 mm | D: 150 mm | T: 49 mm | C: 286 kN | C0: 430 kN | Limiting speed: 4300 r/min
30317 J2 d: 85 mm | D: 180 mm | T: 44.5 mm | C: 303 kN | C0: 365 kN | Limiting speed: 4000 r/min
31317 J2 d: 85 mm | D: 180 mm | T: 44.5 mm | C: 242 kN | C0: 285 kN | Limiting speed: 3800 r/min
32317 J2 d: 85 mm | D: 180 mm | T: 63.5 mm | C: 402 kN | C0: 530 kN | Limiting speed: 4000 r/min
32317 BJ2 d: 85 mm | D: 180 mm | T: 63.5 mm | C: 391 kN | C0: 560 kN | Limiting speed: 4000 r/min
32018 X/Q d: 90 mm | D: 140 mm | T: 32 mm | C: 168 kN | C0: 270 kN | Limiting speed: 4300 r/min
33018/Q d: 90 mm | D: 140 mm | T: 39 mm | C: 216 kN | C0: 355 kN | Limiting speed: 4500 r/min
JM 718149 A/110/Q d: 90 mm | D: 145 mm | T: 35 mm | C: 201 kN | C0: 305 kN | Limiting speed: 4800 r/min
33118/Q d: 90 mm | D: 150 mm | T: 45 mm | C: 251 kN | C0: 390 kN | Limiting speed: 4300 r/min
33118 TN9/Q d: 90 mm | D: 150 mm | T: 45 mm | C: 251 kN | C0: 390 kN | Limiting speed: 4300 r/min
30218 J2 d: 90 mm | D: 160 mm | T: 32.5 mm | C: 194 kN | C0: 245 kN | Limiting speed: 4000 r/min
32218 J2/Q d: 90 mm | D: 160 mm | T: 42.5 mm | C: 251 kN | C0: 340 kN | Limiting speed: 4000 r/min
30318 J2 d: 90 mm | D: 190 mm | T: 46.5 mm | C: 330 kN | C0: 400 kN | Limiting speed: 4000 r/min
31318 J2 d: 90 mm | D: 190 mm | T: 46.5 mm | C: 264 kN | C0: 315 kN | Limiting speed: 3400 r/min
32318 J2 d: 90 mm | D: 190 mm | T: 67.5 mm | C: 457 kN | C0: 610 kN | Limiting speed: 4000 r/min
32019 X/Q d: 95 mm | D: 145 mm | T: 32 mm | C: 168 kN | C0: 270 kN | Limiting speed: 4300 r/min
33019/Q d: 95 mm | D: 145 mm | T: 39 mm | C: 220 kN | C0: 375 kN | Limiting speed: 4300 r/min
30219 J2 d: 95 mm | D: 170 mm | T: 34.5 mm | C: 216 kN | C0: 275 kN | Limiting speed: 3800 r/min
32219 J2 d: 95 mm | D: 170 mm | T: 45.5 mm | C: 281 kN | C0: 390 kN | Limiting speed: 3800 r/min
T7FC 095/CL7CVQ051 d: 95 mm | D: 180 mm | T: 49 mm | C: 275 kN | C0: 400 kN | Limiting speed: 3400 r/min
30319 d: 95 mm | D: 200 mm | T: 49.5 mm | C: 330 kN | C0: 390 kN | Limiting speed: 3400 r/min
31319 J2 d: 95 mm | D: 200 mm | T: 49.5 mm | C: 292 kN | C0: 355 kN | Limiting speed: 3400 r/min
32319 J2 d: 95 mm | D: 200 mm | T: 71.5 mm | C: 501 kN | C0: 670 kN | Limiting speed: 3400 r/min
32920/Q d: 100 mm | D: 140 mm | T: 25 mm | C: 119 kN | C0: 204 kN | Limiting speed: 4800 r/min
T4CB 100/Q d: 100 mm | D: 145 mm | T: 24 mm | C: 125 kN | C0: 190 kN | Limiting speed: 4500 r/min
32020 X/Q d: 100 mm | D: 150 mm | T: 32 mm | C: 172 kN | C0: 280 kN | Limiting speed: 4000 r/min
33020/Q d: 100 mm | D: 150 mm | T: 39 mm | C: 224 kN | C0: 390 kN | Limiting speed: 4000 r/min
HM 220149/110/Q d: 100 mm | D: 157 mm | T: 42 mm | C: 246 kN | C0: 400 kN | Limiting speed: 4300 r/min
JHM 720249/210/Q d: 100 mm | D: 160 mm | T: 41 mm | C: 246 kN | C0: 390 kN | Limiting speed: 4300 r/min
T2EE 100 d: 100 mm | D: 165 mm | T: 47 mm | C: 314 kN | C0: 480 kN | Limiting speed: 4300 r/min
30220 J2 d: 100 mm | D: 180 mm | T: 37 mm | C: 246 kN | C0: 320 kN | Limiting speed: 3600 r/min
32220 J2 d: 100 mm | D: 180 mm | T: 49 mm | C: 319 kN | C0: 440 kN | Limiting speed: 3600 r/min
33220 d: 100 mm | D: 180 mm | T: 63 mm | C: 429 kN | C0: 655 kN | Limiting speed: 3600 r/min
30320 J2 d: 100 mm | D: 215 mm | T: 51.5 mm | C: 402 kN | C0: 490 kN | Limiting speed: 3200 r/min
31320 XJ2/CL7CVQ051 d: 100 mm | D: 215 mm | T: 56.5 mm | C: 374 kN | C0: 465 kN | Limiting speed: 3000 r/min
32320 J2 d: 100 mm | D: 215 mm | T: 77.5 mm | C: 572 kN | C0: 780 kN | Limiting speed: 3000 r/min
32021 X/Q d: 105 mm | D: 160 mm | T: 35 mm | C: 201 kN | C0: 335 kN | Limiting speed: 3800 r/min
33021/Q d: 105 mm | D: 160 mm | T: 43 mm | C: 246 kN | C0: 430 kN | Limiting speed: 3800 r/min
30221 J2 d: 105 mm | D: 190 mm | T: 39 mm | C: 270 kN | C0: 355 kN | Limiting speed: 3400 r/min
32221 J2 d: 105 mm | D: 190 mm | T: 53 mm | C: 358 kN | C0: 510 kN | Limiting speed: 3400 r/min
32321 J2 d: 105 mm | D: 225 mm | T: 81.5 mm | C: 605 kN | C0: 815 kN | Limiting speed: 3000 r/min
32922 X/Q d: 110 mm | D: 150 mm | T: 25 mm | C: 125 kN | C0: 224 kN | Limiting speed: 4300 r/min
32022 X/Q d: 110 mm | D: 170 mm | T: 38 mm | C: 233 kN | C0: 390 kN | Limiting speed: 3600 r/min
33022 d: 110 mm | D: 170 mm | T: 47 mm | C: 281 kN | C0: 500 kN | Limiting speed: 3600 r/min
33122 d: 110 mm | D: 180 mm | T: 56 mm | C: 369 kN | C0: 630 kN | Limiting speed: 3400 r/min
30222 J2 d: 110 mm | D: 200 mm | T: 41 mm | C: 308 kN | C0: 405 kN | Limiting speed: 3200 r/min
32222 J2 d: 110 mm | D: 200 mm | T: 56 mm | C: 402 kN | C0: 570 kN | Limiting speed: 3200 r/min
30322 J2 d: 110 mm | D: 240 mm | T: 54.5 mm | C: 473 kN | C0: 585 kN | Limiting speed: 2800 r/min
31322 XJ2 d: 110 mm | D: 240 mm | T: 63 mm | C: 457 kN | C0: 585 kN | Limiting speed: 2800 r/min
32322 d: 110 mm | D: 240 mm | T: 84.5 mm | C: 627 kN | C0: 830 kN | Limiting speed: 2800 r/min
32924 d: 120 mm | D: 165 mm | T: 29 mm | C: 165 kN | C0: 305 kN | Limiting speed: 3800 r/min
T4CB 120 d: 120 mm | D: 170 mm | T: 27 mm | C: 157 kN | C0: 250 kN | Limiting speed: 3800 r/min
32024 X d: 120 mm | D: 180 mm | T: 38 mm | C: 242 kN | C0: 415 kN | Limiting speed: 3400 r/min
33024 d: 120 mm | D: 180 mm | T: 48 mm | C: 292 kN | C0: 540 kN | Limiting speed: 3400 r/min
30224 J2 d: 120 mm | D: 215 mm | T: 43.5 mm | C: 341 kN | C0: 465 kN | Limiting speed: 3000 r/min
32224 J2 d: 120 mm | D: 215 mm | T: 61.5 mm | C: 468 kN | C0: 695 kN | Limiting speed: 3000 r/min
30324 J2 d: 120 mm | D: 260 mm | T: 59.5 mm | C: 561 kN | C0: 710 kN | Limiting speed: 2600 r/min
31324 XJ2 d: 120 mm | D: 260 mm | T: 68 mm | C: 539 kN | C0: 695 kN | Limiting speed: 2400 r/min
32324 J2 d: 120 mm | D: 260 mm | T: 90.5 mm | C: 792 kN | C0: 1120 kN | Limiting speed: 2600 r/min
32926 d: 130 mm | D: 180 mm | T: 32 mm | C: 198 kN | C0: 365 kN | Limiting speed: 3600 r/min
32026 X d: 130 mm | D: 200 mm | T: 45 mm | C: 314 kN | C0: 540 kN | Limiting speed: 3000 r/min
30226 J2 d: 130 mm | D: 230 mm | T: 43.75 mm | C: 369 kN | C0: 490 kN | Limiting speed: 2800 r/min
32226 J2 d: 130 mm | D: 230 mm | T: 67.75 mm | C: 550 kN | C0: 830 kN | Limiting speed: 2800 r/min
30326 J2 d: 130 mm | D: 280 mm | T: 63.75 mm | C: 627 kN | C0: 800 kN | Limiting speed: 2400 r/min
31326 XJ2 d: 130 mm | D: 280 mm | T: 72 mm | C: 605 kN | C0: 780 kN | Limiting speed: 2400 r/min
32928 d: 140 mm | D: 190 mm | T: 32 mm | C: 205 kN | C0: 390 kN | Limiting speed: 3400 r/min
T4CB 140 d: 140 mm | D: 195 mm | T: 29 mm | C: 194 kN | C0: 325 kN | Limiting speed: 3200 r/min
32028 X d: 140 mm | D: 210 mm | T: 45 mm | C: 330 kN | C0: 585 kN | Limiting speed: 2800 r/min
30228 J2 d: 140 mm | D: 250 mm | T: 45.75 mm | C: 418 kN | C0: 570 kN | Limiting speed: 2600 r/min
32228 J2 d: 140 mm | D: 250 mm | T: 71.75 mm | C: 644 kN | C0: 1000 kN | Limiting speed: 2600 r/min
31328 XJ2 d: 140 mm | D: 300 mm | T: 77 mm | C: 693 kN | C0: 900 kN | Limiting speed: 2200 r/min
T4DB 150 d: 150 mm | D: 210 mm | T: 32 mm | C: 233 kN | C0: 390 kN | Limiting speed: 3000 r/min
32030 X d: 150 mm | D: 225 mm | T: 48 mm | C: 369 kN | C0: 655 kN | Limiting speed: 2600 r/min
33030 d: 150 mm | D: 225 mm | T: 59 mm | C: 457 kN | C0: 865 kN | Limiting speed: 2600 r/min
30230 d: 150 mm | D: 270 mm | T: 49 mm | C: 429 kN | C0: 560 kN | Limiting speed: 2400 r/min
32230 J2 d: 150 mm | D: 270 mm | T: 77 mm | C: 737 kN | C0: 1140 kN | Limiting speed: 2400 r/min
31330 XJ2 d: 150 mm | D: 320 mm | T: 82 mm | C: 781 kN | C0: 1020 kN | Limiting speed: 2000 r/min
T4DB 160 d: 160 mm | D: 220 mm | T: 32 mm | C: 242 kN | C0: 415 kN | Limiting speed: 2800 r/min
32032 X d: 160 mm | D: 240 mm | T: 51 mm | C: 429 kN | C0: 780 kN | Limiting speed: 2400 r/min
T4EE 160/VB406 d: 160 mm | D: 245 mm | T: 61 mm | C: 528 kN | C0: 980 kN | Limiting speed: 2600 r/min
30232 J2 d: 160 mm | D: 290 mm | T: 52 mm | C: 528 kN | C0: 735 kN | Limiting speed: 2200 r/min
32232 J2 d: 160 mm | D: 290 mm | T: 84 mm | C: 880 kN | C0: 1400 kN | Limiting speed: 2200 r/min
30332 J2 d: 160 mm | D: 340 mm | T: 75 mm | C: 913 kN | C0: 1180 kN | Limiting speed: 2000 r/min
T4DB 170 d: 170 mm | D: 230 mm | T: 32 mm | C: 251 kN | C0: 440 kN | Limiting speed: 2800 r/min
32934 d: 170 mm | D: 230 mm | T: 38 mm | C: 286 kN | C0: 585 kN | Limiting speed: 2800 r/min
32034 X d: 170 mm | D: 260 mm | T: 57 mm | C: 512 kN | C0: 915 kN | Limiting speed: 2200 r/min
30234 J2 d: 170 mm | D: 310 mm | T: 57 mm | C: 616 kN | C0: 865 kN | Limiting speed: 2000 r/min
32234 J2 d: 170 mm | D: 310 mm | T: 91 mm | C: 1010 kN | C0: 1630 kN | Limiting speed: 2000 r/min
T4DB 180 d: 180 mm | D: 240 mm | T: 32 mm | C: 251 kN | C0: 450 kN | Limiting speed: 2600 r/min
32936 d: 180 mm | D: 250 mm | T: 45 mm | C: 352 kN | C0: 735 kN | Limiting speed: 2600 r/min
32036 X d: 180 mm | D: 280 mm | T: 64 mm | C: 644 kN | C0: 1160 kN | Limiting speed: 2200 r/min
30236 J2 d: 180 mm | D: 320 mm | T: 57 mm | C: 583 kN | C0: 815 kN | Limiting speed: 2000 r/min
32236 J2 d: 180 mm | D: 320 mm | T: 91 mm | C: 1010 kN | C0: 1630 kN | Limiting speed: 1900 r/min
32938 d: 190 mm | D: 260 mm | T: 45 mm | C: 358 kN | C0: 765 kN | Limiting speed: 2400 r/min
JM 738249/210 d: 190 mm | D: 260 mm | T: 46 mm | C: 380 kN | C0: 800 kN | Limiting speed: 2400 r/min
32038 X d: 190 mm | D: 290 mm | T: 64 mm | C: 660 kN | C0: 1200 kN | Limiting speed: 2000 r/min
30238 J2 d: 190 mm | D: 340 mm | T: 60 mm | C: 721 kN | C0: 1000 kN | Limiting speed: 1800 r/min
T4DB 200 d: 200 mm | D: 270 mm | T: 37 mm | C: 330 kN | C0: 600 kN | Limiting speed: 2400 r/min
32940 d: 200 mm | D: 280 mm | T: 51 mm | C: 473 kN | C0: 950 kN | Limiting speed: 2200 r/min
32040 X d: 200 mm | D: 310 mm | T: 70 mm | C: 748 kN | C0: 1370 kN | Limiting speed: 1900 r/min
30240 J2 d: 200 mm | D: 360 mm | T: 64 mm | C: 792 kN | C0: 1120 kN | Limiting speed: 1700 r/min
32240 J2 d: 200 mm | D: 360 mm | T: 104 mm | C: 1210 kN | C0: 2000 kN | Limiting speed: 1700 r/min
T2DC 220 d: 220 mm | D: 285 mm | T: 41 mm | C: 396 kN | C0: 830 kN | Limiting speed: 2200 r/min
32944 d: 220 mm | D: 300 mm | T: 51 mm | C: 484 kN | C0: 1000 kN | Limiting speed: 2000 r/min
32044 X d: 220 mm | D: 340 mm | T: 76 mm | C: 897 kN | C0: 1660 kN | Limiting speed: 1700 r/min
30244 J2 d: 220 mm | D: 400 mm | T: 72 mm | C: 990 kN | C0: 1400 kN | Limiting speed: 1600 r/min
32244 J2 d: 220 mm | D: 400 mm | T: 114 mm | C: 1610 kN | C0: 2700 kN | Limiting speed: 1500 r/min
T4EB 240/VE174 d: 240 mm | D: 320 mm | T: 42 mm | C: 429 kN | C0: 815 kN | Limiting speed: 1900 r/min
32948 d: 240 mm | D: 320 mm | T: 51 mm | C: 512 kN | C0: 1080 kN | Limiting speed: 1900 r/min
T2EE 240/VB406 d: 240 mm | D: 320 mm | T: 57 mm | C: 616 kN | C0: 1320 kN | Limiting speed: 1900 r/min
32048 X d: 240 mm | D: 360 mm | T: 76 mm | C: 935 kN | C0: 1800 kN | Limiting speed: 1600 r/min
32248 J3 d: 240 mm | D: 440 mm | T: 127 mm | C: 1790 kN | C0: 3350 kN | Limiting speed: 1400 r/min
32052 X d: 260 mm | D: 400 mm | T: 87 mm | C: 1170 kN | C0: 2200 kN | Limiting speed: 1400 r/min
32252 J2/HA1 d: 260 mm | D: 480 mm | T: 137 mm | C: 2200 kN | C0: 3650 kN | Limiting speed: 1200 r/min
30352 J2 d: 260 mm | D: 540 mm | T: 113 mm | C: 2120 kN | C0: 3050 kN | Limiting speed: 1200 r/min
32956/C02 d: 280 mm | D: 380 mm | T: 63.5 mm | C: 765 kN | C0: 1660 kN | Limiting speed: 1600 r/min
32056 X d: 280 mm | D: 420 mm | T: 87 mm | C: 1210 kN | C0: 2360 kN | Limiting speed: 1300 r/min
32960 d: 300 mm | D: 420 mm | T: 76 mm | C: 1050 kN | C0: 2240 kN | Limiting speed: 1400 r/min
32060 X d: 300 mm | D: 460 mm | T: 100 mm | C: 1540 kN | C0: 3000 kN | Limiting speed: 1200 r/min
32260 J2/HA1 d: 300 mm | D: 540 mm | T: 149 mm | C: 2750 kN | C0: 4750 kN | Limiting speed: 1100 r/min
32964 d: 320 mm | D: 440 mm | T: 76 mm | C: 1080 kN | C0: 2360 kN | Limiting speed: 1300 r/min
32064 X d: 320 mm | D: 480 mm | T: 100 mm | C: 1540 kN | C0: 3100 kN | Limiting speed: 1100 r/min
32968 d: 340 mm | D: 460 mm | T: 76 mm | C: 1080 kN | C0: 2400 kN | Limiting speed: 1300 r/min
32972 d: 360 mm | D: 480 mm | T: 76 mm | C: 1120 kN | C0: 2550 kN | Limiting speed: 1200 r/min
Tapered Roller BearingsSKF
291 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF Metric Single Row Tapered Roller Bearings (d 15-360 mm)

Brand SKF·Tapered Roller Bearings

Available part numbers (291)

30302 J2, 30203 J2, 30303 J2, 32303 J2/Q, 32004 X/Q, 30204 J2/Q, 30304 J2/Q, 32304 J2/Q, 320/22 X, 32005 X/Q + 281 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
30302 J2d: 15 mm | D: 42 mm | T: 14.25 mm | C: 22.4 kN | C0: 20 kN | Limiting speed: 18000 r/min
30203 J2d: 17 mm | D: 40 mm | T: 13.25 mm | C: 19 kN | C0: 18.6 kN | Limiting speed: 18000 r/min
30303 J2d: 17 mm | D: 47 mm | T: 15.25 mm | C: 28.1 kN | C0: 25 kN | Limiting speed: 16000 r/min
32303 J2/Qd: 17 mm | D: 47 mm | T: 20.25 mm | C: 34.7 kN | C0: 33.5 kN | Limiting speed: 16000 r/min
32004 X/Qd: 20 mm | D: 42 mm | T: 15 mm | C: 24.2 kN | C0: 27 kN | Limiting speed: 16000 r/min
30204 J2/Qd: 20 mm | D: 47 mm | T: 15.25 mm | C: 27.5 kN | C0: 28 kN | Limiting speed: 15000 r/min
30304 J2/Qd: 20 mm | D: 52 mm | T: 16.25 mm | C: 34.1 kN | C0: 32.5 kN | Limiting speed: 14000 r/min
32304 J2/Qd: 20 mm | D: 52 mm | T: 22.25 mm | C: 44 kN | C0: 45.5 kN | Limiting speed: 14000 r/min
320/22 Xd: 22 mm | D: 44 mm | T: 15 mm | C: 25.1 kN | C0: 29 kN | Limiting speed: 15000 r/min
32005 X/Qd: 25 mm | D: 47 mm | T: 15 mm | C: 27 kN | C0: 32.5 kN | Limiting speed: 14000 r/min
30205 J2/Qd: 25 mm | D: 52 mm | T: 16.25 mm | C: 30.8 kN | C0: 33.5 kN | Limiting speed: 13000 r/min
32205 BJ2/Qd: 25 mm | D: 52 mm | T: 19.25 mm | C: 35.8 kN | C0: 44 kN | Limiting speed: 13000 r/min
33205/Qd: 25 mm | D: 52 mm | T: 22 mm | C: 54 kN | C0: 56 kN | Limiting speed: 13000 r/min
30305 J2d: 25 mm | D: 62 mm | T: 18.25 mm | C: 44.6 kN | C0: 43 kN | Limiting speed: 12000 r/min
31305 J2d: 25 mm | D: 62 mm | T: 18.25 mm | C: 38 kN | C0: 40 kN | Limiting speed: 11000 r/min
32305 J2d: 25 mm | D: 62 mm | T: 25.25 mm | C: 60.5 kN | C0: 63 kN | Limiting speed: 12000 r/min
320/28 X/Qd: 28 mm | D: 52 mm | T: 16 mm | C: 36.5 kN | C0: 38 kN | Limiting speed: 13000 r/min
302/28 J2d: 28 mm | D: 58 mm | T: 17.25 mm | C: 38 kN | C0: 41.5 kN | Limiting speed: 12000 r/min
322/28 BJ2/Qd: 28 mm | D: 58 mm | T: 20.25 mm | C: 41.8 kN | C0: 50 kN | Limiting speed: 12000 r/min
32006 X/Qd: 30 mm | D: 55 mm | T: 17 mm | C: 35.8 kN | C0: 44 kN | Limiting speed: 12000 r/min
30206 J2/Qd: 30 mm | D: 62 mm | T: 17.25 mm | C: 40.2 kN | C0: 44 kN | Limiting speed: 11000 r/min
32206 J2/Qd: 30 mm | D: 62 mm | T: 21.25 mm | C: 50.1 kN | C0: 57 kN | Limiting speed: 11000 r/min
32206 BJ2/QCL7CVA606d: 30 mm | D: 62 mm | T: 21.25 mm | C: 49.5 kN | C0: 58.5 kN | Limiting speed: 11000 r/min
33206/Qd: 30 mm | D: 62 mm | T: 25 mm | C: 64.4 kN | C0: 76.5 kN | Limiting speed: 11000 r/min
30306 J2/Qd: 30 mm | D: 72 mm | T: 20.75 mm | C: 56.1 kN | C0: 56 kN | Limiting speed: 10000 r/min
31306 J2/Qd: 30 mm | D: 72 mm | T: 20.75 mm | C: 47.3 kN | C0: 50 kN | Limiting speed: 9500 r/min
32306 J2/Qd: 30 mm | D: 72 mm | T: 28.75 mm | C: 76.5 kN | C0: 85 kN | Limiting speed: 10000 r/min
JL 26749 F/710d: 32 mm | D: 53 mm | T: 14.5 mm | C: 27 kN | C0: 35.5 kN | Limiting speed: 12000 r/min
320/32 X/Qd: 32 mm | D: 58 mm | T: 17 mm | C: 36.9 kN | C0: 46.5 kN | Limiting speed: 11000 r/min
32007 X/Qd: 35 mm | D: 62 mm | T: 18 mm | C: 49 kN | C0: 54 kN | Limiting speed: 11000 r/min
32007 J2/Qd: 35 mm | D: 62 mm | T: 18 mm | C: 42.9 kN | C0: 49 kN | Limiting speed: 11000 r/min
30207 J2/Qd: 35 mm | D: 72 mm | T: 18.25 mm | C: 51.2 kN | C0: 56 kN | Limiting speed: 9500 r/min
32207 J2/Qd: 35 mm | D: 72 mm | T: 24.25 mm | C: 66 kN | C0: 78 kN | Limiting speed: 9500 r/min
33207/Qd: 35 mm | D: 72 mm | T: 28 mm | C: 84.2 kN | C0: 106 kN | Limiting speed: 9500 r/min
30307 J2/Qd: 35 mm | D: 80 mm | T: 22.75 mm | C: 72.1 kN | C0: 73.5 kN | Limiting speed: 9000 r/min
31307 J2/Qd: 35 mm | D: 80 mm | T: 22.75 mm | C: 61.6 kN | C0: 67 kN | Limiting speed: 8500 r/min
32307 J2/Qd: 35 mm | D: 80 mm | T: 32.75 mm | C: 95.2 kN | C0: 106 kN | Limiting speed: 9000 r/min
32307 BJ2/Qd: 35 mm | D: 80 mm | T: 32.75 mm | C: 93.5 kN | C0: 114 kN | Limiting speed: 8500 r/min
32307/37 BJ2/Qd: 37 mm | D: 80 mm | T: 32.75 mm | C: 93.5 kN | C0: 114 kN | Limiting speed: 8500 r/min
JL 69349 A/310/Qd: 38 mm | D: 63 mm | T: 17 mm | C: 36.9 kN | C0: 52 kN | Limiting speed: 11000 r/min
JL 69349 X/310/Qd: 38 mm | D: 63 mm | T: 17 mm | C: 36.9 kN | C0: 52 kN | Limiting speed: 11000 r/min
JL 69349/310/Qd: 38 mm | D: 63 mm | T: 17 mm | C: 36.9 kN | C0: 52 kN | Limiting speed: 11000 r/min
JL 69345 F/310/Qd: 38 mm | D: 63 mm | T: 17 mm | C: 36.9 kN | C0: 52 kN | Limiting speed: 11000 r/min
32008/38 X/Qd: 38 mm | D: 68 mm | T: 19 mm | C: 52.8 kN | C0: 71 kN | Limiting speed: 9500 r/min
32008 X/Qd: 40 mm | D: 68 mm | T: 19 mm | C: 52.8 kN | C0: 71 kN | Limiting speed: 9500 r/min
32008 XTN9/Qd: 40 mm | D: 68 mm | T: 19 mm | C: 52.8 kN | C0: 71 kN | Limiting speed: 9500 r/min
33108/Qd: 40 mm | D: 75 mm | T: 26 mm | C: 79.2 kN | C0: 104 kN | Limiting speed: 9000 r/min
30208 J2/Qd: 40 mm | D: 80 mm | T: 19.75 mm | C: 61.6 kN | C0: 68 kN | Limiting speed: 8500 r/min
32208 J2/Qd: 40 mm | D: 80 mm | T: 24.75 mm | C: 74.8 kN | C0: 86.5 kN | Limiting speed: 8500 r/min
33208/QCL7Cd: 40 mm | D: 80 mm | T: 32 mm | C: 105 kN | C0: 132 kN | Limiting speed: 8500 r/min
T2EE 040/QVB134d: 40 mm | D: 85 mm | T: 33 mm | C: 121 kN | C0: 150 kN | Limiting speed: 9000 r/min
30308 J2/Qd: 40 mm | D: 90 mm | T: 25.25 mm | C: 85.8 kN | C0: 95 kN | Limiting speed: 8000 r/min
31308 J2/QCL7Cd: 40 mm | D: 90 mm | T: 25.25 mm | C: 85 kN | C0: 81.5 kN | Limiting speed: 7500 r/min
32308 J2/Qd: 40 mm | D: 90 mm | T: 35.25 mm | C: 117 kN | C0: 140 kN | Limiting speed: 8000 r/min
32009 X/Qd: 45 mm | D: 75 mm | T: 20 mm | C: 58.3 kN | C0: 80 kN | Limiting speed: 8500 r/min
33109/Qd: 45 mm | D: 80 mm | T: 26 mm | C: 96.5 kN | C0: 114 kN | Limiting speed: 8000 r/min
358 X/354 X/Qd: 45 mm | D: 85 mm | T: 20.638 mm | C: 70.4 kN | C0: 81.5 kN | Limiting speed: 8500 r/min
30209 J2/Qd: 45 mm | D: 85 mm | T: 20.75 mm | C: 66 kN | C0: 76.5 kN | Limiting speed: 8000 r/min
32209 J2/Qd: 45 mm | D: 85 mm | T: 24.75 mm | C: 91.5 kN | C0: 98 kN | Limiting speed: 8000 r/min
33209/Qd: 45 mm | D: 85 mm | T: 32 mm | C: 108 kN | C0: 143 kN | Limiting speed: 7500 r/min
32210/45 BJ2/QVB022d: 45 mm | D: 90 mm | T: 24.75 mm | C: 82.5 kN | C0: 104 kN | Limiting speed: 8000 r/min
T7FC 045/HN3QCL7Cd: 45 mm | D: 95 mm | T: 29 mm | C: 89.7 kN | C0: 112 kN | Limiting speed: 7000 r/min
T2ED 045d: 45 mm | D: 95 mm | T: 36 mm | C: 147 kN | C0: 186 kN | Limiting speed: 8000 r/min
30309 J2/Qd: 45 mm | D: 100 mm | T: 27.25 mm | C: 108 kN | C0: 120 kN | Limiting speed: 7000 r/min
31309 J2/QCL7Cd: 45 mm | D: 100 mm | T: 27.25 mm | C: 106 kN | C0: 102 kN | Limiting speed: 6700 r/min
32309 J2/Qd: 45 mm | D: 100 mm | T: 38.25 mm | C: 140 kN | C0: 170 kN | Limiting speed: 7000 r/min
32309 BJ2/QCL7Cd: 45 mm | D: 100 mm | T: 38.25 mm | C: 134 kN | C0: 176 kN | Limiting speed: 6700 r/min
LM 503349/310/QCL7Cd: 46 mm | D: 75 mm | T: 18 mm | C: 50.1 kN | C0: 71 kN | Limiting speed: 9500 r/min
32010 X/Qd: 50 mm | D: 80 mm | T: 20 mm | C: 60.5 kN | C0: 88 kN | Limiting speed: 8000 r/min
32010 X/QCL7CVB026d: 50 mm | D: 80 mm | T: 20 mm | C: 60.5 kN | C0: 88 kN | Limiting speed: 8000 r/min
33010/Qd: 50 mm | D: 80 mm | T: 24 mm | C: 69.3 kN | C0: 102 kN | Limiting speed: 8000 r/min
JLM 104948 AA/910 AA/Qd: 50 mm | D: 82 mm | T: 21.5 mm | C: 72.1 kN | C0: 100 kN | Limiting speed: 8500 r/min
33110/Qd: 50 mm | D: 85 mm | T: 26 mm | C: 85.8 kN | C0: 122 kN | Limiting speed: 7500 r/min
30210 J2/Qd: 50 mm | D: 90 mm | T: 21.75 mm | C: 76.5 kN | C0: 91.5 kN | Limiting speed: 7500 r/min
32210 J2/Qd: 50 mm | D: 90 mm | T: 24.75 mm | C: 82.5 kN | C0: 100 kN | Limiting speed: 7500 r/min
JM 205149/110/Qd: 50 mm | D: 90 mm | T: 28 mm | C: 106 kN | C0: 140 kN | Limiting speed: 8000 r/min
JM 205149/110 A/Qd: 50 mm | D: 90 mm | T: 28 mm | C: 106 kN | C0: 140 kN | Limiting speed: 8000 r/min
33210/Qd: 50 mm | D: 90 mm | T: 32 mm | C: 114 kN | C0: 160 kN | Limiting speed: 7000 r/min
T2ED 050/Qd: 50 mm | D: 100 mm | T: 36 mm | C: 154 kN | C0: 200 kN | Limiting speed: 7500 r/min
T7FC 050/QCL7Cd: 50 mm | D: 105 mm | T: 32 mm | C: 108 kN | C0: 137 kN | Limiting speed: 6300 r/min
30310 J2/Qd: 50 mm | D: 110 mm | T: 29.25 mm | C: 143 kN | C0: 140 kN | Limiting speed: 6300 r/min
31310 J2/QCL7Cd: 50 mm | D: 110 mm | T: 29.25 mm | C: 122 kN | C0: 120 kN | Limiting speed: 6000 r/min
32310 J2/Qd: 50 mm | D: 110 mm | T: 42.25 mm | C: 172 kN | C0: 212 kN | Limiting speed: 6300 r/min
32310 TN9d: 50 mm | D: 110 mm | T: 42.25 mm | C: 172 kN | C0: 212 kN | Limiting speed: 6300 r/min
32310 BJ2/QCL7Cd: 50 mm | D: 110 mm | T: 42.25 mm | C: 183 kN | C0: 216 kN | Limiting speed: 6000 r/min
32011 X/Qd: 55 mm | D: 90 mm | T: 23 mm | C: 80.9 kN | C0: 116 kN | Limiting speed: 7000 r/min
33011/Qd: 55 mm | D: 90 mm | T: 27 mm | C: 104 kN | C0: 137 kN | Limiting speed: 7000 r/min
33111/Qd: 55 mm | D: 95 mm | T: 30 mm | C: 110 kN | C0: 156 kN | Limiting speed: 6700 r/min
30211 J2/Qd: 55 mm | D: 100 mm | T: 22.75 mm | C: 104 kN | C0: 106 kN | Limiting speed: 6700 r/min
32211 J2/Qd: 55 mm | D: 100 mm | T: 26.75 mm | C: 106 kN | C0: 129 kN | Limiting speed: 6700 r/min
33211/Qd: 55 mm | D: 100 mm | T: 35 mm | C: 138 kN | C0: 190 kN | Limiting speed: 6300 r/min
T2ED 055/QCLNd: 55 mm | D: 110 mm | T: 39 mm | C: 179 kN | C0: 232 kN | Limiting speed: 6700 r/min
T7FC 055/QCL7Cd: 55 mm | D: 115 mm | T: 34 mm | C: 125 kN | C0: 163 kN | Limiting speed: 5600 r/min
30311 J2/Qd: 55 mm | D: 120 mm | T: 31.5 mm | C: 166 kN | C0: 163 kN | Limiting speed: 5600 r/min
31311 J2/QCL7Cd: 55 mm | D: 120 mm | T: 31.5 mm | C: 121 kN | C0: 137 kN | Limiting speed: 5600 r/min
32311 J2d: 55 mm | D: 120 mm | T: 45.5 mm | C: 198 kN | C0: 250 kN | Limiting speed: 5600 r/min
32311 BJ2/QCL7Cd: 55 mm | D: 120 mm | T: 45.5 mm | C: 216 kN | C0: 260 kN | Limiting speed: 5600 r/min
32012 X/QCL7Cd: 60 mm | D: 95 mm | T: 23 mm | C: 95 kN | C0: 122 kN | Limiting speed: 6700 r/min
JLM 508748/710/Qd: 60 mm | D: 95 mm | T: 24 mm | C: 84.2 kN | C0: 132 kN | Limiting speed: 7000 r/min
33012/Qd: 60 mm | D: 95 mm | T: 27 mm | C: 106 kN | C0: 143 kN | Limiting speed: 6700 r/min
33112/Qd: 60 mm | D: 100 mm | T: 30 mm | C: 117 kN | C0: 170 kN | Limiting speed: 6300 r/min
30212 J2/Qd: 60 mm | D: 110 mm | T: 23.75 mm | C: 112 kN | C0: 114 kN | Limiting speed: 6000 r/min
32212 J2/Qd: 60 mm | D: 110 mm | T: 29.75 mm | C: 125 kN | C0: 160 kN | Limiting speed: 6000 r/min
33212/Qd: 60 mm | D: 110 mm | T: 38 mm | C: 168 kN | C0: 236 kN | Limiting speed: 6000 r/min
T2EE 060/Qd: 60 mm | D: 115 mm | T: 40 mm | C: 194 kN | C0: 260 kN | Limiting speed: 6300 r/min
T7FC 060/QCL7Cd: 60 mm | D: 125 mm | T: 37 mm | C: 154 kN | C0: 204 kN | Limiting speed: 5300 r/min
30312 J2/Qd: 60 mm | D: 130 mm | T: 33.5 mm | C: 168 kN | C0: 196 kN | Limiting speed: 5300 r/min
31312 J2/QCL7Cd: 60 mm | D: 130 mm | T: 33.5 mm | C: 145 kN | C0: 166 kN | Limiting speed: 5300 r/min
32312 J2/Qd: 60 mm | D: 130 mm | T: 48.5 mm | C: 229 kN | C0: 290 kN | Limiting speed: 5300 r/min
32312 BJ2/QCL7Cd: 60 mm | D: 130 mm | T: 48.5 mm | C: 220 kN | C0: 305 kN | Limiting speed: 5000 r/min
32013 X/Qd: 65 mm | D: 100 mm | T: 23 mm | C: 96.5 kN | C0: 127 kN | Limiting speed: 6000 r/min
33013/Qd: 65 mm | D: 100 mm | T: 27 mm | C: 110 kN | C0: 153 kN | Limiting speed: 6300 r/min
JM 511946/910/Qd: 65 mm | D: 110 mm | T: 28 mm | C: 123 kN | C0: 183 kN | Limiting speed: 6300 r/min
T2DD 065/Qd: 65 mm | D: 110 mm | T: 31 mm | C: 138 kN | C0: 193 kN | Limiting speed: 6300 r/min
33113/Qd: 65 mm | D: 110 mm | T: 34 mm | C: 142 kN | C0: 208 kN | Limiting speed: 5600 r/min
30213 J2/Qd: 65 mm | D: 120 mm | T: 24.75 mm | C: 132 kN | C0: 134 kN | Limiting speed: 5600 r/min
32213 J2/Qd: 65 mm | D: 120 mm | T: 32.75 mm | C: 151 kN | C0: 193 kN | Limiting speed: 5600 r/min
33213/Qd: 65 mm | D: 120 mm | T: 41 mm | C: 194 kN | C0: 270 kN | Limiting speed: 5300 r/min
33213 TN9/Qd: 65 mm | D: 120 mm | T: 41 mm | C: 194 kN | C0: 270 kN | Limiting speed: 5300 r/min
T7FC 065/QCL7Cd: 65 mm | D: 130 mm | T: 37 mm | C: 157 kN | C0: 216 kN | Limiting speed: 5000 r/min
30313 J2/Qd: 65 mm | D: 140 mm | T: 36 mm | C: 194 kN | C0: 228 kN | Limiting speed: 4800 r/min
31313 J2/QCL7Cd: 65 mm | D: 140 mm | T: 36 mm | C: 165 kN | C0: 193 kN | Limiting speed: 4800 r/min
32313 J2/Qd: 65 mm | D: 140 mm | T: 51 mm | C: 264 kN | C0: 335 kN | Limiting speed: 4800 r/min
32313 BJ2/QU4CL7CVQ267d: 65 mm | D: 140 mm | T: 51 mm | C: 246 kN | C0: 345 kN | Limiting speed: 4800 r/min
32014 X/Qd: 70 mm | D: 110 mm | T: 25 mm | C: 101 kN | C0: 153 kN | Limiting speed: 5600 r/min
33014d: 70 mm | D: 110 mm | T: 31 mm | C: 130 kN | C0: 196 kN | Limiting speed: 5600 r/min
33114/Qd: 70 mm | D: 120 mm | T: 37 mm | C: 172 kN | C0: 250 kN | Limiting speed: 5300 r/min
30214 J2/Qd: 70 mm | D: 125 mm | T: 26.25 mm | C: 125 kN | C0: 156 kN | Limiting speed: 5300 r/min
32214 J2/Qd: 70 mm | D: 125 mm | T: 33.25 mm | C: 157 kN | C0: 208 kN | Limiting speed: 5300 r/min
33214/Qd: 70 mm | D: 125 mm | T: 41 mm | C: 201 kN | C0: 285 kN | Limiting speed: 5000 r/min
T2ED 070/QCLNVB061d: 70 mm | D: 130 mm | T: 43 mm | C: 233 kN | C0: 325 kN | Limiting speed: 5600 r/min
T7FC 070/QCL7Cd: 70 mm | D: 140 mm | T: 39 mm | C: 176 kN | C0: 240 kN | Limiting speed: 4500 r/min
30314 J2/Qd: 70 mm | D: 150 mm | T: 38 mm | C: 220 kN | C0: 260 kN | Limiting speed: 4500 r/min
31314 J2/QCL7Cd: 70 mm | D: 150 mm | T: 38 mm | C: 187 kN | C0: 220 kN | Limiting speed: 4500 r/min
32314 J2/Qd: 70 mm | D: 150 mm | T: 54 mm | C: 297 kN | C0: 380 kN | Limiting speed: 4500 r/min
32314 BJ2/QCL7Cd: 70 mm | D: 150 mm | T: 54 mm | C: 281 kN | C0: 400 kN | Limiting speed: 4300 r/min
32915 TN9/QVG900d: 75 mm | D: 105 mm | T: 20 mm | C: 70.4 kN | C0: 116 kN | Limiting speed: 6300 r/min
32015 X/Qd: 75 mm | D: 115 mm | T: 25 mm | C: 106 kN | C0: 163 kN | Limiting speed: 5300 r/min
33015/Qd: 75 mm | D: 115 mm | T: 31 mm | C: 134 kN | C0: 228 kN | Limiting speed: 5300 r/min
JM 714249/210/Qd: 75 mm | D: 120 mm | T: 31 mm | C: 138 kN | C0: 216 kN | Limiting speed: 5600 r/min
33115/Qd: 75 mm | D: 125 mm | T: 37 mm | C: 176 kN | C0: 265 kN | Limiting speed: 5000 r/min
30215 J2/Qd: 75 mm | D: 130 mm | T: 27.25 mm | C: 140 kN | C0: 176 kN | Limiting speed: 5000 r/min
32215 J2/Qd: 75 mm | D: 130 mm | T: 33.25 mm | C: 161 kN | C0: 212 kN | Limiting speed: 5000 r/min
33215/Qd: 75 mm | D: 130 mm | T: 41 mm | C: 209 kN | C0: 300 kN | Limiting speed: 4800 r/min
T3FE 075/QVB481d: 75 mm | D: 145 mm | T: 52 mm | C: 297 kN | C0: 450 kN | Limiting speed: 4800 r/min
T7FC 075/QCL7Cd: 75 mm | D: 150 mm | T: 42 mm | C: 201 kN | C0: 280 kN | Limiting speed: 4300 r/min
30315 J2/Qd: 75 mm | D: 160 mm | T: 40 mm | C: 246 kN | C0: 290 kN | Limiting speed: 4300 r/min
31315 J2/QCL7Cd: 75 mm | D: 160 mm | T: 40 mm | C: 209 kN | C0: 245 kN | Limiting speed: 4300 r/min
32315 J2d: 75 mm | D: 160 mm | T: 58 mm | C: 336 kN | C0: 440 kN | Limiting speed: 4300 r/min
32315 BJ2/QCL7Cd: 75 mm | D: 160 mm | T: 58 mm | C: 336 kN | C0: 475 kN | Limiting speed: 4000 r/min
32016 X/Qd: 80 mm | D: 125 mm | T: 29 mm | C: 138 kN | C0: 216 kN | Limiting speed: 5000 r/min
33016/Qd: 80 mm | D: 125 mm | T: 36 mm | C: 168 kN | C0: 285 kN | Limiting speed: 5000 r/min
JM 515649/610/Qd: 80 mm | D: 130 mm | T: 35 mm | C: 176 kN | C0: 275 kN | Limiting speed: 5300 r/min
33116/Qd: 80 mm | D: 130 mm | T: 37 mm | C: 179 kN | C0: 280 kN | Limiting speed: 4800 r/min
33116 TN9/Qd: 80 mm | D: 130 mm | T: 37 mm | C: 179 kN | C0: 280 kN | Limiting speed: 4800 r/min
30216 J2/Qd: 80 mm | D: 140 mm | T: 28.25 mm | C: 151 kN | C0: 183 kN | Limiting speed: 4800 r/min
32216 J2/Qd: 80 mm | D: 140 mm | T: 35.25 mm | C: 187 kN | C0: 245 kN | Limiting speed: 4500 r/min
33216/Qd: 80 mm | D: 140 mm | T: 46 mm | C: 251 kN | C0: 375 kN | Limiting speed: 4500 r/min
T7FC 080/QCL7Cd: 80 mm | D: 160 mm | T: 45 mm | C: 229 kN | C0: 315 kN | Limiting speed: 4000 r/min
30316 J2d: 80 mm | D: 170 mm | T: 42.5 mm | C: 270 kN | C0: 320 kN | Limiting speed: 4300 r/min
31316 J1/QCL7Cd: 80 mm | D: 170 mm | T: 42.5 mm | C: 224 kN | C0: 265 kN | Limiting speed: 4000 r/min
32316 J2d: 80 mm | D: 170 mm | T: 61.5 mm | C: 380 kN | C0: 500 kN | Limiting speed: 4300 r/min
32017 X/Qd: 85 mm | D: 130 mm | T: 29 mm | C: 140 kN | C0: 224 kN | Limiting speed: 4800 r/min
33017/Qd: 85 mm | D: 130 mm | T: 36 mm | C: 183 kN | C0: 310 kN | Limiting speed: 4800 r/min
33117/Qd: 85 mm | D: 140 mm | T: 41 mm | C: 220 kN | C0: 340 kN | Limiting speed: 4500 r/min
30217 J2/Qd: 85 mm | D: 150 mm | T: 30.5 mm | C: 176 kN | C0: 220 kN | Limiting speed: 4300 r/min
32217 J2/Qd: 85 mm | D: 150 mm | T: 38.5 mm | C: 212 kN | C0: 285 kN | Limiting speed: 4300 r/min
33217/Qd: 85 mm | D: 150 mm | T: 49 mm | C: 286 kN | C0: 430 kN | Limiting speed: 4300 r/min
30317 J2d: 85 mm | D: 180 mm | T: 44.5 mm | C: 303 kN | C0: 365 kN | Limiting speed: 4000 r/min
31317 J2d: 85 mm | D: 180 mm | T: 44.5 mm | C: 242 kN | C0: 285 kN | Limiting speed: 3800 r/min
32317 J2d: 85 mm | D: 180 mm | T: 63.5 mm | C: 402 kN | C0: 530 kN | Limiting speed: 4000 r/min
32317 BJ2d: 85 mm | D: 180 mm | T: 63.5 mm | C: 391 kN | C0: 560 kN | Limiting speed: 4000 r/min
32018 X/Qd: 90 mm | D: 140 mm | T: 32 mm | C: 168 kN | C0: 270 kN | Limiting speed: 4300 r/min
33018/Qd: 90 mm | D: 140 mm | T: 39 mm | C: 216 kN | C0: 355 kN | Limiting speed: 4500 r/min
JM 718149 A/110/Qd: 90 mm | D: 145 mm | T: 35 mm | C: 201 kN | C0: 305 kN | Limiting speed: 4800 r/min
33118/Qd: 90 mm | D: 150 mm | T: 45 mm | C: 251 kN | C0: 390 kN | Limiting speed: 4300 r/min
33118 TN9/Qd: 90 mm | D: 150 mm | T: 45 mm | C: 251 kN | C0: 390 kN | Limiting speed: 4300 r/min
30218 J2d: 90 mm | D: 160 mm | T: 32.5 mm | C: 194 kN | C0: 245 kN | Limiting speed: 4000 r/min
32218 J2/Qd: 90 mm | D: 160 mm | T: 42.5 mm | C: 251 kN | C0: 340 kN | Limiting speed: 4000 r/min
30318 J2d: 90 mm | D: 190 mm | T: 46.5 mm | C: 330 kN | C0: 400 kN | Limiting speed: 4000 r/min
31318 J2d: 90 mm | D: 190 mm | T: 46.5 mm | C: 264 kN | C0: 315 kN | Limiting speed: 3400 r/min
32318 J2d: 90 mm | D: 190 mm | T: 67.5 mm | C: 457 kN | C0: 610 kN | Limiting speed: 4000 r/min
32019 X/Qd: 95 mm | D: 145 mm | T: 32 mm | C: 168 kN | C0: 270 kN | Limiting speed: 4300 r/min
33019/Qd: 95 mm | D: 145 mm | T: 39 mm | C: 220 kN | C0: 375 kN | Limiting speed: 4300 r/min
30219 J2d: 95 mm | D: 170 mm | T: 34.5 mm | C: 216 kN | C0: 275 kN | Limiting speed: 3800 r/min
32219 J2d: 95 mm | D: 170 mm | T: 45.5 mm | C: 281 kN | C0: 390 kN | Limiting speed: 3800 r/min
T7FC 095/CL7CVQ051d: 95 mm | D: 180 mm | T: 49 mm | C: 275 kN | C0: 400 kN | Limiting speed: 3400 r/min
30319d: 95 mm | D: 200 mm | T: 49.5 mm | C: 330 kN | C0: 390 kN | Limiting speed: 3400 r/min
31319 J2d: 95 mm | D: 200 mm | T: 49.5 mm | C: 292 kN | C0: 355 kN | Limiting speed: 3400 r/min
32319 J2d: 95 mm | D: 200 mm | T: 71.5 mm | C: 501 kN | C0: 670 kN | Limiting speed: 3400 r/min
32920/Qd: 100 mm | D: 140 mm | T: 25 mm | C: 119 kN | C0: 204 kN | Limiting speed: 4800 r/min
T4CB 100/Qd: 100 mm | D: 145 mm | T: 24 mm | C: 125 kN | C0: 190 kN | Limiting speed: 4500 r/min
32020 X/Qd: 100 mm | D: 150 mm | T: 32 mm | C: 172 kN | C0: 280 kN | Limiting speed: 4000 r/min
33020/Qd: 100 mm | D: 150 mm | T: 39 mm | C: 224 kN | C0: 390 kN | Limiting speed: 4000 r/min
HM 220149/110/Qd: 100 mm | D: 157 mm | T: 42 mm | C: 246 kN | C0: 400 kN | Limiting speed: 4300 r/min
JHM 720249/210/Qd: 100 mm | D: 160 mm | T: 41 mm | C: 246 kN | C0: 390 kN | Limiting speed: 4300 r/min
T2EE 100d: 100 mm | D: 165 mm | T: 47 mm | C: 314 kN | C0: 480 kN | Limiting speed: 4300 r/min
30220 J2d: 100 mm | D: 180 mm | T: 37 mm | C: 246 kN | C0: 320 kN | Limiting speed: 3600 r/min
32220 J2d: 100 mm | D: 180 mm | T: 49 mm | C: 319 kN | C0: 440 kN | Limiting speed: 3600 r/min
33220d: 100 mm | D: 180 mm | T: 63 mm | C: 429 kN | C0: 655 kN | Limiting speed: 3600 r/min
30320 J2d: 100 mm | D: 215 mm | T: 51.5 mm | C: 402 kN | C0: 490 kN | Limiting speed: 3200 r/min
31320 XJ2/CL7CVQ051d: 100 mm | D: 215 mm | T: 56.5 mm | C: 374 kN | C0: 465 kN | Limiting speed: 3000 r/min
32320 J2d: 100 mm | D: 215 mm | T: 77.5 mm | C: 572 kN | C0: 780 kN | Limiting speed: 3000 r/min
32021 X/Qd: 105 mm | D: 160 mm | T: 35 mm | C: 201 kN | C0: 335 kN | Limiting speed: 3800 r/min
33021/Qd: 105 mm | D: 160 mm | T: 43 mm | C: 246 kN | C0: 430 kN | Limiting speed: 3800 r/min
30221 J2d: 105 mm | D: 190 mm | T: 39 mm | C: 270 kN | C0: 355 kN | Limiting speed: 3400 r/min
32221 J2d: 105 mm | D: 190 mm | T: 53 mm | C: 358 kN | C0: 510 kN | Limiting speed: 3400 r/min
32321 J2d: 105 mm | D: 225 mm | T: 81.5 mm | C: 605 kN | C0: 815 kN | Limiting speed: 3000 r/min
32922 X/Qd: 110 mm | D: 150 mm | T: 25 mm | C: 125 kN | C0: 224 kN | Limiting speed: 4300 r/min
32022 X/Qd: 110 mm | D: 170 mm | T: 38 mm | C: 233 kN | C0: 390 kN | Limiting speed: 3600 r/min
33022d: 110 mm | D: 170 mm | T: 47 mm | C: 281 kN | C0: 500 kN | Limiting speed: 3600 r/min
33122d: 110 mm | D: 180 mm | T: 56 mm | C: 369 kN | C0: 630 kN | Limiting speed: 3400 r/min
30222 J2d: 110 mm | D: 200 mm | T: 41 mm | C: 308 kN | C0: 405 kN | Limiting speed: 3200 r/min
32222 J2d: 110 mm | D: 200 mm | T: 56 mm | C: 402 kN | C0: 570 kN | Limiting speed: 3200 r/min
30322 J2d: 110 mm | D: 240 mm | T: 54.5 mm | C: 473 kN | C0: 585 kN | Limiting speed: 2800 r/min
31322 XJ2d: 110 mm | D: 240 mm | T: 63 mm | C: 457 kN | C0: 585 kN | Limiting speed: 2800 r/min
32322d: 110 mm | D: 240 mm | T: 84.5 mm | C: 627 kN | C0: 830 kN | Limiting speed: 2800 r/min
32924d: 120 mm | D: 165 mm | T: 29 mm | C: 165 kN | C0: 305 kN | Limiting speed: 3800 r/min
T4CB 120d: 120 mm | D: 170 mm | T: 27 mm | C: 157 kN | C0: 250 kN | Limiting speed: 3800 r/min
32024 Xd: 120 mm | D: 180 mm | T: 38 mm | C: 242 kN | C0: 415 kN | Limiting speed: 3400 r/min
33024d: 120 mm | D: 180 mm | T: 48 mm | C: 292 kN | C0: 540 kN | Limiting speed: 3400 r/min
30224 J2d: 120 mm | D: 215 mm | T: 43.5 mm | C: 341 kN | C0: 465 kN | Limiting speed: 3000 r/min
32224 J2d: 120 mm | D: 215 mm | T: 61.5 mm | C: 468 kN | C0: 695 kN | Limiting speed: 3000 r/min
30324 J2d: 120 mm | D: 260 mm | T: 59.5 mm | C: 561 kN | C0: 710 kN | Limiting speed: 2600 r/min
31324 XJ2d: 120 mm | D: 260 mm | T: 68 mm | C: 539 kN | C0: 695 kN | Limiting speed: 2400 r/min
32324 J2d: 120 mm | D: 260 mm | T: 90.5 mm | C: 792 kN | C0: 1120 kN | Limiting speed: 2600 r/min
32926d: 130 mm | D: 180 mm | T: 32 mm | C: 198 kN | C0: 365 kN | Limiting speed: 3600 r/min
32026 Xd: 130 mm | D: 200 mm | T: 45 mm | C: 314 kN | C0: 540 kN | Limiting speed: 3000 r/min
30226 J2d: 130 mm | D: 230 mm | T: 43.75 mm | C: 369 kN | C0: 490 kN | Limiting speed: 2800 r/min
32226 J2d: 130 mm | D: 230 mm | T: 67.75 mm | C: 550 kN | C0: 830 kN | Limiting speed: 2800 r/min
30326 J2d: 130 mm | D: 280 mm | T: 63.75 mm | C: 627 kN | C0: 800 kN | Limiting speed: 2400 r/min
31326 XJ2d: 130 mm | D: 280 mm | T: 72 mm | C: 605 kN | C0: 780 kN | Limiting speed: 2400 r/min
32928d: 140 mm | D: 190 mm | T: 32 mm | C: 205 kN | C0: 390 kN | Limiting speed: 3400 r/min
T4CB 140d: 140 mm | D: 195 mm | T: 29 mm | C: 194 kN | C0: 325 kN | Limiting speed: 3200 r/min
32028 Xd: 140 mm | D: 210 mm | T: 45 mm | C: 330 kN | C0: 585 kN | Limiting speed: 2800 r/min
30228 J2d: 140 mm | D: 250 mm | T: 45.75 mm | C: 418 kN | C0: 570 kN | Limiting speed: 2600 r/min
32228 J2d: 140 mm | D: 250 mm | T: 71.75 mm | C: 644 kN | C0: 1000 kN | Limiting speed: 2600 r/min
31328 XJ2d: 140 mm | D: 300 mm | T: 77 mm | C: 693 kN | C0: 900 kN | Limiting speed: 2200 r/min
T4DB 150d: 150 mm | D: 210 mm | T: 32 mm | C: 233 kN | C0: 390 kN | Limiting speed: 3000 r/min
32030 Xd: 150 mm | D: 225 mm | T: 48 mm | C: 369 kN | C0: 655 kN | Limiting speed: 2600 r/min
33030d: 150 mm | D: 225 mm | T: 59 mm | C: 457 kN | C0: 865 kN | Limiting speed: 2600 r/min
30230d: 150 mm | D: 270 mm | T: 49 mm | C: 429 kN | C0: 560 kN | Limiting speed: 2400 r/min
32230 J2d: 150 mm | D: 270 mm | T: 77 mm | C: 737 kN | C0: 1140 kN | Limiting speed: 2400 r/min
31330 XJ2d: 150 mm | D: 320 mm | T: 82 mm | C: 781 kN | C0: 1020 kN | Limiting speed: 2000 r/min
T4DB 160d: 160 mm | D: 220 mm | T: 32 mm | C: 242 kN | C0: 415 kN | Limiting speed: 2800 r/min
32032 Xd: 160 mm | D: 240 mm | T: 51 mm | C: 429 kN | C0: 780 kN | Limiting speed: 2400 r/min
T4EE 160/VB406d: 160 mm | D: 245 mm | T: 61 mm | C: 528 kN | C0: 980 kN | Limiting speed: 2600 r/min
30232 J2d: 160 mm | D: 290 mm | T: 52 mm | C: 528 kN | C0: 735 kN | Limiting speed: 2200 r/min
32232 J2d: 160 mm | D: 290 mm | T: 84 mm | C: 880 kN | C0: 1400 kN | Limiting speed: 2200 r/min
30332 J2d: 160 mm | D: 340 mm | T: 75 mm | C: 913 kN | C0: 1180 kN | Limiting speed: 2000 r/min
T4DB 170d: 170 mm | D: 230 mm | T: 32 mm | C: 251 kN | C0: 440 kN | Limiting speed: 2800 r/min
32934d: 170 mm | D: 230 mm | T: 38 mm | C: 286 kN | C0: 585 kN | Limiting speed: 2800 r/min
32034 Xd: 170 mm | D: 260 mm | T: 57 mm | C: 512 kN | C0: 915 kN | Limiting speed: 2200 r/min
30234 J2d: 170 mm | D: 310 mm | T: 57 mm | C: 616 kN | C0: 865 kN | Limiting speed: 2000 r/min
32234 J2d: 170 mm | D: 310 mm | T: 91 mm | C: 1010 kN | C0: 1630 kN | Limiting speed: 2000 r/min
T4DB 180d: 180 mm | D: 240 mm | T: 32 mm | C: 251 kN | C0: 450 kN | Limiting speed: 2600 r/min
32936d: 180 mm | D: 250 mm | T: 45 mm | C: 352 kN | C0: 735 kN | Limiting speed: 2600 r/min
32036 Xd: 180 mm | D: 280 mm | T: 64 mm | C: 644 kN | C0: 1160 kN | Limiting speed: 2200 r/min
30236 J2d: 180 mm | D: 320 mm | T: 57 mm | C: 583 kN | C0: 815 kN | Limiting speed: 2000 r/min
32236 J2d: 180 mm | D: 320 mm | T: 91 mm | C: 1010 kN | C0: 1630 kN | Limiting speed: 1900 r/min
32938d: 190 mm | D: 260 mm | T: 45 mm | C: 358 kN | C0: 765 kN | Limiting speed: 2400 r/min
JM 738249/210d: 190 mm | D: 260 mm | T: 46 mm | C: 380 kN | C0: 800 kN | Limiting speed: 2400 r/min
32038 Xd: 190 mm | D: 290 mm | T: 64 mm | C: 660 kN | C0: 1200 kN | Limiting speed: 2000 r/min
30238 J2d: 190 mm | D: 340 mm | T: 60 mm | C: 721 kN | C0: 1000 kN | Limiting speed: 1800 r/min
T4DB 200d: 200 mm | D: 270 mm | T: 37 mm | C: 330 kN | C0: 600 kN | Limiting speed: 2400 r/min
32940d: 200 mm | D: 280 mm | T: 51 mm | C: 473 kN | C0: 950 kN | Limiting speed: 2200 r/min
32040 Xd: 200 mm | D: 310 mm | T: 70 mm | C: 748 kN | C0: 1370 kN | Limiting speed: 1900 r/min
30240 J2d: 200 mm | D: 360 mm | T: 64 mm | C: 792 kN | C0: 1120 kN | Limiting speed: 1700 r/min
32240 J2d: 200 mm | D: 360 mm | T: 104 mm | C: 1210 kN | C0: 2000 kN | Limiting speed: 1700 r/min
T2DC 220d: 220 mm | D: 285 mm | T: 41 mm | C: 396 kN | C0: 830 kN | Limiting speed: 2200 r/min
32944d: 220 mm | D: 300 mm | T: 51 mm | C: 484 kN | C0: 1000 kN | Limiting speed: 2000 r/min
32044 Xd: 220 mm | D: 340 mm | T: 76 mm | C: 897 kN | C0: 1660 kN | Limiting speed: 1700 r/min
30244 J2d: 220 mm | D: 400 mm | T: 72 mm | C: 990 kN | C0: 1400 kN | Limiting speed: 1600 r/min
32244 J2d: 220 mm | D: 400 mm | T: 114 mm | C: 1610 kN | C0: 2700 kN | Limiting speed: 1500 r/min
T4EB 240/VE174d: 240 mm | D: 320 mm | T: 42 mm | C: 429 kN | C0: 815 kN | Limiting speed: 1900 r/min
32948d: 240 mm | D: 320 mm | T: 51 mm | C: 512 kN | C0: 1080 kN | Limiting speed: 1900 r/min
T2EE 240/VB406d: 240 mm | D: 320 mm | T: 57 mm | C: 616 kN | C0: 1320 kN | Limiting speed: 1900 r/min
32048 Xd: 240 mm | D: 360 mm | T: 76 mm | C: 935 kN | C0: 1800 kN | Limiting speed: 1600 r/min
32248 J3d: 240 mm | D: 440 mm | T: 127 mm | C: 1790 kN | C0: 3350 kN | Limiting speed: 1400 r/min
32052 Xd: 260 mm | D: 400 mm | T: 87 mm | C: 1170 kN | C0: 2200 kN | Limiting speed: 1400 r/min
32252 J2/HA1d: 260 mm | D: 480 mm | T: 137 mm | C: 2200 kN | C0: 3650 kN | Limiting speed: 1200 r/min
30352 J2d: 260 mm | D: 540 mm | T: 113 mm | C: 2120 kN | C0: 3050 kN | Limiting speed: 1200 r/min
32956/C02d: 280 mm | D: 380 mm | T: 63.5 mm | C: 765 kN | C0: 1660 kN | Limiting speed: 1600 r/min
32056 Xd: 280 mm | D: 420 mm | T: 87 mm | C: 1210 kN | C0: 2360 kN | Limiting speed: 1300 r/min
32960d: 300 mm | D: 420 mm | T: 76 mm | C: 1050 kN | C0: 2240 kN | Limiting speed: 1400 r/min
32060 Xd: 300 mm | D: 460 mm | T: 100 mm | C: 1540 kN | C0: 3000 kN | Limiting speed: 1200 r/min
32260 J2/HA1d: 300 mm | D: 540 mm | T: 149 mm | C: 2750 kN | C0: 4750 kN | Limiting speed: 1100 r/min
32964d: 320 mm | D: 440 mm | T: 76 mm | C: 1080 kN | C0: 2360 kN | Limiting speed: 1300 r/min
32064 Xd: 320 mm | D: 480 mm | T: 100 mm | C: 1540 kN | C0: 3100 kN | Limiting speed: 1100 r/min
32968d: 340 mm | D: 460 mm | T: 76 mm | C: 1080 kN | C0: 2400 kN | Limiting speed: 1300 r/min
32972d: 360 mm | D: 480 mm | T: 76 mm | C: 1120 kN | C0: 2550 kN | Limiting speed: 1200 r/min

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
