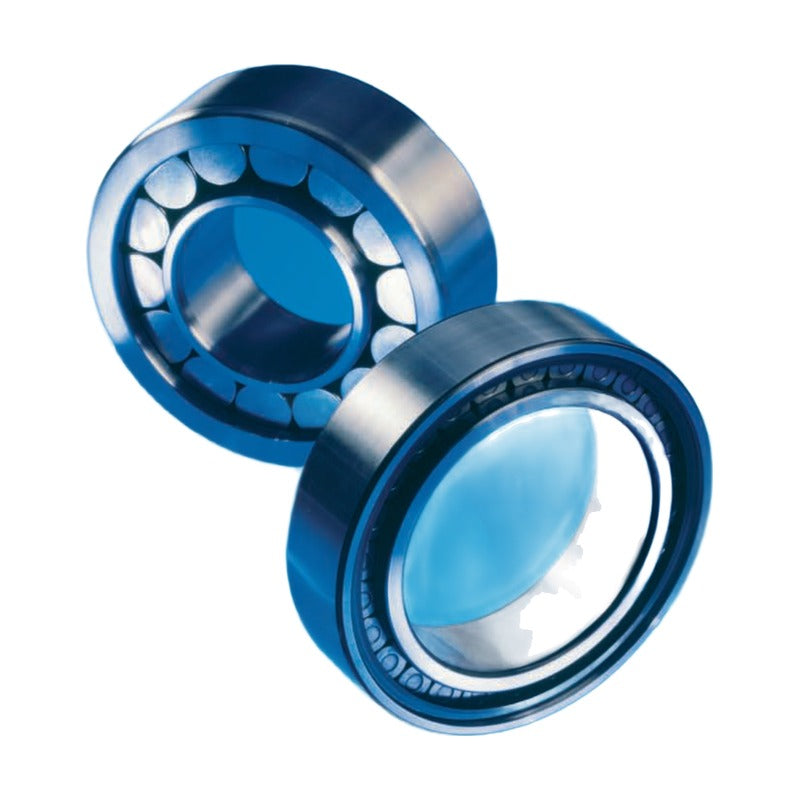

SKF NCF / NJG Full Complement Single Row Cylindrical Roller Bearings

SKF NCF / NJG Full Complement Single Row Cylindrical Roller Bearings

SKF single row full complement cylindrical roller bearings (NCF and NJG designs) without cage, for very heavy radial loads at moderate speeds. Bore diameters 20-1120 mm.

Key features

  • Maximum number of rollers for very high radial load carrying capacity
  • NCF design: two integral flanges on the inner ring, one on the outer ring; locates in one direction
  • NJG design (23 series) with heavy-duty roller set for slow speeds
  • Series 18, 22, 23, 28, 29 and 30 listed
  • No cage: suited to slow-speed, heavy-load applications

Specifications

Bearing type Single row full complement cylindrical roller bearing
Designs NCF, NJG
Bore range d 20-1120 mm
Outside dia. range D 42-1360 mm
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 564-575
NCF 3004 CV d: 20 mm | D: 42 mm | B: 16 mm | C: 28.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
NCF 3005 CV d: 25 mm | D: 47 mm | B: 16 mm | C: 31.9 kN | C0: 35.5 kN | Limiting speed: 9000 r/min
NJG 2305 VH d: 25 mm | D: 62 mm | B: 24 mm | C: 68.2 kN | C0: 68 kN | Limiting speed: 5600 r/min
NCF 3006 CV d: 30 mm | D: 55 mm | B: 19 mm | C: 39.6 kN | C0: 44 kN | Limiting speed: 7500 r/min
NJG 2306 VH d: 30 mm | D: 72 mm | B: 27 mm | C: 84.2 kN | C0: 86.5 kN | Limiting speed: 4800 r/min
NCF 3007 CV d: 35 mm | D: 62 mm | B: 20 mm | C: 48.4 kN | C0: 56 kN | Limiting speed: 6700 r/min
NJG 2307 VH d: 35 mm | D: 80 mm | B: 31 mm | C: 108 kN | C0: 114 kN | Limiting speed: 4300 r/min
NCF 3008 CV d: 40 mm | D: 68 mm | B: 21 mm | C: 57.2 kN | C0: 69.5 kN | Limiting speed: 6000 r/min
NJG 2308 VH d: 40 mm | D: 90 mm | B: 33 mm | C: 145 kN | C0: 156 kN | Limiting speed: 3600 r/min
NCF 3009 CV d: 45 mm | D: 75 mm | B: 23 mm | C: 60.5 kN | C0: 78 kN | Limiting speed: 5300 r/min
NJG 2309 VH d: 45 mm | D: 100 mm | B: 36 mm | C: 172 kN | C0: 196 kN | Limiting speed: 3400 r/min
NCF 3010 CV d: 50 mm | D: 80 mm | B: 23 mm | C: 76.5 kN | C0: 98 kN | Limiting speed: 5000 r/min
NCF 3011 CV d: 55 mm | D: 90 mm | B: 26 mm | C: 105 kN | C0: 140 kN | Limiting speed: 4300 r/min
NJG 2311 VH d: 55 mm | D: 120 mm | B: 43 mm | C: 233 kN | C0: 260 kN | Limiting speed: 2800 r/min
NCF 2912 CV d: 60 mm | D: 85 mm | B: 16 mm | C: 55 kN | C0: 80 kN | Limiting speed: 4500 r/min
NCF 3012 CV d: 60 mm | D: 95 mm | B: 26 mm | C: 106 kN | C0: 146 kN | Limiting speed: 4000 r/min
NCF 2913 CV d: 65 mm | D: 90 mm | B: 16 mm | C: 58.3 kN | C0: 88 kN | Limiting speed: 4000 r/min
NCF 3013 CV d: 65 mm | D: 100 mm | B: 26 mm | C: 112 kN | C0: 163 kN | Limiting speed: 3800 r/min
NJG 2313 VH d: 65 mm | D: 140 mm | B: 48 mm | C: 303 kN | C0: 360 kN | Limiting speed: 2400 r/min
NCF 2914 CV d: 70 mm | D: 100 mm | B: 19 mm | C: 76.5 kN | C0: 116 kN | Limiting speed: 3800 r/min
NCF 3014 CV d: 70 mm | D: 110 mm | B: 30 mm | C: 128 kN | C0: 173 kN | Limiting speed: 3600 r/min
NJG 2314 VH d: 70 mm | D: 150 mm | B: 51 mm | C: 336 kN | C0: 400 kN | Limiting speed: 2200 r/min
NCF 2915 CV d: 75 mm | D: 105 mm | B: 19 mm | C: 79.2 kN | C0: 125 kN | Limiting speed: 3600 r/min
NCF 3015 CV d: 75 mm | D: 115 mm | B: 30 mm | C: 134 kN | C0: 190 kN | Limiting speed: 3200 r/min
NJG 2315 VH d: 75 mm | D: 160 mm | B: 55 mm | C: 396 kN | C0: 480 kN | Limiting speed: 2000 r/min
NCF 2916 CV d: 80 mm | D: 110 mm | B: 19 mm | C: 80.9 kN | C0: 132 kN | Limiting speed: 3400 r/min
NCF 3016 CV d: 80 mm | D: 125 mm | B: 34 mm | C: 165 kN | C0: 228 kN | Limiting speed: 3000 r/min
NJG 2316 VH d: 80 mm | D: 170 mm | B: 58 mm | C: 457 kN | C0: 570 kN | Limiting speed: 1900 r/min
NCF 2917 CV d: 85 mm | D: 120 mm | B: 22 mm | C: 102 kN | C0: 166 kN | Limiting speed: 3200 r/min
NCF 3017 CV d: 85 mm | D: 130 mm | B: 34 mm | C: 172 kN | C0: 236 kN | Limiting speed: 3000 r/min
NJG 2317 VH d: 85 mm | D: 180 mm | B: 60 mm | C: 484 kN | C0: 620 kN | Limiting speed: 1800 r/min
NCF 2918 CV d: 90 mm | D: 125 mm | B: 22 mm | C: 105 kN | C0: 176 kN | Limiting speed: 3000 r/min
NCF 3018 CV d: 90 mm | D: 140 mm | B: 37 mm | C: 198 kN | C0: 280 kN | Limiting speed: 2800 r/min
NJG 2318 VH d: 90 mm | D: 190 mm | B: 64 mm | C: 528 kN | C0: 670 kN | Limiting speed: 1800 r/min
NCF 2920 CV d: 100 mm | D: 140 mm | B: 24 mm | C: 128 kN | C0: 200 kN | Limiting speed: 2600 r/min
NCF 3020 CV d: 100 mm | D: 150 mm | B: 37 mm | C: 209 kN | C0: 310 kN | Limiting speed: 2600 r/min
NJG 2320 VH d: 100 mm | D: 215 mm | B: 73 mm | C: 682 kN | C0: 865 kN | Limiting speed: 1500 r/min
NCF 2922 CV d: 110 mm | D: 150 mm | B: 24 mm | C: 134 kN | C0: 220 kN | Limiting speed: 2400 r/min
NCF 3022 CV d: 110 mm | D: 170 mm | B: 45 mm | C: 275 kN | C0: 400 kN | Limiting speed: 2200 r/min
NJG 2322 VH d: 110 mm | D: 240 mm | B: 80 mm | C: 858 kN | C0: 1060 kN | Limiting speed: 1300 r/min
NCF 2924 CV d: 120 mm | D: 165 mm | B: 27 mm | C: 172 kN | C0: 290 kN | Limiting speed: 2200 r/min
NCF 3024 CV d: 120 mm | D: 180 mm | B: 46 mm | C: 292 kN | C0: 440 kN | Limiting speed: 2000 r/min
NCF 2224 V d: 120 mm | D: 215 mm | B: 58 mm | C: 512 kN | C0: 735 kN | Limiting speed: 1700 r/min
NJG 2324 VH d: 120 mm | D: 260 mm | B: 86 mm | C: 952 kN | C0: 1250 kN | Limiting speed: 1200 r/min
NCF 2926 CV d: 130 mm | D: 180 mm | B: 30 mm | C: 205 kN | C0: 360 kN | Limiting speed: 2000 r/min
NCF 3026 CV d: 130 mm | D: 200 mm | B: 52 mm | C: 413 kN | C0: 620 kN | Limiting speed: 1900 r/min
NJG 2326 VH d: 130 mm | D: 280 mm | B: 93 mm | C: 1080 kN | C0: 1430 kN | Limiting speed: 1200 r/min
NCF 2928 CV d: 140 mm | D: 190 mm | B: 30 mm | C: 220 kN | C0: 390 kN | Limiting speed: 1900 r/min
NCF 3028 CV d: 140 mm | D: 210 mm | B: 53 mm | C: 440 kN | C0: 680 kN | Limiting speed: 1800 r/min
NCF 2228 V d: 140 mm | D: 250 mm | B: 68 mm | C: 693 kN | C0: 1020 kN | Limiting speed: 1500 r/min
NJG 2328 VH d: 140 mm | D: 300 mm | B: 102 mm | C: 1210 kN | C0: 1600 kN | Limiting speed: 1100 r/min
NCF 2930 CV d: 150 mm | D: 210 mm | B: 36 mm | C: 292 kN | C0: 490 kN | Limiting speed: 1700 r/min
NCF 3030 CV d: 150 mm | D: 225 mm | B: 56 mm | C: 457 kN | C0: 710 kN | Limiting speed: 1600 r/min
NCF 2230 V d: 150 mm | D: 270 mm | B: 73 mm | C: 792 kN | C0: 1180 kN | Limiting speed: 1400 r/min
NJG 2330 VH d: 150 mm | D: 320 mm | B: 108 mm | C: 1450 kN | C0: 1930 kN | Limiting speed: 1000 r/min
NCF 2932 CV d: 160 mm | D: 220 mm | B: 36 mm | C: 303 kN | C0: 530 kN | Limiting speed: 1600 r/min
NCF 3032 CV d: 160 mm | D: 240 mm | B: 60 mm | C: 512 kN | C0: 800 kN | Limiting speed: 1500 r/min
NCF 2232 V d: 160 mm | D: 290 mm | B: 80 mm | C: 990 kN | C0: 1500 kN | Limiting speed: 1200 r/min
NCF 2934 CV d: 170 mm | D: 230 mm | B: 36 mm | C: 314 kN | C0: 560 kN | Limiting speed: 1500 r/min
NCF 3034 CV d: 170 mm | D: 260 mm | B: 67 mm | C: 671 kN | C0: 1060 kN | Limiting speed: 1400 r/min
NCF 2234 V d: 170 mm | D: 310 mm | B: 86 mm | C: 1100 kN | C0: 1700 kN | Limiting speed: 1100 r/min
NJG 2334 VH d: 170 mm | D: 360 mm | B: 120 mm | C: 1760 kN | C0: 2450 kN | Limiting speed: 900 r/min
NCF 2936 CV d: 180 mm | D: 250 mm | B: 42 mm | C: 391 kN | C0: 695 kN | Limiting speed: 1400 r/min
NCF 3036 CV d: 180 mm | D: 280 mm | B: 74 mm | C: 781 kN | C0: 1250 kN | Limiting speed: 1300 r/min
NJG 2336 VH d: 180 mm | D: 380 mm | B: 126 mm | C: 1870 kN | C0: 2650 kN | Limiting speed: 800 r/min
NCF 2938 CV d: 190 mm | D: 260 mm | B: 42 mm | C: 440 kN | C0: 780 kN | Limiting speed: 1400 r/min
NCF 3038 CV d: 190 mm | D: 290 mm | B: 75 mm | C: 792 kN | C0: 1290 kN | Limiting speed: 1300 r/min
NCF 2238 V d: 190 mm | D: 340 mm | B: 92 mm | C: 1250 kN | C0: 1900 kN | Limiting speed: 1000 r/min
NJG 2338 VH d: 190 mm | D: 400 mm | B: 132 mm | C: 2160 kN | C0: 3000 kN | Limiting speed: 800 r/min
NCF 1840 V d: 200 mm | D: 250 mm | B: 24 mm | C: 176 kN | C0: 335 kN | Limiting speed: 1400 r/min
NCF 2940 CV d: 200 mm | D: 280 mm | B: 48 mm | C: 528 kN | C0: 965 kN | Limiting speed: 1300 r/min
NCF 3040 CV d: 200 mm | D: 310 mm | B: 82 mm | C: 913 kN | C0: 1530 kN | Limiting speed: 1200 r/min
NJG 2340 VH d: 200 mm | D: 420 mm | B: 138 mm | C: 2290 kN | C0: 3200 kN | Limiting speed: 750 r/min
NCF 1844 V d: 220 mm | D: 270 mm | B: 24 mm | C: 183 kN | C0: 365 kN | Limiting speed: 1200 r/min
NCF 2944 CV d: 220 mm | D: 300 mm | B: 48 mm | C: 550 kN | C0: 1060 kN | Limiting speed: 1200 r/min
NCF 3044 CV d: 220 mm | D: 340 mm | B: 90 mm | C: 1080 kN | C0: 1800 kN | Limiting speed: 1100 r/min
NCF 2244 V d: 220 mm | D: 400 mm | B: 108 mm | C: 1830 kN | C0: 2750 kN | Limiting speed: 850 r/min
NJG 2344 VH d: 220 mm | D: 460 mm | B: 145 mm | C: 2550 kN | C0: 3550 kN | Limiting speed: 670 r/min
NCF 1848 V d: 240 mm | D: 300 mm | B: 28 mm | C: 260 kN | C0: 510 kN | Limiting speed: 1100 r/min
NCF 2948 CV d: 240 mm | D: 320 mm | B: 48 mm | C: 583 kN | C0: 1140 kN | Limiting speed: 1100 r/min
NCF 3048 CV d: 240 mm | D: 360 mm | B: 92 mm | C: 1140 kN | C0: 1960 kN | Limiting speed: 1000 r/min
NJG 2348 VH d: 240 mm | D: 500 mm | B: 155 mm | C: 2810 kN | C0: 3900 kN | Limiting speed: 630 r/min
NCF 1852 V d: 260 mm | D: 320 mm | B: 28 mm | C: 270 kN | C0: 550 kN | Limiting speed: 1000 r/min
NCF 2952 CV d: 260 mm | D: 360 mm | B: 60 mm | C: 737 kN | C0: 1430 kN | Limiting speed: 950 r/min
NCF 3052 CV d: 260 mm | D: 400 mm | B: 104 mm | C: 1540 kN | C0: 2550 kN | Limiting speed: 900 r/min
NJG 2352 VH d: 260 mm | D: 540 mm | B: 165 mm | C: 3410 kN | C0: 4800 kN | Limiting speed: 530 r/min
NCF 1856 V d: 280 mm | D: 350 mm | B: 33 mm | C: 341 kN | C0: 695 kN | Limiting speed: 950 r/min
NCF 2956 CV d: 280 mm | D: 380 mm | B: 60 mm | C: 880 kN | C0: 1730 kN | Limiting speed: 900 r/min
NCF 3056 CV d: 280 mm | D: 420 mm | B: 106 mm | C: 1570 kN | C0: 2650 kN | Limiting speed: 850 r/min
NCF 1860 V d: 300 mm | D: 380 mm | B: 38 mm | C: 418 kN | C0: 850 kN | Limiting speed: 850 r/min
NCF 2960 CV d: 300 mm | D: 420 mm | B: 72 mm | C: 1120 kN | C0: 2200 kN | Limiting speed: 800 r/min
NCF 3060 CV d: 300 mm | D: 460 mm | B: 118 mm | C: 1900 kN | C0: 3250 kN | Limiting speed: 750 r/min
NCF 1864 V d: 320 mm | D: 400 mm | B: 38 mm | C: 440 kN | C0: 900 kN | Limiting speed: 800 r/min
NCF 2964 CV d: 320 mm | D: 440 mm | B: 72 mm | C: 1140 kN | C0: 2360 kN | Limiting speed: 750 r/min
NCF 3064 CV d: 320 mm | D: 480 mm | B: 121 mm | C: 1980 kN | C0: 3450 kN | Limiting speed: 700 r/min
NCF 1868 V d: 340 mm | D: 420 mm | B: 38 mm | C: 446 kN | C0: 950 kN | Limiting speed: 750 r/min
NCF 2968 CV d: 340 mm | D: 460 mm | B: 72 mm | C: 1190 kN | C0: 2500 kN | Limiting speed: 700 r/min
NCF 3068 CV d: 340 mm | D: 520 mm | B: 133 mm | C: 2380 kN | C0: 4150 kN | Limiting speed: 670 r/min
NCF 1872 V d: 360 mm | D: 440 mm | B: 38 mm | C: 402 kN | C0: 900 kN | Limiting speed: 700 r/min
NCF 2972 CV d: 360 mm | D: 480 mm | B: 72 mm | C: 1230 kN | C0: 2600 kN | Limiting speed: 670 r/min
NCF 3072 CV d: 360 mm | D: 540 mm | B: 134 mm | C: 2420 kN | C0: 4300 kN | Limiting speed: 630 r/min
NCF 1876 V d: 380 mm | D: 480 mm | B: 46 mm | C: 627 kN | C0: 1290 kN | Limiting speed: 670 r/min
NCF 2976 CV d: 380 mm | D: 520 mm | B: 82 mm | C: 1570 kN | C0: 3250 kN | Limiting speed: 630 r/min
NCF 3076 CV d: 380 mm | D: 560 mm | B: 135 mm | C: 2510 kN | C0: 4550 kN | Limiting speed: 600 r/min
NCF 1880 V d: 400 mm | D: 500 mm | B: 46 mm | C: 627 kN | C0: 1340 kN | Limiting speed: 630 r/min
NCF 2980 CV d: 400 mm | D: 540 mm | B: 82 mm | C: 1650 kN | C0: 3450 kN | Limiting speed: 600 r/min
NCF 3080 CV d: 400 mm | D: 600 mm | B: 148 mm | C: 2970 kN | C0: 5500 kN | Limiting speed: 560 r/min
NCF 1884 V d: 420 mm | D: 520 mm | B: 46 mm | C: 660 kN | C0: 1430 kN | Limiting speed: 600 r/min
NCF 2984 CV d: 420 mm | D: 560 mm | B: 82 mm | C: 1650 kN | C0: 3600 kN | Limiting speed: 560 r/min
NCF 3084 CV d: 420 mm | D: 620 mm | B: 150 mm | C: 3030 kN | C0: 5700 kN | Limiting speed: 530 r/min
NCF 1888 V d: 440 mm | D: 540 mm | B: 46 mm | C: 671 kN | C0: 1460 kN | Limiting speed: 560 r/min
NCF 2888 V d: 440 mm | D: 540 mm | B: 60 mm | C: 1060 kN | C0: 2700 kN | Limiting speed: 560 r/min
NCF 2988 V d: 440 mm | D: 600 mm | B: 95 mm | C: 2010 kN | C0: 4400 kN | Limiting speed: 530 r/min
NCF 3088 CV d: 440 mm | D: 650 mm | B: 157 mm | C: 3580 kN | C0: 6550 kN | Limiting speed: 500 r/min
NCF 1892 V d: 460 mm | D: 580 mm | B: 56 mm | C: 913 kN | C0: 1960 kN | Limiting speed: 530 r/min
NCF 2892 V d: 460 mm | D: 580 mm | B: 72 mm | C: 1300 kN | C0: 3050 kN | Limiting speed: 530 r/min
NCF 2992 V d: 460 mm | D: 620 mm | B: 95 mm | C: 2050 kN | C0: 4500 kN | Limiting speed: 500 r/min
NCF 3092 CV d: 460 mm | D: 680 mm | B: 163 mm | C: 3690 kN | C0: 6950 kN | Limiting speed: 480 r/min
NCF 1896 V d: 480 mm | D: 600 mm | B: 56 mm | C: 935 kN | C0: 2040 kN | Limiting speed: 500 r/min
NCF 2896 V d: 480 mm | D: 600 mm | B: 72 mm | C: 1320 kN | C0: 3150 kN | Limiting speed: 500 r/min
NCF 2996 V d: 480 mm | D: 650 mm | B: 100 mm | C: 2290 kN | C0: 4900 kN | Limiting speed: 480 r/min
NCF 3096 CV d: 480 mm | D: 700 mm | B: 165 mm | C: 3740 kN | C0: 7200 kN | Limiting speed: 450 r/min
NCF 18/500 V d: 500 mm | D: 620 mm | B: 56 mm | C: 952 kN | C0: 2120 kN | Limiting speed: 480 r/min
NCF 28/500 V d: 500 mm | D: 620 mm | B: 72 mm | C: 1340 kN | C0: 3350 kN | Limiting speed: 480 r/min
NCF 29/500 V d: 500 mm | D: 670 mm | B: 100 mm | C: 2330 kN | C0: 5000 kN | Limiting speed: 450 r/min
NCF 30/500 CV d: 500 mm | D: 720 mm | B: 167 mm | C: 3800 kN | C0: 7500 kN | Limiting speed: 450 r/min
NCF 18/530 V d: 530 mm | D: 650 mm | B: 56 mm | C: 990 kN | C0: 2240 kN | Limiting speed: 450 r/min
NCF 28/530 V d: 530 mm | D: 650 mm | B: 72 mm | C: 1400 kN | C0: 3450 kN | Limiting speed: 450 r/min
NCF 29/530 V d: 530 mm | D: 710 mm | B: 106 mm | C: 2640 kN | C0: 6100 kN | Limiting speed: 430 r/min
NCF 30/530 V d: 530 mm | D: 780 mm | B: 185 mm | C: 5230 kN | C0: 10600 kN | Limiting speed: 400 r/min
NCF 18/560 V d: 560 mm | D: 680 mm | B: 56 mm | C: 1020 kN | C0: 2360 kN | Limiting speed: 430 r/min
NCF 28/560 V d: 560 mm | D: 680 mm | B: 72 mm | C: 1420 kN | C0: 3650 kN | Limiting speed: 430 r/min
NCF 29/560 V d: 560 mm | D: 750 mm | B: 112 mm | C: 3080 kN | C0: 6700 kN | Limiting speed: 400 r/min
NCF 30/560 V d: 560 mm | D: 820 mm | B: 195 mm | C: 5830 kN | C0: 11800 kN | Limiting speed: 380 r/min
NCF 18/600 V d: 600 mm | D: 730 mm | B: 60 mm | C: 1050 kN | C0: 2550 kN | Limiting speed: 400 r/min
NCF 28/600 V d: 600 mm | D: 730 mm | B: 78 mm | C: 1570 kN | C0: 4300 kN | Limiting speed: 400 r/min
NCF 29/600 V d: 600 mm | D: 800 mm | B: 118 mm | C: 3190 kN | C0: 7100 kN | Limiting speed: 380 r/min
NCF 18/630 V d: 630 mm | D: 780 mm | B: 69 mm | C: 1250 kN | C0: 2900 kN | Limiting speed: 360 r/min
NCF 28/630 V d: 630 mm | D: 780 mm | B: 88 mm | C: 1870 kN | C0: 5000 kN | Limiting speed: 360 r/min
NCF 29/630 V d: 630 mm | D: 850 mm | B: 128 mm | C: 3740 kN | C0: 8650 kN | Limiting speed: 340 r/min
NCF 18/670 V d: 670 mm | D: 820 mm | B: 69 mm | C: 1300 kN | C0: 3150 kN | Limiting speed: 340 r/min
NCF 28/670 V d: 670 mm | D: 820 mm | B: 88 mm | C: 1940 kN | C0: 5300 kN | Limiting speed: 340 r/min
NCF 29/670 V d: 670 mm | D: 900 mm | B: 136 mm | C: 3910 kN | C0: 9000 kN | Limiting speed: 320 r/min
NCF 18/710 V d: 710 mm | D: 870 mm | B: 74 mm | C: 1540 kN | C0: 3750 kN | Limiting speed: 320 r/min
NCF 28/710 V d: 710 mm | D: 870 mm | B: 95 mm | C: 2330 kN | C0: 6300 kN | Limiting speed: 320 r/min
NCF 29/710 V d: 710 mm | D: 950 mm | B: 140 mm | C: 4290 kN | C0: 10000 kN | Limiting speed: 300 r/min
NCF 18/750 V d: 750 mm | D: 920 mm | B: 78 mm | C: 1870 kN | C0: 4500 kN | Limiting speed: 300 r/min
NCF 28/750 V d: 750 mm | D: 920 mm | B: 100 mm | C: 2640 kN | C0: 6950 kN | Limiting speed: 300 r/min
NCF 29/750 V d: 750 mm | D: 1000 mm | B: 145 mm | C: 4460 kN | C0: 10600 kN | Limiting speed: 280 r/min
NCF 18/800 V d: 800 mm | D: 980 mm | B: 82 mm | C: 1940 kN | C0: 4800 kN | Limiting speed: 280 r/min
NCF 28/800 V d: 800 mm | D: 980 mm | B: 106 mm | C: 2750 kN | C0: 7500 kN | Limiting speed: 280 r/min
NCF 29/800 V d: 800 mm | D: 1060 mm | B: 150 mm | C: 4950 kN | C0: 12200 kN | Limiting speed: 260 r/min
NCF 18/850 V d: 850 mm | D: 1030 mm | B: 82 mm | C: 2010 kN | C0: 5100 kN | Limiting speed: 260 r/min
NCF 28/850 V d: 850 mm | D: 1030 mm | B: 106 mm | C: 2860 kN | C0: 8000 kN | Limiting speed: 260 r/min
NCF 29/850 V d: 850 mm | D: 1120 mm | B: 155 mm | C: 5230 kN | C0: 12700 kN | Limiting speed: 240 r/min
NCF 18/900 V d: 900 mm | D: 1090 mm | B: 85 mm | C: 2380 kN | C0: 6000 kN | Limiting speed: 240 r/min
NCF 28/900 V d: 900 mm | D: 1090 mm | B: 112 mm | C: 3190 kN | C0: 9150 kN | Limiting speed: 240 r/min
NCF 29/900 V d: 900 mm | D: 1180 mm | B: 165 mm | C: 5940 kN | C0: 14600 kN | Limiting speed: 220 r/min
NCF 18/950 V d: 950 mm | D: 1150 mm | B: 90 mm | C: 2420 kN | C0: 6300 kN | Limiting speed: 220 r/min
NCF 28/950 V d: 950 mm | D: 1150 mm | B: 118 mm | C: 3410 kN | C0: 9800 kN | Limiting speed: 220 r/min
NCF 29/950 V d: 950 mm | D: 1250 mm | B: 175 mm | C: 6600 kN | C0: 16300 kN | Limiting speed: 200 r/min
NCF 18/1000 V d: 1000 mm | D: 1220 mm | B: 100 mm | C: 2920 kN | C0: 7500 kN | Limiting speed: 200 r/min
NCF 28/1000 V d: 1000 mm | D: 1220 mm | B: 128 mm | C: 4130 kN | C0: 11600 kN | Limiting speed: 200 r/min
NCF 29/1000 V d: 1000 mm | D: 1320 mm | B: 185 mm | C: 7480 kN | C0: 18600 kN | Limiting speed: 190 r/min
NCF 18/1120 V d: 1120 mm | D: 1360 mm | B: 106 mm | C: 3740 kN | C0: 9650 kN | Limiting speed: 170 r/min
Cylindrical Roller BearingsSKF
165 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF NCF / NJG Full Complement Single Row Cylindrical Roller Bearings

Brand SKF·Cylindrical Roller Bearings

Available part numbers (165)

NCF 3004 CV, NCF 3005 CV, NJG 2305 VH, NCF 3006 CV, NJG 2306 VH, NCF 3007 CV, NJG 2307 VH, NCF 3008 CV, NJG 2308 VH, NCF 3009 CV + 155 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NCF 3004 CVd: 20 mm | D: 42 mm | B: 16 mm | C: 28.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
NCF 3005 CVd: 25 mm | D: 47 mm | B: 16 mm | C: 31.9 kN | C0: 35.5 kN | Limiting speed: 9000 r/min
NJG 2305 VHd: 25 mm | D: 62 mm | B: 24 mm | C: 68.2 kN | C0: 68 kN | Limiting speed: 5600 r/min
NCF 3006 CVd: 30 mm | D: 55 mm | B: 19 mm | C: 39.6 kN | C0: 44 kN | Limiting speed: 7500 r/min
NJG 2306 VHd: 30 mm | D: 72 mm | B: 27 mm | C: 84.2 kN | C0: 86.5 kN | Limiting speed: 4800 r/min
NCF 3007 CVd: 35 mm | D: 62 mm | B: 20 mm | C: 48.4 kN | C0: 56 kN | Limiting speed: 6700 r/min
NJG 2307 VHd: 35 mm | D: 80 mm | B: 31 mm | C: 108 kN | C0: 114 kN | Limiting speed: 4300 r/min
NCF 3008 CVd: 40 mm | D: 68 mm | B: 21 mm | C: 57.2 kN | C0: 69.5 kN | Limiting speed: 6000 r/min
NJG 2308 VHd: 40 mm | D: 90 mm | B: 33 mm | C: 145 kN | C0: 156 kN | Limiting speed: 3600 r/min
NCF 3009 CVd: 45 mm | D: 75 mm | B: 23 mm | C: 60.5 kN | C0: 78 kN | Limiting speed: 5300 r/min
NJG 2309 VHd: 45 mm | D: 100 mm | B: 36 mm | C: 172 kN | C0: 196 kN | Limiting speed: 3400 r/min
NCF 3010 CVd: 50 mm | D: 80 mm | B: 23 mm | C: 76.5 kN | C0: 98 kN | Limiting speed: 5000 r/min
NCF 3011 CVd: 55 mm | D: 90 mm | B: 26 mm | C: 105 kN | C0: 140 kN | Limiting speed: 4300 r/min
NJG 2311 VHd: 55 mm | D: 120 mm | B: 43 mm | C: 233 kN | C0: 260 kN | Limiting speed: 2800 r/min
NCF 2912 CVd: 60 mm | D: 85 mm | B: 16 mm | C: 55 kN | C0: 80 kN | Limiting speed: 4500 r/min
NCF 3012 CVd: 60 mm | D: 95 mm | B: 26 mm | C: 106 kN | C0: 146 kN | Limiting speed: 4000 r/min
NCF 2913 CVd: 65 mm | D: 90 mm | B: 16 mm | C: 58.3 kN | C0: 88 kN | Limiting speed: 4000 r/min
NCF 3013 CVd: 65 mm | D: 100 mm | B: 26 mm | C: 112 kN | C0: 163 kN | Limiting speed: 3800 r/min
NJG 2313 VHd: 65 mm | D: 140 mm | B: 48 mm | C: 303 kN | C0: 360 kN | Limiting speed: 2400 r/min
NCF 2914 CVd: 70 mm | D: 100 mm | B: 19 mm | C: 76.5 kN | C0: 116 kN | Limiting speed: 3800 r/min
NCF 3014 CVd: 70 mm | D: 110 mm | B: 30 mm | C: 128 kN | C0: 173 kN | Limiting speed: 3600 r/min
NJG 2314 VHd: 70 mm | D: 150 mm | B: 51 mm | C: 336 kN | C0: 400 kN | Limiting speed: 2200 r/min
NCF 2915 CVd: 75 mm | D: 105 mm | B: 19 mm | C: 79.2 kN | C0: 125 kN | Limiting speed: 3600 r/min
NCF 3015 CVd: 75 mm | D: 115 mm | B: 30 mm | C: 134 kN | C0: 190 kN | Limiting speed: 3200 r/min
NJG 2315 VHd: 75 mm | D: 160 mm | B: 55 mm | C: 396 kN | C0: 480 kN | Limiting speed: 2000 r/min
NCF 2916 CVd: 80 mm | D: 110 mm | B: 19 mm | C: 80.9 kN | C0: 132 kN | Limiting speed: 3400 r/min
NCF 3016 CVd: 80 mm | D: 125 mm | B: 34 mm | C: 165 kN | C0: 228 kN | Limiting speed: 3000 r/min
NJG 2316 VHd: 80 mm | D: 170 mm | B: 58 mm | C: 457 kN | C0: 570 kN | Limiting speed: 1900 r/min
NCF 2917 CVd: 85 mm | D: 120 mm | B: 22 mm | C: 102 kN | C0: 166 kN | Limiting speed: 3200 r/min
NCF 3017 CVd: 85 mm | D: 130 mm | B: 34 mm | C: 172 kN | C0: 236 kN | Limiting speed: 3000 r/min
NJG 2317 VHd: 85 mm | D: 180 mm | B: 60 mm | C: 484 kN | C0: 620 kN | Limiting speed: 1800 r/min
NCF 2918 CVd: 90 mm | D: 125 mm | B: 22 mm | C: 105 kN | C0: 176 kN | Limiting speed: 3000 r/min
NCF 3018 CVd: 90 mm | D: 140 mm | B: 37 mm | C: 198 kN | C0: 280 kN | Limiting speed: 2800 r/min
NJG 2318 VHd: 90 mm | D: 190 mm | B: 64 mm | C: 528 kN | C0: 670 kN | Limiting speed: 1800 r/min
NCF 2920 CVd: 100 mm | D: 140 mm | B: 24 mm | C: 128 kN | C0: 200 kN | Limiting speed: 2600 r/min
NCF 3020 CVd: 100 mm | D: 150 mm | B: 37 mm | C: 209 kN | C0: 310 kN | Limiting speed: 2600 r/min
NJG 2320 VHd: 100 mm | D: 215 mm | B: 73 mm | C: 682 kN | C0: 865 kN | Limiting speed: 1500 r/min
NCF 2922 CVd: 110 mm | D: 150 mm | B: 24 mm | C: 134 kN | C0: 220 kN | Limiting speed: 2400 r/min
NCF 3022 CVd: 110 mm | D: 170 mm | B: 45 mm | C: 275 kN | C0: 400 kN | Limiting speed: 2200 r/min
NJG 2322 VHd: 110 mm | D: 240 mm | B: 80 mm | C: 858 kN | C0: 1060 kN | Limiting speed: 1300 r/min
NCF 2924 CVd: 120 mm | D: 165 mm | B: 27 mm | C: 172 kN | C0: 290 kN | Limiting speed: 2200 r/min
NCF 3024 CVd: 120 mm | D: 180 mm | B: 46 mm | C: 292 kN | C0: 440 kN | Limiting speed: 2000 r/min
NCF 2224 Vd: 120 mm | D: 215 mm | B: 58 mm | C: 512 kN | C0: 735 kN | Limiting speed: 1700 r/min
NJG 2324 VHd: 120 mm | D: 260 mm | B: 86 mm | C: 952 kN | C0: 1250 kN | Limiting speed: 1200 r/min
NCF 2926 CVd: 130 mm | D: 180 mm | B: 30 mm | C: 205 kN | C0: 360 kN | Limiting speed: 2000 r/min
NCF 3026 CVd: 130 mm | D: 200 mm | B: 52 mm | C: 413 kN | C0: 620 kN | Limiting speed: 1900 r/min
NJG 2326 VHd: 130 mm | D: 280 mm | B: 93 mm | C: 1080 kN | C0: 1430 kN | Limiting speed: 1200 r/min
NCF 2928 CVd: 140 mm | D: 190 mm | B: 30 mm | C: 220 kN | C0: 390 kN | Limiting speed: 1900 r/min
NCF 3028 CVd: 140 mm | D: 210 mm | B: 53 mm | C: 440 kN | C0: 680 kN | Limiting speed: 1800 r/min
NCF 2228 Vd: 140 mm | D: 250 mm | B: 68 mm | C: 693 kN | C0: 1020 kN | Limiting speed: 1500 r/min
NJG 2328 VHd: 140 mm | D: 300 mm | B: 102 mm | C: 1210 kN | C0: 1600 kN | Limiting speed: 1100 r/min
NCF 2930 CVd: 150 mm | D: 210 mm | B: 36 mm | C: 292 kN | C0: 490 kN | Limiting speed: 1700 r/min
NCF 3030 CVd: 150 mm | D: 225 mm | B: 56 mm | C: 457 kN | C0: 710 kN | Limiting speed: 1600 r/min
NCF 2230 Vd: 150 mm | D: 270 mm | B: 73 mm | C: 792 kN | C0: 1180 kN | Limiting speed: 1400 r/min
NJG 2330 VHd: 150 mm | D: 320 mm | B: 108 mm | C: 1450 kN | C0: 1930 kN | Limiting speed: 1000 r/min
NCF 2932 CVd: 160 mm | D: 220 mm | B: 36 mm | C: 303 kN | C0: 530 kN | Limiting speed: 1600 r/min
NCF 3032 CVd: 160 mm | D: 240 mm | B: 60 mm | C: 512 kN | C0: 800 kN | Limiting speed: 1500 r/min
NCF 2232 Vd: 160 mm | D: 290 mm | B: 80 mm | C: 990 kN | C0: 1500 kN | Limiting speed: 1200 r/min
NCF 2934 CVd: 170 mm | D: 230 mm | B: 36 mm | C: 314 kN | C0: 560 kN | Limiting speed: 1500 r/min
NCF 3034 CVd: 170 mm | D: 260 mm | B: 67 mm | C: 671 kN | C0: 1060 kN | Limiting speed: 1400 r/min
NCF 2234 Vd: 170 mm | D: 310 mm | B: 86 mm | C: 1100 kN | C0: 1700 kN | Limiting speed: 1100 r/min
NJG 2334 VHd: 170 mm | D: 360 mm | B: 120 mm | C: 1760 kN | C0: 2450 kN | Limiting speed: 900 r/min
NCF 2936 CVd: 180 mm | D: 250 mm | B: 42 mm | C: 391 kN | C0: 695 kN | Limiting speed: 1400 r/min
NCF 3036 CVd: 180 mm | D: 280 mm | B: 74 mm | C: 781 kN | C0: 1250 kN | Limiting speed: 1300 r/min
NJG 2336 VHd: 180 mm | D: 380 mm | B: 126 mm | C: 1870 kN | C0: 2650 kN | Limiting speed: 800 r/min
NCF 2938 CVd: 190 mm | D: 260 mm | B: 42 mm | C: 440 kN | C0: 780 kN | Limiting speed: 1400 r/min
NCF 3038 CVd: 190 mm | D: 290 mm | B: 75 mm | C: 792 kN | C0: 1290 kN | Limiting speed: 1300 r/min
NCF 2238 Vd: 190 mm | D: 340 mm | B: 92 mm | C: 1250 kN | C0: 1900 kN | Limiting speed: 1000 r/min
NJG 2338 VHd: 190 mm | D: 400 mm | B: 132 mm | C: 2160 kN | C0: 3000 kN | Limiting speed: 800 r/min
NCF 1840 Vd: 200 mm | D: 250 mm | B: 24 mm | C: 176 kN | C0: 335 kN | Limiting speed: 1400 r/min
NCF 2940 CVd: 200 mm | D: 280 mm | B: 48 mm | C: 528 kN | C0: 965 kN | Limiting speed: 1300 r/min
NCF 3040 CVd: 200 mm | D: 310 mm | B: 82 mm | C: 913 kN | C0: 1530 kN | Limiting speed: 1200 r/min
NJG 2340 VHd: 200 mm | D: 420 mm | B: 138 mm | C: 2290 kN | C0: 3200 kN | Limiting speed: 750 r/min
NCF 1844 Vd: 220 mm | D: 270 mm | B: 24 mm | C: 183 kN | C0: 365 kN | Limiting speed: 1200 r/min
NCF 2944 CVd: 220 mm | D: 300 mm | B: 48 mm | C: 550 kN | C0: 1060 kN | Limiting speed: 1200 r/min
NCF 3044 CVd: 220 mm | D: 340 mm | B: 90 mm | C: 1080 kN | C0: 1800 kN | Limiting speed: 1100 r/min
NCF 2244 Vd: 220 mm | D: 400 mm | B: 108 mm | C: 1830 kN | C0: 2750 kN | Limiting speed: 850 r/min
NJG 2344 VHd: 220 mm | D: 460 mm | B: 145 mm | C: 2550 kN | C0: 3550 kN | Limiting speed: 670 r/min
NCF 1848 Vd: 240 mm | D: 300 mm | B: 28 mm | C: 260 kN | C0: 510 kN | Limiting speed: 1100 r/min
NCF 2948 CVd: 240 mm | D: 320 mm | B: 48 mm | C: 583 kN | C0: 1140 kN | Limiting speed: 1100 r/min
NCF 3048 CVd: 240 mm | D: 360 mm | B: 92 mm | C: 1140 kN | C0: 1960 kN | Limiting speed: 1000 r/min
NJG 2348 VHd: 240 mm | D: 500 mm | B: 155 mm | C: 2810 kN | C0: 3900 kN | Limiting speed: 630 r/min
NCF 1852 Vd: 260 mm | D: 320 mm | B: 28 mm | C: 270 kN | C0: 550 kN | Limiting speed: 1000 r/min
NCF 2952 CVd: 260 mm | D: 360 mm | B: 60 mm | C: 737 kN | C0: 1430 kN | Limiting speed: 950 r/min
NCF 3052 CVd: 260 mm | D: 400 mm | B: 104 mm | C: 1540 kN | C0: 2550 kN | Limiting speed: 900 r/min
NJG 2352 VHd: 260 mm | D: 540 mm | B: 165 mm | C: 3410 kN | C0: 4800 kN | Limiting speed: 530 r/min
NCF 1856 Vd: 280 mm | D: 350 mm | B: 33 mm | C: 341 kN | C0: 695 kN | Limiting speed: 950 r/min
NCF 2956 CVd: 280 mm | D: 380 mm | B: 60 mm | C: 880 kN | C0: 1730 kN | Limiting speed: 900 r/min
NCF 3056 CVd: 280 mm | D: 420 mm | B: 106 mm | C: 1570 kN | C0: 2650 kN | Limiting speed: 850 r/min
NCF 1860 Vd: 300 mm | D: 380 mm | B: 38 mm | C: 418 kN | C0: 850 kN | Limiting speed: 850 r/min
NCF 2960 CVd: 300 mm | D: 420 mm | B: 72 mm | C: 1120 kN | C0: 2200 kN | Limiting speed: 800 r/min
NCF 3060 CVd: 300 mm | D: 460 mm | B: 118 mm | C: 1900 kN | C0: 3250 kN | Limiting speed: 750 r/min
NCF 1864 Vd: 320 mm | D: 400 mm | B: 38 mm | C: 440 kN | C0: 900 kN | Limiting speed: 800 r/min
NCF 2964 CVd: 320 mm | D: 440 mm | B: 72 mm | C: 1140 kN | C0: 2360 kN | Limiting speed: 750 r/min
NCF 3064 CVd: 320 mm | D: 480 mm | B: 121 mm | C: 1980 kN | C0: 3450 kN | Limiting speed: 700 r/min
NCF 1868 Vd: 340 mm | D: 420 mm | B: 38 mm | C: 446 kN | C0: 950 kN | Limiting speed: 750 r/min
NCF 2968 CVd: 340 mm | D: 460 mm | B: 72 mm | C: 1190 kN | C0: 2500 kN | Limiting speed: 700 r/min
NCF 3068 CVd: 340 mm | D: 520 mm | B: 133 mm | C: 2380 kN | C0: 4150 kN | Limiting speed: 670 r/min
NCF 1872 Vd: 360 mm | D: 440 mm | B: 38 mm | C: 402 kN | C0: 900 kN | Limiting speed: 700 r/min
NCF 2972 CVd: 360 mm | D: 480 mm | B: 72 mm | C: 1230 kN | C0: 2600 kN | Limiting speed: 670 r/min
NCF 3072 CVd: 360 mm | D: 540 mm | B: 134 mm | C: 2420 kN | C0: 4300 kN | Limiting speed: 630 r/min
NCF 1876 Vd: 380 mm | D: 480 mm | B: 46 mm | C: 627 kN | C0: 1290 kN | Limiting speed: 670 r/min
NCF 2976 CVd: 380 mm | D: 520 mm | B: 82 mm | C: 1570 kN | C0: 3250 kN | Limiting speed: 630 r/min
NCF 3076 CVd: 380 mm | D: 560 mm | B: 135 mm | C: 2510 kN | C0: 4550 kN | Limiting speed: 600 r/min
NCF 1880 Vd: 400 mm | D: 500 mm | B: 46 mm | C: 627 kN | C0: 1340 kN | Limiting speed: 630 r/min
NCF 2980 CVd: 400 mm | D: 540 mm | B: 82 mm | C: 1650 kN | C0: 3450 kN | Limiting speed: 600 r/min
NCF 3080 CVd: 400 mm | D: 600 mm | B: 148 mm | C: 2970 kN | C0: 5500 kN | Limiting speed: 560 r/min
NCF 1884 Vd: 420 mm | D: 520 mm | B: 46 mm | C: 660 kN | C0: 1430 kN | Limiting speed: 600 r/min
NCF 2984 CVd: 420 mm | D: 560 mm | B: 82 mm | C: 1650 kN | C0: 3600 kN | Limiting speed: 560 r/min
NCF 3084 CVd: 420 mm | D: 620 mm | B: 150 mm | C: 3030 kN | C0: 5700 kN | Limiting speed: 530 r/min
NCF 1888 Vd: 440 mm | D: 540 mm | B: 46 mm | C: 671 kN | C0: 1460 kN | Limiting speed: 560 r/min
NCF 2888 Vd: 440 mm | D: 540 mm | B: 60 mm | C: 1060 kN | C0: 2700 kN | Limiting speed: 560 r/min
NCF 2988 Vd: 440 mm | D: 600 mm | B: 95 mm | C: 2010 kN | C0: 4400 kN | Limiting speed: 530 r/min
NCF 3088 CVd: 440 mm | D: 650 mm | B: 157 mm | C: 3580 kN | C0: 6550 kN | Limiting speed: 500 r/min
NCF 1892 Vd: 460 mm | D: 580 mm | B: 56 mm | C: 913 kN | C0: 1960 kN | Limiting speed: 530 r/min
NCF 2892 Vd: 460 mm | D: 580 mm | B: 72 mm | C: 1300 kN | C0: 3050 kN | Limiting speed: 530 r/min
NCF 2992 Vd: 460 mm | D: 620 mm | B: 95 mm | C: 2050 kN | C0: 4500 kN | Limiting speed: 500 r/min
NCF 3092 CVd: 460 mm | D: 680 mm | B: 163 mm | C: 3690 kN | C0: 6950 kN | Limiting speed: 480 r/min
NCF 1896 Vd: 480 mm | D: 600 mm | B: 56 mm | C: 935 kN | C0: 2040 kN | Limiting speed: 500 r/min
NCF 2896 Vd: 480 mm | D: 600 mm | B: 72 mm | C: 1320 kN | C0: 3150 kN | Limiting speed: 500 r/min
NCF 2996 Vd: 480 mm | D: 650 mm | B: 100 mm | C: 2290 kN | C0: 4900 kN | Limiting speed: 480 r/min
NCF 3096 CVd: 480 mm | D: 700 mm | B: 165 mm | C: 3740 kN | C0: 7200 kN | Limiting speed: 450 r/min
NCF 18/500 Vd: 500 mm | D: 620 mm | B: 56 mm | C: 952 kN | C0: 2120 kN | Limiting speed: 480 r/min
NCF 28/500 Vd: 500 mm | D: 620 mm | B: 72 mm | C: 1340 kN | C0: 3350 kN | Limiting speed: 480 r/min
NCF 29/500 Vd: 500 mm | D: 670 mm | B: 100 mm | C: 2330 kN | C0: 5000 kN | Limiting speed: 450 r/min
NCF 30/500 CVd: 500 mm | D: 720 mm | B: 167 mm | C: 3800 kN | C0: 7500 kN | Limiting speed: 450 r/min
NCF 18/530 Vd: 530 mm | D: 650 mm | B: 56 mm | C: 990 kN | C0: 2240 kN | Limiting speed: 450 r/min
NCF 28/530 Vd: 530 mm | D: 650 mm | B: 72 mm | C: 1400 kN | C0: 3450 kN | Limiting speed: 450 r/min
NCF 29/530 Vd: 530 mm | D: 710 mm | B: 106 mm | C: 2640 kN | C0: 6100 kN | Limiting speed: 430 r/min
NCF 30/530 Vd: 530 mm | D: 780 mm | B: 185 mm | C: 5230 kN | C0: 10600 kN | Limiting speed: 400 r/min
NCF 18/560 Vd: 560 mm | D: 680 mm | B: 56 mm | C: 1020 kN | C0: 2360 kN | Limiting speed: 430 r/min
NCF 28/560 Vd: 560 mm | D: 680 mm | B: 72 mm | C: 1420 kN | C0: 3650 kN | Limiting speed: 430 r/min
NCF 29/560 Vd: 560 mm | D: 750 mm | B: 112 mm | C: 3080 kN | C0: 6700 kN | Limiting speed: 400 r/min
NCF 30/560 Vd: 560 mm | D: 820 mm | B: 195 mm | C: 5830 kN | C0: 11800 kN | Limiting speed: 380 r/min
NCF 18/600 Vd: 600 mm | D: 730 mm | B: 60 mm | C: 1050 kN | C0: 2550 kN | Limiting speed: 400 r/min
NCF 28/600 Vd: 600 mm | D: 730 mm | B: 78 mm | C: 1570 kN | C0: 4300 kN | Limiting speed: 400 r/min
NCF 29/600 Vd: 600 mm | D: 800 mm | B: 118 mm | C: 3190 kN | C0: 7100 kN | Limiting speed: 380 r/min
NCF 18/630 Vd: 630 mm | D: 780 mm | B: 69 mm | C: 1250 kN | C0: 2900 kN | Limiting speed: 360 r/min
NCF 28/630 Vd: 630 mm | D: 780 mm | B: 88 mm | C: 1870 kN | C0: 5000 kN | Limiting speed: 360 r/min
NCF 29/630 Vd: 630 mm | D: 850 mm | B: 128 mm | C: 3740 kN | C0: 8650 kN | Limiting speed: 340 r/min
NCF 18/670 Vd: 670 mm | D: 820 mm | B: 69 mm | C: 1300 kN | C0: 3150 kN | Limiting speed: 340 r/min
NCF 28/670 Vd: 670 mm | D: 820 mm | B: 88 mm | C: 1940 kN | C0: 5300 kN | Limiting speed: 340 r/min
NCF 29/670 Vd: 670 mm | D: 900 mm | B: 136 mm | C: 3910 kN | C0: 9000 kN | Limiting speed: 320 r/min
NCF 18/710 Vd: 710 mm | D: 870 mm | B: 74 mm | C: 1540 kN | C0: 3750 kN | Limiting speed: 320 r/min
NCF 28/710 Vd: 710 mm | D: 870 mm | B: 95 mm | C: 2330 kN | C0: 6300 kN | Limiting speed: 320 r/min
NCF 29/710 Vd: 710 mm | D: 950 mm | B: 140 mm | C: 4290 kN | C0: 10000 kN | Limiting speed: 300 r/min
NCF 18/750 Vd: 750 mm | D: 920 mm | B: 78 mm | C: 1870 kN | C0: 4500 kN | Limiting speed: 300 r/min
NCF 28/750 Vd: 750 mm | D: 920 mm | B: 100 mm | C: 2640 kN | C0: 6950 kN | Limiting speed: 300 r/min
NCF 29/750 Vd: 750 mm | D: 1000 mm | B: 145 mm | C: 4460 kN | C0: 10600 kN | Limiting speed: 280 r/min
NCF 18/800 Vd: 800 mm | D: 980 mm | B: 82 mm | C: 1940 kN | C0: 4800 kN | Limiting speed: 280 r/min
NCF 28/800 Vd: 800 mm | D: 980 mm | B: 106 mm | C: 2750 kN | C0: 7500 kN | Limiting speed: 280 r/min
NCF 29/800 Vd: 800 mm | D: 1060 mm | B: 150 mm | C: 4950 kN | C0: 12200 kN | Limiting speed: 260 r/min
NCF 18/850 Vd: 850 mm | D: 1030 mm | B: 82 mm | C: 2010 kN | C0: 5100 kN | Limiting speed: 260 r/min
NCF 28/850 Vd: 850 mm | D: 1030 mm | B: 106 mm | C: 2860 kN | C0: 8000 kN | Limiting speed: 260 r/min
NCF 29/850 Vd: 850 mm | D: 1120 mm | B: 155 mm | C: 5230 kN | C0: 12700 kN | Limiting speed: 240 r/min
NCF 18/900 Vd: 900 mm | D: 1090 mm | B: 85 mm | C: 2380 kN | C0: 6000 kN | Limiting speed: 240 r/min
NCF 28/900 Vd: 900 mm | D: 1090 mm | B: 112 mm | C: 3190 kN | C0: 9150 kN | Limiting speed: 240 r/min
NCF 29/900 Vd: 900 mm | D: 1180 mm | B: 165 mm | C: 5940 kN | C0: 14600 kN | Limiting speed: 220 r/min
NCF 18/950 Vd: 950 mm | D: 1150 mm | B: 90 mm | C: 2420 kN | C0: 6300 kN | Limiting speed: 220 r/min
NCF 28/950 Vd: 950 mm | D: 1150 mm | B: 118 mm | C: 3410 kN | C0: 9800 kN | Limiting speed: 220 r/min
NCF 29/950 Vd: 950 mm | D: 1250 mm | B: 175 mm | C: 6600 kN | C0: 16300 kN | Limiting speed: 200 r/min
NCF 18/1000 Vd: 1000 mm | D: 1220 mm | B: 100 mm | C: 2920 kN | C0: 7500 kN | Limiting speed: 200 r/min
NCF 28/1000 Vd: 1000 mm | D: 1220 mm | B: 128 mm | C: 4130 kN | C0: 11600 kN | Limiting speed: 200 r/min
NCF 29/1000 Vd: 1000 mm | D: 1320 mm | B: 185 mm | C: 7480 kN | C0: 18600 kN | Limiting speed: 190 r/min
NCF 18/1120 Vd: 1120 mm | D: 1360 mm | B: 106 mm | C: 3740 kN | C0: 9650 kN | Limiting speed: 170 r/min

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
