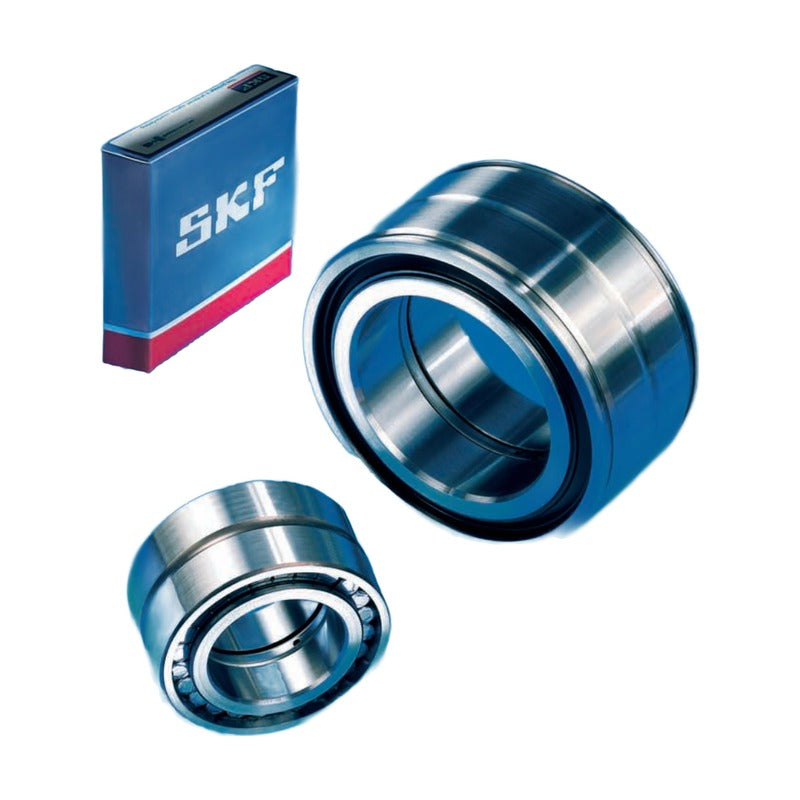

SKF NNCF/NNC/NNCL Double Row Full Complement Cylindrical Roller Brg

SKF NNCF/NNC/NNCL Double Row Full Complement Cylindrical Roller Brg

SKF double row full complement cylindrical roller bearings in NNCF, NNC and NNCL designs, series 48, 49 and 50. Bore diameters 20-400 mm.

Key features

  • Two rows of rollers without cage for very high radial load capacity
  • NNCF: locating in one direction; NNC: locating in both directions; NNCL: non-locating
  • Retaining ring holds the outer ring halves together
  • Low cross-section series 48, 49 and 50
  • Suitable for rope sheaves, gearboxes and slow-speed heavy machinery

Specifications

Bearing type Double row full complement cylindrical roller bearing
Designs NNCF, NNC, NNCL
Bore range d 20-400 mm
Outside dia. range D 42-600 mm
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 584-595
NNCF 5004 CV d: 20 mm | D: 42 mm | B: 30 mm | C: 52.3 kN | C0: 57 kN | Limiting speed: 10000 r/min
NNCF 5005 CV d: 25 mm | D: 47 mm | B: 30 mm | C: 59.4 kN | C0: 71 kN | Limiting speed: 9000 r/min
NNCF 5006 CV d: 30 mm | D: 55 mm | B: 34 mm | C: 73.7 kN | C0: 88 kN | Limiting speed: 7500 r/min
NNCF 5007 CV d: 35 mm | D: 62 mm | B: 36 mm | C: 89.7 kN | C0: 112 kN | Limiting speed: 6700 r/min
NNCF 5008 CV d: 40 mm | D: 68 mm | B: 38 mm | C: 106 kN | C0: 140 kN | Limiting speed: 6000 r/min
NNCF 5009 CV d: 45 mm | D: 75 mm | B: 40 mm | C: 112 kN | C0: 156 kN | Limiting speed: 5300 r/min
NNCF 5010 CV d: 50 mm | D: 80 mm | B: 40 mm | C: 142 kN | C0: 196 kN | Limiting speed: 5000 r/min
NNCF 5011 CV d: 55 mm | D: 90 mm | B: 46 mm | C: 190 kN | C0: 280 kN | Limiting speed: 4300 r/min
NNCF 4912 CV d: 60 mm | D: 85 mm | B: 25 mm | C: 78.1 kN | C0: 137 kN | Limiting speed: 4500 r/min
NNC 4912 CV d: 60 mm | D: 85 mm | B: 25 mm | C: 78.1 kN | C0: 137 kN | Limiting speed: 4500 r/min
NNCL 4912 CV d: 60 mm | D: 85 mm | B: 25 mm | C: 78.1 kN | C0: 137 kN | Limiting speed: 4500 r/min
NNCF 5012 CV d: 60 mm | D: 95 mm | B: 46 mm | C: 198 kN | C0: 300 kN | Limiting speed: 4000 r/min
NNCF 5013 CV d: 65 mm | D: 100 mm | B: 46 mm | C: 209 kN | C0: 325 kN | Limiting speed: 3800 r/min
NNCF 4914 CV d: 70 mm | D: 100 mm | B: 30 mm | C: 114 kN | C0: 193 kN | Limiting speed: 3800 r/min
NNC 4914 CV d: 70 mm | D: 100 mm | B: 30 mm | C: 114 kN | C0: 193 kN | Limiting speed: 3800 r/min
NNCL 4914 CV d: 70 mm | D: 100 mm | B: 30 mm | C: 114 kN | C0: 193 kN | Limiting speed: 3800 r/min
NNCF 5014 CV d: 70 mm | D: 110 mm | B: 54 mm | C: 238 kN | C0: 345 kN | Limiting speed: 3600 r/min
NNCF 5015 CV d: 75 mm | D: 115 mm | B: 54 mm | C: 251 kN | C0: 380 kN | Limiting speed: 3200 r/min
NNCF 4916 CV d: 80 mm | D: 110 mm | B: 30 mm | C: 121 kN | C0: 216 kN | Limiting speed: 3400 r/min
NNC 4916 CV d: 80 mm | D: 110 mm | B: 30 mm | C: 121 kN | C0: 216 kN | Limiting speed: 3400 r/min
NNCL 4916 CV d: 80 mm | D: 110 mm | B: 30 mm | C: 121 kN | C0: 216 kN | Limiting speed: 3400 r/min
NNCF 5016 CV d: 80 mm | D: 125 mm | B: 60 mm | C: 308 kN | C0: 455 kN | Limiting speed: 3000 r/min
NNCF 5017 CV d: 85 mm | D: 130 mm | B: 60 mm | C: 314 kN | C0: 475 kN | Limiting speed: 3000 r/min
NNCF 4918 CV d: 90 mm | D: 125 mm | B: 35 mm | C: 161 kN | C0: 300 kN | Limiting speed: 3000 r/min
NNC 4918 CV d: 90 mm | D: 125 mm | B: 35 mm | C: 161 kN | C0: 300 kN | Limiting speed: 3000 r/min
NNCL 4918 CV d: 90 mm | D: 125 mm | B: 35 mm | C: 161 kN | C0: 300 kN | Limiting speed: 3000 r/min
NNCF 5018 CV d: 90 mm | D: 140 mm | B: 67 mm | C: 369 kN | C0: 560 kN | Limiting speed: 2800 r/min
NNCF 4920 CV d: 100 mm | D: 140 mm | B: 40 mm | C: 209 kN | C0: 400 kN | Limiting speed: 2600 r/min
NNC 4920 CV d: 100 mm | D: 140 mm | B: 40 mm | C: 209 kN | C0: 400 kN | Limiting speed: 2600 r/min
NNCL 4920 CV d: 100 mm | D: 140 mm | B: 40 mm | C: 209 kN | C0: 400 kN | Limiting speed: 2600 r/min
NNCF 5020 CV d: 100 mm | D: 150 mm | B: 67 mm | C: 391 kN | C0: 620 kN | Limiting speed: 2600 r/min
NNCF 4922 CV d: 110 mm | D: 150 mm | B: 40 mm | C: 220 kN | C0: 430 kN | Limiting speed: 2400 r/min
NNC 4922 CV d: 110 mm | D: 150 mm | B: 40 mm | C: 220 kN | C0: 430 kN | Limiting speed: 2400 r/min
NNCL 4922 CV d: 110 mm | D: 150 mm | B: 40 mm | C: 220 kN | C0: 430 kN | Limiting speed: 2400 r/min
NNCF 5022 CV d: 110 mm | D: 170 mm | B: 80 mm | C: 512 kN | C0: 800 kN | Limiting speed: 2200 r/min
NNCF 4924 CV d: 120 mm | D: 165 mm | B: 45 mm | C: 242 kN | C0: 480 kN | Limiting speed: 2200 r/min
NNC 4924 CV d: 120 mm | D: 165 mm | B: 45 mm | C: 242 kN | C0: 480 kN | Limiting speed: 2200 r/min
NNCL 4924 CV d: 120 mm | D: 165 mm | B: 45 mm | C: 242 kN | C0: 480 kN | Limiting speed: 2200 r/min
NNCF 5024 CV d: 120 mm | D: 180 mm | B: 80 mm | C: 539 kN | C0: 880 kN | Limiting speed: 2000 r/min
NNCF 4926 CV d: 130 mm | D: 180 mm | B: 50 mm | C: 275 kN | C0: 530 kN | Limiting speed: 2000 r/min
NNC 4926 CV d: 130 mm | D: 180 mm | B: 50 mm | C: 275 kN | C0: 530 kN | Limiting speed: 2000 r/min
NNCL 4926 CV d: 130 mm | D: 180 mm | B: 50 mm | C: 275 kN | C0: 530 kN | Limiting speed: 2000 r/min
NNCF 5026 CV d: 130 mm | D: 200 mm | B: 95 mm | C: 765 kN | C0: 1250 kN | Limiting speed: 1900 r/min
NNCF 4928 CV d: 140 mm | D: 190 mm | B: 50 mm | C: 286 kN | C0: 570 kN | Limiting speed: 1900 r/min
NNC 4928 CV d: 140 mm | D: 190 mm | B: 50 mm | C: 286 kN | C0: 570 kN | Limiting speed: 1900 r/min
NNCL 4928 CV d: 140 mm | D: 190 mm | B: 50 mm | C: 286 kN | C0: 570 kN | Limiting speed: 1900 r/min
NNCF 5028 CV d: 140 mm | D: 210 mm | B: 95 mm | C: 809 kN | C0: 1370 kN | Limiting speed: 1800 r/min
NNCF 4830 CV d: 150 mm | D: 190 mm | B: 40 mm | C: 255 kN | C0: 585 kN | Limiting speed: 1800 r/min
NNC 4830 CV d: 150 mm | D: 190 mm | B: 40 mm | C: 255 kN | C0: 585 kN | Limiting speed: 1800 r/min
NNCL 4830 CV d: 150 mm | D: 190 mm | B: 40 mm | C: 255 kN | C0: 585 kN | Limiting speed: 1800 r/min
NNCF 4930 CV d: 150 mm | D: 210 mm | B: 60 mm | C: 429 kN | C0: 830 kN | Limiting speed: 1700 r/min
NNC 4930 CV d: 150 mm | D: 210 mm | B: 60 mm | C: 429 kN | C0: 830 kN | Limiting speed: 1700 r/min
NNCL 4930 CV d: 150 mm | D: 210 mm | B: 60 mm | C: 429 kN | C0: 830 kN | Limiting speed: 1700 r/min
NNCF 5030 CV d: 150 mm | D: 225 mm | B: 100 mm | C: 842 kN | C0: 1430 kN | Limiting speed: 1700 r/min
NNCF 4832 CV d: 160 mm | D: 200 mm | B: 40 mm | C: 260 kN | C0: 610 kN | Limiting speed: 1700 r/min
NNC 4832 CV d: 160 mm | D: 200 mm | B: 40 mm | C: 260 kN | C0: 610 kN | Limiting speed: 1700 r/min
NNCL 4832 CV d: 160 mm | D: 200 mm | B: 40 mm | C: 260 kN | C0: 610 kN | Limiting speed: 1700 r/min
NNCF 4932 CV d: 160 mm | D: 220 mm | B: 60 mm | C: 446 kN | C0: 915 kN | Limiting speed: 1600 r/min
NNC 4932 CV d: 160 mm | D: 220 mm | B: 60 mm | C: 446 kN | C0: 915 kN | Limiting speed: 1600 r/min
NNCL 4932 CV d: 160 mm | D: 220 mm | B: 60 mm | C: 446 kN | C0: 915 kN | Limiting speed: 1600 r/min
NNCF 5032 CV d: 160 mm | D: 240 mm | B: 109 mm | C: 952 kN | C0: 1600 kN | Limiting speed: 1500 r/min
NNCF 4834 CV d: 170 mm | D: 215 mm | B: 45 mm | C: 286 kN | C0: 655 kN | Limiting speed: 1600 r/min
NNC 4834 CV d: 170 mm | D: 215 mm | B: 45 mm | C: 286 kN | C0: 655 kN | Limiting speed: 1600 r/min
NNCL 4834 CV d: 170 mm | D: 215 mm | B: 45 mm | C: 286 kN | C0: 655 kN | Limiting speed: 1600 r/min
NNCF 4934 CV d: 170 mm | D: 230 mm | B: 60 mm | C: 457 kN | C0: 950 kN | Limiting speed: 1500 r/min
NNC 4934 CV d: 170 mm | D: 230 mm | B: 60 mm | C: 457 kN | C0: 950 kN | Limiting speed: 1500 r/min
NNCL 4934 CV d: 170 mm | D: 230 mm | B: 60 mm | C: 457 kN | C0: 950 kN | Limiting speed: 1500 r/min
NNCF 5034 CV d: 170 mm | D: 260 mm | B: 122 mm | C: 1230 kN | C0: 2120 kN | Limiting speed: 1400 r/min
NNCF 4836 CV d: 180 mm | D: 225 mm | B: 45 mm | C: 297 kN | C0: 695 kN | Limiting speed: 1500 r/min
NNC 4836 CV d: 180 mm | D: 225 mm | B: 45 mm | C: 297 kN | C0: 695 kN | Limiting speed: 1500 r/min
NNCL 4836 CV d: 180 mm | D: 225 mm | B: 45 mm | C: 297 kN | C0: 695 kN | Limiting speed: 1500 r/min
NNCF 4936 CV d: 180 mm | D: 250 mm | B: 69 mm | C: 594 kN | C0: 1220 kN | Limiting speed: 1400 r/min
NNC 4936 CV d: 180 mm | D: 250 mm | B: 69 mm | C: 594 kN | C0: 1220 kN | Limiting speed: 1400 r/min
NNCL 4936 CV d: 180 mm | D: 250 mm | B: 69 mm | C: 594 kN | C0: 1220 kN | Limiting speed: 1400 r/min
NNCF 5036 CV d: 180 mm | D: 280 mm | B: 136 mm | C: 1420 kN | C0: 2500 kN | Limiting speed: 1300 r/min
NNCF 4838 CV d: 190 mm | D: 240 mm | B: 50 mm | C: 330 kN | C0: 750 kN | Limiting speed: 1400 r/min
NNC 4838 CV d: 190 mm | D: 240 mm | B: 50 mm | C: 330 kN | C0: 750 kN | Limiting speed: 1400 r/min
NNCL 4838 CV d: 190 mm | D: 240 mm | B: 50 mm | C: 330 kN | C0: 750 kN | Limiting speed: 1400 r/min
NNCF 4938 CV d: 190 mm | D: 260 mm | B: 69 mm | C: 605 kN | C0: 1290 kN | Limiting speed: 1400 r/min
NNC 4938 CV d: 190 mm | D: 260 mm | B: 69 mm | C: 605 kN | C0: 1290 kN | Limiting speed: 1400 r/min
NNCL 4938 CV d: 190 mm | D: 260 mm | B: 69 mm | C: 605 kN | C0: 1290 kN | Limiting speed: 1400 r/min
NNCF 5038 CV d: 190 mm | D: 290 mm | B: 136 mm | C: 1470 kN | C0: 2600 kN | Limiting speed: 1300 r/min
NNCF 4840 CV d: 200 mm | D: 250 mm | B: 50 mm | C: 336 kN | C0: 800 kN | Limiting speed: 1400 r/min
NNC 4840 CV d: 200 mm | D: 250 mm | B: 50 mm | C: 336 kN | C0: 800 kN | Limiting speed: 1400 r/min
NNCL 4840 CV d: 200 mm | D: 250 mm | B: 50 mm | C: 336 kN | C0: 800 kN | Limiting speed: 1400 r/min
NNCF 4940 CV d: 200 mm | D: 280 mm | B: 80 mm | C: 704 kN | C0: 1500 kN | Limiting speed: 1300 r/min
NNC 4940 CV d: 200 mm | D: 280 mm | B: 80 mm | C: 704 kN | C0: 1500 kN | Limiting speed: 1300 r/min
NNCL 4940 CV d: 200 mm | D: 280 mm | B: 80 mm | C: 704 kN | C0: 1500 kN | Limiting speed: 1300 r/min
NNCF 5040 CV d: 200 mm | D: 310 mm | B: 150 mm | C: 1680 kN | C0: 3050 kN | Limiting speed: 1200 r/min
NNCF 4844 CV d: 220 mm | D: 270 mm | B: 50 mm | C: 352 kN | C0: 865 kN | Limiting speed: 1200 r/min
NNC 4844 CV d: 220 mm | D: 270 mm | B: 50 mm | C: 352 kN | C0: 865 kN | Limiting speed: 1200 r/min
NNCL 4844 CV d: 220 mm | D: 270 mm | B: 50 mm | C: 352 kN | C0: 865 kN | Limiting speed: 1200 r/min
NNCF 4944 CV d: 220 mm | D: 300 mm | B: 80 mm | C: 737 kN | C0: 1600 kN | Limiting speed: 1200 r/min
NNC 4944 CV d: 220 mm | D: 300 mm | B: 80 mm | C: 737 kN | C0: 1600 kN | Limiting speed: 1200 r/min
NNCL 4944 CV d: 220 mm | D: 300 mm | B: 80 mm | C: 737 kN | C0: 1600 kN | Limiting speed: 1200 r/min
NNCF 5044 CV d: 220 mm | D: 340 mm | B: 160 mm | C: 2010 kN | C0: 3600 kN | Limiting speed: 1100 r/min
NNCF 4848 CV d: 240 mm | D: 300 mm | B: 60 mm | C: 539 kN | C0: 1290 kN | Limiting speed: 1100 r/min
NNC 4848 CV d: 240 mm | D: 300 mm | B: 60 mm | C: 539 kN | C0: 1290 kN | Limiting speed: 1100 r/min
NNCL 4848 CV d: 240 mm | D: 300 mm | B: 60 mm | C: 539 kN | C0: 1290 kN | Limiting speed: 1100 r/min
NNCF 4948 CV d: 240 mm | D: 320 mm | B: 80 mm | C: 781 kN | C0: 1760 kN | Limiting speed: 1100 r/min
NNC 4948 CV d: 240 mm | D: 320 mm | B: 80 mm | C: 781 kN | C0: 1760 kN | Limiting speed: 1100 r/min
NNCL 4948 CV d: 240 mm | D: 320 mm | B: 80 mm | C: 781 kN | C0: 1760 kN | Limiting speed: 1100 r/min
NNCF 5048 CV d: 240 mm | D: 360 mm | B: 160 mm | C: 2120 kN | C0: 3900 kN | Limiting speed: 1000 r/min
NNCF 4852 CV d: 260 mm | D: 320 mm | B: 60 mm | C: 561 kN | C0: 1400 kN | Limiting speed: 1000 r/min
NNC 4852 CV d: 260 mm | D: 320 mm | B: 60 mm | C: 561 kN | C0: 1400 kN | Limiting speed: 1000 r/min
NNCL 4852 CV d: 260 mm | D: 320 mm | B: 60 mm | C: 561 kN | C0: 1400 kN | Limiting speed: 1000 r/min
NNCF 4952 CV d: 260 mm | D: 360 mm | B: 100 mm | C: 1170 kN | C0: 2550 kN | Limiting speed: 950 r/min
NNC 4952 CV d: 260 mm | D: 360 mm | B: 100 mm | C: 1170 kN | C0: 2550 kN | Limiting speed: 950 r/min
NNCL 4952 CV d: 260 mm | D: 360 mm | B: 100 mm | C: 1170 kN | C0: 2550 kN | Limiting speed: 950 r/min
NNCF 5052 CV d: 260 mm | D: 400 mm | B: 190 mm | C: 2860 kN | C0: 5100 kN | Limiting speed: 900 r/min
NNCF 4856 CV d: 280 mm | D: 350 mm | B: 69 mm | C: 737 kN | C0: 1860 kN | Limiting speed: 950 r/min
NNC 4856 CV d: 280 mm | D: 350 mm | B: 69 mm | C: 737 kN | C0: 1860 kN | Limiting speed: 950 r/min
NNCL 4856 CV d: 280 mm | D: 350 mm | B: 69 mm | C: 737 kN | C0: 1860 kN | Limiting speed: 950 r/min
NNCF 4956 CV d: 280 mm | D: 380 mm | B: 100 mm | C: 1210 kN | C0: 2700 kN | Limiting speed: 900 r/min
NNC 4956 CV d: 280 mm | D: 380 mm | B: 100 mm | C: 1210 kN | C0: 2700 kN | Limiting speed: 900 r/min
NNCL 4956 CV d: 280 mm | D: 380 mm | B: 100 mm | C: 1210 kN | C0: 2700 kN | Limiting speed: 900 r/min
NNCF 5056 CV d: 280 mm | D: 420 mm | B: 190 mm | C: 2920 kN | C0: 5300 kN | Limiting speed: 850 r/min
NNCF 4860 CV d: 300 mm | D: 380 mm | B: 80 mm | C: 858 kN | C0: 2120 kN | Limiting speed: 850 r/min
NNC 4860 CV d: 300 mm | D: 380 mm | B: 80 mm | C: 858 kN | C0: 2120 kN | Limiting speed: 850 r/min
NNCL 4860 CV d: 300 mm | D: 380 mm | B: 80 mm | C: 858 kN | C0: 2120 kN | Limiting speed: 850 r/min
NNCF 4960 CV d: 300 mm | D: 420 mm | B: 118 mm | C: 1680 kN | C0: 3750 kN | Limiting speed: 800 r/min
NNC 4960 CV d: 300 mm | D: 420 mm | B: 118 mm | C: 1680 kN | C0: 3750 kN | Limiting speed: 800 r/min
NNCL 4960 CV d: 300 mm | D: 420 mm | B: 118 mm | C: 1680 kN | C0: 3750 kN | Limiting speed: 800 r/min
NNCF 5060 CV d: 300 mm | D: 460 mm | B: 218 mm | C: 3250 kN | C0: 6550 kN | Limiting speed: 750 r/min
NNCF 4864 CV d: 320 mm | D: 400 mm | B: 80 mm | C: 897 kN | C0: 2280 kN | Limiting speed: 800 r/min
NNC 4864 CV d: 320 mm | D: 400 mm | B: 80 mm | C: 897 kN | C0: 2280 kN | Limiting speed: 800 r/min
NNCL 4864 CV d: 320 mm | D: 400 mm | B: 80 mm | C: 897 kN | C0: 2280 kN | Limiting speed: 800 r/min
NNCF 4964 CV d: 320 mm | D: 440 mm | B: 118 mm | C: 1760 kN | C0: 4050 kN | Limiting speed: 750 r/min
NNC 4964 CV d: 320 mm | D: 440 mm | B: 118 mm | C: 1760 kN | C0: 4050 kN | Limiting speed: 750 r/min
NNCL 4964 CV d: 320 mm | D: 440 mm | B: 118 mm | C: 1760 kN | C0: 4050 kN | Limiting speed: 750 r/min
NNCF 5064 CV d: 320 mm | D: 480 mm | B: 218 mm | C: 3690 kN | C0: 6950 kN | Limiting speed: 700 r/min
NNCF 4868 CV d: 340 mm | D: 420 mm | B: 80 mm | C: 913 kN | C0: 2400 kN | Limiting speed: 750 r/min
NNC 4868 CV d: 340 mm | D: 420 mm | B: 80 mm | C: 913 kN | C0: 2400 kN | Limiting speed: 750 r/min
NNCL 4868 CV d: 340 mm | D: 420 mm | B: 80 mm | C: 913 kN | C0: 2400 kN | Limiting speed: 750 r/min
NNCF 4968 CV d: 340 mm | D: 460 mm | B: 118 mm | C: 1790 kN | C0: 4250 kN | Limiting speed: 700 r/min
NNC 4968 CV d: 340 mm | D: 460 mm | B: 118 mm | C: 1790 kN | C0: 4250 kN | Limiting speed: 700 r/min
NNCL 4968 CV d: 340 mm | D: 460 mm | B: 118 mm | C: 1790 kN | C0: 4250 kN | Limiting speed: 700 r/min
NNCF 5068 CV d: 340 mm | D: 520 mm | B: 243 mm | C: 4400 kN | C0: 8300 kN | Limiting speed: 670 r/min
NNCF 4872 CV d: 360 mm | D: 440 mm | B: 80 mm | C: 935 kN | C0: 2550 kN | Limiting speed: 700 r/min
NNC 4872 CV d: 360 mm | D: 440 mm | B: 80 mm | C: 935 kN | C0: 2550 kN | Limiting speed: 700 r/min
NNCL 4872 CV d: 360 mm | D: 440 mm | B: 80 mm | C: 935 kN | C0: 2550 kN | Limiting speed: 700 r/min
NNCF 4972 CV d: 360 mm | D: 480 mm | B: 118 mm | C: 1830 kN | C0: 4500 kN | Limiting speed: 670 r/min
NNC 4972 CV d: 360 mm | D: 480 mm | B: 118 mm | C: 1830 kN | C0: 4500 kN | Limiting speed: 670 r/min
NNCL 4972 CV d: 360 mm | D: 480 mm | B: 118 mm | C: 1830 kN | C0: 4500 kN | Limiting speed: 670 r/min
NNCF 5072 CV d: 360 mm | D: 540 mm | B: 243 mm | C: 4460 kN | C0: 8650 kN | Limiting speed: 630 r/min
NNCF 4876 CV d: 380 mm | D: 480 mm | B: 100 mm | C: 1400 kN | C0: 3650 kN | Limiting speed: 670 r/min
NNC 4876 CV d: 380 mm | D: 480 mm | B: 100 mm | C: 1400 kN | C0: 3650 kN | Limiting speed: 670 r/min
NNCL 4876 CV d: 380 mm | D: 480 mm | B: 100 mm | C: 1400 kN | C0: 3650 kN | Limiting speed: 670 r/min
NNCF 4976 CV d: 380 mm | D: 520 mm | B: 140 mm | C: 2380 kN | C0: 5700 kN | Limiting speed: 630 r/min
NNC 4976 CV d: 380 mm | D: 520 mm | B: 140 mm | C: 2380 kN | C0: 5700 kN | Limiting speed: 630 r/min
NNCL 4976 CV d: 380 mm | D: 520 mm | B: 140 mm | C: 2380 kN | C0: 5700 kN | Limiting speed: 630 r/min
NNCF 5076 CV d: 380 mm | D: 560 mm | B: 243 mm | C: 4680 kN | C0: 9150 kN | Limiting speed: 600 r/min
NNCF 4880 CV d: 400 mm | D: 500 mm | B: 100 mm | C: 1420 kN | C0: 3750 kN | Limiting speed: 630 r/min
NNC 4880 CV d: 400 mm | D: 500 mm | B: 100 mm | C: 1420 kN | C0: 3750 kN | Limiting speed: 630 r/min
NNCL 4880 CV d: 400 mm | D: 500 mm | B: 100 mm | C: 1420 kN | C0: 3750 kN | Limiting speed: 630 r/min
NNCF 4980 CV d: 400 mm | D: 540 mm | B: 140 mm | C: 2420 kN | C0: 6000 kN | Limiting speed: 600 r/min
NNC 4980 CV d: 400 mm | D: 540 mm | B: 140 mm | C: 2420 kN | C0: 6000 kN | Limiting speed: 600 r/min
NNCL 4980 CV d: 400 mm | D: 540 mm | B: 140 mm | C: 2420 kN | C0: 6000 kN | Limiting speed: 600 r/min
NNCF 5080 CV d: 400 mm | D: 600 mm | B: 272 mm | C: 5500 kN | C0: 11000 kN | Limiting speed: 560 r/min
Cylindrical Roller BearingsSKF
159 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF NNCF/NNC/NNCL Double Row Full Complement Cylindrical Roller Brg

Brand SKF·Cylindrical Roller Bearings

Available part numbers (159)

NNCF 5004 CV, NNCF 5005 CV, NNCF 5006 CV, NNCF 5007 CV, NNCF 5008 CV, NNCF 5009 CV, NNCF 5010 CV, NNCF 5011 CV, NNCF 4912 CV, NNC 4912 CV + 149 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NNCF 5004 CVd: 20 mm | D: 42 mm | B: 30 mm | C: 52.3 kN | C0: 57 kN | Limiting speed: 10000 r/min
NNCF 5005 CVd: 25 mm | D: 47 mm | B: 30 mm | C: 59.4 kN | C0: 71 kN | Limiting speed: 9000 r/min
NNCF 5006 CVd: 30 mm | D: 55 mm | B: 34 mm | C: 73.7 kN | C0: 88 kN | Limiting speed: 7500 r/min
NNCF 5007 CVd: 35 mm | D: 62 mm | B: 36 mm | C: 89.7 kN | C0: 112 kN | Limiting speed: 6700 r/min
NNCF 5008 CVd: 40 mm | D: 68 mm | B: 38 mm | C: 106 kN | C0: 140 kN | Limiting speed: 6000 r/min
NNCF 5009 CVd: 45 mm | D: 75 mm | B: 40 mm | C: 112 kN | C0: 156 kN | Limiting speed: 5300 r/min
NNCF 5010 CVd: 50 mm | D: 80 mm | B: 40 mm | C: 142 kN | C0: 196 kN | Limiting speed: 5000 r/min
NNCF 5011 CVd: 55 mm | D: 90 mm | B: 46 mm | C: 190 kN | C0: 280 kN | Limiting speed: 4300 r/min
NNCF 4912 CVd: 60 mm | D: 85 mm | B: 25 mm | C: 78.1 kN | C0: 137 kN | Limiting speed: 4500 r/min
NNC 4912 CVd: 60 mm | D: 85 mm | B: 25 mm | C: 78.1 kN | C0: 137 kN | Limiting speed: 4500 r/min
NNCL 4912 CVd: 60 mm | D: 85 mm | B: 25 mm | C: 78.1 kN | C0: 137 kN | Limiting speed: 4500 r/min
NNCF 5012 CVd: 60 mm | D: 95 mm | B: 46 mm | C: 198 kN | C0: 300 kN | Limiting speed: 4000 r/min
NNCF 5013 CVd: 65 mm | D: 100 mm | B: 46 mm | C: 209 kN | C0: 325 kN | Limiting speed: 3800 r/min
NNCF 4914 CVd: 70 mm | D: 100 mm | B: 30 mm | C: 114 kN | C0: 193 kN | Limiting speed: 3800 r/min
NNC 4914 CVd: 70 mm | D: 100 mm | B: 30 mm | C: 114 kN | C0: 193 kN | Limiting speed: 3800 r/min
NNCL 4914 CVd: 70 mm | D: 100 mm | B: 30 mm | C: 114 kN | C0: 193 kN | Limiting speed: 3800 r/min
NNCF 5014 CVd: 70 mm | D: 110 mm | B: 54 mm | C: 238 kN | C0: 345 kN | Limiting speed: 3600 r/min
NNCF 5015 CVd: 75 mm | D: 115 mm | B: 54 mm | C: 251 kN | C0: 380 kN | Limiting speed: 3200 r/min
NNCF 4916 CVd: 80 mm | D: 110 mm | B: 30 mm | C: 121 kN | C0: 216 kN | Limiting speed: 3400 r/min
NNC 4916 CVd: 80 mm | D: 110 mm | B: 30 mm | C: 121 kN | C0: 216 kN | Limiting speed: 3400 r/min
NNCL 4916 CVd: 80 mm | D: 110 mm | B: 30 mm | C: 121 kN | C0: 216 kN | Limiting speed: 3400 r/min
NNCF 5016 CVd: 80 mm | D: 125 mm | B: 60 mm | C: 308 kN | C0: 455 kN | Limiting speed: 3000 r/min
NNCF 5017 CVd: 85 mm | D: 130 mm | B: 60 mm | C: 314 kN | C0: 475 kN | Limiting speed: 3000 r/min
NNCF 4918 CVd: 90 mm | D: 125 mm | B: 35 mm | C: 161 kN | C0: 300 kN | Limiting speed: 3000 r/min
NNC 4918 CVd: 90 mm | D: 125 mm | B: 35 mm | C: 161 kN | C0: 300 kN | Limiting speed: 3000 r/min
NNCL 4918 CVd: 90 mm | D: 125 mm | B: 35 mm | C: 161 kN | C0: 300 kN | Limiting speed: 3000 r/min
NNCF 5018 CVd: 90 mm | D: 140 mm | B: 67 mm | C: 369 kN | C0: 560 kN | Limiting speed: 2800 r/min
NNCF 4920 CVd: 100 mm | D: 140 mm | B: 40 mm | C: 209 kN | C0: 400 kN | Limiting speed: 2600 r/min
NNC 4920 CVd: 100 mm | D: 140 mm | B: 40 mm | C: 209 kN | C0: 400 kN | Limiting speed: 2600 r/min
NNCL 4920 CVd: 100 mm | D: 140 mm | B: 40 mm | C: 209 kN | C0: 400 kN | Limiting speed: 2600 r/min
NNCF 5020 CVd: 100 mm | D: 150 mm | B: 67 mm | C: 391 kN | C0: 620 kN | Limiting speed: 2600 r/min
NNCF 4922 CVd: 110 mm | D: 150 mm | B: 40 mm | C: 220 kN | C0: 430 kN | Limiting speed: 2400 r/min
NNC 4922 CVd: 110 mm | D: 150 mm | B: 40 mm | C: 220 kN | C0: 430 kN | Limiting speed: 2400 r/min
NNCL 4922 CVd: 110 mm | D: 150 mm | B: 40 mm | C: 220 kN | C0: 430 kN | Limiting speed: 2400 r/min
NNCF 5022 CVd: 110 mm | D: 170 mm | B: 80 mm | C: 512 kN | C0: 800 kN | Limiting speed: 2200 r/min
NNCF 4924 CVd: 120 mm | D: 165 mm | B: 45 mm | C: 242 kN | C0: 480 kN | Limiting speed: 2200 r/min
NNC 4924 CVd: 120 mm | D: 165 mm | B: 45 mm | C: 242 kN | C0: 480 kN | Limiting speed: 2200 r/min
NNCL 4924 CVd: 120 mm | D: 165 mm | B: 45 mm | C: 242 kN | C0: 480 kN | Limiting speed: 2200 r/min
NNCF 5024 CVd: 120 mm | D: 180 mm | B: 80 mm | C: 539 kN | C0: 880 kN | Limiting speed: 2000 r/min
NNCF 4926 CVd: 130 mm | D: 180 mm | B: 50 mm | C: 275 kN | C0: 530 kN | Limiting speed: 2000 r/min
NNC 4926 CVd: 130 mm | D: 180 mm | B: 50 mm | C: 275 kN | C0: 530 kN | Limiting speed: 2000 r/min
NNCL 4926 CVd: 130 mm | D: 180 mm | B: 50 mm | C: 275 kN | C0: 530 kN | Limiting speed: 2000 r/min
NNCF 5026 CVd: 130 mm | D: 200 mm | B: 95 mm | C: 765 kN | C0: 1250 kN | Limiting speed: 1900 r/min
NNCF 4928 CVd: 140 mm | D: 190 mm | B: 50 mm | C: 286 kN | C0: 570 kN | Limiting speed: 1900 r/min
NNC 4928 CVd: 140 mm | D: 190 mm | B: 50 mm | C: 286 kN | C0: 570 kN | Limiting speed: 1900 r/min
NNCL 4928 CVd: 140 mm | D: 190 mm | B: 50 mm | C: 286 kN | C0: 570 kN | Limiting speed: 1900 r/min
NNCF 5028 CVd: 140 mm | D: 210 mm | B: 95 mm | C: 809 kN | C0: 1370 kN | Limiting speed: 1800 r/min
NNCF 4830 CVd: 150 mm | D: 190 mm | B: 40 mm | C: 255 kN | C0: 585 kN | Limiting speed: 1800 r/min
NNC 4830 CVd: 150 mm | D: 190 mm | B: 40 mm | C: 255 kN | C0: 585 kN | Limiting speed: 1800 r/min
NNCL 4830 CVd: 150 mm | D: 190 mm | B: 40 mm | C: 255 kN | C0: 585 kN | Limiting speed: 1800 r/min
NNCF 4930 CVd: 150 mm | D: 210 mm | B: 60 mm | C: 429 kN | C0: 830 kN | Limiting speed: 1700 r/min
NNC 4930 CVd: 150 mm | D: 210 mm | B: 60 mm | C: 429 kN | C0: 830 kN | Limiting speed: 1700 r/min
NNCL 4930 CVd: 150 mm | D: 210 mm | B: 60 mm | C: 429 kN | C0: 830 kN | Limiting speed: 1700 r/min
NNCF 5030 CVd: 150 mm | D: 225 mm | B: 100 mm | C: 842 kN | C0: 1430 kN | Limiting speed: 1700 r/min
NNCF 4832 CVd: 160 mm | D: 200 mm | B: 40 mm | C: 260 kN | C0: 610 kN | Limiting speed: 1700 r/min
NNC 4832 CVd: 160 mm | D: 200 mm | B: 40 mm | C: 260 kN | C0: 610 kN | Limiting speed: 1700 r/min
NNCL 4832 CVd: 160 mm | D: 200 mm | B: 40 mm | C: 260 kN | C0: 610 kN | Limiting speed: 1700 r/min
NNCF 4932 CVd: 160 mm | D: 220 mm | B: 60 mm | C: 446 kN | C0: 915 kN | Limiting speed: 1600 r/min
NNC 4932 CVd: 160 mm | D: 220 mm | B: 60 mm | C: 446 kN | C0: 915 kN | Limiting speed: 1600 r/min
NNCL 4932 CVd: 160 mm | D: 220 mm | B: 60 mm | C: 446 kN | C0: 915 kN | Limiting speed: 1600 r/min
NNCF 5032 CVd: 160 mm | D: 240 mm | B: 109 mm | C: 952 kN | C0: 1600 kN | Limiting speed: 1500 r/min
NNCF 4834 CVd: 170 mm | D: 215 mm | B: 45 mm | C: 286 kN | C0: 655 kN | Limiting speed: 1600 r/min
NNC 4834 CVd: 170 mm | D: 215 mm | B: 45 mm | C: 286 kN | C0: 655 kN | Limiting speed: 1600 r/min
NNCL 4834 CVd: 170 mm | D: 215 mm | B: 45 mm | C: 286 kN | C0: 655 kN | Limiting speed: 1600 r/min
NNCF 4934 CVd: 170 mm | D: 230 mm | B: 60 mm | C: 457 kN | C0: 950 kN | Limiting speed: 1500 r/min
NNC 4934 CVd: 170 mm | D: 230 mm | B: 60 mm | C: 457 kN | C0: 950 kN | Limiting speed: 1500 r/min
NNCL 4934 CVd: 170 mm | D: 230 mm | B: 60 mm | C: 457 kN | C0: 950 kN | Limiting speed: 1500 r/min
NNCF 5034 CVd: 170 mm | D: 260 mm | B: 122 mm | C: 1230 kN | C0: 2120 kN | Limiting speed: 1400 r/min
NNCF 4836 CVd: 180 mm | D: 225 mm | B: 45 mm | C: 297 kN | C0: 695 kN | Limiting speed: 1500 r/min
NNC 4836 CVd: 180 mm | D: 225 mm | B: 45 mm | C: 297 kN | C0: 695 kN | Limiting speed: 1500 r/min
NNCL 4836 CVd: 180 mm | D: 225 mm | B: 45 mm | C: 297 kN | C0: 695 kN | Limiting speed: 1500 r/min
NNCF 4936 CVd: 180 mm | D: 250 mm | B: 69 mm | C: 594 kN | C0: 1220 kN | Limiting speed: 1400 r/min
NNC 4936 CVd: 180 mm | D: 250 mm | B: 69 mm | C: 594 kN | C0: 1220 kN | Limiting speed: 1400 r/min
NNCL 4936 CVd: 180 mm | D: 250 mm | B: 69 mm | C: 594 kN | C0: 1220 kN | Limiting speed: 1400 r/min
NNCF 5036 CVd: 180 mm | D: 280 mm | B: 136 mm | C: 1420 kN | C0: 2500 kN | Limiting speed: 1300 r/min
NNCF 4838 CVd: 190 mm | D: 240 mm | B: 50 mm | C: 330 kN | C0: 750 kN | Limiting speed: 1400 r/min
NNC 4838 CVd: 190 mm | D: 240 mm | B: 50 mm | C: 330 kN | C0: 750 kN | Limiting speed: 1400 r/min
NNCL 4838 CVd: 190 mm | D: 240 mm | B: 50 mm | C: 330 kN | C0: 750 kN | Limiting speed: 1400 r/min
NNCF 4938 CVd: 190 mm | D: 260 mm | B: 69 mm | C: 605 kN | C0: 1290 kN | Limiting speed: 1400 r/min
NNC 4938 CVd: 190 mm | D: 260 mm | B: 69 mm | C: 605 kN | C0: 1290 kN | Limiting speed: 1400 r/min
NNCL 4938 CVd: 190 mm | D: 260 mm | B: 69 mm | C: 605 kN | C0: 1290 kN | Limiting speed: 1400 r/min
NNCF 5038 CVd: 190 mm | D: 290 mm | B: 136 mm | C: 1470 kN | C0: 2600 kN | Limiting speed: 1300 r/min
NNCF 4840 CVd: 200 mm | D: 250 mm | B: 50 mm | C: 336 kN | C0: 800 kN | Limiting speed: 1400 r/min
NNC 4840 CVd: 200 mm | D: 250 mm | B: 50 mm | C: 336 kN | C0: 800 kN | Limiting speed: 1400 r/min
NNCL 4840 CVd: 200 mm | D: 250 mm | B: 50 mm | C: 336 kN | C0: 800 kN | Limiting speed: 1400 r/min
NNCF 4940 CVd: 200 mm | D: 280 mm | B: 80 mm | C: 704 kN | C0: 1500 kN | Limiting speed: 1300 r/min
NNC 4940 CVd: 200 mm | D: 280 mm | B: 80 mm | C: 704 kN | C0: 1500 kN | Limiting speed: 1300 r/min
NNCL 4940 CVd: 200 mm | D: 280 mm | B: 80 mm | C: 704 kN | C0: 1500 kN | Limiting speed: 1300 r/min
NNCF 5040 CVd: 200 mm | D: 310 mm | B: 150 mm | C: 1680 kN | C0: 3050 kN | Limiting speed: 1200 r/min
NNCF 4844 CVd: 220 mm | D: 270 mm | B: 50 mm | C: 352 kN | C0: 865 kN | Limiting speed: 1200 r/min
NNC 4844 CVd: 220 mm | D: 270 mm | B: 50 mm | C: 352 kN | C0: 865 kN | Limiting speed: 1200 r/min
NNCL 4844 CVd: 220 mm | D: 270 mm | B: 50 mm | C: 352 kN | C0: 865 kN | Limiting speed: 1200 r/min
NNCF 4944 CVd: 220 mm | D: 300 mm | B: 80 mm | C: 737 kN | C0: 1600 kN | Limiting speed: 1200 r/min
NNC 4944 CVd: 220 mm | D: 300 mm | B: 80 mm | C: 737 kN | C0: 1600 kN | Limiting speed: 1200 r/min
NNCL 4944 CVd: 220 mm | D: 300 mm | B: 80 mm | C: 737 kN | C0: 1600 kN | Limiting speed: 1200 r/min
NNCF 5044 CVd: 220 mm | D: 340 mm | B: 160 mm | C: 2010 kN | C0: 3600 kN | Limiting speed: 1100 r/min
NNCF 4848 CVd: 240 mm | D: 300 mm | B: 60 mm | C: 539 kN | C0: 1290 kN | Limiting speed: 1100 r/min
NNC 4848 CVd: 240 mm | D: 300 mm | B: 60 mm | C: 539 kN | C0: 1290 kN | Limiting speed: 1100 r/min
NNCL 4848 CVd: 240 mm | D: 300 mm | B: 60 mm | C: 539 kN | C0: 1290 kN | Limiting speed: 1100 r/min
NNCF 4948 CVd: 240 mm | D: 320 mm | B: 80 mm | C: 781 kN | C0: 1760 kN | Limiting speed: 1100 r/min
NNC 4948 CVd: 240 mm | D: 320 mm | B: 80 mm | C: 781 kN | C0: 1760 kN | Limiting speed: 1100 r/min
NNCL 4948 CVd: 240 mm | D: 320 mm | B: 80 mm | C: 781 kN | C0: 1760 kN | Limiting speed: 1100 r/min
NNCF 5048 CVd: 240 mm | D: 360 mm | B: 160 mm | C: 2120 kN | C0: 3900 kN | Limiting speed: 1000 r/min
NNCF 4852 CVd: 260 mm | D: 320 mm | B: 60 mm | C: 561 kN | C0: 1400 kN | Limiting speed: 1000 r/min
NNC 4852 CVd: 260 mm | D: 320 mm | B: 60 mm | C: 561 kN | C0: 1400 kN | Limiting speed: 1000 r/min
NNCL 4852 CVd: 260 mm | D: 320 mm | B: 60 mm | C: 561 kN | C0: 1400 kN | Limiting speed: 1000 r/min
NNCF 4952 CVd: 260 mm | D: 360 mm | B: 100 mm | C: 1170 kN | C0: 2550 kN | Limiting speed: 950 r/min
NNC 4952 CVd: 260 mm | D: 360 mm | B: 100 mm | C: 1170 kN | C0: 2550 kN | Limiting speed: 950 r/min
NNCL 4952 CVd: 260 mm | D: 360 mm | B: 100 mm | C: 1170 kN | C0: 2550 kN | Limiting speed: 950 r/min
NNCF 5052 CVd: 260 mm | D: 400 mm | B: 190 mm | C: 2860 kN | C0: 5100 kN | Limiting speed: 900 r/min
NNCF 4856 CVd: 280 mm | D: 350 mm | B: 69 mm | C: 737 kN | C0: 1860 kN | Limiting speed: 950 r/min
NNC 4856 CVd: 280 mm | D: 350 mm | B: 69 mm | C: 737 kN | C0: 1860 kN | Limiting speed: 950 r/min
NNCL 4856 CVd: 280 mm | D: 350 mm | B: 69 mm | C: 737 kN | C0: 1860 kN | Limiting speed: 950 r/min
NNCF 4956 CVd: 280 mm | D: 380 mm | B: 100 mm | C: 1210 kN | C0: 2700 kN | Limiting speed: 900 r/min
NNC 4956 CVd: 280 mm | D: 380 mm | B: 100 mm | C: 1210 kN | C0: 2700 kN | Limiting speed: 900 r/min
NNCL 4956 CVd: 280 mm | D: 380 mm | B: 100 mm | C: 1210 kN | C0: 2700 kN | Limiting speed: 900 r/min
NNCF 5056 CVd: 280 mm | D: 420 mm | B: 190 mm | C: 2920 kN | C0: 5300 kN | Limiting speed: 850 r/min
NNCF 4860 CVd: 300 mm | D: 380 mm | B: 80 mm | C: 858 kN | C0: 2120 kN | Limiting speed: 850 r/min
NNC 4860 CVd: 300 mm | D: 380 mm | B: 80 mm | C: 858 kN | C0: 2120 kN | Limiting speed: 850 r/min
NNCL 4860 CVd: 300 mm | D: 380 mm | B: 80 mm | C: 858 kN | C0: 2120 kN | Limiting speed: 850 r/min
NNCF 4960 CVd: 300 mm | D: 420 mm | B: 118 mm | C: 1680 kN | C0: 3750 kN | Limiting speed: 800 r/min
NNC 4960 CVd: 300 mm | D: 420 mm | B: 118 mm | C: 1680 kN | C0: 3750 kN | Limiting speed: 800 r/min
NNCL 4960 CVd: 300 mm | D: 420 mm | B: 118 mm | C: 1680 kN | C0: 3750 kN | Limiting speed: 800 r/min
NNCF 5060 CVd: 300 mm | D: 460 mm | B: 218 mm | C: 3250 kN | C0: 6550 kN | Limiting speed: 750 r/min
NNCF 4864 CVd: 320 mm | D: 400 mm | B: 80 mm | C: 897 kN | C0: 2280 kN | Limiting speed: 800 r/min
NNC 4864 CVd: 320 mm | D: 400 mm | B: 80 mm | C: 897 kN | C0: 2280 kN | Limiting speed: 800 r/min
NNCL 4864 CVd: 320 mm | D: 400 mm | B: 80 mm | C: 897 kN | C0: 2280 kN | Limiting speed: 800 r/min
NNCF 4964 CVd: 320 mm | D: 440 mm | B: 118 mm | C: 1760 kN | C0: 4050 kN | Limiting speed: 750 r/min
NNC 4964 CVd: 320 mm | D: 440 mm | B: 118 mm | C: 1760 kN | C0: 4050 kN | Limiting speed: 750 r/min
NNCL 4964 CVd: 320 mm | D: 440 mm | B: 118 mm | C: 1760 kN | C0: 4050 kN | Limiting speed: 750 r/min
NNCF 5064 CVd: 320 mm | D: 480 mm | B: 218 mm | C: 3690 kN | C0: 6950 kN | Limiting speed: 700 r/min
NNCF 4868 CVd: 340 mm | D: 420 mm | B: 80 mm | C: 913 kN | C0: 2400 kN | Limiting speed: 750 r/min
NNC 4868 CVd: 340 mm | D: 420 mm | B: 80 mm | C: 913 kN | C0: 2400 kN | Limiting speed: 750 r/min
NNCL 4868 CVd: 340 mm | D: 420 mm | B: 80 mm | C: 913 kN | C0: 2400 kN | Limiting speed: 750 r/min
NNCF 4968 CVd: 340 mm | D: 460 mm | B: 118 mm | C: 1790 kN | C0: 4250 kN | Limiting speed: 700 r/min
NNC 4968 CVd: 340 mm | D: 460 mm | B: 118 mm | C: 1790 kN | C0: 4250 kN | Limiting speed: 700 r/min
NNCL 4968 CVd: 340 mm | D: 460 mm | B: 118 mm | C: 1790 kN | C0: 4250 kN | Limiting speed: 700 r/min
NNCF 5068 CVd: 340 mm | D: 520 mm | B: 243 mm | C: 4400 kN | C0: 8300 kN | Limiting speed: 670 r/min
NNCF 4872 CVd: 360 mm | D: 440 mm | B: 80 mm | C: 935 kN | C0: 2550 kN | Limiting speed: 700 r/min
NNC 4872 CVd: 360 mm | D: 440 mm | B: 80 mm | C: 935 kN | C0: 2550 kN | Limiting speed: 700 r/min
NNCL 4872 CVd: 360 mm | D: 440 mm | B: 80 mm | C: 935 kN | C0: 2550 kN | Limiting speed: 700 r/min
NNCF 4972 CVd: 360 mm | D: 480 mm | B: 118 mm | C: 1830 kN | C0: 4500 kN | Limiting speed: 670 r/min
NNC 4972 CVd: 360 mm | D: 480 mm | B: 118 mm | C: 1830 kN | C0: 4500 kN | Limiting speed: 670 r/min
NNCL 4972 CVd: 360 mm | D: 480 mm | B: 118 mm | C: 1830 kN | C0: 4500 kN | Limiting speed: 670 r/min
NNCF 5072 CVd: 360 mm | D: 540 mm | B: 243 mm | C: 4460 kN | C0: 8650 kN | Limiting speed: 630 r/min
NNCF 4876 CVd: 380 mm | D: 480 mm | B: 100 mm | C: 1400 kN | C0: 3650 kN | Limiting speed: 670 r/min
NNC 4876 CVd: 380 mm | D: 480 mm | B: 100 mm | C: 1400 kN | C0: 3650 kN | Limiting speed: 670 r/min
NNCL 4876 CVd: 380 mm | D: 480 mm | B: 100 mm | C: 1400 kN | C0: 3650 kN | Limiting speed: 670 r/min
NNCF 4976 CVd: 380 mm | D: 520 mm | B: 140 mm | C: 2380 kN | C0: 5700 kN | Limiting speed: 630 r/min
NNC 4976 CVd: 380 mm | D: 520 mm | B: 140 mm | C: 2380 kN | C0: 5700 kN | Limiting speed: 630 r/min
NNCL 4976 CVd: 380 mm | D: 520 mm | B: 140 mm | C: 2380 kN | C0: 5700 kN | Limiting speed: 630 r/min
NNCF 5076 CVd: 380 mm | D: 560 mm | B: 243 mm | C: 4680 kN | C0: 9150 kN | Limiting speed: 600 r/min
NNCF 4880 CVd: 400 mm | D: 500 mm | B: 100 mm | C: 1420 kN | C0: 3750 kN | Limiting speed: 630 r/min
NNC 4880 CVd: 400 mm | D: 500 mm | B: 100 mm | C: 1420 kN | C0: 3750 kN | Limiting speed: 630 r/min
NNCL 4880 CVd: 400 mm | D: 500 mm | B: 100 mm | C: 1420 kN | C0: 3750 kN | Limiting speed: 630 r/min
NNCF 4980 CVd: 400 mm | D: 540 mm | B: 140 mm | C: 2420 kN | C0: 6000 kN | Limiting speed: 600 r/min
NNC 4980 CVd: 400 mm | D: 540 mm | B: 140 mm | C: 2420 kN | C0: 6000 kN | Limiting speed: 600 r/min
NNCL 4980 CVd: 400 mm | D: 540 mm | B: 140 mm | C: 2420 kN | C0: 6000 kN | Limiting speed: 600 r/min
NNCF 5080 CVd: 400 mm | D: 600 mm | B: 272 mm | C: 5500 kN | C0: 11000 kN | Limiting speed: 560 r/min

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
