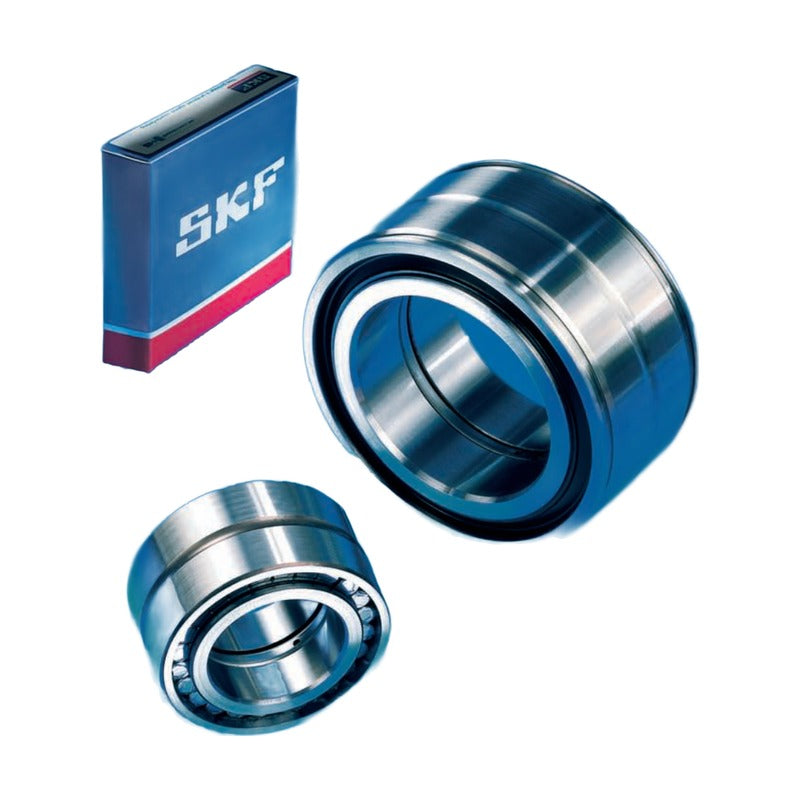

SKF NNF Sealed Double Row Full Complement Cylindrical Roller Bearings

SKF NNF Sealed Double Row Full Complement Cylindrical Roller Bearings

SKF sealed double row full complement cylindrical roller bearings (NNF 50 series and 3194 series) with contact seals on both sides, greased for life. Bore diameters 20-240 mm.

Key features

  • Contact seals on both sides (2LS / 2LSV), filled with grease
  • Outer ring with snap ring grooves for simple axial location
  • Full complement roller set for high radial loads
  • Designed for rope sheaves, crane wheels and similar slow-speed applications

Specifications

Bearing type Sealed double row full complement cylindrical roller bearing
Seals 2LS / 2LSV, both sides
Bore range d 20-240 mm
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 596-598
NNF 5004 ADA-2LSV d: 20 mm | D: 42 mm | B: 30 mm | C: 44 kN | C0: 52 kN | Limiting speed: 3600 r/min
NNF 5005 ADA-2LSV d: 25 mm | D: 47 mm | B: 30 mm | C: 48.4 kN | C0: 62 kN | Limiting speed: 3000 r/min
NNF 5006 ADA-2LSV d: 30 mm | D: 55 mm | B: 34 mm | C: 57.2 kN | C0: 75 kN | Limiting speed: 2600 r/min
NNF 5007 ADA-2LSV d: 35 mm | D: 62 mm | B: 36 mm | C: 70.4 kN | C0: 91.5 kN | Limiting speed: 2200 r/min
NNF 5008 ADA-2LSV d: 40 mm | D: 68 mm | B: 38 mm | C: 85.8 kN | C0: 116 kN | Limiting speed: 2000 r/min
NNF 5009 ADA-2LSV d: 45 mm | D: 75 mm | B: 40 mm | C: 102 kN | C0: 146 kN | Limiting speed: 1800 r/min
NNF 5010 ADA-2LSV d: 50 mm | D: 80 mm | B: 40 mm | C: 108 kN | C0: 160 kN | Limiting speed: 1700 r/min
NNF 5011 ADA-2LSV d: 55 mm | D: 90 mm | B: 46 mm | C: 128 kN | C0: 193 kN | Limiting speed: 1500 r/min
NNF 5012 ADA-2LSV d: 60 mm | D: 95 mm | B: 46 mm | C: 134 kN | C0: 208 kN | Limiting speed: 1400 r/min
NNF 5013 ADA-2LSV d: 65 mm | D: 100 mm | B: 46 mm | C: 138 kN | C0: 224 kN | Limiting speed: 1300 r/min
NNF 5014 ADA-2LSV d: 70 mm | D: 110 mm | B: 54 mm | C: 205 kN | C0: 325 kN | Limiting speed: 1200 r/min
NNF 5015 ADA-2LSV d: 75 mm | D: 115 mm | B: 54 mm | C: 216 kN | C0: 355 kN | Limiting speed: 1100 r/min
NNF 5016 ADA-2LSV d: 80 mm | D: 125 mm | B: 60 mm | C: 251 kN | C0: 415 kN | Limiting speed: 1000 r/min
NNF 5017 ADA-2LSV d: 85 mm | D: 130 mm | B: 60 mm | C: 270 kN | C0: 430 kN | Limiting speed: 1000 r/min
NNF 5018 ADA-2LSV d: 90 mm | D: 140 mm | B: 67 mm | C: 319 kN | C0: 550 kN | Limiting speed: 900 r/min
NNF 5019 ADA-2LSV d: 95 mm | D: 145 mm | B: 67 mm | C: 330 kN | C0: 570 kN | Limiting speed: 900 r/min
NNF 5020 ADA-2LSV d: 100 mm | D: 150 mm | B: 67 mm | C: 336 kN | C0: 570 kN | Limiting speed: 850 r/min
NNF 5022 ADA-2LSV d: 110 mm | D: 170 mm | B: 80 mm | C: 413 kN | C0: 695 kN | Limiting speed: 750 r/min
NNF 5024 ADA-2LSV d: 120 mm | D: 180 mm | B: 80 mm | C: 429 kN | C0: 750 kN | Limiting speed: 700 r/min
319426 DA-2LS d: 130 mm | D: 190 mm | B: 80 mm | C: 446 kN | C0: 815 kN | Limiting speed: 670 r/min
NNF 5026 ADA-2LSV d: 130 mm | D: 200 mm | B: 95 mm | C: 616 kN | C0: 1040 kN | Limiting speed: 630 r/min
319428 DA-2LS d: 140 mm | D: 200 mm | B: 80 mm | C: 468 kN | C0: 865 kN | Limiting speed: 630 r/min
NNF 5028 ADA-2LSV d: 140 mm | D: 210 mm | B: 95 mm | C: 644 kN | C0: 1120 kN | Limiting speed: 600 r/min
319430 DA-2LS d: 150 mm | D: 210 mm | B: 80 mm | C: 468 kN | C0: 900 kN | Limiting speed: 560 r/min
NNF 5030 ADA-2LSV d: 150 mm | D: 225 mm | B: 100 mm | C: 748 kN | C0: 1290 kN | Limiting speed: 560 r/min
319432 DA-2LS d: 160 mm | D: 220 mm | B: 80 mm | C: 501 kN | C0: 1000 kN | Limiting speed: 530 r/min
NNF 5032 ADA-2LSV d: 160 mm | D: 240 mm | B: 109 mm | C: 781 kN | C0: 1400 kN | Limiting speed: 500 r/min
319434 DA-2LS d: 170 mm | D: 230 mm | B: 80 mm | C: 512 kN | C0: 1060 kN | Limiting speed: 530 r/min
NNF 5034 ADA-2LSV d: 170 mm | D: 260 mm | B: 122 mm | C: 1010 kN | C0: 1800 kN | Limiting speed: 480 r/min
319436 DA-2LS d: 180 mm | D: 240 mm | B: 80 mm | C: 528 kN | C0: 1100 kN | Limiting speed: 500 r/min
NNF 5036 ADA-2LSV d: 180 mm | D: 280 mm | B: 136 mm | C: 1170 kN | C0: 2120 kN | Limiting speed: 450 r/min
319438 DA-2LS d: 190 mm | D: 260 mm | B: 80 mm | C: 550 kN | C0: 1180 kN | Limiting speed: 450 r/min
NNF 5038 ADA-2LSV d: 190 mm | D: 290 mm | B: 136 mm | C: 1190 kN | C0: 2200 kN | Limiting speed: 430 r/min
319440 DA-2LS d: 200 mm | D: 270 mm | B: 80 mm | C: 561 kN | C0: 1250 kN | Limiting speed: 430 r/min
NNF 5040 ADA-2LSV d: 200 mm | D: 310 mm | B: 150 mm | C: 1450 kN | C0: 2900 kN | Limiting speed: 400 r/min
NNF 5044 ADA-2LSV d: 220 mm | D: 340 mm | B: 160 mm | C: 1610 kN | C0: 3100 kN | Limiting speed: 360 r/min
NNF 5048 ADA-2LSV d: 240 mm | D: 360 mm | B: 160 mm | C: 1680 kN | C0: 3350 kN | Limiting speed: 340 r/min
Cylindrical Roller BearingsSKF
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF NNF Sealed Double Row Full Complement Cylindrical Roller Bearings

Brand SKF·Cylindrical Roller Bearings

Available part numbers (37)

NNF 5004 ADA-2LSV, NNF 5005 ADA-2LSV, NNF 5006 ADA-2LSV, NNF 5007 ADA-2LSV, NNF 5008 ADA-2LSV, NNF 5009 ADA-2LSV, NNF 5010 ADA-2LSV, NNF 5011 ADA-2LSV, NNF 5012 ADA-2LSV, NNF 5013 ADA-2LSV + 27 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NNF 5004 ADA-2LSVd: 20 mm | D: 42 mm | B: 30 mm | C: 44 kN | C0: 52 kN | Limiting speed: 3600 r/min
NNF 5005 ADA-2LSVd: 25 mm | D: 47 mm | B: 30 mm | C: 48.4 kN | C0: 62 kN | Limiting speed: 3000 r/min
NNF 5006 ADA-2LSVd: 30 mm | D: 55 mm | B: 34 mm | C: 57.2 kN | C0: 75 kN | Limiting speed: 2600 r/min
NNF 5007 ADA-2LSVd: 35 mm | D: 62 mm | B: 36 mm | C: 70.4 kN | C0: 91.5 kN | Limiting speed: 2200 r/min
NNF 5008 ADA-2LSVd: 40 mm | D: 68 mm | B: 38 mm | C: 85.8 kN | C0: 116 kN | Limiting speed: 2000 r/min
NNF 5009 ADA-2LSVd: 45 mm | D: 75 mm | B: 40 mm | C: 102 kN | C0: 146 kN | Limiting speed: 1800 r/min
NNF 5010 ADA-2LSVd: 50 mm | D: 80 mm | B: 40 mm | C: 108 kN | C0: 160 kN | Limiting speed: 1700 r/min
NNF 5011 ADA-2LSVd: 55 mm | D: 90 mm | B: 46 mm | C: 128 kN | C0: 193 kN | Limiting speed: 1500 r/min
NNF 5012 ADA-2LSVd: 60 mm | D: 95 mm | B: 46 mm | C: 134 kN | C0: 208 kN | Limiting speed: 1400 r/min
NNF 5013 ADA-2LSVd: 65 mm | D: 100 mm | B: 46 mm | C: 138 kN | C0: 224 kN | Limiting speed: 1300 r/min
NNF 5014 ADA-2LSVd: 70 mm | D: 110 mm | B: 54 mm | C: 205 kN | C0: 325 kN | Limiting speed: 1200 r/min
NNF 5015 ADA-2LSVd: 75 mm | D: 115 mm | B: 54 mm | C: 216 kN | C0: 355 kN | Limiting speed: 1100 r/min
NNF 5016 ADA-2LSVd: 80 mm | D: 125 mm | B: 60 mm | C: 251 kN | C0: 415 kN | Limiting speed: 1000 r/min
NNF 5017 ADA-2LSVd: 85 mm | D: 130 mm | B: 60 mm | C: 270 kN | C0: 430 kN | Limiting speed: 1000 r/min
NNF 5018 ADA-2LSVd: 90 mm | D: 140 mm | B: 67 mm | C: 319 kN | C0: 550 kN | Limiting speed: 900 r/min
NNF 5019 ADA-2LSVd: 95 mm | D: 145 mm | B: 67 mm | C: 330 kN | C0: 570 kN | Limiting speed: 900 r/min
NNF 5020 ADA-2LSVd: 100 mm | D: 150 mm | B: 67 mm | C: 336 kN | C0: 570 kN | Limiting speed: 850 r/min
NNF 5022 ADA-2LSVd: 110 mm | D: 170 mm | B: 80 mm | C: 413 kN | C0: 695 kN | Limiting speed: 750 r/min
NNF 5024 ADA-2LSVd: 120 mm | D: 180 mm | B: 80 mm | C: 429 kN | C0: 750 kN | Limiting speed: 700 r/min
319426 DA-2LSd: 130 mm | D: 190 mm | B: 80 mm | C: 446 kN | C0: 815 kN | Limiting speed: 670 r/min
NNF 5026 ADA-2LSVd: 130 mm | D: 200 mm | B: 95 mm | C: 616 kN | C0: 1040 kN | Limiting speed: 630 r/min
319428 DA-2LSd: 140 mm | D: 200 mm | B: 80 mm | C: 468 kN | C0: 865 kN | Limiting speed: 630 r/min
NNF 5028 ADA-2LSVd: 140 mm | D: 210 mm | B: 95 mm | C: 644 kN | C0: 1120 kN | Limiting speed: 600 r/min
319430 DA-2LSd: 150 mm | D: 210 mm | B: 80 mm | C: 468 kN | C0: 900 kN | Limiting speed: 560 r/min
NNF 5030 ADA-2LSVd: 150 mm | D: 225 mm | B: 100 mm | C: 748 kN | C0: 1290 kN | Limiting speed: 560 r/min
319432 DA-2LSd: 160 mm | D: 220 mm | B: 80 mm | C: 501 kN | C0: 1000 kN | Limiting speed: 530 r/min
NNF 5032 ADA-2LSVd: 160 mm | D: 240 mm | B: 109 mm | C: 781 kN | C0: 1400 kN | Limiting speed: 500 r/min
319434 DA-2LSd: 170 mm | D: 230 mm | B: 80 mm | C: 512 kN | C0: 1060 kN | Limiting speed: 530 r/min
NNF 5034 ADA-2LSVd: 170 mm | D: 260 mm | B: 122 mm | C: 1010 kN | C0: 1800 kN | Limiting speed: 480 r/min
319436 DA-2LSd: 180 mm | D: 240 mm | B: 80 mm | C: 528 kN | C0: 1100 kN | Limiting speed: 500 r/min
NNF 5036 ADA-2LSVd: 180 mm | D: 280 mm | B: 136 mm | C: 1170 kN | C0: 2120 kN | Limiting speed: 450 r/min
319438 DA-2LSd: 190 mm | D: 260 mm | B: 80 mm | C: 550 kN | C0: 1180 kN | Limiting speed: 450 r/min
NNF 5038 ADA-2LSVd: 190 mm | D: 290 mm | B: 136 mm | C: 1190 kN | C0: 2200 kN | Limiting speed: 430 r/min
319440 DA-2LSd: 200 mm | D: 270 mm | B: 80 mm | C: 561 kN | C0: 1250 kN | Limiting speed: 430 r/min
NNF 5040 ADA-2LSVd: 200 mm | D: 310 mm | B: 150 mm | C: 1450 kN | C0: 2900 kN | Limiting speed: 400 r/min
NNF 5044 ADA-2LSVd: 220 mm | D: 340 mm | B: 160 mm | C: 1610 kN | C0: 3100 kN | Limiting speed: 360 r/min
NNF 5048 ADA-2LSVd: 240 mm | D: 360 mm | B: 160 mm | C: 1680 kN | C0: 3350 kN | Limiting speed: 340 r/min
