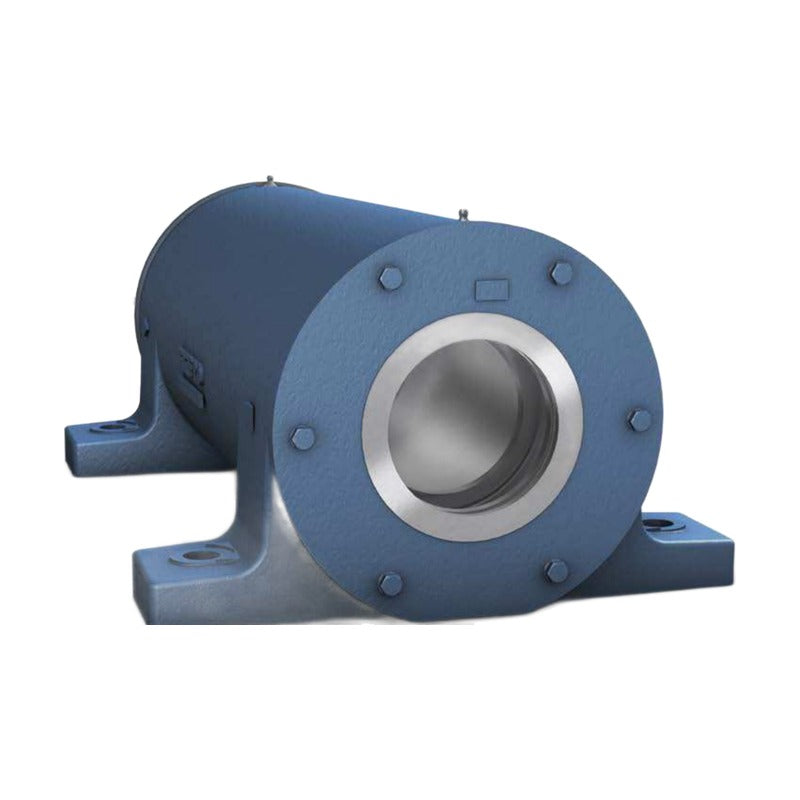

SKF PD Series Two-Bearing Housings and Units (PDN, PDP, PDR)

SKF PD Series Two-Bearing Housings and Units (PDN, PDP, PDR)

SKF PD two-bearing housings (PDN, PDP, PDR) and complete two-bearing units (PDNB, PDPF, PDRJ) with shaft and bearings, typically used for fans and blowers.

Key features

  • Housing carries two bearings in one rigid cast body
  • PDN for deep groove ball bearings, PDP for angular contact + cylindrical roller, PDR for cylindrical roller bearings
  • Complete units (PDNB, PDPF, PDRJ) supplied with shaft, bearings and seals
  • V-ring and felt strip seals
  • Grease or oil lubrication options

Specifications

Series PDN, PDP, PDR
Housing type Two-bearing housing
Units PDNB, PDPF, PDRJ (complete with shaft)
Typical application Fans, blowers, pumps
Brand SKF
Source SKF Bearing housings and roller bearing units, p. 572-579
PDN 305 Shaft: 25 mm | Bore Da: 62 mm | Centre height H1: 50 mm | Length L: 155 mm | Mass: 5.1 kg | Supply: Housing only
PDN 206 Shaft: 30 mm | Bore Da: 62 mm | Centre height H1: 50 mm | Length L: 155 mm | Mass: 5.1 kg | Supply: Housing only
PDN 306 Shaft: 30 mm | Bore Da: 72 mm | Centre height H1: 50 mm | Length L: 160 mm | Mass: 6.5 kg | Supply: Housing only
PDN 207 Shaft: 35 mm | Bore Da: 72 mm | Centre height H1: 50 mm | Length L: 160 mm | Mass: 6.5 kg | Supply: Housing only
PDN 307 Shaft: 35 mm | Bore Da: 80 mm | Centre height H1: 60 mm | Length L: 190 mm | Mass: 9.1 kg | Supply: Housing only
PDN 208 Shaft: 40 mm | Bore Da: 80 mm | Centre height H1: 60 mm | Length L: 190 mm | Mass: 9.3 kg | Supply: Housing only
PDN 308 Shaft: 40 mm | Bore Da: 90 mm | Centre height H1: 60 mm | Length L: 190 mm | Mass: 12.5 kg | Supply: Housing only
PDN 309 Shaft: 45 mm | Bore Da: 100 mm | Centre height H1: 70 mm | Length L: 210 mm | Mass: 15 kg | Supply: Housing only
PDN 210 Shaft: 50 mm | Bore Da: 90 mm | Centre height H1: 60 mm | Length L: 190 mm | Mass: 12.5 kg | Supply: Housing only
PDN 310 Shaft: 50 mm | Bore Da: 110 mm | Centre height H1: 70 mm | Length L: 210 mm | Mass: 18 kg | Supply: Housing only
PDN 211 Shaft: 55 mm | Bore Da: 100 mm | Centre height H1: 70 mm | Length L: 210 mm | Mass: 15 kg | Supply: Housing only
PDN 311 Shaft: 55 mm | Bore Da: 120 mm | Centre height H1: 80 mm | Length L: 260 mm | Mass: 23 kg | Supply: Housing only
PDN 212 Shaft: 60 mm | Bore Da: 110 mm | Centre height H1: 70 mm | Length L: 210 mm | Mass: 18 kg | Supply: Housing only
PDN 312 Shaft: 60 mm | Bore Da: 130 mm | Centre height H1: 80 mm | Length L: 260 mm | Mass: 32.5 kg | Supply: Housing only
PDN 313 Shaft: 65 mm | Bore Da: 140 mm | Centre height H1: 95 mm | Length L: 280 mm | Mass: 32 kg | Supply: Housing only
PDN 214 Shaft: 70 mm | Bore Da: 125 mm | Centre height H1: 80 mm | Length L: 260 mm | Mass: 34.5 kg | Supply: Housing only
PDN 314 Shaft: 70 mm | Bore Da: 150 mm | Centre height H1: 95 mm | Length L: 290 mm | Mass: 38 kg | Supply: Housing only
PDN 215 Shaft: 75 mm | Bore Da: 130 mm | Centre height H1: 80 mm | Length L: 260 mm | Mass: 32 kg | Supply: Housing only
PDN 315 Shaft: 75 mm | Bore Da: 160 mm | Centre height H1: 100 mm | Length L: 320 mm | Mass: 43.5 kg | Supply: Housing only
PDN 216 Shaft: 80 mm | Bore Da: 140 mm | Centre height H1: 95 mm | Length L: 280 mm | Mass: 31 kg | Supply: Housing only
PDN 316 Shaft: 80 mm | Bore Da: 170 mm | Centre height H1: 112 mm | Length L: 320 mm | Mass: 49.5 kg | Supply: Housing only
PDN 317 Shaft: 85 mm | Bore Da: 180 mm | Centre height H1: 112 mm | Length L: 350 mm | Mass: 61 kg | Supply: Housing only
PDN 218 Shaft: 90 mm | Bore Da: 160 mm | Centre height H1: 100 mm | Length L: 320 mm | Mass: 42.5 kg | Supply: Housing only
PDN 318 Shaft: 90 mm | Bore Da: 190 mm | Centre height H1: 112 mm | Length L: 350 mm | Mass: 71 kg | Supply: Housing only
PDN 319 Shaft: 95 mm | Bore Da: 200 mm | Centre height H1: 125 mm | Length L: 400 mm | Mass: 82.5 kg | Supply: Housing only
PDN 220 Shaft: 100 mm | Bore Da: 180 mm | Centre height H1: 112 mm | Length L: 350 mm | Mass: 60 kg | Supply: Housing only
PDN 320 Shaft: 100 mm | Bore Da: 215 mm | Centre height H1: 130 mm | Length L: 400 mm | Mass: 92.5 kg | Supply: Housing only
PDN 222 Shaft: 110 mm | Bore Da: 200 mm | Centre height H1: 125 mm | Length L: 400 mm | Mass: 81 kg | Supply: Housing only
PDN 322 Shaft: 110 mm | Bore Da: 240 mm | Centre height H1: 150 mm | Length L: 450 mm | Mass: 115 kg | Supply: Housing only
PDN 224 Shaft: 120 mm | Bore Da: 215 mm | Centre height H1: 130 mm | Length L: 400 mm | Mass: 90 kg | Supply: Housing only
PDN 324 Shaft: 120 mm | Bore Da: 260 mm | Centre height H1: 160 mm | Length L: 500 mm | Mass: 135 kg | Supply: Housing only
PDP 214 Shaft: 70 mm | Bore Da: 125 mm | Centre height H1: 80 mm | Length L: 260 mm | Mass: 35 kg | Supply: Housing only
PDP 216 Shaft: 80 mm | Bore Da: 140 mm | Centre height H1: 95 mm | Length L: 280 mm | Mass: 32 kg | Supply: Housing only
PDP 218 Shaft: 90 mm | Bore Da: 160 mm | Centre height H1: 100 mm | Length L: 320 mm | Mass: 43.5 kg | Supply: Housing only
PDP 220 Shaft: 100 mm | Bore Da: 180 mm | Centre height H1: 112 mm | Length L: 350 mm | Mass: 61.5 kg | Supply: Housing only
PDP 222 Shaft: 110 mm | Bore Da: 200 mm | Centre height H1: 125 mm | Length L: 400 mm | Mass: 82.5 kg | Supply: Housing only
PDP 224 Shaft: 120 mm | Bore Da: 215 mm | Centre height H1: 130 mm | Length L: 400 mm | Mass: 92 kg | Supply: Housing only
PDR 315 Shaft: 75 mm | Bore Da: 160 mm | Centre height H1: 100 mm | Length L: 320 mm | Mass: 45 kg | Supply: Housing only
PDR 316 Shaft: 80 mm | Bore Da: 170 mm | Centre height H1: 112 mm | Length L: 320 mm | Mass: 51 kg | Supply: Housing only
PDR 317 Shaft: 85 mm | Bore Da: 180 mm | Centre height H1: 112 mm | Length L: 350 mm | Mass: 62.5 kg | Supply: Housing only
PDR 318 Shaft: 90 mm | Bore Da: 190 mm | Centre height H1: 112 mm | Length L: 350 mm | Mass: 72 kg | Supply: Housing only
PDR 319 Shaft: 95 mm | Bore Da: 200 mm | Centre height H1: 125 mm | Length L: 400 mm | Mass: 84 kg | Supply: Housing only
PDR 320 Shaft: 100 mm | Bore Da: 215 mm | Centre height H1: 130 mm | Length L: 400 mm | Mass: 94 kg | Supply: Housing only
PDR 322 Shaft: 110 mm | Bore Da: 240 mm | Centre height H1: 150 mm | Length L: 450 mm | Mass: 117 kg | Supply: Housing only
PDR 324 Shaft: 120 mm | Bore Da: 260 mm | Centre height H1: 160 mm | Length L: 500 mm | Mass: 137 kg | Supply: Housing only
PDNB 305 Shaft: 25 mm | Bore Da: 62 mm | Centre height H1: 50 mm | Length L: 155 mm | Mass: 7 kg | Supply: Unit with shaft & bearings
PDNB 206 Shaft: 30 mm | Bore Da: 62 mm | Centre height H1: 50 mm | Length L: 155 mm | Mass: 7.4 kg | Supply: Unit with shaft & bearings
PDNB 306 Shaft: 30 mm | Bore Da: 72 mm | Centre height H1: 50 mm | Length L: 160 mm | Mass: 9.6 kg | Supply: Unit with shaft & bearings
PDNB 207 Shaft: 35 mm | Bore Da: 72 mm | Centre height H1: 50 mm | Length L: 160 mm | Mass: 10 kg | Supply: Unit with shaft & bearings
PDNB 307 Shaft: 35 mm | Bore Da: 80 mm | Centre height H1: 60 mm | Length L: 190 mm | Mass: 13.5 kg | Supply: Unit with shaft & bearings
PDNB 208 Shaft: 40 mm | Bore Da: 80 mm | Centre height H1: 60 mm | Length L: 190 mm | Mass: 14.5 kg | Supply: Unit with shaft & bearings
PDNB 308 Shaft: 40 mm | Bore Da: 90 mm | Centre height H1: 60 mm | Length L: 190 mm | Mass: 19.5 kg | Supply: Unit with shaft & bearings
PDNB 309 Shaft: 45 mm | Bore Da: 100 mm | Centre height H1: 70 mm | Length L: 210 mm | Mass: 24.5 kg | Supply: Unit with shaft & bearings
PDNB 210 Shaft: 50 mm | Bore Da: 90 mm | Centre height H1: 60 mm | Length L: 190 mm | Mass: 22.5 kg | Supply: Unit with shaft & bearings
PDNB 310 Shaft: 50 mm | Bore Da: 110 mm | Centre height H1: 70 mm | Length L: 210 mm | Mass: 29.5 kg | Supply: Unit with shaft & bearings
PDNB 211 Shaft: 55 mm | Bore Da: 100 mm | Centre height H1: 70 mm | Length L: 210 mm | Mass: 27.5 kg | Supply: Unit with shaft & bearings
PDNB 311 Shaft: 55 mm | Bore Da: 120 mm | Centre height H1: 80 mm | Length L: 260 mm | Mass: 39.5 kg | Supply: Unit with shaft & bearings
PDNB 212 Shaft: 60 mm | Bore Da: 110 mm | Centre height H1: 70 mm | Length L: 210 mm | Mass: 33 kg | Supply: Unit with shaft & bearings
PDNB 312 Shaft: 60 mm | Bore Da: 130 mm | Centre height H1: 80 mm | Length L: 260 mm | Mass: 52.5 kg | Supply: Unit with shaft & bearings
PDNB 313 Shaft: 65 mm | Bore Da: 140 mm | Centre height H1: 95 mm | Length L: 280 mm | Mass: 57 kg | Supply: Unit with shaft & bearings
PDNB 214 Shaft: 70 mm | Bore Da: 125 mm | Centre height H1: 80 mm | Length L: 260 mm | Mass: 60.5 kg | Supply: Unit with shaft & bearings
PDNB 314 Shaft: 70 mm | Bore Da: 150 mm | Centre height H1: 95 mm | Length L: 290 mm | Mass: 68.5 kg | Supply: Unit with shaft & bearings
PDNB 215 Shaft: 75 mm | Bore Da: 130 mm | Centre height H1: 80 mm | Length L: 260 mm | Mass: 62 kg | Supply: Unit with shaft & bearings
PDNB 315 Shaft: 75 mm | Bore Da: 160 mm | Centre height H1: 100 mm | Length L: 320 mm | Mass: 80.5 kg | Supply: Unit with shaft & bearings
PDNB 216 Shaft: 80 mm | Bore Da: 140 mm | Centre height H1: 95 mm | Length L: 280 mm | Mass: 67 kg | Supply: Unit with shaft & bearings
PDNB 316 Shaft: 80 mm | Bore Da: 170 mm | Centre height H1: 112 mm | Length L: 320 mm | Mass: 92 kg | Supply: Unit with shaft & bearings
PDNB 317 Shaft: 85 mm | Bore Da: 180 mm | Centre height H1: 112 mm | Length L: 350 mm | Mass: 114 kg | Supply: Unit with shaft & bearings
PDNB 218 Shaft: 90 mm | Bore Da: 160 mm | Centre height H1: 100 mm | Length L: 320 mm | Mass: 96.5 kg | Supply: Unit with shaft & bearings
PDNB 318 Shaft: 90 mm | Bore Da: 190 mm | Centre height H1: 112 mm | Length L: 350 mm | Mass: 134 kg | Supply: Unit with shaft & bearings
PDNB 319 Shaft: 95 mm | Bore Da: 200 mm | Centre height H1: 125 mm | Length L: 400 mm | Mass: 156 kg | Supply: Unit with shaft & bearings
PDNB 220 Shaft: 100 mm | Bore Da: 180 mm | Centre height H1: 112 mm | Length L: 350 mm | Mass: 130 kg | Supply: Unit with shaft & bearings
PDNB 320 Shaft: 100 mm | Bore Da: 215 mm | Centre height H1: 130 mm | Length L: 400 mm | Mass: 177 kg | Supply: Unit with shaft & bearings
PDNB 222 Shaft: 110 mm | Bore Da: 200 mm | Centre height H1: 125 mm | Length L: 400 mm | Mass: 176 kg | Supply: Unit with shaft & bearings
PDNB 322 Shaft: 110 mm | Bore Da: 240 mm | Centre height H1: 150 mm | Length L: 450 mm | Mass: 226 kg | Supply: Unit with shaft & bearings
PDNB 224 Shaft: 120 mm | Bore Da: 215 mm | Centre height H1: 130 mm | Length L: 400 mm | Mass: 207 kg | Supply: Unit with shaft & bearings
PDNB 324 Shaft: 120 mm | Bore Da: 260 mm | Centre height H1: 160 mm | Length L: 500 mm | Mass: 276 kg | Supply: Unit with shaft & bearings
PDPF 2214 Shaft: 70 mm | Bore Da: 125 mm | Centre height H1: 80 mm | Length L: 260 mm | Mass: 63 kg | Supply: Unit with shaft & bearings
PDPF 2216 Shaft: 80 mm | Bore Da: 140 mm | Centre height H1: 95 mm | Length L: 280 mm | Mass: 70.5 kg | Supply: Unit with shaft & bearings
PDPF 2218 Shaft: 90 mm | Bore Da: 160 mm | Centre height H1: 100 mm | Length L: 320 mm | Mass: 100 kg | Supply: Unit with shaft & bearings
PDPF 2220 Shaft: 100 mm | Bore Da: 180 mm | Centre height H1: 112 mm | Length L: 350 mm | Mass: 137 kg | Supply: Unit with shaft & bearings
PDPF 2222 Shaft: 110 mm | Bore Da: 200 mm | Centre height H1: 125 mm | Length L: 400 mm | Mass: 185 kg | Supply: Unit with shaft & bearings
PDPF 2224 Shaft: 120 mm | Bore Da: 215 mm | Centre height H1: 130 mm | Length L: 400 mm | Mass: 219 kg | Supply: Unit with shaft & bearings
PDRJ 315 Shaft: 75 mm | Bore Da: 160 mm | Centre height H1: 100 mm | Length L: 320 mm | Mass: 85.5 kg | Supply: Unit with shaft & bearings
PDRJ 316 Shaft: 80 mm | Bore Da: 170 mm | Centre height H1: 112 mm | Length L: 320 mm | Mass: 98.5 kg | Supply: Unit with shaft & bearings
PDRJ 317 Shaft: 85 mm | Bore Da: 180 mm | Centre height H1: 112 mm | Length L: 350 mm | Mass: 120 kg | Supply: Unit with shaft & bearings
PDRJ 318 Shaft: 90 mm | Bore Da: 190 mm | Centre height H1: 112 mm | Length L: 350 mm | Mass: 142 kg | Supply: Unit with shaft & bearings
PDRJ 319 Shaft: 95 mm | Bore Da: 200 mm | Centre height H1: 125 mm | Length L: 400 mm | Mass: 164 kg | Supply: Unit with shaft & bearings
PDRJ 320 Shaft: 100 mm | Bore Da: 215 mm | Centre height H1: 130 mm | Length L: 400 mm | Mass: 187 kg | Supply: Unit with shaft & bearings
PDRJ 322 Shaft: 110 mm | Bore Da: 240 mm | Centre height H1: 150 mm | Length L: 450 mm | Mass: 240 kg | Supply: Unit with shaft & bearings
PDRJ 324 Shaft: 120 mm | Bore Da: 260 mm | Centre height H1: 160 mm | Length L: 500 mm | Mass: 289 kg | Supply: Unit with shaft & bearings
Bearing HousingsSKF
90 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF PD Series Two-Bearing Housings and Units (PDN, PDP, PDR)

Brand SKF·Bearing Housings

Available part numbers (90)

PDN 305, PDN 206, PDN 306, PDN 207, PDN 307, PDN 208, PDN 308, PDN 309, PDN 210, PDN 310 + 80 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
