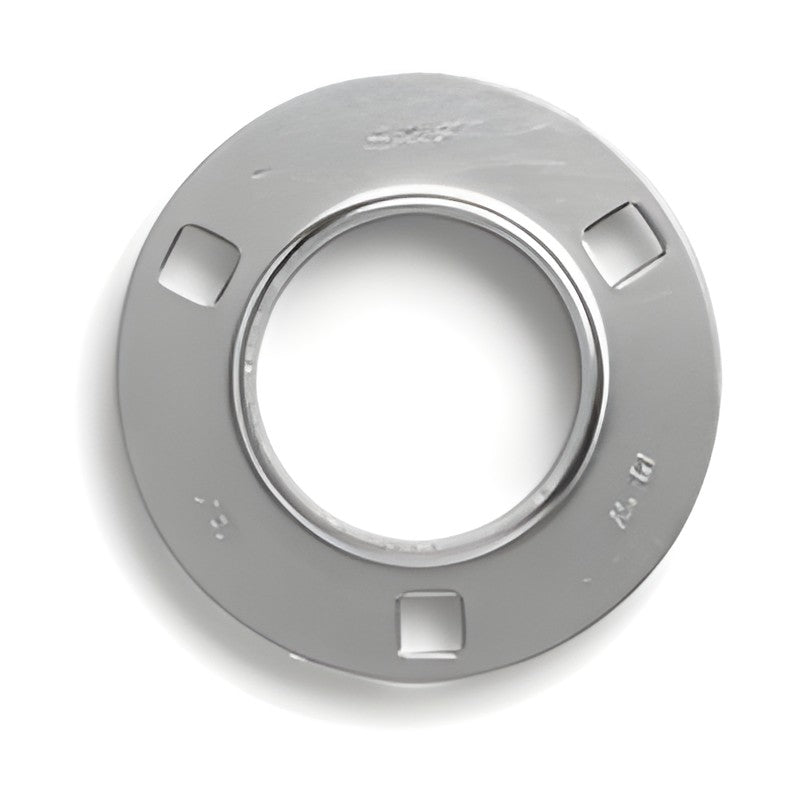

SKF PF, PFD and PFT Pressed Steel Flanged Units (Eccentric Collar)

SKF PF, PFD and PFT Pressed Steel Flanged Units (Eccentric Collar)

SKF PF, PFD and PFT Pressed Steel Flanged Units (Eccentric Collar): ready-to-mount Y-bearing units with a pressed steel flanged housing; eccentric locking collar, for metric and/or inch shafts as listed.

Key features

  • Complete unit: housing plus sealed, greased Y-bearing
  • Self-aligning fit of the sphered bearing in the housing
  • Unit, housing and bearing designations listed for ordering
  • Relubrication or end cover options where listed
  • Metric and inch shaft sizes as listed in the catalogue

Specifications

Product Y-bearing unit
Housing pressed steel flanged housing
Brand SKF
Category Mounted Bearing Units
Example designation PF 15 FM
Source SKF Y-bearings and Y-bearing units, p. 228-233
PF 15 FM Shaft: 15 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFD 15 FM Shaft: 15 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFT 15 FM Shaft: 15 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PF 17 FM Shaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFD 17 FM Shaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFT 17 FM Shaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PF 20 FM Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 20 WF Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 20 FM Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 20 WF Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 20 FM Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 20 WF Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 25 FM Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 25 WF Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 25 FM Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 25 WF Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 25 FM Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 25 WF Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 30 FM Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PF 30 WF Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFD 30 FM Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFD 30 WF Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFT 30 FM Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFT 30 WF Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PF 35 FM Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PF 35 WF Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFD 35 FM Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFD 35 WF Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFT 35 FM Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFT 35 WF Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PF 40 FM Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PF 40 WF Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 40 FM Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 40 WF Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 40 FM Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 40 WF Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PF 45 FM Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 120.6 mm
PF 45 WF Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 120.6 mm
PF 50 FM Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 127 mm
PF 50 WF Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 127 mm
PF 3/4 FM Shaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 3/4 FM Shaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 3/4 FM Shaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 1. FM Shaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 1. FM Shaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 1. FM Shaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 1.1/2 FM Shaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 1.1/2 FM Shaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 1.1/2 FM Shaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
