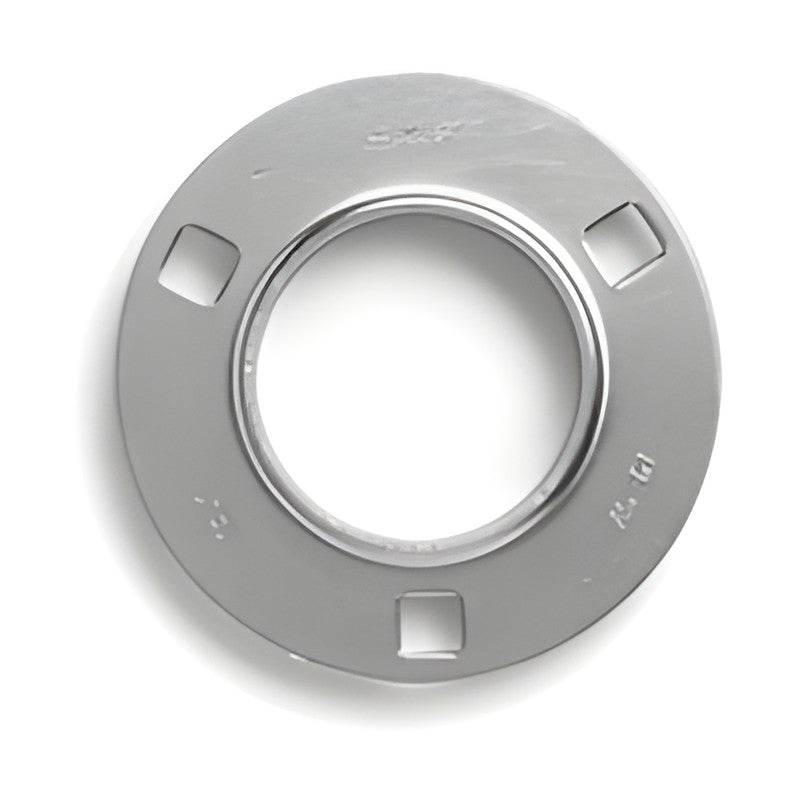

• SKF PF, PFD and PFT Pressed Steel Flanged Units (Grub Screws)
1 1

SKF PF, PFD and PFT Pressed Steel Flanged Units (Grub Screws)

SKF PF, PFD and PFT Pressed Steel Flanged Units (Grub Screws)

SKF PF, PFD and PFT Pressed Steel Flanged Units (Grub Screws): ready-to-mount Y-bearing units with a pressed steel flanged housing; grub screw locking, for metric and/or inch shafts as listed.

Key features

  • Complete unit: housing plus sealed, greased Y-bearing
  • Self-aligning fit of the sphered bearing in the housing
  • Unit, housing and bearing designations listed for ordering
  • Relubrication or end cover options where listed
  • Metric and inch shaft sizes as listed in the catalogue

Specifications

Product Y-bearing unit
Housing pressed steel flanged housing
Brand SKF
Category Mounted Bearing Units
Example designation PF 12 TF
Source SKF Y-bearings and Y-bearing units, p. 220-227
PF 12 TF Shaft: 12 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFD 12 TF Shaft: 12 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFT 12 TF Shaft: 12 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PF 15 TF Shaft: 15 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFD 15 TF Shaft: 15 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFT 15 TF Shaft: 15 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PF 17 RM Shaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PF 17 TF Shaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFD 17 RM Shaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFD 17 TF Shaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFT 17 RM Shaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFT 17 TF Shaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PF 20 RM Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 20 TF Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 20 TR Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 20 RM Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 20 TF Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 20 TR Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 20 RM Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 20 TF Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 20 TR Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 25 RM Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 25 TF Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 25 TR Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 25 RM Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 25 TF Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 25 TR Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 25 RM Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 25 TF Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 25 TR Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 30 RM Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PF 30 TF Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PF 30 TR Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFD 30 RM Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFD 30 TF Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFD 30 TR Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFT 30 RM Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFT 30 TF Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFT 30 TR Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PF 35 RM Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PF 35 TF Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PF 35 TR Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFD 35 RM Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFD 35 TF Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFD 35 TR Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFT 35 RM Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFT 35 TF Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFT 35 TR Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PF 40 RM Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PF 40 TF Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PF 40 TR Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 40 RM Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 40 TF Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 40 TR Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 40 RM Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 40 TF Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 40 TR Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PF 45 RM Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 120.6 mm
PF 45 TF Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 120.6 mm
PF 45 TR Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 120.6 mm
PF 50 RM Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 127 mm
PF 50 TF Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 127 mm
PF 50 TR Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 127 mm
PF 5/8 TF Shaft: 5/8 in. | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PF 3/4 TF Shaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 3/4 TR Shaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 3/4 TF Shaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 3/4 TR Shaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 3/4 TF Shaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 3/4 TR Shaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 1. TF Shaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 1. TR Shaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 1. TF Shaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 1. TR Shaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 1. TF Shaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 1. TR Shaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 1.1/4 TF Shaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PF 1.1/4 TR Shaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFD 1.1/4 TF Shaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFD 1.1/4 TR Shaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFT 1.1/4 TF Shaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFT 1.1/4 TR Shaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PF 1.1/2 TF Shaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PF 1.1/2 TR Shaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 1.1/2 TF Shaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 1.1/2 TR Shaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 1.1/2 TF Shaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 1.1/2 TR Shaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PF 1.3/4 TF Shaft: 1 3/4 in. | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 120.6 mm
PF 1.3/4 TR Shaft: 1 3/4 in. | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 120.6 mm
Mounted Bearing UnitsSKF
90 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF PF, PFD and PFT Pressed Steel Flanged Units (Grub Screws)

Brand SKF·Mounted Bearing Units

Available part numbers (90)

PF 12 TF, PFD 12 TF, PFT 12 TF, PF 15 TF, PFD 15 TF, PFT 15 TF, PF 17 RM, PF 17 TF, PFD 17 RM, PFD 17 TF + 80 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PF 12 TFShaft: 12 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFD 12 TFShaft: 12 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFT 12 TFShaft: 12 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PF 15 TFShaft: 15 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFD 15 TFShaft: 15 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFT 15 TFShaft: 15 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PF 17 RMShaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PF 17 TFShaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFD 17 RMShaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFD 17 TFShaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFT 17 RMShaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PFT 17 TFShaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PF 20 RMShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 20 TFShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 20 TRShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 20 RMShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 20 TFShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 20 TRShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 20 RMShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 20 TFShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 20 TRShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 25 RMShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 25 TFShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 25 TRShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 25 RMShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 25 TFShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 25 TRShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 25 RMShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 25 TFShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 25 TRShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 30 RMShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PF 30 TFShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PF 30 TRShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFD 30 RMShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFD 30 TFShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFD 30 TRShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFT 30 RMShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFT 30 TFShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PFT 30 TRShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 90.5 mm
PF 35 RMShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PF 35 TFShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PF 35 TRShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFD 35 RMShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFD 35 TFShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFD 35 TRShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFT 35 RMShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFT 35 TFShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFT 35 TRShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PF 40 RMShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PF 40 TFShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PF 40 TRShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 40 RMShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 40 TFShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 40 TRShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 40 RMShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 40 TFShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 40 TRShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PF 45 RMShaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 120.6 mm
PF 45 TFShaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 120.6 mm
PF 45 TRShaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 120.6 mm
PF 50 RMShaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 127 mm
PF 50 TFShaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 127 mm
PF 50 TRShaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 127 mm
PF 5/8 TFShaft: 5/8 in. | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 63 mm
PF 3/4 TFShaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 3/4 TRShaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 3/4 TFShaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFD 3/4 TRShaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 3/4 TFShaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PFT 3/4 TRShaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 71.5 mm
PF 1. TFShaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 1. TRShaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 1. TFShaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFD 1. TRShaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 1. TFShaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PFT 1. TRShaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 76 mm
PF 1.1/4 TFShaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PF 1.1/4 TRShaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFD 1.1/4 TFShaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFD 1.1/4 TRShaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFT 1.1/4 TFShaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PFT 1.1/4 TRShaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 100 mm
PF 1.1/2 TFShaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PF 1.1/2 TRShaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 1.1/2 TFShaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFD 1.1/2 TRShaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 1.1/2 TFShaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PFT 1.1/2 TRShaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 119 mm
PF 1.3/4 TFShaft: 1 3/4 in. | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 120.6 mm
PF 1.3/4 TRShaft: 1 3/4 in. | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 120.6 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
