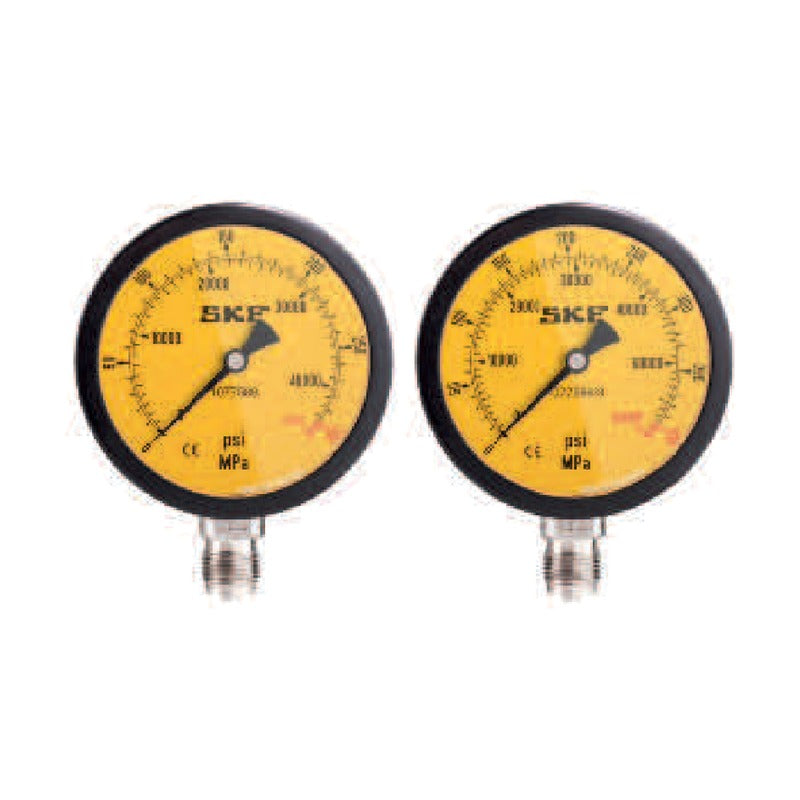

SKF Pressure Gauges 1077587, 1077589 and Digital THGD 100

SKF Pressure Gauges 1077587, 1077589 and Digital THGD 100

SKF pressure gauges fit SKF hydraulic pumps and oil injectors, covering 100 to 400 MPa with dual MPa/psi scales; THGD 100 is a digital gauge for the SKF Drive-up Method.

Key features

  • Liquid filled and/or restriction screw absorbs sudden pressure drops
  • Safety glass and blowout discs on all gauges
  • Stainless steel case
  • Dual scales MPa/psi on yellow high-visibility faces

Specifications

Scales MPa / psi
Source SKF Maintenance and Lubrication Products, p. 73
1077587 Range: 0-100 MPa | Diameter: 110 mm | Thread: G 1/2 | Weight: 1.00 kg | Accuracy: 1%
1077587/2 Range: 0-100 MPa | Diameter: 69 mm | Thread: G 1/4 | Weight: 0.25 kg | Accuracy: 1.6%
THGD 100 Range: 0-100 MPa (digital) | Diameter: 79 mm | Thread: G 1/4 | Weight: 0.54 kg | Accuracy: +/-0.1%
1077589 Range: 0-300 MPa | Diameter: 110 mm | Thread: G 1/2 | Weight: 1.00 kg | Accuracy: 1%
1077589/3 Range: 0-400 MPa | Diameter: 110 mm | Thread: G 1/2 | Weight: 1.00 kg | Accuracy: 1%
Bearing AccessoriesSKF
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF Pressure Gauges 1077587, 1077589 and Digital THGD 100

Brand SKF·Bearing Accessories

Available part numbers (5)

1077587, 1077587/2, THGD 100, 1077589, 1077589/3

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
1077587Range: 0-100 MPa | Diameter: 110 mm | Thread: G 1/2 | Weight: 1.00 kg | Accuracy: 1%
1077587/2Range: 0-100 MPa | Diameter: 69 mm | Thread: G 1/4 | Weight: 0.25 kg | Accuracy: 1.6%
THGD 100Range: 0-100 MPa (digital) | Diameter: 79 mm | Thread: G 1/4 | Weight: 0.54 kg | Accuracy: +/-0.1%
1077589Range: 0-300 MPa | Diameter: 110 mm | Thread: G 1/2 | Weight: 1.00 kg | Accuracy: 1%
1077589/3Range: 0-400 MPa | Diameter: 110 mm | Thread: G 1/2 | Weight: 1.00 kg | Accuracy: 1%
