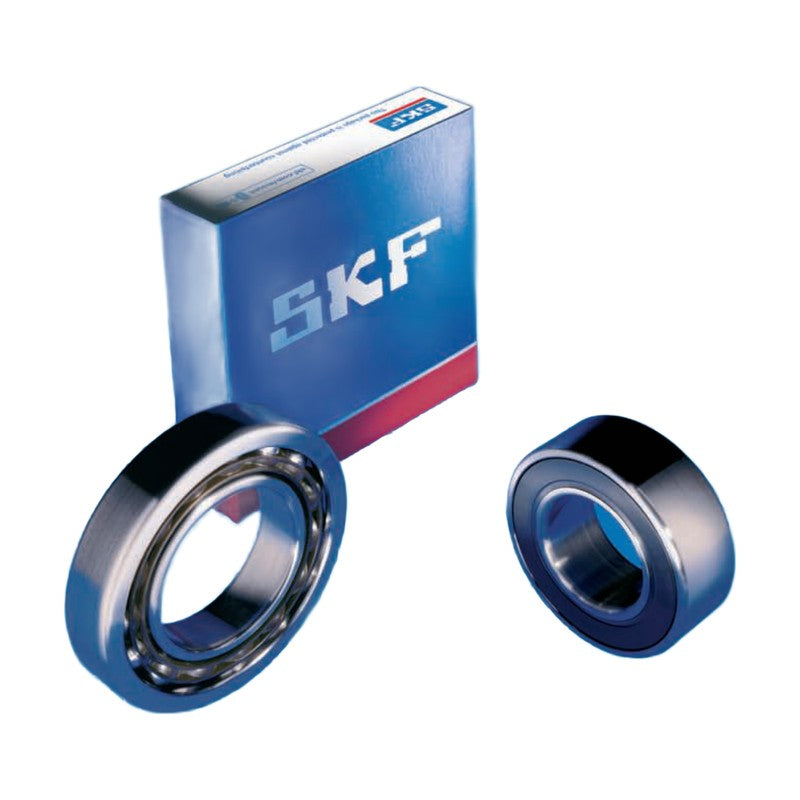

• SKF QJ 2 and QJ 3 Series Four-Point Contact Ball Bearings
1 1

SKF QJ 2 and QJ 3 Series Four-Point Contact Ball Bearings

SKF QJ 2 and QJ 3 Series Four-Point Contact Ball Bearings

SKF four-point contact ball bearings of the QJ 2 and QJ 3 series: radial single row angular contact bearings with raceways designed to support axial loads in both directions.

Key features

  • Supports axial loads in both directions with a single bearing
  • Two-piece inner ring allows high ball complement
  • Separable design for easy mounting
  • Versions with locating slots in the outer ring (N2) to prevent rotation
  • Machined brass (MA) or polyamide (PHAS) cages

Specifications

Bearing type Four-point contact ball bearing
Series QJ 2, QJ 3
Contact angle 35°
Design Separable, two-piece inner ring
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 456-461
QJ 202 N2MA d: 15 mm | D: 35 mm | B: 11 mm | C: 12.7 kN | C0: 8.3 kN | Limiting speed: 36000 r/min
QJ 203 N2MA d: 17 mm | D: 40 mm | B: 12 mm | C: 17 kN | C0: 11.4 kN | Limiting speed: 30000 r/min
QJ 303 N2MA d: 17 mm | D: 47 mm | B: 14 mm | C: 23.4 kN | C0: 15 kN | Limiting speed: 28000 r/min
QJ 304 N2MA d: 20 mm | D: 52 mm | B: 15 mm | C: 32 kN | C0: 21.6 kN | Limiting speed: 24000 r/min
QJ 304 MA d: 20 mm | D: 52 mm | B: 15 mm | C: 32 kN | C0: 21.6 kN | Limiting speed: 24000 r/min
QJ 304 N2PHAS d: 20 mm | D: 52 mm | B: 15 mm | C: 32 kN | C0: 21.6 kN | Limiting speed: 24000 r/min
QJ 205 N2MA d: 25 mm | D: 52 mm | B: 15 mm | C: 27 kN | C0: 21.2 kN | Limiting speed: 22000 r/min
QJ 205 MA d: 25 mm | D: 52 mm | B: 15 mm | C: 27 kN | C0: 21.2 kN | Limiting speed: 22000 r/min
QJ 305 N2MA d: 25 mm | D: 62 mm | B: 17 mm | C: 42.5 kN | C0: 30 kN | Limiting speed: 20000 r/min
QJ 305 MA d: 25 mm | D: 62 mm | B: 17 mm | C: 42.5 kN | C0: 30 kN | Limiting speed: 20000 r/min
QJ 206 N2MA d: 30 mm | D: 62 mm | B: 16 mm | C: 37.5 kN | C0: 30.5 kN | Limiting speed: 19000 r/min
QJ 206 MA d: 30 mm | D: 62 mm | B: 16 mm | C: 37.5 kN | C0: 30.5 kN | Limiting speed: 19000 r/min
QJ 306 N2MA d: 30 mm | D: 72 mm | B: 19 mm | C: 53 kN | C0: 41.5 kN | Limiting speed: 17000 r/min
QJ 306 MA d: 30 mm | D: 72 mm | B: 19 mm | C: 53 kN | C0: 41.5 kN | Limiting speed: 17000 r/min
QJ 306 N2PHAS d: 30 mm | D: 72 mm | B: 19 mm | C: 53 kN | C0: 41.5 kN | Limiting speed: 17000 r/min
QJ 207 N2MA d: 35 mm | D: 72 mm | B: 17 mm | C: 49 kN | C0: 41.5 kN | Limiting speed: 17000 r/min
QJ 307 N2MA d: 35 mm | D: 80 mm | B: 21 mm | C: 64 kN | C0: 51 kN | Limiting speed: 15000 r/min
QJ 307 MA d: 35 mm | D: 80 mm | B: 21 mm | C: 64 kN | C0: 51 kN | Limiting speed: 15000 r/min
QJ 307 N2PHAS d: 35 mm | D: 80 mm | B: 21 mm | C: 64 kN | C0: 51 kN | Limiting speed: 15000 r/min
QJ 208 N2MA d: 40 mm | D: 80 mm | B: 18 mm | C: 56 kN | C0: 49 kN | Limiting speed: 15000 r/min
QJ 208 MA d: 40 mm | D: 80 mm | B: 18 mm | C: 56 kN | C0: 49 kN | Limiting speed: 15000 r/min
QJ 308 N2MA d: 40 mm | D: 90 mm | B: 23 mm | C: 78 kN | C0: 64 kN | Limiting speed: 14000 r/min
QJ 308 MA d: 40 mm | D: 90 mm | B: 23 mm | C: 78 kN | C0: 64 kN | Limiting speed: 14000 r/min
QJ 209 MA d: 45 mm | D: 85 mm | B: 19 mm | C: 63 kN | C0: 56 kN | Limiting speed: 14000 r/min
QJ 309 N2MA d: 45 mm | D: 100 mm | B: 25 mm | C: 100 kN | C0: 83 kN | Limiting speed: 12000 r/min
QJ 309 MA d: 45 mm | D: 100 mm | B: 25 mm | C: 100 kN | C0: 83 kN | Limiting speed: 12000 r/min
QJ 309 N2PHAS d: 45 mm | D: 100 mm | B: 25 mm | C: 100 kN | C0: 83 kN | Limiting speed: 12000 r/min
QJ 210 MA d: 50 mm | D: 90 mm | B: 20 mm | C: 65.5 kN | C0: 61 kN | Limiting speed: 13000 r/min
QJ 310 MA d: 50 mm | D: 110 mm | B: 27 mm | C: 118 kN | C0: 100 kN | Limiting speed: 11000 r/min
QJ 310 PHAS d: 50 mm | D: 110 mm | B: 27 mm | C: 118 kN | C0: 100 kN | Limiting speed: 11000 r/min
QJ 211 N2MA d: 55 mm | D: 100 mm | B: 21 mm | C: 85 kN | C0: 83 kN | Limiting speed: 11000 r/min
QJ 211 MA d: 55 mm | D: 100 mm | B: 21 mm | C: 85 kN | C0: 83 kN | Limiting speed: 11000 r/min
QJ 311 N2MA d: 55 mm | D: 120 mm | B: 29 mm | C: 137 kN | C0: 118 kN | Limiting speed: 10000 r/min
QJ 311 MA d: 55 mm | D: 120 mm | B: 29 mm | C: 137 kN | C0: 118 kN | Limiting speed: 10000 r/min
QJ 212 N2MA d: 60 mm | D: 110 mm | B: 22 mm | C: 96.5 kN | C0: 93 kN | Limiting speed: 10000 r/min
QJ 212 MA d: 60 mm | D: 110 mm | B: 22 mm | C: 96.5 kN | C0: 93 kN | Limiting speed: 10000 r/min
QJ 212 N2PHAS d: 60 mm | D: 110 mm | B: 22 mm | C: 96.5 kN | C0: 93 kN | Limiting speed: 10000 r/min
QJ 312 N2MA d: 60 mm | D: 130 mm | B: 31 mm | C: 156 kN | C0: 137 kN | Limiting speed: 9000 r/min
QJ 312 MA d: 60 mm | D: 130 mm | B: 31 mm | C: 156 kN | C0: 137 kN | Limiting speed: 9000 r/min
QJ 213 N2MA d: 65 mm | D: 120 mm | B: 23 mm | C: 110 kN | C0: 112 kN | Limiting speed: 9500 r/min
QJ 213 MA d: 65 mm | D: 120 mm | B: 23 mm | C: 110 kN | C0: 112 kN | Limiting speed: 9500 r/min
QJ 313 MA d: 65 mm | D: 140 mm | B: 33 mm | C: 176 kN | C0: 156 kN | Limiting speed: 8500 r/min
QJ 214 N2MA d: 70 mm | D: 125 mm | B: 24 mm | C: 120 kN | C0: 122 kN | Limiting speed: 9000 r/min
QJ 214 MA d: 70 mm | D: 125 mm | B: 24 mm | C: 120 kN | C0: 122 kN | Limiting speed: 9000 r/min
QJ 214 N2PHAS d: 70 mm | D: 125 mm | B: 24 mm | C: 120 kN | C0: 122 kN | Limiting speed: 9000 r/min
QJ 314 N2MA d: 70 mm | D: 150 mm | B: 35 mm | C: 200 kN | C0: 180 kN | Limiting speed: 8000 r/min
QJ 314 MA d: 70 mm | D: 150 mm | B: 35 mm | C: 200 kN | C0: 180 kN | Limiting speed: 8000 r/min
QJ 314 N2PHAS d: 70 mm | D: 150 mm | B: 35 mm | C: 200 kN | C0: 180 kN | Limiting speed: 8000 r/min
QJ 215 N2MA d: 75 mm | D: 130 mm | B: 25 mm | C: 125 kN | C0: 132 kN | Limiting speed: 8500 r/min
QJ 215 MA d: 75 mm | D: 130 mm | B: 25 mm | C: 125 kN | C0: 132 kN | Limiting speed: 8500 r/min
QJ 215 N2PHAS d: 75 mm | D: 130 mm | B: 25 mm | C: 125 kN | C0: 132 kN | Limiting speed: 8500 r/min
QJ 315 N2MA d: 75 mm | D: 160 mm | B: 37 mm | C: 199 kN | C0: 186 kN | Limiting speed: 7500 r/min
QJ 216 N2MA d: 80 mm | D: 140 mm | B: 26 mm | C: 146 kN | C0: 156 kN | Limiting speed: 8000 r/min
QJ 216 MA d: 80 mm | D: 140 mm | B: 26 mm | C: 146 kN | C0: 156 kN | Limiting speed: 8000 r/min
QJ 316 N2MA d: 80 mm | D: 170 mm | B: 39 mm | C: 216 kN | C0: 208 kN | Limiting speed: 7000 r/min
QJ 217 N2MA d: 85 mm | D: 150 mm | B: 28 mm | C: 156 kN | C0: 173 kN | Limiting speed: 7500 r/min
QJ 217 MA d: 85 mm | D: 150 mm | B: 28 mm | C: 156 kN | C0: 173 kN | Limiting speed: 7500 r/min
QJ 317 N2MA d: 85 mm | D: 180 mm | B: 41 mm | C: 234 kN | C0: 236 kN | Limiting speed: 6700 r/min
QJ 218 N2MA d: 90 mm | D: 160 mm | B: 30 mm | C: 174 kN | C0: 186 kN | Limiting speed: 7000 r/min
QJ 318 N2MA d: 90 mm | D: 190 mm | B: 43 mm | C: 265 kN | C0: 285 kN | Limiting speed: 6300 r/min
QJ 219 N2MA d: 95 mm | D: 170 mm | B: 32 mm | C: 199 kN | C0: 212 kN | Limiting speed: 6700 r/min
QJ 319 N2MA d: 95 mm | D: 200 mm | B: 45 mm | C: 286 kN | C0: 315 kN | Limiting speed: 6000 r/min
QJ 220 N2MA d: 100 mm | D: 180 mm | B: 34 mm | C: 225 kN | C0: 240 kN | Limiting speed: 6300 r/min
QJ 320 N2MA d: 100 mm | D: 215 mm | B: 47 mm | C: 307 kN | C0: 340 kN | Limiting speed: 5600 r/min
QJ 222 N2MA d: 110 mm | D: 200 mm | B: 38 mm | C: 265 kN | C0: 305 kN | Limiting speed: 5600 r/min
QJ 322 N2MA d: 110 mm | D: 240 mm | B: 50 mm | C: 390 kN | C0: 475 kN | Limiting speed: 4800 r/min
QJ 224 N2MA d: 120 mm | D: 215 mm | B: 40 mm | C: 286 kN | C0: 340 kN | Limiting speed: 5000 r/min
QJ 324 N2MA d: 120 mm | D: 260 mm | B: 55 mm | C: 390 kN | C0: 490 kN | Limiting speed: 4500 r/min
QJ 226 N2MA d: 130 mm | D: 230 mm | B: 40 mm | C: 296 kN | C0: 365 kN | Limiting speed: 4800 r/min
QJ 326 N2MA d: 130 mm | D: 280 mm | B: 58 mm | C: 423 kN | C0: 560 kN | Limiting speed: 4000 r/min
QJ 228 N2MA d: 140 mm | D: 250 mm | B: 42 mm | C: 325 kN | C0: 440 kN | Limiting speed: 4300 r/min
QJ 328 N2MA d: 140 mm | D: 300 mm | B: 62 mm | C: 468 kN | C0: 640 kN | Limiting speed: 3800 r/min
QJ 230 N2MA d: 150 mm | D: 270 mm | B: 45 mm | C: 377 kN | C0: 530 kN | Limiting speed: 4000 r/min
QJ 330 N2MA d: 150 mm | D: 320 mm | B: 65 mm | C: 494 kN | C0: 710 kN | Limiting speed: 3600 r/min
QJ 232 N2MA d: 160 mm | D: 290 mm | B: 48 mm | C: 423 kN | C0: 620 kN | Limiting speed: 3800 r/min
QJ 332 N2MA d: 160 mm | D: 340 mm | B: 68 mm | C: 540 kN | C0: 815 kN | Limiting speed: 3400 r/min
QJ 234 N2MA d: 170 mm | D: 310 mm | B: 52 mm | C: 436 kN | C0: 670 kN | Limiting speed: 3400 r/min
QJ 334 N2MA d: 170 mm | D: 360 mm | B: 72 mm | C: 618 kN | C0: 965 kN | Limiting speed: 3200 r/min
QJ 236 N2MA d: 180 mm | D: 320 mm | B: 52 mm | C: 449 kN | C0: 710 kN | Limiting speed: 3400 r/min
QJ 336 N2MA d: 180 mm | D: 380 mm | B: 75 mm | C: 637 kN | C0: 1020 kN | Limiting speed: 3000 r/min
QJ 338 N2MA d: 190 mm | D: 400 mm | B: 78 mm | C: 702 kN | C0: 1160 kN | Limiting speed: 2800 r/min
QJ 240 N2MA d: 200 mm | D: 360 mm | B: 58 mm | C: 540 kN | C0: 915 kN | Limiting speed: 3000 r/min
