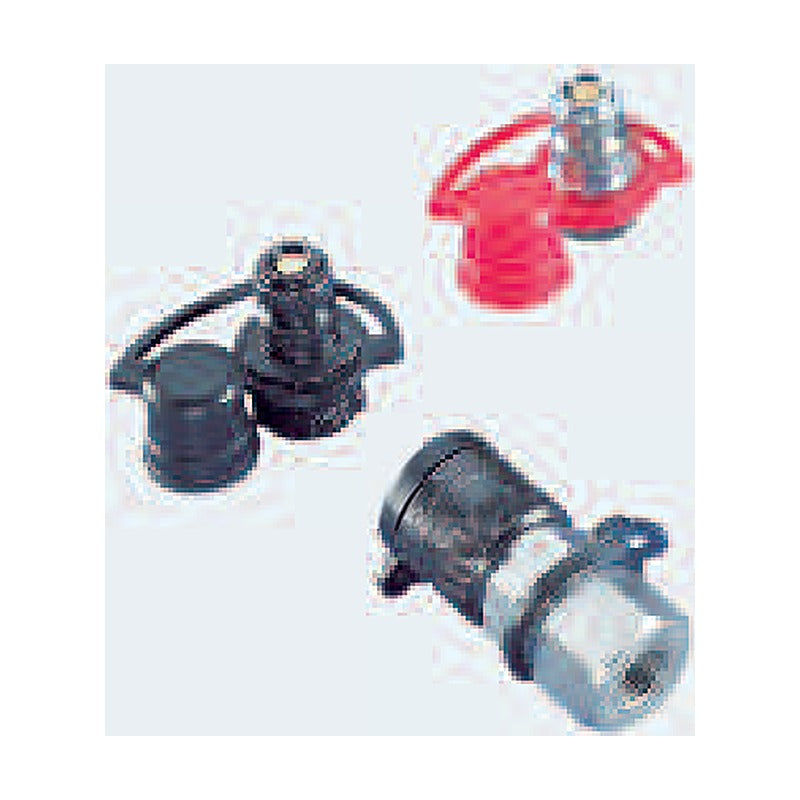

SKF Quick Couplings, Connection Nipples and Plugs for Hydraulic Tools

SKF Quick Couplings, Connection Nipples and Plugs for Hydraulic Tools

SKF quick connecting couplings, connection nipples and plugs connect SKF hydraulic pumps and oil injectors to workpieces with many thread combinations up to 400 MPa.

Key features

  • Quick coupling 729831 A with nipples 729832 A (G 1/4) and 729100 (G 1/8)
  • Nipple 729832 A supplied standard with all HMV ..E hydraulic nuts
  • Wide range of metric/G and NPT thread connection nipples
  • Plugs seal oil ducts and vent holes up to 400 MPa

Specifications

Application Hydraulic pumps and oil injectors
Source SKF Maintenance and Lubrication Products, p. 76-77
729831 A Type: Quick connecting coupling | Thread: G 1/4 | Max. pressure: 150 MPa
729832 A Type: Nipple | Thread: G 1/4 | Max. pressure: 150 MPa
729100 Type: Nipple | Thread: G 1/8 | Max. pressure: 100 MPa
233950 E Type: Plug | Thread: G 1/4 | Max. pressure: 400 MPa
729944 E Type: Plug | Thread: G 1/2 | Max. pressure: 400 MPa
1030816 E Type: Plug | Thread: G 3/4 | Max. pressure: 400 MPa
1077456/100MPA Type: Connection nipple | Thread G: M8 | Thread G2: M6 | Max. pressure: 100 MPa
1077455/100MPA Type: Connection nipple | Thread G: G 1/8 | Thread G2: M6 | Max. pressure: 100 MPa
1014357 A Type: Connection nipple | Thread G: G 1/8 | Thread G2: G 1/4 | Max. pressure: 300 MPa
1009030 B Type: Connection nipple | Thread G: G 1/8 | Thread G2: G 3/8 | Max. pressure: 300 MPa
1019950 Type: Connection nipple | Thread G: G 1/8 | Thread G2: G 1/2 | Max. pressure: 300 MPa
1018219 E Type: Connection nipple | Thread G: G 1/4 | Thread G2: G 3/8 | Max. pressure: 400 MPa
1009030 E Type: Connection nipple | Thread G: G 1/4 | Thread G2: G 3/4 | Max. pressure: 400 MPa
1012783 E Type: Connection nipple | Thread G: G 3/8 | Thread G2: G 1/4 | Max. pressure: 400 MPa
1008593 E Type: Connection nipple | Thread G: G 3/8 | Thread G2: G 3/4 | Max. pressure: 400 MPa
1016402 E Type: Connection nipple | Thread G: G 1/2 | Thread G2: G 1/4 | Max. pressure: 400 MPa
729146 Type: Connection nipple | Thread G: G 1/2 | Thread G2: G 3/4 | Max. pressure: 300 MPa
228027 E Type: Connection nipple | Thread G: G 3/4 | Thread G2: G 1/4 | Max. pressure: 400 MPa
1018220 E Type: Connection nipple | Thread G: G 1/4 | Thread G2: G 1/4 | Max. pressure: 400 MPa
729654/150MPA Type: Connection nipple | Thread G: NPT 1/4" | Thread G2: G 1/4 | Max. pressure: 150 MPa
729655/150MPA Type: Connection nipple | Thread G: NPT 3/8" | Thread G2: G 1/4 | Max. pressure: 150 MPa
729106/100MPA Type: Connection nipple | Thread G: G 1/4 | Thread G2: NPT 3/8" | Max. pressure: 100 MPa
729656/150MPA Type: Connection nipple | Thread G: NPT 3/4" | Thread G2: G 1/4 | Max. pressure: 150 MPa
Bearing AccessoriesSKF
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF Quick Couplings, Connection Nipples and Plugs for Hydraulic Tools

Brand SKF·Bearing Accessories

Available part numbers (23)

729831 A, 729832 A, 729100, 233950 E, 729944 E, 1030816 E, 1077456/100MPA, 1077455/100MPA, 1014357 A, 1009030 B + 13 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
729831 AType: Quick connecting coupling | Thread: G 1/4 | Max. pressure: 150 MPa
729832 AType: Nipple | Thread: G 1/4 | Max. pressure: 150 MPa
729100Type: Nipple | Thread: G 1/8 | Max. pressure: 100 MPa
233950 EType: Plug | Thread: G 1/4 | Max. pressure: 400 MPa
729944 EType: Plug | Thread: G 1/2 | Max. pressure: 400 MPa
1030816 EType: Plug | Thread: G 3/4 | Max. pressure: 400 MPa
1077456/100MPAType: Connection nipple | Thread G: M8 | Thread G2: M6 | Max. pressure: 100 MPa
1077455/100MPAType: Connection nipple | Thread G: G 1/8 | Thread G2: M6 | Max. pressure: 100 MPa
1014357 AType: Connection nipple | Thread G: G 1/8 | Thread G2: G 1/4 | Max. pressure: 300 MPa
1009030 BType: Connection nipple | Thread G: G 1/8 | Thread G2: G 3/8 | Max. pressure: 300 MPa
1019950Type: Connection nipple | Thread G: G 1/8 | Thread G2: G 1/2 | Max. pressure: 300 MPa
1018219 EType: Connection nipple | Thread G: G 1/4 | Thread G2: G 3/8 | Max. pressure: 400 MPa
1009030 EType: Connection nipple | Thread G: G 1/4 | Thread G2: G 3/4 | Max. pressure: 400 MPa
1012783 EType: Connection nipple | Thread G: G 3/8 | Thread G2: G 1/4 | Max. pressure: 400 MPa
1008593 EType: Connection nipple | Thread G: G 3/8 | Thread G2: G 3/4 | Max. pressure: 400 MPa
1016402 EType: Connection nipple | Thread G: G 1/2 | Thread G2: G 1/4 | Max. pressure: 400 MPa
729146Type: Connection nipple | Thread G: G 1/2 | Thread G2: G 3/4 | Max. pressure: 300 MPa
228027 EType: Connection nipple | Thread G: G 3/4 | Thread G2: G 1/4 | Max. pressure: 400 MPa
1018220 EType: Connection nipple | Thread G: G 1/4 | Thread G2: G 1/4 | Max. pressure: 400 MPa
729654/150MPAType: Connection nipple | Thread G: NPT 1/4" | Thread G2: G 1/4 | Max. pressure: 150 MPa
729655/150MPAType: Connection nipple | Thread G: NPT 3/8" | Thread G2: G 1/4 | Max. pressure: 150 MPa
729106/100MPAType: Connection nipple | Thread G: G 1/4 | Thread G2: NPT 3/8" | Max. pressure: 100 MPa
729656/150MPAType: Connection nipple | Thread G: NPT 3/4" | Thread G2: G 1/4 | Max. pressure: 150 MPa
