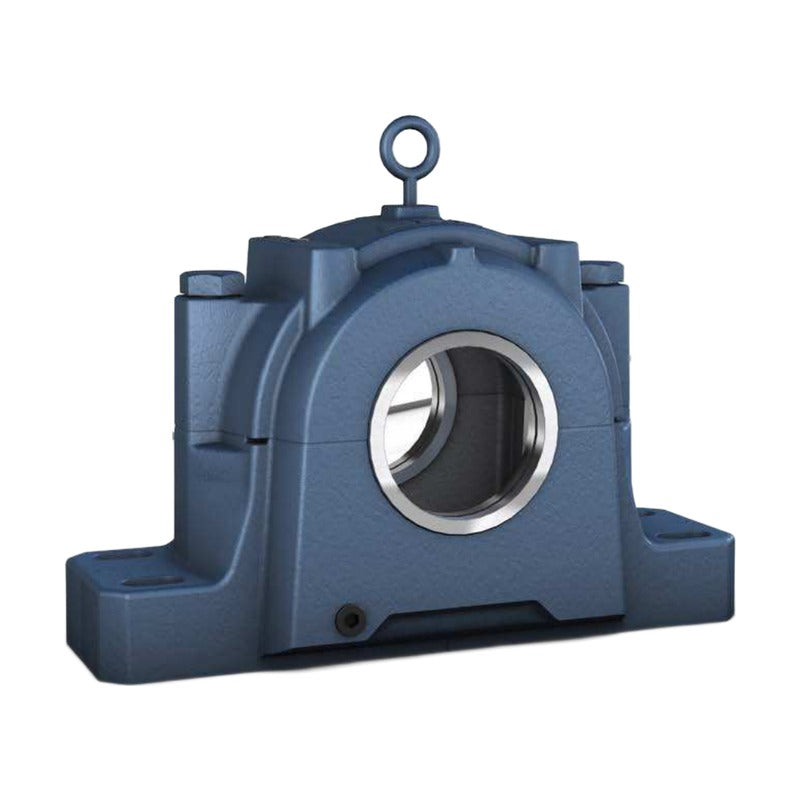

SKF SAF and SAW Split Pillow Block Housings (Inch)

SKF SAF and SAW Split Pillow Block Housings (Inch)

SKF SAF, FSAF and SAW split pillow block housings in inch dimensions, as listed for the component parts of the complete SAF/SAW pillow blocks.

Key features

  • Split cast iron pillow block housing (housing only)
  • Inch dimensions; two-bolt (SAF) or four-bolt (FSAF) base
  • SAW housings with wide bearing seat
  • For self-aligning ball, spherical roller and CARB bearings
  • Fits SKF labyrinth seals and stabilizing rings

Specifications

Series SAF, FSAF, SAW
Product Pillow block housing
Dimensions Inch
Material Cast iron
Brand SKF
Source SKF Bearing housings and roller bearing units, p. 418-447
SAF 507 Centre height H1: 2.000 in. | Length L: 7 1/2 in. | Bolt spacing J: 5 5/8-6 1/8 in. | Height H: 3 29/32 in.
SAF 509 Centre height H1: 2.250 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/4-7 in. | Height H: 4 7/16 in.
SAF 609 Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-7 7/8 in. | Height H: 5 5/16 in.
SAF 510 Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Height H: 4 13/16 in.
SAF 610 Centre height H1: 3.000 in. | Length L: 10 5/8 in. | Bolt spacing J: 7 3/4-9 in. | Height H: 5 13/16 in.
SAF 511 Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-8 1/4 in. | Height H: 5 1/4 in.
SAF 611 Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 9 1/2-8 1/8 in. | Height H: 6 3/16 in.
FSAF 611 Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 9 1/2-8 1/8 in. | Height H: 6 3/16 in.
SAF 513 Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Height H: 5 13/16 in.
SAF 613 Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 11-9 5/8 in. | Height H: 6 19/32 in.
FSAF 613 Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 11-9 5/8 in. | Height H: 6 19/32 in.
SAF 515 Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Height H: 6 7/32 in.
FSAF 515 Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Height H: 6 7/32 in.
SAF 615 Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 11 5/8-10 3/8 in. | Height H: 7 9/16 in.
FSAF 615 Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 11 5/8-10 3/8 in. | Height H: 7 9/16 in.
SAF 516 Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Height H: 6 11/16 in.
FSAF 516 Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Height H: 6 11/16 in.
SAF 616 Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 12 5/8-10 5/8 in. | Height H: 8 1/4 in.
FSAF 616 Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 12 5/8-10 5/8 in. | Height H: 8 1/4 in.
SAF 517 Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Height H: 7 1/8 in.
FSAF 517 Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Height H: 7 1/8 in.
SAF 617 Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 3/4 in.
FSAF 617 Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 3/4 in.
SAF 518 Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Height H: 7 19/32 in.
FSAF 518 Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Height H: 7 19/32 in.
SAF 618 Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Height H: 9 3/16 in.
SAF 520 Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 9/16 in.
FSAF 520 Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 9/16 in.
SAF 620 Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 14 1/2-13 1/4 in. | Height H: 10 3/16 in.
SAF 522 Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Height H: 9 7/16 in.
SAF 622 Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/16 in.
SAW 518 Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Height H: 7 19/32 in.
SAW 520 Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 3/4 in.
SAWS 522 Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Height H: 9 5/8 in.
SAF 524 Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Height H: 10 1/8 in.
SAF 624 Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Height H: 12 1/2 in.
SAF 024 Centre height H1: 4 1/2 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 9/16 in.
FSAF 024 Centre height H1: 4 1/2 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 9/16 in.
SAW 524 Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Height H: 10 1/8 in.
SAF 526 Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/8 in.
SAF 626 Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 5/16 in.
SAF 026 KA x 4.7/16 Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Height H: 9 7/16 in.
SAW 526 Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/8 in.
SAF 528 Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Height H: 12 1/32 in.
SAF 628 Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAF 028 KA x 4.15/16 Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Height H: 10 3/16 in.
SAW 528 Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 16-17 1/8 in. | Height H: 11 3/4 in.
SAF 530 Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Height H: 12 5/8 in.
SAF 630 Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Height H: 14 7/8 in.
SAF 030 KA x 5.3/16 Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/16 in.
SAW 530 Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Height H: 12 5/8 in.
SAF 532 Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 1/4 in.
SAF 632 Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAF 032 KA x 5.7/16 Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/16 in.
SAW 532 Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 1/4 in.
SAF 534 Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAF 634 Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAF 034 KA x 5.15/16 Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Height H: 12 1/32 in.
SAW 534 Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAF 536 Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Height H: 14 7/8 in.
SAF 036 KA x 6.7/16 Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 1/4 in.
SAW 536 Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Height H: 14 7/8 in.
SAF 538 Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAF 638 Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
SAF 038 KA x 6.15/16 Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 1/4 in.
SAW 538 Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAF 540 Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAF 640 Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Height H: 19 1/2 in.
SAF 040 KA x 7.3/16 Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAW 540 Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAF 544 Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
SAF 044 KA x 7.15/16 Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAW 544 Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
SAF 048 KA x 8.15/16 Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAF 052 KA x 9.7/16 Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
SAF 056 KA x 9.15/16 Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Height H: 19 1/2 in.
SAF 056 KA x 10.7/16 Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Height H: 19 1/2 in.
SAF 308 Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Height H: 4 13/16 in.
SAF 309 Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-7 7/8 in. | Height H: 5 5/16 in.
SAF 310 Centre height H1: 3.000 in. | Length L: 10 5/8 in. | Bolt spacing J: 7 3/4-9 in. | Height H: 5 13/16 in.
SAF 311 Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Height H: 6 3/16 in.
FSAF 311 Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Height H: 6 3/16 in.
SAF 312 Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 9 5/8-8 5/8 in. | Height H: 6 3/8 in.
FSAF 312 Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 9 5/8-8 5/8 in. | Height H: 6 3/8 in.
SAF 313 Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Height H: 6 19/32 in.
FSAF 313 Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Height H: 6 19/32 in.
SAF 314 Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Height H: 7 3/8 in.
FSAF 314 Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Height H: 7 3/8 in.
SAF 315 Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Height H: 7 9/16 in.
FSAF 315 Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Height H: 7 9/16 in.
SAF 316 Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Height H: 8 1/4 in.
FSAF 316 Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Height H: 8 1/4 in.
SAF 317 Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 3/4 in.
FSAF 317 Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 3/4 in.
SAF 318 Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Height H: 9 1/4 in.
SAF 320 Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Height H: 10 3/16 in.
SAF 322 Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/16 in.
SAF 213 Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Height H: 5 13/16 in.
SAF 215 Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Height H: 6 7/32 in.
FSAF 215 Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Height H: 6 7/32 in.
SAF 216 Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Height H: 6 11/16 in.
FSAF 216 Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Height H: 6 11/16 in.
SAF 217 Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Height H: 7 1/8 in.
FSAF 217 Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Height H: 7 1/8 in.
SAF 218 Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Height H: 7 19/32 in.
FSAF 218 Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Height H: 7 19/32 in.
SAW 218 Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Height H: 7 19/32 in.
SAF 220 Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 9/16 in.
FSAF 220 Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 9/16 in.
SAW 220 Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 3/4 in.
SAF 222 Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Height H: 9 7/16 in.
SAWS 222 Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Height H: 9 5/8 in.
SAF 224 Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Height H: 10 1/8 in.
SAF 324 Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Height H: 12 1/2 in.
SAW 224 Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Height H: 10 1/8 in.
SAF 226 Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/8 in.
SAF 326 Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 5/16 in.
SAW 226 Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/8 in.
SAF 228 Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Height H: 12 1/32 in.
SAF 328 Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAW 228 Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 16-17 1/8 in. | Height H: 11 3/4 in.
SAF 230 Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Height H: 12 5/8 in.
SAF 330 Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Height H: 14 7/8 in.
SAW 230 Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Height H: 12 1/2 in.
SAF 232 Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 1/4 in.
SAF 332 Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAW 232 Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 1/4 in.
SAF 234 Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAF 334 Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAW 234 Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAF 236 Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Height H: 14 7/8 in.
SAW 236 Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Height H: 14 7/8 in.
SAF 238 Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAF 338 Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
SAW 238 Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAF 240 Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAF 340 Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Height H: 19 1/2 in.
SAW 240 Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAF 244 Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
SAW 244 Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
Bearing HousingsSKF
140 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF SAF and SAW Split Pillow Block Housings (Inch)

Brand SKF·Bearing Housings

Available part numbers (140)

SAF 507, SAF 509, SAF 609, SAF 510, SAF 610, SAF 511, SAF 611, FSAF 611, SAF 513, SAF 613 + 130 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SAF 507Centre height H1: 2.000 in. | Length L: 7 1/2 in. | Bolt spacing J: 5 5/8-6 1/8 in. | Height H: 3 29/32 in.
SAF 509Centre height H1: 2.250 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/4-7 in. | Height H: 4 7/16 in.
SAF 609Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-7 7/8 in. | Height H: 5 5/16 in.
SAF 510Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Height H: 4 13/16 in.
SAF 610Centre height H1: 3.000 in. | Length L: 10 5/8 in. | Bolt spacing J: 7 3/4-9 in. | Height H: 5 13/16 in.
SAF 511Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-8 1/4 in. | Height H: 5 1/4 in.
SAF 611Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 9 1/2-8 1/8 in. | Height H: 6 3/16 in.
FSAF 611Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 9 1/2-8 1/8 in. | Height H: 6 3/16 in.
SAF 513Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Height H: 5 13/16 in.
SAF 613Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 11-9 5/8 in. | Height H: 6 19/32 in.
FSAF 613Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 11-9 5/8 in. | Height H: 6 19/32 in.
SAF 515Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Height H: 6 7/32 in.
FSAF 515Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Height H: 6 7/32 in.
SAF 615Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 11 5/8-10 3/8 in. | Height H: 7 9/16 in.
FSAF 615Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 11 5/8-10 3/8 in. | Height H: 7 9/16 in.
SAF 516Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Height H: 6 11/16 in.
FSAF 516Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Height H: 6 11/16 in.
SAF 616Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 12 5/8-10 5/8 in. | Height H: 8 1/4 in.
FSAF 616Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 12 5/8-10 5/8 in. | Height H: 8 1/4 in.
SAF 517Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Height H: 7 1/8 in.
FSAF 517Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Height H: 7 1/8 in.
SAF 617Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 3/4 in.
FSAF 617Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 3/4 in.
SAF 518Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Height H: 7 19/32 in.
FSAF 518Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Height H: 7 19/32 in.
SAF 618Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Height H: 9 3/16 in.
SAF 520Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 9/16 in.
FSAF 520Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 9/16 in.
SAF 620Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 14 1/2-13 1/4 in. | Height H: 10 3/16 in.
SAF 522Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Height H: 9 7/16 in.
SAF 622Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/16 in.
SAW 518Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Height H: 7 19/32 in.
SAW 520Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 3/4 in.
SAWS 522Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Height H: 9 5/8 in.
SAF 524Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Height H: 10 1/8 in.
SAF 624Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Height H: 12 1/2 in.
SAF 024Centre height H1: 4 1/2 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 9/16 in.
FSAF 024Centre height H1: 4 1/2 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 9/16 in.
SAW 524Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Height H: 10 1/8 in.
SAF 526Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/8 in.
SAF 626Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 5/16 in.
SAF 026 KA x 4.7/16Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Height H: 9 7/16 in.
SAW 526Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/8 in.
SAF 528Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Height H: 12 1/32 in.
SAF 628Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAF 028 KA x 4.15/16Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Height H: 10 3/16 in.
SAW 528Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 16-17 1/8 in. | Height H: 11 3/4 in.
SAF 530Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Height H: 12 5/8 in.
SAF 630Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Height H: 14 7/8 in.
SAF 030 KA x 5.3/16Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/16 in.
SAW 530Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Height H: 12 5/8 in.
SAF 532Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 1/4 in.
SAF 632Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAF 032 KA x 5.7/16Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/16 in.
SAW 532Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 1/4 in.
SAF 534Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAF 634Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAF 034 KA x 5.15/16Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Height H: 12 1/32 in.
SAW 534Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAF 536Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Height H: 14 7/8 in.
SAF 036 KA x 6.7/16Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 1/4 in.
SAW 536Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Height H: 14 7/8 in.
SAF 538Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAF 638Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
SAF 038 KA x 6.15/16Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 1/4 in.
SAW 538Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAF 540Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAF 640Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Height H: 19 1/2 in.
SAF 040 KA x 7.3/16Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAW 540Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAF 544Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
SAF 044 KA x 7.15/16Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAW 544Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
SAF 048 KA x 8.15/16Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAF 052 KA x 9.7/16Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
SAF 056 KA x 9.15/16Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Height H: 19 1/2 in.
SAF 056 KA x 10.7/16Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Height H: 19 1/2 in.
SAF 308Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Height H: 4 13/16 in.
SAF 309Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-7 7/8 in. | Height H: 5 5/16 in.
SAF 310Centre height H1: 3.000 in. | Length L: 10 5/8 in. | Bolt spacing J: 7 3/4-9 in. | Height H: 5 13/16 in.
SAF 311Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Height H: 6 3/16 in.
FSAF 311Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Height H: 6 3/16 in.
SAF 312Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 9 5/8-8 5/8 in. | Height H: 6 3/8 in.
FSAF 312Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 9 5/8-8 5/8 in. | Height H: 6 3/8 in.
SAF 313Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Height H: 6 19/32 in.
FSAF 313Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Height H: 6 19/32 in.
SAF 314Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Height H: 7 3/8 in.
FSAF 314Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Height H: 7 3/8 in.
SAF 315Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Height H: 7 9/16 in.
FSAF 315Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Height H: 7 9/16 in.
SAF 316Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Height H: 8 1/4 in.
FSAF 316Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Height H: 8 1/4 in.
SAF 317Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 3/4 in.
FSAF 317Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 3/4 in.
SAF 318Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Height H: 9 1/4 in.
SAF 320Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Height H: 10 3/16 in.
SAF 322Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/16 in.
SAF 213Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Height H: 5 13/16 in.
SAF 215Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Height H: 6 7/32 in.
FSAF 215Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Height H: 6 7/32 in.
SAF 216Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Height H: 6 11/16 in.
FSAF 216Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Height H: 6 11/16 in.
SAF 217Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Height H: 7 1/8 in.
FSAF 217Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Height H: 7 1/8 in.
SAF 218Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Height H: 7 19/32 in.
FSAF 218Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Height H: 7 19/32 in.
SAW 218Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Height H: 7 19/32 in.
SAF 220Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 9/16 in.
FSAF 220Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 9/16 in.
SAW 220Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Height H: 8 3/4 in.
SAF 222Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Height H: 9 7/16 in.
SAWS 222Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Height H: 9 5/8 in.
SAF 224Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Height H: 10 1/8 in.
SAF 324Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Height H: 12 1/2 in.
SAW 224Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Height H: 10 1/8 in.
SAF 226Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/8 in.
SAF 326Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 5/16 in.
SAW 226Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Height H: 11 5/8 in.
SAF 228Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Height H: 12 1/32 in.
SAF 328Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAW 228Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 16-17 1/8 in. | Height H: 11 3/4 in.
SAF 230Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Height H: 12 5/8 in.
SAF 330Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Height H: 14 7/8 in.
SAW 230Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Height H: 12 1/2 in.
SAF 232Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 1/4 in.
SAF 332Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAW 232Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Height H: 13 1/4 in.
SAF 234Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAF 334Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAW 234Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Height H: 14 3/16 in.
SAF 236Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Height H: 14 7/8 in.
SAW 236Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Height H: 14 7/8 in.
SAF 238Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAF 338Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
SAW 238Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Height H: 15 11/16 in.
SAF 240Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAF 340Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Height H: 19 1/2 in.
SAW 240Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Height H: 16 1/2 in.
SAF 244Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.
SAW 244Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Height H: 18 5/8 in.

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
