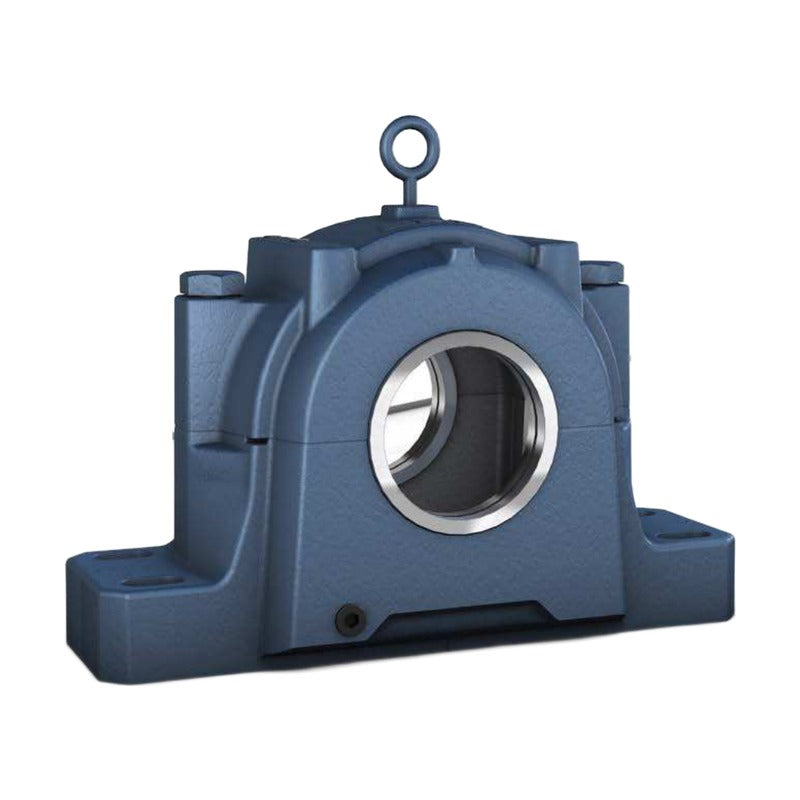

SKF SAF and SAW Split Pillow Blocks (Complete, Inch)

SKF SAF and SAW Split Pillow Blocks (Complete, Inch)

Complete SKF SAF, FSAF and SAW split pillow blocks (inch dimensions) supplied as kits with housing, self-aligning ball, spherical roller or CARB bearing, adapter or locking parts, stabilizing ring and seals.

Key features

  • Complete kits: housing, bearing, adapter assembly or nut/washer, stabilizing ring and seals
  • Inch-dimension housings interchangeable with North American pillow block standards
  • F prefix: four-bolt base; SAW: wide bearing seat
  • Bearing options: 13/15/16(00) ball, 222/223/225/226/230/235(00) spherical roller, C.. CARB
  • Labyrinth (LER/LOR) seals included

Specifications

Series SAF, FSAF, SAW
Product Complete pillow block kit
Dimensions Inch
Material Cast iron
Bearing types Self-aligning ball, spherical roller, CARB
Source SKF Bearing housings and roller bearing units, p. 418-447
SAF 1507 Shaft: 1 3/16 in. | Centre height H1: 2.000 in. | Length L: 7 1/2 in. | Bolt spacing J: 5 5/8-6 1/8 in. | Mass: 8 lb
SAF 1509 Shaft: 1 7/16 in. | Centre height H1: 2.250 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/4-7 in. | Mass: 12 lb
SAF 1609 Shaft: 1 7/16 in. | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-7 7/8 in. | Mass: 19 lb
SAF 1510 Shaft: 1 11/16 in. | Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Mass: 13 lb
SAF 1610 Shaft: 1 11/16 in. | Centre height H1: 3.000 in. | Length L: 10 5/8 in. | Bolt spacing J: 7 3/4-9 in. | Mass: 22 lb
SAF 1511 Shaft: 1 15/16 in. | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-8 1/4 in. | Mass: 16 lb
SAF 1611 Shaft: 1 15/16 in. | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 9 1/2-8 1/8 in. | Mass: 27 lb
FSAF 1611 Shaft: 1 15/16 in. | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 9 1/2-8 1/8 in. | Mass: 27 lb
SAF 1513 Shaft: 2 3/16 in. | Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 20 lb
SAF 1613 Shaft: 2 3/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 11-9 5/8 in. | Mass: 38 lb
FSAF 1613 Shaft: 2 3/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 11-9 5/8 in. | Mass: 38 lb
SAF 1515 Shaft: 2 7/16 in. | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 28 lb
FSAF 1515 Shaft: 2 7/16 in. | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 28 lb
SAF 1615 Shaft: 2 7/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 11 5/8-10 3/8 in. | Mass: 47 lb
FSAF 1615 Shaft: 2 7/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 11 5/8-10 3/8 in. | Mass: 47 lb
SAF 1516 Shaft: 2 11/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 37 lb
FSAF 1516 Shaft: 2 11/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 37 lb
SAF 1616 Shaft: 2 11/16 in. | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 12 5/8-10 5/8 in. | Mass: 66 lb
FSAF 1616 Shaft: 2 11/16 in. | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 12 5/8-10 5/8 in. | Mass: 66 lb
SAF 1517 Shaft: 2 15/16 in. | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 38 lb
FSAF 1517 Shaft: 2 15/16 in. | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 38 lb
SAF 1617 Shaft: 2 15/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 69 lb
FSAF 1617 Shaft: 2 15/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 69 lb
SAF 1518 Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Mass: 47 lb
FSAF 1518 Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 47 lb
SAF 1618 Shaft: 3 3/16 in. | Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Mass: 91 lb
SAF 1520 Shaft: 3 7/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 62 lb
FSAF 1520 Shaft: 3 7/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 62 lb
SAF 1620 Shaft: 3 7/16 in. | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 14 1/2-13 1/4 in. | Mass: 101 lb
SAF 1522 Shaft: 3 15/16 in. | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 73 lb
SAF 1622 Shaft: 3 15/16 in. | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 138 lb
SAF 22507 Shaft: 1 3/16 in. | Centre height H1: 2.000 in. | Length L: 7 1/2 in. | Bolt spacing J: 5 5/8-6 1/8 in. | Mass: 8 lb
SAF 22509 Shaft: 1 7/16 in. | Centre height H1: 2.250 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/4-7 in. | Mass: 12 lb
SAF 22609 Shaft: 1 7/16 in. | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-7 7/8 in. | Mass: 20 lb
SAF 22510 Shaft: 1 11/16 in. | Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Mass: 13 lb
SAF 22610 Shaft: 1 11/16 in. | Centre height H1: 3.000 in. | Length L: 10 5/8 in. | Bolt spacing J: 7 3/4-9 in. | Mass: 24 lb
SAF 22511 Shaft: 1 15/16 in. | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-8 1/4 in. | Mass: 16 lb
SAF 22611 Shaft: 1 15/16 in. | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 29 lb
FSAF 22611 Shaft: 1 15/16 in. | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 29 lb
SAF 22513 Shaft: 2 3/16 in. | Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 23 lb
SAF 22613 Shaft: 2 3/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 40 lb
FSAF 22613 Shaft: 2 3/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 40 lb
SAF 22515 Shaft: 2 7/16 in. | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 28 lb
SAF 22615 Shaft: 2 7/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 52 lb
FSAF 22515 Shaft: 2 7/16 in. | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 28 lb
FSAF 22615 Shaft: 2 7/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 52 lb
SAF 22516 Shaft: 2 11/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 37 lb
SAF 22616 Shaft: 2 11/16 in. | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 71 lb
FSAF 22516 Shaft: 2 11/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 37 lb
FSAF 22616 Shaft: 2 11/16 in. | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 71 lb
SAF 22517 Shaft: 2 15/16 in. | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 39 lb
SAF 22617 Shaft: 2 15/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 75 lb
FSAF 22517 Shaft: 2 15/16 in. | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 39 lb
FSAF 22617 Shaft: 2 15/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 75 lb
SAF 22518 Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Mass: 47 lb
SAF 22618 Shaft: 3 3/16 in. | Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Mass: 97 lb
FSAF 22518 Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 47 lb
SAW 23518 Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 50 lb
SAF 22520 Shaft: 3 7/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 62 lb
SAF 22620 Shaft: 3 7/16 in. | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 113 lb
FSAF 22520 Shaft: 3 7/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 62 lb
SAW 23520 Shaft: 3 7/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 75 lb
SAF 22522 Shaft: 3 15/16 in. | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 73 lb
SAF 22622 Shaft: 3 15/16 in. | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 153 lb
SAWS 23522 Shaft: 3 15/16 in. | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 96 lb
SAF 22524 Shaft: 4 3/16 in. | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 104 lb
SAF 22624 Shaft: 4 3/16 in. | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 206 lb
SAF 23024 KA x 4.3/16 Shaft: 4 3/16 in. | Centre height H1: 4 1/2 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 63 lb
FSAF 23024 KA x 4.3/16 Shaft: 4 3/16 in. | Centre height H1: 4 1/2 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 63 lb
SAW 22524 Shaft: 4 3/16 in. | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 110 lb
SAF 22526 Shaft: 4 7/16 in. | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 144 lb
SAF 22626 Shaft: 4 7/16 in. | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 233 lb
SAF 23026 KA x 4.7/16 Shaft: 4 7/16 in. | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 74 lb
SAW 23526 Shaft: 4 7/16 in. | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 155 lb
SAF 22528 Shaft: 4 15/16 in. | Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Mass: 157 lb
SAF 22628 Shaft: 4 15/16 in. | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 296 lb
SAF 23028 KA x 4.15/16 Shaft: 4 15/16 in. | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 138 lb
SAW 23528 Shaft: 4 15/16 in. | Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 16-17 1/8 in. | Mass: 180 lb
SAF 22530 Shaft: 5 3/16 in. | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 202 lb
SAF 22630 Shaft: 5 3/16 in. | Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Mass: 322 lb
SAF 23030 KA x 5.3/16 Shaft: 5 3/16 in. | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 149 lb
SAW 23530 Shaft: 5 3/16 in. | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 220 lb
SAF 22532 Shaft: 5 7/16 in. | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 223 lb
SAF 22632 Shaft: 5 7/16 in. | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 401 lb
SAF 23032 KA x 5.7/16 Shaft: 5 7/16 in. | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 175 lb
SAW 23532 Shaft: 5 7/16 in. | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 240 lb
SAF 22534 Shaft: 5 15/16 in. | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 278 lb
SAF 22634 Shaft: 5 15/16 in. | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 510 lb
SAF 23034 KA x 5.15/16 Shaft: 5 15/16 in. | Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Mass: 148 lb
SAW 23534 Shaft: 5 15/16 in. | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 297 lb
SAF 22536 Shaft: 6 7/16 in. | Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Mass: 301 lb
SAF 23036 KA x 6.7/17 Shaft: 6 7/16 in. | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 209 lb
SAW 23536 Shaft: 6 7/16 in. | Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Mass: 325 lb
SAF 22538 Shaft: 6 15/16 in. | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 374 lb
SAF 22638 Shaft: 6 15/16 in. | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 609 lb
SAF 23038 KA x 6.15/16 Shaft: 6 15/16 in. | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 200 lb
SAW 23538 Shaft: 6 15/16 in. | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 430 lb
SAF 22540 Shaft: 7 3/16 in. | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 443 lb
SAF 22640 Shaft: 7 3/16 in. | Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Mass: 902 lb
SAF 23040 KA x 7.3/16 Shaft: 7 3/16 in. | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 259 lb
SAW 23540 Shaft: 7 3/16 in. | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 515 lb
SAF 22544 Shaft: 7 15/16 in. | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 577 lb
SAF 23044 KA x 7.15/16 Shaft: 7 15/16 in. | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 386 lb
SAW 23544 Shaft: 7 15/16 in. | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 710 lb
SAF 23048 KA x 8.15/16 Shaft: 8 15/16 in. | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 474 lb
SAF 23052 KA x 9.7/16 Shaft: 9 7/16 in. | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 530 lb
SAF 23056 KA x 9.15/16 Shaft: 9 15/16 in. | Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Mass: 800 lb
SAF 23056 KA x 10.7/16 Shaft: 10 7/16 in. | Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Mass: 800 lb
SAF C2507 Shaft: 1 3/16 in. | Centre height H1: 2.000 in. | Length L: 7 1/2 in. | Bolt spacing J: 5 5/8-6 1/8 in. | Mass: 8 lb
SAF C2509 Shaft: 1 7/16 in. | Centre height H1: 2.250 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/4-7 in. | Mass: 12 lb
SAF C2510 Shaft: 1 11/16 in. | Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Mass: 13 lb
SAF C2511 Shaft: 1 15/16 in. | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-8 1/4 in. | Mass: 16 lb
SAF C2513 Shaft: 2 3/16 in. | Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 23 lb
SAF C2515 Shaft: 2 7/16 in. | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 28 lb
SAF C2615 Shaft: 2 7/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 52 lb
FSAF C2515 Shaft: 2 7/16 in. | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 28 lb
FSAF C2615 Shaft: 2 7/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 52 lb
SAF C2516 Shaft: 2 11/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 37 lb
SAF C2616 Shaft: 2 11/16 in. | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 71 lb
FSAF C2516 Shaft: 2 11/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 37 lb
FSAF C2616 Shaft: 2 11/16 in. | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 71 lb
SAF C2517 Shaft: 2 15/16 in. | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 38 lb
SAF C2617 Shaft: 2 15/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 75 lb
FSAF C2517 Shaft: 2 15/16 in. | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 38 lb
FSAF C2617 Shaft: 2 15/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 75 lb
SAF C2518 Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Mass: 46 lb
SAF C2618 Shaft: 3 3/16 in. | Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Mass: 97 lb
FSAF C2518 Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 46 lb
SAF C2520 Shaft: 3 7/16 in. | Centre height H1: 9/16 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 3/4 11 5/8-13 1/8 in. | Mass: 61 lb
SAF C2620 Shaft: 3 7/16 in. | Centre height H1: 3/16 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 1/8 13 1/4-14 1/2 in. | Mass: 113 lb
FSAF C2520 Shaft: 3 7/16 in. | Centre height H1: 9/16 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 3/4 11 5/8-13 1/8 in. | Mass: 61 lb
SAF C2522 Shaft: 3 15/16 in. | Centre height H1: 7/16 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 72 lb
SAF C2526 Shaft: 4 7/16 in. | Centre height H1: 5/8 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 3/8 14 5/8-16 in. | Mass: 143 lb
SAF C2528 Shaft: 4 15/16 in. | Centre height H1: 1/32 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 3/8 15 5/8-17 3/8 in. | Mass: 155 lb
SAF C2530 Shaft: 5 3/16 in. | Centre height H1: 5/8 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 1/2 17-18 1/4 in. | Mass: 194 lb
SAF C2534 Shaft: 5 15/16 in. | Centre height H1: 3/16 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 273 lb
SAF C3036 KA x 6.7/16 Shaft: 6 7/16 in. | Centre height H1: 1/4 6.688 in. | Length L: 22 in. | Bolt spacing J: 5/8 17 3/8-19 1/4 in. | Mass: 272 lb
SAF C2538 Shaft: 6 15/16 in. | Centre height H1: 11/16 7.875 in. | Length L: 28 in. | Bolt spacing J: 1/8 21 5/8-24 3/8 in. | Mass: 364 lb
SAF C3038 KA x 6.15/16 Shaft: 6 15/16 in. | Centre height H1: 1/4 6.688 in. | Length L: 22 in. | Bolt spacing J: 5/8 17 3/8-19 1/4 in. | Mass: 284 lb
SAF C3040 KA x 7.3/16 Shaft: 7 3/16 in. | Centre height H1: 3/16 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 3/4 19 3/8-21 5/8 in. | Mass: 367 lb
SAF C2544 Shaft: 7 15/16 in. | Centre height H1: 5/8 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 3/4 24 3/4-27 7/8 in. | Mass: 569 lb
SAF C3044 KA x 7.15/16 Shaft: 7 15/16 in. | Centre height H1: 11/16 7.875 in. | Length L: 28 in. | Bolt spacing J: 1/8 21 5/8-24 3/8 in. | Mass: 386 lb
SAF C3048 KA x 8.15/16 Shaft: 8 15/16 in. | Centre height H1: 1/2 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 3/8 22 1/2-25 in. | Mass: 474 lb
SAF C3052 KA x 9.7/16 Shaft: 9 7/16 in. | Centre height H1: 5/8 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 3/4 24 3/4-27 7/8 in. | Mass: 530 lb
SAF C3056 KA x 9.15/16 Shaft: 9 15/16 in. | Centre height H1: 1/2 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Mass: 800 lb
SAF C3056 KA x 10.7/16 Shaft: 10 7/16 in. | Centre height H1: 1/2 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Mass: 800 lb
SAF 1308 Shaft: 40 mm | Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Mass: 14 lb
SAF 1309 Shaft: 45 mm | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-7 7/8 in. | Mass: 18 lb
SAF 1310 Shaft: 50 mm | Centre height H1: 3.000 in. | Length L: 10 5/8 in. | Bolt spacing J: 7 3/4-9 in. | Mass: 21 lb
SAF 1311 Shaft: 55 mm | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 25 lb
FSAF 1311 Shaft: 55 mm | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 25 lb
SAF 1312 Shaft: 60 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 9 5/8-8 5/8 in. | Mass: 29 lb
FSAF 1312 Shaft: 60 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 9 5/8-8 5/8 in. | Mass: 29 lb
SAF 1313 Shaft: 65 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 35 lb
FSAF 1313 Shaft: 65 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 35 lb
SAF 1314 Shaft: 70 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 40 lb
FSAF 1314 Shaft: 70 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 40 lb
SAF 1315 Shaft: 75 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 44 lb
FSAF 1315 Shaft: 75 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 44 lb
SAF 1316 Shaft: 80 mm | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 63 lb
FSAF 1316 Shaft: 80 mm | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 63 lb
SAF 1317 Shaft: 85 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 66 lb
FSAF 1317 Shaft: 85 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 66 lb
SAF 1318 Shaft: 90 mm | Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Mass: 86 lb
SAF 1320 Shaft: 100 mm | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 97 lb
SAF 1322 Shaft: 110 mm | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 132 lb
SAF 22308 Shaft: 40 mm | Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Mass: 15 lb
SAF 22309 Shaft: 45 mm | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-7 7/8 in. | Mass: 19 lb
SAF 22310 Shaft: 50 mm | Centre height H1: 3.000 in. | Length L: 10 5/8 in. | Bolt spacing J: 7 3/4-9 in. | Mass: 22 lb
SAF 22311 Shaft: 55 mm | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 27 lb
FSAF 22311 Shaft: 55 mm | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 27 lb
SAF 22312 Shaft: 60 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 31 lb
FSAF 22312 Shaft: 60 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 31 lb
SAF 22213 Shaft: 65 mm | Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 22 lb
SAF 22313 Shaft: 65 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 38 lb
FSAF 22313 Shaft: 65 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 38 lb
SAF 22314 Shaft: 70 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 42 lb
FSAF 22314 Shaft: 70 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 42 lb
SAF 22215 Shaft: 75 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 27 lb
SAF 22315 Shaft: 75 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 48 lb
FSAF 22215 Shaft: 75 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 27 lb
FSAF 22315 Shaft: 75 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 48 lb
SAF 22216 Shaft: 80 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 34 lb
SAF 22316 Shaft: 80 mm | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 67 lb
FSAF 22216 Shaft: 80 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 34 lb
FSAF 22316 Shaft: 80 mm | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 67 lb
SAF 22217 Shaft: 85 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 37 lb
SAF 22317 Shaft: 85 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 71 lb
FSAF 22217 Shaft: 85 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 35 lb
FSAF 22317 Shaft: 85 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 71 lb
SAF 22218 Shaft: 90 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Mass: 44 lb
SAF 22318 Shaft: 90 mm | Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Mass: 92 lb
FSAF 22218 Shaft: 90 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 44 lb
SAW 23218 Shaft: 90 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 48 lb
SAF 22220 Shaft: 100 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 59 lb
SAF 22320 Shaft: 100 mm | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 107 lb
FSAF 22220 Shaft: 100 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 59 lb
SAW 23220 Shaft: 100 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 80 lb
SAF 22222 Shaft: 110 mm | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 68 lb
SAF 22322 Shaft: 110 mm | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 145 lb
SAWS 23222 Shaft: 110 mm | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 91 lb
SAF 22224 Shaft: 120 mm | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 97 lb
SAF 22324 Shaft: 120 mm | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 201 lb
SAW 23224 Shaft: 120 mm | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 105 lb
SAF 22226 Shaft: 130 mm | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 134 lb
SAF 22326 Shaft: 130 mm | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 221 lb
SAW 23226 Shaft: 130 mm | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 155 lb
SAF 22228 Shaft: 140 mm | Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Mass: 149 lb
SAF 22328 Shaft: 140 mm | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 283 lb
SAW 23228 Shaft: 140 mm | Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 16-17 1/8 in. | Mass: 180 lb
SAF 22230 Shaft: 150 mm | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 187 lb
SAF 22330 Shaft: 150 mm | Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Mass: 313 lb
SAW 23230 Shaft: 150 mm | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 204 lb
SAF 22232 Shaft: 160 mm | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 208 lb
SAF 22332 Shaft: 160 mm | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 385 lb
SAW 23232 Shaft: 160 mm | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 245 lb
SAF 22234 Shaft: 170 mm | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 263 lb
SAF 22334 Shaft: 170 mm | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 449 lb
SAW 23234 Shaft: 170 mm | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 298 lb
SAF 22236 Shaft: 180 mm | Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Mass: 286 lb
SAW 23236 Shaft: 180 mm | Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Mass: 286 lb
SAF 22238 Shaft: 190 mm | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 356 lb
SAF 22338 Shaft: 190 mm | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 589 lb
SAW 23238 Shaft: 190 mm | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 430 lb
SAF 22240 Shaft: 200 mm | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 408 lb
SAF 22340 Shaft: 200 mm | Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Mass: 809 lb
SAW 23240 Shaft: 200 mm | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 515 lb
SAF 22244 Shaft: 220 mm | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 535 lb
SAW 23244 Shaft: 220 mm | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 710 lb
SAF C2213 Shaft: 65 mm | Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 22 lb
SAF C2314 Shaft: 70 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 42 lb
FSAF C2314 Shaft: 70 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 42 lb
SAF C2215 Shaft: 75 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 27 lb
SAF C2315 Shaft: 75 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 48 lb
FSAF C2215 Shaft: 75 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 27 lb
FSAF C2315 Shaft: 75 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 48 lb
SAF C2216 Shaft: 80 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 34 lb
SAF C2316 Shaft: 80 mm | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 67 lb
FSAF C2216 Shaft: 80 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 34 lb
FSAF C2316 Shaft: 80 mm | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 67 lb
SAF C2217 Shaft: 85 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 35 lb
SAF C2317 Shaft: 85 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 71 lb
FSAF C2217 Shaft: 85 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 35 lb
FSAF C2317 Shaft: 85 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 71 lb
SAF C2218 Shaft: 90 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Mass: 44 lb
SAF C2318 Shaft: 90 mm | Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Mass: 92 lb
FSAF C2218 Shaft: 90 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 44 lb
SAF C2220 Shaft: 100 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 59 lb
SAF C2320 Shaft: 100 mm | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 107 lb
FSAF C2220 Shaft: 100 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 59 lb
SAF C2222 Shaft: 110 mm | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 88 lb
SAF C2226 Shaft: 130 mm | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 134 lb
SAF C2228 Shaft: 140 mm | Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Mass: 149 lb
SAF C2230 Shaft: 150 mm | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 187 lb
SAF C2234 Shaft: 170 mm | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 263 lb
SAF C2238 Shaft: 190 mm | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 356 lb
SAF C2244 Shaft: 220 mm | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 535 lb
Mounted Bearing UnitsSKF
257 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF SAF and SAW Split Pillow Blocks (Complete, Inch)

Brand SKF·Mounted Bearing Units

Available part numbers (257)

SAF 1507, SAF 1509, SAF 1609, SAF 1510, SAF 1610, SAF 1511, SAF 1611, FSAF 1611, SAF 1513, SAF 1613 + 247 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SAF 1507Shaft: 1 3/16 in. | Centre height H1: 2.000 in. | Length L: 7 1/2 in. | Bolt spacing J: 5 5/8-6 1/8 in. | Mass: 8 lb
SAF 1509Shaft: 1 7/16 in. | Centre height H1: 2.250 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/4-7 in. | Mass: 12 lb
SAF 1609Shaft: 1 7/16 in. | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-7 7/8 in. | Mass: 19 lb
SAF 1510Shaft: 1 11/16 in. | Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Mass: 13 lb
SAF 1610Shaft: 1 11/16 in. | Centre height H1: 3.000 in. | Length L: 10 5/8 in. | Bolt spacing J: 7 3/4-9 in. | Mass: 22 lb
SAF 1511Shaft: 1 15/16 in. | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-8 1/4 in. | Mass: 16 lb
SAF 1611Shaft: 1 15/16 in. | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 9 1/2-8 1/8 in. | Mass: 27 lb
FSAF 1611Shaft: 1 15/16 in. | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 9 1/2-8 1/8 in. | Mass: 27 lb
SAF 1513Shaft: 2 3/16 in. | Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 20 lb
SAF 1613Shaft: 2 3/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 11-9 5/8 in. | Mass: 38 lb
FSAF 1613Shaft: 2 3/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 11-9 5/8 in. | Mass: 38 lb
SAF 1515Shaft: 2 7/16 in. | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 28 lb
FSAF 1515Shaft: 2 7/16 in. | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 28 lb
SAF 1615Shaft: 2 7/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 11 5/8-10 3/8 in. | Mass: 47 lb
FSAF 1615Shaft: 2 7/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 11 5/8-10 3/8 in. | Mass: 47 lb
SAF 1516Shaft: 2 11/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 37 lb
FSAF 1516Shaft: 2 11/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 37 lb
SAF 1616Shaft: 2 11/16 in. | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 12 5/8-10 5/8 in. | Mass: 66 lb
FSAF 1616Shaft: 2 11/16 in. | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 12 5/8-10 5/8 in. | Mass: 66 lb
SAF 1517Shaft: 2 15/16 in. | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 38 lb
FSAF 1517Shaft: 2 15/16 in. | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 38 lb
SAF 1617Shaft: 2 15/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 69 lb
FSAF 1617Shaft: 2 15/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 69 lb
SAF 1518Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Mass: 47 lb
FSAF 1518Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 47 lb
SAF 1618Shaft: 3 3/16 in. | Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Mass: 91 lb
SAF 1520Shaft: 3 7/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 62 lb
FSAF 1520Shaft: 3 7/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 62 lb
SAF 1620Shaft: 3 7/16 in. | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 14 1/2-13 1/4 in. | Mass: 101 lb
SAF 1522Shaft: 3 15/16 in. | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 73 lb
SAF 1622Shaft: 3 15/16 in. | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 138 lb
SAF 22507Shaft: 1 3/16 in. | Centre height H1: 2.000 in. | Length L: 7 1/2 in. | Bolt spacing J: 5 5/8-6 1/8 in. | Mass: 8 lb
SAF 22509Shaft: 1 7/16 in. | Centre height H1: 2.250 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/4-7 in. | Mass: 12 lb
SAF 22609Shaft: 1 7/16 in. | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-7 7/8 in. | Mass: 20 lb
SAF 22510Shaft: 1 11/16 in. | Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Mass: 13 lb
SAF 22610Shaft: 1 11/16 in. | Centre height H1: 3.000 in. | Length L: 10 5/8 in. | Bolt spacing J: 7 3/4-9 in. | Mass: 24 lb
SAF 22511Shaft: 1 15/16 in. | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-8 1/4 in. | Mass: 16 lb
SAF 22611Shaft: 1 15/16 in. | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 29 lb
FSAF 22611Shaft: 1 15/16 in. | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 29 lb
SAF 22513Shaft: 2 3/16 in. | Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 23 lb
SAF 22613Shaft: 2 3/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 40 lb
FSAF 22613Shaft: 2 3/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 40 lb
SAF 22515Shaft: 2 7/16 in. | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 28 lb
SAF 22615Shaft: 2 7/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 52 lb
FSAF 22515Shaft: 2 7/16 in. | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 28 lb
FSAF 22615Shaft: 2 7/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 52 lb
SAF 22516Shaft: 2 11/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 37 lb
SAF 22616Shaft: 2 11/16 in. | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 71 lb
FSAF 22516Shaft: 2 11/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 37 lb
FSAF 22616Shaft: 2 11/16 in. | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 71 lb
SAF 22517Shaft: 2 15/16 in. | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 39 lb
SAF 22617Shaft: 2 15/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 75 lb
FSAF 22517Shaft: 2 15/16 in. | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 39 lb
FSAF 22617Shaft: 2 15/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 75 lb
SAF 22518Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Mass: 47 lb
SAF 22618Shaft: 3 3/16 in. | Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Mass: 97 lb
FSAF 22518Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 47 lb
SAW 23518Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 50 lb
SAF 22520Shaft: 3 7/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 62 lb
SAF 22620Shaft: 3 7/16 in. | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 113 lb
FSAF 22520Shaft: 3 7/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 62 lb
SAW 23520Shaft: 3 7/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 75 lb
SAF 22522Shaft: 3 15/16 in. | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 73 lb
SAF 22622Shaft: 3 15/16 in. | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 153 lb
SAWS 23522Shaft: 3 15/16 in. | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 96 lb
SAF 22524Shaft: 4 3/16 in. | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 104 lb
SAF 22624Shaft: 4 3/16 in. | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 206 lb
SAF 23024 KA x 4.3/16Shaft: 4 3/16 in. | Centre height H1: 4 1/2 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 63 lb
FSAF 23024 KA x 4.3/16Shaft: 4 3/16 in. | Centre height H1: 4 1/2 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 63 lb
SAW 22524Shaft: 4 3/16 in. | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 110 lb
SAF 22526Shaft: 4 7/16 in. | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 144 lb
SAF 22626Shaft: 4 7/16 in. | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 233 lb
SAF 23026 KA x 4.7/16Shaft: 4 7/16 in. | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 74 lb
SAW 23526Shaft: 4 7/16 in. | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 155 lb
SAF 22528Shaft: 4 15/16 in. | Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Mass: 157 lb
SAF 22628Shaft: 4 15/16 in. | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 296 lb
SAF 23028 KA x 4.15/16Shaft: 4 15/16 in. | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 138 lb
SAW 23528Shaft: 4 15/16 in. | Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 16-17 1/8 in. | Mass: 180 lb
SAF 22530Shaft: 5 3/16 in. | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 202 lb
SAF 22630Shaft: 5 3/16 in. | Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Mass: 322 lb
SAF 23030 KA x 5.3/16Shaft: 5 3/16 in. | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 149 lb
SAW 23530Shaft: 5 3/16 in. | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 220 lb
SAF 22532Shaft: 5 7/16 in. | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 223 lb
SAF 22632Shaft: 5 7/16 in. | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 401 lb
SAF 23032 KA x 5.7/16Shaft: 5 7/16 in. | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 175 lb
SAW 23532Shaft: 5 7/16 in. | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 240 lb
SAF 22534Shaft: 5 15/16 in. | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 278 lb
SAF 22634Shaft: 5 15/16 in. | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 510 lb
SAF 23034 KA x 5.15/16Shaft: 5 15/16 in. | Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Mass: 148 lb
SAW 23534Shaft: 5 15/16 in. | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 297 lb
SAF 22536Shaft: 6 7/16 in. | Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Mass: 301 lb
SAF 23036 KA x 6.7/17Shaft: 6 7/16 in. | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 209 lb
SAW 23536Shaft: 6 7/16 in. | Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Mass: 325 lb
SAF 22538Shaft: 6 15/16 in. | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 374 lb
SAF 22638Shaft: 6 15/16 in. | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 609 lb
SAF 23038 KA x 6.15/16Shaft: 6 15/16 in. | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 200 lb
SAW 23538Shaft: 6 15/16 in. | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 430 lb
SAF 22540Shaft: 7 3/16 in. | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 443 lb
SAF 22640Shaft: 7 3/16 in. | Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Mass: 902 lb
SAF 23040 KA x 7.3/16Shaft: 7 3/16 in. | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 259 lb
SAW 23540Shaft: 7 3/16 in. | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 515 lb
SAF 22544Shaft: 7 15/16 in. | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 577 lb
SAF 23044 KA x 7.15/16Shaft: 7 15/16 in. | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 386 lb
SAW 23544Shaft: 7 15/16 in. | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 710 lb
SAF 23048 KA x 8.15/16Shaft: 8 15/16 in. | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 474 lb
SAF 23052 KA x 9.7/16Shaft: 9 7/16 in. | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 530 lb
SAF 23056 KA x 9.15/16Shaft: 9 15/16 in. | Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Mass: 800 lb
SAF 23056 KA x 10.7/16Shaft: 10 7/16 in. | Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Mass: 800 lb
SAF C2507Shaft: 1 3/16 in. | Centre height H1: 2.000 in. | Length L: 7 1/2 in. | Bolt spacing J: 5 5/8-6 1/8 in. | Mass: 8 lb
SAF C2509Shaft: 1 7/16 in. | Centre height H1: 2.250 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/4-7 in. | Mass: 12 lb
SAF C2510Shaft: 1 11/16 in. | Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Mass: 13 lb
SAF C2511Shaft: 1 15/16 in. | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-8 1/4 in. | Mass: 16 lb
SAF C2513Shaft: 2 3/16 in. | Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 23 lb
SAF C2515Shaft: 2 7/16 in. | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 28 lb
SAF C2615Shaft: 2 7/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 52 lb
FSAF C2515Shaft: 2 7/16 in. | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 28 lb
FSAF C2615Shaft: 2 7/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 52 lb
SAF C2516Shaft: 2 11/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 37 lb
SAF C2616Shaft: 2 11/16 in. | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 71 lb
FSAF C2516Shaft: 2 11/16 in. | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 37 lb
FSAF C2616Shaft: 2 11/16 in. | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 71 lb
SAF C2517Shaft: 2 15/16 in. | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 38 lb
SAF C2617Shaft: 2 15/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 75 lb
FSAF C2517Shaft: 2 15/16 in. | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 38 lb
FSAF C2617Shaft: 2 15/16 in. | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 75 lb
SAF C2518Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Mass: 46 lb
SAF C2618Shaft: 3 3/16 in. | Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Mass: 97 lb
FSAF C2518Shaft: 3 3/16 in. | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 46 lb
SAF C2520Shaft: 3 7/16 in. | Centre height H1: 9/16 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 3/4 11 5/8-13 1/8 in. | Mass: 61 lb
SAF C2620Shaft: 3 7/16 in. | Centre height H1: 3/16 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 1/8 13 1/4-14 1/2 in. | Mass: 113 lb
FSAF C2520Shaft: 3 7/16 in. | Centre height H1: 9/16 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 3/4 11 5/8-13 1/8 in. | Mass: 61 lb
SAF C2522Shaft: 3 15/16 in. | Centre height H1: 7/16 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 72 lb
SAF C2526Shaft: 4 7/16 in. | Centre height H1: 5/8 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 3/8 14 5/8-16 in. | Mass: 143 lb
SAF C2528Shaft: 4 15/16 in. | Centre height H1: 1/32 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 3/8 15 5/8-17 3/8 in. | Mass: 155 lb
SAF C2530Shaft: 5 3/16 in. | Centre height H1: 5/8 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 1/2 17-18 1/4 in. | Mass: 194 lb
SAF C2534Shaft: 5 15/16 in. | Centre height H1: 3/16 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 273 lb
SAF C3036 KA x 6.7/16Shaft: 6 7/16 in. | Centre height H1: 1/4 6.688 in. | Length L: 22 in. | Bolt spacing J: 5/8 17 3/8-19 1/4 in. | Mass: 272 lb
SAF C2538Shaft: 6 15/16 in. | Centre height H1: 11/16 7.875 in. | Length L: 28 in. | Bolt spacing J: 1/8 21 5/8-24 3/8 in. | Mass: 364 lb
SAF C3038 KA x 6.15/16Shaft: 6 15/16 in. | Centre height H1: 1/4 6.688 in. | Length L: 22 in. | Bolt spacing J: 5/8 17 3/8-19 1/4 in. | Mass: 284 lb
SAF C3040 KA x 7.3/16Shaft: 7 3/16 in. | Centre height H1: 3/16 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 3/4 19 3/8-21 5/8 in. | Mass: 367 lb
SAF C2544Shaft: 7 15/16 in. | Centre height H1: 5/8 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 3/4 24 3/4-27 7/8 in. | Mass: 569 lb
SAF C3044 KA x 7.15/16Shaft: 7 15/16 in. | Centre height H1: 11/16 7.875 in. | Length L: 28 in. | Bolt spacing J: 1/8 21 5/8-24 3/8 in. | Mass: 386 lb
SAF C3048 KA x 8.15/16Shaft: 8 15/16 in. | Centre height H1: 1/2 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 3/8 22 1/2-25 in. | Mass: 474 lb
SAF C3052 KA x 9.7/16Shaft: 9 7/16 in. | Centre height H1: 5/8 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 3/4 24 3/4-27 7/8 in. | Mass: 530 lb
SAF C3056 KA x 9.15/16Shaft: 9 15/16 in. | Centre height H1: 1/2 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Mass: 800 lb
SAF C3056 KA x 10.7/16Shaft: 10 7/16 in. | Centre height H1: 1/2 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Mass: 800 lb
SAF 1308Shaft: 40 mm | Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Mass: 14 lb
SAF 1309Shaft: 45 mm | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-7 7/8 in. | Mass: 18 lb
SAF 1310Shaft: 50 mm | Centre height H1: 3.000 in. | Length L: 10 5/8 in. | Bolt spacing J: 7 3/4-9 in. | Mass: 21 lb
SAF 1311Shaft: 55 mm | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 25 lb
FSAF 1311Shaft: 55 mm | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 25 lb
SAF 1312Shaft: 60 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 9 5/8-8 5/8 in. | Mass: 29 lb
FSAF 1312Shaft: 60 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 9 5/8-8 5/8 in. | Mass: 29 lb
SAF 1313Shaft: 65 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 35 lb
FSAF 1313Shaft: 65 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 35 lb
SAF 1314Shaft: 70 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 40 lb
FSAF 1314Shaft: 70 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 40 lb
SAF 1315Shaft: 75 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 44 lb
FSAF 1315Shaft: 75 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 44 lb
SAF 1316Shaft: 80 mm | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 63 lb
FSAF 1316Shaft: 80 mm | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 63 lb
SAF 1317Shaft: 85 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 66 lb
FSAF 1317Shaft: 85 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 66 lb
SAF 1318Shaft: 90 mm | Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Mass: 86 lb
SAF 1320Shaft: 100 mm | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 97 lb
SAF 1322Shaft: 110 mm | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 132 lb
SAF 22308Shaft: 40 mm | Centre height H1: 2.500 in. | Length L: 8 1/4 in. | Bolt spacing J: 6 1/2-7 in. | Mass: 15 lb
SAF 22309Shaft: 45 mm | Centre height H1: 2.750 in. | Length L: 9 5/8 in. | Bolt spacing J: 7 3/8-7 7/8 in. | Mass: 19 lb
SAF 22310Shaft: 50 mm | Centre height H1: 3.000 in. | Length L: 10 5/8 in. | Bolt spacing J: 7 3/4-9 in. | Mass: 22 lb
SAF 22311Shaft: 55 mm | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 27 lb
FSAF 22311Shaft: 55 mm | Centre height H1: 3.250 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 27 lb
SAF 22312Shaft: 60 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 31 lb
FSAF 22312Shaft: 60 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 31 lb
SAF 22213Shaft: 65 mm | Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 22 lb
SAF 22313Shaft: 65 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 38 lb
FSAF 22313Shaft: 65 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 38 lb
SAF 22314Shaft: 70 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 42 lb
FSAF 22314Shaft: 70 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 42 lb
SAF 22215Shaft: 75 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 27 lb
SAF 22315Shaft: 75 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 48 lb
FSAF 22215Shaft: 75 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 27 lb
FSAF 22315Shaft: 75 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 48 lb
SAF 22216Shaft: 80 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 34 lb
SAF 22316Shaft: 80 mm | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 67 lb
FSAF 22216Shaft: 80 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 34 lb
FSAF 22316Shaft: 80 mm | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 67 lb
SAF 22217Shaft: 85 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 37 lb
SAF 22317Shaft: 85 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 71 lb
FSAF 22217Shaft: 85 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 35 lb
FSAF 22317Shaft: 85 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 71 lb
SAF 22218Shaft: 90 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Mass: 44 lb
SAF 22318Shaft: 90 mm | Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Mass: 92 lb
FSAF 22218Shaft: 90 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 44 lb
SAW 23218Shaft: 90 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 48 lb
SAF 22220Shaft: 100 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 59 lb
SAF 22320Shaft: 100 mm | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 107 lb
FSAF 22220Shaft: 100 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 59 lb
SAW 23220Shaft: 100 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 80 lb
SAF 22222Shaft: 110 mm | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 68 lb
SAF 22322Shaft: 110 mm | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 145 lb
SAWS 23222Shaft: 110 mm | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 91 lb
SAF 22224Shaft: 120 mm | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 97 lb
SAF 22324Shaft: 120 mm | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 201 lb
SAW 23224Shaft: 120 mm | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 105 lb
SAF 22226Shaft: 130 mm | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 134 lb
SAF 22326Shaft: 130 mm | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 221 lb
SAW 23226Shaft: 130 mm | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 155 lb
SAF 22228Shaft: 140 mm | Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Mass: 149 lb
SAF 22328Shaft: 140 mm | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 283 lb
SAW 23228Shaft: 140 mm | Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 16-17 1/8 in. | Mass: 180 lb
SAF 22230Shaft: 150 mm | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 187 lb
SAF 22330Shaft: 150 mm | Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Mass: 313 lb
SAW 23230Shaft: 150 mm | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 204 lb
SAF 22232Shaft: 160 mm | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 208 lb
SAF 22332Shaft: 160 mm | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 385 lb
SAW 23232Shaft: 160 mm | Centre height H1: 6.688 in. | Length L: 22 in. | Bolt spacing J: 17 3/8-19 1/4 in. | Mass: 245 lb
SAF 22234Shaft: 170 mm | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 263 lb
SAF 22334Shaft: 170 mm | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 449 lb
SAW 23234Shaft: 170 mm | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 298 lb
SAF 22236Shaft: 180 mm | Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Mass: 286 lb
SAW 23236Shaft: 180 mm | Centre height H1: 7.500 in. | Length L: 26 3/4 in. | Bolt spacing J: 20 7/8-23 5/8 in. | Mass: 286 lb
SAF 22238Shaft: 190 mm | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 356 lb
SAF 22338Shaft: 190 mm | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 589 lb
SAW 23238Shaft: 190 mm | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 430 lb
SAF 22240Shaft: 200 mm | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 408 lb
SAF 22340Shaft: 200 mm | Centre height H1: 9.875 in. | Length L: 34 1/4 in. | Bolt spacing J: 26 1/4-29 1/2 in. | Mass: 809 lb
SAW 23240Shaft: 200 mm | Centre height H1: 8.250 in. | Length L: 29 1/2 in. | Bolt spacing J: 22 1/2-25 in. | Mass: 515 lb
SAF 22244Shaft: 220 mm | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 535 lb
SAW 23244Shaft: 220 mm | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 710 lb
SAF C2213Shaft: 65 mm | Centre height H1: 3.000 in. | Length L: 11 in. | Bolt spacing J: 8 1/8-9 1/2 in. | Mass: 22 lb
SAF C2314Shaft: 70 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 42 lb
FSAF C2314Shaft: 70 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 42 lb
SAF C2215Shaft: 75 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 27 lb
SAF C2315Shaft: 75 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 48 lb
FSAF C2215Shaft: 75 mm | Centre height H1: 3.250 in. | Length L: 11 1/4 in. | Bolt spacing J: 8 5/8-9 5/8 in. | Mass: 27 lb
FSAF C2315Shaft: 75 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 48 lb
SAF C2216Shaft: 80 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 34 lb
SAF C2316Shaft: 80 mm | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 67 lb
FSAF C2216Shaft: 80 mm | Centre height H1: 3.500 in. | Length L: 13 in. | Bolt spacing J: 9 5/8-11 in. | Mass: 34 lb
FSAF C2316Shaft: 80 mm | Centre height H1: 4.250 in. | Length L: 14 1/4 in. | Bolt spacing J: 10 5/8-12 5/8 in. | Mass: 67 lb
SAF C2217Shaft: 85 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 35 lb
SAF C2317Shaft: 85 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 71 lb
FSAF C2217Shaft: 85 mm | Centre height H1: 3.750 in. | Length L: 13 in. | Bolt spacing J: 9 7/8-11 in. | Mass: 35 lb
FSAF C2317Shaft: 85 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 71 lb
SAF C2218Shaft: 90 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 1/4-11 3/4 in. | Mass: 44 lb
SAF C2318Shaft: 90 mm | Centre height H1: 4.750 in. | Length L: 15 1/2 in. | Bolt spacing J: 12-13 1/2 in. | Mass: 92 lb
FSAF C2218Shaft: 90 mm | Centre height H1: 4.000 in. | Length L: 13 3/4 in. | Bolt spacing J: 10 3/8-11 5/8 in. | Mass: 44 lb
SAF C2220Shaft: 100 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 59 lb
SAF C2320Shaft: 100 mm | Centre height H1: 5.250 in. | Length L: 16 1/2 in. | Bolt spacing J: 13 1/4-14 1/2 in. | Mass: 107 lb
FSAF C2220Shaft: 100 mm | Centre height H1: 4.500 in. | Length L: 15 1/4 in. | Bolt spacing J: 11 5/8-13 1/8 in. | Mass: 59 lb
SAF C2222Shaft: 110 mm | Centre height H1: 4.938 in. | Length L: 16 1/2 in. | Bolt spacing J: 12 5/8-14 1/2 in. | Mass: 88 lb
SAF C2226Shaft: 130 mm | Centre height H1: 6.000 in. | Length L: 18 3/8 in. | Bolt spacing J: 14 5/8-16 in. | Mass: 134 lb
SAF C2228Shaft: 140 mm | Centre height H1: 6.000 in. | Length L: 20 1/8 in. | Bolt spacing J: 15 5/8-17 3/8 in. | Mass: 149 lb
SAF C2230Shaft: 150 mm | Centre height H1: 6.312 in. | Length L: 21 1/4 in. | Bolt spacing J: 17-18 1/4 in. | Mass: 187 lb
SAF C2234Shaft: 170 mm | Centre height H1: 7.062 in. | Length L: 24 3/4 in. | Bolt spacing J: 19 3/8-21 5/8 in. | Mass: 263 lb
SAF C2238Shaft: 190 mm | Centre height H1: 7.875 in. | Length L: 28 in. | Bolt spacing J: 21 5/8-24 3/8 in. | Mass: 356 lb
SAF C2244Shaft: 220 mm | Centre height H1: 9.500 in. | Length L: 32 3/4 in. | Bolt spacing J: 24 3/4-27 7/8 in. | Mass: 535 lb

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
