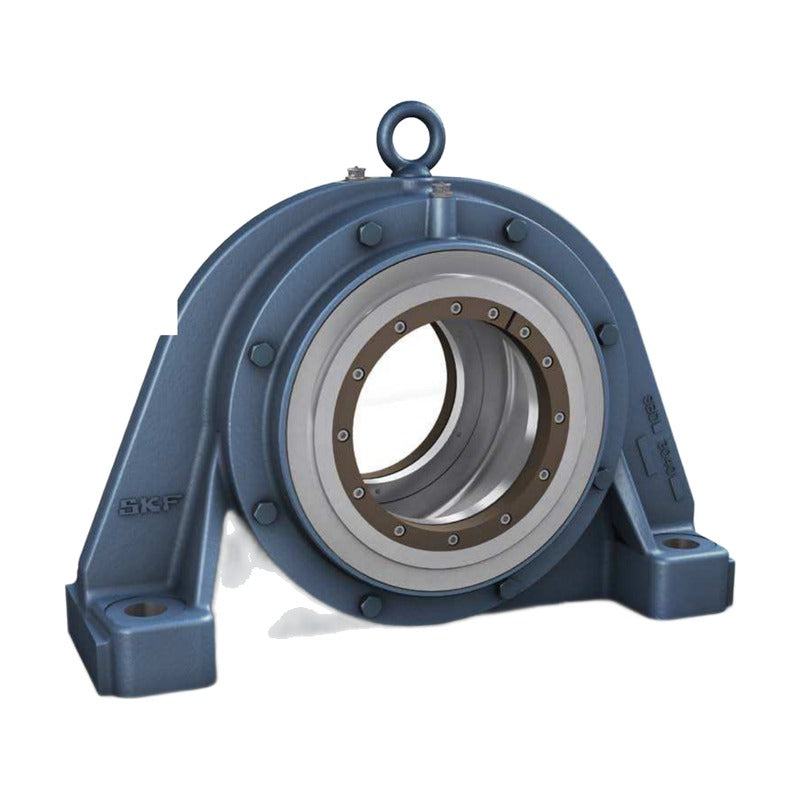

SKF SBD .. G Non-Split Plummer Block Housings (Cylindrical Seat)

SKF SBD .. G Non-Split Plummer Block Housings (Cylindrical Seat)

SKF SBD .. G non-split plummer block housings for spherical roller and CARB bearings on a cylindrical seat and multi-stepped shaft.

Key features

  • One-piece (non-split) housing body for high load carrying capacity
  • Spheroidal graphite cast iron (SBDD)
  • Housing type A for shaft ends, type B for through shafts
  • Labyrinth seals with PSBD adapter rings
  • Suitable for heavy-duty applications such as fans and crushers

Specifications

Series SBD .. G
Housing type Non-split plummer block
Material Spheroidal graphite cast iron
Mounting Cylindrical seat and multi-stepped shaft
Mass A / B Type A shaft end / type B through shaft
Source SKF Bearing housings and roller bearing units, p. 520-525
SBDD 2220 G Shaft: 100 mm | Centre height H1: 115 mm | Length L: 370 mm | Bolt spacing J: 300 mm | Mass A / B: 23 / 25 kg
SBDD 3122 G Shaft: 110 mm | Centre height H1: 130 mm | Length L: 400 mm | Bolt spacing J: 300 mm | Mass A / B: 40 / 45 kg
SBDD 2222 G Shaft: 110 mm | Centre height H1: 130 mm | Length L: 410 mm | Bolt spacing J: 340 mm | Mass A / B: 37 / 40 kg
SBDD 3222 G Shaft: 110 mm | Centre height H1: 140 mm | Length L: 440 mm | Bolt spacing J: 350 mm | Mass A / B: 46 / 50 kg
SBDD 3024 G Shaft: 120 mm | Centre height H1: 115 mm | Length L: 370 mm | Bolt spacing J: 300 mm | Mass A / B: 19 / 20 kg
SBDD 3124 G Shaft: 120 mm | Centre height H1: 140 mm | Length L: 410 mm | Bolt spacing J: 330 mm | Mass A / B: 45 / 50 kg
SBDD 2224 G Shaft: 120 mm | Centre height H1: 140 mm | Length L: 430 mm | Bolt spacing J: 360 mm | Mass A / B: 43 / 46 kg
SBDD 3224 G Shaft: 120 mm | Centre height H1: 150 mm | Length L: 470 mm | Bolt spacing J: 370 mm | Mass A / B: 50 / 55 kg
SBDD 3026 G Shaft: 130 mm | Centre height H1: 130 mm | Length L: 410 mm | Bolt spacing J: 340 mm | Mass A / B: 28 / 30 kg
SBDD 3126 G Shaft: 130 mm | Centre height H1: 145 mm | Length L: 430 mm | Bolt spacing J: 350 mm | Mass A / B: 50 / 55 kg
SBDD 2226 G Shaft: 130 mm | Centre height H1: 145 mm | Length L: 455 mm | Bolt spacing J: 370 mm | Mass A / B: 52 / 56 kg
SBDD 3226 G Shaft: 130 mm | Centre height H1: 160 mm | Length L: 500 mm | Bolt spacing J: 400 mm | Mass A / B: 60 / 65 kg
SBDD 3028 G Shaft: 140 mm | Centre height H1: 140 mm | Length L: 430 mm | Bolt spacing J: 360 mm | Mass A / B: 32 / 35 kg
SBDD 3128 G Shaft: 140 mm | Centre height H1: 155 mm | Length L: 470 mm | Bolt spacing J: 380 mm | Mass A / B: 58 / 65 kg
SBDD 2228 G Shaft: 140 mm | Centre height H1: 165 mm | Length L: 510 mm | Bolt spacing J: 420 mm | Mass A / B: 65 / 70 kg
SBDD 3228 G Shaft: 140 mm | Centre height H1: 170 mm | Length L: 530 mm | Bolt spacing J: 430 mm | Mass A / B: 74 / 80 kg
SBDD 3030 G Shaft: 150 mm | Centre height H1: 145 mm | Length L: 455 mm | Bolt spacing J: 370 mm | Mass A / B: 37 / 40 kg
SBDD 3130 G Shaft: 150 mm | Centre height H1: 170 mm | Length L: 580 mm | Bolt spacing J: 450 mm | Mass A / B: 78 / 85 kg
SBDD 2230 G Shaft: 150 mm | Centre height H1: 180 mm | Length L: 540 mm | Bolt spacing J: 450 mm | Mass A / B: 77 / 82 kg
SBDD 3230 G Shaft: 150 mm | Centre height H1: 180 mm | Length L: 550 mm | Bolt spacing J: 450 mm | Mass A / B: 87 / 95 kg
SBDD 3032 G Shaft: 160 mm | Centre height H1: 155 mm | Length L: 480 mm | Bolt spacing J: 390 mm | Mass A / B: 41 / 45 kg
SBDD 3132 G Shaft: 160 mm | Centre height H1: 180 mm | Length L: 540 mm | Bolt spacing J: 430 mm | Mass A / B: 90 / 100 kg
SBDD 2232 G Shaft: 160 mm | Centre height H1: 185 mm | Length L: 570 mm | Bolt spacing J: 480 mm | Mass A / B: 90 / 96 kg
SBDD 3232 G Shaft: 160 mm | Centre height H1: 190 mm | Length L: 600 mm | Bolt spacing J: 490 mm | Mass A / B: 100 / 110 kg
SBDD 3034 G Shaft: 170 mm | Centre height H1: 165 mm | Length L: 510 mm | Bolt spacing J: 420 mm | Mass A / B: 50 / 55 kg
SBDD 3134 G Shaft: 170 mm | Centre height H1: 190 mm | Length L: 570 mm | Bolt spacing J: 470 mm | Mass A / B: 100 / 110 kg
SBDD 2234 G Shaft: 170 mm | Centre height H1: 200 mm | Length L: 600 mm | Bolt spacing J: 510 mm | Mass A / B: 103 / 110 kg
SBDD 3234 G Shaft: 170 mm | Centre height H1: 200 mm | Length L: 640 mm | Bolt spacing J: 525 mm | Mass A / B: 130 / 140 kg
SBDD 3036 G Shaft: 180 mm | Centre height H1: 180 mm | Length L: 540 mm | Bolt spacing J: 450 mm | Mass A / B: 64 / 70 kg
SBDD 3136 G Shaft: 180 mm | Centre height H1: 200 mm | Length L: 600 mm | Bolt spacing J: 490 mm | Mass A / B: 118 / 130 kg
SBDD 2236 G Shaft: 180 mm | Centre height H1: 215 mm | Length L: 640 mm | Bolt spacing J: 540 mm | Mass A / B: 112 / 120 kg
SBDD 3236 G Shaft: 180 mm | Centre height H1: 210 mm | Length L: 680 mm | Bolt spacing J: 550 mm | Mass A / B: 147 / 160 kg
SBDD 3038 G Shaft: 190 mm | Centre height H1: 185 mm | Length L: 570 mm | Bolt spacing J: 480 mm | Mass A / B: 74 / 80 kg
SBDD 3138 G Shaft: 190 mm | Centre height H1: 210 mm | Length L: 680 mm | Bolt spacing J: 550 mm | Mass A / B: 146 / 160 kg
SBDD 2238 G Shaft: 190 mm | Centre height H1: 215 mm | Length L: 640 mm | Bolt spacing J: 540 mm | Mass A / B: 126 / 135 kg
SBDD 3238 G Shaft: 190 mm | Centre height H1: 220 mm | Length L: 710 mm | Bolt spacing J: 560 mm | Mass A / B: 170 / 185 kg
SBDD 3040 G Shaft: 200 mm | Centre height H1: 200 mm | Length L: 600 mm | Bolt spacing J: 510 mm | Mass A / B: 83 / 90 kg
SBDD 3140 G Shaft: 200 mm | Centre height H1: 220 mm | Length L: 710 mm | Bolt spacing J: 560 mm | Mass A / B: 175 / 190 kg
SBDD 2240 G Shaft: 200 mm | Centre height H1: 225 mm | Length L: 680 mm | Bolt spacing J: 560 mm | Mass A / B: 145 / 155 kg
SBDD 3240 G Shaft: 200 mm | Centre height H1: 235 mm | Length L: 780 mm | Bolt spacing J: 640 mm | Mass A / B: 200 / 220 kg
SBDD 3044 G Shaft: 220 mm | Centre height H1: 215 mm | Length L: 640 mm | Bolt spacing J: 540 mm | Mass A / B: 107 / 115 kg
SBDD 3144 G Shaft: 220 mm | Centre height H1: 235 mm | Length L: 780 mm | Bolt spacing J: 640 mm | Mass A / B: 205 / 220 kg
SBDD 2244 G Shaft: 220 mm | Centre height H1: 250 mm | Length L: 720 mm | Bolt spacing J: 600 mm | Mass A / B: 187 / 200 kg
SBDD 3244 G Shaft: 220 mm | Centre height H1: 260 mm | Length L: 850 mm | Bolt spacing J: 700 mm | Mass A / B: 270 / 290 kg
SBDD 3048 G Shaft: 240 mm | Centre height H1: 225 mm | Length L: 680 mm | Bolt spacing J: 560 mm | Mass A / B: 120 / 130 kg
SBDD 3148 G Shaft: 240 mm | Centre height H1: 270 mm | Length L: 890 mm | Bolt spacing J: 720 mm | Mass A / B: 250 / 270 kg
SBDD 2248 G Shaft: 240 mm | Centre height H1: 285 mm | Length L: 820 mm | Bolt spacing J: 690 mm | Mass A / B: 235 / 250 kg
SBDD 3248 G Shaft: 240 mm | Centre height H1: 290 mm | Length L: 900 mm | Bolt spacing J: 750 mm | Mass A / B: 345 / 370 kg
SBDD 3052 G Shaft: 260 mm | Centre height H1: 250 mm | Length L: 720 mm | Bolt spacing J: 600 mm | Mass A / B: 153 / 165 kg
SBDD 3152 G Shaft: 260 mm | Centre height H1: 290 mm | Length L: 900 mm | Bolt spacing J: 750 mm | Mass A / B: 300 / 320 kg
SBDD 2252 G Shaft: 260 mm | Centre height H1: 295 mm | Length L: 860 mm | Bolt spacing J: 730 mm | Mass A / B: 290 / 310 kg
SBDD 3252 G Shaft: 260 mm | Centre height H1: 310 mm | Length L: 960 mm | Bolt spacing J: 800 mm | Mass A / B: 435 / 470 kg
SBDD 3056 G Shaft: 280 mm | Centre height H1: 260 mm | Length L: 760 mm | Bolt spacing J: 630 mm | Mass A / B: 177 / 190 kg
SBDD 3156 G Shaft: 280 mm | Centre height H1: 290 mm | Length L: 900 mm | Bolt spacing J: 750 mm | Mass A / B: 325 / 350 kg
SBDD 2256 G Shaft: 280 mm | Centre height H1: 315 mm | Length L: 900 mm | Bolt spacing J: 770 mm | Mass A / B: 330 / 350 kg
SBDD 3256 G Shaft: 280 mm | Centre height H1: 320 mm | Length L: 1000 mm | Bolt spacing J: 840 mm | Mass A / B: 490 / 530 kg
SBDD 3060 G Shaft: 300 mm | Centre height H1: 285 mm | Length L: 820 mm | Bolt spacing J: 690 mm | Mass A / B: 215 / 230 kg
SBDD 3160 G Shaft: 300 mm | Centre height H1: 320 mm | Length L: 1000 mm | Bolt spacing J: 840 mm | Mass A / B: 400 / 430 kg
SBDD 2260 G Shaft: 300 mm | Centre height H1: 330 mm | Length L: 960 mm | Bolt spacing J: 820 mm | Mass A / B: 400 / 430 kg
SBDD 3260 G Shaft: 300 mm | Centre height H1: 350 mm | Length L: 1100 mm | Bolt spacing J: 920 mm | Mass A / B: 590 / 640 kg
SBDD 3064 G Shaft: 320 mm | Centre height H1: 295 mm | Length L: 860 mm | Bolt spacing J: 730 mm | Mass A / B: 240 / 255 kg
SBDD 3164 G Shaft: 320 mm | Centre height H1: 350 mm | Length L: 1150 mm | Bolt spacing J: 940 mm | Mass A / B: 490 / 530 kg
SBDD 2264 G Shaft: 320 mm | Centre height H1: 360 mm | Length L: 1060 mm | Bolt spacing J: 900 mm | Mass A / B: 485 / 520 kg
SBDD 3264 G Shaft: 320 mm | Centre height H1: 370 mm | Length L: 1150 mm | Bolt spacing J: 960 mm | Mass A / B: 700 / 760 kg
SBDD 3068 G Shaft: 340 mm | Centre height H1: 315 mm | Length L: 900 mm | Bolt spacing J: 770 mm | Mass A / B: 280 / 305 kg
SBDD 3168 G Shaft: 340 mm | Centre height H1: 370 mm | Length L: 1150 mm | Bolt spacing J: 960 mm | Mass A / B: 590 / 630 kg
SBDD 3268 G Shaft: 340 mm | Centre height H1: 390 mm | Length L: 1200 mm | Bolt spacing J: 980 mm | Mass A / B: 830 / 900 kg
SBDD 3072 G Shaft: 360 mm | Centre height H1: 330 mm | Length L: 960 mm | Bolt spacing J: 820 mm | Mass A / B: 315 / 340 kg
SBDD 3172 G Shaft: 360 mm | Centre height H1: 380 mm | Length L: 1200 mm | Bolt spacing J: 1000 mm | Mass A / B: 660 / 700 kg
SBDD 3272 G Shaft: 360 mm | Centre height H1: 410 mm | Length L: 1280 mm | Bolt spacing J: 1040 mm | Mass A / B: 950 / 1020 kg
SBDD 3076 G Shaft: 380 mm | Centre height H1: 340 mm | Length L: 1000 mm | Bolt spacing J: 840 mm | Mass A / B: 350 / 380 kg
SBDD 3176 G Shaft: 380 mm | Centre height H1: 390 mm | Length L: 1200 mm | Bolt spacing J: 1000 mm | Mass A / B: 730 / 770 kg
SBDD 3276 G Shaft: 380 mm | Centre height H1: 425 mm | Length L: 1350 mm | Bolt spacing J: 1100 mm | Mass A / B: 1060 / 1140 kg
SBDD 3080 G Shaft: 400 mm | Centre height H1: 360 mm | Length L: 1060 mm | Bolt spacing J: 900 mm | Mass A / B: 420 / 450 kg
SBDD 3180 G Shaft: 400 mm | Centre height H1: 410 mm | Length L: 1280 mm | Bolt spacing J: 1040 mm | Mass A / B: 820 / 870 kg
SBDD 3280 G Shaft: 400 mm | Centre height H1: 450 mm | Length L: 1430 mm | Bolt spacing J: 1160 mm | Mass A / B: 1240 / 1330 kg
SBDD 3084 G Shaft: 420 mm | Centre height H1: 375 mm | Length L: 1100 mm | Bolt spacing J: 940 mm | Mass A / B: 465 / 500 kg
SBDD 3184 G Shaft: 420 mm | Centre height H1: 450 mm | Length L: 1350 mm | Bolt spacing J: 1100 mm | Mass A / B: 1000 / 1070 kg
SBDD 3284 G Shaft: 420 mm | Centre height H1: 470 mm | Length L: 1500 mm | Bolt spacing J: 1220 mm | Mass A / B: 1500 / 1600 kg
