SKF Sealed CARB Toroidal Roller Bearings (-2CS5V)

SKF Sealed CARB Toroidal Roller Bearings (-2CS5V)

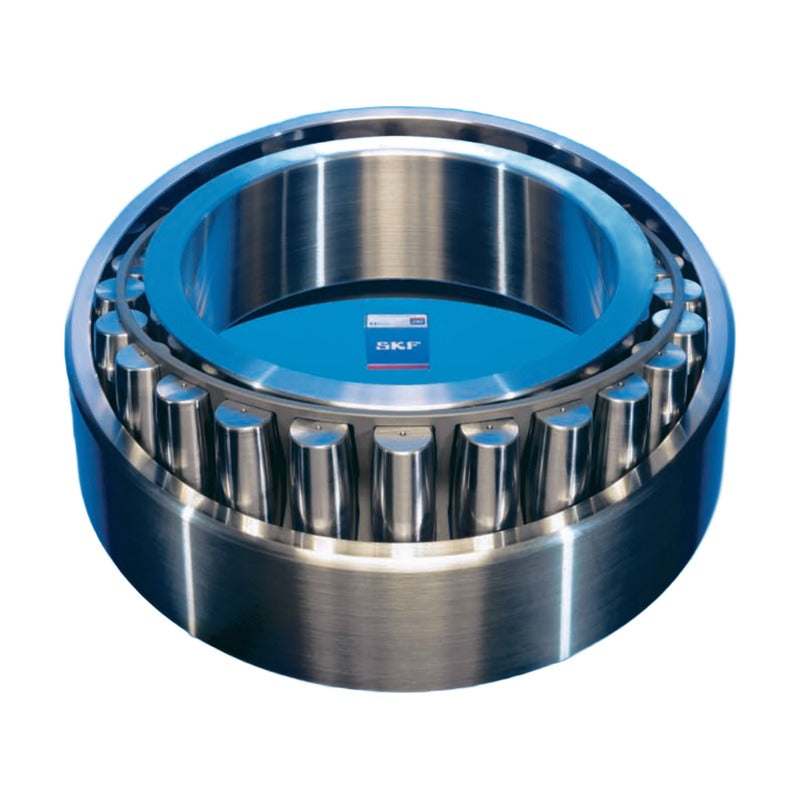

SKF sealed full complement CARB toroidal roller bearings with contact seals on both sides, greased for life. Bore diameters 50-200 mm.

Key features

  • Contact seals on both sides, filled with grease
  • Full complement roller set for high load capacity at low speeds
  • Accommodates misalignment and axial displacement within the bearing
  • Series 40, 41, 59, 69

Specifications

Bearing type Sealed CARB toroidal roller bearing
Seals 2CS5, both sides
Bore range d 50-200 mm
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 812-814
C 6910-2CS5V d: 50 mm | D: 72 mm | B: 40 mm | C: 140 kN | C0: 224 kN | Limiting speed: 200 r/min
C 6912-2CS5V d: 60 mm | D: 85 mm | B: 45 mm | C: 150 kN | C0: 240 kN | Limiting speed: 170 r/min
C 4013-2CS5V d: 65 mm | D: 100 mm | B: 35 mm | C: 102 kN | C0: 173 kN | Limiting speed: 150 r/min
C 6915-2CS5V d: 75 mm | D: 105 mm | B: 54 mm | C: 204 kN | C0: 325 kN | Limiting speed: 140 r/min
C 4015-2CS5V d: 75 mm | D: 115 mm | B: 40 mm | C: 143 kN | C0: 193 kN | Limiting speed: 130 r/min
C 5918-2CS5V d: 90 mm | D: 125 mm | B: 46 mm | C: 224 kN | C0: 400 kN | Limiting speed: 110 r/min
C 4020-2CS5V d: 100 mm | D: 150 mm | B: 50 mm | C: 310 kN | C0: 450 kN | Limiting speed: 95 r/min
C 4120-2CS5V d: 100 mm | D: 165 mm | B: 65 mm | C: 475 kN | C0: 655 kN | Limiting speed: 90 r/min
C 4022-2CS5V d: 110 mm | D: 170 mm | B: 60 mm | C: 415 kN | C0: 585 kN | Limiting speed: 85 r/min
C 4122-2CS5V d: 110 mm | D: 180 mm | B: 69 mm | C: 500 kN | C0: 710 kN | Limiting speed: 85 r/min
C 4024-2CS5V d: 120 mm | D: 180 mm | B: 60 mm | C: 430 kN | C0: 640 kN | Limiting speed: 80 r/min
C 4124-2CS5V d: 120 mm | D: 200 mm | B: 80 mm | C: 710 kN | C0: 1000 kN | Limiting speed: 75 r/min
C 4026-2CS5V d: 130 mm | D: 200 mm | B: 69 mm | C: 550 kN | C0: 830 kN | Limiting speed: 70 r/min
C 4126-2CS5V d: 130 mm | D: 210 mm | B: 80 mm | C: 750 kN | C0: 1100 kN | Limiting speed: 70 r/min
C 4028-2CS5V d: 140 mm | D: 210 mm | B: 69 mm | C: 570 kN | C0: 900 kN | Limiting speed: 67 r/min
C 4128-2CS5V d: 140 mm | D: 225 mm | B: 85 mm | C: 780 kN | C0: 1200 kN | Limiting speed: 63 r/min
C 4030-2CS5V d: 150 mm | D: 225 mm | B: 75 mm | C: 585 kN | C0: 965 kN | Limiting speed: 63 r/min
C 4130-2CS5V d: 150 mm | D: 250 mm | B: 100 mm | C: 1220 kN | C0: 1860 kN | Limiting speed: 60 r/min
C 4032-2CS5V d: 160 mm | D: 240 mm | B: 80 mm | C: 655 kN | C0: 1100 kN | Limiting speed: 60 r/min
C 4132-2CS5V d: 160 mm | D: 270 mm | B: 109 mm | C: 1460 kN | C0: 2160 kN | Limiting speed: 53 r/min
C 4034-2CS5V d: 170 mm | D: 260 mm | B: 90 mm | C: 965 kN | C0: 1630 kN | Limiting speed: 53 r/min
C 4134-2CS5V d: 170 mm | D: 280 mm | B: 109 mm | C: 1530 kN | C0: 2280 kN | Limiting speed: 53 r/min
C 4036-2CS5V d: 180 mm | D: 280 mm | B: 100 mm | C: 1320 kN | C0: 2120 kN | Limiting speed: 53 r/min
C 4136-2CS5V d: 180 mm | D: 300 mm | B: 118 mm | C: 1760 kN | C0: 2700 kN | Limiting speed: 48 r/min
C 4038-2CS5V d: 190 mm | D: 290 mm | B: 100 mm | C: 1370 kN | C0: 2320 kN | Limiting speed: 48 r/min
C 4138-2CS5V d: 190 mm | D: 320 mm | B: 128 mm | C: 2040 kN | C0: 3150 kN | Limiting speed: 45 r/min
C 4040-2CS5V d: 200 mm | D: 310 mm | B: 109 mm | C: 1630 kN | C0: 2650 kN | Limiting speed: 45 r/min
C 4140-2CS5V d: 200 mm | D: 340 mm | B: 140 mm | C: 2360 kN | C0: 3650 kN | Limiting speed: 43 r/min
Spherical Roller BearingsSKF
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF Sealed CARB Toroidal Roller Bearings (-2CS5V)

Brand SKF·Spherical Roller Bearings

Available part numbers (28)

C 6910-2CS5V, C 6912-2CS5V, C 4013-2CS5V, C 6915-2CS5V, C 4015-2CS5V, C 5918-2CS5V, C 4020-2CS5V, C 4120-2CS5V, C 4022-2CS5V, C 4122-2CS5V + 18 more — see full table ↓
